Oscillation neuron based on a low-variability threshold switching device for high-performance neuromorphic computing

Yujia Li1, 2, Jianshi Tang2, 3, , Bin Gao2, 3, Xinyi Li2, Yue Xi2, Wanrong Zhang1, He Qian2, 3 and Huaqiang Wu2, 3,

+ Author Affiliations

 Corresponding author: Jianshi Tang, jtang@tsinghua.edu.cn; Huaqiang Wu, wuhq@tsinghua.edu.cn

PDF

Turn off MathJax

Abstract: Low-power and low-variability artificial neuronal devices are highly desired for high-performance neuromorphic computing. In this paper, an oscillation neuron based on a low-variability Ag nanodots (NDs) threshold switching (TS) device with low operation voltage, large on/off ratio and high uniformity is presented. Measurement results indicate that this neuron demonstrates self-oscillation behavior under applied voltages as low as 1 V. The oscillation frequency increases with the applied voltage pulse amplitude and decreases with the load resistance. It can then be used to evaluate the resistive random-access memory (RRAM) synaptic weights accurately when the oscillation neuron is connected to the output of the RRAM crossbar array for neuromorphic computing. Meanwhile, simulation results show that a large RRAM crossbar array (> 128 × 128) can be supported by our oscillation neuron owing to the high on/off ratio (> 108) of Ag NDs TS device. Moreover, the high uniformity of the Ag NDs TS device helps improve the distribution of the output frequency and suppress the degradation of neural network recognition accuracy (< 1%). Therefore, the developed oscillation neuron based on the Ag NDs TS device shows great potential for future neuromorphic computing applications.

Key words: threshold switching, Ag nanodots, oscillation neuron, neuromorphic computing



[1]
Indiveri G, Linares-Barranco B, Legenstein R, et al. Integration of nanoscale memristor synapses in neuromorphic computing architectures. Nanotechnology, 2013, 24, 384010 doi: 10.1088/0957-4484/24/38/384010
[2]
Ambrogio S, Balatti S, Milo V, et al. Neuromorphic learning and recognition with one-transistor-one-resistor synapses and bistable metal oxide RRAM. IEEE Trans Electron Devices, 2016, 63, 1508 doi: 10.1109/TED.2016.2526647
[3]
Burr G W, Shelby R M, Sebastian A, et al. Neuromorphic computing using non-volatile memory. Adv Phys X, 2017, 2, 89 doi: 10.1080/23746149.2016.1259585
[4]
Zidan M A, Strachan J P, Lu W D. The future of electronics based on memristive systems. Nat Electron, 2018, 1, 22 doi: 10.1038/s41928-017-0006-8
[5]
Merrikh B F, Prezioso M, Chakrabarti B, et al. Implementation of multilayer perceptron network with highly uniform passive memristive crossbar circuits. Nat Commun, 2017, 9, 2331 doi: 10.1038/s41467-018-04482-4
[6]
Yao P, Wu H Q, Gao B, et al. Fully hardware-implemented memristor convolutional neural network. Nature, 2020, 577, 641 doi: 10.1038/s41586-020-1942-4
[7]
Choi S, Yang J, Wang G. Emerging memristive artificial synapses and neurons for energy-efficient neuromorphic computing. Adv Mater, 2020, 32, 2004659 doi: 10.1002/adma.202004659
[8]
Zhu J D, Zhang T, Yang Y C, et al. A comprehensive review on emerging artificial neuromorphic devices. Appl Phys Rev, 2020, 7, 011312 doi: 10.1063/1.5118217
[9]
Kadetotad D, Xu Z H, Mohanty A, et al. Parallel architecture with resistive crosspoint array for dictionary learning acceleration. IEEE J Emerg Sel Top Circuits Syst, 2015, 5, 194 doi: 10.1109/JETCAS.2015.2426495
[10]
Hua Q L, Wu H Q, Gao B, et al. Low-voltage oscillatory neurons for memristor-based neuromorphic systems. Glob Challenges, 2019, 3, 1900015 doi: 10.1002/gch2.201900015
[11]
Dang B J, Liu K Q, Zhu J D, et al. Stochastic neuron based on IGZO Schottky diodes for neuromorphic computing. APL Mater, 2019, 7, 071114 doi: 10.1063/1.5109090
[12]
Li S, Liu X J, Nandi S K, et al. High-endurance MHz electrical self-oscillation in Ti/NbOx bilayer structures. Appl Phys Lett, 2015, 106, 212902 doi: 10.1063/1.4921745
[13]
Gao L G, Chen P Y, Yu S M. NbOx based oscillation neuron for neuromorphic computing. Appl Phys Lett, 2017, 111, 103503 doi: 10.1063/1.4991917
[14]
Duan Q X, Jing Z K, Yang K, et al. Oscillation neuron based on threshold switching characteristics of niobium oxide films. 2019 IEEE International Workshop on Future Computing, 2019, 1
[15]
Woo J, Wang P N, Yu S M. Integrated crossbar array with resistive synapses and oscillation neurons. IEEE Electron Device Lett, 2019, 40, 1313 doi: 10.1109/LED.2019.2921656
[16]
Wang P N, Khan A I, Yu S M. Cryogenic behavior of NbO2 based threshold switching devices as oscillation neurons. Appl Phys Lett, 2020, 116, 162108 doi: 10.1063/5.0006467
[17]
Luo Q, Xu X, Lv H, et al. Cu BEOL compatible selector with high selectivity (> 107), extremely low off-current (pA) and high endurance (> 1010). 2015 IEEE International Electron Devices Meeting (IEDM), 2015, 10.4.1
[18]
Yoo J, Woo J, Song J, et al. Threshold switching behavior of Ag-Si based selector device and hydrogen doping effect on its characteristics. AIP Adv, 2015, 5, 127221 doi: 10.1063/1.4938548
[19]
Du G, Wang C, Li H X, et al. Bidirectional threshold switching characteristics in Ag/ZrO2/Pt electrochemical metallization cells. AIP Adv, 2016, 6, 085316 doi: 10.1063/1.4961709
[20]
Wang Z R, Rao M Y, Midya R, et al. Threshold switching: Threshold switching of Ag or Cu in dielectrics: Materials, mechanism, and applications. Adv Funct Mater, 2018, 28, 1870036 doi: 10.1002/adfm.201870036
[21]
Yoo J, Park J, Song J, et al. Field-induced nucleation in threshold switching characteristics of electrochemical metallization devices. Appl Phys Lett, 2017, 111, 063109 doi: 10.1063/1.4985165
[22]
Wang W, Wang M, Ambrosi E, et al. Surface diffusion-limited lifetime of silver and copper nanofilaments in resistive switching devices. Nat Commun, 2019, 10, 81 doi: https://doi.org/10.1038/s41467-018-07979-0
[23]
Hua Q L, Wu H Q, Gao B, et al. Threshold switching selectors: A threshold switching selector based on highly ordered Ag nanodots for X-point memory applications. Adv Sci, 2019, 6, 1970058 doi: 10.1002/advs.201970058
[24]
Li Y J, Tang J S, Gao B, et al. High-uniformity threshold switching HfO2 -based selectors with patterned Ag nanodots. Adv Sci, 2020, 7, 2002251 doi: 10.1002/advs.202002251
[25]
Xi Y, Gao B, Tang J S, et al. In-memory learning with analog resistive switching memory: A review and perspective. Proc IEEE, 2021, 109, 14 doi: 10.1109/JPROC.2020.3004543
Fig. 1.  (Color online) (a) Schematic diagram of a typical artificial neural network. (b) Circuit implementation of the oscillation neuron with a TS device.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) (a) TEM image of the Ag NDs TS device. (b) Schematic illustration of the threshold switching process in the device. (c) Typical current–voltage (I–V) curves for the Ag NDs TS device. (d) Cumulative probability of Vth and Vhold distributions for the Ag NDs TS device. (e) Endurance test of the Ag NDs TS device with over 108 cycles. (f) Measured oscillation waveform of the oscillation neuron.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  (Color online) (a) Oscillation waveforms of the oscillation neuron with different Vin when RL = 50 kΩ, CL = 750 pF. (b) The oscillation frequency as a function of Vin. (c) Oscillation waveforms of the oscillation neuron with different RL when Vin = 1.2 V, CL = 750 pF. (d) The oscillation frequency as a function of RL.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) The oscillation frequency as a function of the RRAM crossbar array size under different on/off ratios of the TS device.

DownLoad: Full-Size Img PowerPoint

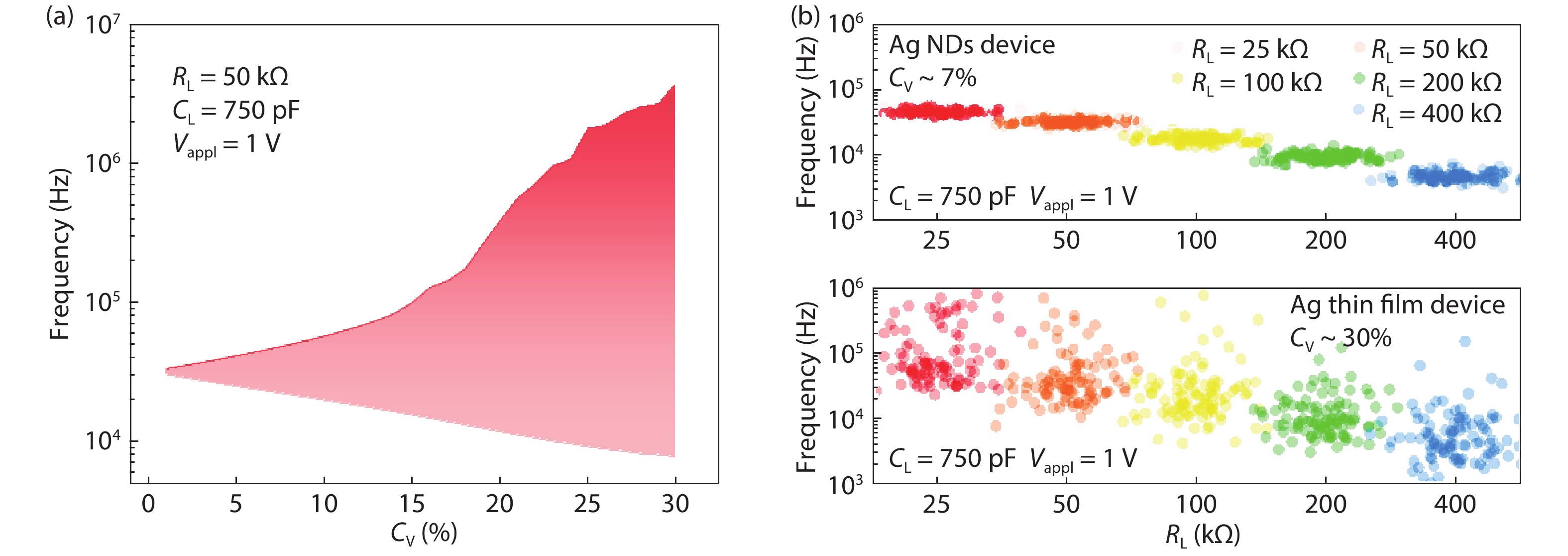

Fig. 5.  (Color online) (a) The oscillation frequency distribution under different CV. (b) The oscillation frequency distribution of different RL when CV = 7% (top panel) and CV = 30% (bottom panel).
