An 8-bit 100-MS/s digital-to-skew converter embedded switch with a 200-ps range for time-interleaved sampling

Xiaoshi Zhu 1, , Chixiao Chen 1, , Jialiang Xu 1, , Fan Ye 1, , and Junyan Ren 1, 2,

+ Author Affiliations + Find other works by these authors

PDF

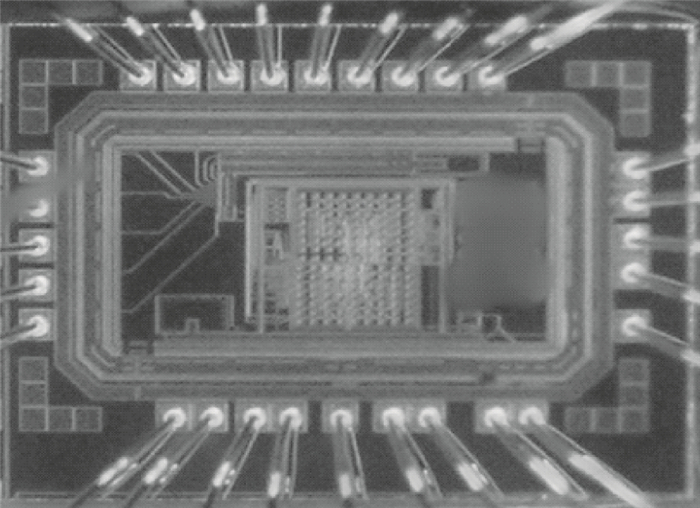

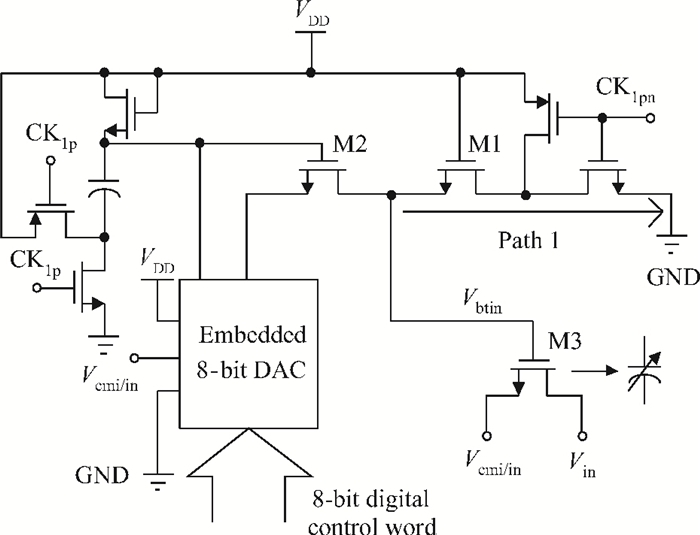

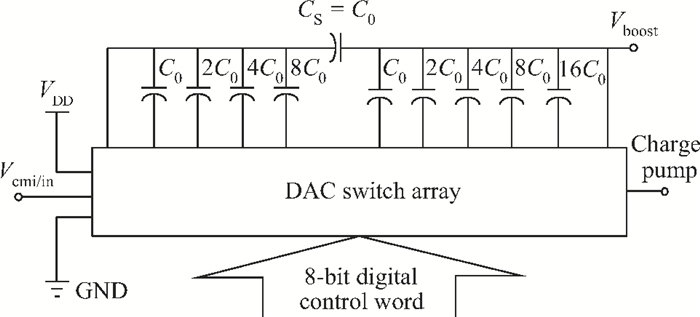

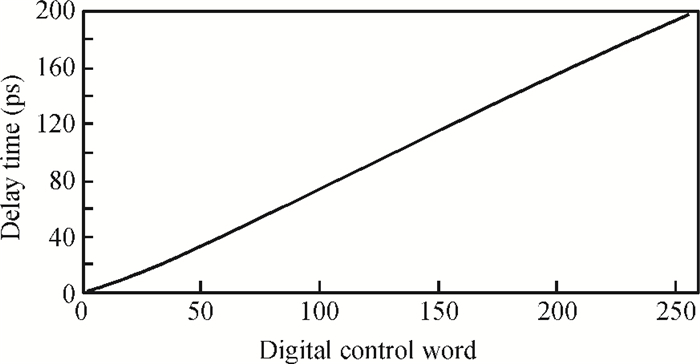

Abstract: A sampling switch with an embedded digital-to-skew converter (DSC) is presented. The proposed switch eliminates time-interleaved ADCs' skews by adjusting the boosted voltage. A similar bridged capacitors' charge sharing structure is used to minimize the area. The circuit is fabricated in a 0.18 μm CMOS process and achieves sub-1 ps resolution and 200 ps timing range at a rate of 100 MS/s. The power consumption is 430 μW at maximum. The measurement result also includes a 2-channel 14-bit 100 MS/s time-interleaved ADCs (TI-ADCs) with the proposed DSC switch's demonstration. This scheme is widely applicable for the clock skew and aperture error calibration demanded in TI-ADCs and SHA-less ADCs.

Key words: sample-time errordigital-to-skew converterbootstrapped switchcalibrationtime-interleaved

Abstract: A sampling switch with an embedded digital-to-skew converter (DSC) is presented. The proposed switch eliminates time-interleaved ADCs' skews by adjusting the boosted voltage. A similar bridged capacitors' charge sharing structure is used to minimize the area. The circuit is fabricated in a 0.18 μm CMOS process and achieves sub-1 ps resolution and 200 ps timing range at a rate of 100 MS/s. The power consumption is 430 μW at maximum. The measurement result also includes a 2-channel 14-bit 100 MS/s time-interleaved ADCs (TI-ADCs) with the proposed DSC switch's demonstration. This scheme is widely applicable for the clock skew and aperture error calibration demanded in TI-ADCs and SHA-less ADCs.

Key words: sample-time errordigital-to-skew converterbootstrapped switchcalibrationtime-interleaved
