A 640 × 640 ISFET array for detecting cell metabolism

Ling Yang1, L, Yizheng Huang1, 2, L, Zhigang Song1, 2, Manqing Tan1, 2, Yude Yu1, 2, 3 and Zhao Li1, 2, 3,

+ Author Affiliations

 Corresponding author: Zhao Li, zhaoli@semi.ac.cn

PDF

Turn off MathJax

Abstract: Ion sensitive field effect transistor (ISFET) devices are highly accurate, convenient, fast and low-cost in the detection of ions and biological macromolecules, such as DNA molecules, antibodies, enzymatic substrates and cellular metabolites. For high-throughput cell metabolism detection, we successfully designed a very large-scale biomedical sensing application specific integrated circuit (ASIC) with a 640 × 640 ISFET array. The circuit design is highly integrated by compressing the size of a pixel to 7.4 × 7.4 μm2 and arranging the layout of even and odd columns in an interdigital pattern to maximize the utilization of space. The chip can operate at a speed of 2.083M pixels/s and the dynamic process of the fluid flow on the surface of the array was monitored through ion imaging. The pH sensitivity is 33 ± 4 mV/pH and the drift rate is 0.06 mV/min after 5 h, indicating the stability and robustness of the chip. Moreover, the chip was applied to monitor pH changes in CaSki cells metabolism, with pH shifting from 8.04 to 7.40 on average. This platform has the potential for continuous and parallel monitoring of cell metabolism in single-cell culture arrays.

Key words: ASICISFET arraypH monitoringion imagingcell metabolism



[1]
DeBerardinis R J, Thompson C B. Cellular metabolism and disease: What do metabolic outliers teach us? Cell, 2012, 148, 1132 doi: 10.1016/j.cell.2012.02.032
[2]
Solaini G, Sgarbi G, Baracca A. Oxidative phosphorylation in cancer cells. Biochim Biophys Acta, 2011, 1807, 534 doi: 10.1016/j.bbabio.2010.09.003
[3]
Wang J X, Choi S Y C, Niu X J, et al. Lactic acid and an acidic tumor microenvironment suppress anticancer immunity. Int J Mol Sci, 2020, 21, 8363 doi: 10.3390/ijms21218363
[4]
Thews O, Riemann A. Tumor pH and metastasis: A malignant process beyond hypoxia. Cancer Metastasis Rev, 2019, 38, 113 doi: 10.1007/s10555-018-09777-y
[5]
Rueck A C, Hauser C, Mosch S, et al. Spectrally resolved fluorescence lifetime imaging to investigate cell metabolism in malignant and nonmalignant oral mucosa cells. J Biomed Opt, 2014, 19, 096005 doi: 10.1117/1.JBO.19.9.096005
[6]
Le Guern F, Mussard V, Gaucher A, et al. Fluorescein derivatives as fluorescent probes for pH monitoring along recent biological applications. Int J Mol Sci, 2020, 21, 9217 doi: 10.3390/ijms21239217
[7]
Fatemeh S, Soheil J, Abdolhosein H, et al. Effects of variations of voltage and pH value on the shear strength of soil and durability of different electrodes and piles during electrokinetic phenomenon. J Rock Mech Geotech Eng, 2022, 14, 625 doi: 10.1016/j.jrmge.2021.07.017
[8]
Tao Z, Si H W, Zhang X D, et al. Highly sensitive and selective H2O2 sensors based on ZnO TFT using PBNCs/Pt-NPs/TNTAs as gate electrode. Sens Actuat B, 2021, 349, 130791 doi: 10.1016/j.snb.2021.130791
[9]
Bergveld P. Development of an ion-sensitive solid-state device for neurophysiological measurements. IEEE Trans Biomed Eng, 1970, BME-17, 70 doi: 10.1109/TBME.1970.4502688
[10]
Bergveld P. Thirty years of ISFETOLOGY: what happened in the past 30 years and what may happen in the next 30 years. Sens Actuat B, 2003, 88, 1 doi: 10.1016/S0925-4005(02)00301-5
[11]
Cao S L, Sun P, Xiao G, et al. ISFET-based sensors for (bio)chemical applications: A review. Electrochem Sci Adv, 2022, 2100207 doi: 10.1002/elsa.202100207
[12]
Douthwaite M, Moser N, Georgiou P. CMOS ISFET arrays for integrated electrochemical sensing and imaging applications: A tutorial. IEEE Sens J, 2021, 21, 22155 doi: 10.1109/JSEN.2021.3094206
[13]
Rothberg J M, Hinz W, Rearick T M, et al. An integrated semiconductor device enabling non-optical genome sequencing. Nature, 2011, 475, 348 doi: 10.1038/nature10242
[14]
Sun P, Cong Y X, Xu M, et al. An ISFET microarray sensor system for detecting the DNA base pairing. Micromachines, 2021, 12, 731 doi: 10.3390/mi12070731
[15]
Toumazou C, Shepherd L M, Reed S C, et al. Simultaneous DNA amplification and detection using a pH-sensing semiconductor system. Nat Methods, 2013, 10, 641 doi: 10.1038/nmeth.2520
[16]
Cacho-Soblechero M, Malpartida-Cardenas K, Cicatiello C, et al. A dual-sensing thermo-chemical ISFET array for DNA-based diagnostics. IEEE Trans Biomed Circuits Syst, 2020, 14, 477 doi: 10.1109/TBCAS.2020.2978000
[17]
Duan M Z, Zhong X P, Xu J T, et al. A high offset distribution tolerance high resolution ISFET array with auto-compensation for long-term bacterial metabolism monitoring. IEEE Trans Biomed Circuits Syst, 2020, 14, 463 doi: 10.1109/TBCAS.2020.2977960
[18]
Yang L H, Liu X B, Yin B, et al. High-throughput and real-time monitoring of single-cell extracellular pH based on polyaniline microarrays. Anal Chem, 2021, 93, 13852 doi: 10.1021/acs.analchem.1c02560
[19]
Milgrew M J, et al. The development of scalable sensor arrays using standard CMOS technology. Sens Actuat B, 2004, 103, 37 doi: 10.1016/j.snb.2004.03.004
[20]
van Hal R E G, et al. A general model to describe the electrostatic potential at electrolyte oxide interfaces. Adv Colloid Interface Sci, 1996, 69, 31 doi: 10.1016/S0001-8686(96)00307-7
[21]
Yang L, et al. A high-speed small-area pixel 16  ×  16 ISFET array design using 0.35-μm CMOS process. Microelectron J, 2018, 79, 107 doi: 10.1016/j.mejo.2018.03.003
[22]
Nakazato K. An integrated ISFET sensor array. Sensors, 2009, 9, 8831 doi: 10.3390/s91108831
[23]
Miscourides N, Georgiou P. Calibrating for trapped charge in large-scale ISFET arrays. IEEE Sens J, 2020, 20, 5110 doi: 10.1109/JSEN.2020.2968578
[24]
Miscourides N, Yu L S, Rodriguez-Manzano J, et al. A 12.8 k current-mode velocity-saturation ISFET array for on-chip real-time DNA detection. IEEE Trans Biomed Circuits Syst, 2018, 12, 1202 doi: 10.1109/TBCAS.2018.2851448
[25]
Moser N, Rodriguez-Manzano J, Lande T S, et al. A scalable ISFET sensing and memory array with sensor auto-calibration for on-chip real-time DNA detection. IEEE Trans Biomed Circuits Syst, 2018, 12, 390 doi: 10.1109/TBCAS.2017.2789161
[26]
Sakata T, Sugimoto H, Saito A. Live monitoring of microenvironmental pH based on extracellular acidosis around cancer cells with cell-coupled gate ion-sensitive field-effect transistor. Anal Chem, 2018, 90, 12731 doi: 10.1021/acs.analchem.8b03070
Fig. 1.  (Color online) Schematic cross-section of a p-type ISFET.

Fig. 2.  (Color online) Circuits and layout design of the chip. (a) The basic readout circuit of a unit. (b) Circuit diagram of the array. Although the odd and even columns are geometrically crossed and closed to each other, they are logically separated. The signals of the odd and even columns are sent to Vout1 and Vout2 terminals through the upper and lower electrical channels, respectively. (c) Pixels and readout circuit design of one column. (d) A top view of the chip layout.

Fig. 3.  (Color online) Images of the ISFET array after encapsulation and welding. Regions outlined with boxes of different colors were displayed in the figures of the corresponding colors. (a) Image of the chip encapsulated in a QFP shell. (b) Details of the chip. It includes a pixel array (middle), readout circuits and column selection circuits (top and bottom), and row selection registers (left). (c) A small portion of the pixel array was imaged under a microscope. Each pixel is 7.4 × 7.4 µm2. (d) The SEM micrograph of the passivation layer. The top layer Si3N4 is used as the sensing layer.

Fig. 4.  (Color online) Signals of the ISFET array. (a) Initial signals of the ISFET array after UV irradiation with a reference voltage of 0 V. (b) Signal values decreased when the reference voltage was regulated to –4.0 V.

Fig. 5.  (Color online) Ion imaging of dynamic flow process. (a) All sensitive pixels had uniform signals initially. (b–e) Once the buffer was injected into the chip, signals of the pixels in contact with the buffer changed immediately. (f) The buffer was evenly distributed across the surface, so each pixel had a similar output signal.

Fig. 6.  (Color online) (a) Voltage signals of six pH values for 1000 pixels. Each of the 1000 pixels was picked from the array per 20 rows and 20 columns, which could ensure the pixels were uniformly distributed. Each step is 20 acquired data in about 25 s, and the washing time is not included. The 20 acquired data were averaged to calculate the pH sensitivity of a pixel. (b) The pH-to-output voltage curve for the same pixels in (a). Each point is the mean value of the pixels, and the error bar is also calculated from the data.

Fig. 7.  (Color online) The repeatability measurement results of commercial buffers with different pHs of 4.01, 7.00, and 9.21.

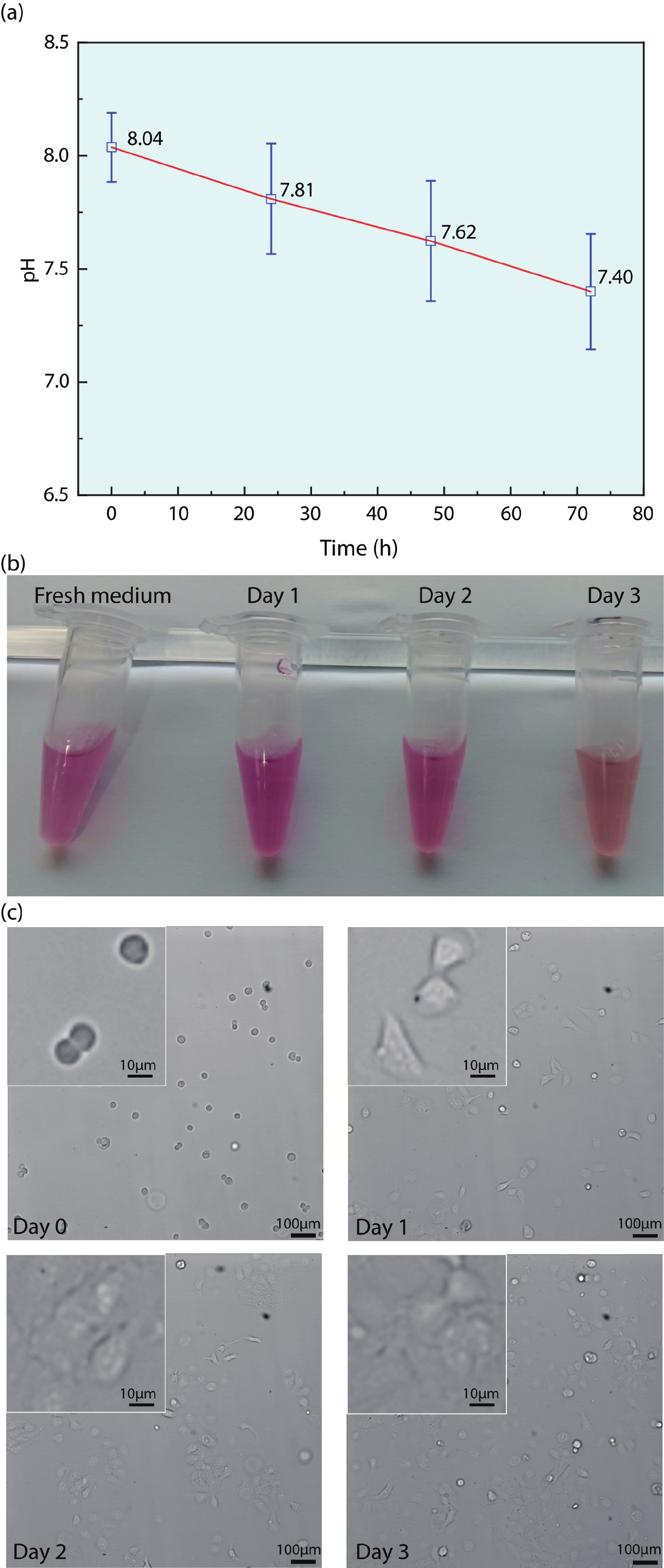

Fig. 8.  (Color online) Cell culture process and data analysis. (a) The pH changes of medium samples. (b) Photograph of CaSki cell culture medium within 4 days. (c) Micrographs of the cell proliferation status during 4 days.
