A large-area multi-finger β-Ga2O3 MOSFET and its self-heating effect

Xuanze Zhou, Guangwei Xu and Shibing Long

+ Author Affiliations

 Corresponding author: Guangwei Xu, xugw@ustc.edu.cn; Shibing Long, shibinglong@ustc.edu.cn

PDF

Turn off MathJax

Abstract: The self-heating effect severely limits device performance and reliability. Although some studies have revealed the heat distribution of β-Ga2O3 MOSFETs under biases, those devices all have small areas and have difficulty reflecting practical conditions. This work demonstrated a multi-finger β-Ga2O3 MOSFET with a maximum drain current of 0.5 A. Electrical characteristics were measured, and the heat dissipation of the device was investigated through infrared images. The relationship between device temperature and time/bias is analyzed.

Key words: β-Ga2O3MOSFETmulti-fingerself-heating effect



[1]
Higashiwaki M, Sasaki K, Murakami H, et al. Recent progress in Ga2O3 power devices. Semicond Sci Technol, 2016, 31, 034001 doi: 10.1088/0268-1242/31/3/034001
[2]
Dong H, Xue H W, He Q M, et al. Progress of power field effect transistor based on ultra-wide bandgap Ga2O3 semiconductor material. J Semicond, 2019, 40, 011802 doi: 10.1088/1674-4926/40/1/011802
[3]
Kuramata A, Koshi K, Watanabe S, et al. High-quality β-Ga2O3 single crystals grown by edge-defined film-fed growth. Jpn J Appl Phys, 2016, 55, 1202A2 doi: 10.7567/JJAP.55.1202A2
[4]
Tomm Y, Reiche P, Klimm D, et al. Czochralski grown Ga2O3 crystals. J Cryst Growth, 2000, 220, 510 doi: 10.1016/S0022-0248(00)00851-4
[5]
Yu Y T, Xiang X Q, Zhou X Z, et al. Device topological thermal management of β-Ga2O3 Schottky barrier diodes. Chin Phys B, 2021, 30, 067302 doi: 10.1088/1674-1056/abeee2
[6]
Higashiwaki M, Sasaki K, Kuramata A, et al. Gallium oxide (Ga2O3) metal-semiconductor field-effect transistors on single-crystal β-Ga2O3 (010) substrates. Appl Phys Lett, 2012, 100, 013504 doi: 10.1063/1.3674287
[7]
Liu H Y, Li J N, Lv Y J, et al. Improved electrical performance of lateral β-Ga2O3 MOSFETs utilizing slanted fin channel structure. Appl Phys Lett, 2022, 121, 202101 doi: 10.1063/5.0119694
[8]
Bhattacharyya A, Ranga P, Roy S, et al. Multi-kV class β-Ga2O3 MESFETs with a lateral figure of merit up to 355 MW/cm². IEEE Electron Device Lett, 2021, 42, 1272 doi: 10.1109/LED.2021.3100802
[9]
Zhou X Z, Ma Y J, Xu G W, et al. Enhancement-mode β-Ga2O3 U-shaped gate trench vertical MOSFET realized by oxygen annealing. Appl Phys Lett, 2022, 121, 223501 doi: 10.1063/5.0130292
[10]
Wang C L, Zhou H, Zhang J C, et al. Hysteresis-free and μs-switching of D/E-modes Ga2O3 hetero-junction FETs with the BV2/Ron, sp of 0.74/0.28 GW/cm2. Appl Phys Lett, 2022, 120, 112101 doi: 10.1063/5.0084804
[11]
Zhou X, Liu Q, Hao W, et al. Normally-off β-Ga2O3 power heterojunction fieldeffect-transistor realized by p-NiO and recessed gate. IEEE 26th Int Symp Power Semiconductor Devices IC’s (ISPSD), 2022 doi: 10.1109/ISPSD49238.2022.9813678
[12]
Kim S, Zhang Y W, Yuan C, et al. Thermal management of β-Ga2O3 current aperture vertical electron transistors. IEEE Trans Compon, Packag Manufact Technol, 2021, 11, 1171 doi: 10.1109/TCPMT.2021.3089321
[13]
Chatterjee B, Zeng K, Nordquist C D, et al. Device-level thermal management of gallium oxide field-effect transistors. IEEE Trans Compon Packag Manuf Technol, 2019, 9, 2352 doi: 10.1109/TCPMT.2019.2923356
[14]
Xu W H, Wang Y B, You T G, et al. First demonstration of waferscale heterogeneous integration of Ga2O3 MOSFETs on SiC and Si substrates by ion-cutting process. 2019 IEEE International Electron Devices Meeting (IEDM), 2019, 12 doi: 10.1109/IEDM19573.2019.8993501
[15]
Noh J, Alajlouni S, Tadjer M J, et al. High performance β-Ga2O3 nano-membrane field effect transistors on a high thermal conductivity diamond substrate. IEEE J Electron Devices, 2019, 7, 914 doi: 10.1109/JEDS.2019.2933369
[16]
Zhou H, Maize K, Noh J, et al. Thermodynamic studies of Ga2O3 nanomembrane field-effect transistors on a sapphire substrate. ACS Omega, 2017, 2, 7723 doi: 10.1021/acsomega.7b01313
[17]
Chatterjee B, Li W, Nomoto K, et al. Thermal design of multi-fin Ga2O3 vertical transistors. Appl Phys Lett, 2021, 119, 103502 doi: 10.1063/5.0056557
[18]
Kumar N, Vaca D, Joishi C, et al. Ultrafast thermoreflectance imaging and electrothermal modeling of β-Ga2O3 MESFETs. IEEE Electron Device Lett, 2020, 41, 641 doi: 10.1109/LED.2020.2975038
[19]
Böcker J, Tetzner K, Heucke S, et al. Dispersion effects in on-state resistance of lateral Ga2O3 MOSFETs at 300 V switching. Electon Lett, 2020, 56, 838 doi: 10.1049/el.2020.1286
[20]
Gong H H, Zhou F, Yu X X, et al. 70-μm-body Ga2O3 Schottky barrier diode with 1.48 K/W thermal resistance, 59 A surge current and 98.9% conversion efficiency. IEEE Electron Device Lett, 2022, 43, 773 doi: 10.1109/LED.2022.3162393
Fig. 1.  (Color online) Cross-sectional schematic of the β-Ga2O3 MOSFET and its process flow.

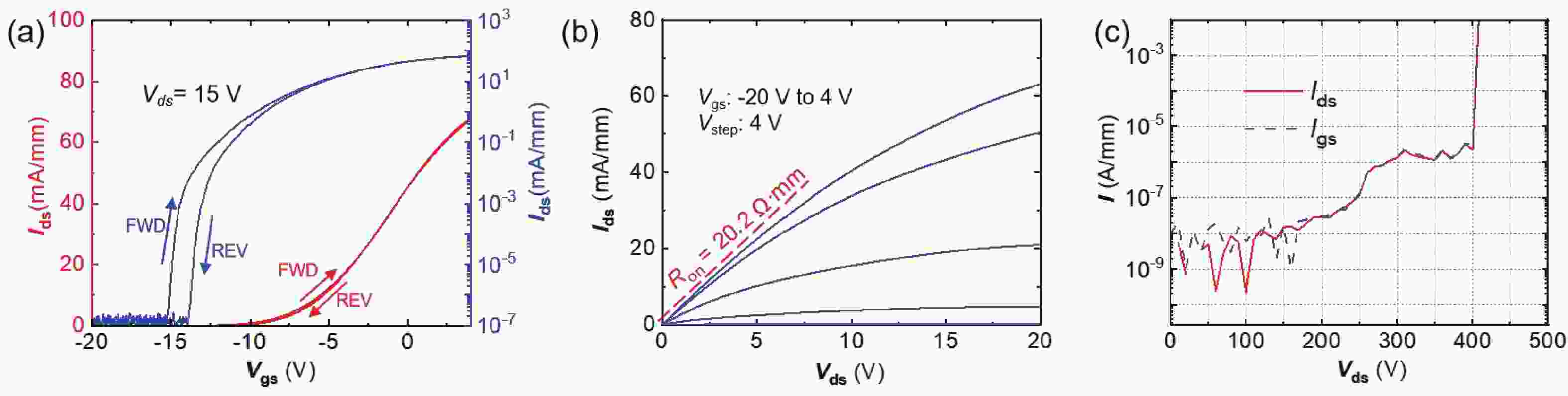

Fig. 2.  (Color online) DC (a) transfer and (b) output characteristics of small-area MOSFET. (c) Three terminal leakage current under the off-state.

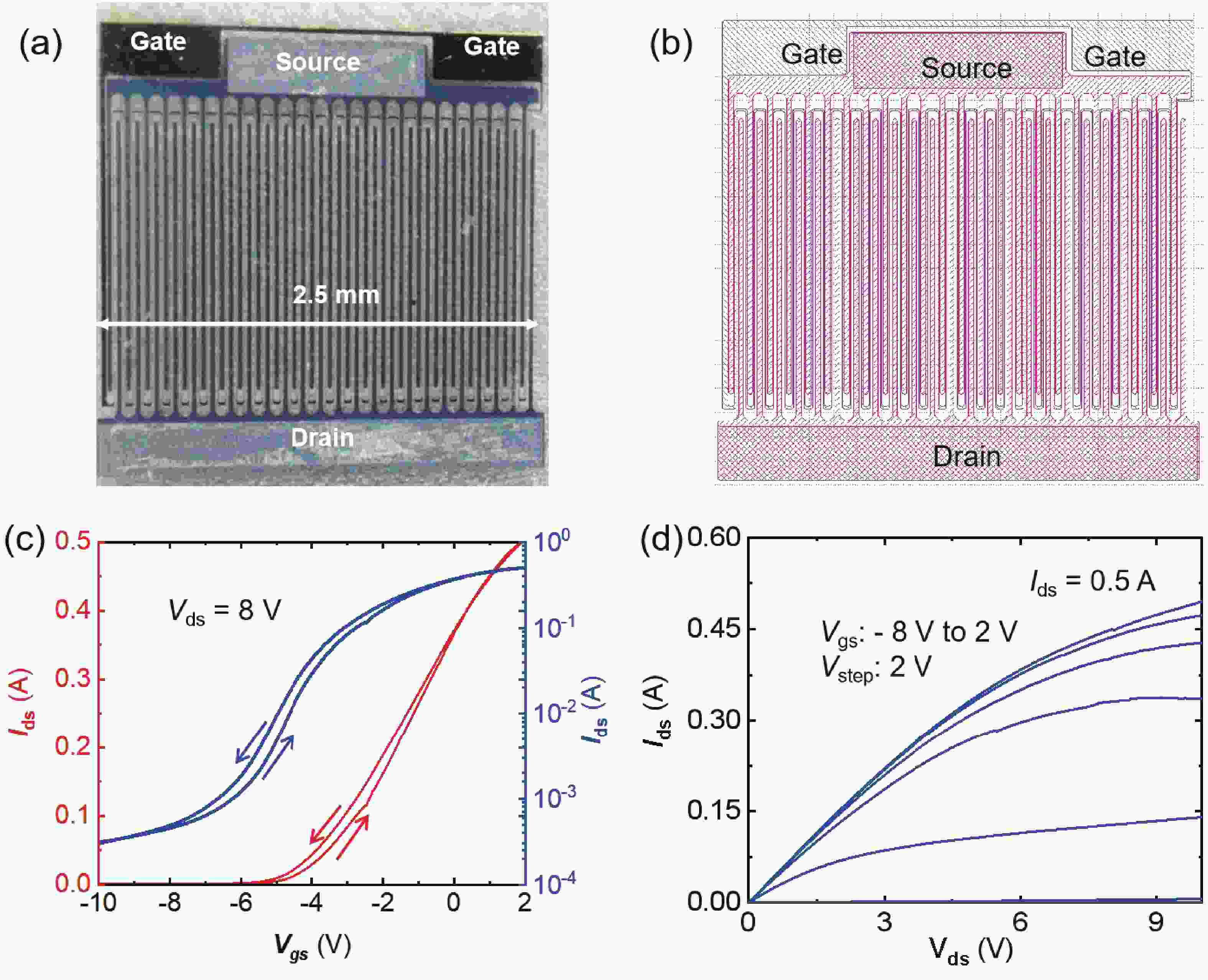

Fig. 3.  (Color online) (a) Optical microscope image and (b) layout of a multi-finger β-Ga2O3 MOSFET. (c) Transfer and (d) output characteristics of multi-finger MOSFET.

Fig. 4.  (Color online) Temperature distribution images with biased time of (a) 0 s, (b) 10 s, (c) 20 s and (d) 50 s. The drain bias was set as 2 V. (e) Time dependence of the maximum temperature in the β-Ga2O3 channel with different drain voltages.

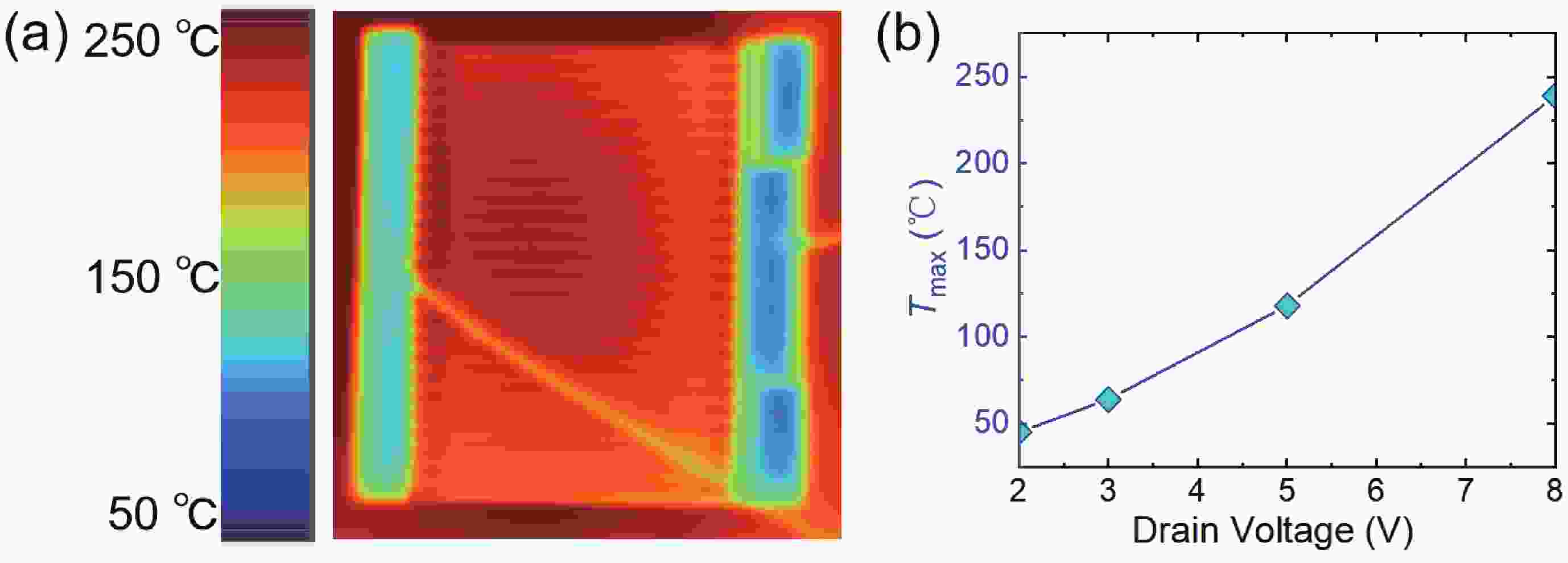

Fig. 5.  (Color online) Thermal equilibrium state: (a) temperature distribution image with a drain voltage of 8 V and (b) maximum temperature in the β-Ga2O3 channel versus applied drain voltage.
