Abstract: This paper presents a design of single photon avalanche diode (SPAD) light detection and ranging (LiDAR) sensor with 128 × 128 pixels and 128 column-parallel time-to-analog-merged-analog-to-digital converts (TA-ADCs). Unlike the conventional TAC-based SPAD LiDAR sensor, in which the TAC and ADC are separately implemented, we propose to merge the TAC and ADC by sharing their capacitors, thus avoiding the analog readout noise of TAC’s output buffer, improving the conversion rate, and reducing chip area. The reverse start-stop logic is employed to reduce the power of the TA-ADC. Fabricated in a 180 nm CMOS process, our prototype sensor exhibits a timing resolution of 25 ps, a DNL of +0.30/−0.77 LSB, an INL of +1.41/−2.20 LSB, and a total power consumption of 190 mW. A flash LiDAR system based on this sensor demonstrates the function of 2D/3D imaging with 128 × 128 resolution, 25 kHz inter-frame rate, and sub-centimeter ranging precision.

Key words: 3D imaging, CMOS imagers, direct time-of-flight (dTOF), time-to-analog converter (TAC)

References

[1]	Villa F, Severini F, Madonini F, et al. SPADs and SiPMs arrays for long-range high-speed light detection and ranging (LiDAR). Sensors, 2021, 21, 3839 doi: 10.3390/s21113839
[2]	Jahromi S, Jansson J P, Keränen P, et al. A 32 × 128 SPAD-257 TDC receiver IC for pulsed TOF solid-state 3-D imaging. IEEE J Solid State Circuits, 2020, 55, 1960 doi: 10.1109/JSSC.2020.2970704
[3]	Li Y, Ibanez-Guzman J. Lidar for autonomous driving: The principles, challenges, and trends for automotive lidar and perception systems. IEEE Signal Process Mag, 2020, 37, 50 doi: 10.1109/MSP.2020.2973615
[4]	Jansson J P, Keränen P, Jahromi S, et al. Enhancing nutt-based time-to-digital converter performance with internal systematic averaging. IEEE Trans Instrum Meas, 2020, 69, 3928 doi: 10.1109/TIM.2019.2932156
[5]	Parmesan L, Dutton N A W, Calder N J, et al. A 9.8 μm sample and hold time to amplitude converter CMOS SPAD pixel. 2014 44th European Solid State Device Research Conference (ESSDERC), 2014, 290 doi: 10.1109/ESSDERC.2014.6948817
[6]	Abidi A A. Phase noise and jitter in CMOS ring oscillators. IEEE J Solid State Circuits, 2006, 41, 1803 doi: 10.1109/JSSC.2006.876206
[7]	Crotti M, Rech I, Ghioni M. Four channel, 40 ps resolution, fully integrated time-to-amplitude converter for time-resolved photon counting. IEEE J Solid-State Circuits, 2012, 47, 699 doi: 10.1109/JSSC.2011.2176161
[8]	Morrison D, Kennedy S, Delic D, et al. A 64 × 64 SPAD flash LIDAR sensor using a triple integration timing technique with 1.95 mm depth resolution. IEEE Sens J, 2021, 21, 11361 doi: 10.1109/JSEN.2020.3030788
[9]	Parmesan L, Dutton N A W, Calder N J, et al. A 256 × 256 SPAD array with in-pixel time to amplitude conversion for fluorescence lifetime imaging microscopy. 2015 International Image Sensor Workshop (IISW), 2015, 904 doi: 10.60928/rtc5-akao
[10]	Whitcombe A, Lee C C, Kuriparambil Thekkumpate A B, et al. A VTC/TDC-assisted 4 × interleaved 3.8 GS/s 7b 6.0 mW SAR ADC with 13 GHz ERBW. IEEE J Solid-State Circuits, 2023, 58, 972 doi: 10.1109/JSSC.2022.3231783
[11]	Whitcombe A, Kundu S, Chandrakumar H, et al. A 76mW 40GS/s 7b time-interleaved hybrid voltage/time-domain ADC with common-mode input tracking. 2024 IEEE International Solid-State Circuits Conference (ISSCC), 2024, 392 doi: 10.1109/ISSCC49657.2024.10454355
[12]	Yang X, Yao C H, Kang L, et al. A bio-inspired spiking vision chip based on SPAD imaging and direct spike computing for versatile edge vision. IEEE J Solid-State Circuits, 2023, 1 doi: 10.1109/JSSC.2023.3340018
[13]	Rapp J, Ma Y T, Dawson R M A, et al. High-flux single-photon lidar. Optica, 2021, 8, 30 doi: 10.1364/OPTICA.403190
[14]	Hu J, Liu B Z, Ma R, et al. A 32 × 32-pixel flash LiDAR sensor with noise filtering for high-background noise applications. IEEE Trans Circuits Syst I Regul Pap, 2022, 69, 645 doi: 10.1109/TCSI.2020.3048367
[15]	Park B, Park I, Park C, et al. A 64 × 64 SPAD-based indirect time-of-flight image sensor with 2-tap analog pulse counters. IEEE J Solid State Circuits, 2021, 56, 2956 doi: 10.1109/JSSC.2021.3094524

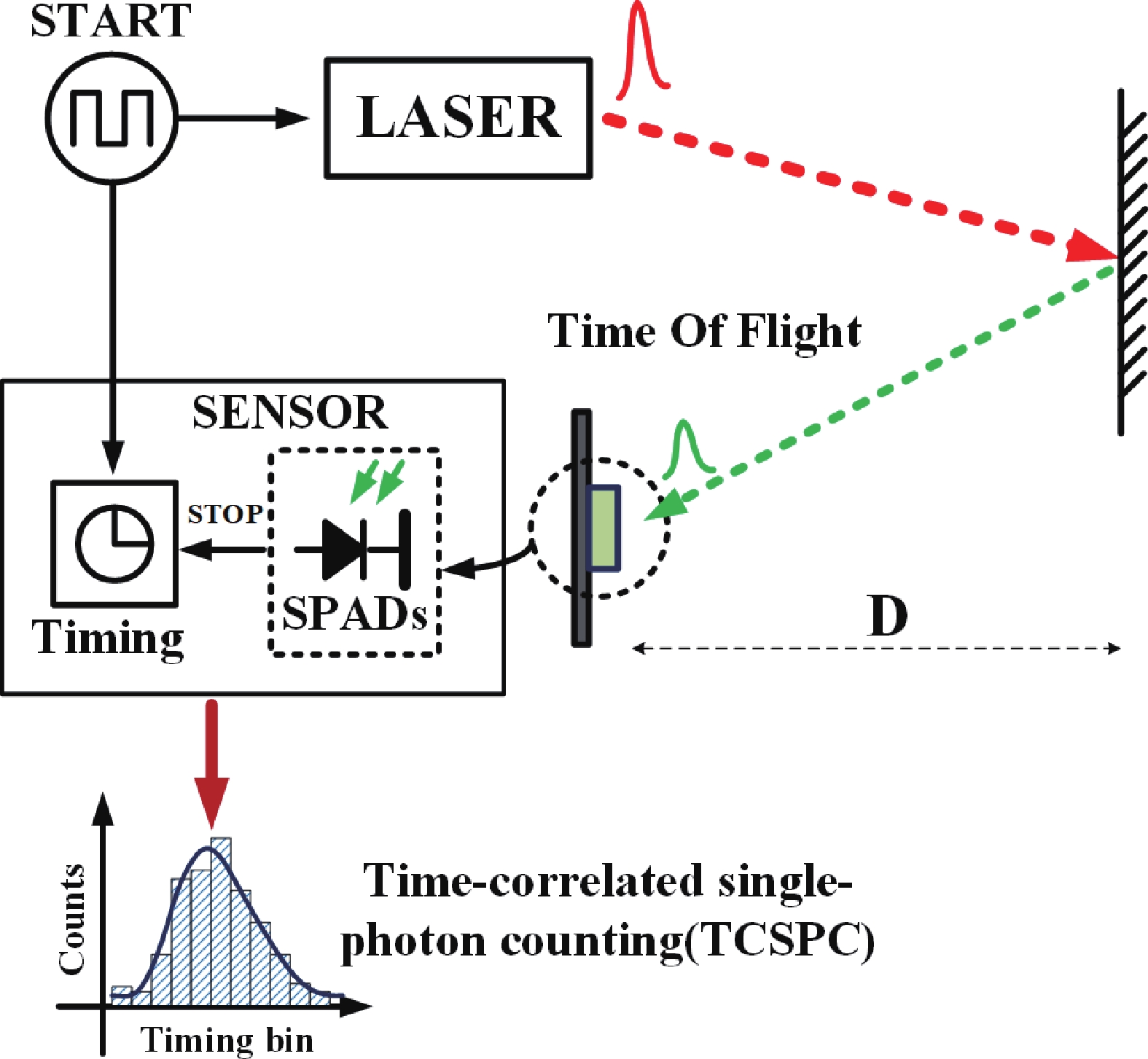

Fig. 1. (Color online) A typical direct time-of-flight LiDAR system.

DownLoad: Full-Size Img PowerPoint

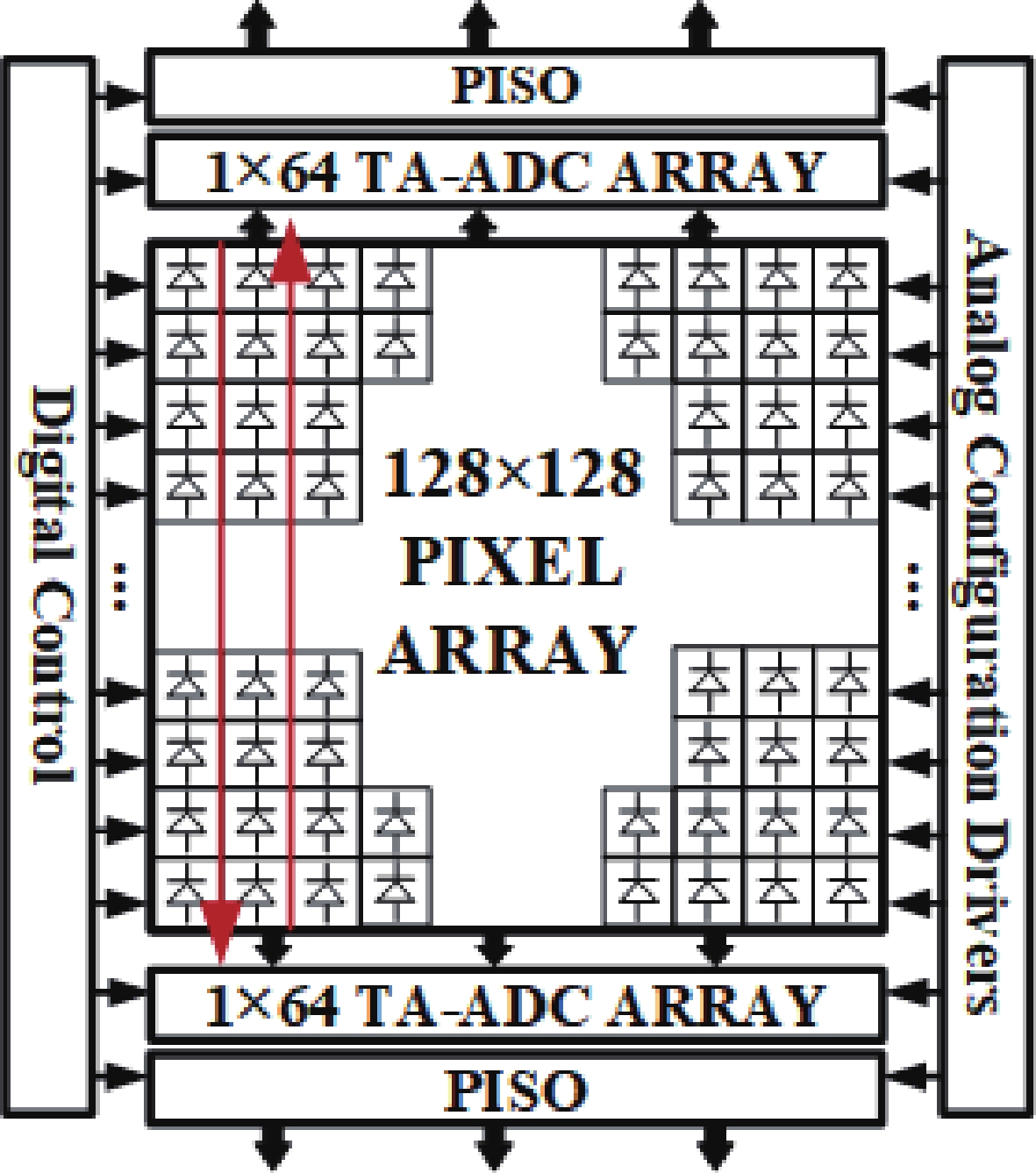

Fig. 2. (Color online) Block diagram of the sensor chip.

DownLoad: Full-Size Img PowerPoint

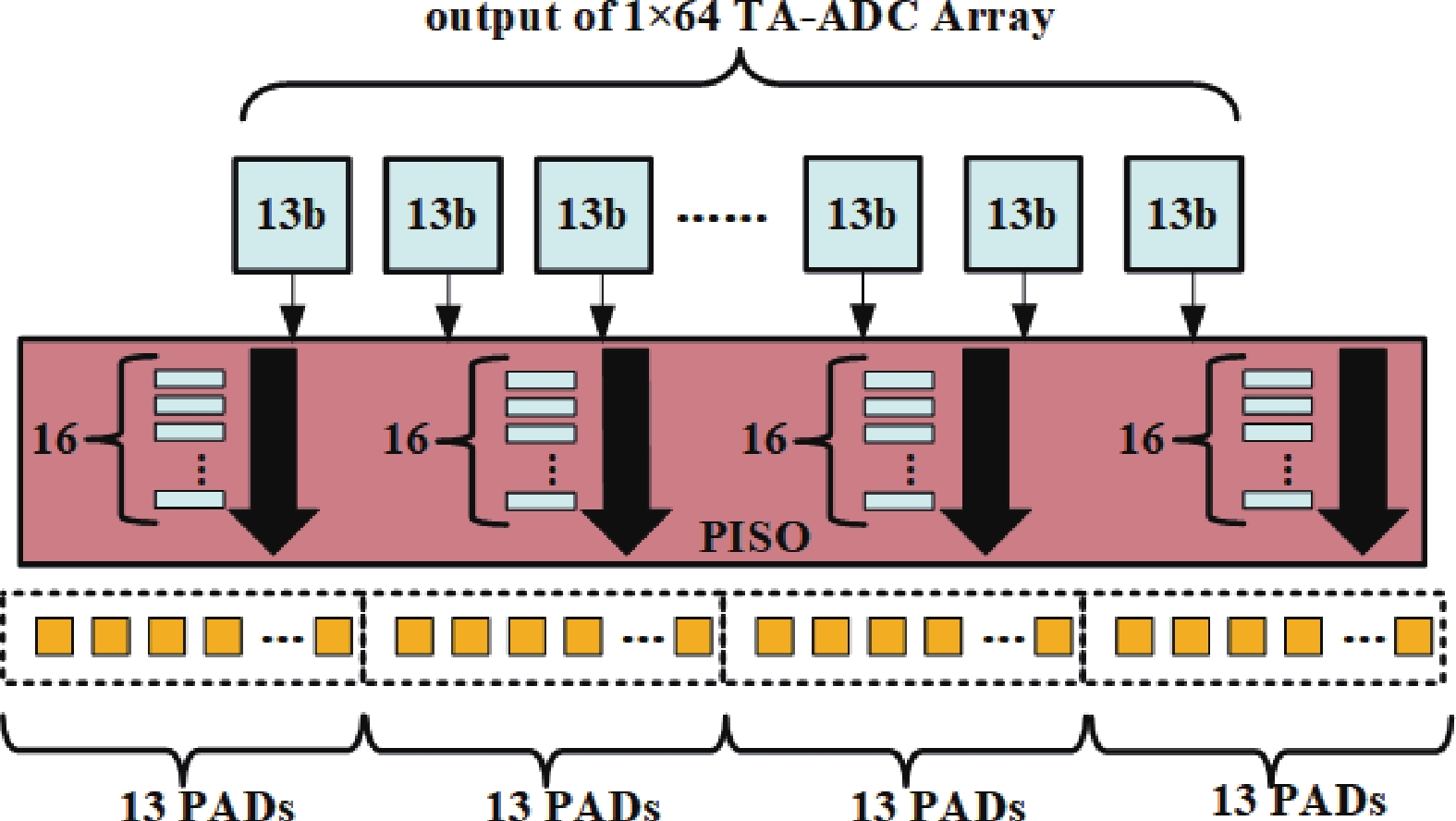

Fig. 3. (Color online) PISO readout diagram.

DownLoad: Full-Size Img PowerPoint

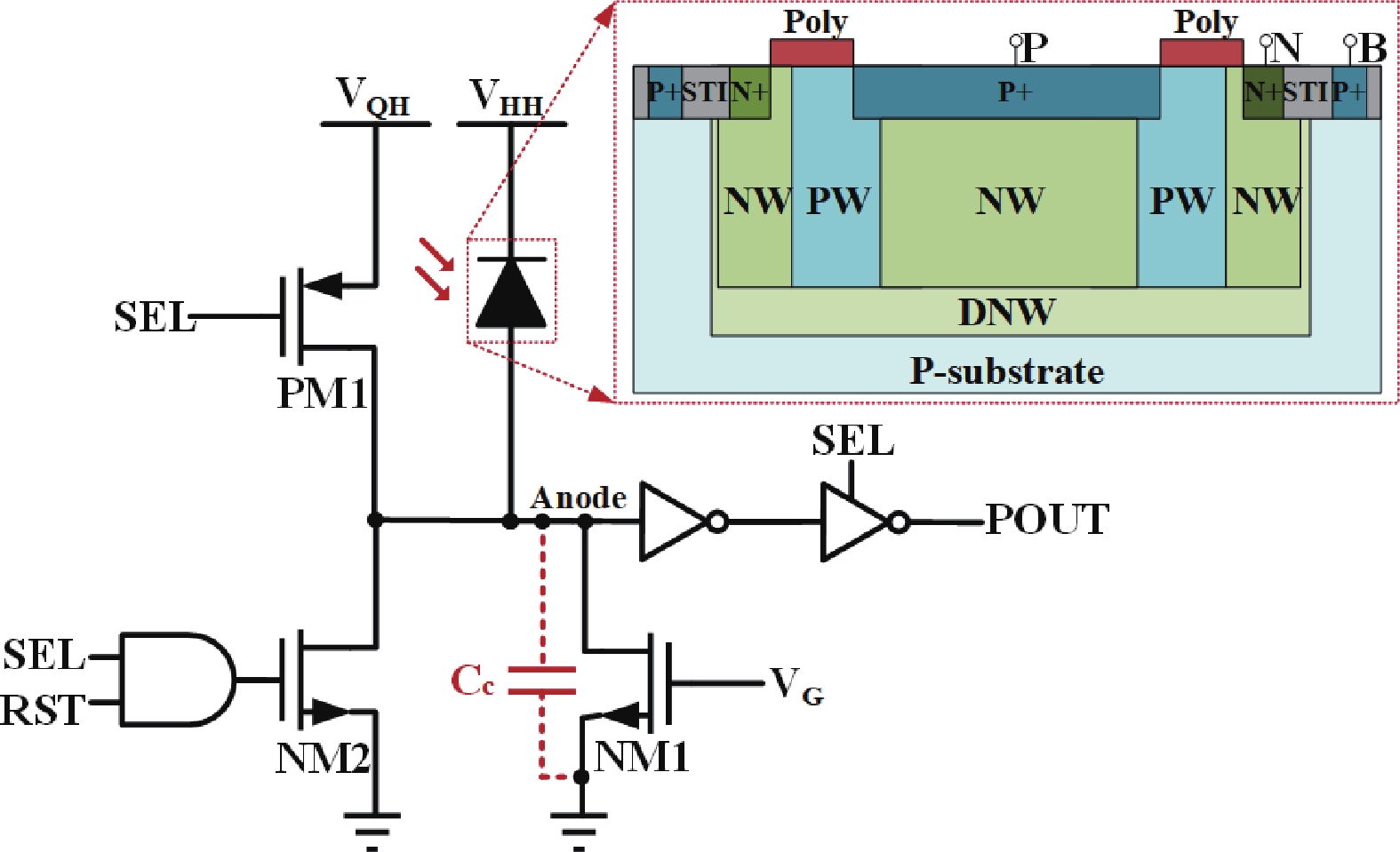

Fig. 4. (Color online) Pixel schematic with passive quench and tri-state readout buffer.

DownLoad: Full-Size Img PowerPoint

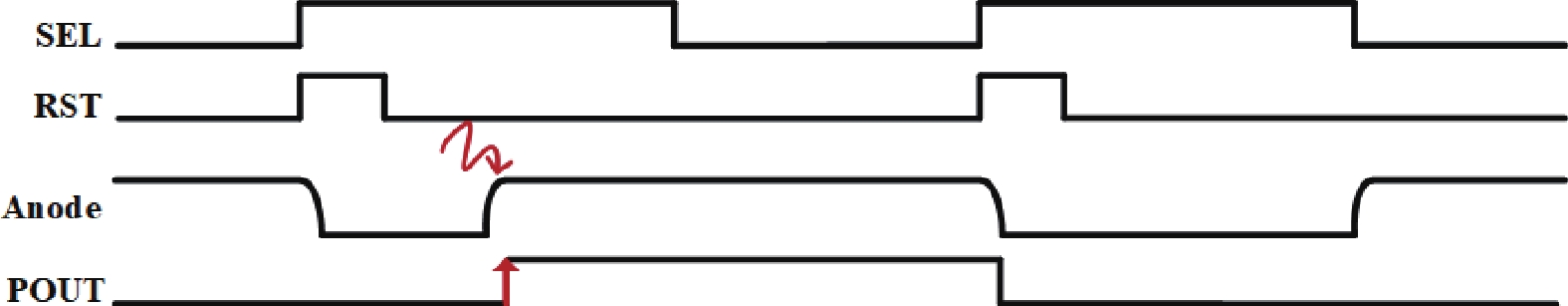

Fig. 5. (Color online) Timing diagram of the pixel operation.

DownLoad: Full-Size Img PowerPoint

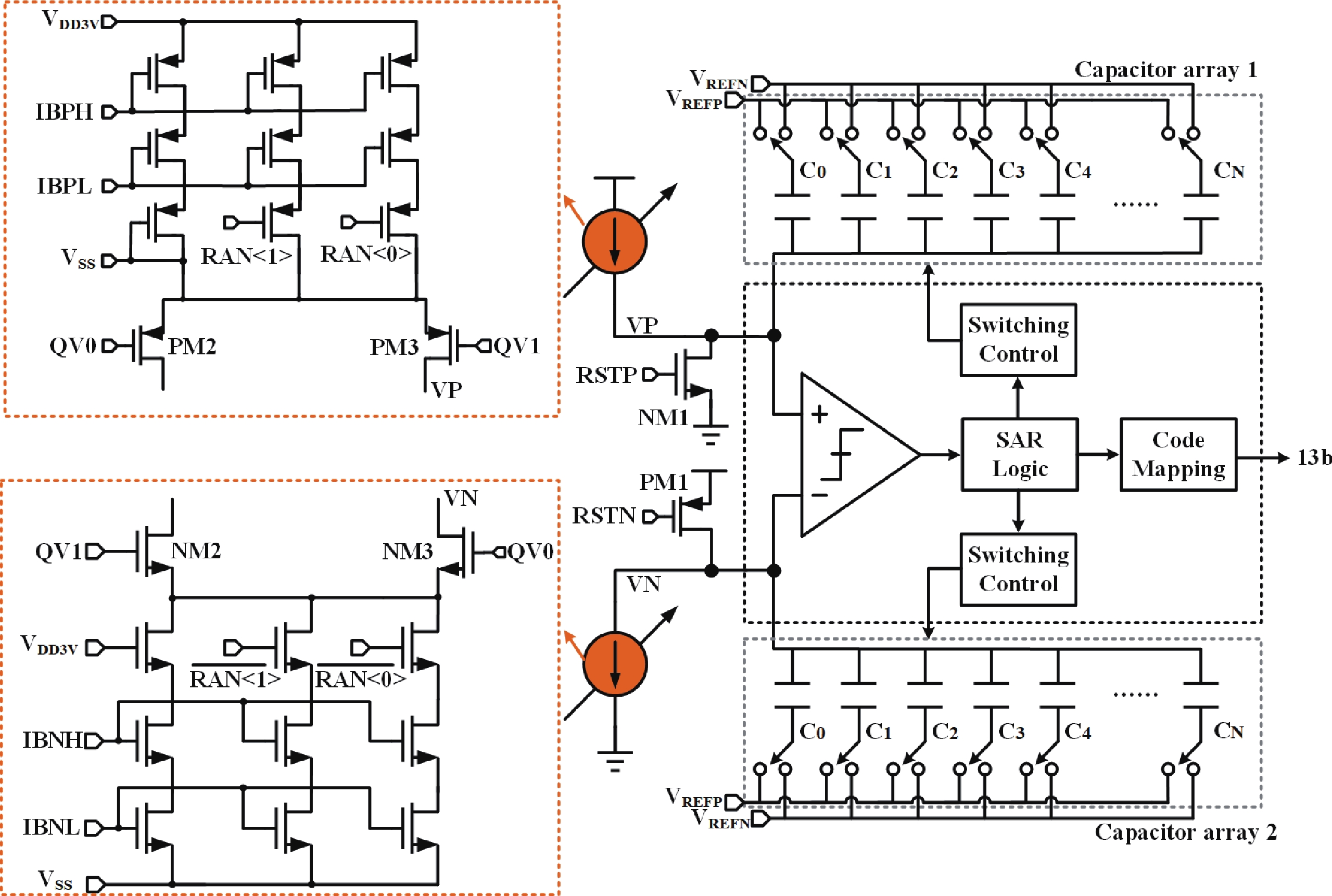

Fig. 6. (Color online) The proposed TA-ADC architecture.

DownLoad: Full-Size Img PowerPoint

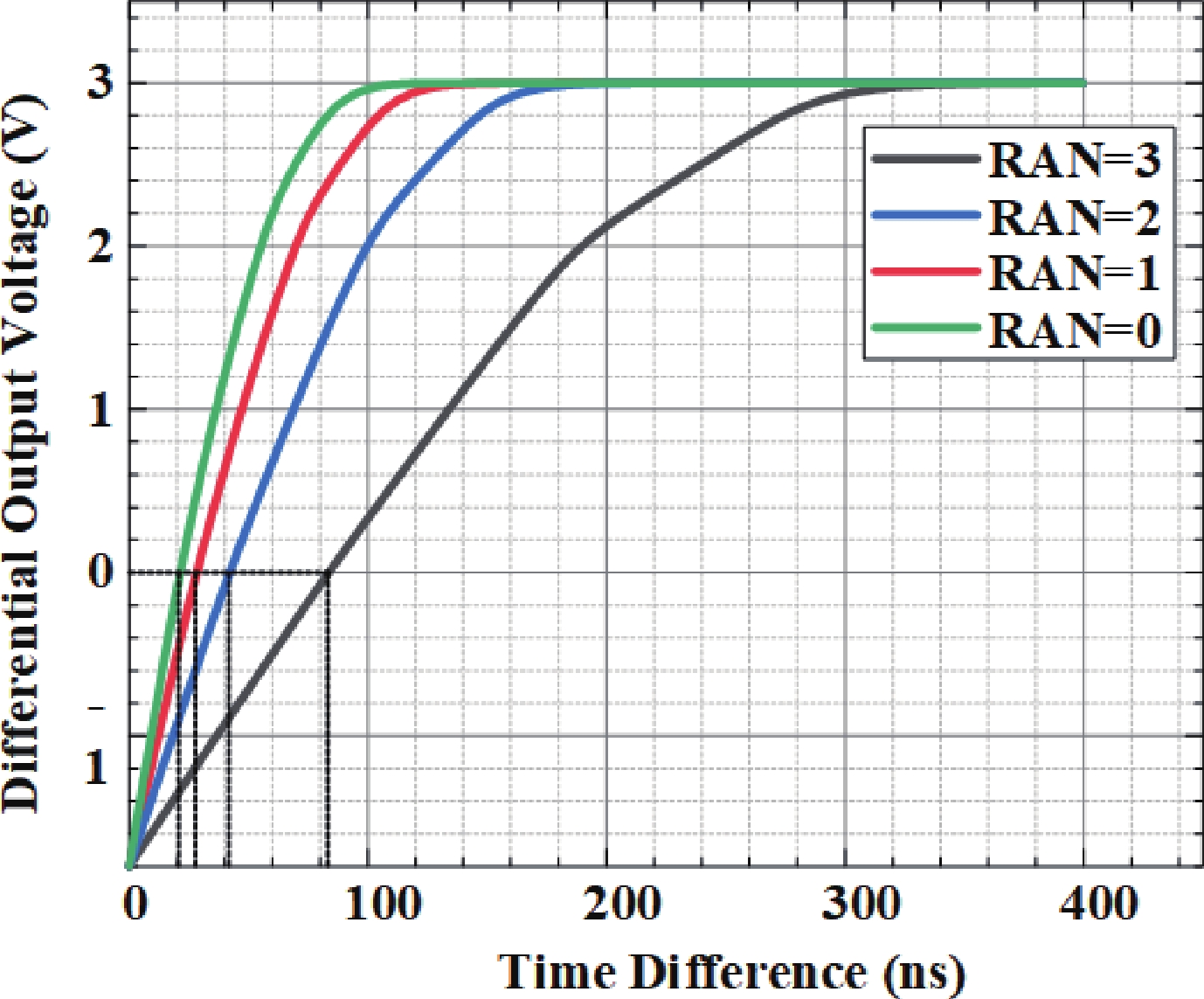

Fig. 7. (Color online) Simulation result of the proposed TAC.

DownLoad: Full-Size Img PowerPoint

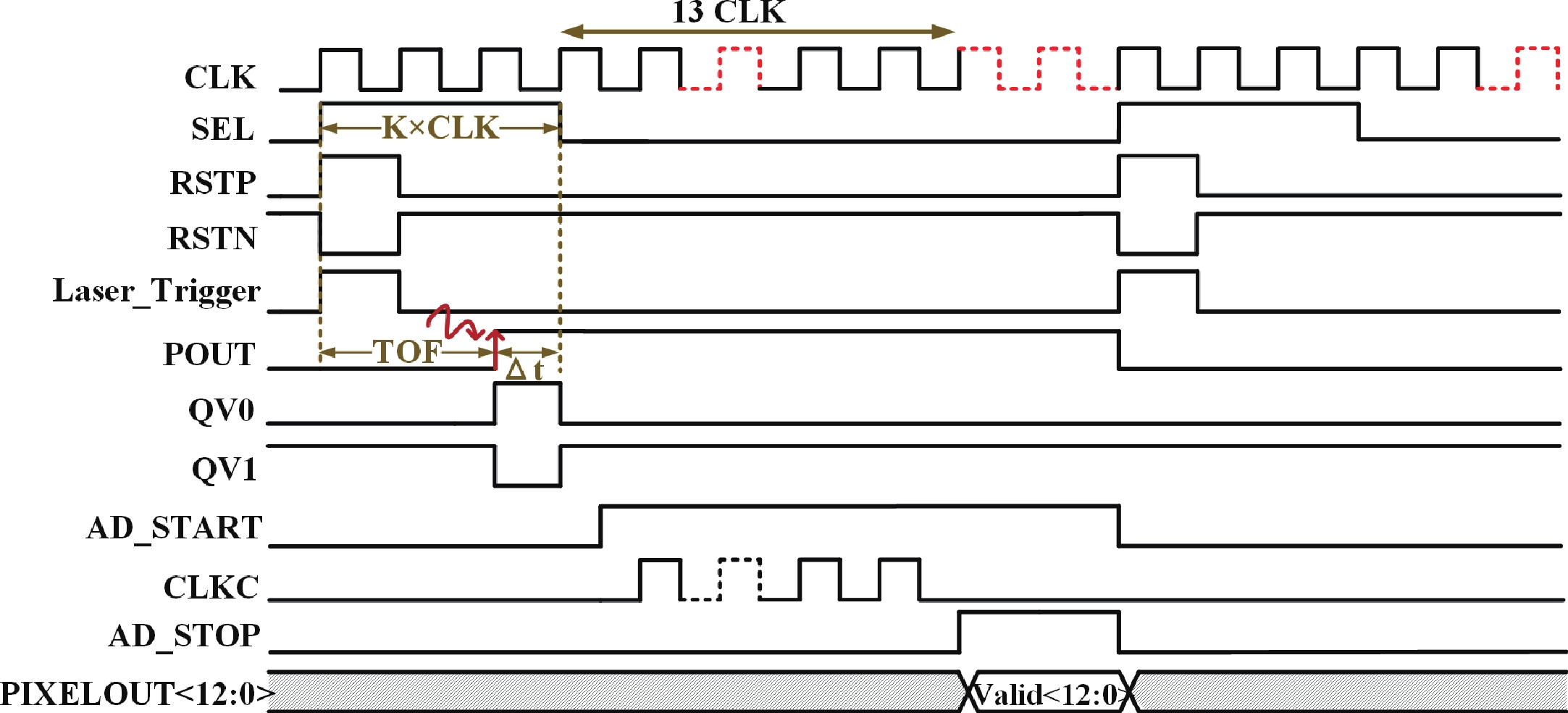

Fig. 8. (Color online) Timing diagram of the TA-ADC.

DownLoad: Full-Size Img PowerPoint

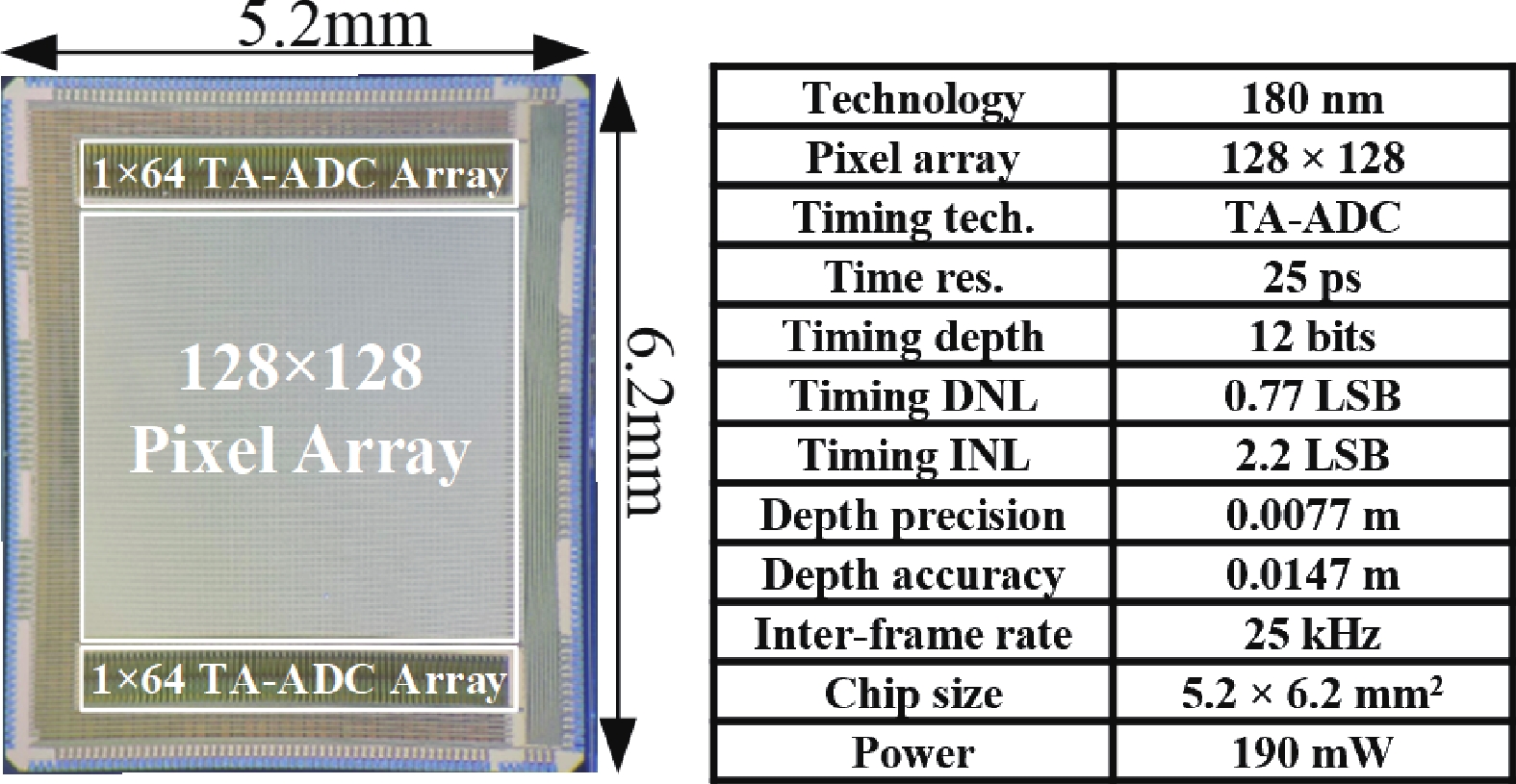

Fig. 9. (Color online) Micrograph and characteristics of the chip.

DownLoad: Full-Size Img PowerPoint

Fig. 10. (Color online) Measured INL and DNL of the TA-ADC’s lower 9 bits.

DownLoad: Full-Size Img PowerPoint

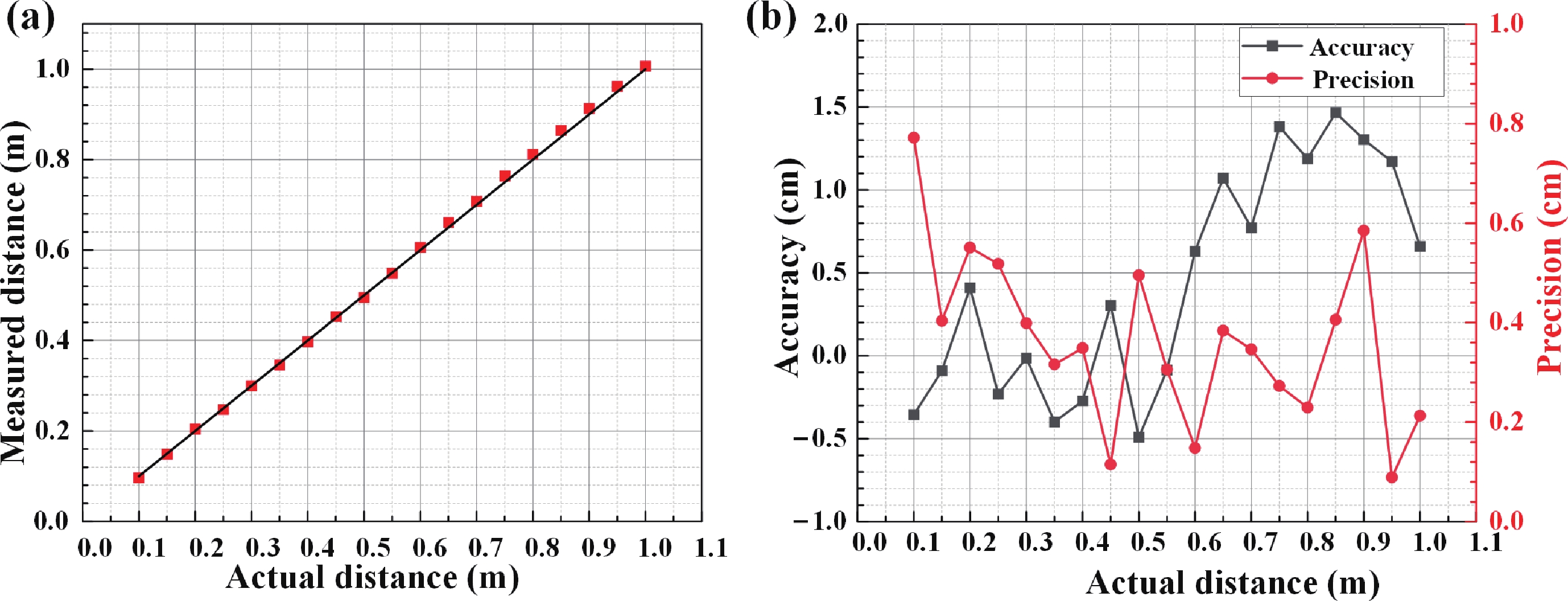

Fig. 11. (Color online) Distance measurement. (a) Measured distance. (b) Accuracy and precision.

DownLoad: Full-Size Img PowerPoint

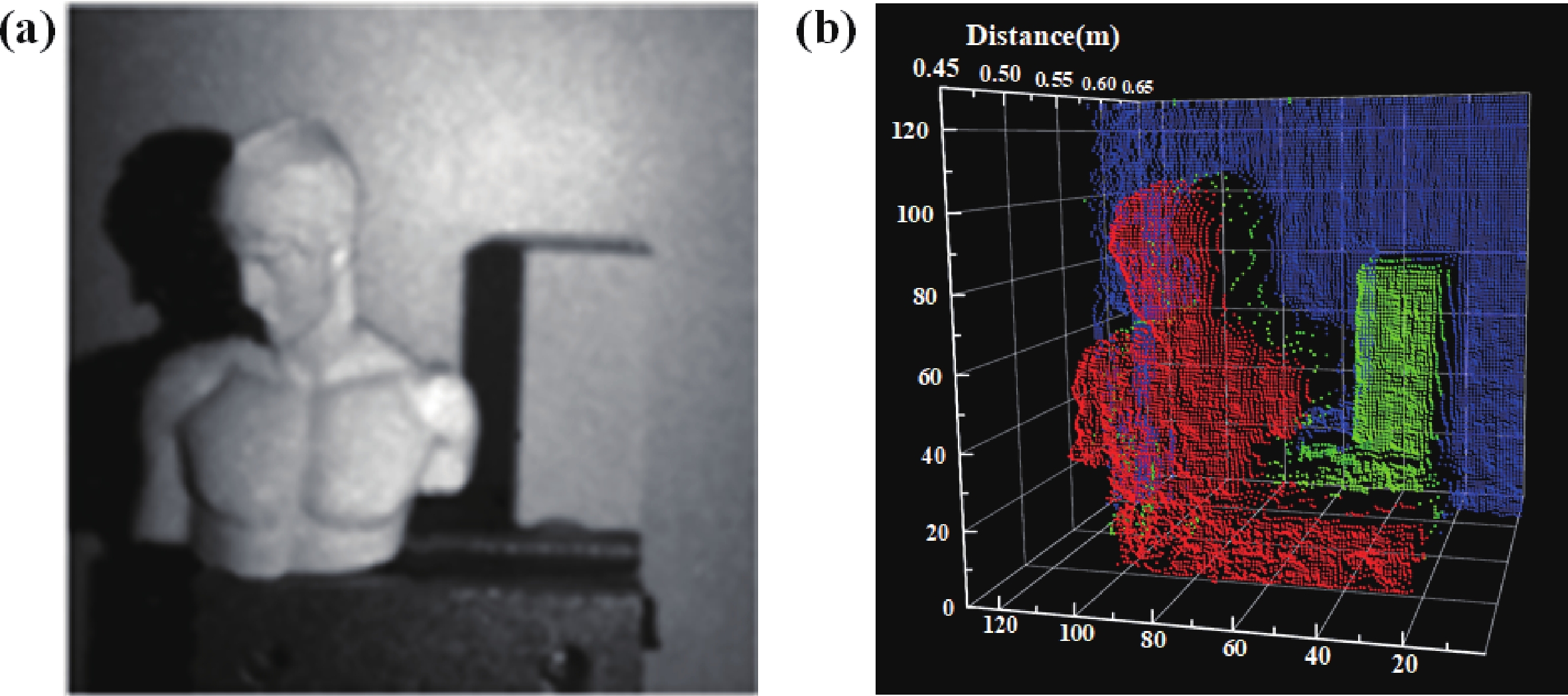

Fig. 12. (Color online) (a) 2D image and (b) 3D point cloud image.
