Enhanced light trapping in periodically truncated cone silicon nanowire structure

Kai Qiu, Yuhua Zuo, Tianwei Zhou, Zhi Liu, Jun Zheng, Chuanbo Li and Buwen Cheng

+ Author Affiliations
DOI: 10.1088/1674-4926/36/10/104005

PDF

Abstract: Light trapping plays an important role in improving the conversion efficiency of thin-film solar cells.The good wideband light trapping is achieved using our periodically truncated cone Si nanowire (NW) structures, and their inherent mechanism is analyzed and simulated by FDTD solution software.Ordered cylinder Si (NW) structure with initial size of 80 nm and length of 200 nm is grown by pattern transfer and selective epitaxial growth.Truncated cone Si NW array is then obtained by thermal oxidation treatment.Its mean reflection in the range of 300-900 nm is lowered to be 5% using 140 nm long truncated cone Si NW structure, compared with that of 20% using cylinder counterparts.It indicates that periodically truncated Si cone structures trap the light efficiently to enhance the light harvesting in a wide spectral range and have the potential application in highly efficient NW solar cells.

Key words: silicon film solar cells, AAO template, nanowires, light trapping



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]

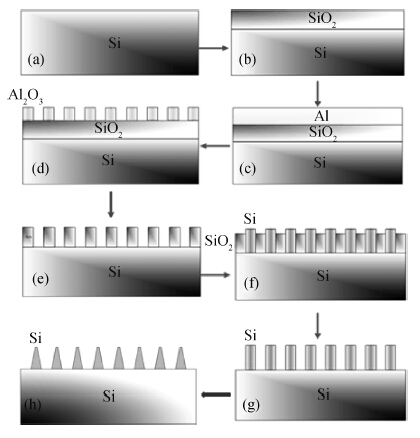

Fig. 1.  The fabrication process flow of NW growth process,including AAO template preparation,pattern transfer and Si NW growth. (a) Si substrate. (b) SiO$_{2}$ layer on Si substrate. (c) Metal Al film on SiO$_{2}$/Si substrate. (d) Formation of AAO template. (e) Formation of SiO$_{2}$ mask. (f) Si NW growth by selective epitaxial method. (g) Formation of cylinder Si NW. (h) Formation of truncated cone Si NW by thermal oxidation.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  The SEM images of the AAO template and NW,the surface feature shows (a) the orderly arrangement of the nanometer pore,(b) the patency of the nano hole and the size is uniform,(c) the diameter,and (d) height of the NW.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  Cross section feature of silicon nano-structure indicates the different diameter between the top and bottom,the top diameter is 25~nm,and the bottom diameter is 35 nm.

DownLoad: Full-Size Img PowerPoint

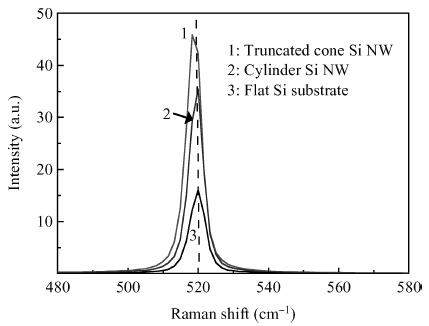

Fig. 4.  Raman shift of truncated cone Si NW,cylinder Si NW and flat Si substrate.

DownLoad: Full-Size Img PowerPoint

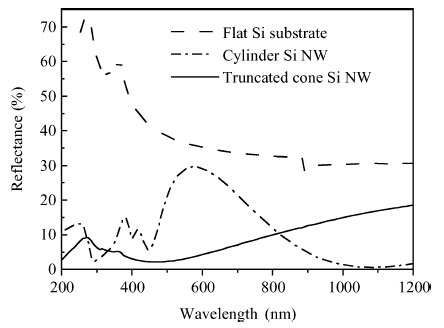

Fig. 5.  Measured reflectance spectra of truncated cone Si NW,cylinder Si NW and flat Si substrate.

DownLoad: Full-Size Img PowerPoint

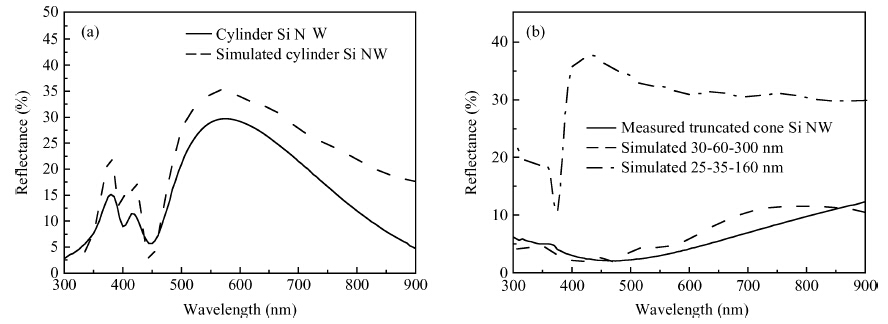

Fig. 6.  Simulations and experimental reflectance of (a) cylinder Si NW and (b) truncated cone Si NW.

DownLoad: Full-Size Img PowerPoint

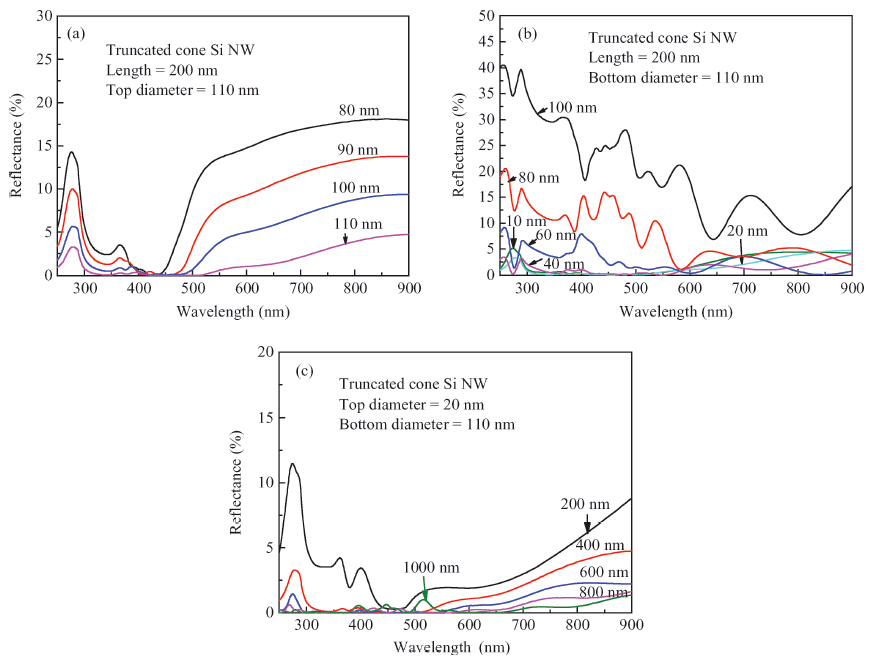

Fig. 7.  (Color online) The reflectance spectra of truncated cone Si NW with (a) different bottom diameters,(b) different top diameters,and (c) different heights.

DownLoad: Full-Size Img PowerPoint
