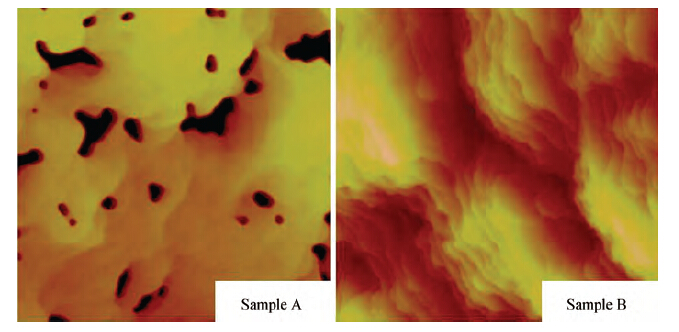

Fig. 1.
10 $\times $ 10 $\mu $m$^{2}$ AFM images of the surface of 100 nm GaN film (samples A and B). The growth rates of samples are 1.6 and 0.8~$\mu $m/h respectively.
DownLoad:
| Citation: |
Junsong Cao, Xin Lü, Lubing Zhao, Shuang Qu, Wei Gao. Influence of initial growth conditions and Mg-surfactant on the quality of GaN film grown by MOVPE[J]. Journal of Semiconductors, 2015, 36(2): 023005. doi: 10.1088/1674-4926/36/2/023005
****
J S Cao, X Lü, L B Zhao, S Qu, W Gao. Influence of initial growth conditions and Mg-surfactant on the quality of GaN film grown by MOVPE[J]. J. Semicond., 2015, 36(2): 023005. doi: 10.1088/1674-4926/36/2/023005.
|
Influence of initial growth conditions and Mg-surfactant on the quality of GaN film grown by MOVPE
DOI: 10.1088/1674-4926/36/2/023005
More Information
-
Abstract
The initial growth conditions of a 100 nm thick GaN layer and Mg-surfactant on the quality of the GaN epilayer grown on a 6H-SiC substrate by metal-organic vapor phase epitaxy have been investigated in this research. Experimental results have shown that a high V/III ratio and the initially low growth rate of the GaN layer are favorable for two-dimension growth and surface morphology of GaN and the formation of a smoother growth surface. Mg-surfactant occurring during GaN growth can reduce the dislocations density of the GaN epilayer but increase the surface RMS, which are attributed to the change of growth mode. -
References
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] -
Proportional views
