Fig. 1.

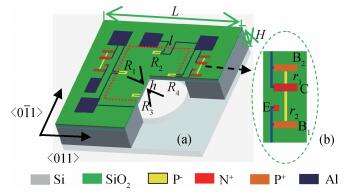

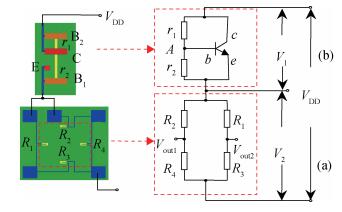

(Color online) The basic structure of SOI integrated pressure sensor with temperature compensation circuit. (a) The basic structure. (b) The asymmetric base region transistor.
DownLoad:
| Citation: |
Xiaofeng Zhao, Dandan Li, Yang Yu, Dianzhong Wen. Temperature characteristics research of SOI pressure sensor based on asymmetric base region transistor[J]. Journal of Semiconductors, 2017, 38(7): 074008. doi: 10.1088/1674-4926/38/7/074008
****
X F Zhao, Dandan Li and A Li, Y Yu, D Z Wen. Temperature characteristics research of SOI pressure sensor based on asymmetric base region transistor[J]. J. Semicond., 2017, 38(7): 074008. doi: 10.1088/1674-4926/38/7/074008.
|
Temperature characteristics research of SOI pressure sensor based on asymmetric base region transistor
DOI: 10.1088/1674-4926/38/7/074008
More Information
-
Abstract

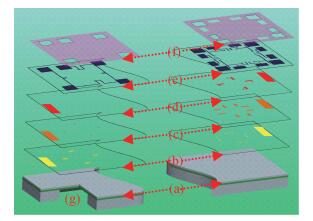

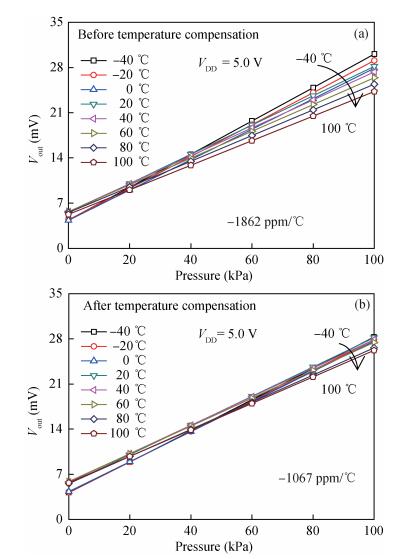

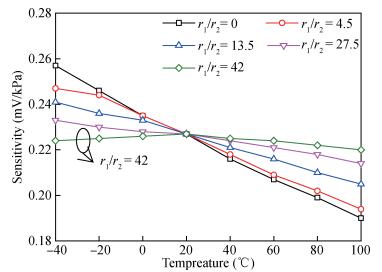

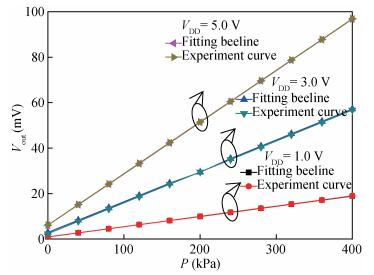

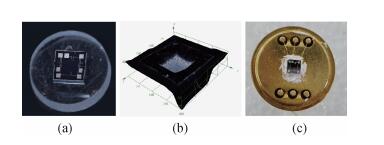

Based on the asymmetric base region transistor, a pressure sensor with temperature compensation circuit is proposed in this paper. The pressure sensitive structure of the proposed sensor is constructed by a C-type silicon cup and a Wheatstone bridge with four piezoresistors (R1, R2, R3 and R4) locating on the edge of a square silicon membrane. The chip was designed and fabricated on a silicon on insulator (SOI) wafer by micro electromechanical system (MEMS) technology and bipolar transistor process. When the supply voltage is 5.0 V, the corresponding temperature coefficient of the sensitivity (TCS) for the sensor before and after temperature compensation are -1862 and -1067 ppm/℃, respectively. Through varying the ratio of the base region resistances r1 and r2, the TCS for the sensor with the compensation circuit is -127 ppm/℃. It is possible to use this compensation circuit to improve the temperature characteristics of the pressure sensor. -
