An empirical method for improving accuracy of human eye temperature measured by uncooled infrared thermal imager

Bin Yuan; Ping Gong; Liang Xie; Hui Wang; Banghong Zhang; Hui Gao; Baokan Qi

doi:10.1088/1674-4926/39/9/094008

J. Semicond. > 2018, Volume 39 > Issue 9 > 094008

SEMICONDUCTOR DEVICES

An empirical method for improving accuracy of human eye temperature measured by uncooled infrared thermal imager

Bin Yuan^{1, 2}, Ping Gong¹, Liang Xie^{1, 2,}, Hui Wang¹, Banghong Zhang¹, Hui Gao^{1, 2} and Baokan Qi^{1, 2}

+ Author Affiliations

Corresponding author: Liang Xie, Email: xiel@semi.ac.cn

DOI: 10.1088/1674-4926/39/9/094008

Abstract: In order to reduce the temperature measurement error with the uncooled infrared thermal imager, experiments were conducted to evaluate the effects of environment temperature and measurement distance on the measurement error of human eye temperature. First, the forehead temperature was used as an intermediate variable to obtain the actual temperature of human eyes. Then, the effects of environment temperature and measurement distance on the temperature measurement were separately analyzed. Finally, an empirical model was established to correlate actual eye temperature with the measured temperature, environment temperature, and measurement distance. To verify the formula, three different environment temperatures were tested at different distances. The measurement errors were substantially reduced using the empirical model for temperature correction. The results show that this method can effectively improve the accuracy of temperature measurement using the infrared thermal imager.

Key words: semiconductor device, uncooled infrared thermal imager, environment temperature, measurement distance, error correction

References

[1]	Tan J H, Ng E Y K, Rajendra A, et al. Infrared thermography on ocular surface temperature: A review. Infrared Phys Technol, 2009, 52(4): 97 doi: 10.1016/j.infrared.2009.05.002
[2]	Wang G, Wang W, Li K, et al. A digital thermometer with fast response and high precision. International Conference on Biomedical Engineering and Informatics, 2015: 504 doi: 10.1109/BMEI.2014.7002827
[3]	Jung A, Kalicki B, Zuber J, et al. Infrared thermal imaging as noninvasive method of body temperature measurement in hospitalized and nonhospitalised children. Przeglad Elektrotechniczny, 2013, 89(2): 99
[4]	Teunissen L P, Daanen H A. Infrared thermal imaging of the inner canthus of the eye as an estimator of body core temperature. J Med Eng Technol, 2011, 35(3–4): 134 doi: 10.3109/03091902.2011.554595
[5]	Rogalski A. Recent progress in infrared detector technologies. Infrared Phys Technol, 2011, 54(3): 136 doi: 10.1016/j.infrared.2010.12.003
[6]	Sun G C, Ha T J, Yu B G, et al. Improvement of uncooled infrared imaging detector by using mesoporous silica as a thermal isolation layer. Ceram Int, 2008, 34(4): 833 doi: 10.1016/j.ceramint.2007.09.088
[7]	Shen N, Tang Z A, Yu J, et al. A low-cost infrared absorbing structure for an uncooled infrared detector in a standard CMOS process. J Semicond, 2014, 35(3): 034014 doi: 10.1088/1674-4926/35/3/034014
[8]	Fu lo, G F. Uncooled nanoscale infrared high-speed sensors for missile seeker applications. Proc SPIE, 2007, 6542: 65421H doi: 10.1117/12.715005
[9]	Fraenkel R, Mizrahi U, Shtrichman I, et al. Cooled and uncooled infrared detectors for missile seekers. SPIE Defense + Security. 2014: 90700P
[10]	Meola C, Carlomagno G M. Recent advances in the use of infrared thermography. Meas Sci Technol, 2004, 15(9): R27 doi: 10.1088/0957-0233/15/9/R01
[11]	Huda A S N, Taib S. Application of infrared thermography for predictive/preventive maintenance of thermal defect in electrical equipment. Appl Therm Eng, 2013, 61(2): 220 doi: 10.1016/j.applthermaleng.2013.07.028
[12]	Calin M A, Mologhianu G, Savastru R, et al. A review of the effectiveness of thermal infrared imaging in the diagnosis and monitoring of knee diseases. Infrared Phys Technol, 2015, 69(8): 19 doi: 10.1016/j.infrared.2015.01.013
[13]	Rajmanova P, Nudzikova P, Vala D. Application and technology of thermal imagine camera in medicine. Ifac Papersonline, 2015, 48(4): 492 doi: 10.1016/j.ifacol.2015.07.083
[14]	Chiang L W, Guo S J, Chang C Y, et al. The development of a diagnostic model for the deterioration of external wall tiles of aged buildings in Taiwan. J Asian Architect Build Eng, 2016, 15(1): 111 doi: 10.3130/jaabe.15.111
[15]	Liu L, Ye Y T, Wu Y F, et al. Duration of startup of gaas wet etching measured by infrared-image of linear liquid film. J Semicond, 2007, 28(2): 222 (in Chinese) doi: 10.3321/j.issn:0253-4177.2007.02.016(inChinese)
[16]	Iwasaki Y, Misumi M, Nakamiya T. Robust vehicle detection under various environmental conditions using an infrared thermal camera and its application to road traffic flow monitoring. Sensors (Basel, Switzerland), 2013, 13(6): 7756 doi: 10.3390/s130607756
[17]	Zhang Y C, Chen Y M, Luo C. A method for improving temperature measurement precision on the uncooled infrared thermal imager. Measurement, 2015, 74: 64 doi: 10.1016/j.measurement.2015.07.016
[18]	Chrzanowski K. Influence of object-system distance on accuracy of remote temperature measurement with IR systems. Infrared Phys Technol, 1995, 36(3): 703 doi: 10.1016/1350-4495(94)00106-U
[19]	Zhang Y C, Chen Y M, Fu X B, et al. A method for reducing the influence of measuring distance on infrared thermal imager temperature measurement accuracy. Appl Therm Eng, 2016, 100: 1095 doi: 10.1016/j.applthermaleng.2016.02.119

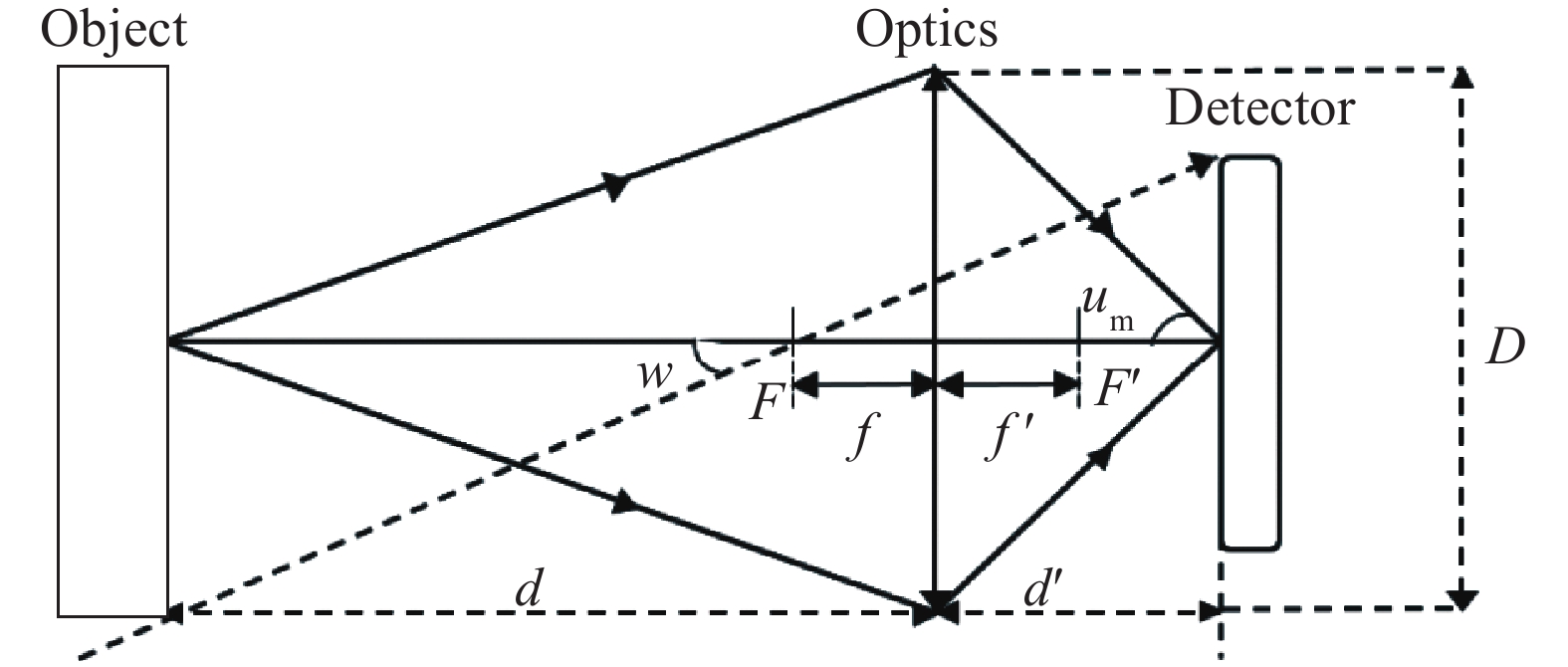

Fig. 1. Tested object imager in optical system.

DownLoad: Full-Size Img PowerPoint

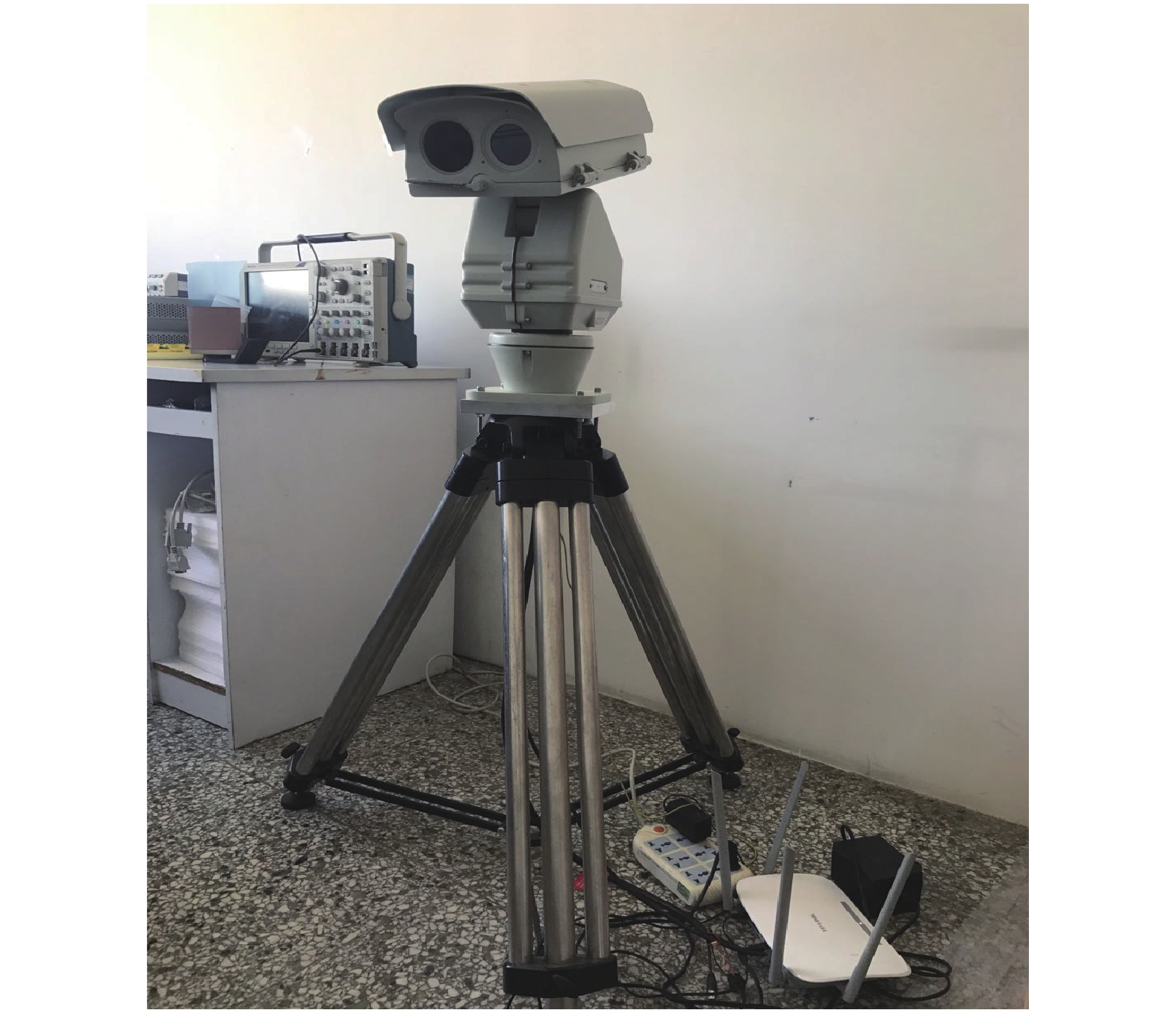

Fig. 2. (Color online) Picture of the infrared thermal imager.

DownLoad: Full-Size Img PowerPoint

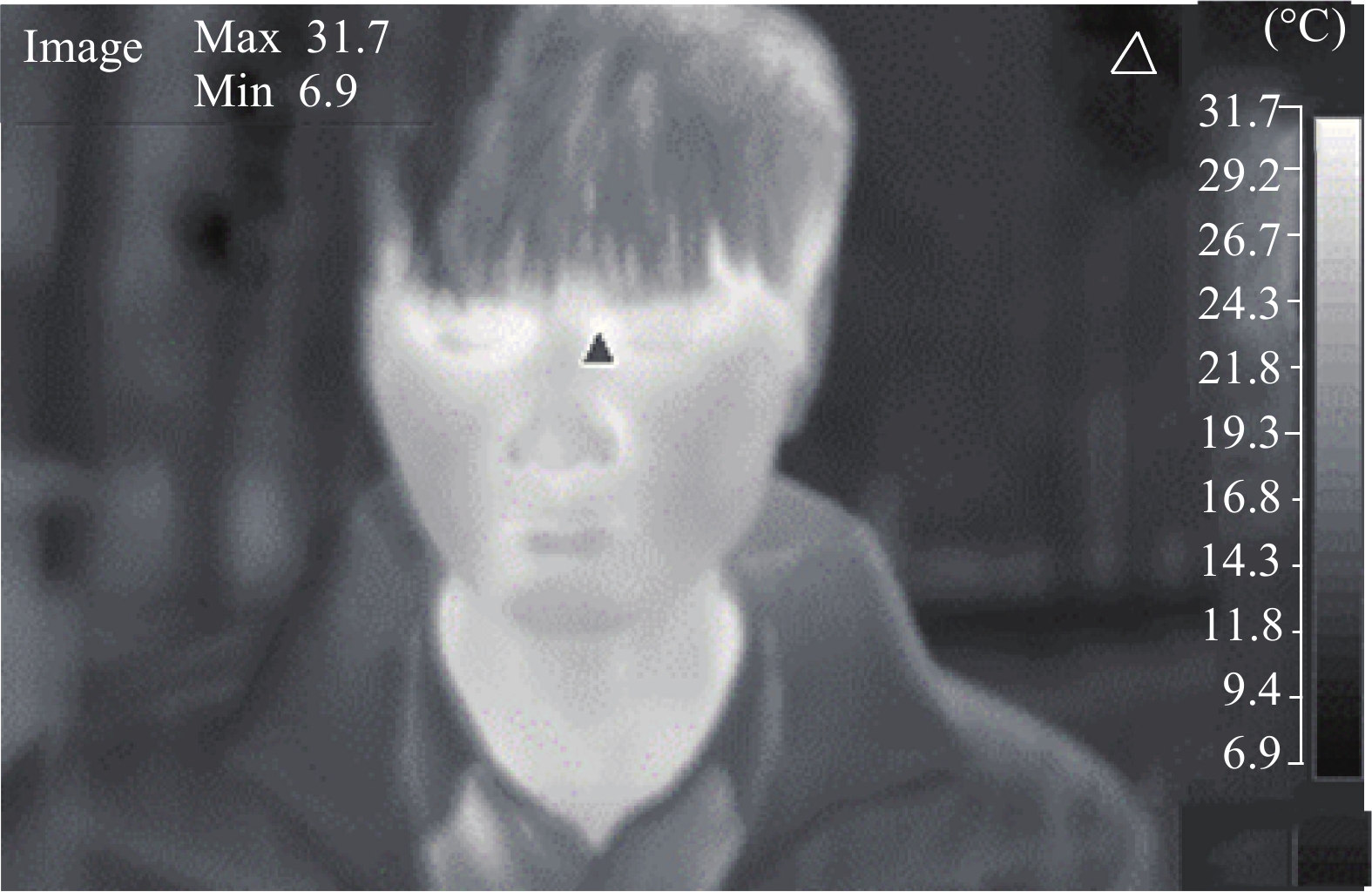

Fig. 3. Temperature distribution of the human face.

DownLoad: Full-Size Img PowerPoint

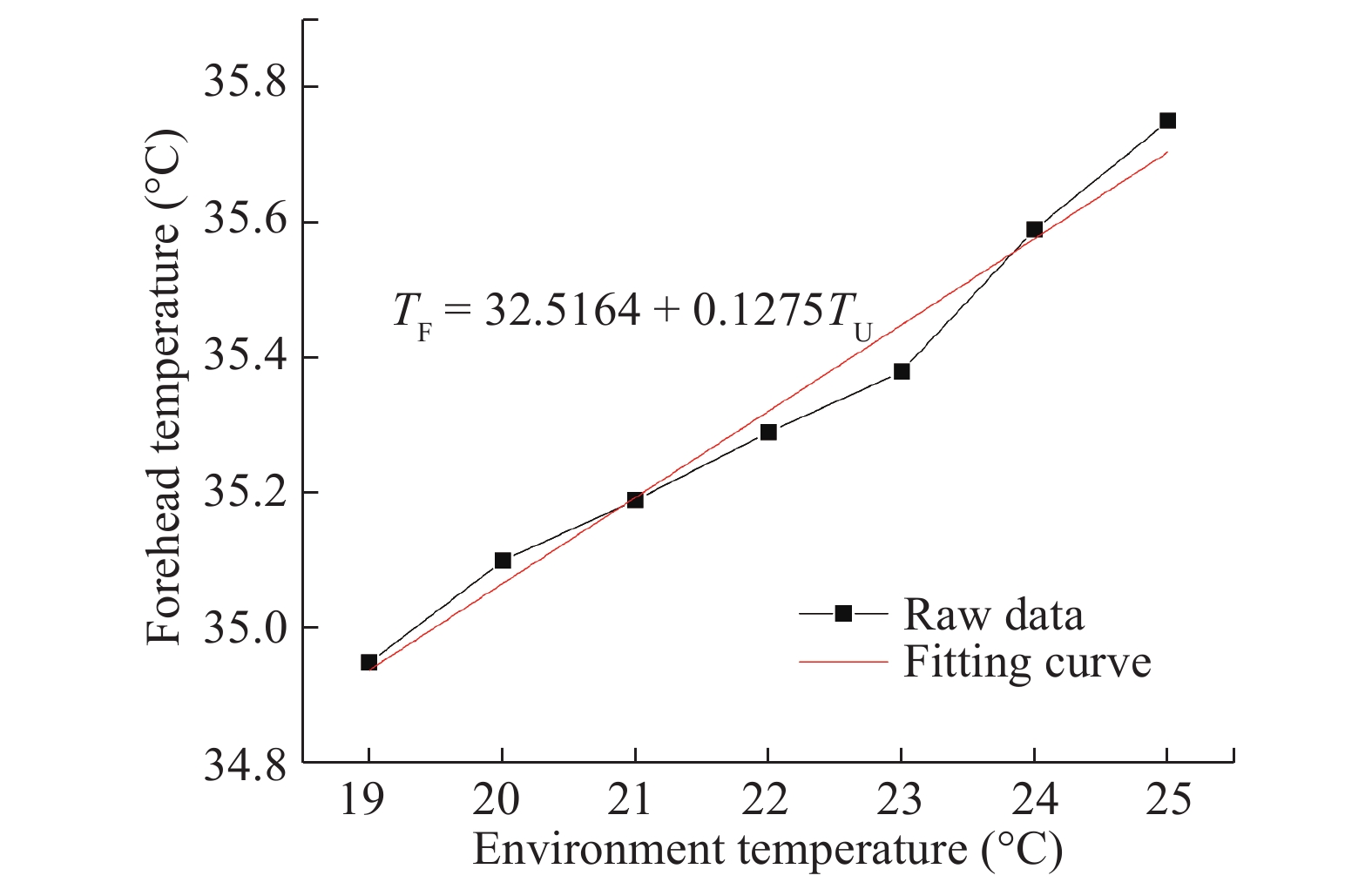

Fig. 4. (Color online) Relationship between human forehead temper-ature and environment temperature.

DownLoad: Full-Size Img PowerPoint

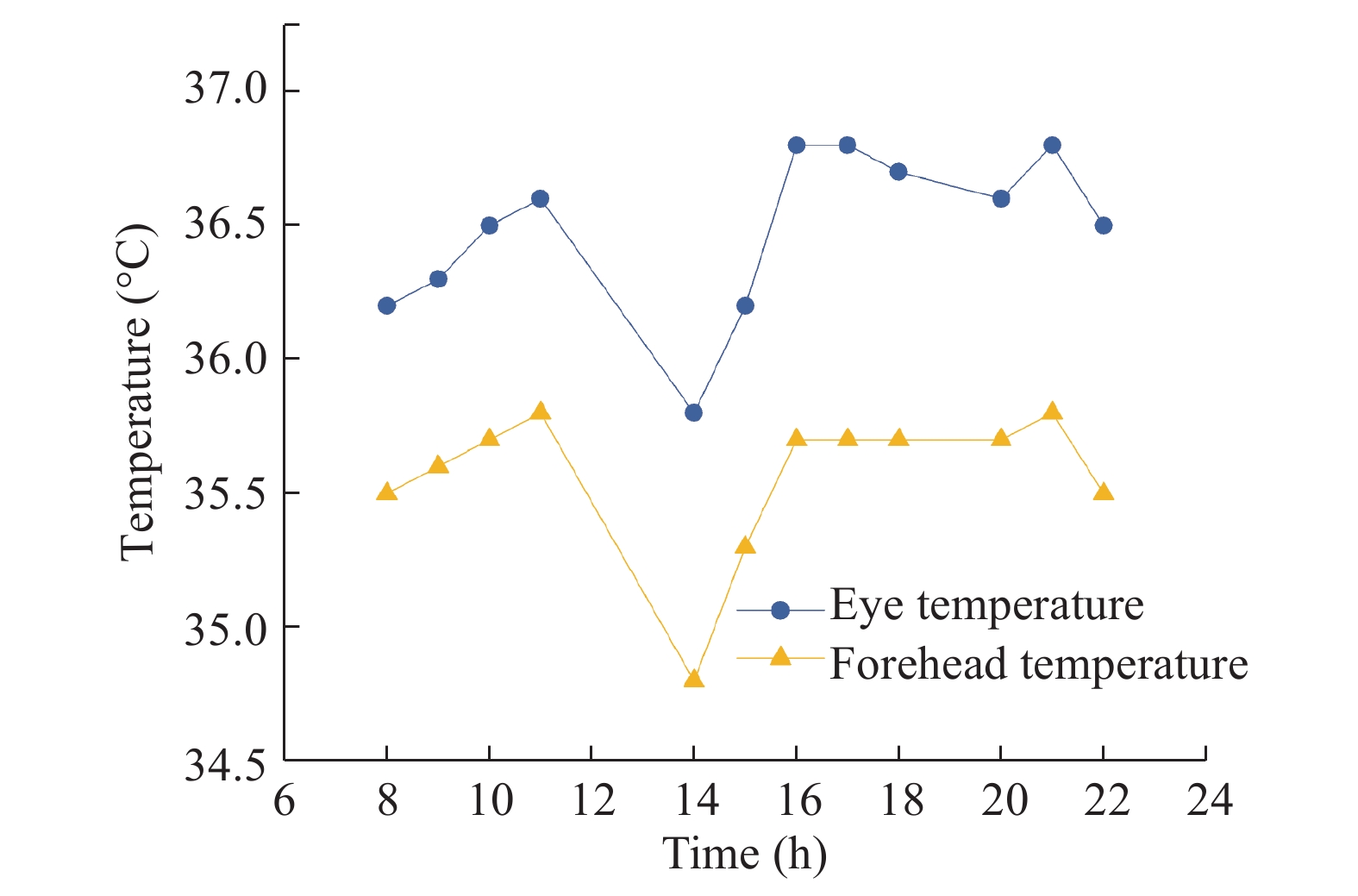

Fig. 5. (Color online) Forehead and eye temperatures measured by the uncooled infrared thermal imager.

DownLoad: Full-Size Img PowerPoint

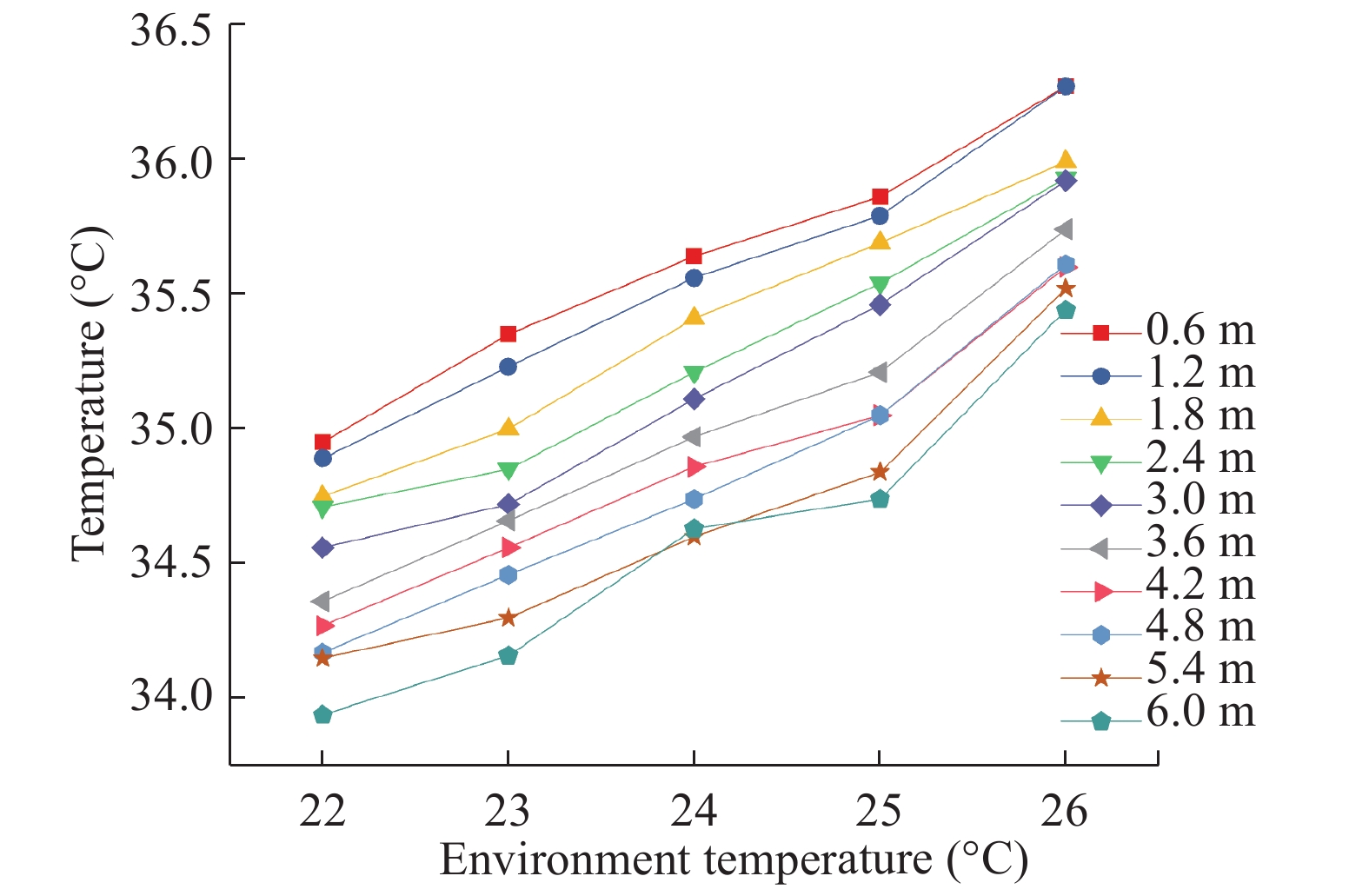

Fig. 6. (Color online) Measured temperature for various distances and environment temperatures.

DownLoad: Full-Size Img PowerPoint

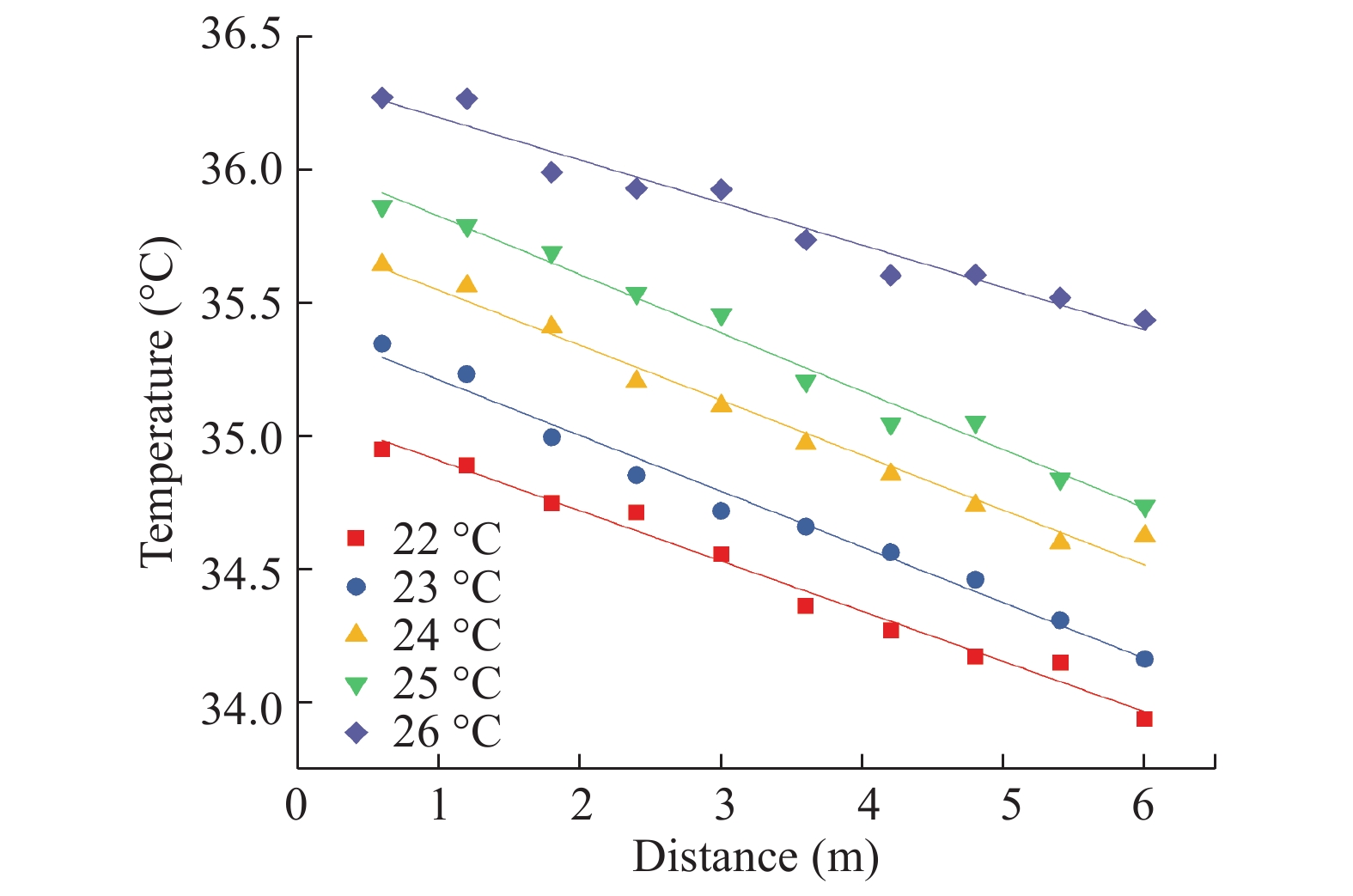

Fig. 7. (Color online) Fitting curves of measured temperature with environment temperature for various measurement distances.

DownLoad: Full-Size Img PowerPoint

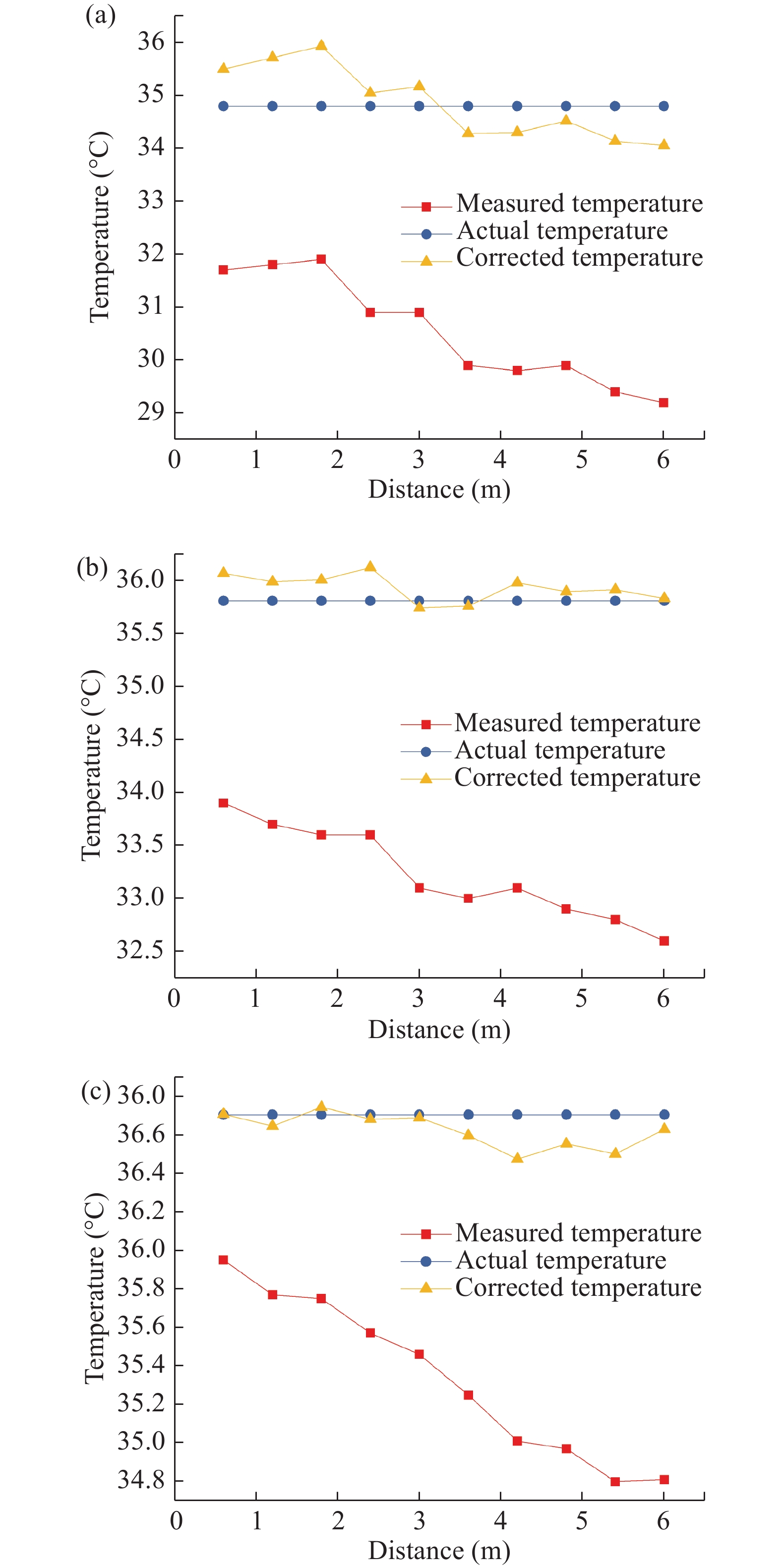

Fig. 8. (Color online) Curves of measured temperature, actual temperature, and corrected temperature in environment temperatures of (a) 10 °C, (b) 18 °C, and (c) 25 °C.

DownLoad: Full-Size Img PowerPoint

Table 1. Measured eye temperature (°C) for various distances and environment temperatures.

T (°C)	d (m)
T (°C)	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0
22	34.95	34.89	34.75	34.71	34.56	34.36	34.27	34.17	34.15	33.94
23	35.35	35.23	35.00	34.85	34.72	34.66	34.56	34.46	34.30	34.16
24	35.64	35.56	35.41	35.21	35.11	34.97	34.86	34.74	34.60	34.63
25	35.86	35.79	35.69	35.54	35.46	35.21	35.05	35.05	34.84	34.74
26	36.27	36.27	35.99	35.93	35.92	35.74	35.60	35.61	35.52	35.44

DownLoad: CSV

Table 2. Regression equations of measured eye temperature with measurement distance for various environment temperatures.

Temperature (°C)	Regression equation*	R²
22	T_M = −0.188dd + 35.0928	0.98393
23	T_M = −0.2092d + 35.4214	0.98364
24	T_M = −0.2064d + 35.7544	0.98129
25	T_M = −0.2191d + 36.0451	0.98489
26	T_M = −0.1597d + 36.3556	0.95921
*: T_M is the measured temperature and d is the measurement distance.

DownLoad: CSV

Table 3. Regression equations of measured eye temperature with environment temperature for various measurement distances.

Distance (m)	Regression equation*	R²
0.6	T_M = 0.315T_U + 28.054	0.99015
1.2	T_M = 0.332T_U + 27.58	0.98937
1.8	T_M = 0.317T_U + 27.76	0.99526
2.4	T_M = 0.313T_U + 27.736	0.98
3.0	T_M = 0.346T_U + 26.85	0.97846
3.6	T_M = 0.331T_U + 27.044	0.98078
4.2	T_M = 0.315T_U + 27.308	0.97138
4.8	T_M = 0.347T_U + 26.478	0.97535
5.4	T_M = 0.328T_U + 26.81	0.92515
6.0	T_M = 0.358T_U + 25.99	0.94678
*: T_M is the measured temperature and T_U is the environment temperature.

DownLoad: CSV

Table 4. Measurement error before correction.

Temperature (°C)	10	18	25
Max error (°C)	5.59	3.21	1.90
Average error (°C)	4.25	2.58	1.37
Max relative error (%)	16	9	5.2

DownLoad: CSV

Table 5. Measurement error after correction.

Temperature (°C)	10	18	25
Max error (°C)	1.13	0.31	0.23
Average error (°C)	0.6	0.14	0.09
Max relative error (%)	3.2	0.8	0.62

DownLoad: CSV
