J. Semicond. > 2018, Volume 39 > Issue 9 > 094011
|

SEMICONDUCTOR DEVICES

Impact of ambient temperature on the self-heating effects in FinFETs

Longxiang Yin, Gang Du and Xiaoyan Liu

+ Author Affiliations

 Corresponding author: Xiaoyan Liu, Email: xyliu@ime.pku.edu.cn

DOI: 10.1088/1674-4926/39/9/094011

PDF

Turn off MathJax

Abstract: We use an electro-thermal coupled Monte Carlo simulation framework to investigate the self-heating effect (SHE) in 14 nm bulk nFinFETs with ambient temperature (TA) from 220 to 400 K. Based on this method, non-local heat generation can be achieved. Contact thermal resistances of Si/Metal and Si/SiO2 are selected to ensure that the source and drain heat dissipation paths are the first two heat dissipation paths. The results are listed below: (i) not all input power (Qinput) turns into heat generation in the device region and some is taken out by the thermal non-equilibrium carriers, owing to the serious non-equilibrium transport; (ii) a higher TA leads to a larger ratio of input power turning into heat generation in the device region at the same operating voltages; (iii) SHE can lead to serious degradation in the carrier transport, which will increase when TA increases; (iv) the current degradation can be 8.9% when Vds = 0.7 V, Vgs = 1 V and TA = 400 K; (v) device thermal resistance (Rth) increases with increasing of TA, which is seriously impacted by the non-equilibrium transport. Hence, the impact of TA should be carefully considered when investigating SHE in nanoscale devices.

Key words: self-heating effects, ambient temperature, FinFET, Monte Carlo method



[1]
Pop E. Energy dissipation and transport in nanoscale devices. Nano Res, 2010, 3(3): 147 doi: 10.1007/s12274-010-1019-z
[2]
Semenov O, Vassighi A, Sachdev M. Impact of self-heating effect on long-term reliability and performance degradation in CMOS circuits. IEEE Trans Device Mater Rel, 2006, 6(1): 17 doi: 10.1109/TDMR.2006.870340
[3]
Shapiro A, Friedman E G. Power efficient level shifter for 16nm FinFET near threshold circuits. IEEE Trans VLSI Syst, 2016, 24(2): 774 doi: 10.1109/TVLSI.2015.2409051
[4]
Makovejev S, Planes N, Haond M, et al. Self-heating in 28 nm bulk and FDSOI. Joint International EUROSOI Workshop and International Conference on Ultimate Integration on Silicon (EUROSOI-ULIS), 2015: 41
[5]
Bury E, Kaczer B, Linten D, et al. Self-heating in FinFET and GAA-NW using Si, Ge and III/V channels. IEEE International Electron Devices Meeting (IEDM), 2016: 15.6.1
[6]
Bury E, Kaczer B, Mitard J, et al. Characterization of self-heating in high-mobility Ge FinFET pMOS devices. Symposium on VLSI Technology (VLSI Technology), 2015: T60
[7]
Wahab M A, Shin S H, Alam M A. 3D modeling of spatio-temporal heat-transport in III–V gate-all-around transistors allows accurate estimation and optimization of nanowire temperature. IEEE Trans Electron Devices, 2015, 62(11): 3595 doi: 10.1109/TED.2015.2478844
[8]
Liao M H, Hsieh C P, Lee C C. Systematic investigation of self-heating effect on CMOS logic transistors from 20 to 5 nm technology nodes by experimental thermoelectric measurements and finite element modeling. IEEE Trans Electron Devices, 2017, 64(2): 646 doi: 10.1109/TED.2016.2642404
[9]
Jin M, Liu C, Kim J, et al. Hot carrier reliability characterization in consideration of self-heating in FinFET technology. IEEE International Reliability Physics Symposium (IRPS), 2016: 2A-2-1
[10]
Jiang H, Shin S H, Liu X, et al. The impact of self-heating on HCI reliability in high-performance digital circuits. IEEE Device Lett, 2017, 38(4): 430 doi: 10.1109/LED.2017.2674658
[11]
Jiang H, Shen L, Shin S H, et al. Unified self-heating effect model for advanced digital and analog technology and thermal-aware lifetime prediction methodology. Symposium on VLSI Technology (VLSI Technology), 2017: T136
[12]
Si M W, Shin S H, Conrad N J, et al. Characterization and reliability of III–V gate-all-around MOSFETs. IEEE International Reliability Physics Symposium (IRPS), 2015: 4A.1.1
[13]
Jiang H, Liu X Y, Xu N, et al. Investigation of self-heating effect on hot carrier degradation in multiple-fin SOI FinFETs. IEEE Electron Device Lett, 2015, 36(12): 1258 doi: 10.1109/LED.2015.2487045
[14]
Vasileska D. Modeling self-heating in nanoscale devices. IEEE International Conference on Nanotechnology (IEEE-NANO), 2015: 200
[15]
Kamakura Y, Adisusilo I N, Kukita K, et al. Coupled Monte Carlo simulation of transient electron-phonon transport in small FETs. IEEE International Electron Devices Meeting (IEDM), 2014: 176
[16]
BSIM CMG, http://bsim.berkeley.edu/models/bsimcmg/, BSIM Group, 2015
[17]
Pierret R F. Semiconductor device fundamentals. Reading: Addison-Wesley, 1996
[18]
Fischetti M V, Laux S E. Monte Carlo analysis of electron transport in small semiconductor devices including band-structure and space-charge effects. Phys Rev B, 1988, 38(14): 9721 doi: 10.1103/PhysRevB.38.9721
[19]
Mohamed M, Aksamija Z, Vitale W, et al. A conjoined electron and thermal transport study of thermal degradation induced during normal operation of multigate transistors. IEEE Trans Electron Devices, 2014, 61(4): 976 doi: 10.1109/TED.2014.2306422
[20]
Gonzalez B, Palankovski V, Kosina H, et al. An analytical model for the electron energy relaxation time. International Association of Science and Technology for Development (IASTED), 1999: 367
[21]
Jeon J, Jhon H S, Kang M. Investigation of electrothermal behaviors of 5 nm Bulk FinFET. IEEE Trans Electron Devices, 2017, 64(12): 5284 doi: 10.1109/TED.2017.2766214
[22]
Wang L, Brown A R, Nedjalkov M, et al. Impact of self-heating on the statistical variability in bulk and SOI FinFETs. IEEE Trans Electron Devices, 2015, 62(7): 2106 doi: 10.1109/TED.2015.2436351
[23]
https://www.altera.com/products/common/temperature/ind-temp.html, 2017
[24]
Xie B Q, Bi J S, Li B, et al. The effect of cryogenic temperature characteristics on silicon-based devices and circuits. Microelectronics, 2015, 45(6): 789 (in Chinese)
[25]
Natarajan S, Agostinelli M, Akbar S, et al. A 14 nm logic technology featuring 2nd-generation FinFET, air-gapped interconnects, self-aligned double patterning and a 0.0588 μm2 SRAM cell size. IEEE International Electron Devices Meeting (IEDM), 2014: 71
[26]
ITRS. www.itrs2.net/itrs-reports.html, ITRS Reports, 2013
[27]
Wang J C, Du G, Wei K L, et al. Three-dimensional Monte Carlo simulation of bulk fin field effect transistor. Chin Phys B, 2012, 21(11): 117308 doi: 10.1088/1674-1056/21/11/117308
[28]
Wei K L, Egley J, Liu X Y, et al. Remote charge scattering: a full Coulomb interaction approach and its impact on silicon nMOS FinFETs with HfO2 gate dielectric. Sci China Inf Sci, 2014, 57(2): 022403
[29]
Du G, Liu X Y, Han R Q. Quantum Boltzmann equation solved by Monte Carlo method for nanoscale semiconductor devices. Chin Phys, 2006, 15(1): 177 doi: 10.1088/1009-1963/15/1/028
[30]
Du G, Liu X Y, Xia Z L, et al. Monte Carlo simulation of p- and n-channel GOI MOSFETs by solving the quantum Boltzmann equation. IEEE Trans Electron Devices, 2005, 52(10): 2258 doi: 10.1109/TED.2005.856806
[31]
Jacoboni C, Reggiani L. The Monte Carlo method for the solution of charge transport in semiconductors with applications to covalent materials. Rev Mod Phys, 1983, 55(3): 645 doi: 10.1103/RevModPhys.55.645
[32]
Ahn W, Zhang H, Shen T et al. A predictive model for IC self-heating based on effective medium and image charge theories and its implications for interconnect and transistor reliability. IEEE Trans Electron Devices, 2017, 64(9): 3555 doi: 10.1109/TED.2017.2725742
[33]
Chang C W, Liu S E, Lin B L, et al. Thermal behavior of self-heating effect in FinFET devices acting on back-end interconnects. IEEE International Reliability Physics Symposium (IRPS), 2015: 2F.6.1
[34]
Wang N, Pi Y, Wang W, et al. Equivalent thermal conductivity model based full scale numerical simulation for thermal management in fan-out packages. IEEE Electronic Components and Technology Conference (ECTC), 2017: 2054
[35]
Pi Y, Wang W, Chen J, et al. Microfluidic cooling for distributed hot-spots. IEEE Electronic Components and Technology Conference (ECTC), 2016: 903
[36]
Jagannadham K. Thermal conductivity and interface thermal conductance in films of tungsten-tungsten silicide on Si. IEEE Trans Electron Devices, 2014, 61(6): 1950 doi: 10.1109/TED.2014.2318281
[37]
Takahashi T, Beppu N, Chen K, et al. Thermal-aware device design of nanoscale bulk/SOI FinFETs: Suppression of operation temperature and its variability. International Electron Devices Meeting (IEDM), 2011: 34.6.1
[38]
https://www.americanelements.com/hafnium-oxide-12055-23-1
[39]
Pop E, Sinha S, Goodson K E. Heat generation and transport in nanometer-scale transistors. Proc IEEE, 2006, 94(8): 1587 doi: 10.1109/JPROC.2006.879794
[40]
Pop E, Goodson K E. Thermal phenomena in nanoscale transistors. J Electron Pack, 2006, 128(2): 102 doi: 10.1115/1.2188950
[41]
Kolluri S, Endo K, Suzuki E, et al. Modeling and analysis of self-heating in FinFET devices for improved circuit and EOS/ESD performance. IEEE International Electron Devices Meeting, 2007: 177
[42]
Shrivastava M, Agrawal M, Mahajan S, et al. Physical insight toward heat transport and an improved electrothermal modeling framework for FinFET architectures. IEEE Trans Electron Devices, 2012, 59(5): 1353 doi: 10.1109/TED.2012.2188296
[43]
Filanovsky I M, Allam A. Mutual compensation of mobility and threshold voltage temperature effects with applications in CMOS circuits. IEEE Trans Circuits Syst I, 2001, 48(7): 876 doi: 10.1109/81.933328
[44]
Wang R S, Liu H W, Huang R, et al. Experimental investigations on carrier transport in Si nanowire transistors: ballistic efficiency and apparent mobility. IEEE Trans Electron Devices, 2008, 55(11): 2960 doi: 10.1109/TED.2008.2005152
[45]
Lundstrom M, Ren Z. Essential physics of carrier transport in nanoscale MOSFETs. IEEE Trans Electron Devices, 2002, 49(1): 133 doi: 10.1109/16.974760
[46]
Prasad C, Jiang L, Singh D, et al. Self-heat reliability considerations on Intel’s 22 nm tri-gate technology. IEEE International Reliability Physics Symposium (IRPS), 2013: 5D.1.1

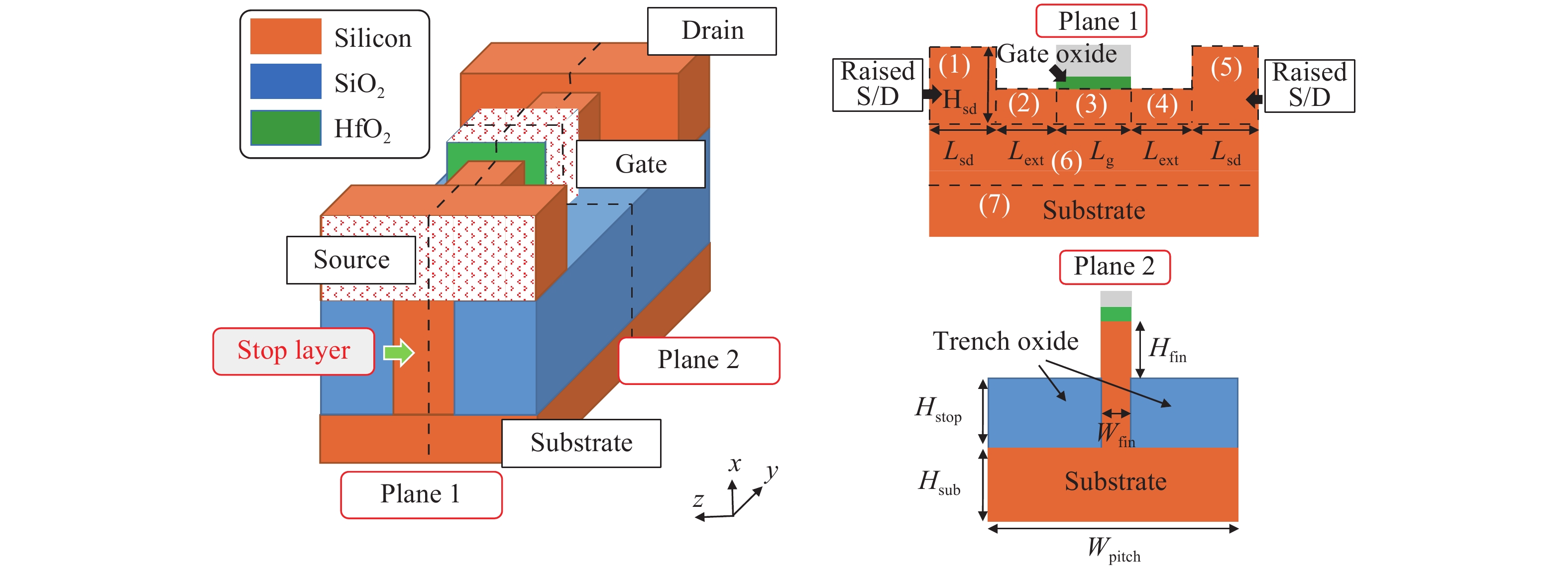

Fig. 1.  (Color online) The 14 nm-node Si bulk nFinFET structure used in this work.

DownLoad: Full-Size Img PowerPoint

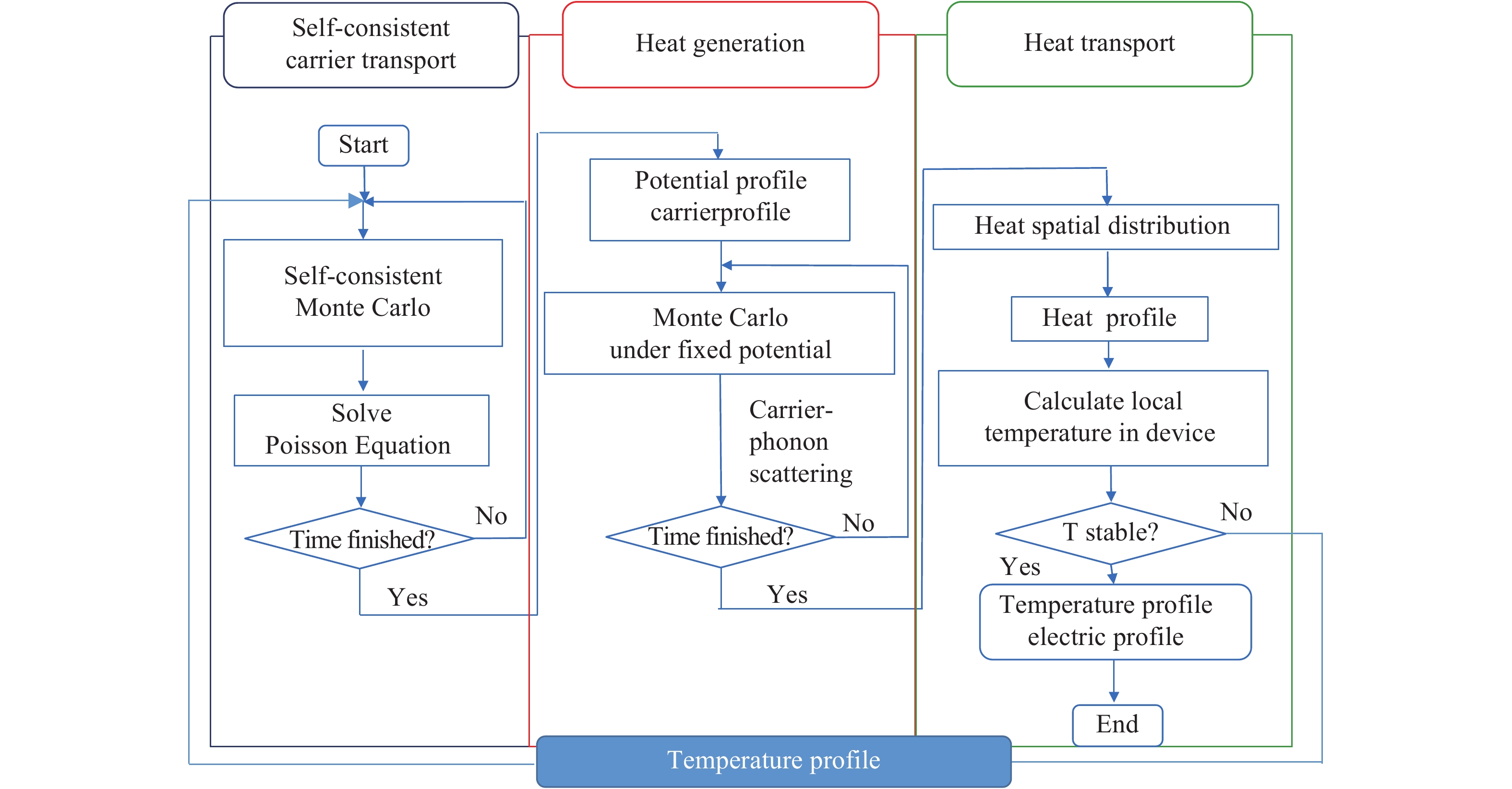

Fig. 2.  (Color online) Electro-thermal simulation framework used in this work.

DownLoad: Full-Size Img PowerPoint

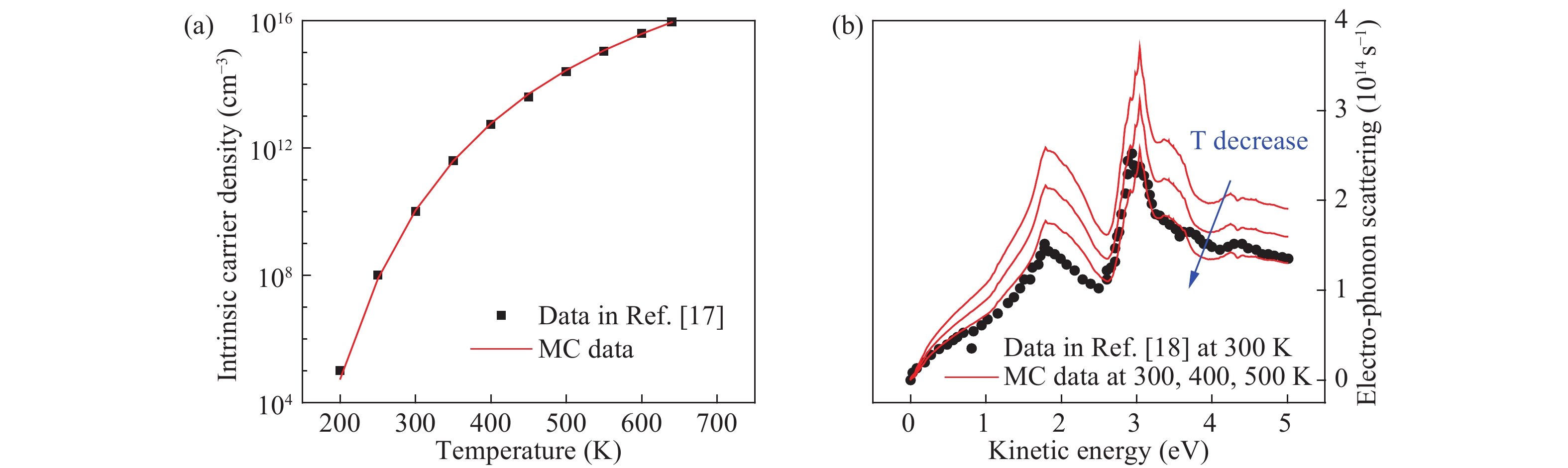

Fig. 3.  (Color online) (a) Intrinsic carrier density versus temperature. Data in Ref. [17] is shown for comparison. (b) Electro-phonon scattering rate versus kinetic energy at different temperatures. Data at TA = 300 K in Ref. [18] is shown for comparison.

DownLoad: Full-Size Img PowerPoint

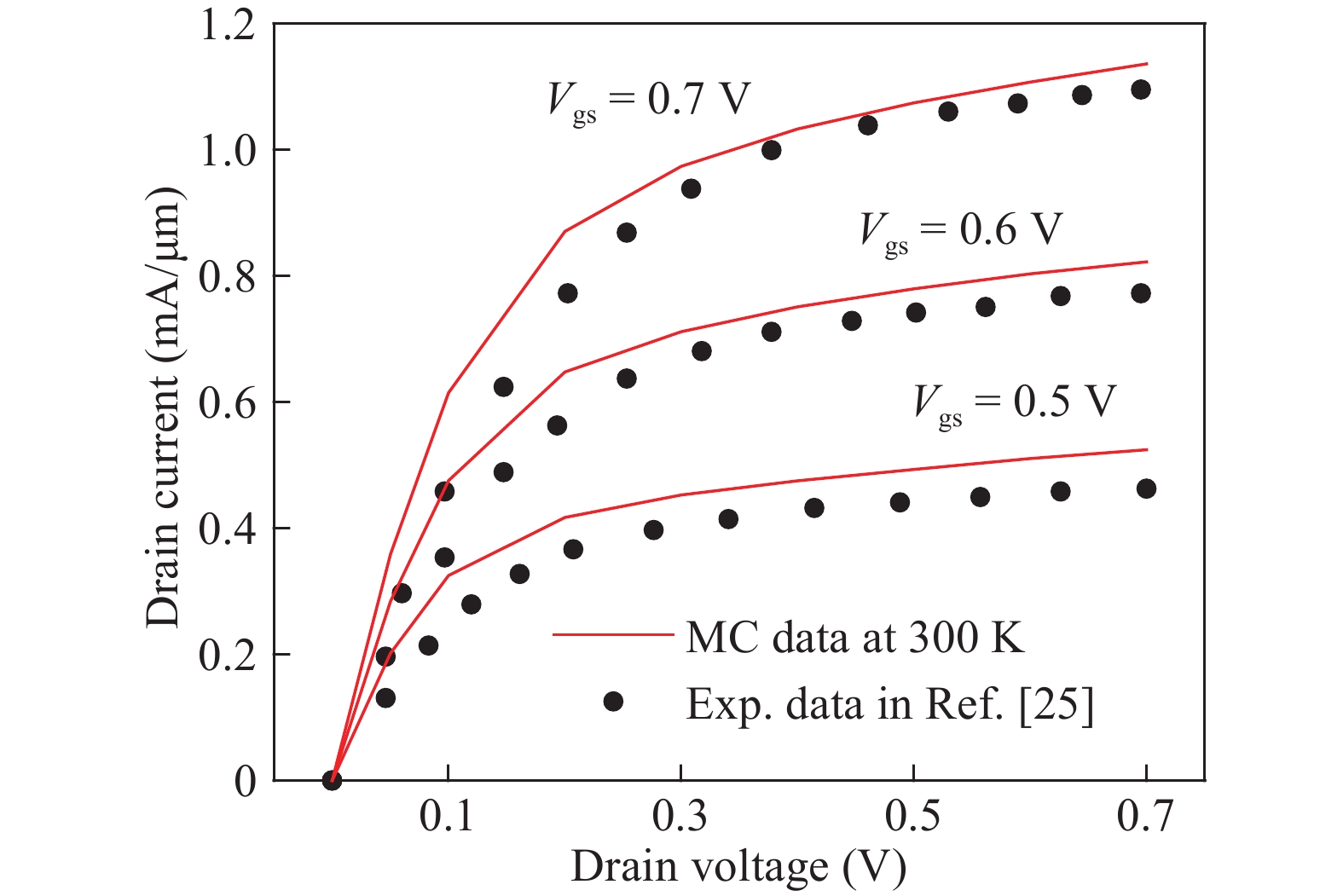

Fig. 4.  (Color online) Calibration of 14 nm-node Si nFinFET simulation results with DC experimental data.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  (Color online) The average electron energy distribution along the transport direction at Vgs = 0.7 V, Vds = 1 V and TA = 300 K. The thermal equilibrium carrier energy is 1.5 KBT (0.0389 eV).

DownLoad: Full-Size Img PowerPoint

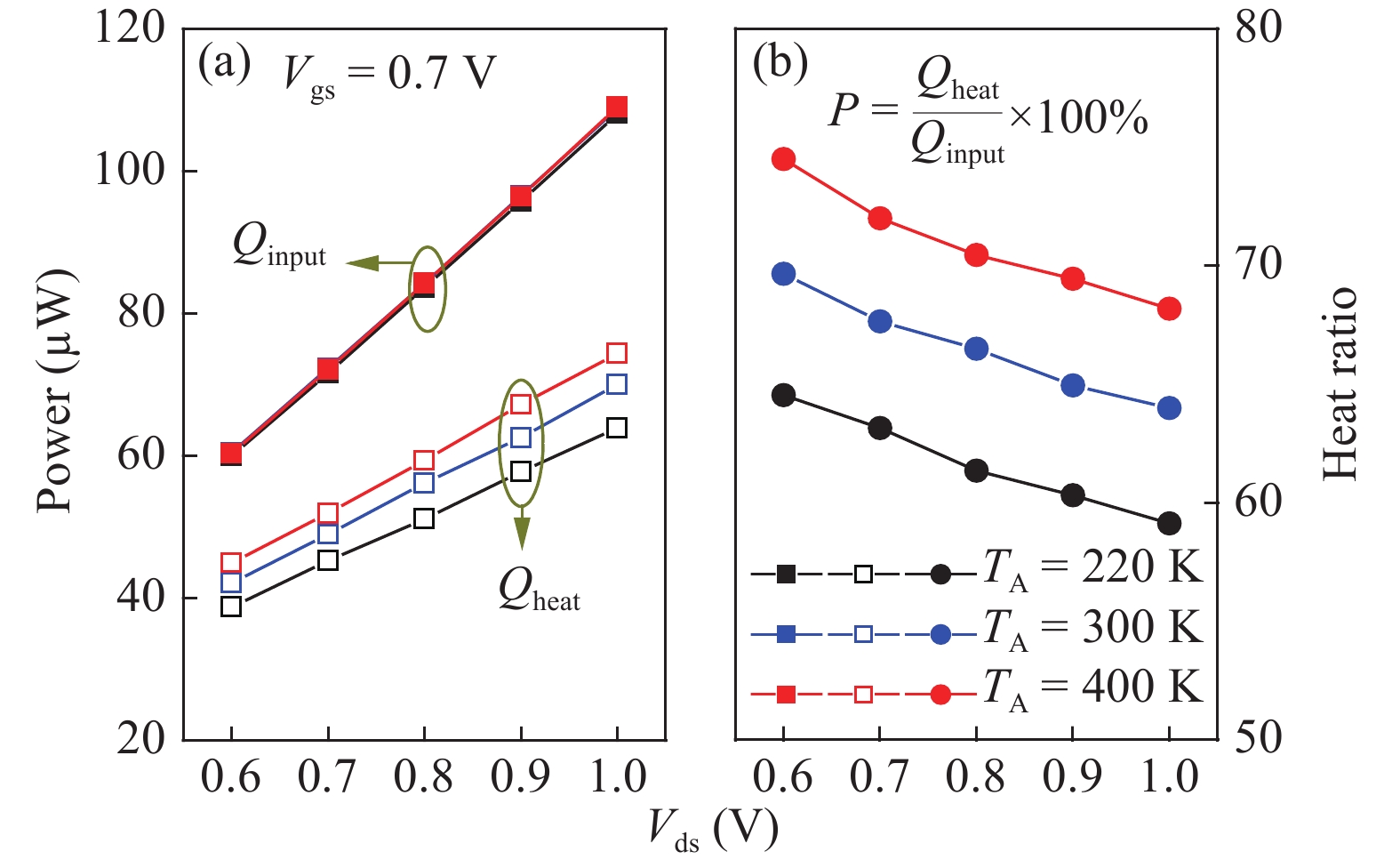

Fig. 6.  (Color online) (a) The input power Qinput and heat generation Qheat under different Vds and (b) the corresponding ratios of Qheat in Qinput at TA = 220, 300, 400 K and Vgs = 0.7 V.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  (Color online) (a) The input power Qinput and heat generation Qheat under different Vgs and (b) the corresponding ratios of Qheat in Qinput at TA = 220, 300, 400 K and Vds = 0.7 V.

DownLoad: Full-Size Img PowerPoint
Fig. 8.  (Color online) (a) The average augments of lattice temperature and (b) the power densities along the transport direction comparing Vds = 0.7 V and Vds = 1 V at Vgs = 0.7 V, (c) the average augments of lattice temperature and (d) the power densities along the transport direction comparing Vgs = 0.7 V and Vgs = 1 V at Vds = 0.7 V. TA = 220, 300 and 400 K.

DownLoad: Full-Size Img PowerPoint

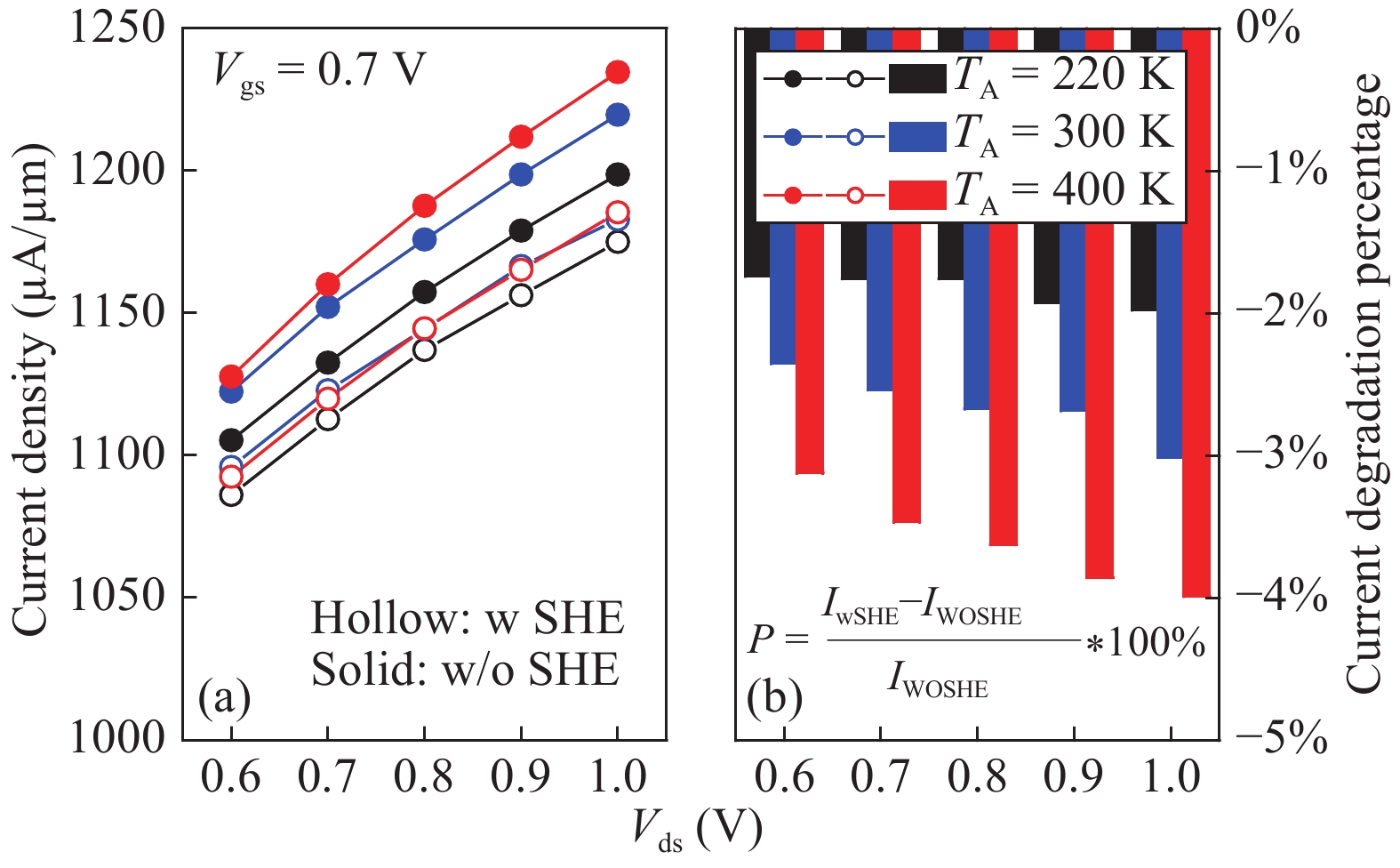

Fig. 9.  (Color online) (a) Comparison of current densities considering SHE with those not considering SHE under different Vds and (b) the corresponding current degradation percentages caused by SHE at TA = 220, 300, 400 K and Vgs = 0.7 V.

DownLoad: Full-Size Img PowerPoint
Fig. 11.  (Color online) (a) Comparison of ballistic factor Bsat considering SHE with that not considering SHE under different Vgs and (b) the corresponding degradation percentages of Bsat by SHE at TA = 220, 300, 400 K and Vds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

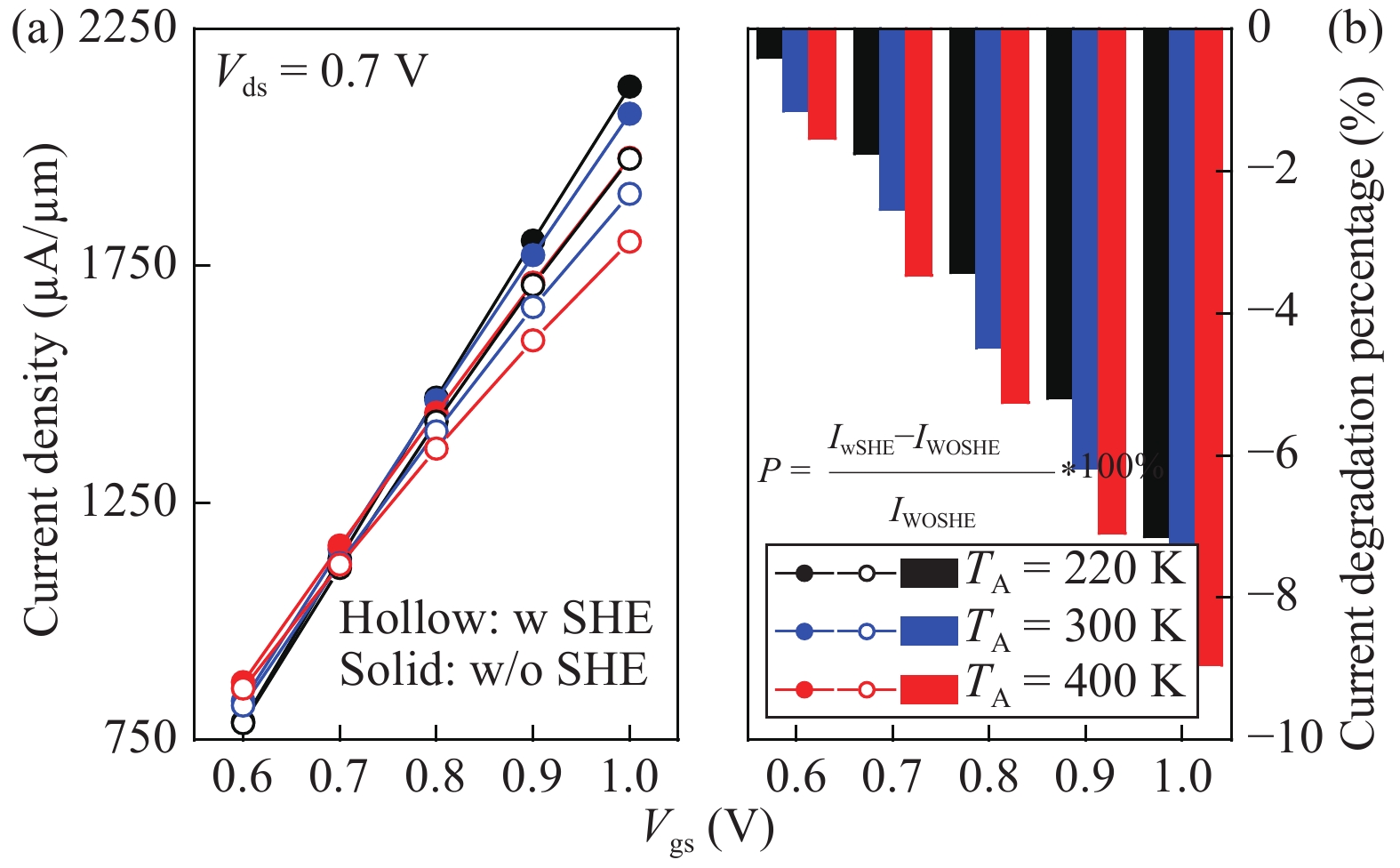

Fig. 10.  (Color online) (a) Comparison of current densities considering SHE with those not considering SHE under different Vgs and (b) the corresponding current degradation percentage by SHE at TA = 220, 300, 400 K and Vds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

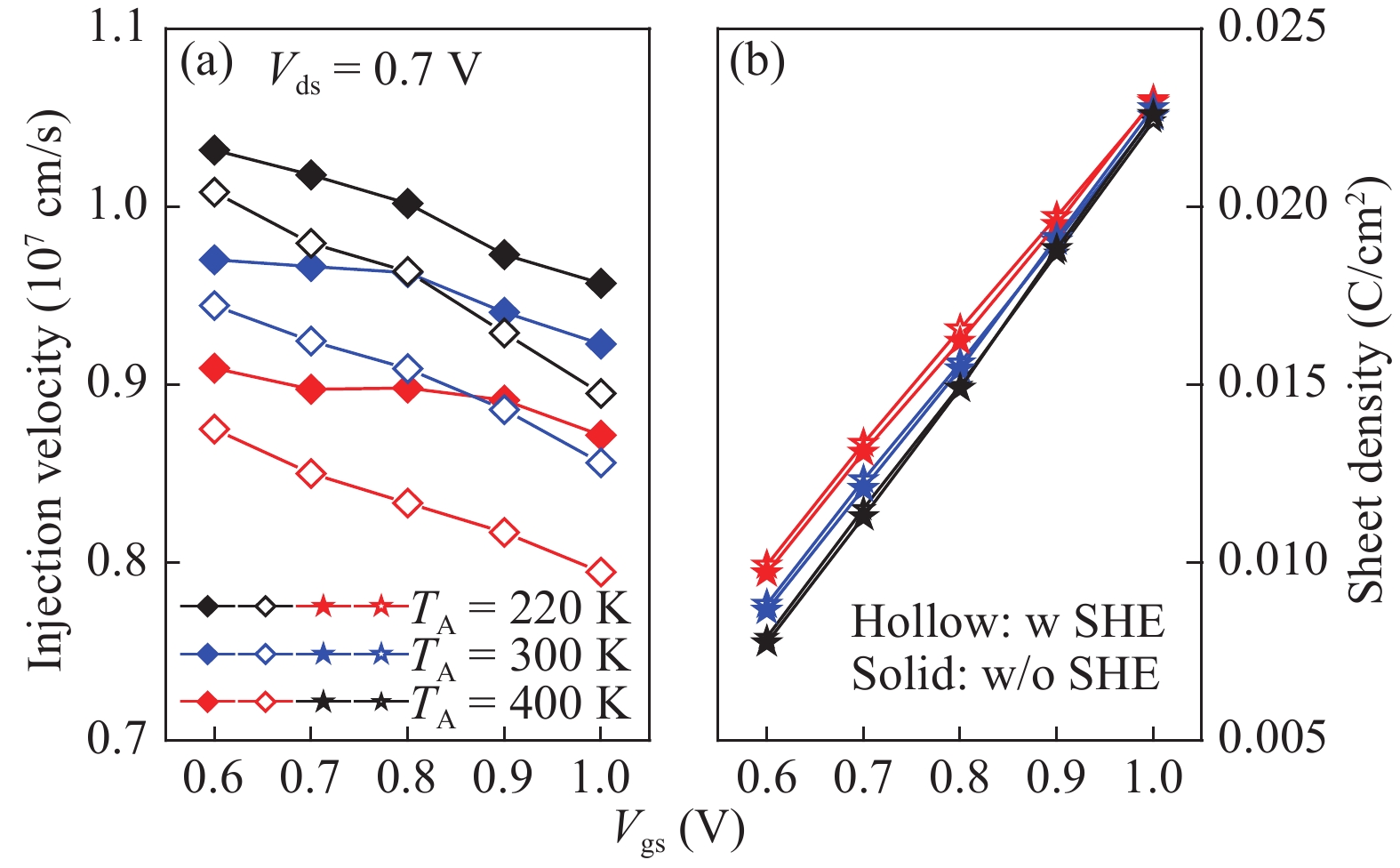

Fig. 12.  (Color online) (a) Injection velocity υinj and (b) sheet density Qtop at the top of barrier ToB[45] under different Vgs with and without SHE at TA = 220, 300, 400 K and Vds = 0.7 V.

DownLoad: Full-Size Img PowerPoint

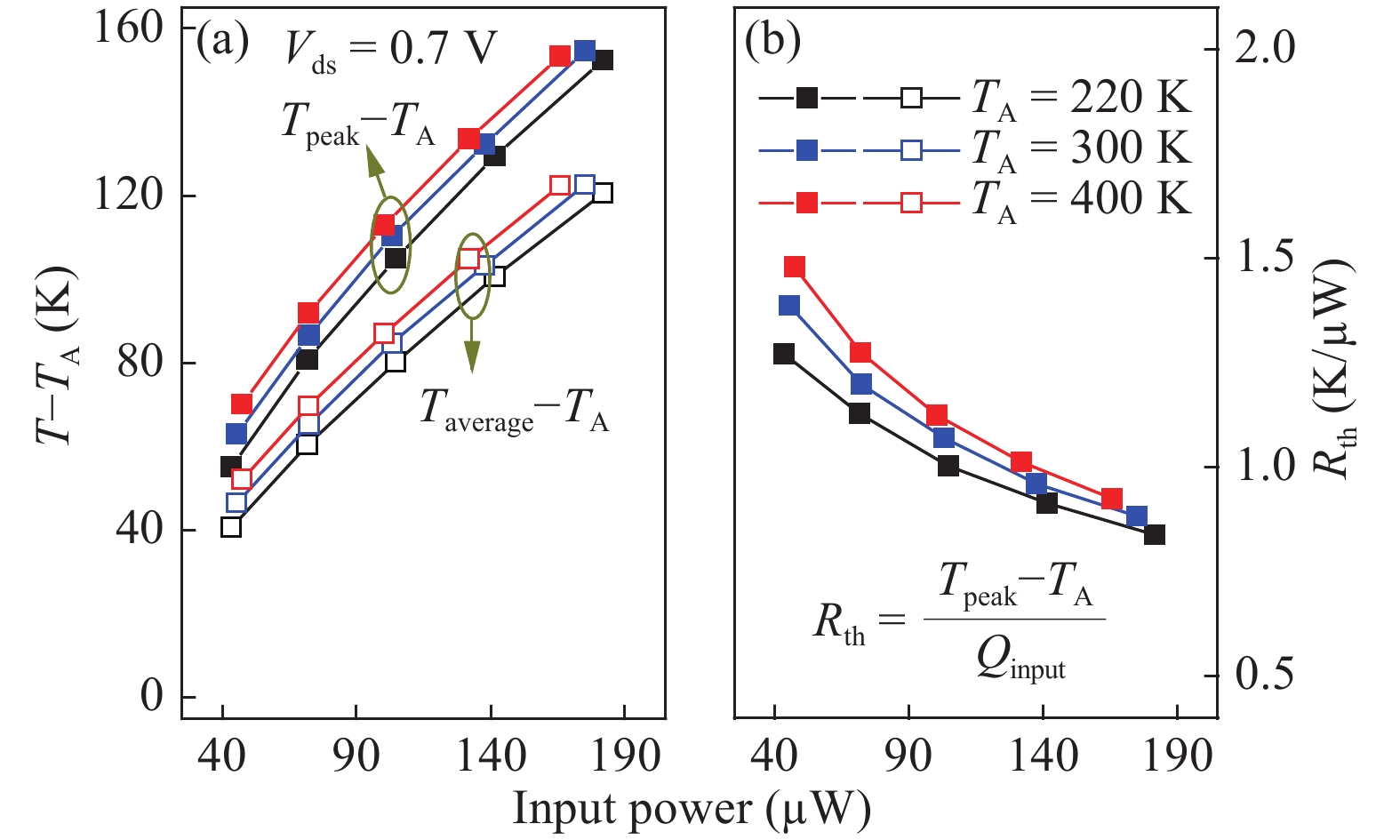

Fig. 13.  (Color online) The relationship of (a) T–TA and (b) thermal resistance Rth with Qinput at TA = 220, 300, 400 K when Vds = 0.7 V. Tpeak and Taverage respectively refer to the peak lattice temperature and the average lattice temperature.

DownLoad: Full-Size Img PowerPoint

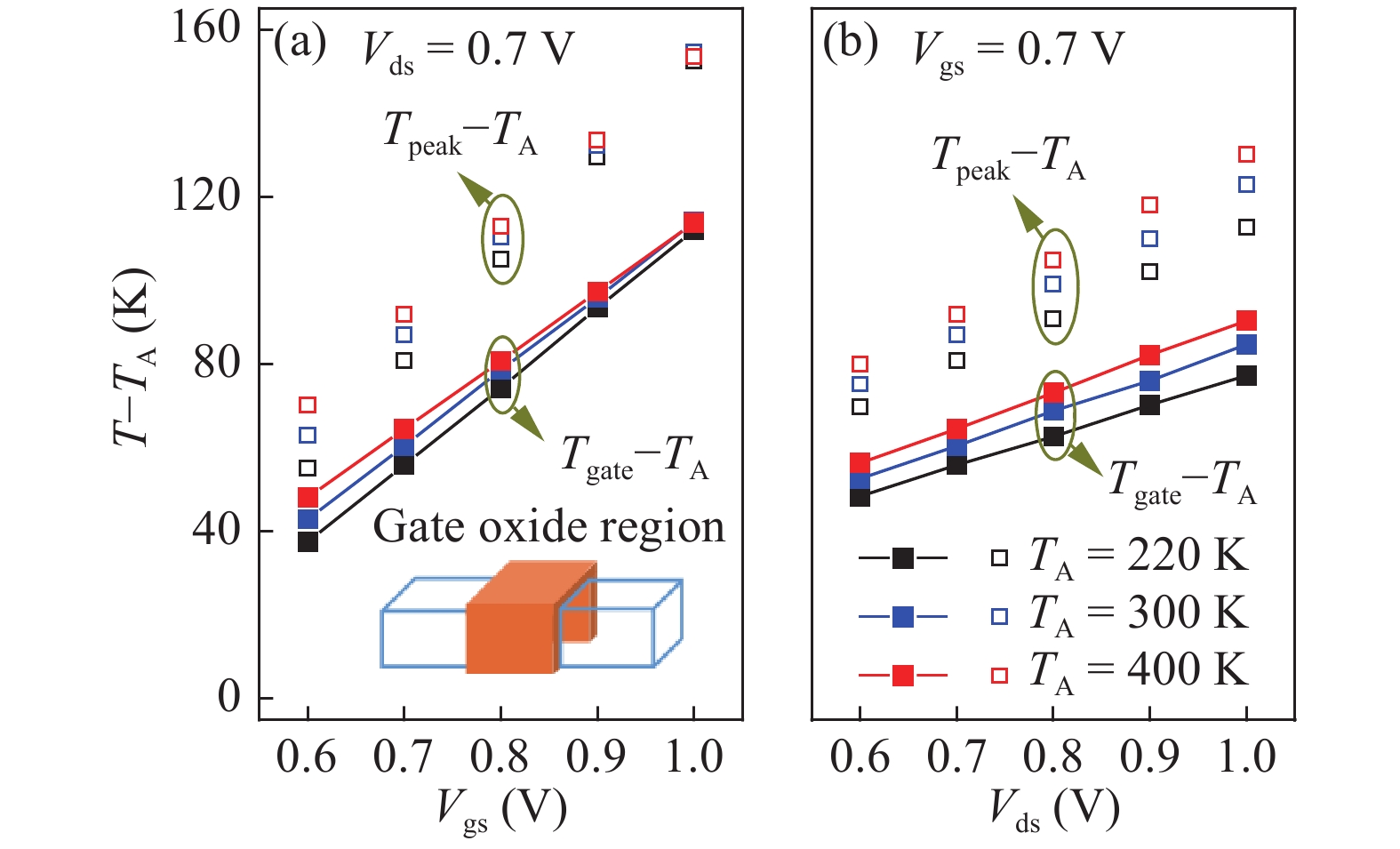

Fig. 14.  (Color online) The average augment of lattice temperature at the gate oxide region (Tgate–TA) with TA = 220, 300 and 400 K (a) under different Vgs at Vds = 0.7 V and (b) under different Vds at Vgs = 0.7 V. Tpeak–TA is plotted for comparison.

DownLoad: Full-Size Img PowerPoint

Table 1.   Structure parameters of the 14 nm-node nFinFET.

Strcuture
parameter 		Description Value
Hsd Raised S/D height 52 nm
Hstop Stop layer height 40 nm
Hsub Substrate layer height 4 μm
Hfin Fin height 42 nm
Lsd Raised S/D length 20 nm
Lext S/D length 10 nm
Lg Gate length 20 nm
Wpitch Fin pitch 42 nm
Wfin Fin width 8 nm
Nchannel Channel doping, p type 1 × 1015 cm−3
Nstop Stop layer doping, p type 2 × 1018 cm−3
Nsd Source/Drain doping, n type 1 × 1020 cm−3
Nsub Substrate doping, p type 1 × 1015 cm−3
EOT Equivalent oxide thickness 0.85 nm
Tox Gate oxide thickness 5.4 nm
DownLoad: CSV

Table 2.   Optical phonon and inter-valley acoustic phonon in silicon.

η Phonon type DtK (1010 eV/m) $ \hbar \omega $ (meV) r
1 TA 0.47 12.1 g
2 LA 0.74 18.5 g
3 LO 10.23 62.0 g
4 TA 0.28 19.0 r
5 LA 1.86 47.4 r
6 TO 1.86 58.6 r
DownLoad: CSV

Table 3.   Thermal parameters used in this work.

Silicon thermal conductivity (anisotropic)
ky in Region (1–6) 15 Wm−1K−1
kx, kz in Region (1–6) 10 Wm−1K−1
Silicon thermal conductivity (isotropic)
k in Region (7) 148 Wm−1K−1
Oxide thermal conductivity (isotropic)
Trench oxide (SiO2) 1.4 Wm−1K−1
Gate oxide (HfO2) 1.1 Wm−1K−1
Contact thermal resistance
Gate 2.5 × 10−4 cm2K/W
Source/Drain/Substrate 0.5 × 10−4 cm2K/W
DownLoad: CSV
