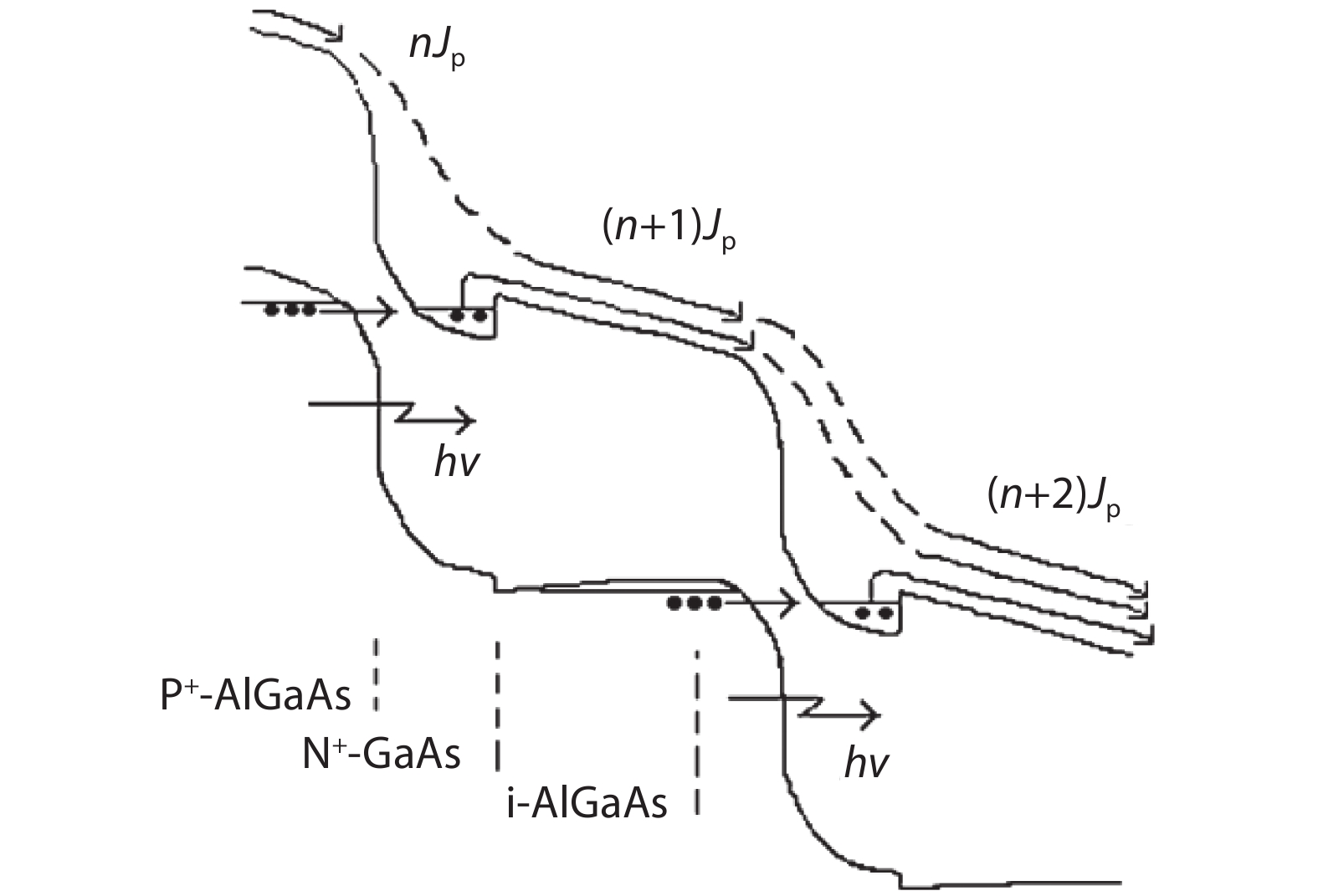

Fig. 1.
Schematic diagram of the multi-quantum well infrared detector with tunnel compensation structure[14] (under the reverse bias).
DownLoad:
| Citation: |
Chaohui Li, Jun Deng, Weiye Sun, Leilei He, Jianjun Li, Jun Han, Yanli Shi. Improvement of tunnel compensated quantum well infrared detector[J]. Journal of Semiconductors, 2019, 40(12): 122902. doi: 10.1088/1674-4926/40/12/122902
****
C H Li, J Deng, W Y Sun, L L He, J J Li, J Han, Y L Shi, Improvement of tunnel compensated quantum well infrared detector[J]. J. Semicond., 2019, 40(12): 122902. doi: 10.1088/1674-4926/40/12/122902.
|
Improvement of tunnel compensated quantum well infrared detector
DOI: 10.1088/1674-4926/40/12/122902
More Information
-
Abstract

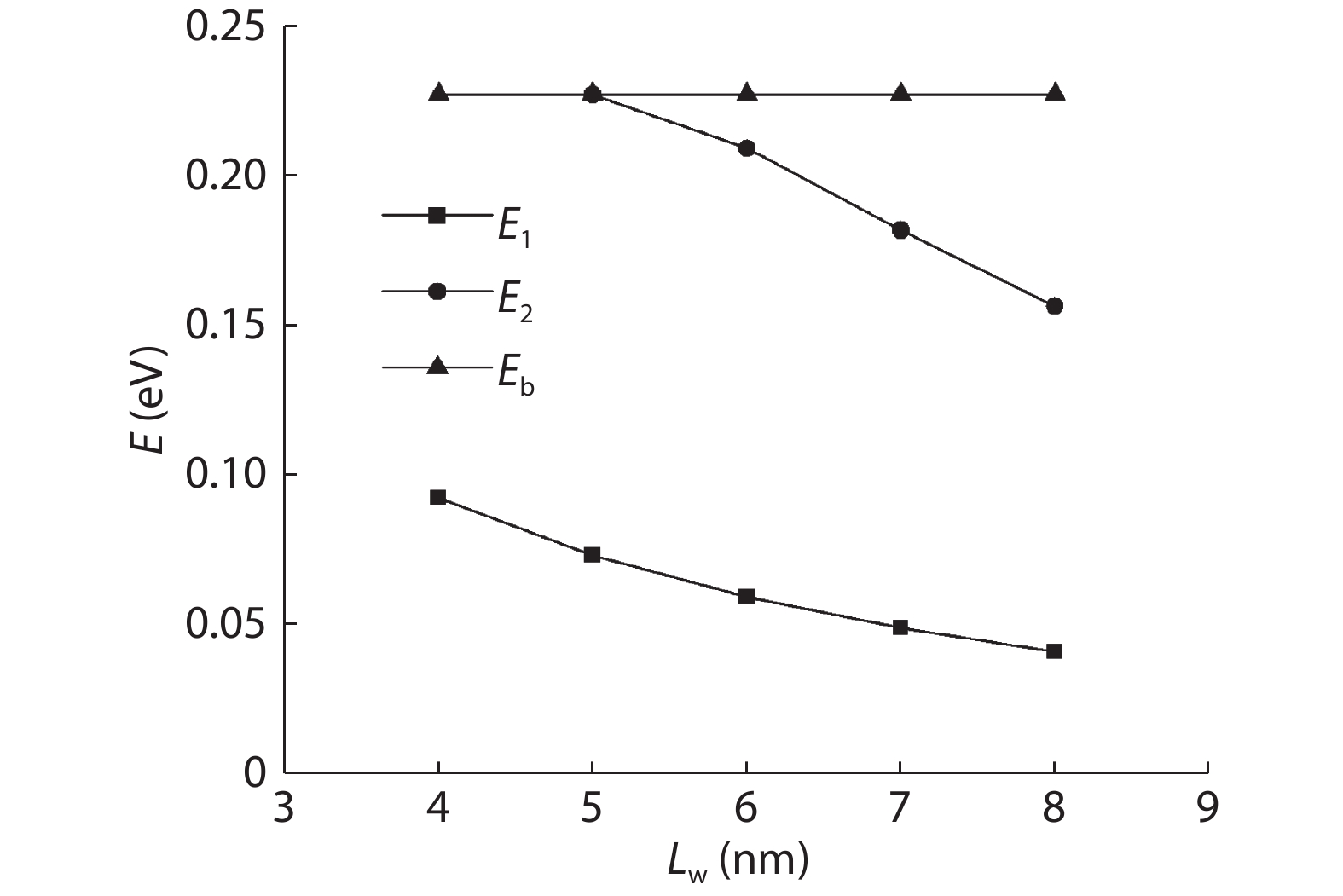

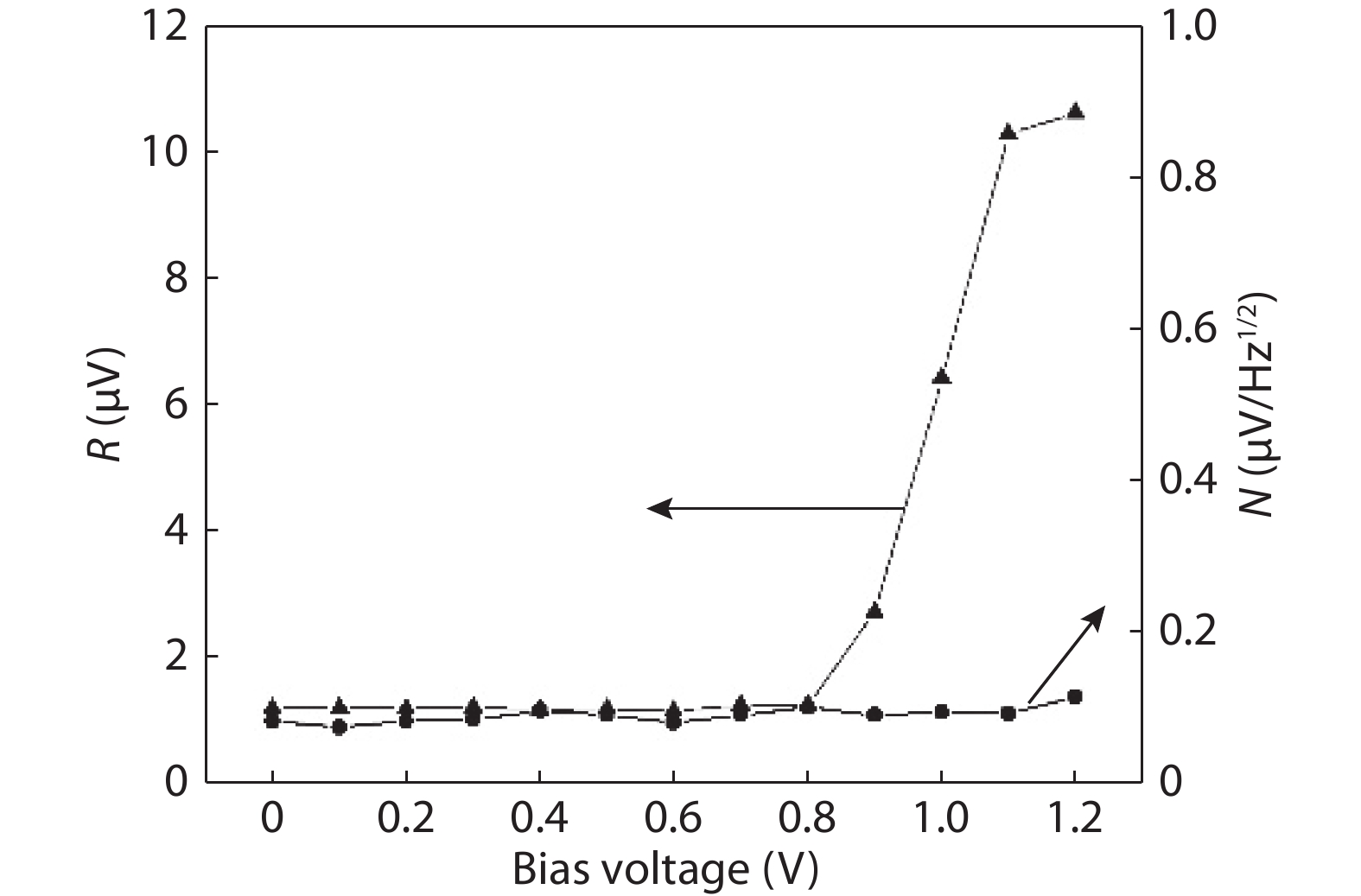

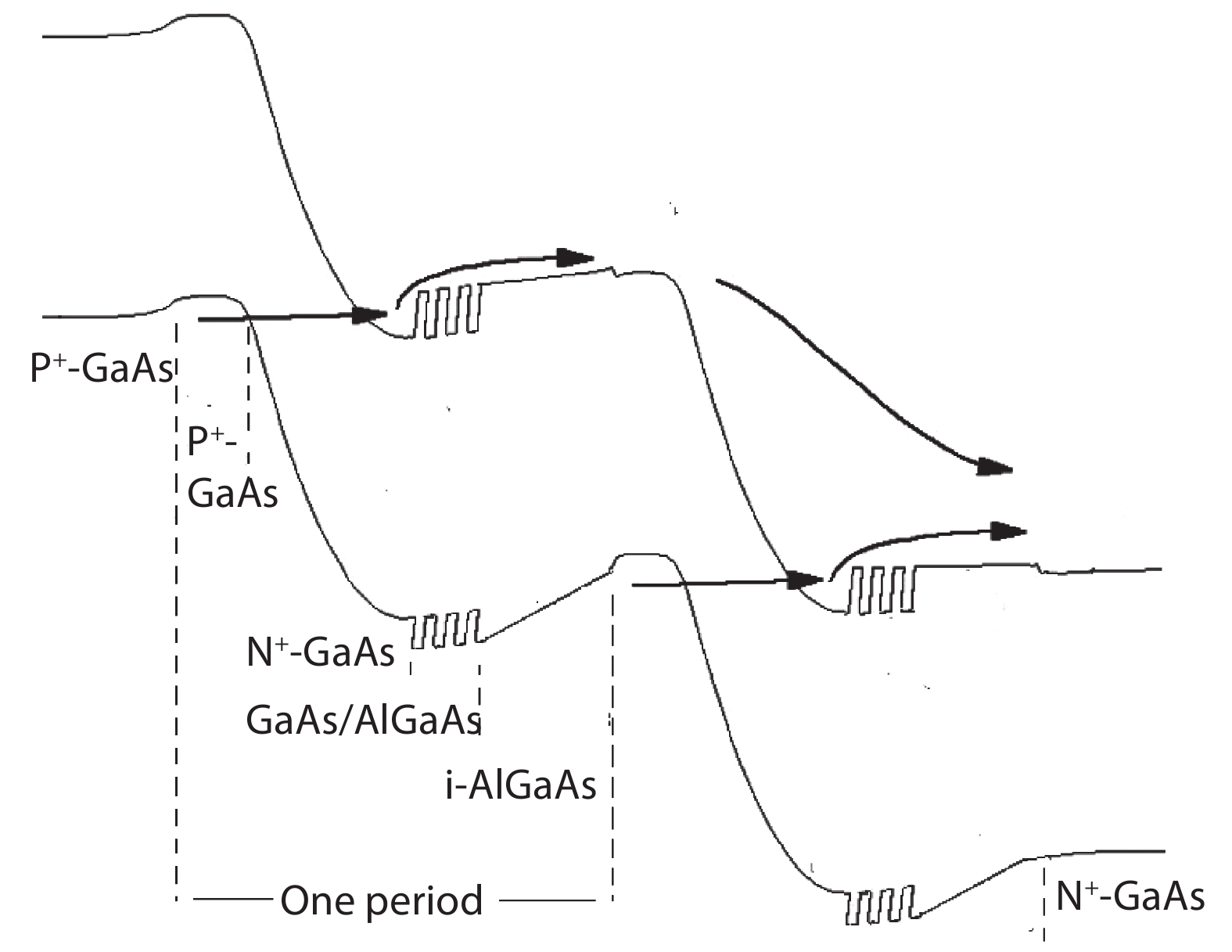

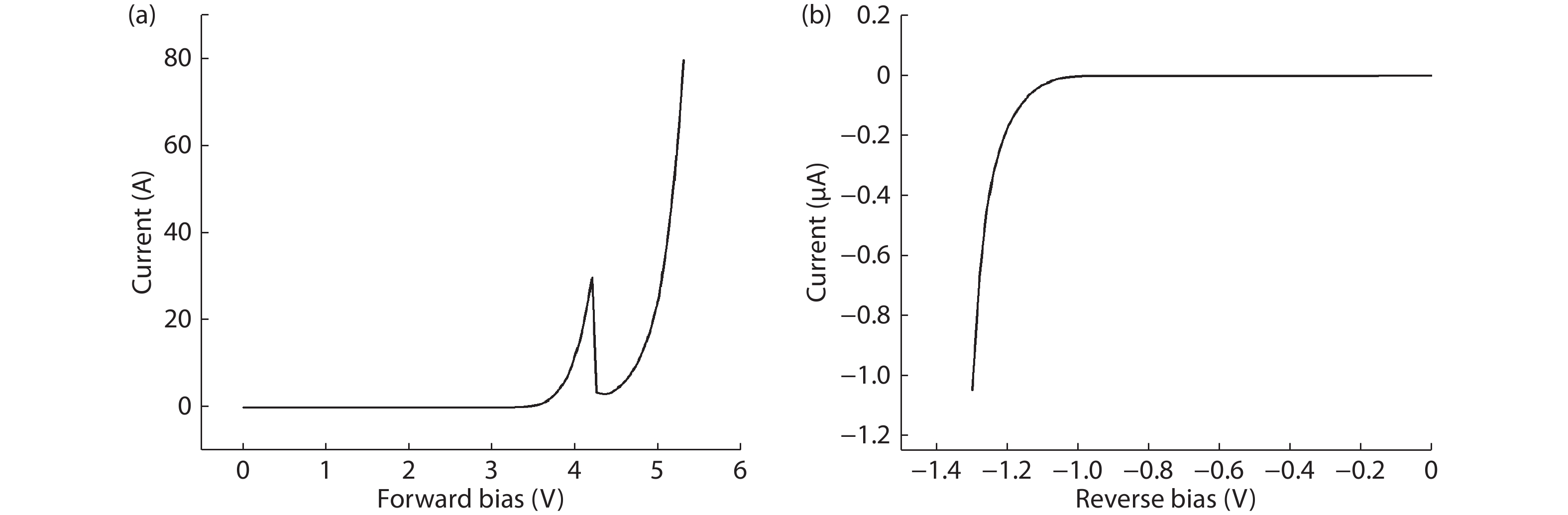

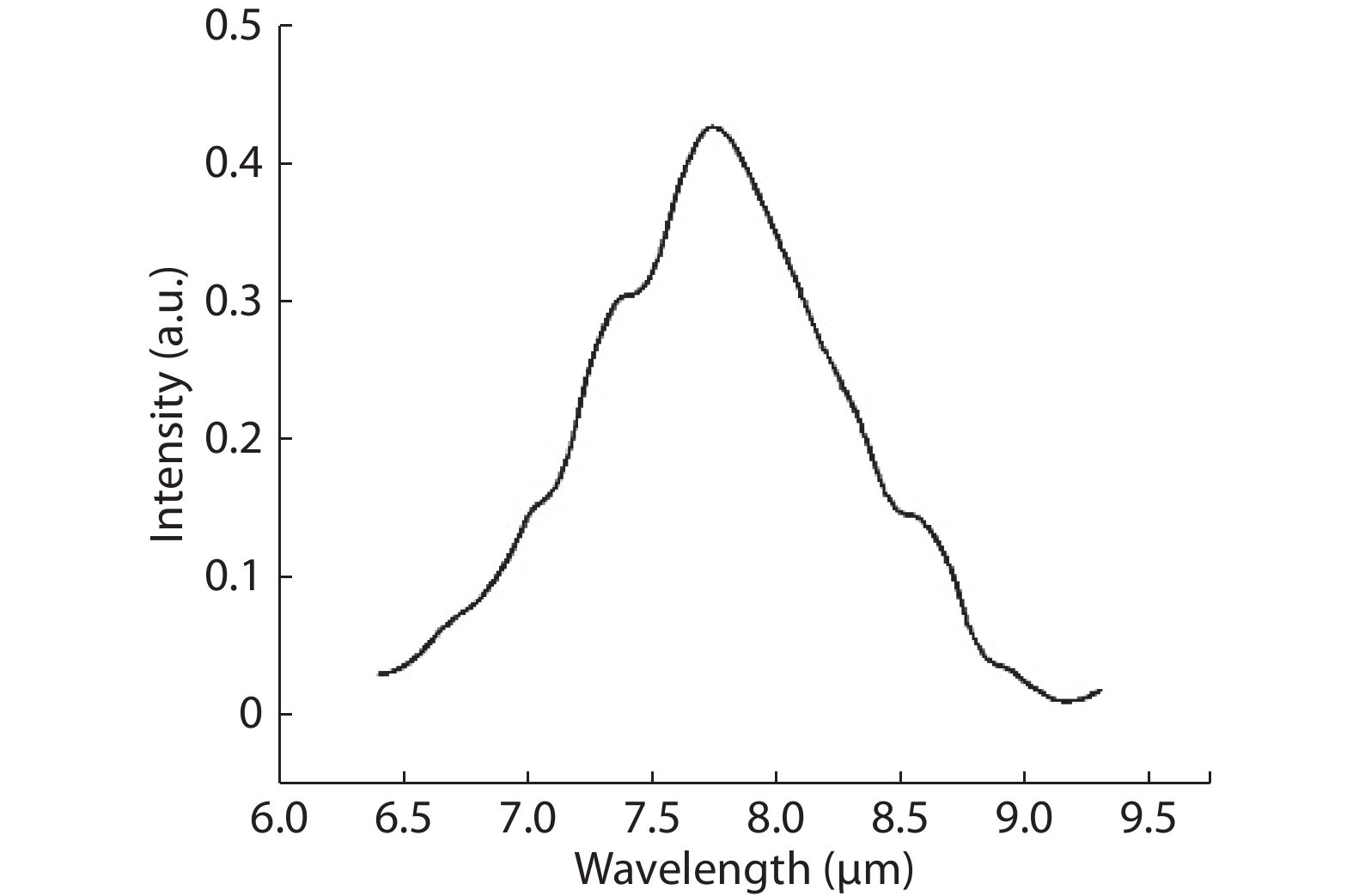

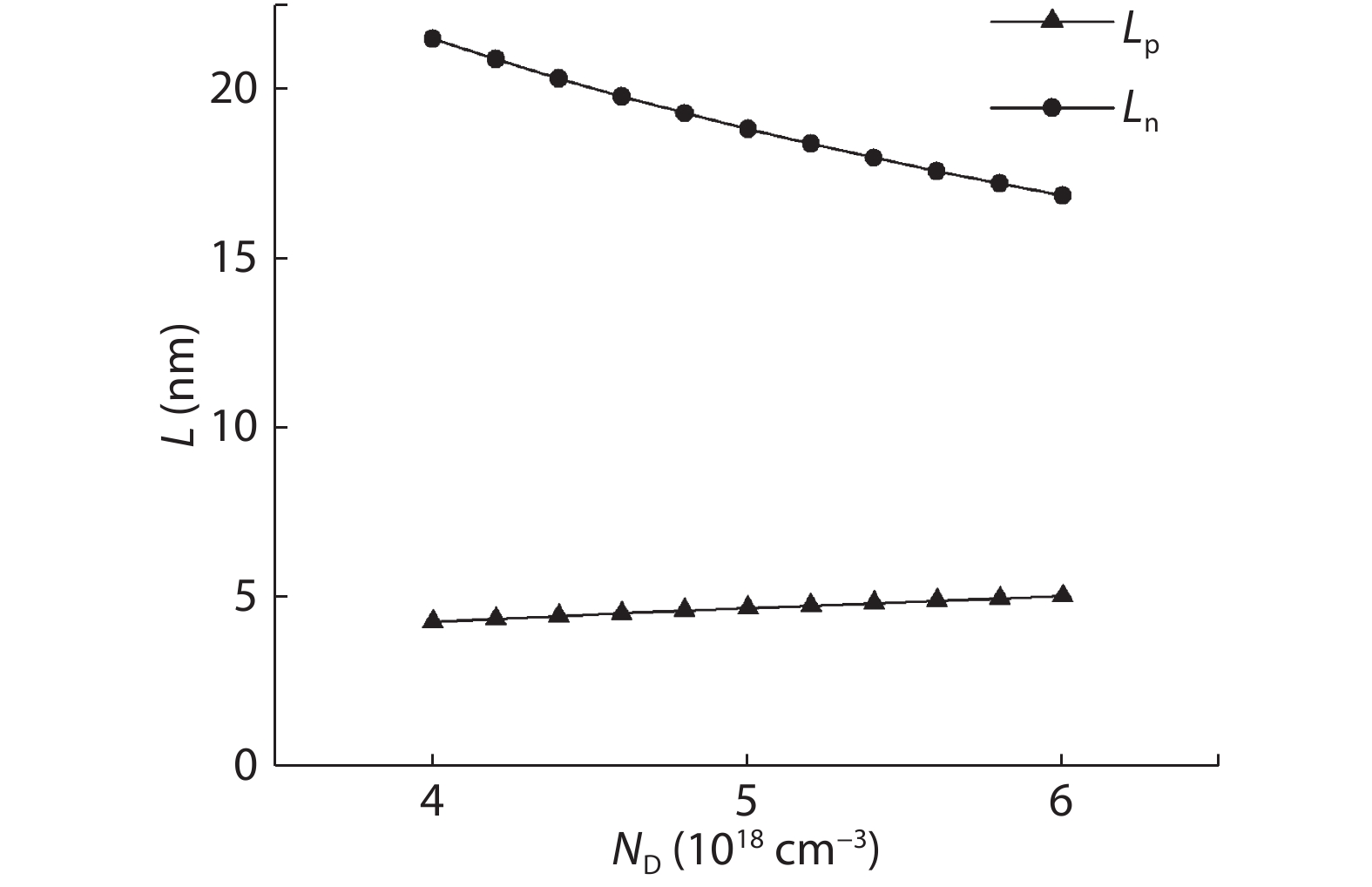

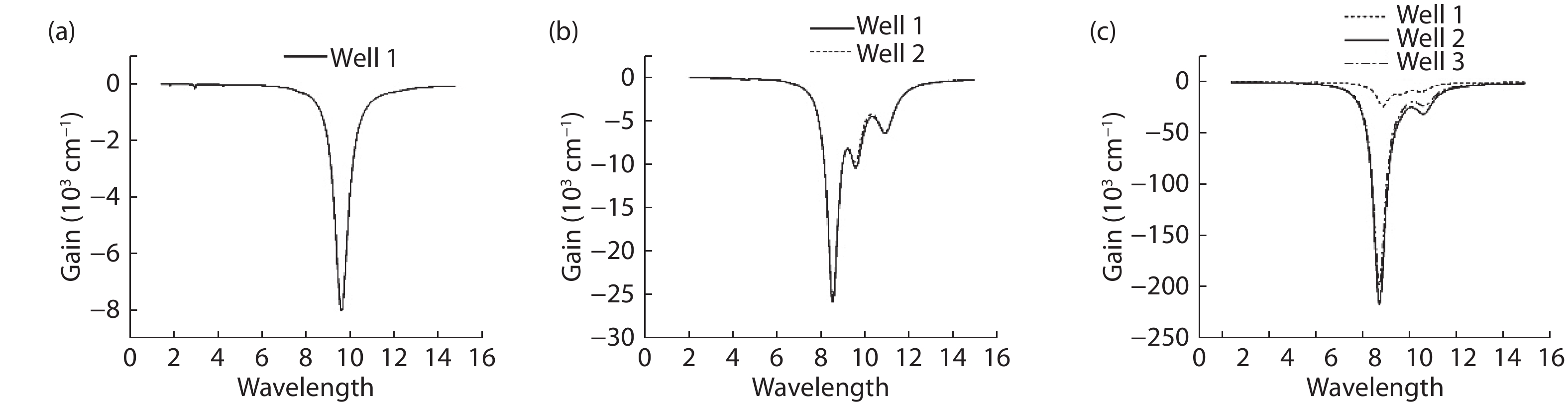

To reduce the difficulty of the epitaxy caused by multiple quantum well infrared photodetector (QWIP) with tunnel compensation structure, an improved structure is proposed. In the new structure, the superlattices are located between the tunnel junction and the barrier as the infrared absorption region, eliminating the effect of doping concentration on the well width in the original structure. Theoretical analysis and experimental verification of the new structure are carried out. The experimental sample is a two-cycle device, each cycle contains a tunnel junction, a superlattice infrared absorption region and a thick barrier. The photosurface of the detector is 200 × 200 μm2 and the light is optically coupled by 45° oblique incidence. The results show that the optimal operating voltage of the sample is –1.1 V, the dark current is 2.99 × 10–8 A, and the blackbody detectivity is 1.352 × 108 cm·Hz1/2·W–1 at 77 K. Our experiments show that the new structure can work normally.-
Keywords:
- infrared detector,
- tunnel compensation,
- superlattice
-
