Optimization of broadband omnidirectional antireflection coatings for solar cells

Xia Guo1, , Qiaoli Liu1, 2, Huijun Tian1, 3, Ben Li2, Hongyi Zhou2, Chong Li2, Anqi Hu1 and Xiaoying He1,

+ Author Affiliations

 Corresponding author: Xia Guo, Email: guox@bupt.edu.cn; Xiaoying He, xiaoyinghe@bupt.edu.cn

DOI: 10.1088/1674-4926/40/3/032702

PDF

Turn off MathJax

Abstract: Broadband and omnidirectional antireflection coating is generally an effective way to improve solar cell efficiency, because the destructive interference between the reflected and incident light can maximize the light transmission into the absorption layer. In this paper, we report the incident quantum efficiency ηin, not incident energy or power, as the evaluation function by the ant colony algorithm optimization method, which is a swarm-based optimization method. Also, SPCTRL2 is proposed to be incorporated for accurate optimization because the solar irradiance on a receiver plane is dependent on position, season, and time. Cities of Quito, Beijing and Moscow are selected for two- and three-layer antireflective coating optimization over λ = [300, 1100] nm and θ = [0°, 90°]. The ηin increases by 0.26%, 1.37% and 4.24% for the above 3 cities, respectively, compared with that calculated by other rigorous optimization algorithms methods, which is further verified by the effect of position and time dependent solar spectrum on the antireflective coating design.

Key words: antireflection coatingant colony algorithmincident quantum efficiencySPCTRL2



[1]
Leem J W, Guan X Y, Choi M, et al. Broadband and omnidirectional highly-transparent coverglasses coated with biomimetic moth-eye nanopatterned polymer films for solar photovoltaic system applications. Sol Energ Mat Sol C, 2015, 134: 45. doi: 10.1016/j.solmat.2014.11.025
[2]
Rahman A, Ashraf A, Xin H, et al. Sub-50-nm self-assembled nanotextures for enhanced broadband antireflection in silicon solar cells. Nat Commun, 2015, 6: 5963. doi: 10.1038/ncomms6963
[3]
Tyagi V V, Rahim N A A, Rahim N A, et al. Progress in solar, PV technology: research and achievement. Renew Sust Energy Rev, 2013, 20: 443. doi: 10.1016/j.rser.2012.09.028
[4]
Louwen A, Sark W V, Schropp R, et al. A cost roadmap for silicon heterojunction solar cells. Sol Energ Mat Sol C, 2016, 147: 295. doi: 10.1016/j.solmat.2015.12.026
[5]
Rayleigh L. On reflection of vibrations at the confines of two media between which the transition is gradual. Proc London Math Soc, 1879, 1(1): 51.
[6]
Carlson D E, Wronski C R. Amorphous silicon solar cell. Appl Phys Lett, 1976, 28(11): 671. doi: 10.1063/1.88617
[7]
Zeng L, Yi Y, Hong C, et al. Efficiency enhancement in Si solar cells by textured photonic crystal back reflector. Appl Phys Lett, 2006, 89(11): 111111. doi: 10.1063/1.2349845
[8]
Xiong C, Xu W, Zhao Y, et al. New design graded refractive index antireflection coatings for silicon solar cells. Mod Phys Lett B, 2017, 31(19–21): 1740028. doi: 10.1142/S0217984917400280
[9]
Tao M, Zhou W, Yang H, et al. Surface texturing by solution deposition for omnidirectional antireflection. Appl Phys Lett, 2007, 91(8): 081118. doi: 10.1063/1.2775805
[10]
Bett A, Eisenlohr J, Höhn O, et al. Front side antireflection concepts for silicon solar cells with diffractive rear side structures. 29th European Photovoltaic Solar Energy Conference and Exhibition, 2014: 987.
[11]
Yang J, Luo F, Kao T S, et al. Design and fabrication of broadband ultralow reflectivity black Si surfaces by laser micro/nanoprocessing. Light Sci Appl, 2014, 3(7): e185. doi: 10.1038/lsa.2014.66
[12]
Huang Y F, Chattopadhyay S, Jen Y J. et al. Improved broadband and quasi-omnidirectional anti-reflection properties with biomimetic silicon nanostructures. Nat Nanotech, 2007, 2(12), 770. doi: 10.1038/nnano.2007.389
[13]
Diedenhofen S L, Vecchi G, Algra R E, et al. Broad-band and omnidirectional antireflection coatings based on semiconductor nanorods. Adv Mater, 2009, 21(9): 973. doi: 10.1002/adma.v21:9
[14]
Wang Z S, Kawauchi H, Kashima T, et al. Significant influence of TiO2 photoelectrode morphology on the energy conversion efficiency of N719 dye-sensitized solar cell. Coord Chem Rev, 2004, 248(13/14): 1381. doi: 10.1016/j.ccr.2004.03.006
[15]
Keis K, Magnusson E, Lindström H, et al. A 5% efficient photoelectrochemical solar cell based on nanostructured ZnO electrodes. Sol Energ Mat Sol C, 2002, 73(1): 51. doi: 10.1016/S0927-0248(01)00110-6
[16]
Cai J, Qi L. Recent advances in antireflective surfaces based on nanostructure arrays. Mater Horiz, 2015, 2(1): 37. doi: 10.1039/C4MH00140K
[17]
Xi J Q, Schubert M F, Kim J K, et al. Optical thin-film materials with low refractive index for broadband elimination of Fresnel reflection. Nat Photonics, 2007, 1(3): 176. doi: 10.1038/nphoton.2007.26
[18]
Guter W, Schöne J, Philipps S P, et al. Current-matched triple-junction solar cell reaching 41.1% conversion efficiency under concentrated sunlight. Appl Phys Lett, 2009, 94(22): 223504. doi: 10.1063/1.3148341
[19]
Liang Y, Feng D, Wu Y, et al. Highly efficient solar cell polymers developed via fine-tuning of structural and electronic properties. J Am Chem Soc, 2009, 131(22): 7792. doi: 10.1021/ja901545q
[20]
Hiramoto M, Fujiwara H, Yokoyama M. Three-layered organic solar cell with a photoactive interlayer of codeposited pigments. Appl Phys Lett, 1991, 58(10): 1062. doi: 10.1063/1.104423
[21]
Spinelli P, Verschuuren M, Polman A. Broadband omnidirectional antireflection coating based on subwavelength surface Mie resonators. Nat Commun, 2012, 3: 692. doi: 10.1038/ncomms1691
[22]
Campbell W M, Burrell A K, Officer D L, et al. Porphyrins as light harvesters in the dye-sensitised TiO2 solar cell. Coord Chem Rev, 2004, 248(13/14): 1363. doi: 10.1016/j.ccr.2004.01.007
[23]
Krebs F C, Tromholt T, Jørgensen M. Upscaling of polymer solar cell fabrication using full roll-to-roll processing. Nanoscale, 2010, 2(6): 873. doi: 10.1039/b9nr00430k
[24]
Liao H H, Chen L M, Xu Z, et al. Highly efficient inverted polymer solar cell by low temperature annealing of Cs2CO3 interlayer. Appl Phys Lett, 2008, 92(17): 156. doi: 10.1063/1.2918983
[25]
Barkhouse D A R, Gunawan O, Gokmen T, et al. Device characteristics of a 10.1% hydrazine-processed Cu2ZnSn(Se, S)4 solar cell. Prog Photovolt: Res Appl, 2012, 20(1): 6. doi: 10.1002/pip.v20.1
[26]
Blakers A W, Wang A, Milne A M, et al. 22.8% efficient silicon solar cell. Appl Phys Lett, 1989, 55(13): 1363. doi: 10.1063/1.101596
[27]
Poxson D J, M F Schubert M F, Mont F W, et al. Broadband omnidirectional antireflection coatings optimized by genetic algorithm. Opt Lett, 2009, 34(6): 728. doi: 10.1364/OL.34.000728
[28]
Oh S J, Chhajed S, Poxson D J, et al. Enhanced broadband and omni-directional performance of polycrystalline Si solar cells by using discrete multilayer antireflection coatings. Opt Express, 2013, 21(101): A157. doi: 10.1364/OE.21.00A157
[29]
Chang Y J. Suppressing lossy-film-induced angular mismatches between reflectance and transmittance extrema: optimum optical designs of interlayers and AR coating for maximum transmittance into active layers of CIGS solar cells. Opt Express, 2014, 22(101): A167. doi: 10.1364/OE.23.00A947
[30]
Chang Y J, Chen Y T. Broadband omnidirectional antireflection coatings for metal-backed solar cells optimized using simulated annealing algorithm incorporated with solar spectrum. Opt Express, 2011, 19(104): A875. doi: 10.1364/OE.19.00A875
[31]
Wang W. Design of nonpolarizing antireflection coating by using multiobjective optimization algorithm. Optik, 2013, 124(16): 2482. doi: 10.1016/j.ijleo.2012.08.022
[32]
Guo X, Zhou H Y, Guo S, et al. Design of broadband omnidirectional antireflection coatings using ant colony algorithm. Opt Express, 2014, 22(104): A1137. doi: 10.1364/oe.22.0a1137
[33]
Dorigo M, Gambardella L M. Ant colony system: a cooperative learning approach to the traveling salesman problem. IEEE Trans Evolut Comput, 1997, 1(1): 53. doi: 10.1109/4235.585892
[34]
Bird R E, Riordan C. Simple solar spectral model for direct and diffuse irradiance on horizontal and tilted planes at the earth's surface for cloudless atmospheres. SPIE, 1993, 54: 171 doi: 10.1175/1520-0450(1986)025<0087:SSSMFD>2.0.CO;2
[35]
Asadollahbaik A, Boden S A, Charlton M D, et al. Reflectance properties of silicon moth-eyes in response to variations in angle of incidence, polarisation and azimuth orientation. Opt Express, 2014, 22(102): A402. doi: 10.1364/oe.22.00a402
[36]
Boden S A, Bagnall D M. Sunrise to sunset optimization of thin film antireflective coatings for encapsulated, planar silicon solar cells. Prog Photovolt: Res Appl, 2009, 17(4): 241. doi: 10.1002/pip.v17:4
[37]
Holben B N, Eck T F, Slutsker I, et al. AERONET-A federated instrument network and data archive for aerosol characterization. Remote Sens Environ, 1998, 66(1): 1. doi: 10.1016/S0034-4257(98)00031-5

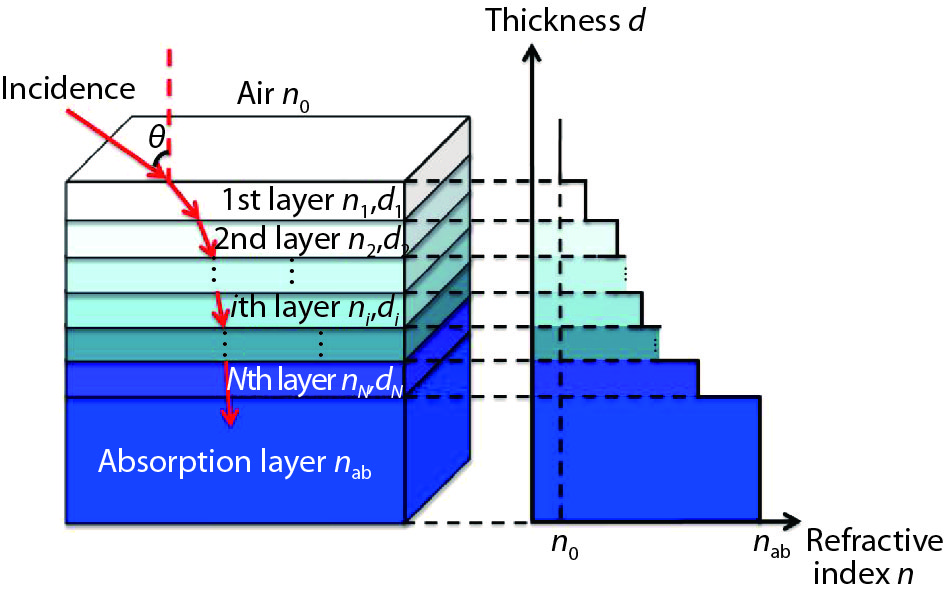

Fig. 1.  (Color online) The graded refractive-index structure of an N-layer anti-reflective coating system. A plane wave is incident from the air with the refractive index of n0 and incident angle of θ. Every layer of the coating is characterized by the thickness di with the refractive index ni, i = {1, 2, …, N}. The entire absorption layer is assumed to be in the bottom layer with refractive index nab without the back surface reflectance. The right curve shows the numerical value of the graded change of refractive index and the thickness of each anti-reflective layer.

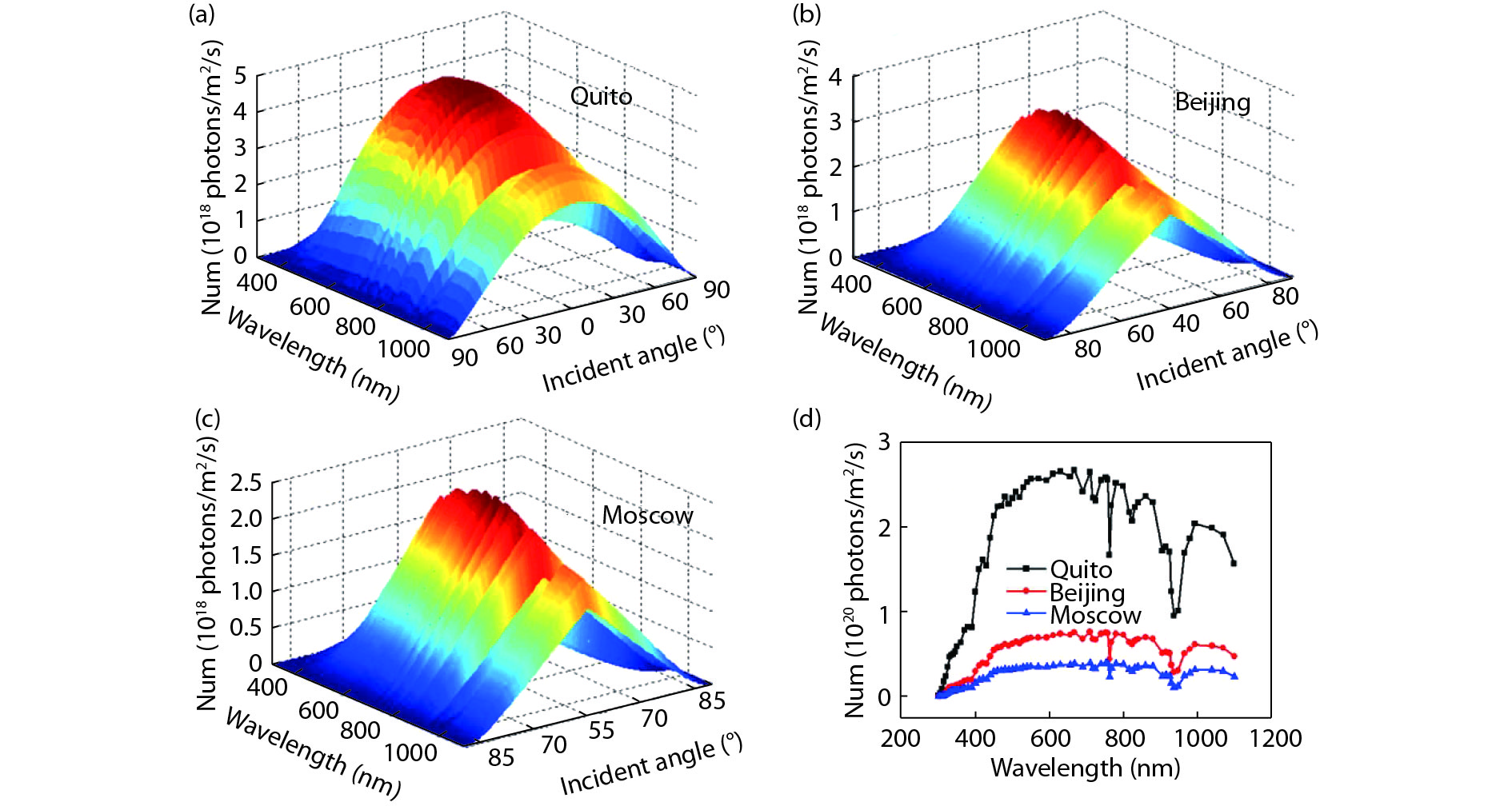

Fig. 2.  (Color online) The dependence of the incident photon flux density on the wavelength and the incident angle on the day of the spring equinox for (a) Quito, (b) Beijing and (c) Moscow, respectively. At noon of the day of the spring equinox, the sunlight is vertically incident on the equator. The incident angle at noon of the day of spring equinox for Quito, Beijing and Moscow is 0, 40, and 55 degrees, respectively. At sunrise or sunset, the incident angles of these three cities are the same 90 degrees. (d) The comparison of the spectrum of the incident photon flux density of three cities at noon on the day of the spring equinox. The incident photon flux density spectra are totally different Earth due to the atmosphere scatter and absorption at different location with different incident angle and latitude.

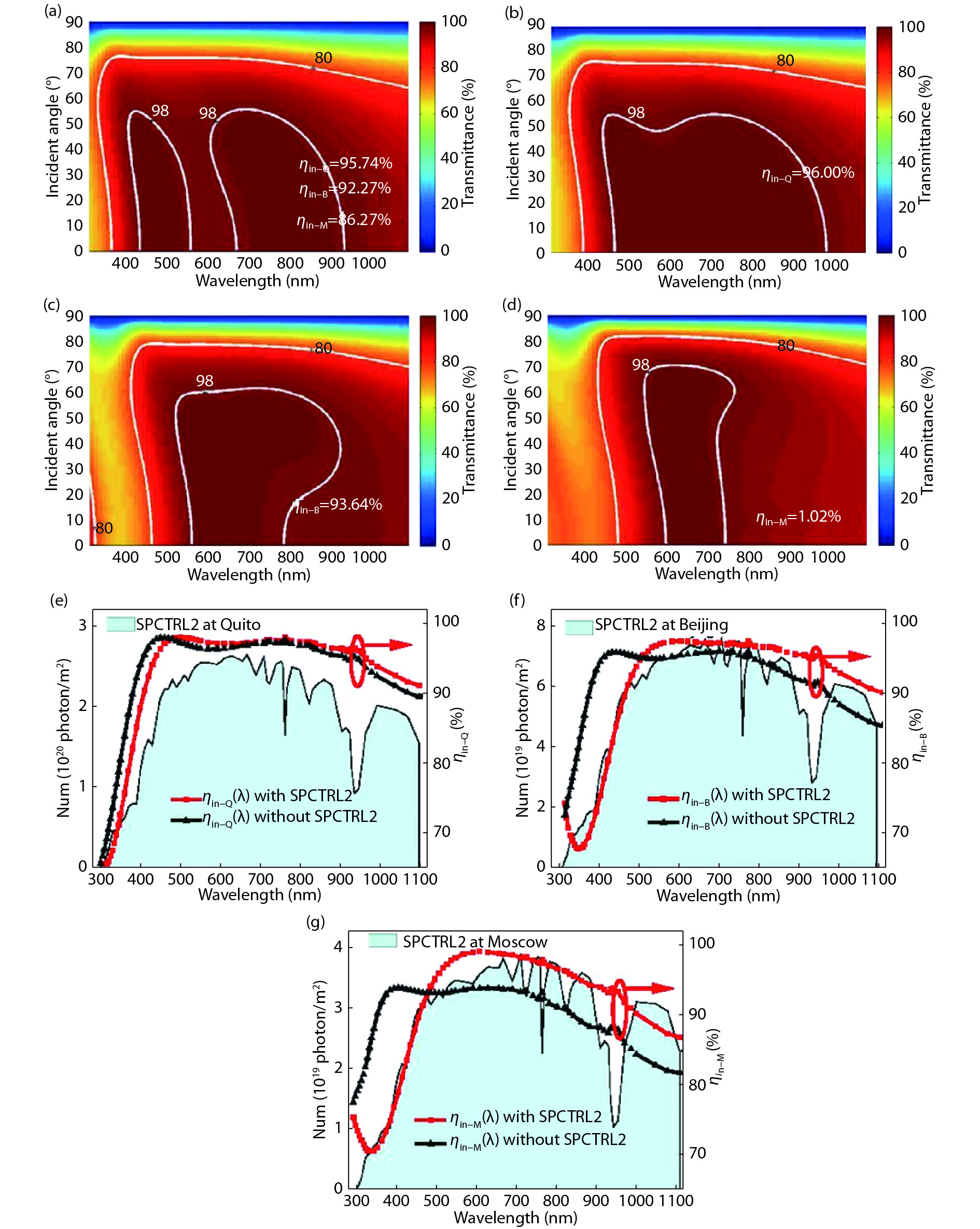

Fig. 3.  (Color online) The optical transmittance spectrum with λ = [300, 1100] nm and θ = [0°, 90°] for two-layer AR coating optimized by (a) ACA without SPCTRL2, and with SPCTRL2 of (b) Quito (c) Beijing and (d) Moscow. The detail structures are presented in Table 2. The areas with transmittance above 80% and 98% are marked by white lines. The incident quantum efficiency at Quito, Beijing and Moscow optimized by ACA with SPCTRL2 incorporated is 0.26%, 1.37% and 4.24% larger than that optimized without SPCTRL2 incorporated for two-layer AR coating, respectively. Comparison of the actual solar spectrum and incident quantum efficiency ηin (λ), for (e) Quito (f) Beijing and (g) Moscow with and without SPCTRL2 incorporated. When considering the solar spectrum in different cities and setting ηin as the evaluation function in the AR coating optimization, the peak of the quantum efficiency spectrum moves towards around 700 nm, which is the peak of the actual solar spectrum and fits the actual solar spectrum very well for all three cities.
