A 16-bit 1 MSPS SAR ADC with foreground calibration and residual voltage shift strategy

Xian Zhang1, Xiaodong Cao1, 2, and Xuelian Zhang2

+ Author Affiliations

 Corresponding author: Xiaodong Cao, Email: xdcao@semi.ac.cn

DOI: 10.1088/1674-4926/41/12/122401

PDF

Turn off MathJax

Abstract: In this paper, a 16-bit 1MSPS foreground calibration successive approximation register analog-to-digital converter (SAR ADC) is developed by the CMOS 0.25 μm process. An on-chip all-digital foreground weights calibration technique integrating self-calibration weight measurement with PN port auto-balance technique is designed to improve the performance and lower the costs of the developed SAR ADC. The SAR ADC has a chip area of 2.7 × 2.4 mm2, and consumes only 100 μW at the 2.5 V supply voltage with 100 KSPS. The INL and DNL are both less than 0.5 LSB.

Key words: foreground all-digital calibration, RS strategy, RS-based dither, auto-zero comparator, SAR ADC



[1]
Kim W, Hong H K, Roh Y J, et al. A 0.6 V 12 b 10 MS/s low-noise asynchronous SAR-assisted time-interleaved SAR (SATI-SAR) ADC. IEEE J Solid-State Circuits, 2016, 51, 1826 doi: 10.1109/JSSC.2016.2563780
[2]
Shikata A, Sekimoto R, Kuroda T, et al. A 0.5 V 1.1 MS/sec 6.3 fJ/conversion-Step SAR-ADC with tri-level comparator in 40 nm CMOS. IEEE J Solid-State Circuits, 2012, 47, 1022 doi: 10.1109/JSSC.2012.2185352
[3]
Harpe P, Cantatore E, van Roermund A. A 10b/12b 40 kS/s SAR ADC with data-driven noise reduction achieving up to 10.1b ENOB at 2.2 fJ/conversion-step. IEEE J Solid-State Circuits, 2013, 48, 3011 doi: 10.1109/JSSC.2013.2278471
[4]
Nuzzo P, De Bernardinis F, Terreni P, et al. Noise analysis of regenerative comparators for reconfigurable ADC architectures. IEEE Trans Circuits Syst I, 2008, 55, 1441 doi: 10.1109/TCSI.2008.917991
[5]
Verbruggen B, Tsouhlarakis J, Yamamoto T, et al. A 60 dB SNDR 35 MS/s SAR ADC with comparator-noise-based stochastic residue estimation. IEEE J Solid-State Circuits, 2015, 50, 2002 doi: 10.1109/JSSC.2015.2422781
[6]
Zhong J Y, Zhu Y, Chan C H, et al. A 12b 180MS/s 0.068mm2 with full-calibration-integrated pipelined-SAR ADC. IEEE Trans Circuits Syst I, 2017, 64, 1684 doi: 10.1109/TCSI.2017.2679748
[7]
Verma N, Chandrakasan A P. An ultra low energy 12-bit rate-resolution scalable SAR ADC for wireless sensor nodes. IEEE J Solid-State Circuits, 2007, 42, 1196 doi: 10.1109/JSSC.2007.897157
[8]
Shen J H, Shikata A, Fernando L D, et al. A 16-bit 16-MS/s SAR ADC with on-chip calibration in 55-nm CMOS. IEEE J Solid-State Circuits, 2018, 53, 1149 doi: 10.1109/JSSC.2017.2784761
[9]
Chen Y, Zhu X, Tamura H, et al. Split capacitor DAC mismatch calibration in successive approximation ADC. IEICE Trans Electron, 2010, 93, 295 doi: 10.1109/CICC.2009.5280859
[10]
McNeill J A, Chan K Y, Coln M C W, et al. All-digital background calibration of a successive approximation ADC using the “split ADC” architecture. IEEE Trans Circuits Syst I, 2011, 58, 2355 doi: 10.1109/TCSI.2011.2123590
[11]
Hummerston D, Hurrell P. An 18-bit 2MS/s pipelined SAR ADC utilizing a sampling distortion cancellation circuit with –107dB THD at 100kHz. 2017 Symp VLSI Circuits, 2017, C280
[12]
McCreary J L, Gray P R. All-MOS charge redistribution analog-to-digital conversion techniques. I. IEEE J Solid-State Circuits, 1975, 10, 371 doi: 10.1109/JSSC.1975.1050629
[13]
Harpe P J, Zhou C, Bi Y, et al. A 26 W 8 bit 10 MS/s asynchronous SAR ADC for low energy radios. IEEE J Solid-State Circuits, 2011, 46, 1585 doi: 10.1109/JSSC.2011.2143870
[14]
Li H X, Maddox M, Coln M C W, et al. A signal-independent background-calibrating 20b 1MS/s SAR ADC with 0.3ppm INL. 2018 IEEE International Solid-State Circuits Conference, 2018
[15]
Liu C C, Chang S J, Huang G Y, et al. A 10-bit 50-MS/s SAR ADC with a monotonic capacitor switching procedure. IEEE J Solid-State Circuits, 2010, 45, 731 doi: 10.1109/JSSC.2010.2042254
[16]
Harpe P, Zhang Y, Dolmans G, et al. A 7-to-10b 0-to-4MS/s flexible SAR ADC with 6.5-to-16fJ/conversion-step. 2012 IEEE International Solid-State Circuits Conference, 2012, 472
[17]
Seo M J, Roh Y J, Chang D J, et al. A reusable code-based SAR ADC design with CDAC compiler and synthesizable analog building blocks. IEEE Trans Circuits Syst II, 2018, 65, 1904 doi: 10.1109/TCSII.2018.2822811
[18]
Harpe P, Cantatore E, van Roermund A. An oversampled 12/14b SAR ADC with noise reduction and linearity enhancements achieving up to 79.1dB SNDR. 2014 IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), 2014, 194
[19]
Miki T, Morie T, Matsukawa K, et al. A 4.2 mW 50 MS/s 13 bit CMOS SAR ADC With SNR and SFDR enhancement techniques. IEEE J Solid-State Circuits, 2015, 50, 1372 doi: 10.1109/JSSC.2015.2417803
[20]
Hurrell C P, Lyden C, Laing D, et al. An 18 b 12.5 MS/s ADC with 93 dB SNR. IEEE J Solid-State Circuits, 2010, 45, 2647 doi: 10.1109/JSSC.2010.2075310
[21]
Wagdy M F, Goff M. Linearizing average transfer characteristics of ideal ADC's via analog and digital dither. IEEE Trans Instrum Meas, 1994, 43, 146 doi: 10.1109/19.293411
[22]
Lee C C, Lu C Y, Narayanaswamy R, et al. A 12b 70MS/s SAR ADC with digital startup calibration in 14nm CMOS. 2015 Symposium on VLSI Circuits (VLSI Circuits), 2015, C62
[23]
Shen J H, Shikata A, Fernando L, et al. A 16-bit 16MS/s SAR ADC with on-chip calibration in 55nm CMOS. 2017 Symposium on VLSI Circuits Digest of Technical Papers, 2017
[24]
Maddox M, Chen B Z, Coln M, et al. A 16 bit linear passive-charge-sharing SAR ADC in 55nm CMOS. 2016 IEEE Asian Solid-State Circuits Conf (A-SSCC), 2016, 153

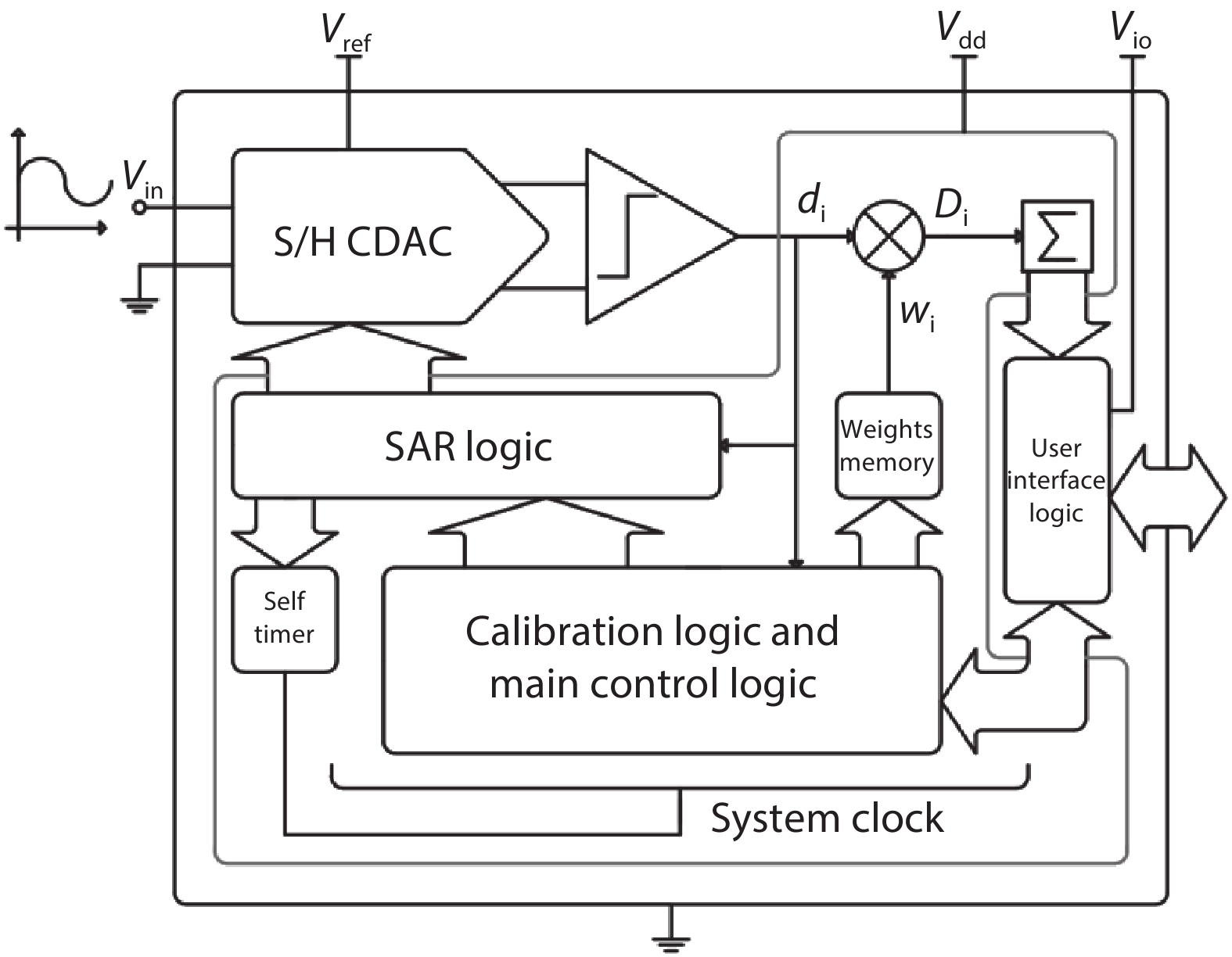

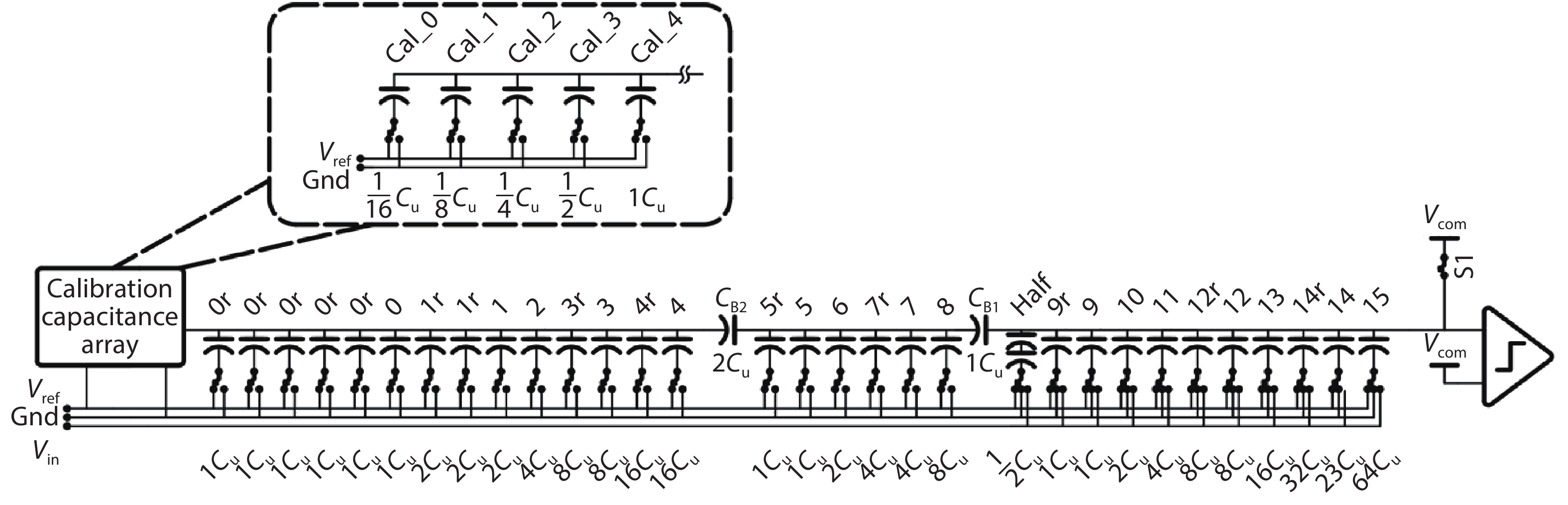

Fig. 1.  The ADC system architecture.

DownLoad: Full-Size Img PowerPoint

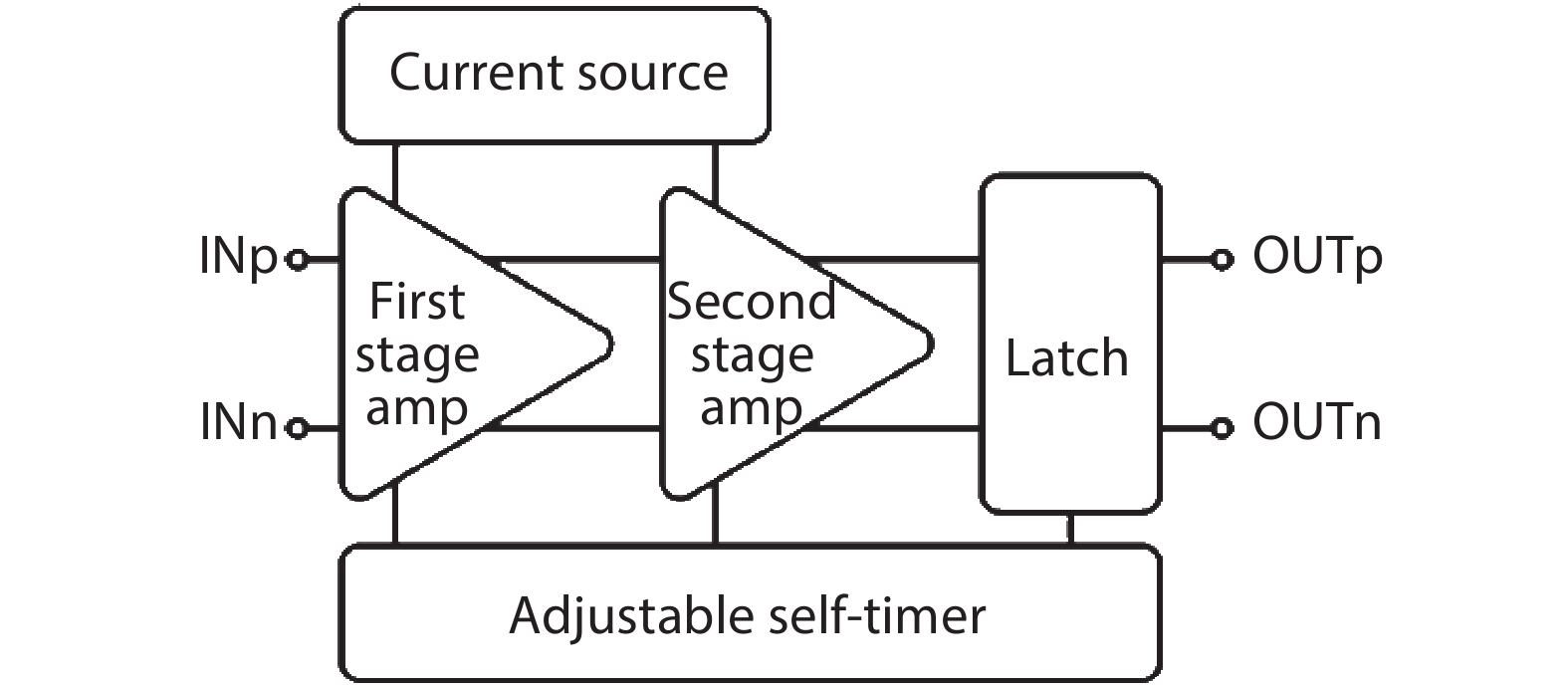

Fig. 2.  Comparator block diagram.

DownLoad: Full-Size Img PowerPoint

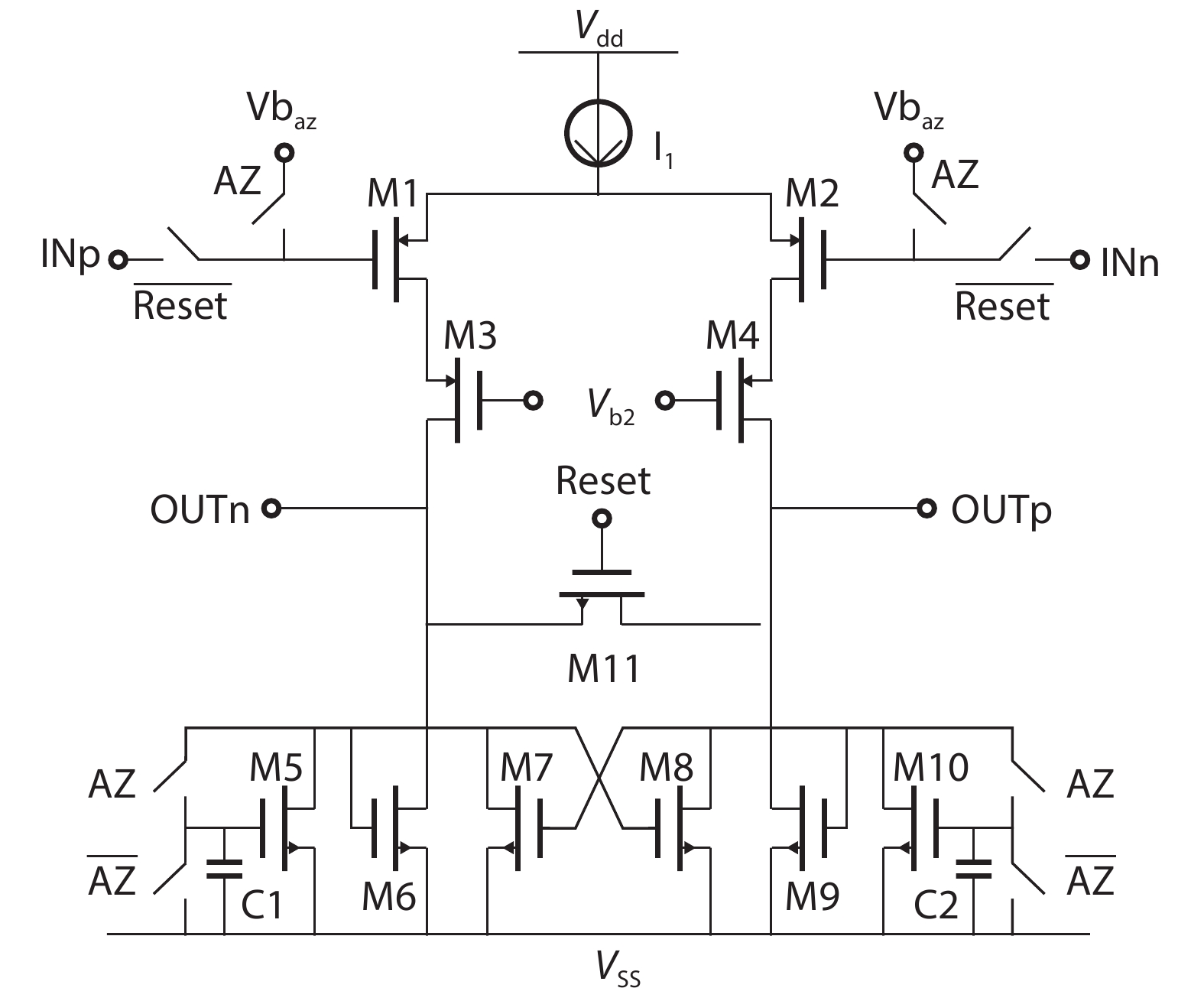

Fig. 3.  Preamplifier.

DownLoad: Full-Size Img PowerPoint

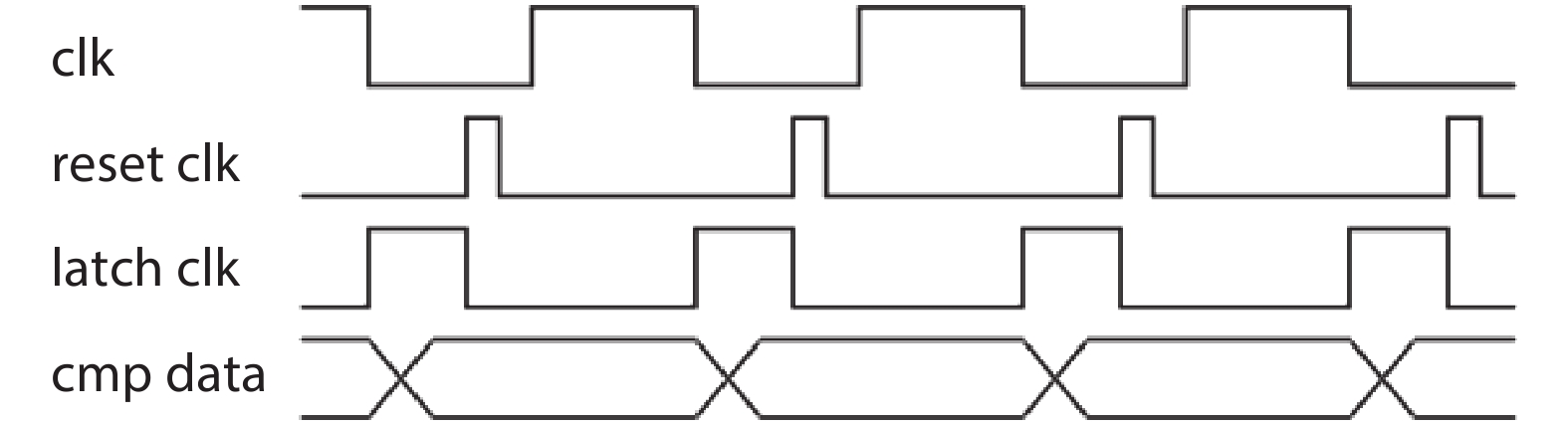

Fig. 4.  Multiphase clock of the self-timer.

DownLoad: Full-Size Img PowerPoint

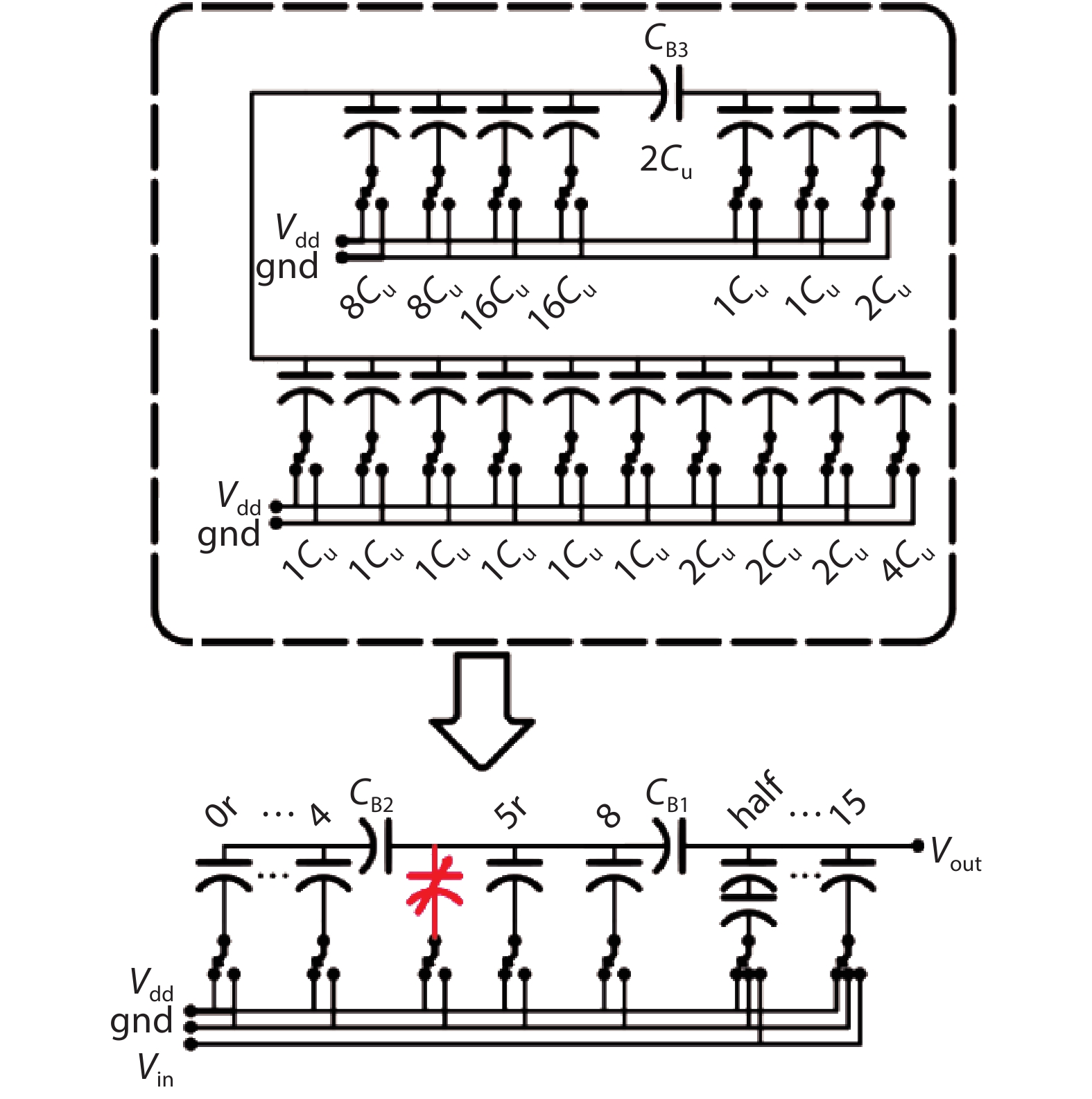

Fig. 5.  The schematic of half CDAC.

DownLoad: Full-Size Img PowerPoint

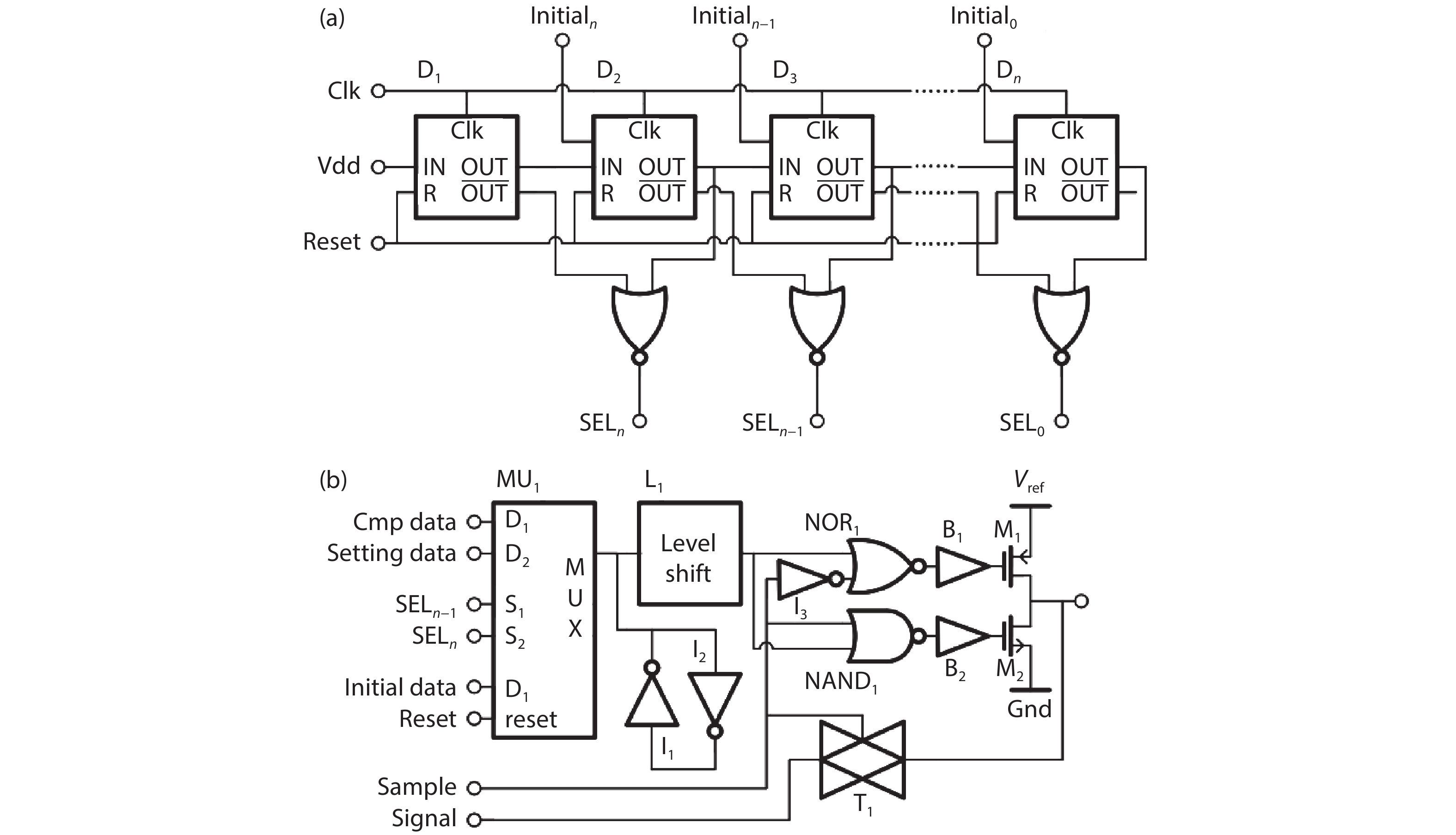

Fig. 6.  (a) Control logic circuit. (b) High-segment MUX switch circuit.

DownLoad: Full-Size Img PowerPoint

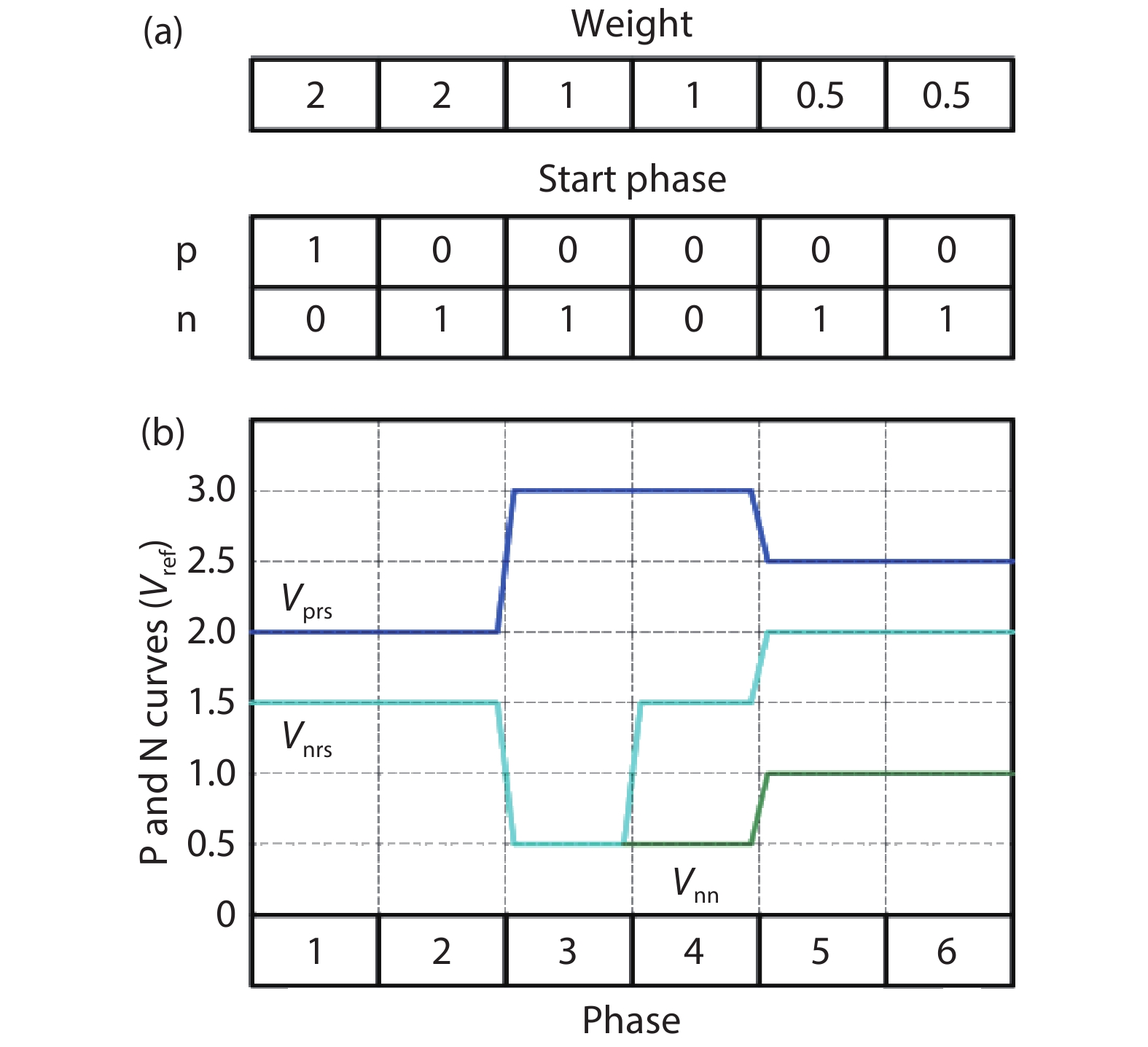

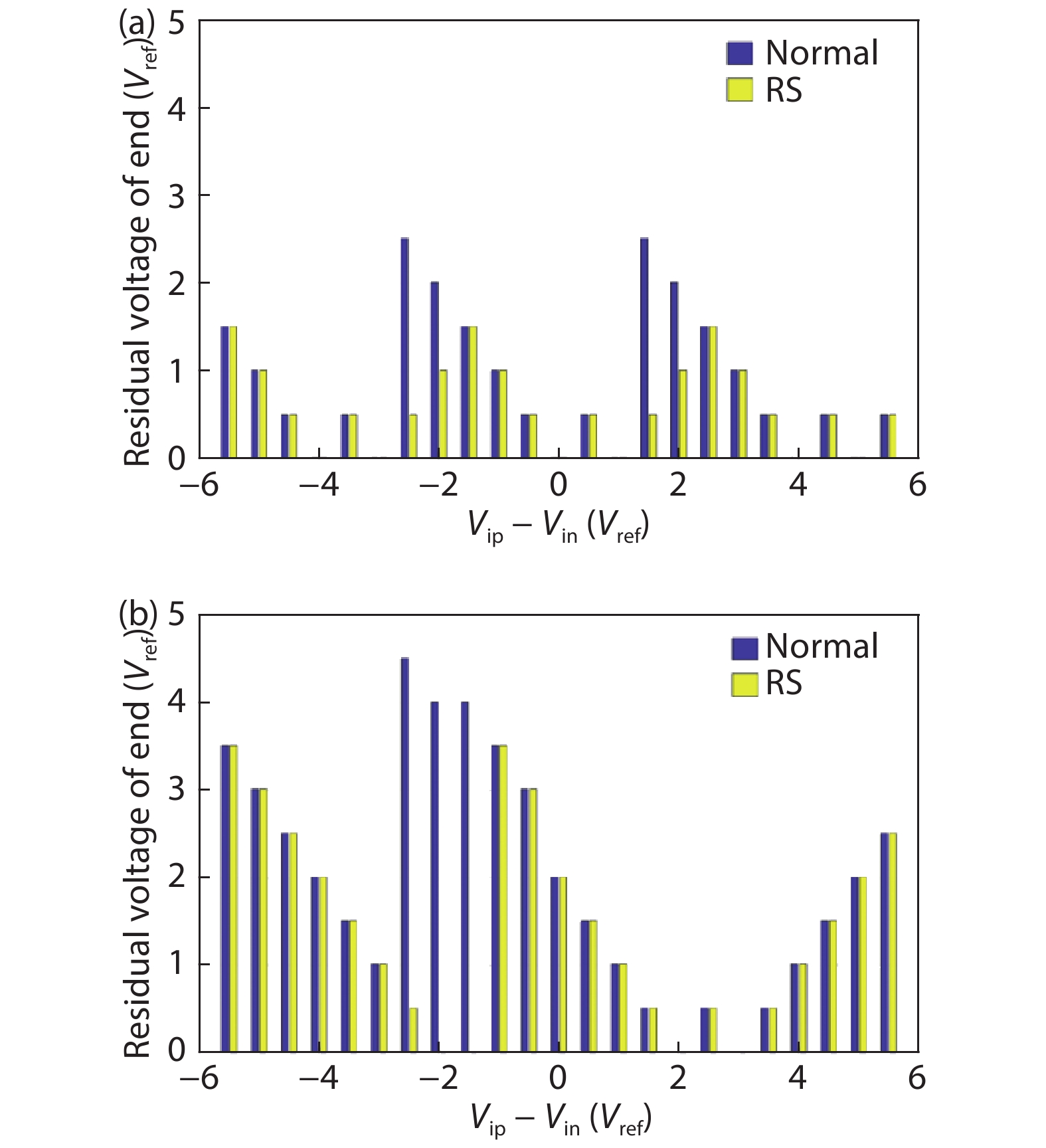

Fig. 7.  (a) Weights of a 6 phase SAR ADC and the start phase. (b) Residual voltage curves of P and N curves.

DownLoad: Full-Size Img PowerPoint
Fig. 8.  (Color online) (a) Simulation residual voltage with third bit error. (b) Simulation residual voltage with second bit error.

DownLoad: Full-Size Img PowerPoint
Fig. 9.  Simulated noise floor level versus number of RS bits.

DownLoad: Full-Size Img PowerPoint

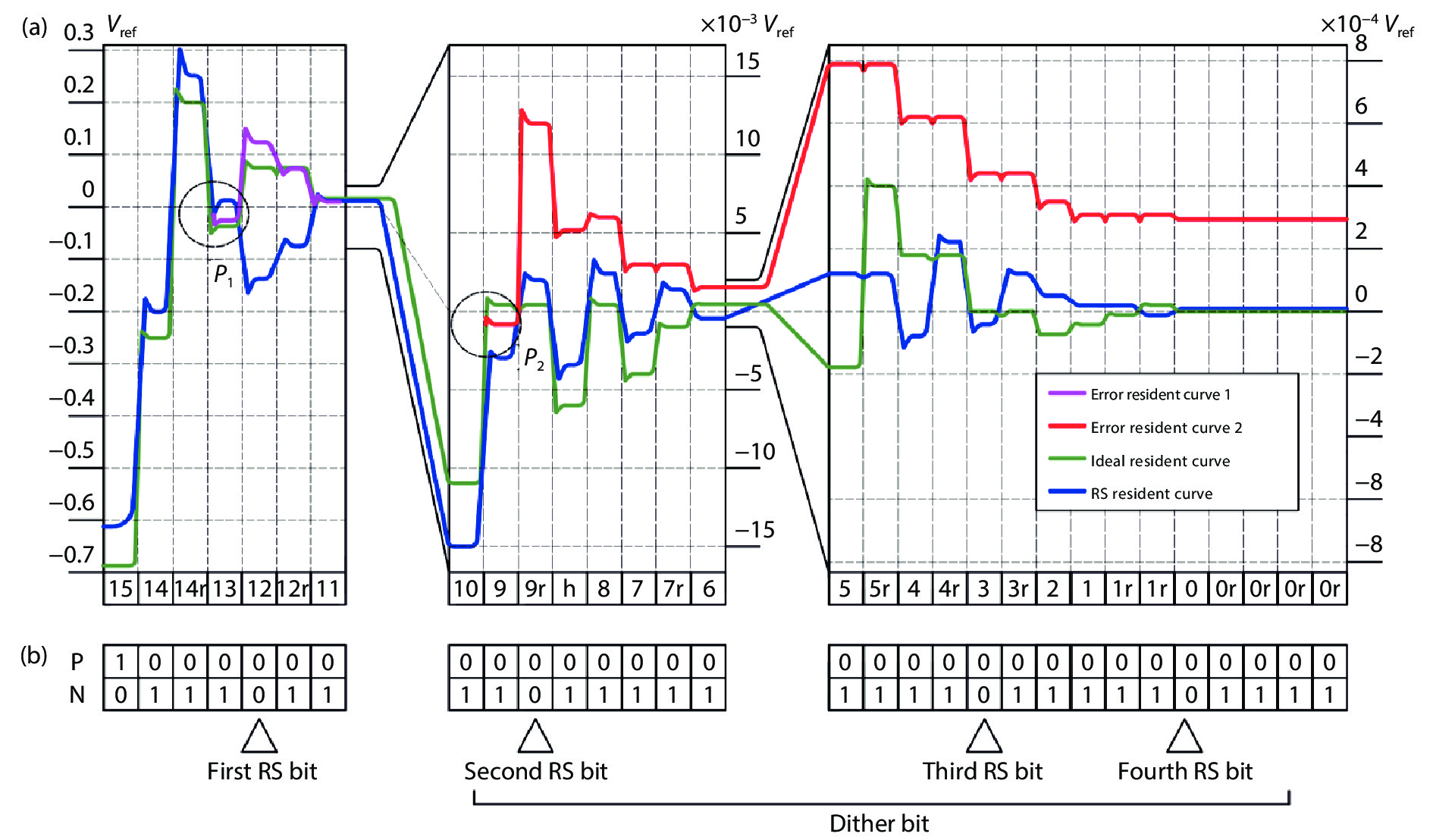

Fig. 10.  (Color online) (a) Residual voltage curves. (b) Start phase and RS bits.

DownLoad: Full-Size Img PowerPoint

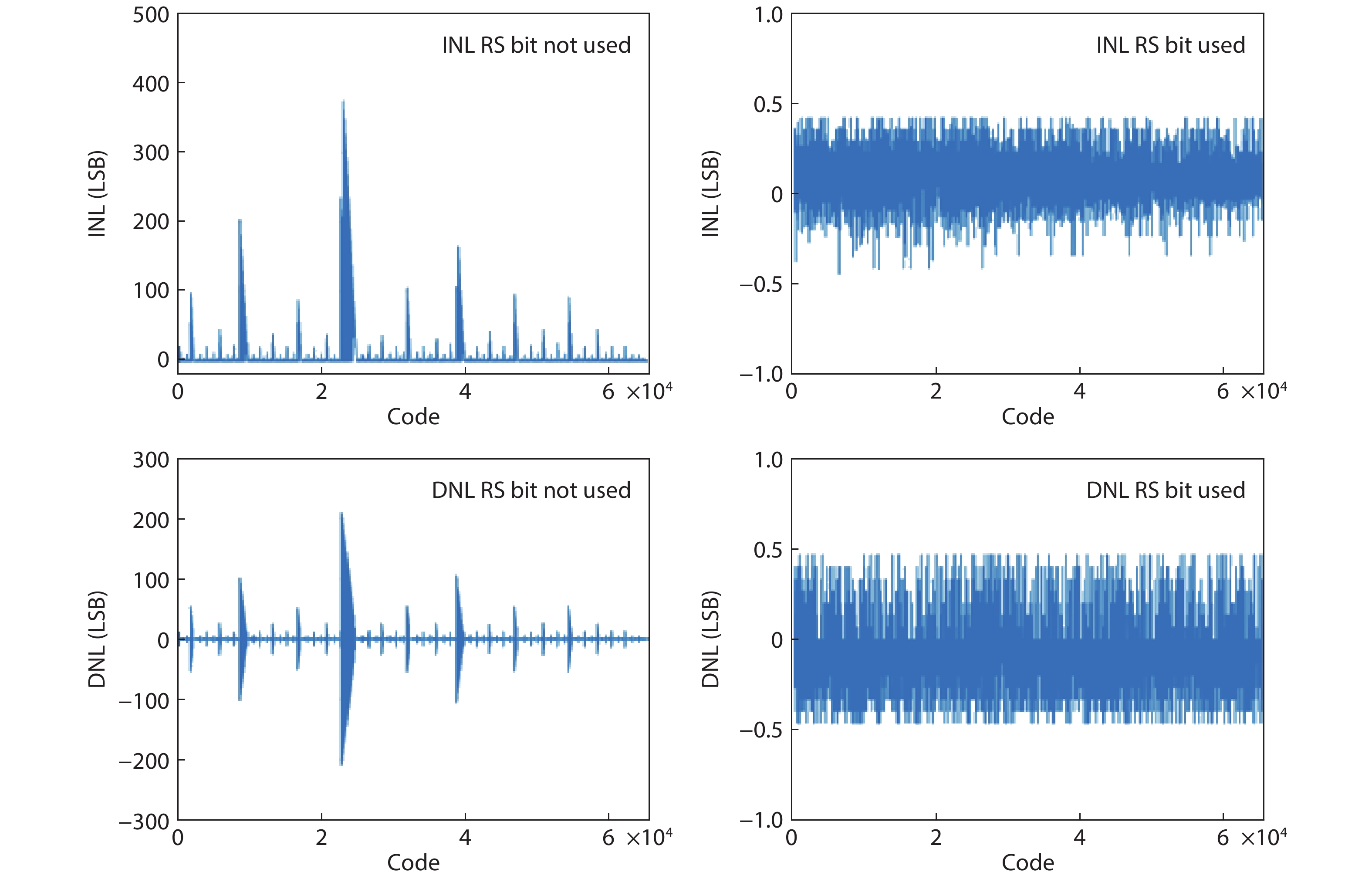

Fig. 11.  (Color online) Simulated INL and DNL with/without RS strategy.

DownLoad: Full-Size Img PowerPoint

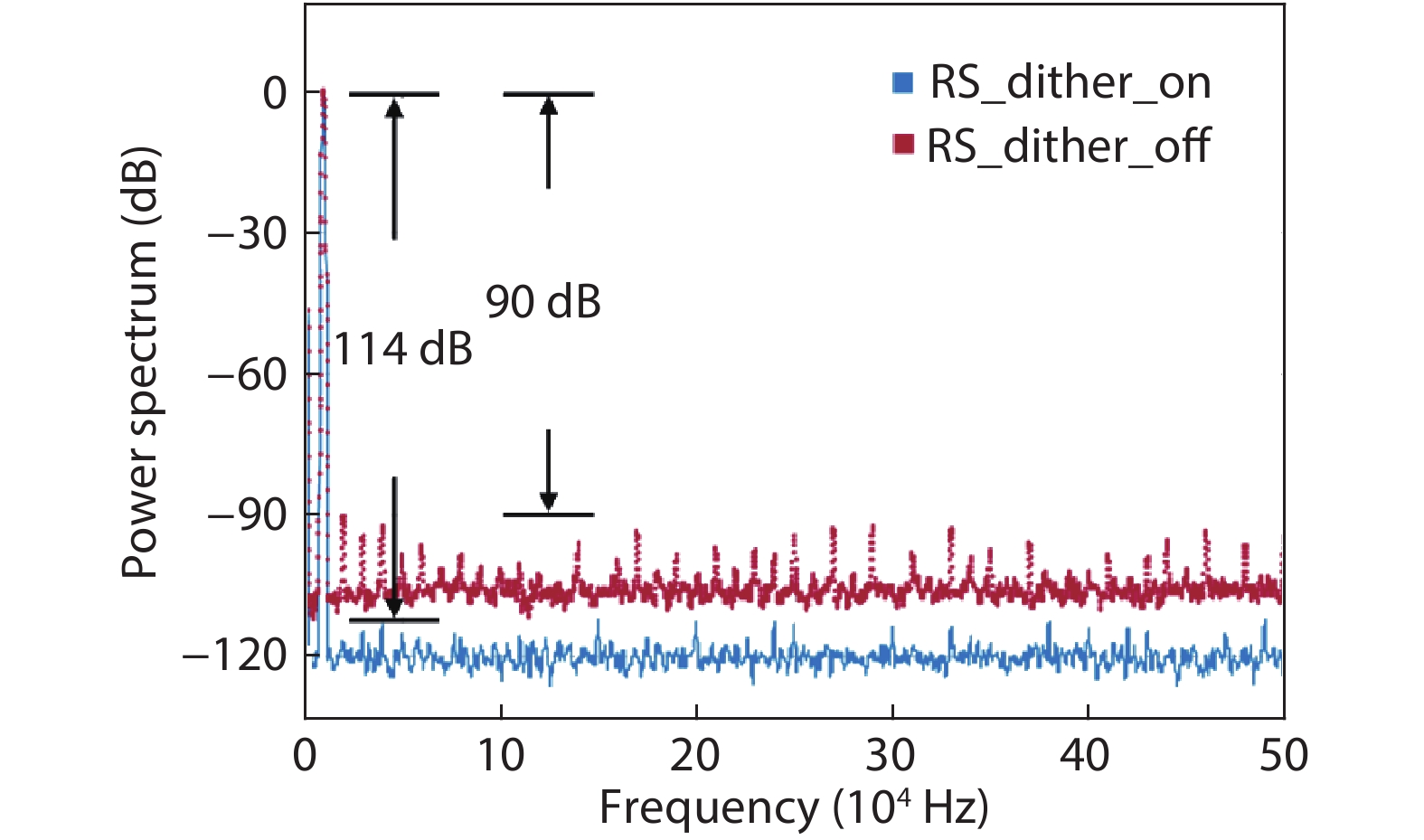

Fig. 12.  (Color online) Simulated noise floor with/without RS-based dither.

DownLoad: Full-Size Img PowerPoint

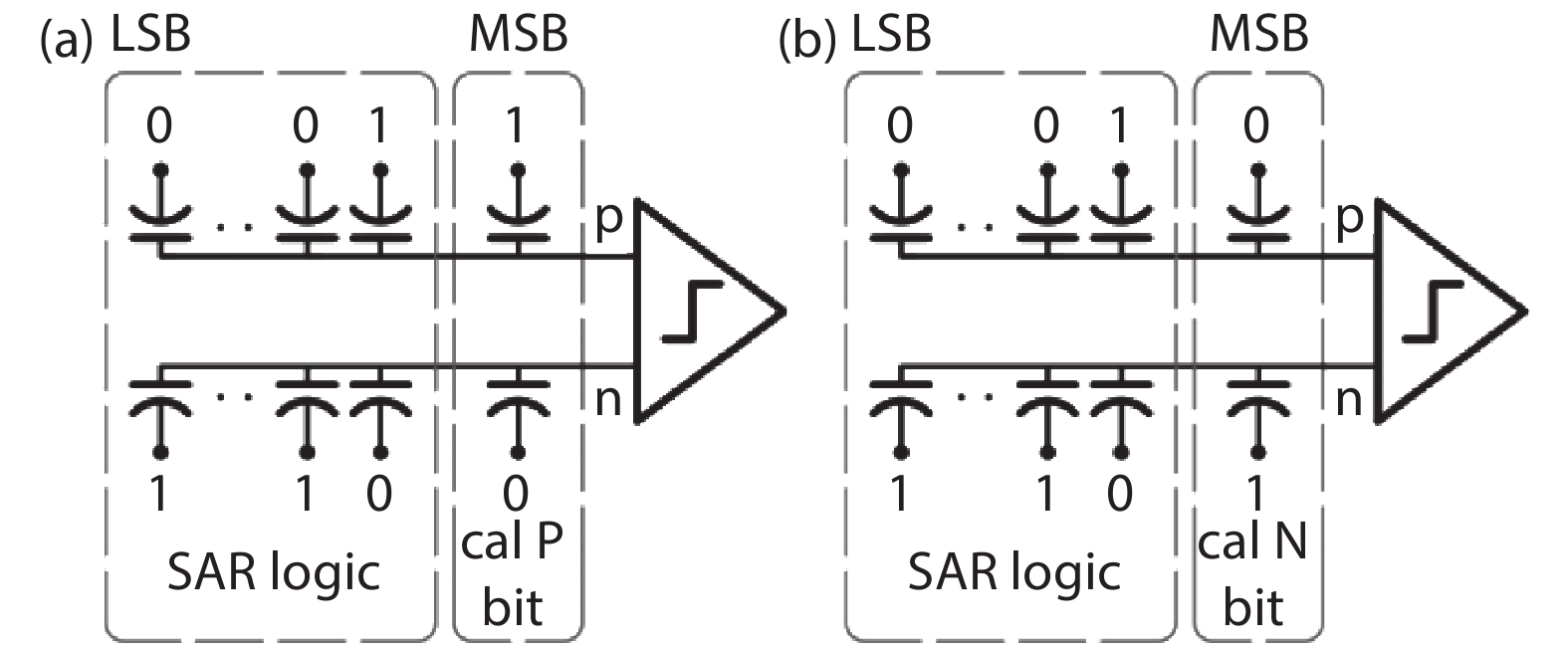

Fig. 13.  (a) Calibration start phase of the P bits (b) Calibration start phase of the N bits.

DownLoad: Full-Size Img PowerPoint

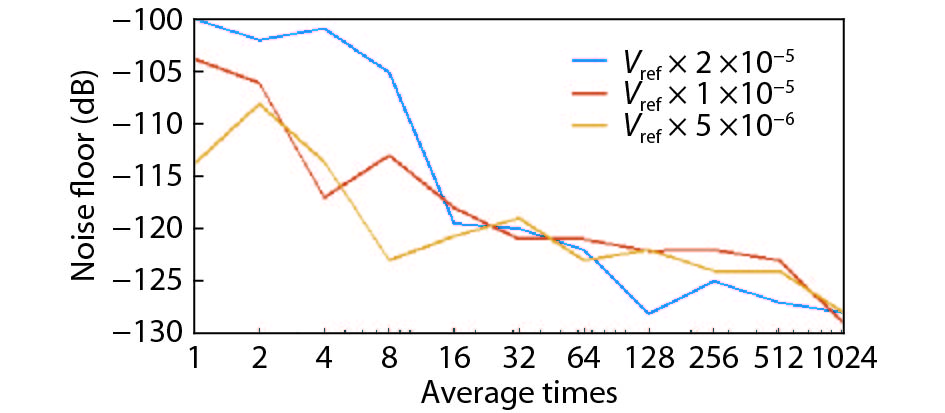

Fig. 14.  (Color online) Simulated noise floor level versus average number.

DownLoad: Full-Size Img PowerPoint
Fig. 15.  Auto-balance circuit.

DownLoad: Full-Size Img PowerPoint

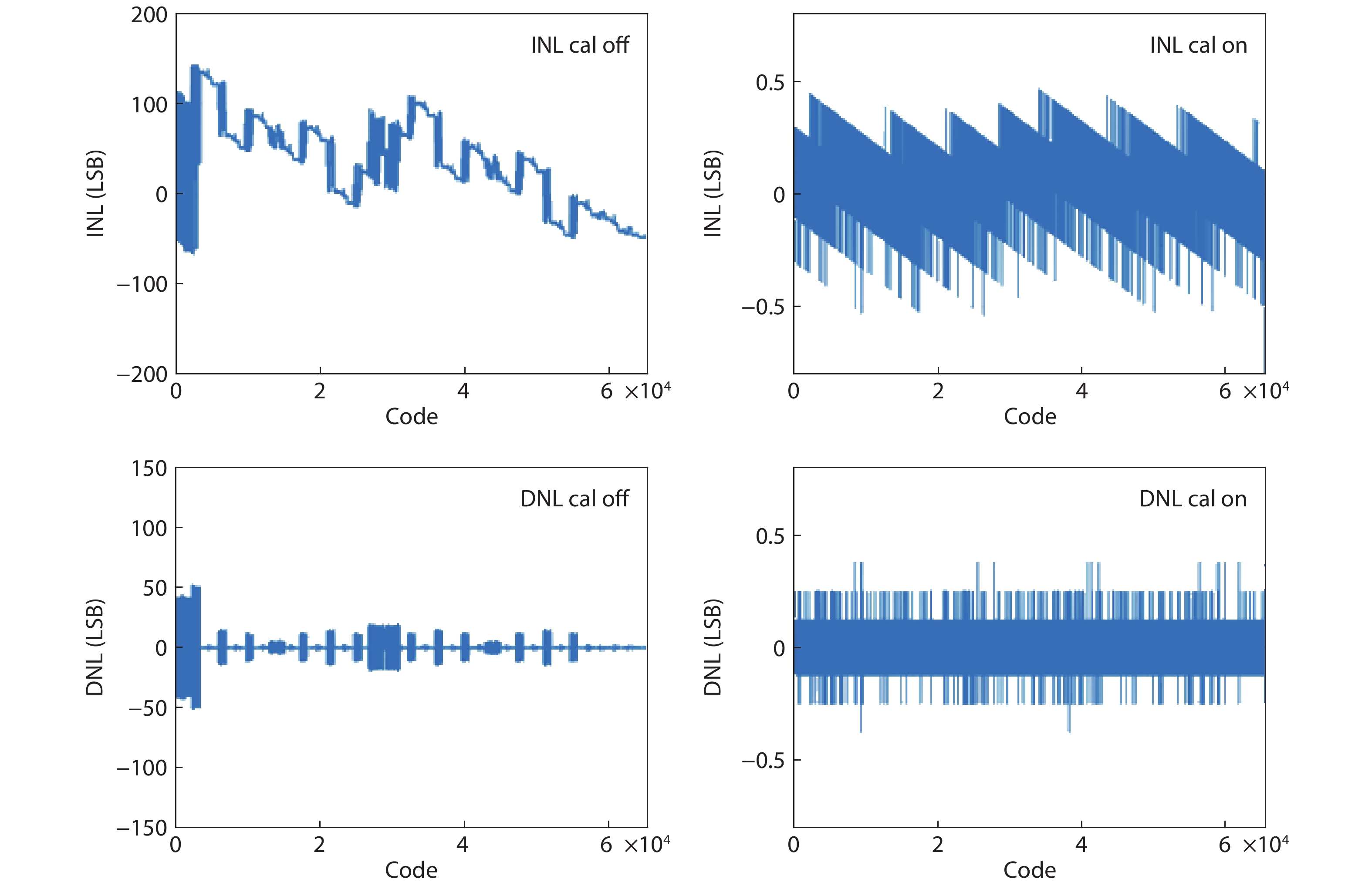

Fig. 16.  (Color online) Simulated results of INL and DNL with/without calibration.

DownLoad: Full-Size Img PowerPoint
Fig. 17.  (Color online) Simulated results of noise floor with/without calibration.

DownLoad: Full-Size Img PowerPoint

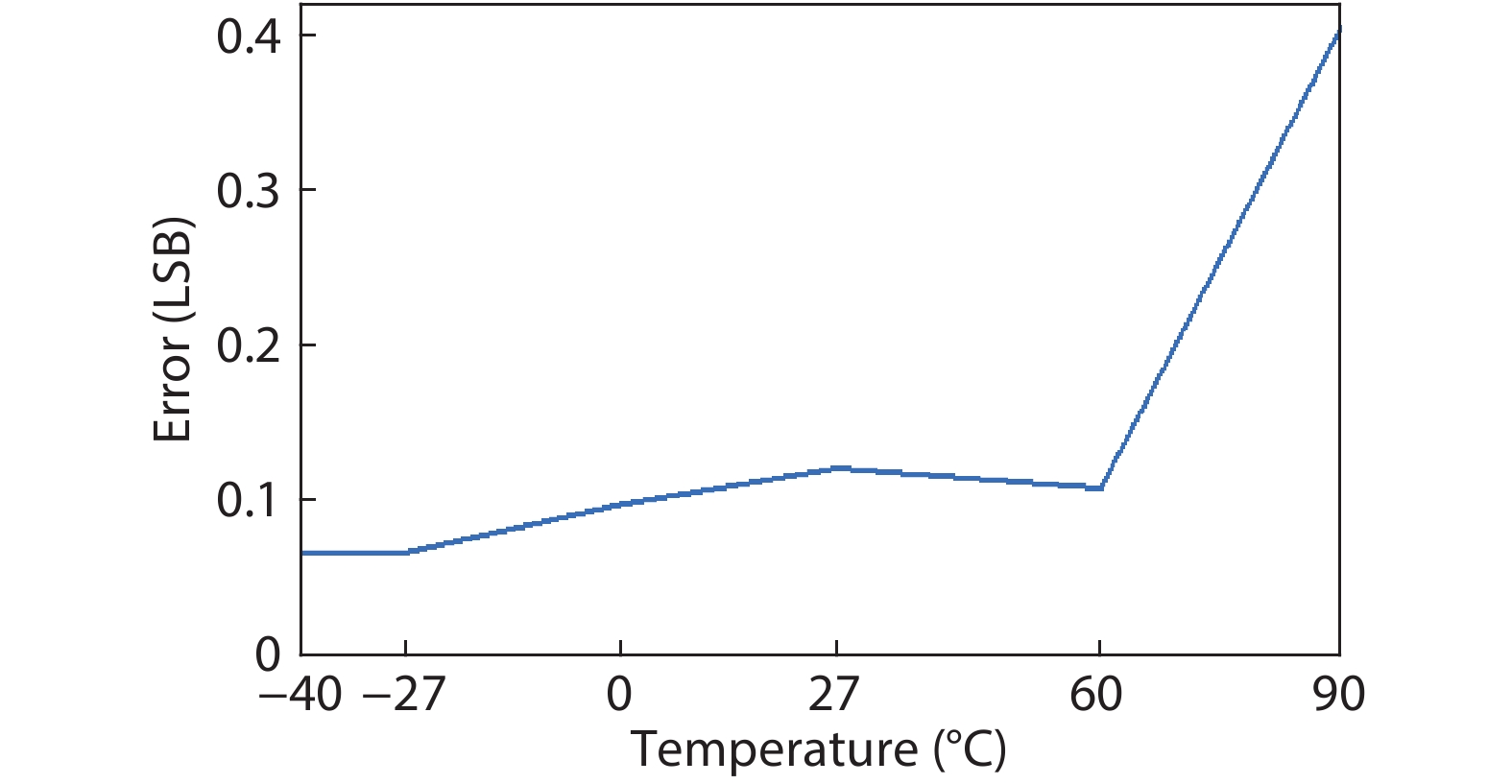

Fig. 18.  Simulated results of the average absolute value of weight errors versus temperature.

DownLoad: Full-Size Img PowerPoint

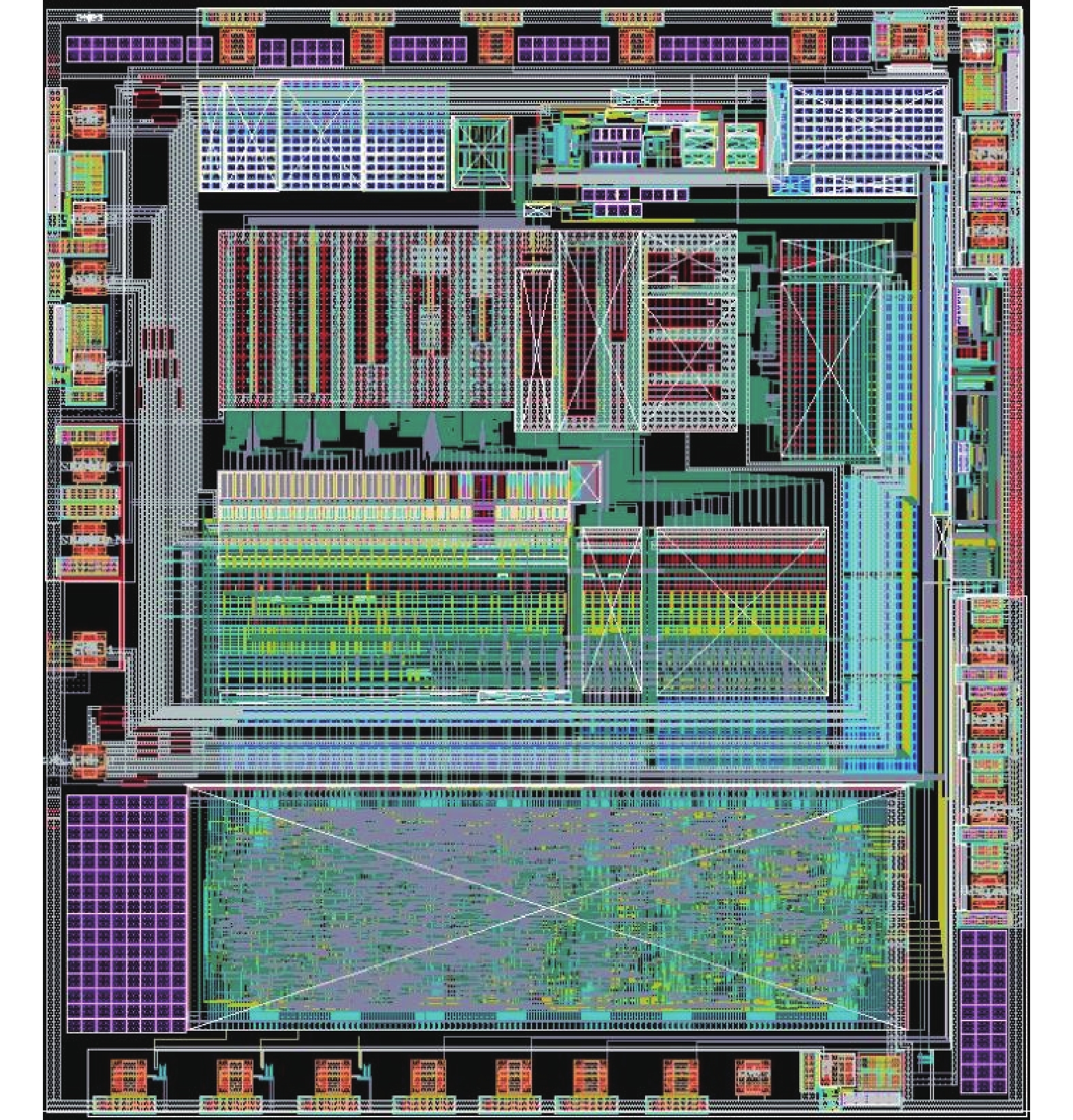

Fig. 19.  (Color online) The layout of the 16bit 1MSPS SAR ADC with on-chip calibration.

DownLoad: Full-Size Img PowerPoint

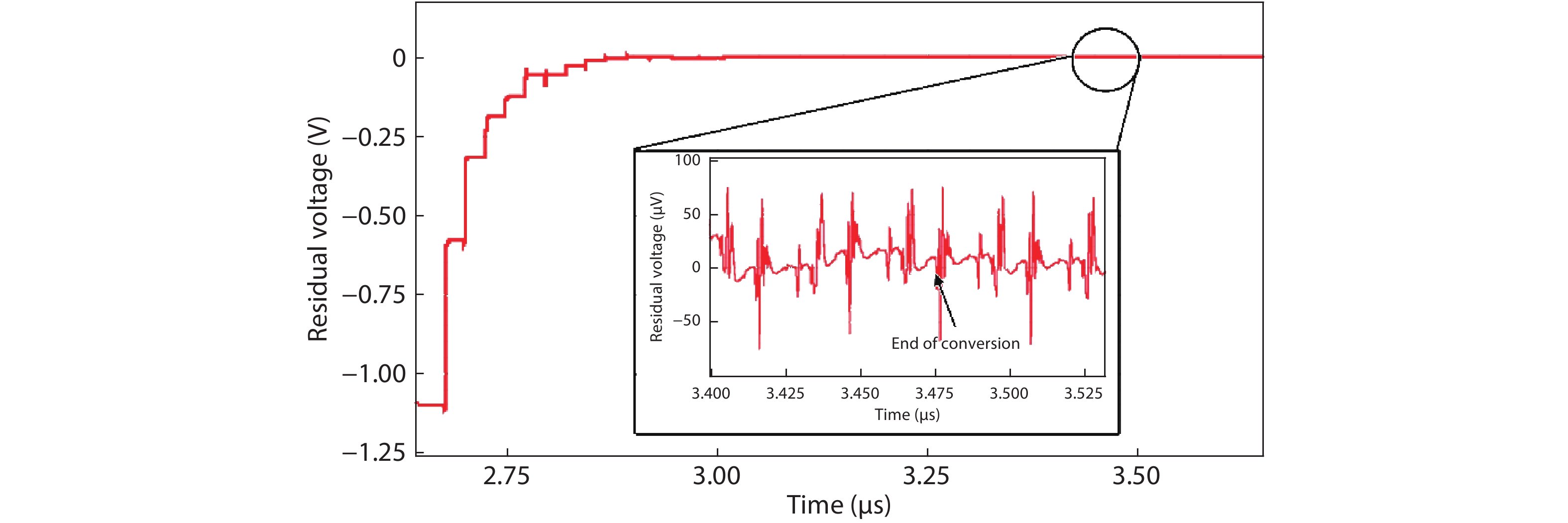

Fig. 20.  (Color online) The post-layout simulated result of the residual voltage.
