A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC

Wenjing Xu1, 2, Jie Chen1, , Zhangqu Kuang3, Li Zhou1, Ming Chen1 and Chengbin Zhang1

+ Author Affiliations

 Corresponding author: Jie Chen, jchen@ime.ac.cn

DOI: 10.1088/1674-4926/43/8/082401

PDF

Turn off MathJax

Abstract: This paper presents a low-power high-quality CMOS image sensor (CIS) using 1.5 V 4T pinned photodiode (4T-PPD) and dual correlated double sampling (dual-CDS) column-parallel single-slope ADC. A five-finger shaped pixel layer is proposed to solve image lag caused by low-voltage 4T-PPD. Dual-CDS is used to reduce random noise and the nonuniformity between columns. Dual-mode counting method is proposed to improve circuit robustness. A prototype sensor was fabricated using a 0.11 µm CMOS process. Measurement results show that the lag of the five-finger shaped pixel is reduced by 80% compared with the conventional rectangular pixel, the chip power consumption is only 36 mW, the dynamic range is 67.3 dB, the random noise is only 1.55 e–rms, and the figure-of-merit is only 1.98 e–·nJ, thus realizing low-power and high-quality imaging.

Key words: CMOS image sensor, 4T pinned photodiode, single-slope ADC, correlated double sample, counting method

CMOS image sensors (CISs) have been widely used in many application fields such as mobile phones and wearable devices. In recent years, the application of CIS has gradually expanded to the internet of things (IoT) and artificial intelligence (AI) fields. On the one hand, IoT and AI devices only have small batteries for energy support, yet they are expected to last weeks on a single charge. On the other hand, CIS serves as the eyes of the machine to see the world, which leads an increasing demand for high-quality imaging. Therefore, it is crucial to design both low-power and high-performance CISs[1, 2].

The basic idea to reduce power consumption is to lower the supply voltage. The supply voltage of the CIS readout circuit is limited by the voltage of the pixels. Digital pixels are usually used to reduce the pixel voltage. In 2010 JSSC[3], a digital pixel that works under 0.5 V was proposed but its dynamic range was only 21.3 dB. Later in 2015 JSSC[4] and 2021 JSSC[2], although the dynamic range has been increased to 42 and 52 dB, respectively, there was still a gap compared with high-quality imaging.

High-quality imaging usually requires the use of active pixels. 1.5 V 3T pixel has been proposed in 2003 TED[5]. But compared with 4T pixel, 3T pixel cannot achieve true correlated double sampling, and thus the random noise is larger. The 4T pinned photodiode (4T-PPD) active pixel is the most commonly used pixel structure for high-performance CIS. Traditionally, the supply voltage of 4T-PPD is greater than 2.8 V. When the voltage drops, the electrons far away from the transfer gate lack lateral electric field and stay in the pixel, causing image lag. In 2016 JSSC[6], 4T-PPD active pixel was designed to work at 0.9 V by improving the pixel timing; however, the random noise was as high as 83 e–rms, and the dynamic range was only 50 dB.

Therefore, how to realize low-voltage 4T-PPD while maintaining high image quality is a critical issue. In this work, a low-power high-quality CIS using 1.5 V 4T-PPD and dual correlated double sampling (dual-CDS) column-parallel single-slope ADC (SS-ADC) is proposed. A five-finger shaped pixel layer instead of traditional rectangular shape is used to solve image lag caused by low-voltage 4T-PPD. Dual-CDS is used to reduce the random noise and the nonuniformity between columns. The dual-mode counting method is used to improve the circuit's robustness.

Among several types of column-parallel ADCs, SS-ADC[7-10] is clearly the most widely used because a SS-ADC can be implemented using a very simple column circuit, which mainly consists of a single comparator and a counter. Moreover, this simple column circuit also makes it relatively easy to ensure uniformity between columns, and thus minimizes the readout noise.

Fig. 1 shows the architecture of the proposed CIS. The pixel array is 1288 × 728 and the pixel pitch is 2.8 μm. The Row-decoder sequentially selects a single row line for signal readout processing. The signal charges generated at the PPD are converted to the signal voltage on the vertical signal lines. The comparator array compares the readout signals with the ramp generator output. The comparator changes at the timing when the ramp voltage reaches the signal voltages. Then, the counter stops counting and the latch array latches the counter outputs. The Col-decoder sequentially selects latched ADC value, and the sense amplifier (SA) outputs 10 b straight binary data to MIPI interface. PLL provides high-speed clock for digital control circuit and MIPI circuit.

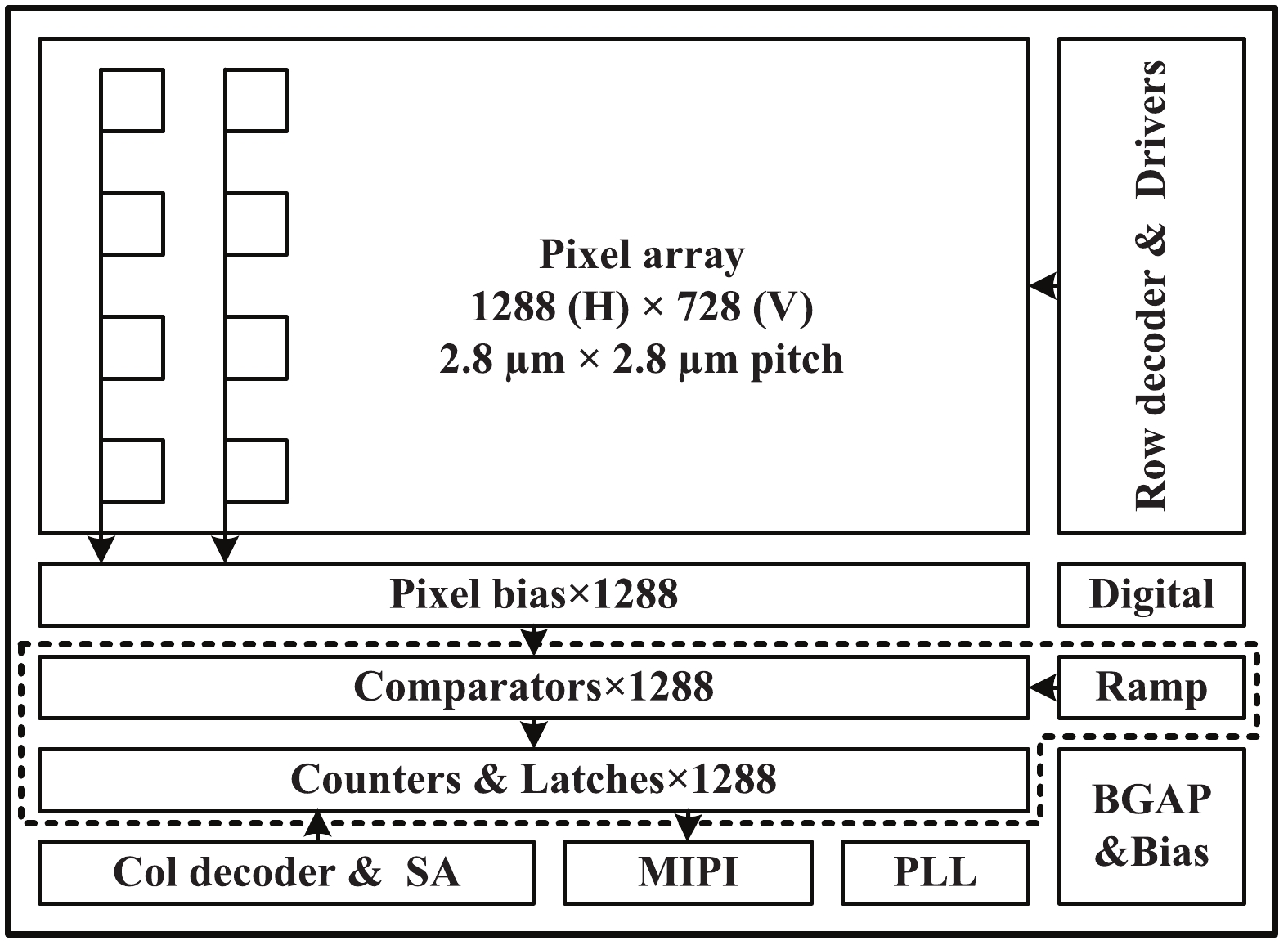

Fig. 1.  Block diagram of the overall architecture.
DownLoad: Full-Size Img PowerPoint

A typical 4T-PPD active pixel[10] is shown in Fig. 2. The 4T-PPD consists of the PPD, transfer gate (TG), floating diffusion (FD) and three transistors. A PPD is a device made by a n- well buried in a p- substrate, and a thin p+ layer covers the n- well. The pinned photodiode has no contacts, and the photogenerated electrons are transferred to the FD node by the operation of the TG. Due to physic limitations of the PPD and the TG structure, transferring all of the electrons completely from the photodiode is very hard, especially for low-voltage PPD.

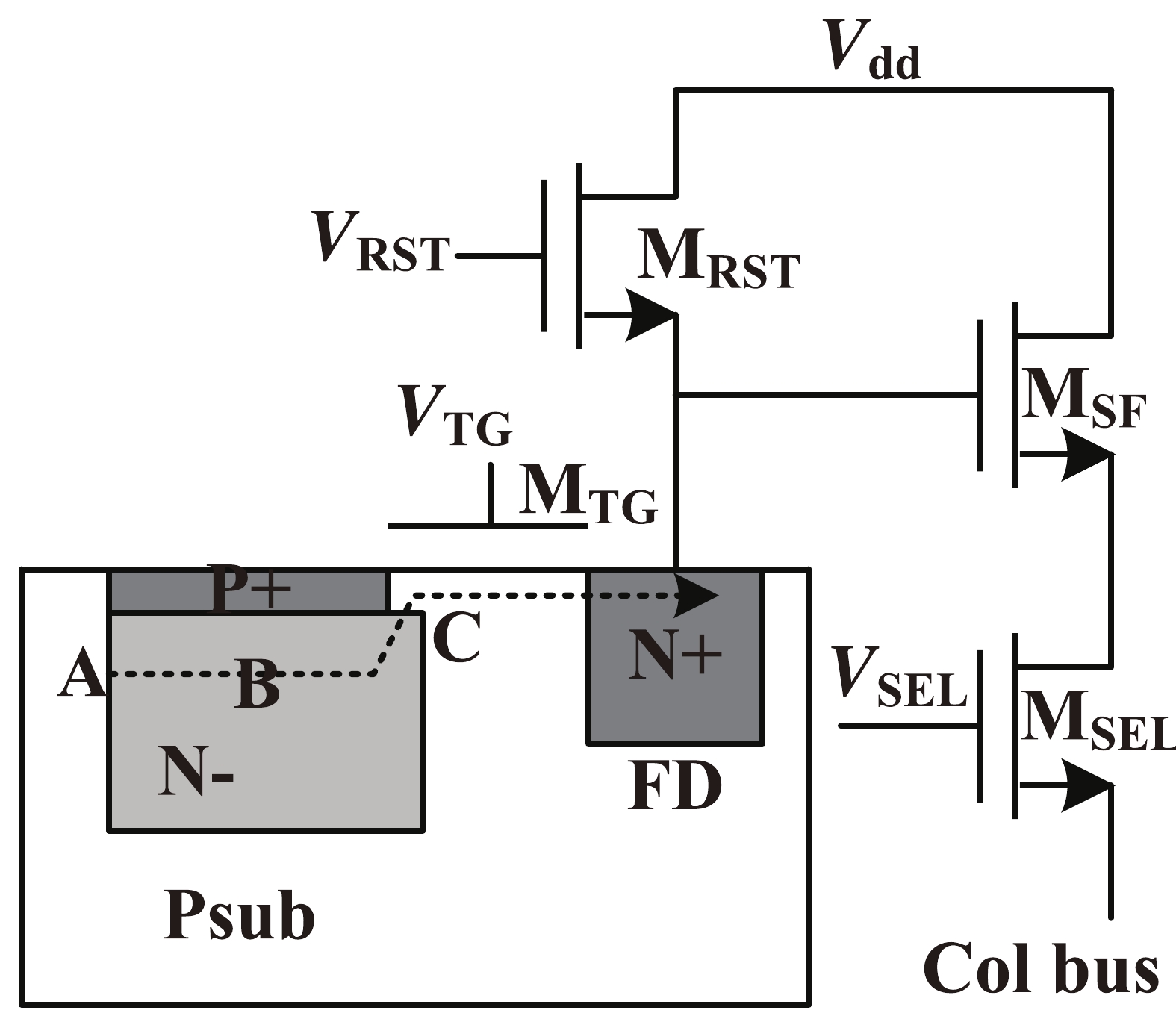

Fig. 2.  4T-PPD architecture.
DownLoad: Full-Size Img PowerPoint

The dotted line in Fig. 2 is the charge transfer path when a high voltage is applied to the VTG. Traditionally, VTG is greater than 2.8 V, so that a fringe field from the edge of the PPD (marked as A) to TG (marked as C) is formed, pushing the electrons to TG completely. When VTG drops, due to the absence of the fringe field, the electrons moving from A to B mainly rely on thermal diffusion and self-induced drift, which takes a long time. Finally, the electrons are left behind in the PPD, and these remaining electrons create image lag.

To reduce the image lag caused by low-voltage PPD, 2.8 µm small pixel pitch is used to reduce the electron diffusion distance. To further accelerate the movement of photogenerated charges without changing the process steps and conditions, the shape of the PPD layer might be changed to create an electric field from the edge of PPD to TG. In previous studies[11-15], triangle, W-shape, trapezoid, and L-shape PPD have been reportedly, but all these designs aim at large-sized pixels. For small-sized pixels, the PPD layer should not be cut too much; otherwise, it would affect the full-well capacity and reduce the dynamic range.

Therefore, for the small pixel design in this paper, the traditional rectangular PPD layer shown in Fig. 3(a) is improved into a five-finger PPD layer, which can be seen in Fig. 3(b). The number five is the result of a balance between full-well capacity and the transfer speed. If the number of fingers is too small, then too much of the photosensitive area will be cut, which will greatly reduce the full well capacity. In contrast, if the number of fingers is too large, then the inclination angle of each finger will not be enough, which will decrease the charge transfer speed. The cutting method is as follows. First, the center of the TG is marked as point C, the black rectangular frame is the farthest area from point C, and thus the area is cut out. Then, the four arrow lines divide 90° into five equal parts, and the length of each arrow line is basically the same. This design is developed to ensure that the time for the photo-generated charges in each area to move to the TG is nearly the same. The angles of the five fingers are almost 110°, based on the experiment results reported in Ref. [12]. The area of the PPD layer that is finally cut off accounts for 14% of the total rectangular area of 4.27 µm2.

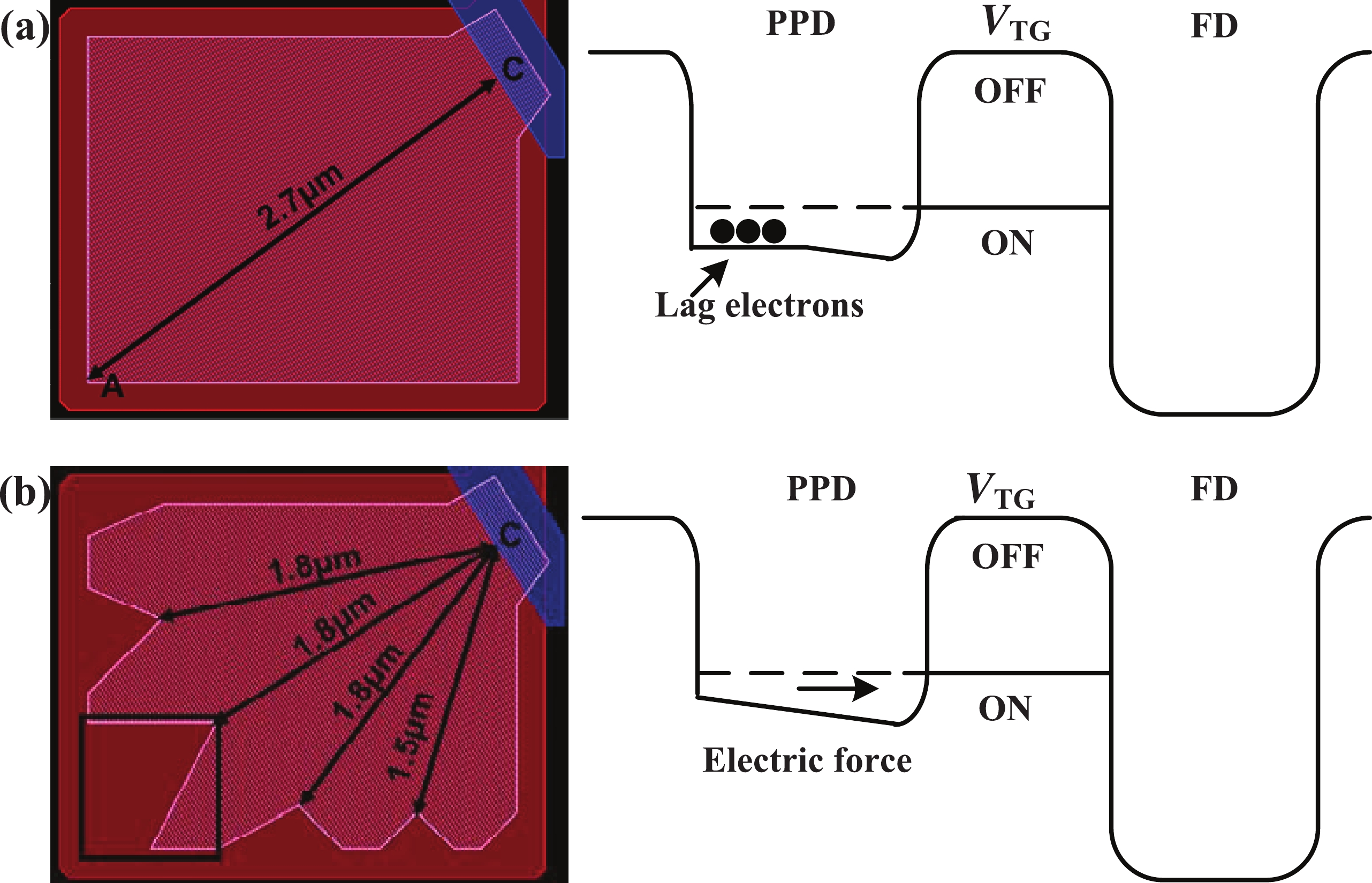

Fig. 3.  (Color online) PPD shape and potential profile: (a) conventional rectangle shaped, (b) proposed five-finger shaped.
DownLoad: Full-Size Img PowerPoint

Compared with the conventional rectangle shaped PPD shown in Fig. 3(a), the width of the photodiode becomes narrower the farther away from transfer gate. The five-finger shaped PPD utilizes the narrow width effect to create the extra electrical field in the direction of the charge transfer. This causes more electrons to be pulled out of the PPD. The potential profile of a rectangular PPD is shown in Fig. 3(a). There is no potential gradient forcing electrons because there is no narrow channel effect. A potential gradient is formed in the five-finger shaped PPD as shown in Fig. 3(b). The proposed five-finger shaped PPD can not only accelerate the electrons transfer from PPD to TG but can also meet the requirements of full-well capacity and dynamic range due to the small cropped area.

The column circuit of the SS-ADC is shown in Fig. 4. To further reduce power consumption, the comparator is implemented by a two-stage comparator. The pixel output signal Vpixel and ramp signal Vramp are, respectively, connected to the negative and positive input terminals of the first-stage comparator through capacitors C1A and C1B. In this way, both Vpixel and Vramp are ac-coupled, thus voltages of Vpixel and Vramp are not limited by the first-stage input common mode voltage. Moreover, a fully differential first stage can avoid systematic offset. A capacitor C2 is added between the first-stage and the second-stage to eliminate the offset of the first-stage. The output signal of comparator Com_out becomes Com_new after passing the DDS_MODE module. The column counter, composed of ripple counter, performs the A/D conversion by counting the number of clocks until the comparator output changes. A ripple counter has the advantage of not needing to be synchronized with the high-speed clock.

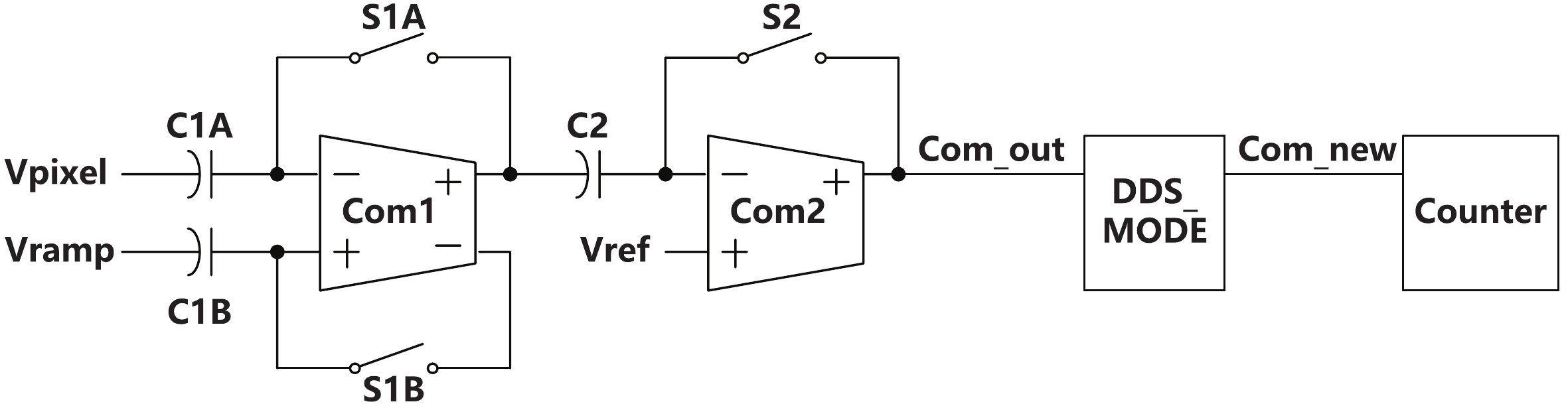

Fig. 4.  Column circuit of the SS-ADC.
DownLoad: Full-Size Img PowerPoint

4.1 Dual correlated double sampling

To reduce random noise and the nonuniformity between columns, dual-CDS which includes analog correlated double sampling and digital double sampling is used. Fig. 5 shows the timing diagram for the dual-CDS operation.

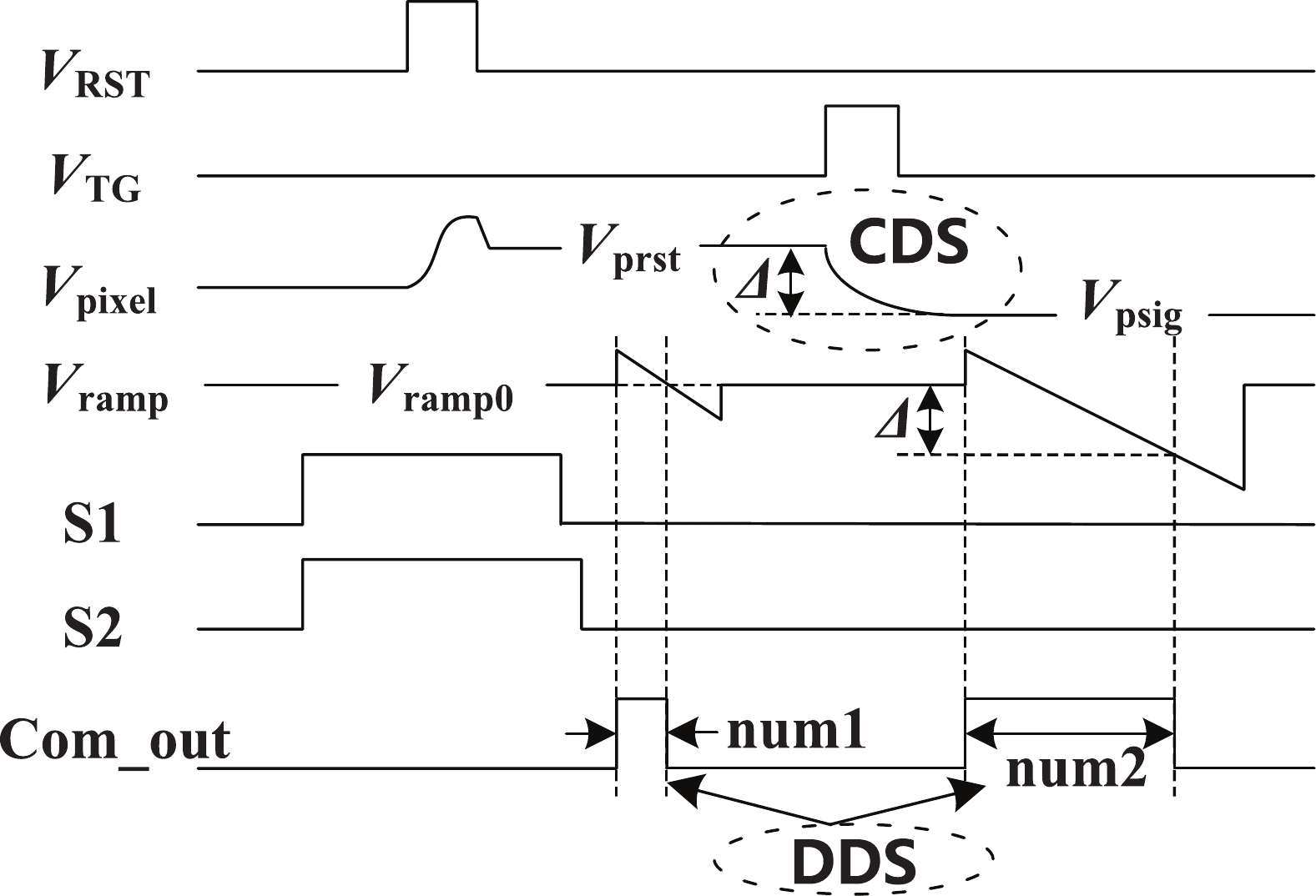

Fig. 5.  Timing diagram for dual correlated double sampling.
DownLoad: Full-Size Img PowerPoint

The dual-CDS operation is as follows. 1) Switches S1 and S2 are turned on, the comparator is reset. When the control signal VRST is high, the pixel reset level Vprst appears at the pixel output. Then S1 and S2 are turned off. Non-overlap S1 and S2 are designed to reduce non-idealities introduced by clock feedthrough and charge injection. At this time, the voltages of the negative and positive input terminals of the comparator can be expressed as

Vcom,inn=Vcm,
 (1)
Vcom,inp=Vcm+Vos,
 (2)

where Vcm is the common-mode voltage of the comparator, and Vos is the comparator offset. 2) Then, Vramp starts to change near Vramp0, the positive input terminal of the comparator can be expressed as

Vcom,inp=Vcm+Vos−(Vramp0−Vramp).
 (3)

The difference between the two ends of the comparator is derived by Eq. (3) minus Eq. (1) as

ΔVcom1=Vcom,inp−Vcom,inn=Vos−(Vramp0−Vramp).
 (4)

When ∆Vcom1 > 0, the comparator flips, the ripple counter stops counting, and the count value is num1. 3) When the control signal VTG is high, the pixel signal level Vpsig appears at the pixel output. And the negative input terminal of the comparator can be expressed as

Vcom,inn=Vcm−(Vprst−Vpsig).
 (5)

The difference between the two ends of the comparator is derived by Eq. (3) minus Eq. (5) as

ΔVcom2=Vcom,inp−Vcom,inn=Vos+(Vprst−Vpsig)−(Vramp0−Vramp).
 (6)

When ∆Vcom2 > 0, the comparator flips, the ripple counter stops counting, and the count value is num2. The final 10-bit counting number Dout is given as

Dout=num2−num1.
 (7)

Analog CDS is used to eliminate the offset of the pixel. The offset of the comparator and counter variations that cause A/D conversion error are corrected by digital CDS. Due to the use of the digital CDS method, the conversion time is increased by 20% because of the time for num1 counting. To achieve 30 fps at 1288 × 728, the clock frequency of the ripple counter is 72 MHz. After dual-CDS subtraction, the system non-idealities are well canceled.

4.2 Dual-mode counting method

The total number of counts directly relates to the difference between the pixel reset level and signal level. In extreme cases, when the scene is complete bright, all column-parallel counters start counting at the same time and do not stop until they are all full. On one hand, this introduces a lot of spikes in the substrate, resulting in supply noises. On the other hand, the high-power current flows from the ADC supply may pull down the supply level significantly due to parasitic resistance of the chip and package, which causes the chip to fail.

To solve the problem, a dual-mode counting method is proposed (i.e., even-column and odd-column counters start and stop counting at different times). As shown in Fig. 4, the output of the comparator connects to the counter through the DDS_MODE module, and the circuit of the DDS_MODE module is shown in Fig. 6(a). The proposed counting algorithm is illustrated in Fig. 6(b). When DDS_MODE = 1, Com_new is the same as Com_out, and the final Dout expression of even columns is the same as Eq. (8). When DDS_MODE = 0, Com_new is the opposite of Com_out, the odd columns start counting when the even columns stop, and stop counting when the Vramp stops changing. The final Dout expression of the odd columns is given as

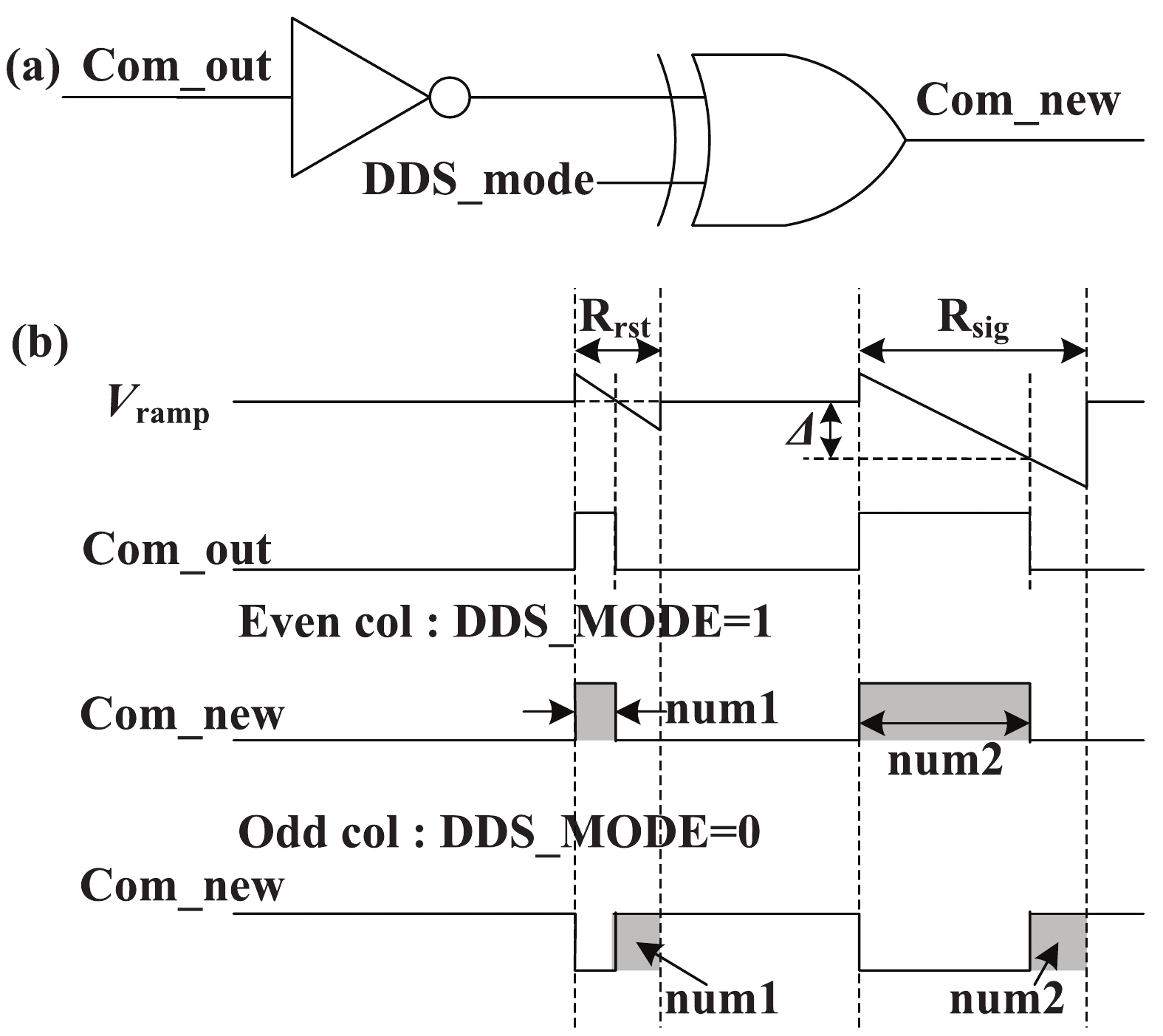

Fig. 6.  Dual-mode counting method: (a) circuit, (b) timing diagram.
DownLoad: Full-Size Img PowerPoint
Dout=(Rsig−num2)−(Rrst−num1).
 (8)

With this counting method, whether the scene is complete dark or bright, the digital power supply level and ground level variation are almost the same, and thus circuit robustness is improved.

A prototype sensor was fabricated using a 0.11 µm 1P3M CMOS process. Fig. 7 shows a photograph and layout of the chip. The size of the whole chip is 4.8 mm (H) × 2.9 mm (V). The pixel array is 1288 × 728 and the pixel pitch is 2.8 μm.

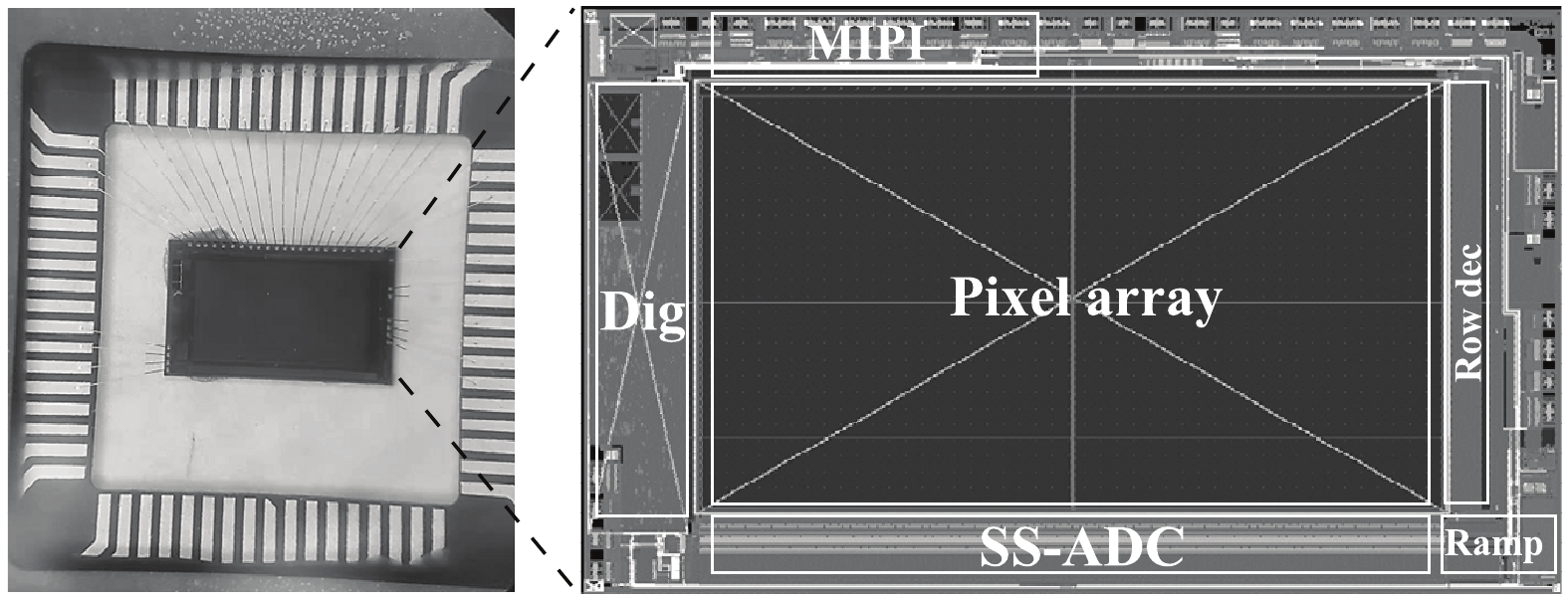

Fig. 7.  Chip photograph and layout.
DownLoad: Full-Size Img PowerPoint

The test pixel in chip3 is rectangle shaped, as shown in Fig. 3(a), while the test pixel in chip4 is five-finger shaped as shown in Fig. 3(b). The doping profiles of chip3 and chip4 are the same. Fig. 8 compares the measured lag performance of two different pixel designs. It can be seen that the lag of the rectangle shaped pixel gradually increases with the increase of light intensity, while the lag of the improved five-finger shaped pixel almost does not change. At the maximum exposure, the lag of the five-finger shaped pixel is reduced by 80% compared with the conventional rectangle shaped pixel.

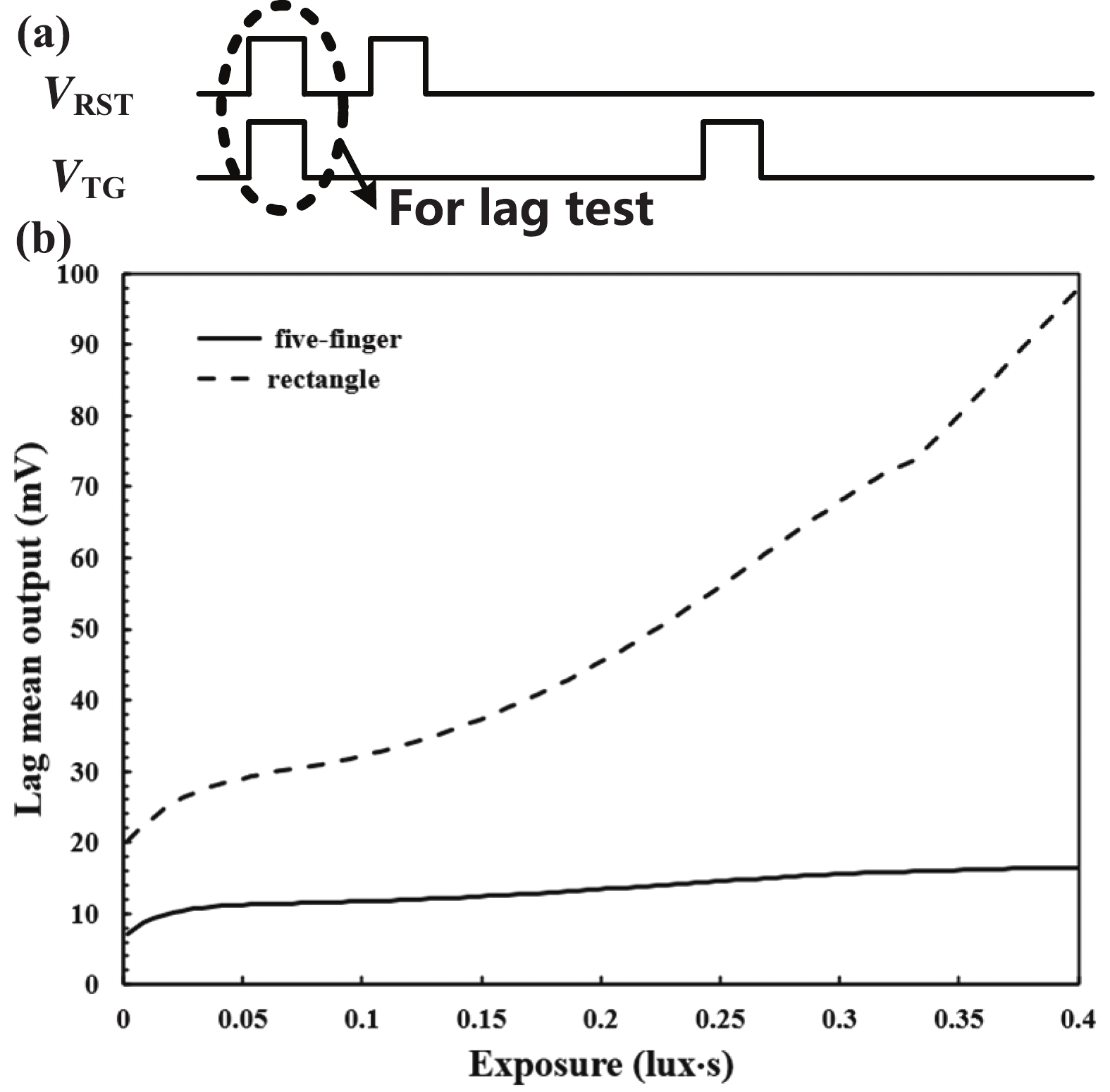

Fig. 8.  (a) Timing diagram for lag test. (b) Measured lag curves with different shaped PPD.
DownLoad: Full-Size Img PowerPoint

In the high-light region, the full-well capacity of the five-finger PPD decreases from 647 mV (5119 e−) to 623 mV (4928 e−) compared with the rectangle shaped pixel because the area of the PPD layer is reduced by 14%. However, CIS only works in the linear region of the photoelectric response curve, so a slight decrease in the full-well capacity will not affect the CIS. The dark current values for five-finger and rectangle shaped pixels are 5.01 and 5.06 mV/s respectively.

Fig. 9 shows the measured photo response curves of five-finger shaped PPD with different transfer gate voltage. The photo response curves are nearly the same by changing VTG. This is because the five-finger shaped pixel improves the electrons transfer efficiency, thus almost complete transfer can be realized (even at a low voltage of 1.5 V).

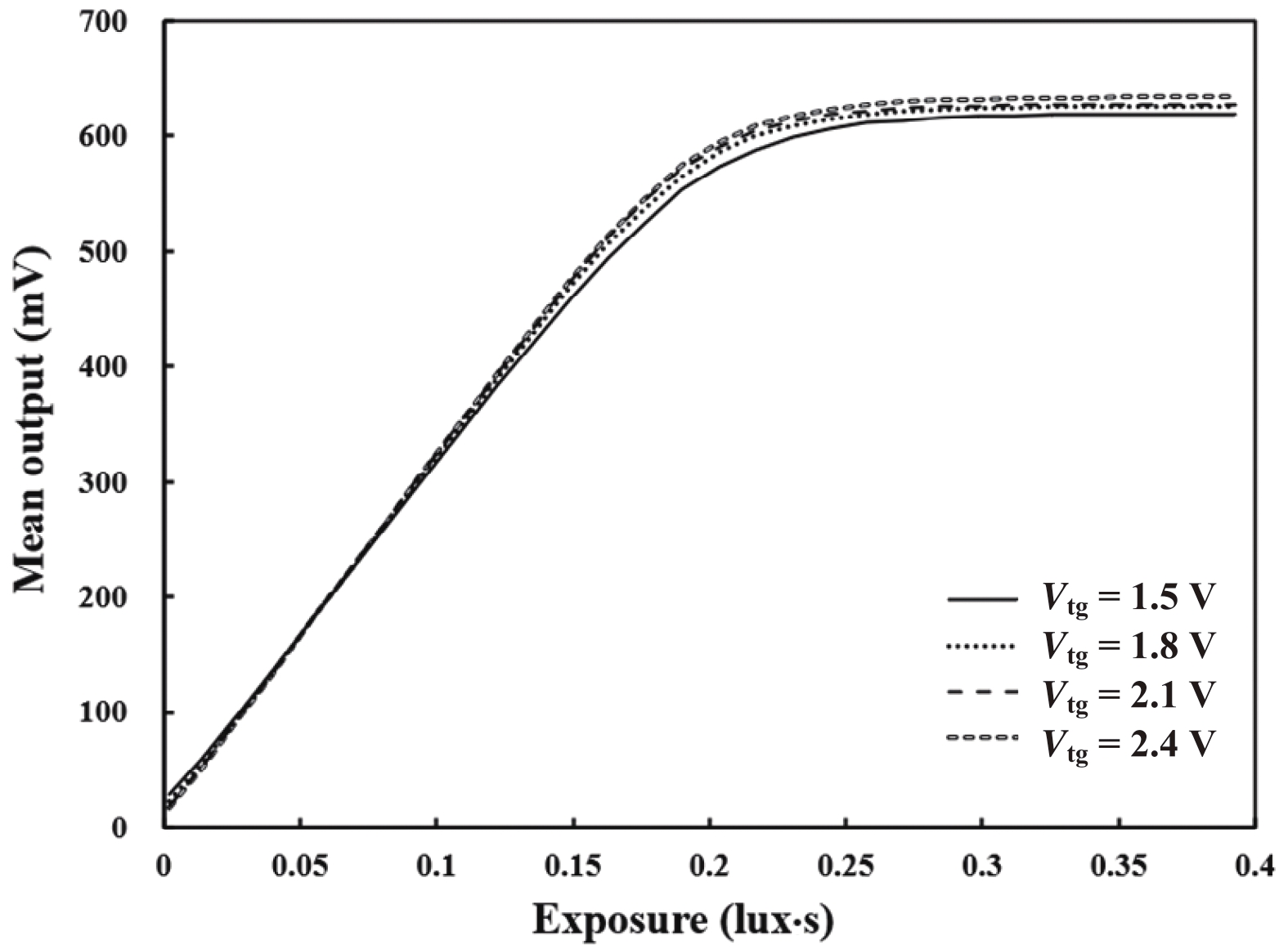

Fig. 9.  Measured photo response curves of five-finger shaped PPD with different transfer gate voltage.
DownLoad: Full-Size Img PowerPoint

Fig. 10 shows the measured photon transfer curve versus input light intensity. A dark random noise of 1.55 e–rms is achieved with a pixel conversion gain of 126.4 μV/e−. This chip achieves a dynamic range of 67.3 dB.

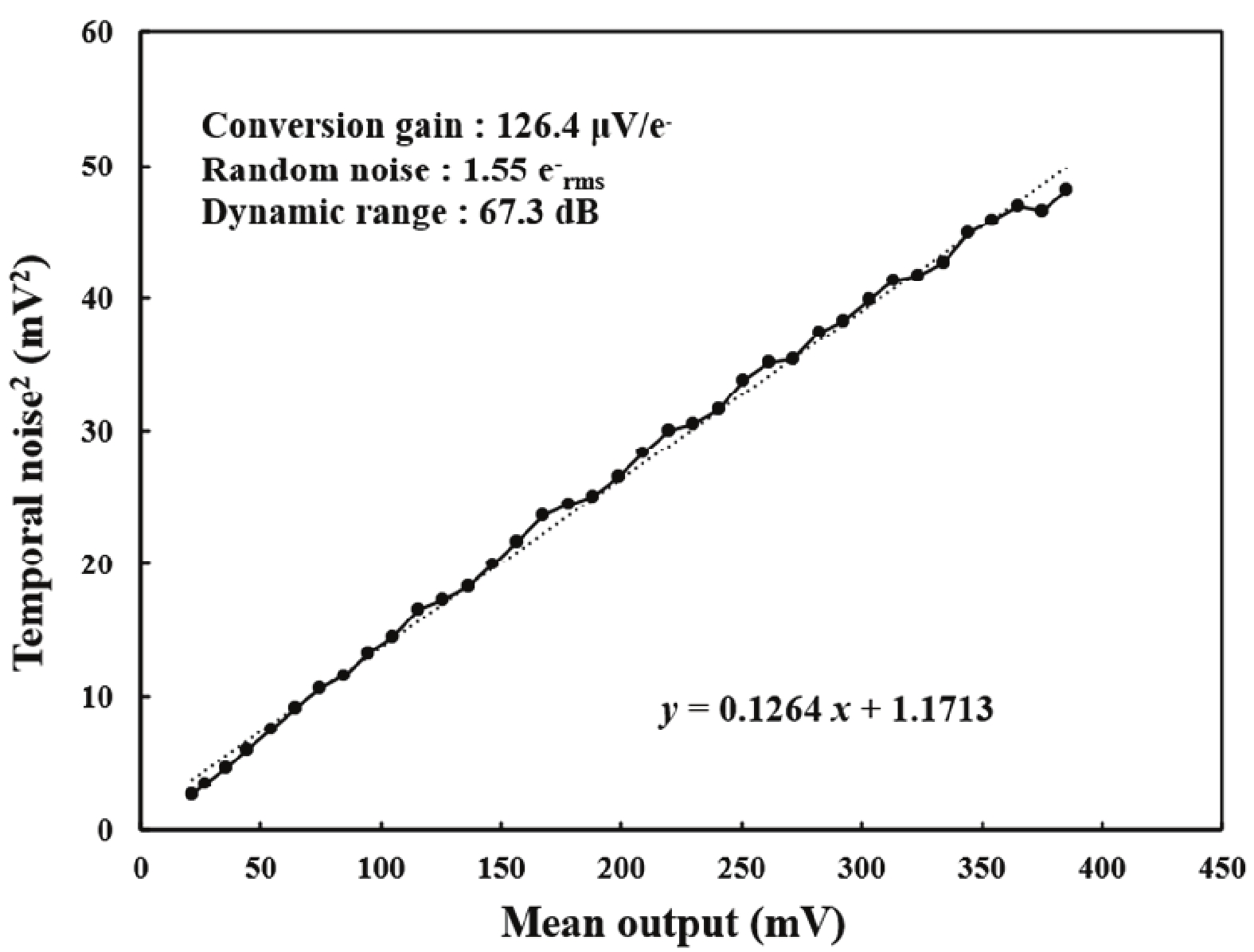

Fig. 10.  Measured photon transfer curve.
DownLoad: Full-Size Img PowerPoint

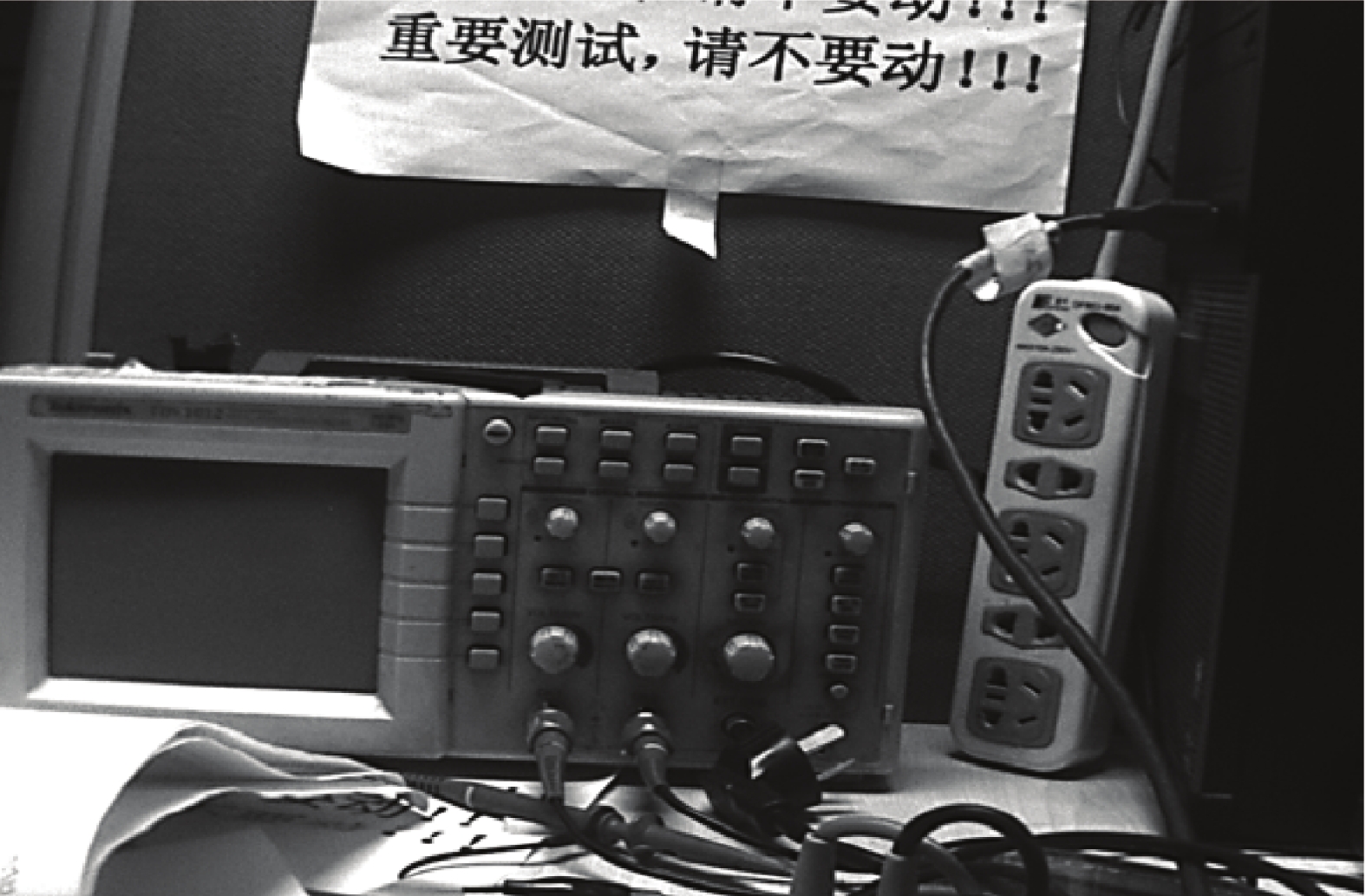

A sample image taken with the CIS at 1.5 V analog and 1.2 V digital supply voltage is shown in Fig. 11. Image lag due to the 1.5 V 4T-PPD is negligible at 30 fps.

Fig. 11.  Captured image from the fabricated sensor.
DownLoad: Full-Size Img PowerPoint

To verify the validity of the dual-mode counting method, the test is carried out as follows. The entire chip is illuminated by a parallel light source, while the lower left-hand and lower right-hand corners of the photosensitive area are covered with insulating black tape. The pixel arrays covered by black tape are both 472 × 345. The measured digital codes of the 644th column with or without dual-mode counting is shown in Fig. 12. When dual-counting method is off, the quantization environments between the first 383 lines and the last 345 lines of the 644th column are inconsistent, so the code values have a minimum deviation of 2 LSB. When dual-counting method is on, the code value consistency between the first 383 lines and the last 345 lines of the column 644th is better.

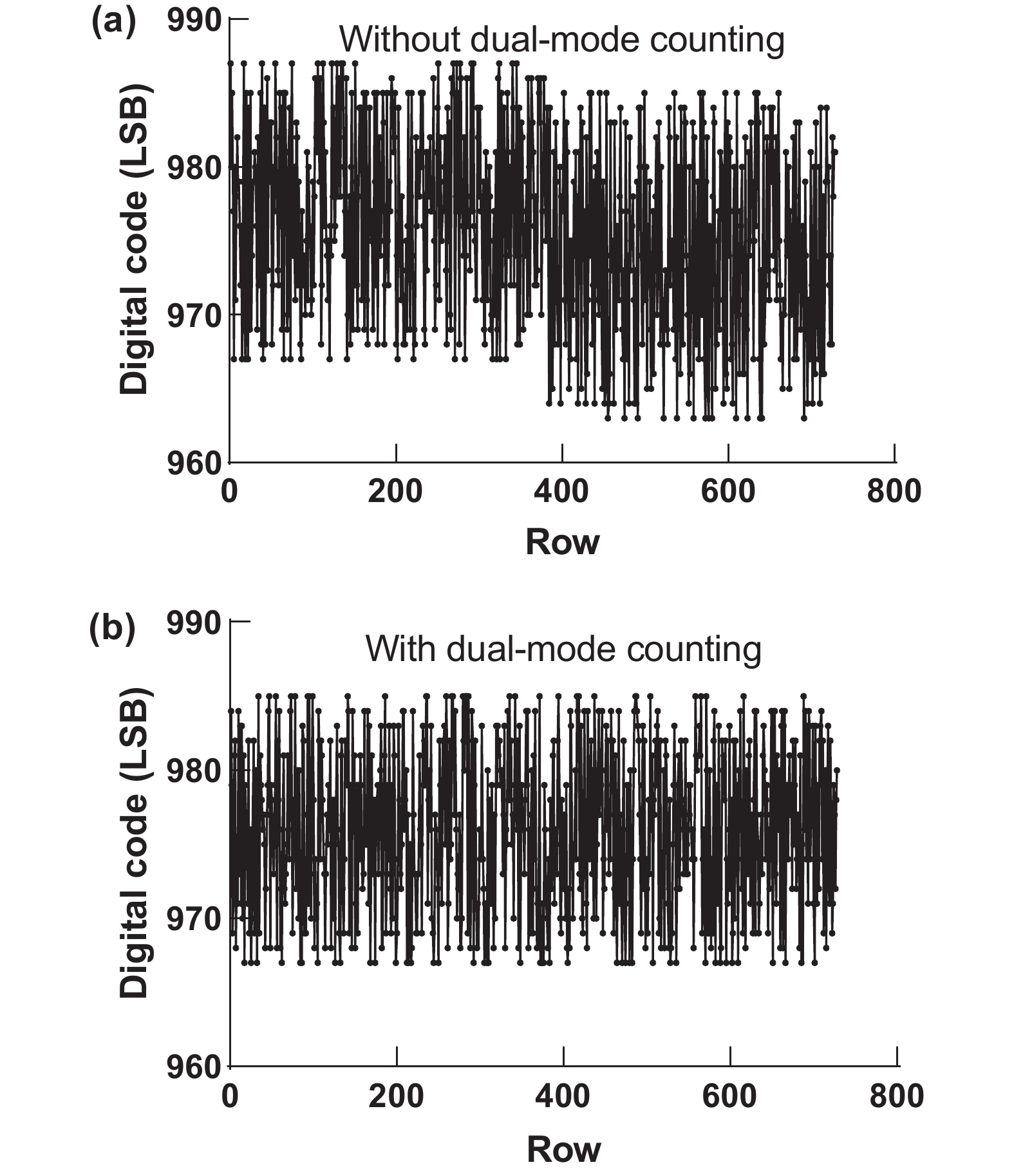

Fig. 12.  (a) Measured Digital codes of the 644th column without dual-mode counting. (b) Measured Digital codes of the 644th column with dual-mode counting.
DownLoad: Full-Size Img PowerPoint

Table 1 shows the measured power consumption at 30 fps. Because a low-voltage 1.5 V 4T-PPD is used, the supply voltage of the subsequent analog readout circuit can also be 1.5 V, which greatly reduces the power consumption of the whole chip. To further reduce power consumption, the supply voltage of the digital circuit is 1.2 V, and the I/O PAD supply is 1.8 V. The measured total power consumption is only 36 mW.

Table 1.  Chip power consumption.
ParameterVoltage (V)Current (A)Power consumption (mW)
Pixel and analog1.510.3515.525
Digital1.216.9620.352
I/O1.80.030.054
Sum35.931
DownLoad: CSV  | Show Table

Table 2 shows a performance summary of the proposed CIS and a comparison with other works. To evaluate the energy efficiency of an image sensor, FoM can be calculated as follows[16]:

Table 2.  Comparison with other published CIS.
ParameterThis workJSSC[6]TCASI[17]Sensor[18]JSSC[4]
Process (nm)1101101109065
Pixel pitch (µm)2.85.06.55.64.0
Pixel type4T PPD4T PPD4T PPD4T PPDDigital
Pixel resolution1288 × 728640 × 480320 × 240128 × 128960 × 720128 × 128
Frame rate (fps)3015152283532
Power supply (V)1.5/1.23.3/1.80.93.3/1.52.8/1.50.5
Dynamic range (dB)67.3695068.966.742
Power consumption (mW)362.280.045540280.0088
Random noise (e–rms)1.555.583.73.25*3.73*416
FoM (e–·nJ)1.982.723.3134.84.326.98
* For fair comparison, conversion gain is assumed by 126.4 μV/e–.
DownLoad: CSV  | Show Table
FoM=Power×NoiseFrame rate×Total pixel number.
 (9)

This work achieves a FoM of 1.98 e−·nJ. Compared with previous woks, the proposed CIS realizes low-power by using 1.5 V 4T-PPD, while maintaining high image quality.

This work presents a low-power high-quality CIS using 1.5 V 4T-PPD and column-parallel SS-ADC. A five-finger shaped pixel layer is proposed to solve image lag caused by low-voltage 4T-PPD. Dual correlated double sampling is used to reduce random noise and the nonuniformity between columns. To improve circuit robustness, dual-mode counting method is proposed. Measurement results show that the lag of the five-finger shaped pixel is reduced by 80% compared with the conventional rectangular pixel, the chip power consumption is only 36 mW, the dynamic range is 67.3 dB, the random noise is only 1.55 e–rms, and the FoM is only 1.98 e–·nJ. The proposed CIS realizes low-power by using 1.5 V 4T-PPD while maintaining high image quality, which is suitable for IoT and AI applications.

This work was supported by the National Key R&D Program of China (2019YFB2204304).



[1]
Park I, Jo W, Park C, et al. A 640 × 640 fully dynamic CMOS image sensor for always-on operation. IEEE J Solid State Circuits, 2020, 55, 898 doi: 10.1109/JSSC.2019.2959486
[2]
Hsu T H, Chen Y R, Liu R S, et al. A 0.5-V real-time computational CMOS image sensor with programmable kernel for feature extraction. IEEE J Solid State Circuits, 2021, 56, 1588 doi: 10.1109/JSSC.2020.3034192
[3]
Hanson S, Foo Z, Blaauw D, et al. A 0.5 V sub-microwatt CMOS image sensor with pulse-width modulation read-out. IEEE J Solid State Circuits, 2010, 45, 759 doi: 10.1109/JSSC.2010.2040231
[4]
Couniot N, de Streel G, Botman F, et al. A 65 nm 0.5 V DPS CMOS image sensor with 17 pJ/Frame. Pixel and 42 dB dynamic range for ultra-low-power SoCs. IEEE J Solid State Circuits, 2015, 50, 2419 doi: 10.1109/JSSC.2015.2457897
[5]
Cho K B, Krymski A I, Fossum E R. A 1.5-V 550-μW 176 × 144 autonomous CMOS active pixel image sensor. IEEE Trans Electron Devices, 2003, 50, 96 doi: 10.1109/TED.2002.806475
[6]
Choi J, Shin J, Kang D W, et al. Always-on CMOS image sensor for mobile and wearable devices. IEEE J Solid State Circuits, 2016, 51, 130 doi: 10.1109/JSSC.2015.2470526
[7]
Nitta Y, Muramatsu Y, Amano K, et al. High-speed digital double sampling with analog CDS on column parallel ADC architecture for low-noise active pixel sensor. 2006 IEEE International Solid State Circuits Conference, 2006, 2024
[8]
Liu Q Y, Edward A, Kinyua M, et al. A low-power digitizer for back-illuminated 3-D-stacked CMOS image sensor readout with passing window and double auto-zeroing techniques. IEEE J Solid State Circuits, 2017, 52, 1591 doi: 10.1109/JSSC.2017.2661843
[9]
Park I, Park C, Cheon J, et al. A 76mW 500fps VGA CMOS image sensor with time-stretched single-slope ADCs achieving 1.95e- random noise. 2019 IEEE International Solid-State Circuits Conference, 2019, 100
[10]
Kim H J. 11-bit column-parallel single-slope ADC with first-step half-reference ramping scheme for high-speed CMOS image sensors. IEEE J Solid State Circuits, 2021, 56, 2132 doi: 10.1109/JSSC.2021.3059909
[11]
Shin B, Park S, Shin H. The effect of photodiode shape on charge transfer in CMOS image sensors. Solid State Electron, 2010, 54, 1416 doi: 10.1016/j.sse.2010.06.006
[12]
Xu Y, Theuwissen A J. Image lag analysis and photodiode shape optimization of 4T CMOS pixels. International Image Sensor Workshop, 2013
[13]
Cao X Z, Gäbler D, Lee C, et al. Design and optimization of large 4T pixel. International Image Sensor Workshop, 2015
[14]
Acerbi F, Garcia M M, Köklü G, et al. Transfer-gate region optimization and pinned-photodiode shaping for high-speed ToF applications. International Image Sensor Workshop, 2017
[15]
Millar T C, Sarhangnejad N, Katic N, et al. The effect of pinned photodiode shape on time-of-flight demodulation contrast. IEEE Trans Electron Devices, 2017, 64, 2244 doi: 10.1109/TED.2017.2677201
[16]
Kawahito S. Column-parallel ADCs for CMOS image sensors and their FoM-based evaluations. IEICE Trans Electron, 2018, E101.C, 444 doi: 10.1587/transele.E101.C.444
[17]
Nie K M, Zha W B, Shi X L, et al. A single slope ADC with row-wise noise reduction technique for CMOS image sensor. IEEE Trans Circuits Syst I, 2020, 67, 2873 doi: 10.1109/TCSI.2020.2979321
[18]
Park H, Yu C Z, Kim H, et al. Low power CMOS image sensors using two step single slope ADC with bandwidth-limited comparators & voltage range extended ramp generator for battery-limited application. IEEE Sens J, 2020, 20, 2831 doi: 10.1109/JSEN.2019.2957043
Fig. 1.  Block diagram of the overall architecture.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  4T-PPD architecture.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  (Color online) PPD shape and potential profile: (a) conventional rectangle shaped, (b) proposed five-finger shaped.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  Column circuit of the SS-ADC.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  Timing diagram for dual correlated double sampling.

DownLoad: Full-Size Img PowerPoint
Fig. 6.  Dual-mode counting method: (a) circuit, (b) timing diagram.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  Chip photograph and layout.

DownLoad: Full-Size Img PowerPoint
Fig. 8.  (a) Timing diagram for lag test. (b) Measured lag curves with different shaped PPD.

DownLoad: Full-Size Img PowerPoint
Fig. 9.  Measured photo response curves of five-finger shaped PPD with different transfer gate voltage.

DownLoad: Full-Size Img PowerPoint
Fig. 10.  Measured photon transfer curve.

DownLoad: Full-Size Img PowerPoint
Fig. 11.  Captured image from the fabricated sensor.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  (a) Measured Digital codes of the 644th column without dual-mode counting. (b) Measured Digital codes of the 644th column with dual-mode counting.

DownLoad: Full-Size Img PowerPoint

Table 1.   Chip power consumption.

ParameterVoltage (V)Current (A)Power consumption (mW)
Pixel and analog1.510.3515.525
Digital1.216.9620.352
I/O1.80.030.054
Sum35.931
DownLoad: CSV

Table 2.   Comparison with other published CIS.

ParameterThis workJSSC[6]TCASI[17]Sensor[18]JSSC[4]
Process (nm)1101101109065
Pixel pitch (µm)2.85.06.55.64.0
Pixel type4T PPD4T PPD4T PPD4T PPDDigital
Pixel resolution1288 × 728640 × 480320 × 240128 × 128960 × 720128 × 128
Frame rate (fps)3015152283532
Power supply (V)1.5/1.23.3/1.80.93.3/1.52.8/1.50.5
Dynamic range (dB)67.3695068.966.742
Power consumption (mW)362.280.045540280.0088
Random noise (e–rms)1.555.583.73.25*3.73*416
FoM (e–·nJ)1.982.723.3134.84.326.98
* For fair comparison, conversion gain is assumed by 126.4 μV/e–.
DownLoad: CSV
[1]
Park I, Jo W, Park C, et al. A 640 × 640 fully dynamic CMOS image sensor for always-on operation. IEEE J Solid State Circuits, 2020, 55, 898 doi: 10.1109/JSSC.2019.2959486
[2]
Hsu T H, Chen Y R, Liu R S, et al. A 0.5-V real-time computational CMOS image sensor with programmable kernel for feature extraction. IEEE J Solid State Circuits, 2021, 56, 1588 doi: 10.1109/JSSC.2020.3034192
[3]
Hanson S, Foo Z, Blaauw D, et al. A 0.5 V sub-microwatt CMOS image sensor with pulse-width modulation read-out. IEEE J Solid State Circuits, 2010, 45, 759 doi: 10.1109/JSSC.2010.2040231
[4]
Couniot N, de Streel G, Botman F, et al. A 65 nm 0.5 V DPS CMOS image sensor with 17 pJ/Frame. Pixel and 42 dB dynamic range for ultra-low-power SoCs. IEEE J Solid State Circuits, 2015, 50, 2419 doi: 10.1109/JSSC.2015.2457897
[5]
Cho K B, Krymski A I, Fossum E R. A 1.5-V 550-μW 176 × 144 autonomous CMOS active pixel image sensor. IEEE Trans Electron Devices, 2003, 50, 96 doi: 10.1109/TED.2002.806475
[6]
Choi J, Shin J, Kang D W, et al. Always-on CMOS image sensor for mobile and wearable devices. IEEE J Solid State Circuits, 2016, 51, 130 doi: 10.1109/JSSC.2015.2470526
[7]
Nitta Y, Muramatsu Y, Amano K, et al. High-speed digital double sampling with analog CDS on column parallel ADC architecture for low-noise active pixel sensor. 2006 IEEE International Solid State Circuits Conference, 2006, 2024
[8]
Liu Q Y, Edward A, Kinyua M, et al. A low-power digitizer for back-illuminated 3-D-stacked CMOS image sensor readout with passing window and double auto-zeroing techniques. IEEE J Solid State Circuits, 2017, 52, 1591 doi: 10.1109/JSSC.2017.2661843
[9]
Park I, Park C, Cheon J, et al. A 76mW 500fps VGA CMOS image sensor with time-stretched single-slope ADCs achieving 1.95e- random noise. 2019 IEEE International Solid-State Circuits Conference, 2019, 100
[10]
Kim H J. 11-bit column-parallel single-slope ADC with first-step half-reference ramping scheme for high-speed CMOS image sensors. IEEE J Solid State Circuits, 2021, 56, 2132 doi: 10.1109/JSSC.2021.3059909
[11]
Shin B, Park S, Shin H. The effect of photodiode shape on charge transfer in CMOS image sensors. Solid State Electron, 2010, 54, 1416 doi: 10.1016/j.sse.2010.06.006
[12]
Xu Y, Theuwissen A J. Image lag analysis and photodiode shape optimization of 4T CMOS pixels. International Image Sensor Workshop, 2013
[13]
Cao X Z, Gäbler D, Lee C, et al. Design and optimization of large 4T pixel. International Image Sensor Workshop, 2015
[14]
Acerbi F, Garcia M M, Köklü G, et al. Transfer-gate region optimization and pinned-photodiode shaping for high-speed ToF applications. International Image Sensor Workshop, 2017
[15]
Millar T C, Sarhangnejad N, Katic N, et al. The effect of pinned photodiode shape on time-of-flight demodulation contrast. IEEE Trans Electron Devices, 2017, 64, 2244 doi: 10.1109/TED.2017.2677201
[16]
Kawahito S. Column-parallel ADCs for CMOS image sensors and their FoM-based evaluations. IEICE Trans Electron, 2018, E101.C, 444 doi: 10.1587/transele.E101.C.444
[17]
Nie K M, Zha W B, Shi X L, et al. A single slope ADC with row-wise noise reduction technique for CMOS image sensor. IEEE Trans Circuits Syst I, 2020, 67, 2873 doi: 10.1109/TCSI.2020.2979321
[18]
Park H, Yu C Z, Kim H, et al. Low power CMOS image sensors using two step single slope ADC with bandwidth-limited comparators & voltage range extended ramp generator for battery-limited application. IEEE Sens J, 2020, 20, 2831 doi: 10.1109/JSEN.2019.2957043
1

Incomplete charge transfer in CMOS image sensor caused by Si/SiO2 interface states in the TG channel

Xi Lu, Changju Liu, Pinyuan Zhao, Yu Zhang, Bei Li, et al.

Journal of Semiconductors, 2023, 44(11): 114104. doi: 10.1088/1674-4926/44/11/114104
2

Modeling the photon counting and photoelectron counting characteristics of quanta image sensors

Bowen Liu, Jiangtao Xu

Journal of Semiconductors, 2021, 42(6): 062301. doi: 10.1088/1674-4926/42/6/062301
3

Column readout circuit with improved offset mismatch and charge sharing for CMOS image sensor

Zhongjie Guo, Ningmei Yu, Longsheng Wu

Journal of Semiconductors, 2019, 40(12): 122404. doi: 10.1088/1674-4926/40/12/122404
4

High-stage analog accumulator for TDI CMOS image sensors

Jianxin Li, Fujun Huang, Yong Zong, Jing Gao

Journal of Semiconductors, 2016, 37(2): 025001. doi: 10.1088/1674-4926/37/2/025001
5

A dynamic range extension scheme applied to a TDI CMOS image sensor

Chao Xu, Suying Yao, Jiangtao Xu, Zhiyuan Gao, Liqiang Han, et al.

Journal of Semiconductors, 2014, 35(2): 024013. doi: 10.1088/1674-4926/35/2/024013
6

A reconfigurable 256 × 256 image sensor controller that is compatible for depth measurement

Zhe Chen, Shan Di, Cong Shi, Liyuan Liu, Nanjian Wu, et al.

Journal of Semiconductors, 2014, 35(10): 105007. doi: 10.1088/1674-4926/35/10/105007
7

A 10-bit column-parallel cyclic ADC for high-speed CMOS image sensors

Ye Han, Quanliang Li, Cong Shi, Nanjian Wu

Journal of Semiconductors, 2013, 34(8): 085016. doi: 10.1088/1674-4926/34/8/085016
8

Analysis of incomplete charge transfer effects in a CMOS image sensor

Liqiang Han, Suying Yao, Jiangtao Xu, Chao Xu, Zhiyuan Gao, et al.

Journal of Semiconductors, 2013, 34(5): 054009. doi: 10.1088/1674-4926/34/5/054009
9

Design and optimization of evanescently coupled waveguide photodiodes

Yao Chen, Cheng Yuanbing, Wu Jian, Xu Kun, Qiu Jifang, et al.

Journal of Semiconductors, 2011, 32(10): 104006. doi: 10.1088/1674-4926/32/10/104006
10

Noise in a CMOS digital pixel sensor

Zhang Chi, Yao Suying, Xu Jiangtao

Journal of Semiconductors, 2011, 32(11): 115005. doi: 10.1088/1674-4926/32/11/115005
11

Collection efficiency and charge transfer optimization for a 4-T pixel with multi n-type implants

Li Weiping, Xu Jiangtao?, Xu Chao, Li Binqiao, Yao Suying, et al.

Journal of Semiconductors, 2011, 32(12): 124008. doi: 10.1088/1674-4926/32/12/124008
12

Reset noise reduction through column-level feedback reset in CMOS image sensors

Li Binqiao, Xu Jiangtao, Xie Shuang, Sun Zhongyan

Journal of Semiconductors, 2011, 32(2): 025012. doi: 10.1088/1674-4926/32/2/025012
13

Two-dimensional pixel image lag simulation and optimization in a 4-T CMOS image sensor

Yu Junting, Li Binqiao, Yu Pingping, Xu Jiangtao, Mou Cun, et al.

Journal of Semiconductors, 2010, 31(9): 094011. doi: 10.1088/1674-4926/31/9/094011
14

Wide dynamic range CMOS image sensor with in-pixel double-exposure and synthesis

Li Binqiao, Sun Zhongyan, Xu Jiangtao

Journal of Semiconductors, 2010, 31(5): 055002. doi: 10.1088/1674-4926/31/5/055002
15

A linear stepping PGA used in CMOS image sensors

Xu Jiangtao, Li Binqiao, Zhao Shibin, Li Hongle, Yao Suying, et al.

Journal of Semiconductors, 2009, 30(2): 025003. doi: 10.1088/1674-4926/30/2/025003
16

A Low-Power-Consumption 9bit 10MS/s Pipeline ADC for CMOS Image Sensors

Zhu Tiancheng, Yao Suying, Li Binqiao

Chinese Journal of Semiconductors , 2007, 28(12): 1924-1929.

17

Simulation of a Double-Gate Dynamic Threshold Voltage Fully Depleted Silicon-on-Insulator nMOSFET

Bi Jinshun, Wu Junfeng, Hai Chaohe

Chinese Journal of Semiconductors , 2006, 27(1): 35-40.

18

Design,Analysis,and Optimization of a CMOS Active Pixel Sensor

Xu Jiangtao, Yao Suying, Li Binqiao, Shi Zaifeng, Gao Jing, et al.

Chinese Journal of Semiconductors , 2006, 27(9): 1548-1551.

19

A New Method to Investigate InGaAsP Single-Photon AvalancheDiodes Using a Digital Sampling Oscilloscope

Liu Wei, Yang Fuhua, Wu Meng

Chinese Journal of Semiconductors , 2006, 27(10): 1711-1716.

20

A New CMOS Image Sensor with a High Fill Factor and the Dynamic Digital Double Sampling Technique

Liu Yu, Wang Guoyu

Chinese Journal of Semiconductors , 2006, 27(2): 313-317.

    • Search

    Advanced Search >>

    GET CITATION

    Wenjing Xu, Jie Chen, Zhangqu Kuang, Li Zhou, Ming Chen, Chengbin Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. Journal of Semiconductors, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401
    W J Xu, J Chen, Z Q Kuang, L Zhou, M Chen, C B Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. J. Semicond, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401
    shu

    Export: BibTex EndNote

    Article Metrics

    Article has an altmetric score of 1
    Article has an altmetric score of 1

    Article views: 2893 Times PDF downloads: 207 Times Cited by: 0 Times

    History

    Received: 09 November 2021 Revised: 16 February 2022 Online: Accepted Manuscript: 13 May 2022Uncorrected proof: 19 May 2022Published: 01 August 2022

    Catalog

      Email This Article

      User name:
      Email:*请输入正确邮箱
      Code:*验证码错误
      Send
      Article Navigation >  Journal of Semiconductors  > 2022  >  43(8): 082401
      Wenjing Xu, Jie Chen, Zhangqu Kuang, Li Zhou, Ming Chen, Chengbin Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. Journal of Semiconductors, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401 ****W J Xu, J Chen, Z Q Kuang, L Zhou, M Chen, C B Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. J. Semicond, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401
      Citation:
      Wenjing Xu, Jie Chen, Zhangqu Kuang, Li Zhou, Ming Chen, Chengbin Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. Journal of Semiconductors, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401 ****
      W J Xu, J Chen, Z Q Kuang, L Zhou, M Chen, C B Zhang. A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC[J]. J. Semicond, 2022, 43(8): 082401. doi: 10.1088/1674-4926/43/8/082401
      shu

      A low-power high-quality CMOS image sensor using 1.5 V 4T pinned photodiode and dual-CDS column-parallel single-slope ADC

      DOI: 10.1088/1674-4926/43/8/082401
      • 1.

        Institute of Microelectronics, Chinese Academy of Sciences, Beijing 100029, China

      • 2.

        University of Chinese Academy of Sciences, Beijing 100049, China

      • 3.

        Will Semiconductor Co. Ltd., Shanghai 201210, China

      More Information
      • Wenjing Xu：received her B.E. and M.E. from Tianjin University, China, in 2010 and 2013, respectively. She is currently working towards a PhD at the Institute of Microelectronics of Chinese Academy of Science. Her research interests are CMOS image sensors and analog circuit design
      • Jie Chen：received his B.E. degree from the Harbin Engineering University, Harbin, China in 1986, and the M.E. and PhD degrees from the University of Electro-Communications (UEC), Tokyo, Japan in 1991 and 1994, respectively. In 2001, he was selected as a scientist of ‘‘100 Talents Program’’ by Chinese Academy of Sciences (CAS). He is now a Director Professor of the Institute of Analog Integrated Circuits and Signal Processing Microelectronics, CAS and a Professor of the Graduate School of CAS. His current research interests include SOC design for software-defined-radio (SDR), digital communications (CDMA and OFDM) and data compression
      • Corresponding author: jchen@ime.ac.cn
      • Received Date: 2021-11-09
      • Revised Date: 2022-02-16
        • Available Online: 2022-05-13

      Catalog

        Journal of Semiconductors © 2017 All Rights Reserved   京ICP备05085259号-2

        /

        DownLoad:  Full-Size Img  PowerPoint
        Return
        Return
