J. Semicond. > 2023, Volume 44 > Issue 2 > 020201

RESEARCH HIGHLIGHTS

Perovskite/organic tandem solar cells

Jie Sun1, 2 and Liming Ding1,

+ Author Affiliations

 Corresponding author: Liming Ding, ding@nanoctr.cn

DOI: 10.1088/1674-4926/44/2/020201

PDF

Turn off MathJax



[1]
Zhang L X, Pan X Y, Liu L, et al. Star perovskite materials. J Semicond, 2022, 43, 030203 doi: 10.1088/1674-4926/43/3/030203
[2]
Kim M, Jeong J, Lu H, et al. Conformal quantum dot-SnO2 layers as electron transporters for efficient perovskite solar cells. Science, 2022, 375, 302 doi: 10.1126/science.abh1885
[3]
Cheng Y H, Ding L M. Perovskite/Si tandem solar cells: Fundamentals, advances, challenges, and novel applications. SusMat, 2021, 1, 324 doi: doi/full/10.1002/sus2.25
[4]
Chen S, Zuo C T, Xu B M, et al. Monolithic perovskite/silicon tandem solar cells offer an efficiency over 29%. J Semicond, 2021, 42, 120203 doi: 10.1088/1674-4926/42/12/120203
[5]
Fang Z M, Zeng Q, Zuo C T, et al. Perovskite-based tandem solar cells. Sci Bull, 2021, 66, 621 doi: 10.1016/j.scib.2020.11.006
[6]
National Renewable Energy Laboratory. Best Research-Cell Efficiencies. 2022
[7]
Zuo C T, Ding L M. Bulk heterojunctions push the photoresponse of perovskite solar cells to 970 nm. J Mater Chem A, 2015, 3, 9063 doi: 10.1039/C4TA04482G
[8]
Chen C C, Bae S H, Chang W H, et al. Perovskite/polymer monolithic hybrid tandem solar cells utilizing a low-temperature, full solution process. Mater Horizons, 2015, 2, 203 doi: 10.1039/C4MH00237G
[9]
Liu Y, Renna L A, Bag M, et al. High efficiency tandem thin-perovskite/polymer solar cells with a graded recombination layer. ACS Appl Mater Interfaces, 2016, 8, 7070 doi: 10.1021/acsami.5b12740
[10]
Brinkmann K O, Becker T, Zimmermann F, et al. Perovskite-organic tandem solar cells with indium oxide interconnect. Nature, 2022, 604, 280 doi: 10.1038/s41586-022-04455-0
[11]
Zeng Q, Liu L, Xiao Z, et al. A two-terminal all-inorganic perovskite/organic tandem solar cell. Sci Bull, 2019, 64, 885 doi: 10.1016/j.scib.2019.05.015
[12]
Xie S, Xia R, Chen Z, et al. Efficient monolithic perovskite/organic tandem solar cells and their efficiency potential. Nano Energy, 2020, 78, 105238 doi: 10.1016/j.nanoen.2020.105238
[13]
Liu L, Xiao Z, Zuo C, et al. Inorganic perovskite/organic tandem solar cells with efficiency over 20%. J Semicond, 2021, 42, 020501 doi: 10.1088/1674-4926/42/2/020501
[14]
Chen W, Li D, Chen X, et al. Surface reconstruction for stable monolithic all-inorganic perovskite/organic tandem solar cells with over 21% efficiency. Adv Funct Mater, 2022, 32, 2109321 doi: 10.1002/adfm.202109321
[15]
Wang P, Li W, Sandberg O J, et al. Tuning of the interconnecting layer for monolithic perovskite/organic tandem solar cells with record efficiency exceeding 21%. Nano Lett, 2021, 21, 7845 doi: 10.1021/acs.nanolett.1c02897
[16]
Chen X, Jia Z Y, Chen Z, et al. Efficient and reproducible monolithic perovskite/organic tandem solar cells with low-loss interconnecting layers. Joule, 2020, 4, 1594 doi: 10.1016/j.joule.2020.06.006
[17]
Xie Y M, Niu T, Yao Q, et al. Understanding the role of interconnecting layer on determining monolithic perovskite/organic tandem device carrier recombination properties. J Energy Chem, 2022, 71, 12 doi: 10.1016/j.jechem.2022.03.019
[18]
Qin S, Lu C, Jia Z, et al. Constructing monolithic perovskite/organic tandem solar cell with efficiency of 22.0% via reduced open-circuit voltage loss and broadened absorption spectra. Adv Mater, 2022, 34, 2108829 doi: 10.1002/adma.202108829
[19]
Chen W, Zhu Y, Xiu J, et al. Monolithic perovskite/organic tandem solar cells with 23.6% efficiency enabled by reduced voltage losses and optimized interconnecting layer. Nat Energy, 2022, 7, 229 doi: 10.1038/s41560-021-00966-8
[20]
Li Z, Wu S F, Zhang J, et al. Hybrid perovskite-organic flexible tandem solar cell enabling highly efficient electrocatalysis overall water splitting. Adv Energy Mater, 2020, 10, 2000361 doi: 10.1002/aenm.202000361
[21]
Xie Y M, Yao Q, Zeng Z, et al. Homogeneous grain boundary passivation in wide-bandgap perovskite films enables fabrication of monolithic perovskite/organic tandem solar cells with over 21% efficiency. Adv Funct Mater, 2022, 32, 2112126 doi: 10.1002/adfm.202112126

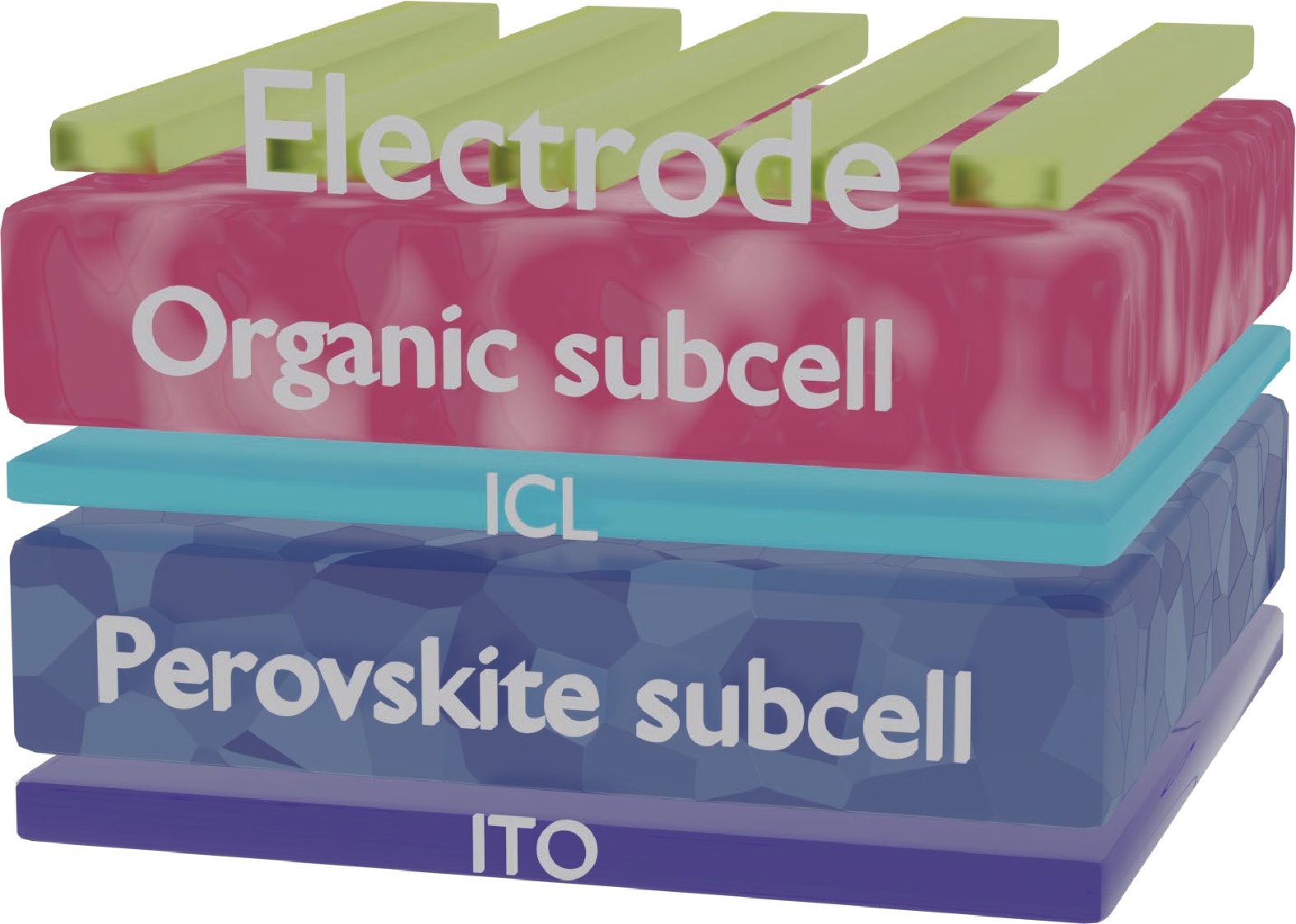

Fig. 1.  (Color online) The structure for perovskite-organic tandem solar cells.

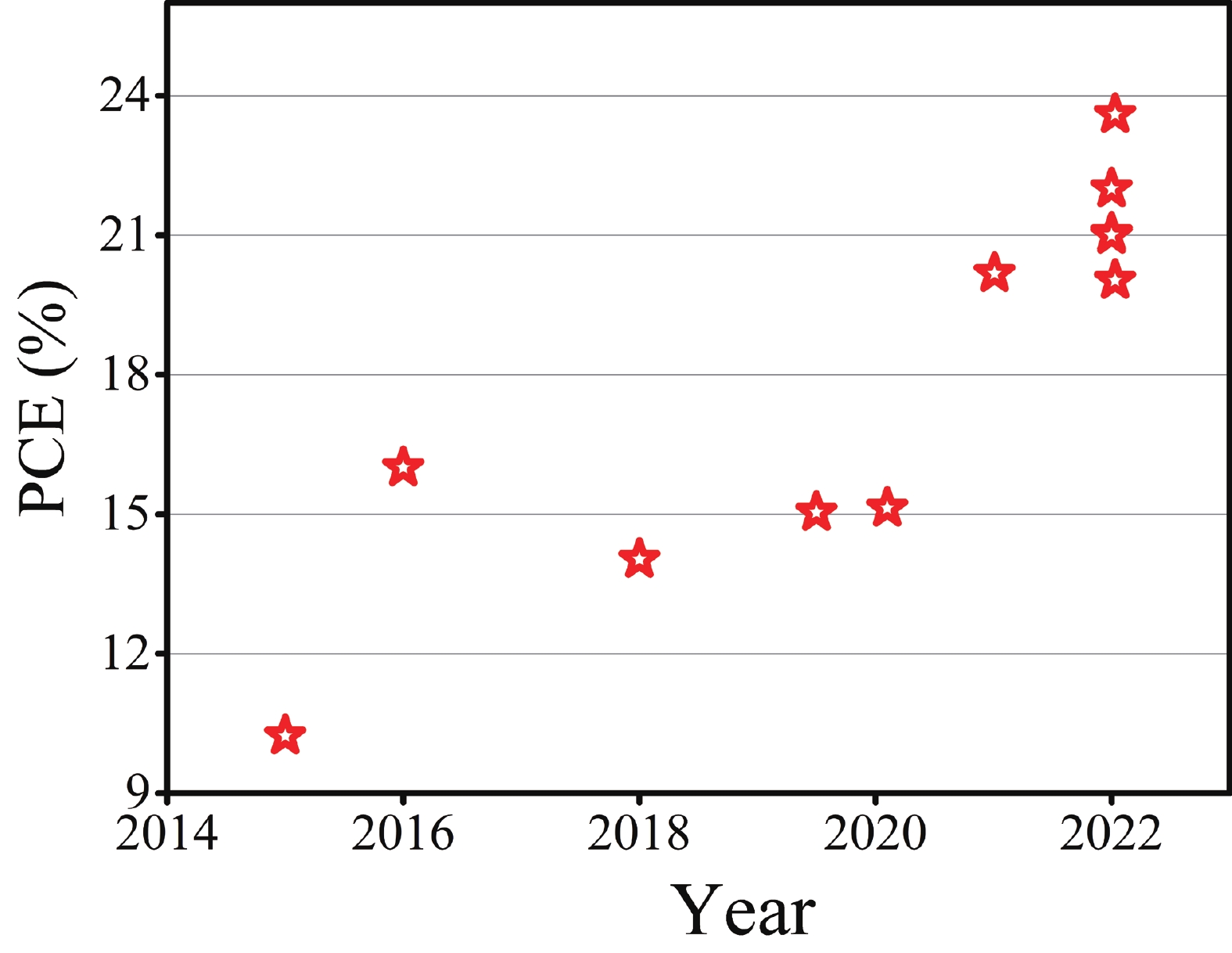

Fig. 2.  (Color online) The PCE advance for perovskite-organic tandem solar cells.

Table 1.   Performance data for perovskite-organic tandem solar cells. (* indicates the certified PCE)

Front cellICLRear cellVoc
(V)
Jsc
(mA/cm2)
FF
(%)
PCE
(%)
Ref.
ITO/PEDOT:PSS/PBSeDTEG8:PC61BM/PFN/TiO2PEDOT:PSS PH500/PEDOT:PSS 4083CH3NH3PbI3/PC61BM/PFN/Al1.5210.0567.010.23[8]
ITO/PEDOT:PSS/CH3NH3PbI3/PC61BMC60-SB/Ag/MoO3PCE-10:PC71BM/C60-N/Ag1.6212.9075.016.00[9]
ITO/SnO2/CsPbI2Br/PTAAMoO3/Au/ZnOPTB7-Th:COi8DFIC:PC71BM/
MoO3/Ag
1.7111.9873.415.04[11]
ITO/PTAA/Cs0.1(FA0.6MA0.4)0.9Pb(I0.6Br0.4)3/
PC61BM/BCP
Ag/PEDOT:PSSPBDB-T:SN6IC-4F/C60-bis/
BCP/Ag
1.8511.5271.015.13[20]
ITO/ZnO/SnO2/CsPbI2Br/PDCBTMoO3/Ag/ZnOPM6:Y6/MoO3/Ag1.9512.4675.618.38[12]
ITO/NiOx/FA0.8MA0.02Cs0.18PbI1.8Br1.2/C60BCP/Ag/MoOxPBDBT-2F:Y6:PC71BM/TPBi/Ag1.9013.0583.119.54*[16]
ITO/SnO2/ZnO/CsPbI2BrPTAA/MoO3/Au/ZnOD18:Y6/MoO3/Ag2.0513.0725.320.18[13]
ITO/SnO2/CsPbI1.8Br1.2/TAClPBDB-T/MoO3/Au/
ZnO/PFN
PM6:Y6/MoO3/Al2.0513.3676.821.04[14]
ITO/ZnO/CsPbI2Br/polyTPDMoO3/Ag/PFN-BrPM6:Y6-BO/MoO3/Ag1.9613.3080.821.10[15]
ITO/Poly-TPD/(MAPbI2Br + Pb(SCN)2)PCBM/BCP/Au/MoO3PM6:Y6/PFN-Br/Ag1.9413.1278.720.03[17]
ITO/poly-TPD/(MA0.9FA0.1PbI2Br + Pb(SCN)2)PCBM/BCP/Au/MoO3PM6:CH1007/PFN-Br/Ag1.9613.8078.421.2[21]
ITO/2PACz/FA0.6MA0.4Pb(I0.6Br0.4)3C60/BCP/Ag/MoOxPTB7-Th:BTPV-4Cl-eC9/
PDINN/Ag
1.8815.7074.622.00[18]
ITO/PTAA/FA0.8Cs0.2Pb(I0.5Br0.5)3/PEAI/
PC61BM/AZO-NP
SnOx/InOx/MoOxPM6:Y6:PC61BM/C60/BCP/Ag2.1514.0080.023.10*[10]
ITO/NiOx/BPA/Cs0.25FA0.75Pb(I0.6Br0.4)3C60/BCP/CRL/MoOxPM6:Y6/PNDIT-F3N/Ag2.0514.8377.222.94*[19]
DownLoad: CSV
