J. Semicond. > 2023, Volume 44 > Issue 3 > 031001
|

REVIEWS

Preparation, properties, and applications of Bi2O2Se thin films: A review

Huayu Tao1, 2, Tianlin Wang1, Danyang Li1, Jie Xing1 and Gengwei Li1,

+ Author Affiliations

 Corresponding author: Gengwei Li, ligw@cugb.edu.cn

DOI: 10.1088/1674-4926/44/3/031001

PDF

Turn off MathJax

Abstract: Two-dimensional materials have shown great application potential in high-performance electronic devices because they are ultrathin, have an ultra-large specific surface area, high carrier mobility, efficient channel current regulation, and extraordinary integration. In addition to graphene, other types of 2D nanomaterials have also been studied and applied in photodetectors, solar cells, energy storage devices, and so on. Bi2O2Se is an emerging 2D semiconductor material with very high electron mobility, modest bandgap, near-ideal subthreshold swing, and excellent thermal and chemical stability. Even in a monolayer structure, Bi2O2Se has still exhibited efficient light absorption. In this mini review, the latest main research progresses on the preparation methods, electric structure, and the optical, mechanical, and thermoelectric properties of Bi2O2Se are summarized. The wide rang of applications in electronics and photoelectronic devices are then reviewed. This review concludes with a discussion of the existing open questions/challenges and future prospects for Bi2O2Se.

Key words: two-dimensional material, Bi2O2Se, electronical structure, optical property, thermoelectricity



[1]
Lopez-Sanchez O, Lembke D, Kayci M, et al. Ultrasensitive photodetectors based on monolayer MoS2. Nat Nanotechnol, 2013, 8, 497 doi: 10.1038/nnano.2013.100
[2]
Zhang W J, Huang J K, Chen C H, et al. High-gain phototransistors based on a CVD MoS2 monolayer. Adv Mater, 2013, 25, 3456 doi: 10.1002/adma.201301244
[3]
Chang Y H, Zhang W J, Zhu Y H, et al. Monolayer MoSe2 grown by chemical vapor deposition for fast photodetection. ACS Nano, 2014, 8, 8582 doi: 10.1021/nn503287m
[4]
Anichini C, Czepa W, Pakulski D, et al. Chemical sensing with 2D materials. Chem Soc Rev, 2018, 47, 4860 doi: 10.1039/C8CS00417J
[5]
Xu S P, Fu H X, Tian Y, et al. Exploiting two-dimensional Bi2O2Se for trace oxygen detection. Angew Chem Int Ed, 2020, 59, 17938 doi: 10.1002/anie.202006745
[6]
Shehzad K, Shi T J, Qadir A, et al. Environmental sensing: Designing an efficient multimode environmental sensor based on graphene-silicon heterojunction. Adv Mater Technol, 2017, 2, 1600262 doi: 10.1002/admt.201600262
[7]
Li J F, Liang Z Z, Wang Y F, et al. Enhanced efficiency of polymer solar cells through synergistic optimization of mobility and tuning donor alloys by adding high-mobility conjugated polymers. J Mater Chem C, 2018, 6, 11015 doi: 10.1039/C8TC03612H
[8]
Vu Q A, Kim H, Nguyen V L, et al. Memristors: A high-on/off-ratio floating-gate memristor array on a flexible substrate via CVD-grown large-area 2D layer stacking. Adv Mater, 2017, 29, 1703363 doi: 10.1002/adma.201703363
[9]
Novoselov K S, Geim A K, Morozov S V, et al. Electric field effect in atomically thin carbon films. Science, 2004, 306, 666 doi: 10.1126/science.1102896
[10]
Brown A, Rundqvist S. Refinement of the crystal structure of black phosphorus. Acta Cryst, 1965, 19, 684 doi: 10.1107/S0365110X65004140
[11]
Wu J X, Yuan H T, Meng M M, et al. High electron mobility and quantum oscillations in non-encapsulated ultrathin semiconducting Bi2O2Se. Nat Nanotechnol, 2017, 12, 530 doi: 10.1038/nnano.2017.43
[12]
Zhao Y T, Wang H Y, Huang H, et al. Back cover: Surface coordination of black phosphorus for robust air and water stability (Angew. Chem. Int. Ed. 16/2016). Angew Chem Int Ed, 2016, 55, 5097 doi: 10.1002/anie.201602471
[13]
Mak K F, Lee C, Hone J, et al. Atomically thin MoS2: A new direct-gap semiconductor. Phys Rev Lett, 2010, 105, 136805 doi: 10.1103/PhysRevLett.105.136805
[14]
Li L K, Yu Y J, Ye G J, et al. Black phosphorus field-effect transistors. Nat Nanotechnol, 2014, 9, 372 doi: 10.1038/nnano.2014.35
[15]
Radisavljevic B, Radenovic A, Brivio J, et al. Single-layer MoS2 transistors. Nat Nanotechnol, 2011, 6, 147 doi: 10.1038/nnano.2010.279
[16]
Wei Q, Li R, Lin C, et al. Quasi-two-dimensional se-terminated bismuth oxychalcogenide (Bi2O2Se). ACS Nano, 2019, 13, 13439 doi: 10.1021/acsnano.9b07000
[17]
Yang J, Quhe R, Li Q, et al. Sub 10 nm bilayer Bi2O2Se transistors. Adv Electron Mater, 2019, 5, 1800720 doi: https://doi.org/10.1002/aelm.201800720
[18]
Zhang C, Wu J, Sun Y, et al. High-mobility flexible oxyselenide thin-film transistors prepared by a solution-assisted method. J Am Chem Soc, 2020, 142, 2726 doi: 10.1021/jacs.9b11668
[19]
Tan C, Tang M, Wu J, et al. Wafer-Scale growth of single-crystal 2D semiconductor on perovskite oxides for high-performance transistors. Nano Lett, 2019, 19, 2148 doi: 10.1021/acs.nanolett.9b00381
[20]
Khan U, Luo Y, Tang L, et al. Controlled vapor–solid deposition of millimeter-size single crystal 2D Bi2O2Se for high-performance phototransistors. Adv Funct Mater, 2019, 29, 1807979 doi: 10.1002/adfm.201807979
[21]
Chen G, Wu J, Wang B, et al. High-performance self-powered photodetector based on Bi2O2Se nanosheets. Appl Phys A, 2020, 126, 579 doi: 10.1007/s00339-020-03759-0
[22]
Xu R, Wang S, Li Y, et al. Layered semiconductor Bi2O2Se for broadband pulse generation in the near-infrared. IEEE Photonics Technol Lett, 2019, 31, 1056 doi: 10.1109/LPT.2019.2917472
[23]
Xie H H, Liu M Q, You B H, et al. Photothermal therapy: Biodegradable Bi2O2Se quantum dots for photoacoustic imaging-guided cancer photothermal therapy. Small, 2020, 16, 2070013 doi: 10.1002/smll.202070013
[24]
Yang C, Chen T, Verma D, et al. Bidirectional all-optical synapses based on a 2D Bi2O2Se/graphene hybrid structure for multifunctional optoelectronics. Adv Funct Mater, 2020, 30, 2001598 doi: 10.1002/adfm.202001598
[25]
Zhang Z Y, Li T R, Wu Y J, et al. Truly concomitant and independently expressed short-and long-term plasticity in a Bi2O2Se-based three-terminal memristor. Adv Mater, 2019, 31, 1805769 doi: 10.1002/adma.201805769
[26]
Allen M J, Tung V C, Kaner R B. Honeycomb carbon: A review of graphene. Chem Rev, 2010, 110, 132 doi: 10.1021/cr900070d
[27]
Huang X, Zeng Z Y, Zhang H. Metal dichalcogenide nanosheets: Preparation, properties and applications. Chem Soc Rev, 2013, 42, 1934 doi: 10.1039/c2cs35387c
[28]
Nicolosi V, Chhowalla M, Kanatzidis M G, et al. Liquid exfoliation of layered materials. Science, 2013, 340, 1226419 doi: 10.1126/science.1226419
[29]
Huang Y, Pan Y H, Yang R, et al. Universal mechanical exfoliation of large-area 2D crystals. Nat Commun, 2020, 11, 2453 doi: 10.1038/s41467-020-16266-w
[30]
Fu Q, Dai J Q, Huang X Y, et al. One-step exfoliation method for plasmonic activation of large-area 2D crystals. Adv Sci, 2022, 2204247
[31]
Wu J X, Tan C W, Tan Z J, et al. Controlled synthesis of high-mobility atomically thin bismuth oxyselenide crystals. Nano Lett, 2017, 17, 3021 doi: 10.1021/acs.nanolett.7b00335
[32]
Wu J X, Qiu C G, Fu H X, et al. Low residual carrier concentration and high mobility in 2D semiconducting Bi2O2Se. Nano Lett, 2019, 19, 197 doi: 10.1021/acs.nanolett.8b03696
[33]
Tong T, Chen Y F, Qin S C, et al. Sensitive and ultrabroadband phototransistor based on two-dimensional Bi2O2Se nanosheets. Adv Funct Mater, 2019, 29, 1905806 doi: 10.1002/adfm.201905806
[34]
Fu Q D, Zhu C, Zhao X X, et al. Ultrasensitive 2D Bi2O2Se phototransistors on silicon substrates. Adv Mater, 2019, 31, 1804945 doi: 10.1002/adma.201804945
[35]
Khan U, Tang L, Ding B F, et al. Nanoribbons: Catalyst-free growth of atomically thin Bi2O2Se nanoribbons for high-performance electronics and optoelectronics. Adv Funct Mater, 2021, 31, 2170230 doi: 10.1002/adfm.202170230
[36]
Avishan N, Hussain N, Nosheen F. Large-scale graphene production and transfer for industrial applications. MaterInnov, 2022, 2, 15
[37]
Chen C, Wang M X, Wu J X, et al. Electronic structures and unusually robust bandgap in an ultrahigh-mobility layered oxide semiconductor, Bi2O2Se. Sci Adv, 2018, 4, eaat8355 doi: 10.1126/sciadv.aat8355
[38]
Zeng T, You Y C, Wang X F, et al. Chemical vapor deposition and device application of two-dimensional molybdenum disulfide-based atomic crystals. Prog Chem, 2016, 28, 459 doi: 10.7536/PC151026
[39]
Yu J X, Li J, Zhang W F, et al. Synthesis of high quality two-dimensional materials via chemical vapor deposition. Chem Sci, 2015, 6, 6705 doi: 10.1039/C5SC01941A
[40]
Yin J B, Tan Z J, Hong H, et al. Ultrafast and highly sensitive infrared photodetectors based on two-dimensional oxyselenide crystals. Nat Commun, 2018, 9, 3311 doi: 10.1038/s41467-018-05874-2
[41]
Li J, Wang Z X, Wen Y, et al. High-performance near-infrared photodetector based on ultrathin Bi2O2Se nanosheets. Adv Funct Mater, 2018, 28, 1706437 doi: 10.1002/adfm.201706437
[42]
Fu H X, Wu J X, Peng H L, et al. Self-modulation doping effect in the high-mobility layered semiconductor Bi2O2Se. Phys Rev B, 2018, 97, 241203 doi: 10.1103/PhysRevB.97.241203
[43]
Wu Z, Liu G L, Wang Y X, et al. Seed-induced vertical growth of 2D Bi2O2Se nanoplates by chemical vapor transport. Adv Funct Mater, 2019, 29, 1906639 doi: 10.1002/adfm.201906639
[44]
Chen W J, Khan U, Feng S M, et al. High-fidelity transfer of 2D Bi2O2Se and its mechanical properties. Adv Funct Mater, 2020, 30, 2004960 doi: 10.1002/adfm.202004960
[45]
Zhang X, Liu Y F, Zhang G H, et al. Thermal decomposition of bismuth oxysulfide from photoelectric Bi2O2S to superconducting Bi4O4S3. ACS Appl Mater Interfaces, 2015, 7, 4442 doi: 10.1021/am5092159
[46]
Tian X L, Luo H Y, Wei R F, et al. Pulsed lasers: An ultrabroadband mid-infrared pulsed optical switch employing solution-processed bismuth oxyselenide. Adv Mater, 2018, 30, 1870233 doi: 10.1002/adma.201870233
[47]
Yang X, Zhang Q, Song Y C, et al. High mobility two-dimensional bismuth oxyselenide single crystals with large grain size grown by reverse-flow chemical vapor deposition. ACS Appl Mater Interfaces, 2021, 13, 49153 doi: 10.1021/acsami.1c13491
[48]
Li M Q, Dang l L Y, Wang G G, et al. Bismuth oxychalcogenide nanosheet: Facile synthesis, characterization, and photodetector application. Adv Mater Technol, 2020, 5, 2000180 doi: 10.1002/admt.202000180
[49]
Dang L Y, Liu M Q, Wang G G, et al. Organic ion template-guided solution growth of ultrathin bismuth oxyselenide with tunable electronic properties for optoelectronic applications. Adv Funct Mater, 2022, 32, 2201020 doi: 10.1002/adfm.202201020
[50]
Tong T, Zhang M H, Chen Y Q, et al. Ultrahigh Hall mobility and suppressed backward scattering in layered semiconductor Bi2O2Se. Appl Phys Lett, 2018, 113, 072106 doi: 10.1063/1.5042727
[51]
Williams M L. CRC handbook of chemistry and physics. 76th ed. Occup Environ Med, 1996, 53, 504 doi: 10.1136/oem.53.7.504
[52]
Horák J, Stary Z, Lošťák P, et al. Anti-site defects in n-Bi2Se3 crystals. J Phys Chem Solids, 1990, 51, 1353 doi: 10.1016/0022-3697(90)90017-A
[53]
Pereira A L J, Santamaría-Pérez D, Vilaplana R, et al. Experimental and theoretical study of SbPO4 under compression. Inorg Chem, 2020, 59, 287 doi: 10.1021/acs.inorgchem.9b02268
[54]
Pan X, Chen H X, Lu L, et al. Incorporating guanidinium as perovskitizer-cation of two-dimensional metal halide for crystal-array photodetectors. Chem Asian J, 2021, 16, 1925 doi: 10.1002/asia.202100425
[55]
Cheng T, Tan C W, Zhang S Q, et al. Raman spectra and strain effects in bismuth oxychalcogenides. J Phys Chem C, 2018, 122, 19970 doi: 10.1021/acs.jpcc.8b05475
[56]
Liu S Y, Tan C W, He D W, et al. Optical properties and photocarrier dynamics of Bi2O2Se monolayer and nanoplates. Adv Optical Mater, 2020, 8, 1901567 doi: 10.1002/adom.201901567
[57]
Zhang Y, Gao Q, Han X Y, et al. Mechanical flexibility and strain engineered-band structures of monolayer Bi2O2Se. Phys E, 2020, 116, 113728 doi: 10.1016/j.physe.2019.113728
[58]
Guo D L, Hu C G, Xi Y, et al. Strain effects to optimize thermoelectric properties of doped Bi2O2Se via tran-blaha modified becke-Johnson density functional theory. J Phys Chem C, 2013, 117, 21597 doi: 10.1021/jp4080465
[59]
Zhang K Y, Hu C G, Kang X L, et al. Synthesis and thermoelectric properties of Bi2O2Se nanosheets. Mater Res Bull, 2013, 48, 3968 doi: 10.1016/j.materresbull.2013.06.013
[60]
Yu J B, Sun Q. Bi2O2Se nanosheet: An excellent high-temperature n-type thermoelectric material. Appl Phys Lett, 2018, 112, 053901 doi: 10.1063/1.5017217
[61]
Zhao L D, Lo S H, Zhang Y S, et al. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature, 2014, 508, 373 doi: 10.1038/nature13184
[62]
Yang F, Wang R D, Zhao W W, et al. Thermal transport and energy dissipation in two-dimensional Bi2O2Se. Appl Phys Lett, 2019, 115, 193103 doi: 10.1063/1.5123682
[63]
Yang H, Tan C W, Deng C Y, et al. Bolometric effect in Bi2O2Se photodetectors. Small, 2019, 15, e1904482 doi: 10.1002/smll.201904482
[64]
Konstantatos G, Badioli M, Gaudreau L, et al. Hybrid graphene–quantum dot phototransistors with ultrahigh gain. Nat Nanotechnol, 2012, 7, 363 doi: 10.1038/nnano.2012.60
[65]
Liu W, Lv J H, Peng L, et al. Graphene charge-injection photodetectors. Nat Electron, 2022, 5, 281 doi: 10.1038/s41928-022-00755-5
[66]
Wang L, Meric I, Huang P Y, et al. One-dimensional electrical contact to a two-dimensional material. Science, 2013, 342, 614 doi: 10.1126/science.1244358
[67]
Wu J, Liu Y, Tan Z, et al. Chemical patterning of high-mobility semiconducting 2D Bi2O2Se crystals for integrated optoelectronic devices. Adv Mater, 2017, 29, 1704060 doi: 10.1002/adma.201704060
[68]
Luo P, Zhuge F W, Wang F K, et al. PbSe quantum dots sensitized high-mobility Bi2O2Se nanosheets for high-performance and broadband photodetection beyond 2 μm. ACS Nano, 2019, 13, 9028 doi: 10.1021/acsnano.9b03124
[69]
Yang H, Chen W, Zheng X M, et al. Near-infrared photoelectric properties of multilayer Bi2O2Se nanofilms. Nanoscale Res Lett, 2019, 14, 371 doi: 10.1186/s11671-019-3179-4
[70]
Yang T, Li X, Wang L M, et al. Broadband photodetection of 2D Bi2O2Se-MoSe2 heterostructure. J Mater Sci, 2019, 54, 14742 doi: 10.1007/s10853-019-03963-1
[71]
Hong C Y, Huang G F, Yao W W, et al. Thickness-modulated in-plane Bi2O2Se homojunctions for ultrafast high-performance photodetectors. Chin Phys B, 2019, 28, 367 doi: 10.1088/1674-1056/ab4e87
[72]
Liu X L, Li R P, Hong C Y, et al. Highly efficient broadband photodetectors based on lithography-free Au/Bi2O2Se/Au heterostructures. Nanoscale, 2019, 11, 20707 doi: 10.1039/C9NR06723J
[73]
Li J, Wang Z X, Chu J W, et al. Oriented layered Bi2O2Se nanowire arrays for ultrasensitive photodetectors. Appl Phys Lett, 2019, 114, 151104 doi: 10.1063/1.5094192
[74]
Li D Y, Han X, Xu G Y, et al. Bi2O2Se photoconductive detector with low power consumption and high sensitivity. Acta Phys Sin Chin Ed, 2020, 69, 248502 doi: 10.7498/aps.69.20201044
[75]
Han W, Li C, Yang S J, et al. Atomically thin oxyhalide solar-blind photodetectors. Small, 2020, 16, e2000228 doi: 10.1002/smll.202000228
[76]
Long M S, Shen Z, Wang R J, et al. Ultrasensitive solar-blind ultraviolet photodetector based on FePSe3/MoS2 heterostructure response to 10.6 µm. Adv Funct Mater, 2022, 32, 2204230 doi: 10.1002/adfm.202204230
[77]
Han X, Xing J, Xu H, et al. Remarkable improved photoelectric performance of SnS2 field-effect transistor with Au plasmonic nanostructures. Nanotechnology, 2020, 31, 215201 doi: 10.1088/1361-6528/ab72bf
[78]
Xu Y, Ali A, Shehzad K, et al. Photodetectors: Solvent-based soft-patterning of graphene lateral heterostructures for broadband high-speed metal-semiconductor-metal photodetectors. Adv Mater Technol, 2017, 2, 1600241 doi: 10.1002/admt.201600241
[79]
Huang C W, Yu H. 2D Bi2O2Se with high mobility for high performance polymer solar cells. ACS Appl Mater Interfaces, 2020, 12, 19643 doi: 10.1021/acsami.0c01364
[80]
Ding G L, Yang B D, Chen R S, et al. Reconfigurable 2D WSe2-based memtransistor for mimicking homosynaptic and heterosynaptic plasticity. Small, 2021, 17, 2170213 doi: 10.1002/smll.202170213
[81]
Du J Y, Ge C, Riahi H, et al. Dual-gated MoS2 transistors for synaptic and programmable logic functions. Adv Electron Mater, 2020, 6, 1901408 doi: 10.1002/aelm.201901408
[82]
Yang Q Y, Luo Z D, Zhang D W, et al. Controlled optoelectronic response in van der Waals heterostructures for In-sensor computing. Adv Funct Mater, 2022, 32(45), 202207290 doi: 10.1002/adfm.202207290
[83]
Yan J M, Ying J S, Yan M Y, et al. Optoelectronic coincidence detection with two-dimensional Bi2O2Se ferroelectric field-effect transistors. Adv Funct Mater, 2021, 31, 2103982 doi: 10.1002/adfm.202103982
[84]
Wang F K, Yang S J, Wu J, et al. Emerging two-dimensional bismuth oxychalcogenides for electronics and optoelectronics. InfoMat, 2021, 3, 1251 doi: 10.1002/inf2.12215
[85]
Li Z W, Li J S. Bi2O2Se for broadband terahertz wave switching. Appl Opt, 2020, 59, 11076 doi: 10.1364/AO.412728
[86]
Meng X D, Liu Z Q, Cao Y, et al. Cancer therapy: Fabricating aptamer-conjugated PEGylated-MoS2/Cu1.8S theranostic nanoplatform for multiplexed imaging diagnosis and chemo-photothermal therapy of cancer. Adv Funct Mater, 2017, 27, 1605592 doi: 10.1002/adfm.201605592
[87]
Chen Z, Zhao P F, Luo Z Y, et al. Cancer cell membrane-biomimetic nanoparticles for homologous-targeting dual-modal imaging and photothermal therapy. ACS Nano, 2016, 10, 10049 doi: 10.1021/acsnano.6b04695
[88]
Li B, Yuan F K, He G J, et al. Ultrasmall CuCo2S4 nanocrystals: All-in-one theragnosis nanoplatform with magnetic resonance/near-infrared imaging for efficiently photothermal therapy of tumors. Adv Funct Mater, 2017, 27, 1606218 doi: 10.1002/adfm.201606218
[89]
Wu M H, Zeng X C. Bismuth oxychalcogenides: A new class of ferroelectric/ferroelastic materials with ultra high mobility. Nano Lett, 2017, 17, 6309 doi: 10.1021/acs.nanolett.7b03020
[90]
Zhu Z Y, Yao X P, Zhao S, et al. Giant modulation of the electron mobility in semiconductor Bi2O2Se via incipient ferroelectric phase transition. J Am Chem Soc, 2022, 144, 4541 doi: 10.1021/jacs.1c12681

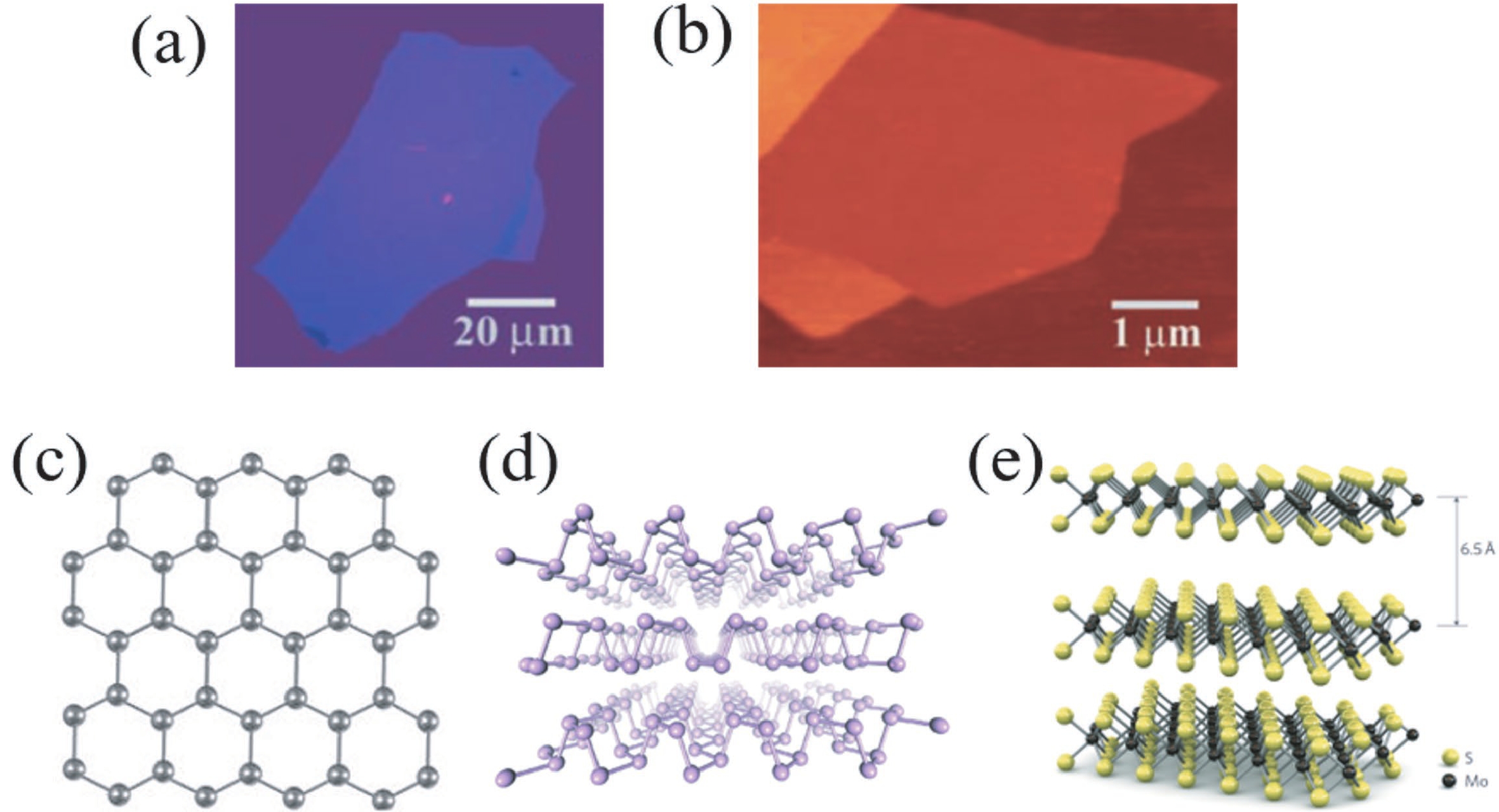

Fig. 1.  (Color online) (a) Graphene optical photographs with a thickness of about 3 nm. (b) Atomic force microscope images of monolayer graphene. Reproduced with permission[9]. Copyright 2004, The American Association for the Advancement of Science. (c) Schematic diagram of the atomic structure of graphene. (d) Schematic diagram of black phosphorus atomic structure. Reproduced with permission[14]. Copyright 2014, Nature Publishing Group. (e) Schematic diagram of MoS2 atomic structure. Reproduced with permission[15]. Copyright 2011, Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

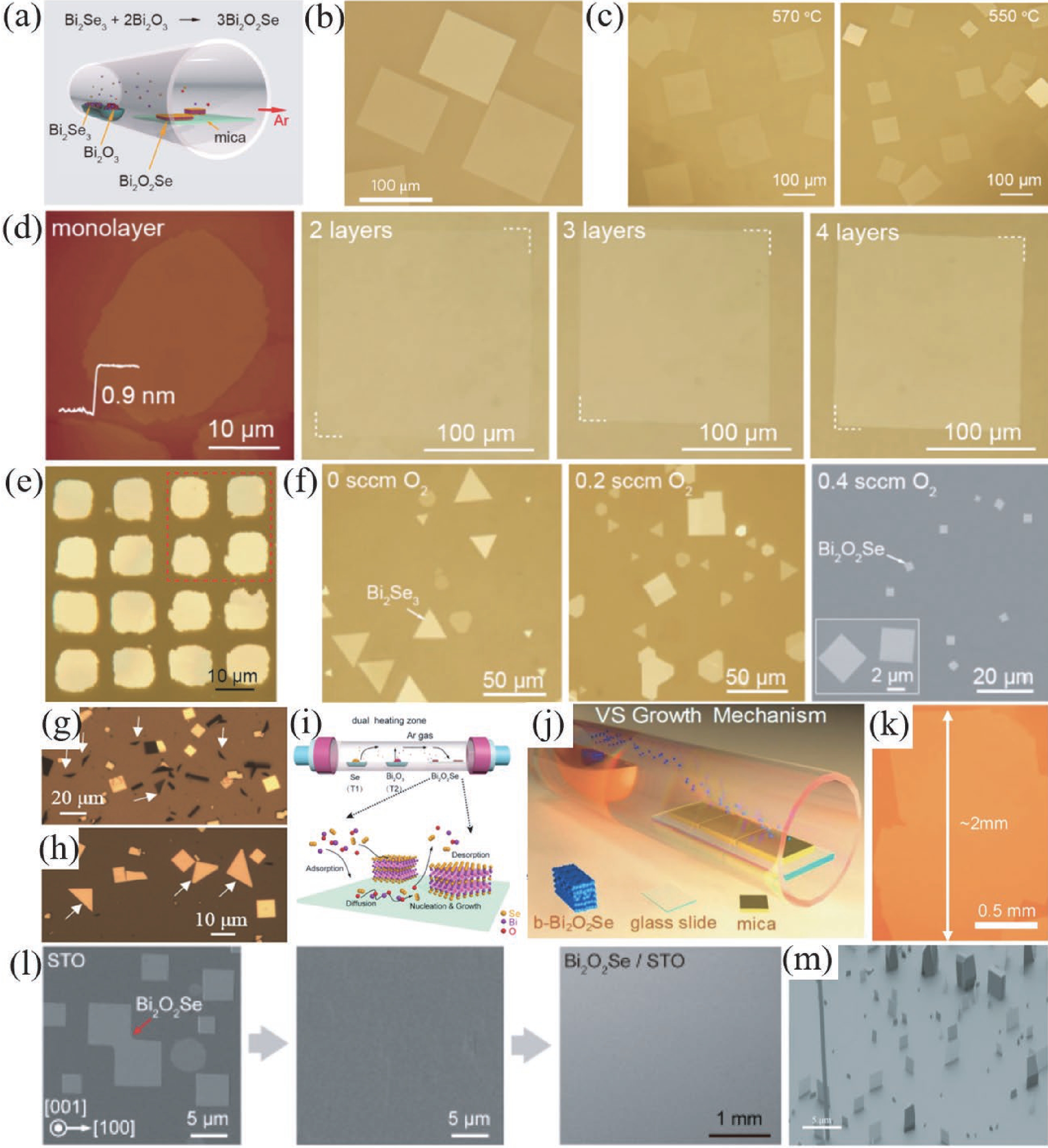

Fig. 2.  (Color online) Preparation of two-dimensional films by CVD method. (a) CVD preparation diagram. Reproduced with permission[31]. Copyright 2017, American Chemical Society. (b) 2D Bi2O2Se crystal synthesized on mica. Reproduced with permission[11]. Copyright 2017, Nature Publishing Group. (c–f) Domain size and crystal phase transition of Bi2O2Se thin films. Reproduced with permission[31]. Copyright 2017, American Chemical Society. (g, h) SEM of both transverse Bi2O2Se and vertical triangular Bi2OxSe. Reproduced with permission 41]. Copyright 2018, Wiley-VCH. (i) Improved preparation method. Reproduced with permission[32]. Copyright 2019, American Chemical Society. (j, k) Schematic of VS growth mechanism. Reproduced with permission[20]. Copyright 2019, Wiley-VCH. (l) SEM pictures of Bi2O2Se on STO. Reproduced with permission[19]. Copyright 2019, American Chemical Society. (m) Vertical growth of 2D Bi2O2Se films. Reproduced with permission[43]. Copyright 2019, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

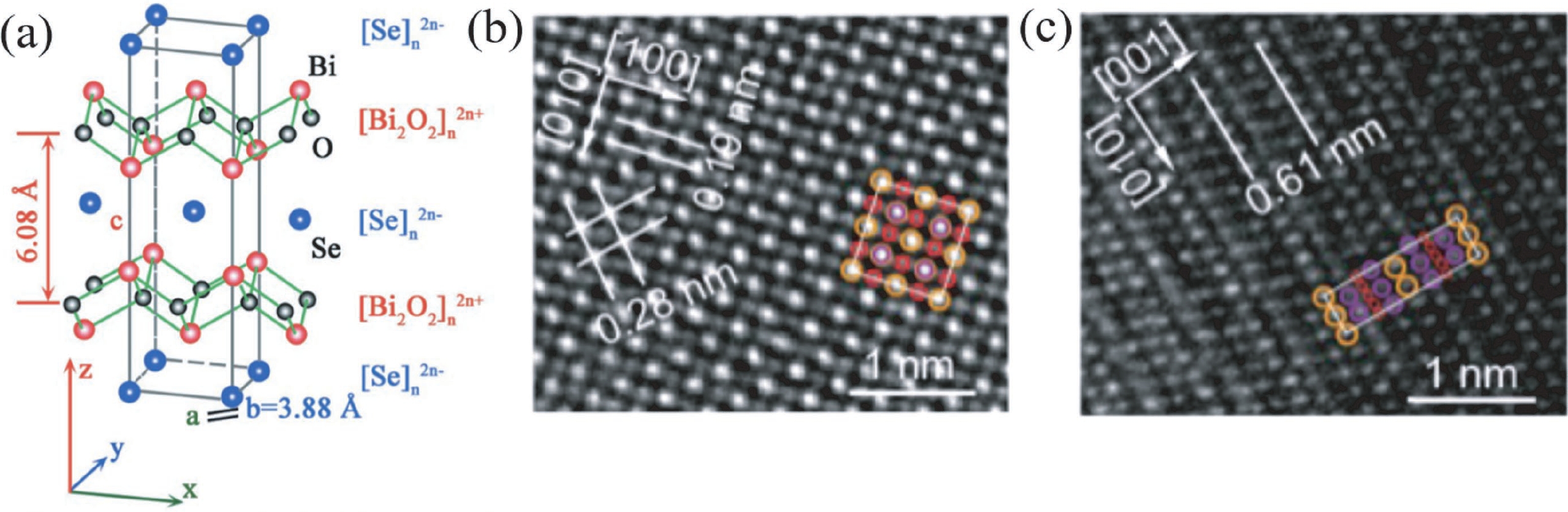

Fig. 3.  (Color online) (a) Crystal structure of Bi2O2Se. Reproduced with permission[46]. Copyright 2018, Wiley-VCH. (b, c) HRTEM of Bi2O2Se. Reproduced with permission[31]. Copyright 2017, American Chemical Society.

DownLoad: Full-Size Img PowerPoint

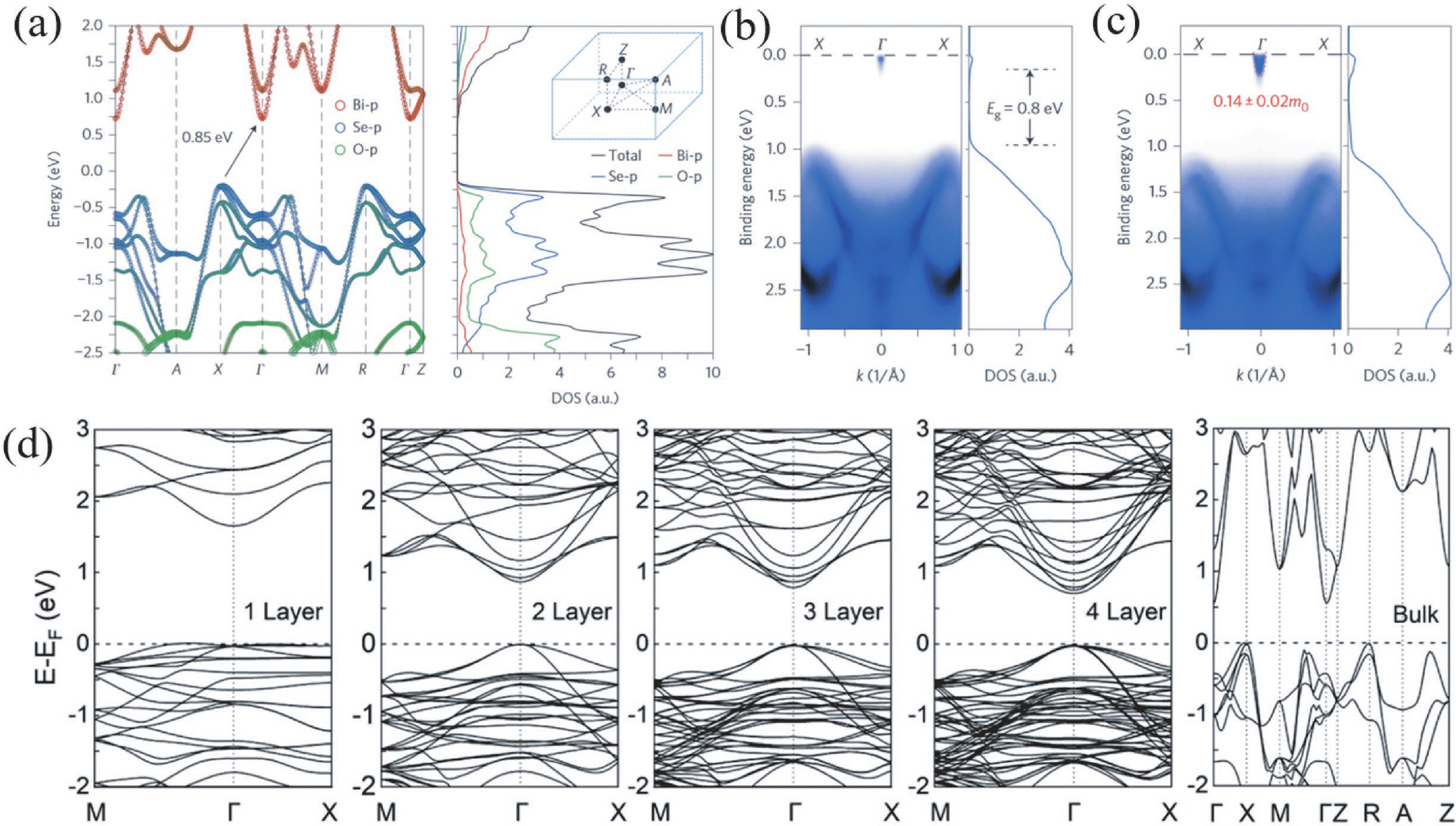

Fig. 4.  (Color online) (a–c) ARPES of Bi2O2Se films. Reproduced with permission[11]. Copyright 2017, Nature Publishing Group. (d) Band structure of Bi2O2Se films and bulk. Reproduced with permission[16]. Copyright 2019, Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

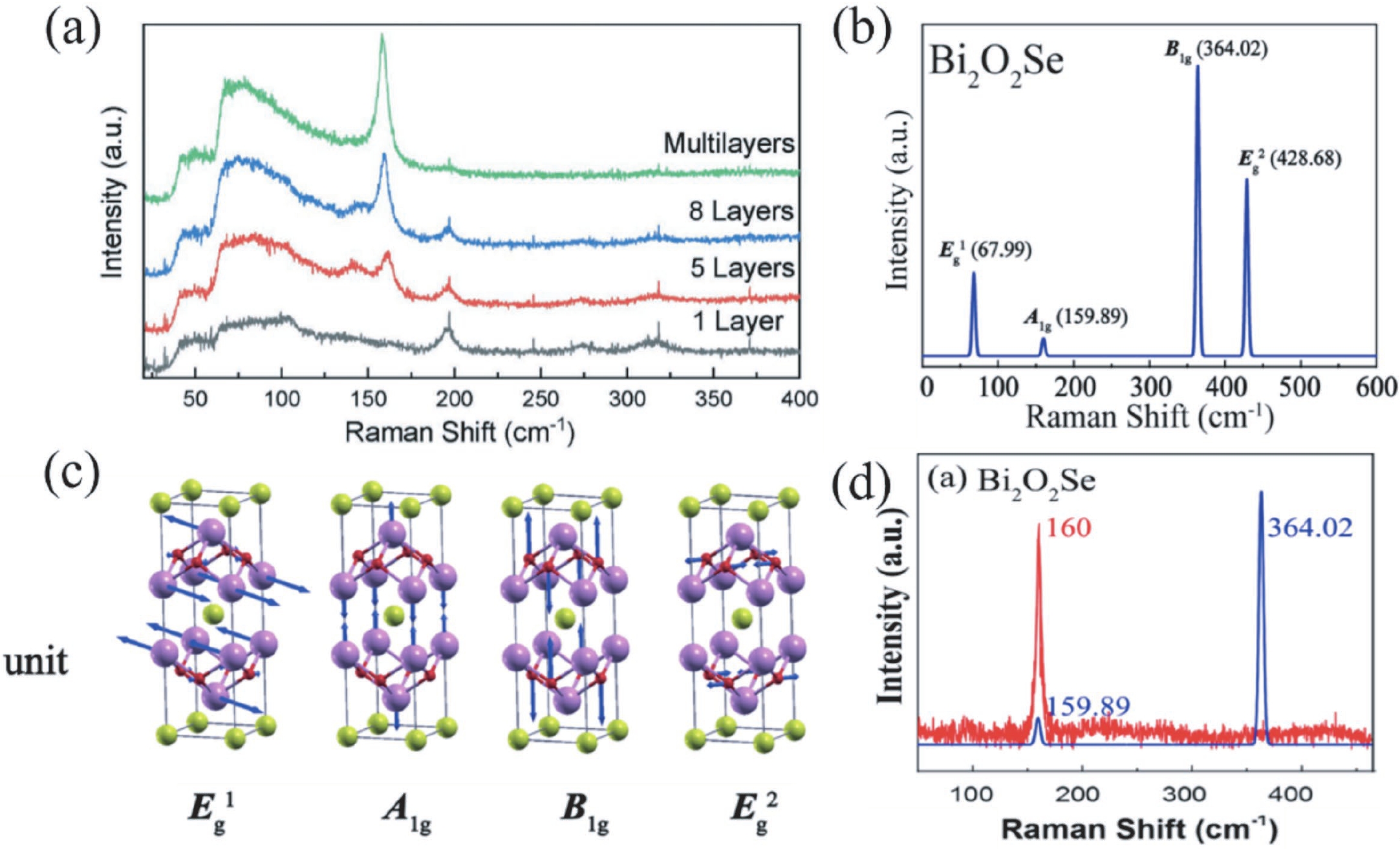

Fig. 5.  (Color online) (a) Raman spectra of Bi2O2Se films with different layers. Reproduced with permission[20]. Copyright 2019, Wiley-VCH. (b–d) Four Raman vibration modes of Bi2O2Se. Reproduced with permission[55]. Copyright 2018, American Chemical Society.

DownLoad: Full-Size Img PowerPoint

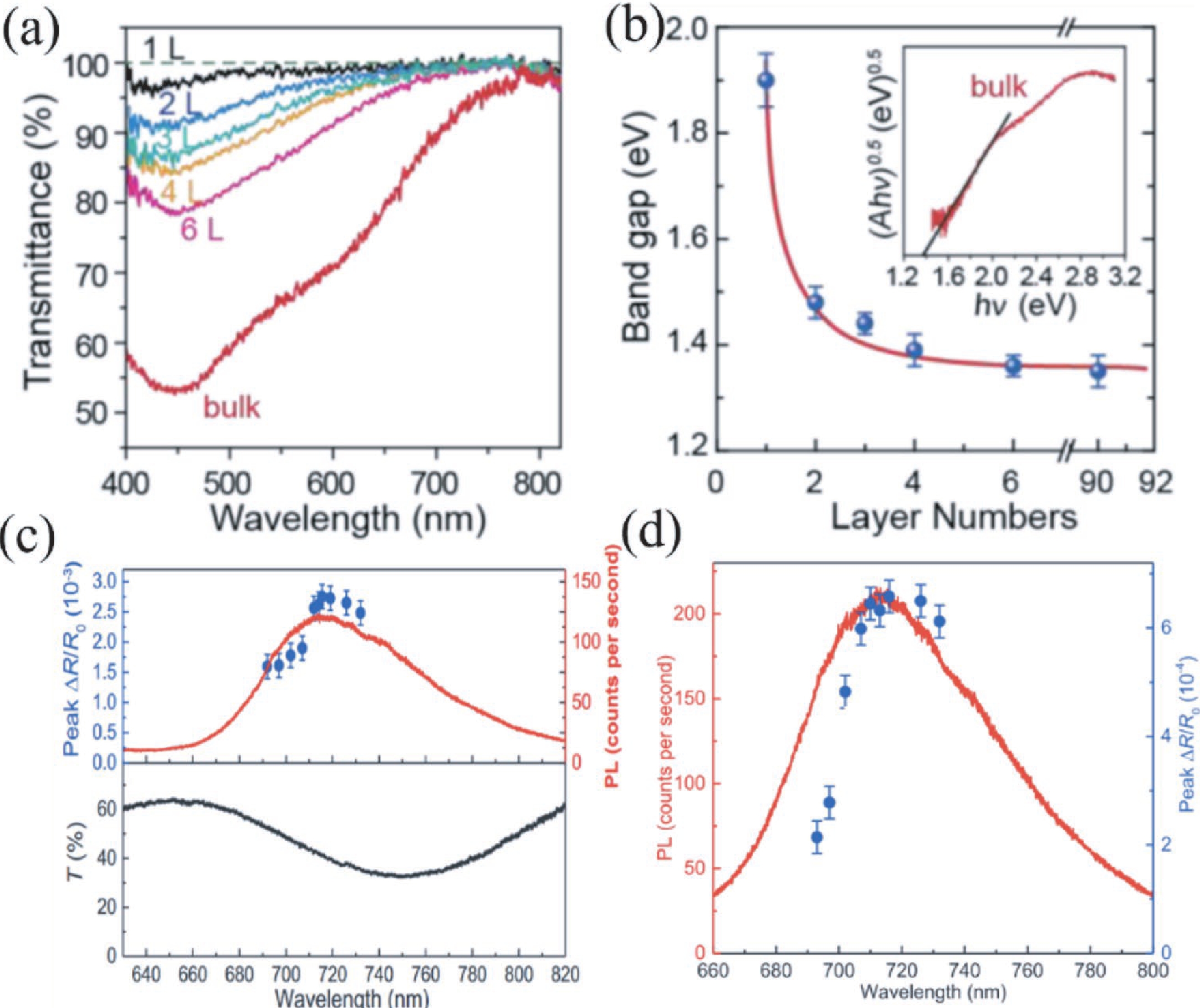

Fig. 6.  (Color online) (a, b) Transmittance and band gap of 2D Bi2O2Se films and bulk. Reproduced with permission[31]. Copyright 2017, American Chemical Society. (c) Peak differential reflection (blue symbols) and PL (red curve) of the 13 nm nanoplate as a function of the probe wavelength (upper panel) and its transmittance spectrum (lower panel). Reproduced with permission[56]. Copyright 2020, Wiley-VCH. (d) Peak differential reflection (blue symbols) and PL (red curve) of the monolayer as a function of the probe wavelength. Reproduced with permission[56]. Copyright 2020, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

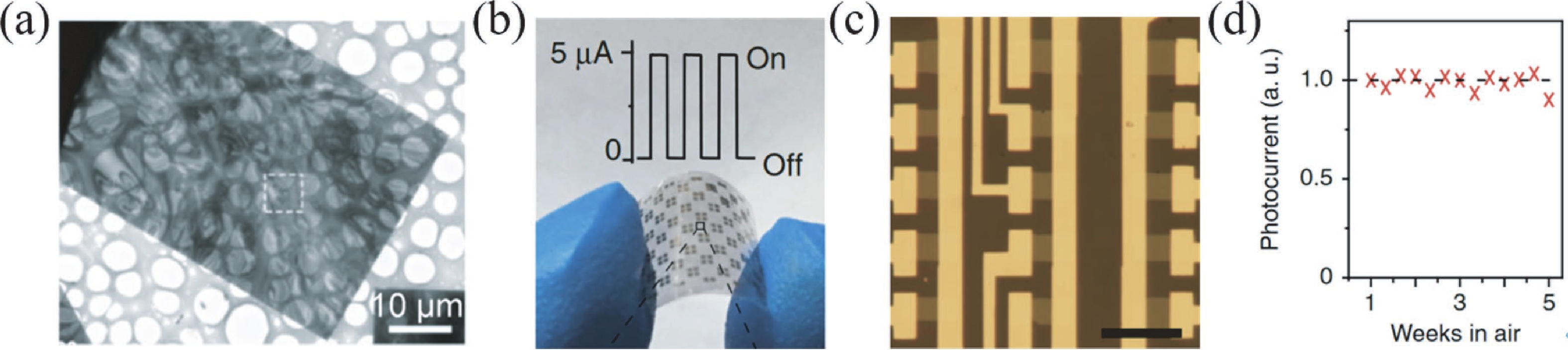

Fig. 7.  (Color online) (a) TEM image of Bi2O2Se on a copper grid. Reproduced with permission[20]. Copyright 2019, Wiley-VCH. (b) Photograph of 2D Bi2O2Se photodetectors and arrays on mica. (c) Optical image of 3  ×  5 multi-pixel array of 2D Bi2O2Se photodetectors. (d) Photocurrent of a 2D Bi2O2Se photodetector in air. Reproduced with permission [40]. Copyright 2018, Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

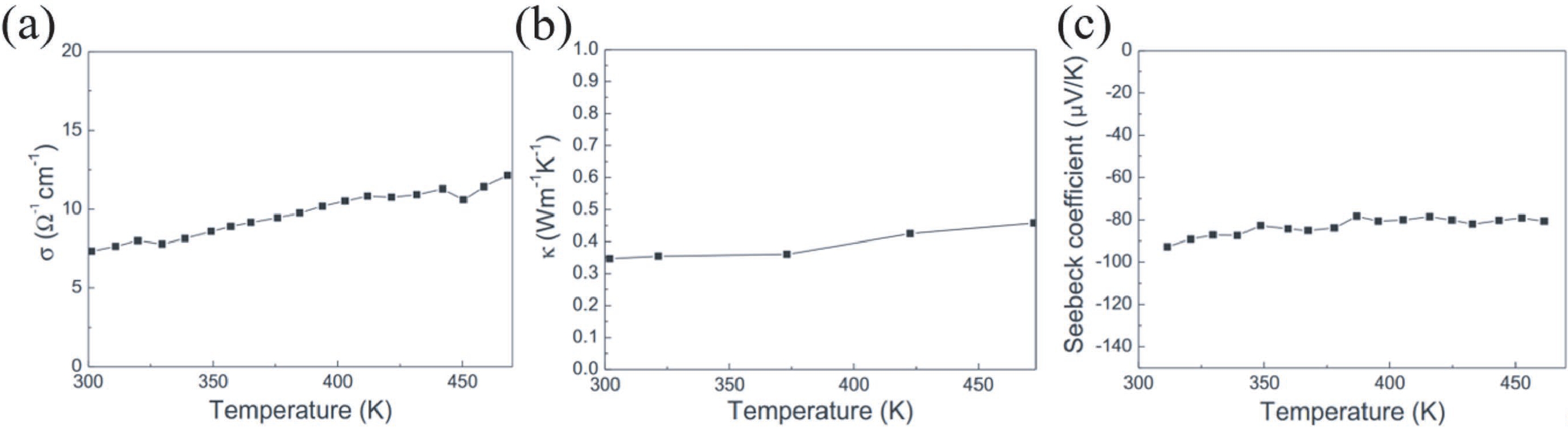

Fig. 8.  (a) Electrical conductivity σ of the Bi2O2Se film as a function of temperature. (b) Thermal conductivity κ of the Bi2O2Se rectangular block as a function of temperature. (c) Seebeck coefficient S of the Bi2O2Se film as a function of temperature. Reproduced with permission[59]. Copyright 2013, Elsevier.

DownLoad: Full-Size Img PowerPoint

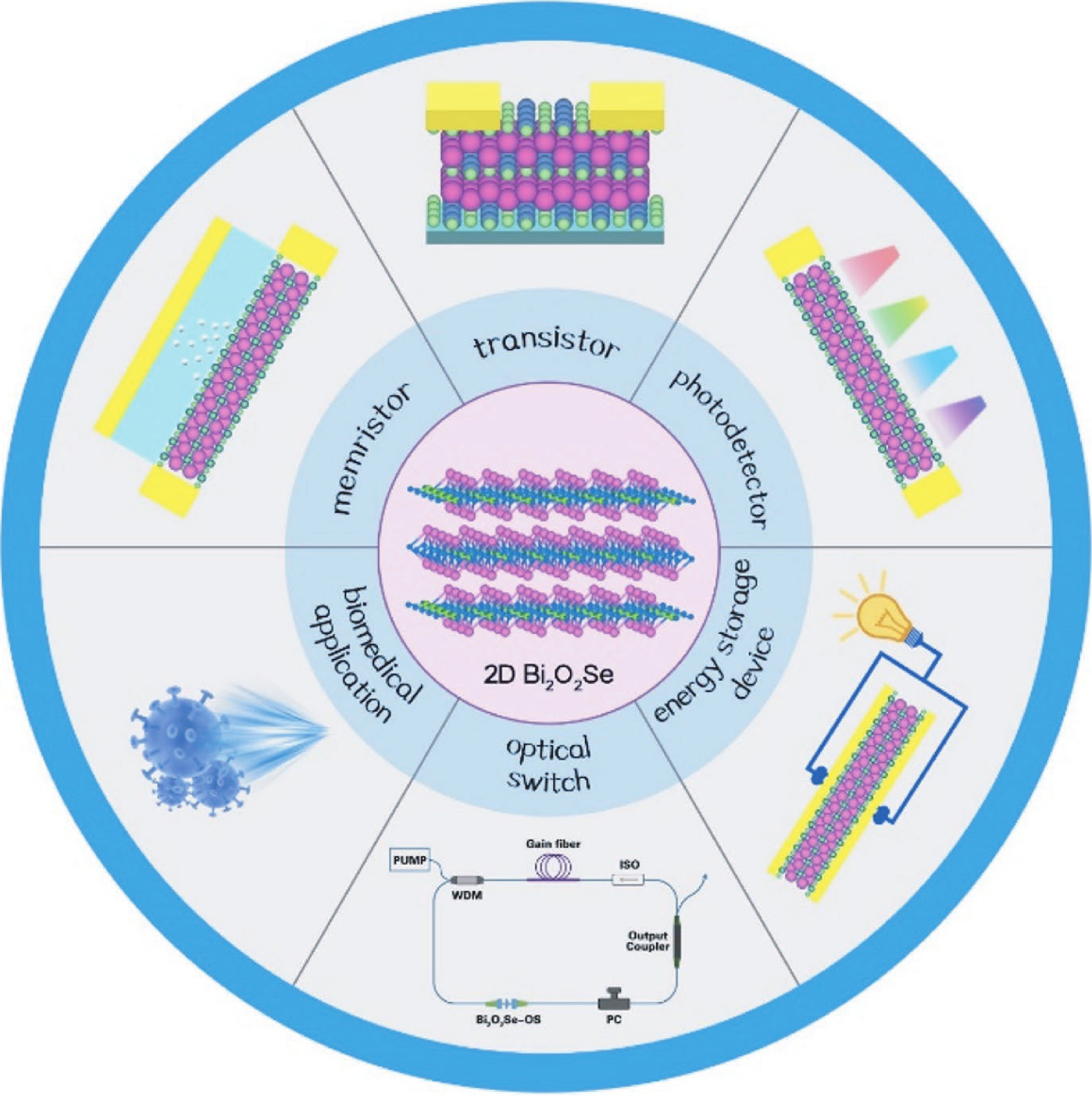

Fig. 9.  (Color online) Schematic representation of device applications of Bi2O2Se.

DownLoad: Full-Size Img PowerPoint

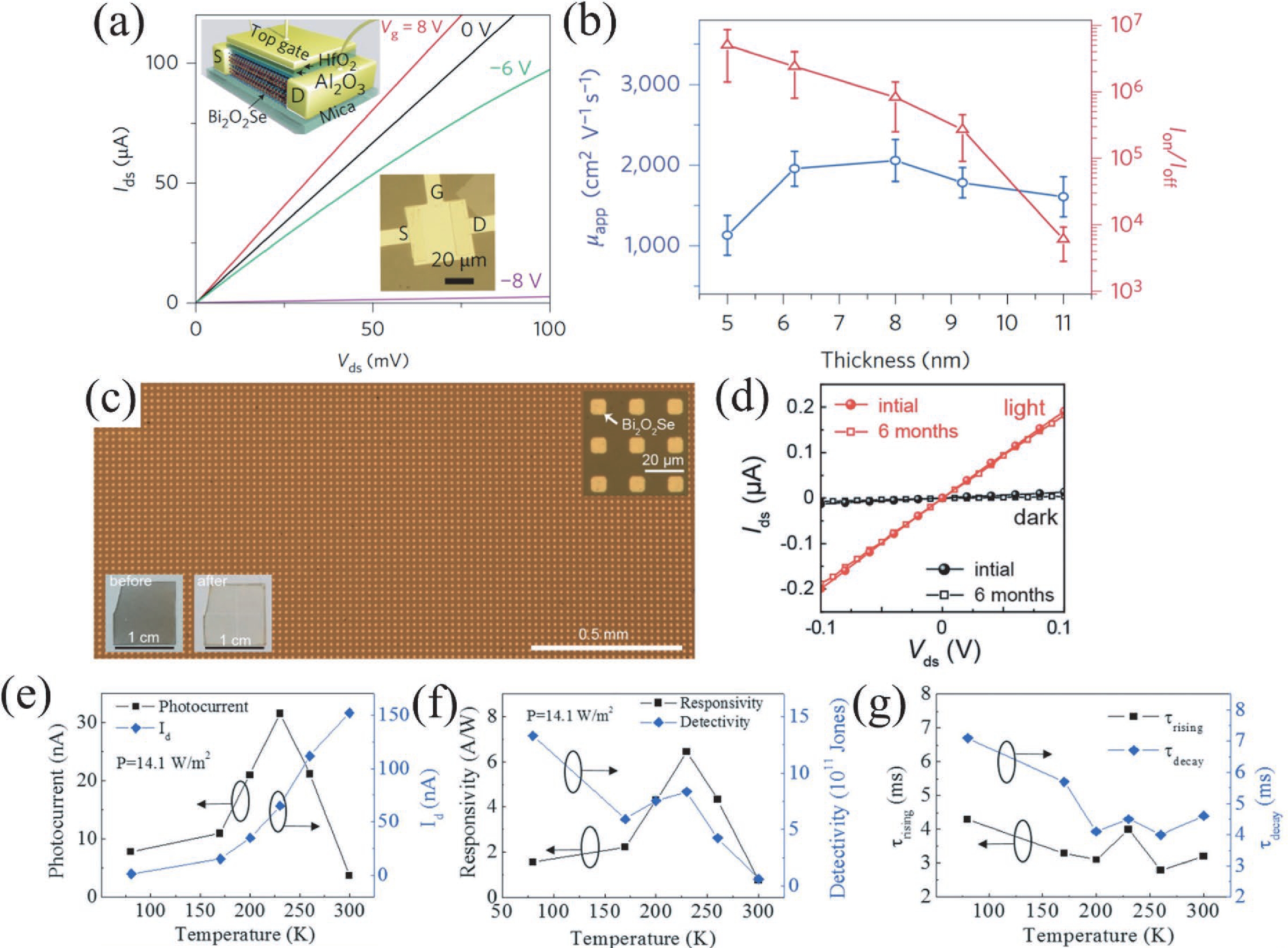

Fig. 10.  (Color online) (a) Output curves of a 6.2 nm-thick Bi2O2Se device at room temperature. (b) μapp and Ion/Ioff of Bi2O2Se FETs as a function of channel thickness. Reproduced with permission[11]. Copyright 2017, Nature Publishing Group. (c) OM image of centimeter-scale 2D Bi2O2Se arrays. (d) Linear Ids–Vds curves of Bi2O2Se device with/without the illumination of 532 nm incident laser. Reproduced with permission[67]. Copyright 2017, Wiley-VCH. (e–g) Photocurrent, dark current, responsivity, detectivity, and response time as a function of temperature. Reproduced with permission[41]. Copyright 2018, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

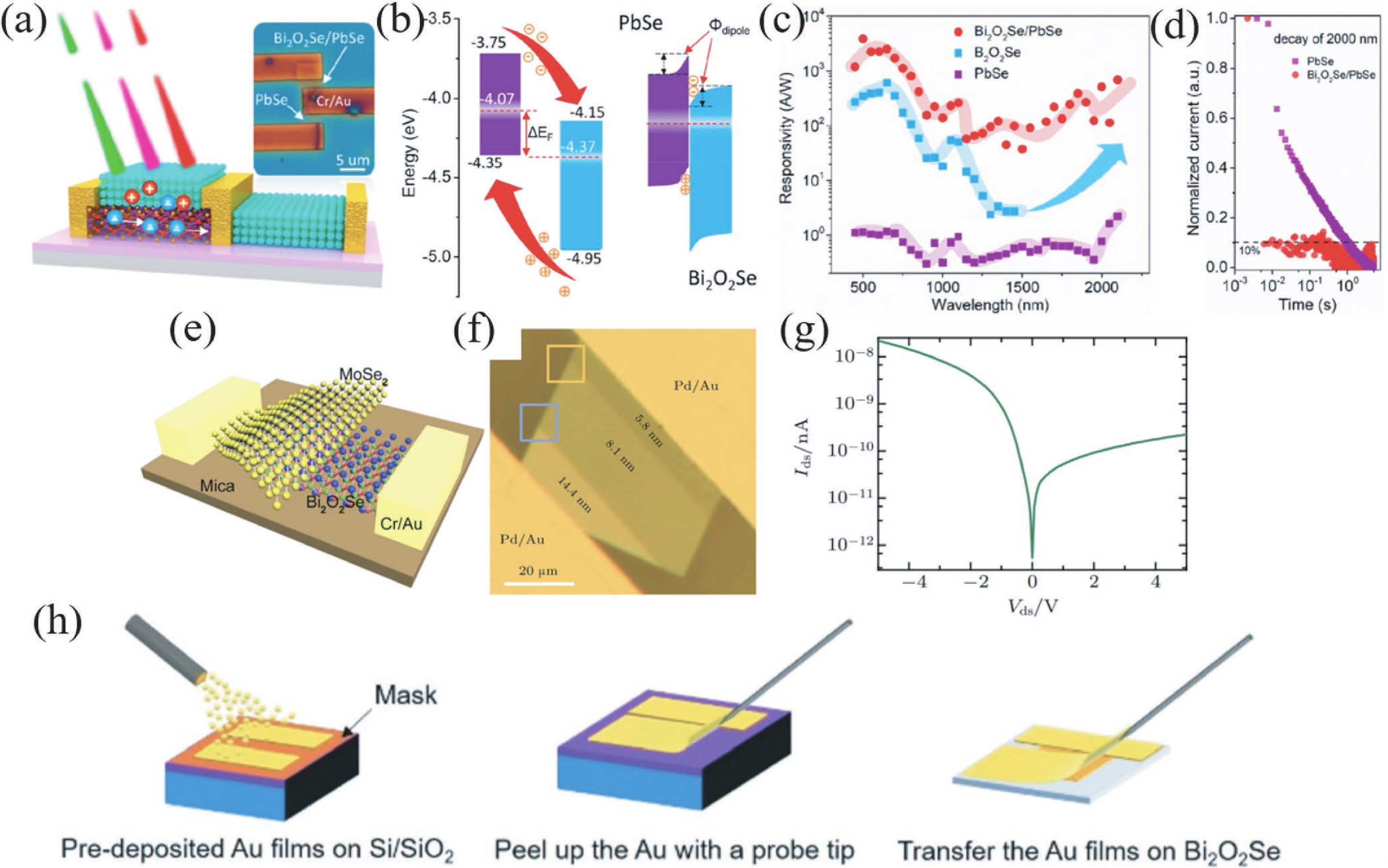

Fig. 11.  (Color online) (a) Schematic illustration of the PbSe/Bi2O2Se photodetector. (b) The estimated Type II energy band alignment between PbSe and Bi2O2Se before and after contact based on the estimated valence band offset and work function difference in UPS. (c) Photoresponse spectra. (d) Response decay dynamics of the hybrid photodetector. Reproduced with permission[68]. Copyright 2019, American Chemical Society. (e) Schematic illustration of the Bi2O2Se/MoSe2 heterojunction photodetector. Reproduced with permission[70]. Copyright 2019, Springer Science Business Media, LLC, part of Springer Nature. (f) OM image of as-fabricated device with 3-layered Bi2O2Se IPJ. (g) Output characteristic curve of the device in panel (m). Reproduced with permission[71]. Copyright 2019, Chinese Physical Society. (h) Preparation of Au/Bi2O2Se/Au MSM structures on mica substrates with a probe tip. Reproduced with permission[72]. Copyright 2019, Royal Society of Chemistry.

DownLoad: Full-Size Img PowerPoint

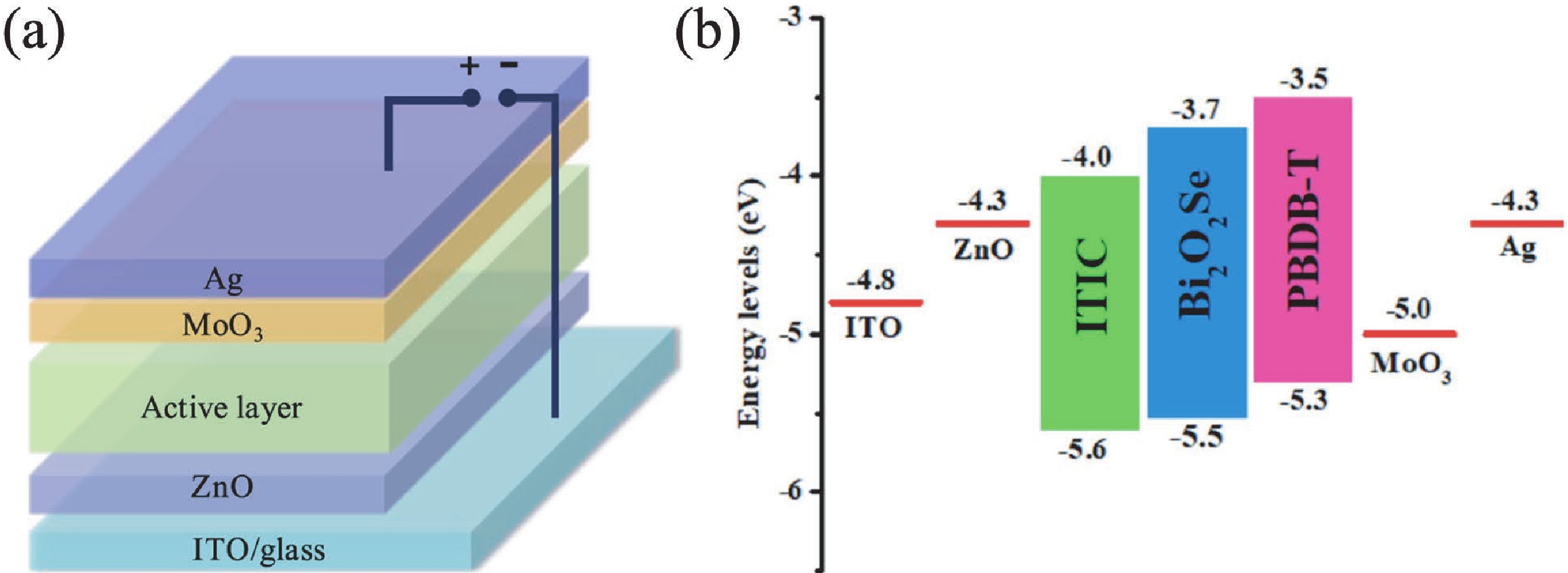

Fig. 12.  (Color online) (a) Structure of polymer solar cells. (b) Energy diagram of the device. Reproduced with permission[79]. Copyright 2020, American Chemical Society.

DownLoad: Full-Size Img PowerPoint

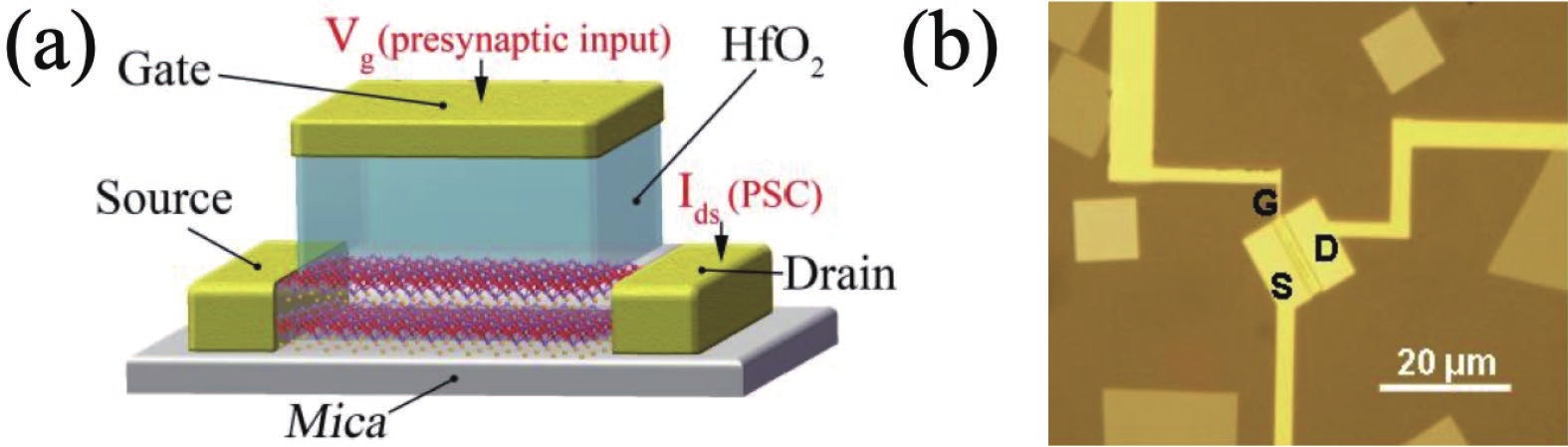

Fig. 13.  (Color online) (a) Schematic diagram of the Bi2O2Se device structure. (b) Optical image of the Bi2O2Se memristor. Reproduced with permission[25]. Copyright 2018, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

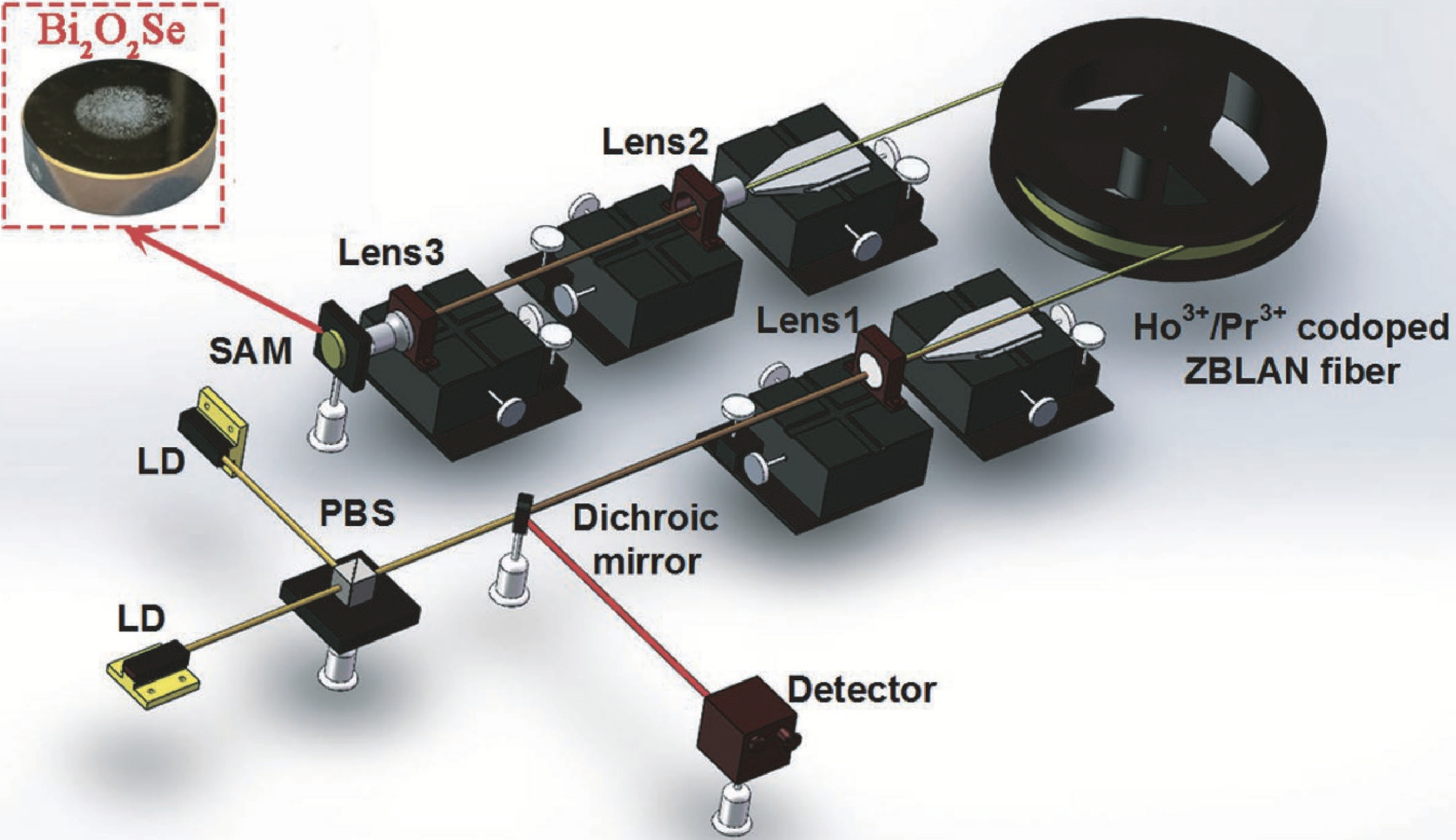

Fig. 14.  (Color online) Structure diagram of a Bi2O2Se optical switch. Reproduced with permission[46]. Copyright 2018, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

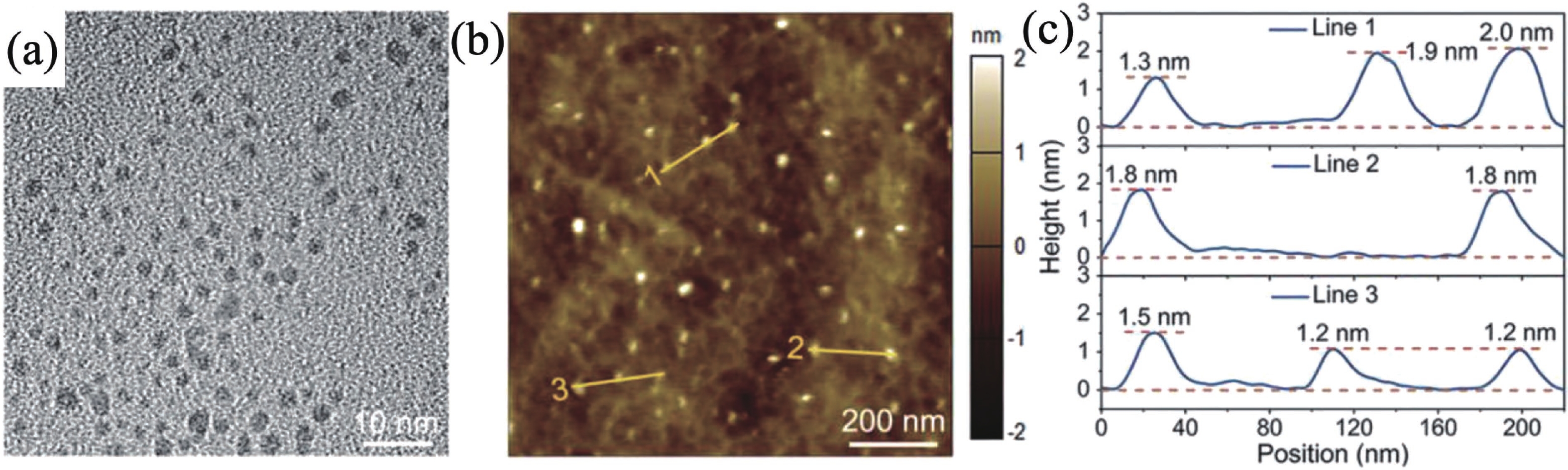

Fig. 15.  (Color online) (a) TEM image, (b) AFM image, and (c) height analysis of Bi2O2Se QDs. Reproduced with permission[23]. Copyright 2019, Wiley-VCH.

DownLoad: Full-Size Img PowerPoint

Table 1.   Summary of preparation methods, growth conditions, and basic characteristics for Bi2O2Se.

MethodPrecursor,
growth conditions		Domain size (μm)Thickness (nm)Mobility (cm2/(V·s))Ref.
CVDBi2Se3, Bi2O3, 600–640 °C, 400 Torr~2002–4 layers~313 (300 K)
–20660 (2 K)		[31]
CVDSe, Bi2O3, 680 °C, 400 Torr~2504 layers410 (RT)[32]
CVDBi2Se3,Bi2O3, 580–650 °C, 100-400 Torr>2006.7~450 (RT)
–29000 (1.9 K)		[11]
CVDBi2Se3, Bi2O3, 550–630 °C, 30 Pa~1809.8 98 (300 K)[33]
CVDBi2Se3, Bi2O3, 620 °C, 350–400 Torr~1005.2107[34]
CVDBi2Se3, Bi2O3, <670 °C~2000.65~262 (RT)[35]
CVDBi2Se3, Bi2O3, >670 °C>170010.8–[35]
Reverse-flow CVDBi2O2Se powder, 760 °C, 400 mbar~75013.71400 (RT)[47]
Modified Bridgman methodBi2O3, Se, Bi powderBulkBulk2.8 × 105 (2 K)[37]
Hydrothermal
method		C6H13BiN2O7·H2O, Na2O3Se and KOH>24.7–[48]
Hydrothermal
method		Na2SeO3, C6H13BiN2O7·H2O and KOH>604.92334.7 (RT)[49]
Solution-assisted methodBi(NO3)3·5H2O, (CH2OH)2, 500 °C, 400 TorrContinuous8.574 (RT)[18]
DownLoad: CSV

Table 2.   Comparisons of device performance of Bi2O2Se and other 2D materials.

MaterialLaser wavelength (nm)Responsivity
(A/W)		Detectivity
(Jones)		Rise/decay
time (ms)		Ref.
Bi2O2Se36075.143.32 × 101278.85[48]
Bi2O2Se405500558.2 × 10120.032/0.098[33]
Bi2O2Se450602.4 × 10105/7 (532 nm)[47]
Bi2O2Se473722.25.64 × 10110.267/1.1[73]
Bi2O2Se532842.918.18 × 1012–[49]
Bi2O2Se532350009 × 10130.308/0.448[34]
Bi2O2Se532458002.65 × 1012200[74]
Bi2O2Se5909.19 × 1062.08 × 101239/63[35]
Bi2O2Se6409.11.3 × 1080.036/0.016[72]
Bi2O2Se6402.53.2 × 1080.0025/0.0048[71]
Bi2O2Se660221003.4 × 10156/20[20]
Bi2O2Se8086.58.3 × 10113.2/4.6[41]
Bi2O2Se9001011.9 × 101030[69]
Bi2O2Se1200653 × 10910–9[40]
Bi2O2Se/MoSe27800.4133.7 × 10110.79/0.49 (515 nm)[70]
Bi2O2Se/PbSe20003 × 103–<4[68]
BiOCl25035.72.2 × 1010–[75]
FePSe3/MoS2265336001.51 × 10130.32/0.36 (637 nm)[76]
SnS2/Au5321125.92.12 × 101120/770[77]
Graphene8900.57.4 × 109<10–5[78]
Graphene/PbS6005 × 1077 × 101310/100 (532 nm)[64]
Graphene375–37506 × 104 (Vis)
0.3 (NIR)
0.1 (MIR)		–<10–3[65]
DownLoad: CSV
[1]
Lopez-Sanchez O, Lembke D, Kayci M, et al. Ultrasensitive photodetectors based on monolayer MoS2. Nat Nanotechnol, 2013, 8, 497 doi: 10.1038/nnano.2013.100
[2]
Zhang W J, Huang J K, Chen C H, et al. High-gain phototransistors based on a CVD MoS2 monolayer. Adv Mater, 2013, 25, 3456 doi: 10.1002/adma.201301244
[3]
Chang Y H, Zhang W J, Zhu Y H, et al. Monolayer MoSe2 grown by chemical vapor deposition for fast photodetection. ACS Nano, 2014, 8, 8582 doi: 10.1021/nn503287m
[4]
Anichini C, Czepa W, Pakulski D, et al. Chemical sensing with 2D materials. Chem Soc Rev, 2018, 47, 4860 doi: 10.1039/C8CS00417J
[5]
Xu S P, Fu H X, Tian Y, et al. Exploiting two-dimensional Bi2O2Se for trace oxygen detection. Angew Chem Int Ed, 2020, 59, 17938 doi: 10.1002/anie.202006745
[6]
Shehzad K, Shi T J, Qadir A, et al. Environmental sensing: Designing an efficient multimode environmental sensor based on graphene-silicon heterojunction. Adv Mater Technol, 2017, 2, 1600262 doi: 10.1002/admt.201600262
[7]
Li J F, Liang Z Z, Wang Y F, et al. Enhanced efficiency of polymer solar cells through synergistic optimization of mobility and tuning donor alloys by adding high-mobility conjugated polymers. J Mater Chem C, 2018, 6, 11015 doi: 10.1039/C8TC03612H
[8]
Vu Q A, Kim H, Nguyen V L, et al. Memristors: A high-on/off-ratio floating-gate memristor array on a flexible substrate via CVD-grown large-area 2D layer stacking. Adv Mater, 2017, 29, 1703363 doi: 10.1002/adma.201703363
[9]
Novoselov K S, Geim A K, Morozov S V, et al. Electric field effect in atomically thin carbon films. Science, 2004, 306, 666 doi: 10.1126/science.1102896
[10]
Brown A, Rundqvist S. Refinement of the crystal structure of black phosphorus. Acta Cryst, 1965, 19, 684 doi: 10.1107/S0365110X65004140
[11]
Wu J X, Yuan H T, Meng M M, et al. High electron mobility and quantum oscillations in non-encapsulated ultrathin semiconducting Bi2O2Se. Nat Nanotechnol, 2017, 12, 530 doi: 10.1038/nnano.2017.43
[12]
Zhao Y T, Wang H Y, Huang H, et al. Back cover: Surface coordination of black phosphorus for robust air and water stability (Angew. Chem. Int. Ed. 16/2016). Angew Chem Int Ed, 2016, 55, 5097 doi: 10.1002/anie.201602471
[13]
Mak K F, Lee C, Hone J, et al. Atomically thin MoS2: A new direct-gap semiconductor. Phys Rev Lett, 2010, 105, 136805 doi: 10.1103/PhysRevLett.105.136805
[14]
Li L K, Yu Y J, Ye G J, et al. Black phosphorus field-effect transistors. Nat Nanotechnol, 2014, 9, 372 doi: 10.1038/nnano.2014.35
[15]
Radisavljevic B, Radenovic A, Brivio J, et al. Single-layer MoS2 transistors. Nat Nanotechnol, 2011, 6, 147 doi: 10.1038/nnano.2010.279
[16]
Wei Q, Li R, Lin C, et al. Quasi-two-dimensional se-terminated bismuth oxychalcogenide (Bi2O2Se). ACS Nano, 2019, 13, 13439 doi: 10.1021/acsnano.9b07000
[17]
Yang J, Quhe R, Li Q, et al. Sub 10 nm bilayer Bi2O2Se transistors. Adv Electron Mater, 2019, 5, 1800720 doi: https://doi.org/10.1002/aelm.201800720
[18]
Zhang C, Wu J, Sun Y, et al. High-mobility flexible oxyselenide thin-film transistors prepared by a solution-assisted method. J Am Chem Soc, 2020, 142, 2726 doi: 10.1021/jacs.9b11668
[19]
Tan C, Tang M, Wu J, et al. Wafer-Scale growth of single-crystal 2D semiconductor on perovskite oxides for high-performance transistors. Nano Lett, 2019, 19, 2148 doi: 10.1021/acs.nanolett.9b00381
[20]
Khan U, Luo Y, Tang L, et al. Controlled vapor–solid deposition of millimeter-size single crystal 2D Bi2O2Se for high-performance phototransistors. Adv Funct Mater, 2019, 29, 1807979 doi: 10.1002/adfm.201807979
[21]
Chen G, Wu J, Wang B, et al. High-performance self-powered photodetector based on Bi2O2Se nanosheets. Appl Phys A, 2020, 126, 579 doi: 10.1007/s00339-020-03759-0
[22]
Xu R, Wang S, Li Y, et al. Layered semiconductor Bi2O2Se for broadband pulse generation in the near-infrared. IEEE Photonics Technol Lett, 2019, 31, 1056 doi: 10.1109/LPT.2019.2917472
[23]
Xie H H, Liu M Q, You B H, et al. Photothermal therapy: Biodegradable Bi2O2Se quantum dots for photoacoustic imaging-guided cancer photothermal therapy. Small, 2020, 16, 2070013 doi: 10.1002/smll.202070013
[24]
Yang C, Chen T, Verma D, et al. Bidirectional all-optical synapses based on a 2D Bi2O2Se/graphene hybrid structure for multifunctional optoelectronics. Adv Funct Mater, 2020, 30, 2001598 doi: 10.1002/adfm.202001598
[25]
Zhang Z Y, Li T R, Wu Y J, et al. Truly concomitant and independently expressed short-and long-term plasticity in a Bi2O2Se-based three-terminal memristor. Adv Mater, 2019, 31, 1805769 doi: 10.1002/adma.201805769
[26]
Allen M J, Tung V C, Kaner R B. Honeycomb carbon: A review of graphene. Chem Rev, 2010, 110, 132 doi: 10.1021/cr900070d
[27]
Huang X, Zeng Z Y, Zhang H. Metal dichalcogenide nanosheets: Preparation, properties and applications. Chem Soc Rev, 2013, 42, 1934 doi: 10.1039/c2cs35387c
[28]
Nicolosi V, Chhowalla M, Kanatzidis M G, et al. Liquid exfoliation of layered materials. Science, 2013, 340, 1226419 doi: 10.1126/science.1226419
[29]
Huang Y, Pan Y H, Yang R, et al. Universal mechanical exfoliation of large-area 2D crystals. Nat Commun, 2020, 11, 2453 doi: 10.1038/s41467-020-16266-w
[30]
Fu Q, Dai J Q, Huang X Y, et al. One-step exfoliation method for plasmonic activation of large-area 2D crystals. Adv Sci, 2022, 2204247
[31]
Wu J X, Tan C W, Tan Z J, et al. Controlled synthesis of high-mobility atomically thin bismuth oxyselenide crystals. Nano Lett, 2017, 17, 3021 doi: 10.1021/acs.nanolett.7b00335
[32]
Wu J X, Qiu C G, Fu H X, et al. Low residual carrier concentration and high mobility in 2D semiconducting Bi2O2Se. Nano Lett, 2019, 19, 197 doi: 10.1021/acs.nanolett.8b03696
[33]
Tong T, Chen Y F, Qin S C, et al. Sensitive and ultrabroadband phototransistor based on two-dimensional Bi2O2Se nanosheets. Adv Funct Mater, 2019, 29, 1905806 doi: 10.1002/adfm.201905806
[34]
Fu Q D, Zhu C, Zhao X X, et al. Ultrasensitive 2D Bi2O2Se phototransistors on silicon substrates. Adv Mater, 2019, 31, 1804945 doi: 10.1002/adma.201804945
[35]
Khan U, Tang L, Ding B F, et al. Nanoribbons: Catalyst-free growth of atomically thin Bi2O2Se nanoribbons for high-performance electronics and optoelectronics. Adv Funct Mater, 2021, 31, 2170230 doi: 10.1002/adfm.202170230
[36]
Avishan N, Hussain N, Nosheen F. Large-scale graphene production and transfer for industrial applications. MaterInnov, 2022, 2, 15
[37]
Chen C, Wang M X, Wu J X, et al. Electronic structures and unusually robust bandgap in an ultrahigh-mobility layered oxide semiconductor, Bi2O2Se. Sci Adv, 2018, 4, eaat8355 doi: 10.1126/sciadv.aat8355
[38]
Zeng T, You Y C, Wang X F, et al. Chemical vapor deposition and device application of two-dimensional molybdenum disulfide-based atomic crystals. Prog Chem, 2016, 28, 459 doi: 10.7536/PC151026
[39]
Yu J X, Li J, Zhang W F, et al. Synthesis of high quality two-dimensional materials via chemical vapor deposition. Chem Sci, 2015, 6, 6705 doi: 10.1039/C5SC01941A
[40]
Yin J B, Tan Z J, Hong H, et al. Ultrafast and highly sensitive infrared photodetectors based on two-dimensional oxyselenide crystals. Nat Commun, 2018, 9, 3311 doi: 10.1038/s41467-018-05874-2
[41]
Li J, Wang Z X, Wen Y, et al. High-performance near-infrared photodetector based on ultrathin Bi2O2Se nanosheets. Adv Funct Mater, 2018, 28, 1706437 doi: 10.1002/adfm.201706437
[42]
Fu H X, Wu J X, Peng H L, et al. Self-modulation doping effect in the high-mobility layered semiconductor Bi2O2Se. Phys Rev B, 2018, 97, 241203 doi: 10.1103/PhysRevB.97.241203
[43]
Wu Z, Liu G L, Wang Y X, et al. Seed-induced vertical growth of 2D Bi2O2Se nanoplates by chemical vapor transport. Adv Funct Mater, 2019, 29, 1906639 doi: 10.1002/adfm.201906639
[44]
Chen W J, Khan U, Feng S M, et al. High-fidelity transfer of 2D Bi2O2Se and its mechanical properties. Adv Funct Mater, 2020, 30, 2004960 doi: 10.1002/adfm.202004960
[45]
Zhang X, Liu Y F, Zhang G H, et al. Thermal decomposition of bismuth oxysulfide from photoelectric Bi2O2S to superconducting Bi4O4S3. ACS Appl Mater Interfaces, 2015, 7, 4442 doi: 10.1021/am5092159
[46]
Tian X L, Luo H Y, Wei R F, et al. Pulsed lasers: An ultrabroadband mid-infrared pulsed optical switch employing solution-processed bismuth oxyselenide. Adv Mater, 2018, 30, 1870233 doi: 10.1002/adma.201870233
[47]
Yang X, Zhang Q, Song Y C, et al. High mobility two-dimensional bismuth oxyselenide single crystals with large grain size grown by reverse-flow chemical vapor deposition. ACS Appl Mater Interfaces, 2021, 13, 49153 doi: 10.1021/acsami.1c13491
[48]
Li M Q, Dang l L Y, Wang G G, et al. Bismuth oxychalcogenide nanosheet: Facile synthesis, characterization, and photodetector application. Adv Mater Technol, 2020, 5, 2000180 doi: 10.1002/admt.202000180
[49]
Dang L Y, Liu M Q, Wang G G, et al. Organic ion template-guided solution growth of ultrathin bismuth oxyselenide with tunable electronic properties for optoelectronic applications. Adv Funct Mater, 2022, 32, 2201020 doi: 10.1002/adfm.202201020
[50]
Tong T, Zhang M H, Chen Y Q, et al. Ultrahigh Hall mobility and suppressed backward scattering in layered semiconductor Bi2O2Se. Appl Phys Lett, 2018, 113, 072106 doi: 10.1063/1.5042727
[51]
Williams M L. CRC handbook of chemistry and physics. 76th ed. Occup Environ Med, 1996, 53, 504 doi: 10.1136/oem.53.7.504
[52]
Horák J, Stary Z, Lošťák P, et al. Anti-site defects in n-Bi2Se3 crystals. J Phys Chem Solids, 1990, 51, 1353 doi: 10.1016/0022-3697(90)90017-A
[53]
Pereira A L J, Santamaría-Pérez D, Vilaplana R, et al. Experimental and theoretical study of SbPO4 under compression. Inorg Chem, 2020, 59, 287 doi: 10.1021/acs.inorgchem.9b02268
[54]
Pan X, Chen H X, Lu L, et al. Incorporating guanidinium as perovskitizer-cation of two-dimensional metal halide for crystal-array photodetectors. Chem Asian J, 2021, 16, 1925 doi: 10.1002/asia.202100425
[55]
Cheng T, Tan C W, Zhang S Q, et al. Raman spectra and strain effects in bismuth oxychalcogenides. J Phys Chem C, 2018, 122, 19970 doi: 10.1021/acs.jpcc.8b05475
[56]
Liu S Y, Tan C W, He D W, et al. Optical properties and photocarrier dynamics of Bi2O2Se monolayer and nanoplates. Adv Optical Mater, 2020, 8, 1901567 doi: 10.1002/adom.201901567
[57]
Zhang Y, Gao Q, Han X Y, et al. Mechanical flexibility and strain engineered-band structures of monolayer Bi2O2Se. Phys E, 2020, 116, 113728 doi: 10.1016/j.physe.2019.113728
[58]
Guo D L, Hu C G, Xi Y, et al. Strain effects to optimize thermoelectric properties of doped Bi2O2Se via tran-blaha modified becke-Johnson density functional theory. J Phys Chem C, 2013, 117, 21597 doi: 10.1021/jp4080465
[59]
Zhang K Y, Hu C G, Kang X L, et al. Synthesis and thermoelectric properties of Bi2O2Se nanosheets. Mater Res Bull, 2013, 48, 3968 doi: 10.1016/j.materresbull.2013.06.013
[60]
Yu J B, Sun Q. Bi2O2Se nanosheet: An excellent high-temperature n-type thermoelectric material. Appl Phys Lett, 2018, 112, 053901 doi: 10.1063/1.5017217
[61]
Zhao L D, Lo S H, Zhang Y S, et al. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature, 2014, 508, 373 doi: 10.1038/nature13184
[62]
Yang F, Wang R D, Zhao W W, et al. Thermal transport and energy dissipation in two-dimensional Bi2O2Se. Appl Phys Lett, 2019, 115, 193103 doi: 10.1063/1.5123682
[63]
Yang H, Tan C W, Deng C Y, et al. Bolometric effect in Bi2O2Se photodetectors. Small, 2019, 15, e1904482 doi: 10.1002/smll.201904482
[64]
Konstantatos G, Badioli M, Gaudreau L, et al. Hybrid graphene–quantum dot phototransistors with ultrahigh gain. Nat Nanotechnol, 2012, 7, 363 doi: 10.1038/nnano.2012.60
[65]
Liu W, Lv J H, Peng L, et al. Graphene charge-injection photodetectors. Nat Electron, 2022, 5, 281 doi: 10.1038/s41928-022-00755-5
[66]
Wang L, Meric I, Huang P Y, et al. One-dimensional electrical contact to a two-dimensional material. Science, 2013, 342, 614 doi: 10.1126/science.1244358
[67]
Wu J, Liu Y, Tan Z, et al. Chemical patterning of high-mobility semiconducting 2D Bi2O2Se crystals for integrated optoelectronic devices. Adv Mater, 2017, 29, 1704060 doi: 10.1002/adma.201704060
[68]
Luo P, Zhuge F W, Wang F K, et al. PbSe quantum dots sensitized high-mobility Bi2O2Se nanosheets for high-performance and broadband photodetection beyond 2 μm. ACS Nano, 2019, 13, 9028 doi: 10.1021/acsnano.9b03124
[69]
Yang H, Chen W, Zheng X M, et al. Near-infrared photoelectric properties of multilayer Bi2O2Se nanofilms. Nanoscale Res Lett, 2019, 14, 371 doi: 10.1186/s11671-019-3179-4
[70]
Yang T, Li X, Wang L M, et al. Broadband photodetection of 2D Bi2O2Se-MoSe2 heterostructure. J Mater Sci, 2019, 54, 14742 doi: 10.1007/s10853-019-03963-1
[71]
Hong C Y, Huang G F, Yao W W, et al. Thickness-modulated in-plane Bi2O2Se homojunctions for ultrafast high-performance photodetectors. Chin Phys B, 2019, 28, 367 doi: 10.1088/1674-1056/ab4e87
[72]
Liu X L, Li R P, Hong C Y, et al. Highly efficient broadband photodetectors based on lithography-free Au/Bi2O2Se/Au heterostructures. Nanoscale, 2019, 11, 20707 doi: 10.1039/C9NR06723J
[73]
Li J, Wang Z X, Chu J W, et al. Oriented layered Bi2O2Se nanowire arrays for ultrasensitive photodetectors. Appl Phys Lett, 2019, 114, 151104 doi: 10.1063/1.5094192
[74]
Li D Y, Han X, Xu G Y, et al. Bi2O2Se photoconductive detector with low power consumption and high sensitivity. Acta Phys Sin Chin Ed, 2020, 69, 248502 doi: 10.7498/aps.69.20201044
[75]
Han W, Li C, Yang S J, et al. Atomically thin oxyhalide solar-blind photodetectors. Small, 2020, 16, e2000228 doi: 10.1002/smll.202000228
[76]
Long M S, Shen Z, Wang R J, et al. Ultrasensitive solar-blind ultraviolet photodetector based on FePSe3/MoS2 heterostructure response to 10.6 µm. Adv Funct Mater, 2022, 32, 2204230 doi: 10.1002/adfm.202204230
[77]
Han X, Xing J, Xu H, et al. Remarkable improved photoelectric performance of SnS2 field-effect transistor with Au plasmonic nanostructures. Nanotechnology, 2020, 31, 215201 doi: 10.1088/1361-6528/ab72bf
[78]
Xu Y, Ali A, Shehzad K, et al. Photodetectors: Solvent-based soft-patterning of graphene lateral heterostructures for broadband high-speed metal-semiconductor-metal photodetectors. Adv Mater Technol, 2017, 2, 1600241 doi: 10.1002/admt.201600241
[79]
Huang C W, Yu H. 2D Bi2O2Se with high mobility for high performance polymer solar cells. ACS Appl Mater Interfaces, 2020, 12, 19643 doi: 10.1021/acsami.0c01364
[80]
Ding G L, Yang B D, Chen R S, et al. Reconfigurable 2D WSe2-based memtransistor for mimicking homosynaptic and heterosynaptic plasticity. Small, 2021, 17, 2170213 doi: 10.1002/smll.202170213
[81]
Du J Y, Ge C, Riahi H, et al. Dual-gated MoS2 transistors for synaptic and programmable logic functions. Adv Electron Mater, 2020, 6, 1901408 doi: 10.1002/aelm.201901408
[82]
Yang Q Y, Luo Z D, Zhang D W, et al. Controlled optoelectronic response in van der Waals heterostructures for In-sensor computing. Adv Funct Mater, 2022, 32(45), 202207290 doi: 10.1002/adfm.202207290
[83]
Yan J M, Ying J S, Yan M Y, et al. Optoelectronic coincidence detection with two-dimensional Bi2O2Se ferroelectric field-effect transistors. Adv Funct Mater, 2021, 31, 2103982 doi: 10.1002/adfm.202103982
[84]
Wang F K, Yang S J, Wu J, et al. Emerging two-dimensional bismuth oxychalcogenides for electronics and optoelectronics. InfoMat, 2021, 3, 1251 doi: 10.1002/inf2.12215
[85]
Li Z W, Li J S. Bi2O2Se for broadband terahertz wave switching. Appl Opt, 2020, 59, 11076 doi: 10.1364/AO.412728
[86]
Meng X D, Liu Z Q, Cao Y, et al. Cancer therapy: Fabricating aptamer-conjugated PEGylated-MoS2/Cu1.8S theranostic nanoplatform for multiplexed imaging diagnosis and chemo-photothermal therapy of cancer. Adv Funct Mater, 2017, 27, 1605592 doi: 10.1002/adfm.201605592
[87]
Chen Z, Zhao P F, Luo Z Y, et al. Cancer cell membrane-biomimetic nanoparticles for homologous-targeting dual-modal imaging and photothermal therapy. ACS Nano, 2016, 10, 10049 doi: 10.1021/acsnano.6b04695
[88]
Li B, Yuan F K, He G J, et al. Ultrasmall CuCo2S4 nanocrystals: All-in-one theragnosis nanoplatform with magnetic resonance/near-infrared imaging for efficiently photothermal therapy of tumors. Adv Funct Mater, 2017, 27, 1606218 doi: 10.1002/adfm.201606218
[89]
Wu M H, Zeng X C. Bismuth oxychalcogenides: A new class of ferroelectric/ferroelastic materials with ultra high mobility. Nano Lett, 2017, 17, 6309 doi: 10.1021/acs.nanolett.7b03020
[90]
Zhu Z Y, Yao X P, Zhao S, et al. Giant modulation of the electron mobility in semiconductor Bi2O2Se via incipient ferroelectric phase transition. J Am Chem Soc, 2022, 144, 4541 doi: 10.1021/jacs.1c12681

    • Search

    Advanced Search >>

    GET CITATION

    shu

    Export: BibTex EndNote

    Article Metrics

    Article views: 2302 Times PDF downloads: 323 Times Cited by: 0 Times

    History

    Received: 22 August 2022 Revised: 03 October 2022 Online: Accepted Manuscript: 21 October 2022Uncorrected proof: 28 October 2022Published: 10 March 2023

    Catalog

      Email This Article

      User name:
      Email:*请输入正确邮箱
      Code:*验证码错误
      Send
      Article Navigation >  Journal of Semiconductors  > 2023  >  44(3): 031001
      Huayu Tao, Tianlin Wang, Danyang Li, Jie Xing, Gengwei Li. Preparation, properties, and applications of Bi2O2Se thin films: A review[J]. Journal of Semiconductors, 2023, 44(3): 031001. doi: 10.1088/1674-4926/44/3/031001 ****H Y Tao, T L Wang, D Y Li, J Xing, G W Li. Preparation, properties, and applications of Bi2O2Se thin films: A review[J]. J. Semicond, 2023, 44(3): 031001. doi: 10.1088/1674-4926/44/3/031001
      Citation:
      Huayu Tao, Tianlin Wang, Danyang Li, Jie Xing, Gengwei Li. Preparation, properties, and applications of Bi2O2Se thin films: A review[J]. Journal of Semiconductors, 2023, 44(3): 031001. doi: 10.1088/1674-4926/44/3/031001 ****
      H Y Tao, T L Wang, D Y Li, J Xing, G W Li. Preparation, properties, and applications of Bi2O2Se thin films: A review[J]. J. Semicond, 2023, 44(3): 031001. doi: 10.1088/1674-4926/44/3/031001
      shu

      Preparation, properties, and applications of Bi2O2Se thin films: A review

      DOI: 10.1088/1674-4926/44/3/031001
      • 1.

        School of Science, China University of Geosciences, Beijing 100083, China

      • 2.

        School of Materials Science and Technology, China University of Geosciences, Beijing 100083, China

      More Information
      • Huayu Tao：is an undergraduate in the School of Materials Science and Engineering of China University of Geosciences (Beijing), mainly engaged in the research of low dimensional oxide materials. Her work has been published in Renewable & Sustainable Energy Reviews
      • Gengwei Li：has worked in China University of Geosciences (Beijing) since he graduated from Beijing Normal University with a master's degree in optics in 2001, and received a doctorate in solid geophysics from China University of Geosciences (Beijing) in 2013. Mainly engaged in the theoretical research of optics, thin film materials and electromagnetic fields. Nearly 50 papers have been published, including Materials Research Express, Acta Physica Sinica, Materials Review, OptoElectronics Letters, etc
      • Corresponding author: ligw@cugb.edu.cn
      • Received Date: 2022-08-22
      • Revised Date: 2022-10-03
        • Available Online: 2022-10-21

      Catalog

        Journal of Semiconductors © 2017 All Rights Reserved   京ICP备05085259号-2

        /

        DownLoad:  Full-Size Img  PowerPoint
        Return
        Return
