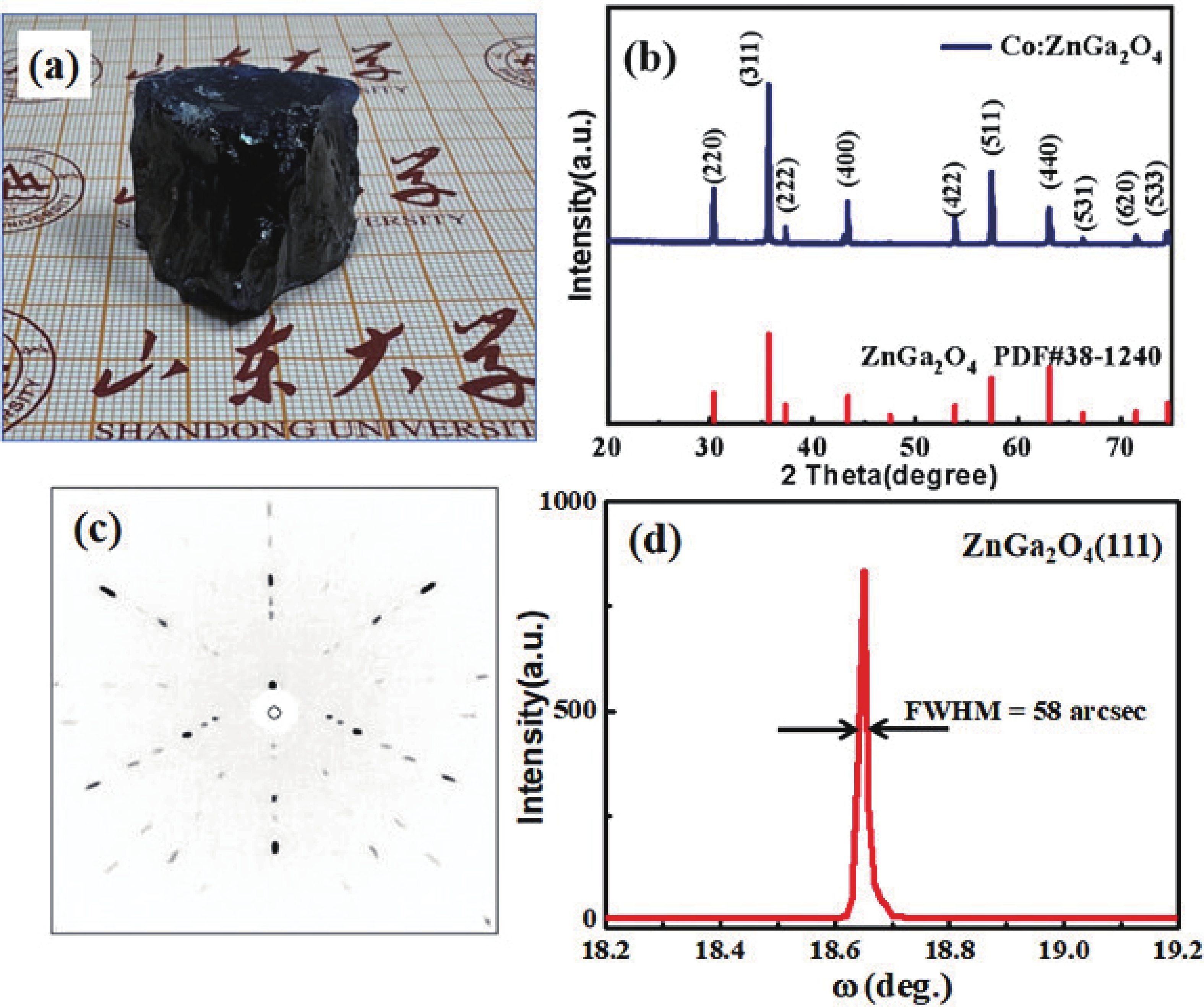

Fig. 1. (Color online) (a) Photograph of VGF-grown ZnGa₂O₄ bulk crystal and wafer. (b) Powder XRD pattern of the Co²⁺-doped ZnGa₂O₄ crystal. (c) Laue diffraction pattern of the (111) plane Co²⁺-doped ZnGa₂O₄ crystal wafer. (d) X-ray rocking curve for (111) diffraction of the Co²⁺-doped ZnGa₂O₄ crystal wafer.

DownLoad: Full-Size Img PowerPoint

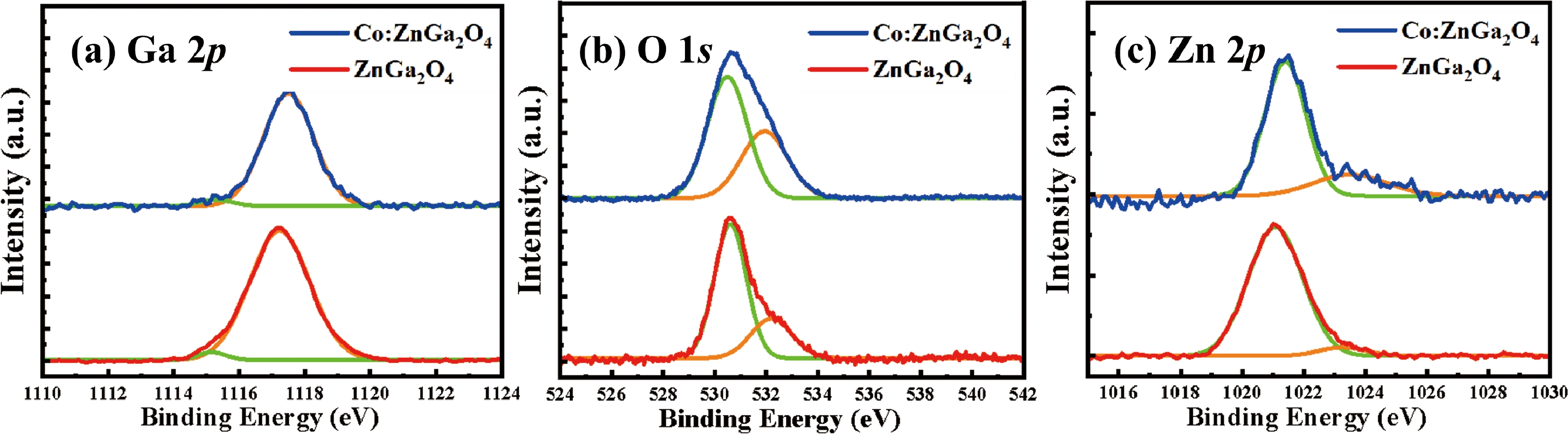

Fig. 2. (Color online) (a) gallium (Ga 2p), (b) oxygen (O 1s) and (c) zinc (Zn 2p) are the XPS spectra of the Co²⁺-doped ZnGa₂O₄ crystal.

DownLoad: Full-Size Img PowerPoint

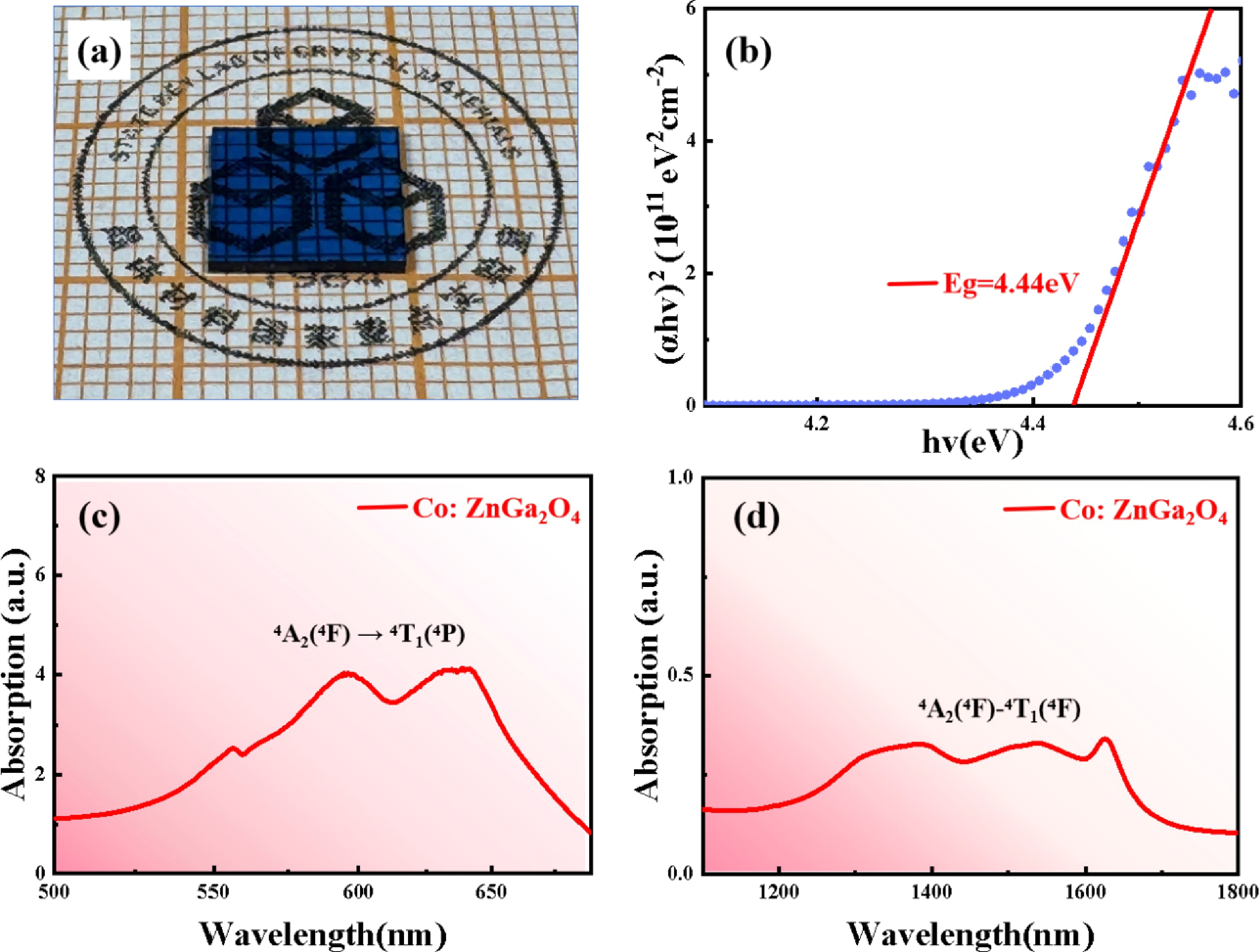

Fig. 3. (Color online) (a) The Co²⁺-doped ZnGa₂O₄ wafer for optical testing. (b) The band gap width of Co²⁺-doped ZnGa₂O₄ crystal. (c) The measured absorption spectrum of the Co²⁺-doped ZnGa₂O₄ wafer in the visible region. (d) The measured absorption spectrum of the Co²⁺-doped ZnGa₂O₄ wafer in the near-infrared region.

DownLoad: Full-Size Img PowerPoint

Table 1. The elemental composition of different elements in the Co²⁺-doped ZnGa₂O₄ sample.

Elements	Zn	Ga	O	Co
Co²⁺: ZnGa₂O₄ sample	13.63 ± 0.15 at.%	28.38 ± 0.20 at.%	57.78 ± 0.25 at.%	0.2 ± 0.05 at.%

DownLoad: CSV

Table 2. Ground state absorption cross sections (σ_gas) of Co²⁺ doped spinel materials prepared by different methods.

Material	Co²⁺ concentration (at.%)	σ_gas (10⁻¹⁹ cm²)	Reference
Co²⁺: MgAl₂O₄ ceramics	0.05	2.9	[61]
Co²⁺: MgAl₂O₄ single crystal	0.8	3.5	[6]
Co²⁺: MgAl₂O₄ ceramics	0.05	2.55	[62]
Co²⁺: ZnGa₂O₄ single crystal	0.2	3.07	This work

DownLoad: CSV

[1]	Mlynczak J, Belghachem N, Kopczynski K, et al. Performance analysis of thermally bonded Er³⁺, Yb³⁺: Glass/Co²⁺: MgAl₂O₄ microchip lasers. Opt Quantum Electron, 2016, 48(4), 247 doi: 10.1007/s11082-016-0508-z
[2]	Camargo M B, Stultz R D, Birnbaum M, et al. Co(2+): YSGG saturable absorber Q switch for infrared erbium lasers. Opt Lett, 1995, 20(3), 339 doi: 10.1364/OL.20.000339
[3]	Denisov I A, Demchuk M I, Kuleshov N V, et al. Co²⁺: LiGa₅O₈ saturable absorber passive Q switch for 1.34 μm Nd³⁺: YAlO₃ and 1.54 μm Er³⁺: Glass lasers. Appl Phys Lett, 2000, 77(16), 2455 doi: 10.1063/1.1319179
[4]	Kuleshov N V, Mikhailov V P, Scherbitsky V G, et al. Absorption and luminescence of tetrahedral Co²⁺ ion in MgAl₂O₄. J Lumin, 1993, 55(5/6), 265
[5]	Abritta T, Blak F H. Luminescence study of ZnGa₂O₄: Co²⁴. J Lumin, 1991, 48/49, 558 doi: 10.1016/0022-2313(91)90192-X
[6]	Yumashev K V. Saturable absorber Co²⁺: MgAl₂O₄ crystal for Q switching of 1.34-µm Nd³⁺: YAlO₃ and 1.54-µm Er³⁺: Glass lasers. Appl Opt, 1999, 38(30), 6343 doi: 10.1364/AO.38.006343
[7]	Donegan J F, Anderson F G, Bergin F J, et al. Optical and magnetic-circular-dichroism–optically-detected-magnetic-resonance study of the Co²⁺ ion in LiGa₅O₈. Phys Rev B, 1992, 45(2), 563 doi: 10.1103/PhysRevB.45.563
[8]	Sosman L P, Dias Tavares A Jr, Abritta T. Near infrared spectroscopy of divalent cobalt in polycrystalline magnesium and zinc gallate. J Phys D: Appl Phys, 2000, 33(2), L19 doi: 10.1088/0022-3727/33/2/103
[9]	Mary Jacintha A, Manikandan A, Chinnaraj K, et al. Comparative studies of spinel MnFe₂O₄ nanostructures: Structural, morphological, optical, magnetic and catalytic properties. J Nanosci Nanotechnol, 2015, 15(12), 9732 doi: 10.1166/jnn.2015.10343
[10]	Suguna S, Shankar S, Jaganathan S K, et al. Novel synthesis and characterization studies of spinel Ni_xCo_{1– x}Al₂O₄ (x = 0.0 to 1.0) nano-catalysts for the catalytic oxidation of benzyl alcohol. J Nanosci Nanotechnol, 2018, 18(2), 1019 doi: 10.1166/jnn.2018.13960
[11]	Zeb M, Tahir M, Muhammad F, et al. Pyrrol-anthracene: Synthesis, characterization and its application as active material in humidity, temperature and light sensors. Coatings, 2022, 12(6), 848 doi: 10.3390/coatings12060848
[12]	Ullah F, Qureshi M T, Abbas S K, et al. Dilute magnetic ions mediated magneto-dielectric, optical and ferroelectric response of MgAl₂O₄ spinels. J Phys: Condens Matter, 2020, 32(36), 365701 doi: 10.1088/1361-648X/ab8aa0
[13]	Itoh S, Toki H, Sato Y, et al. The ZnGa₂O₄ phosphor for low-voltage blue cathodoluminescence. J Electrochem Soc, 1991, 138(5), 1509 doi: 10.1149/1.2085816
[14]	Shea L E, Datta R K, Brown J J. Low voltage cathodoluminescence of Mn²⁺-activated ZnGa₂O₄. J Electrochem Soc, 1994, 141(8), 2198 doi: 10.1149/1.2055086
[15]	Minami T, Kuroi Y, Miyata T, et al. ZnGa₂O₄ as host material for multicolor-emitting phosphor layer of electroluminescent devices. J Lumin, 1997, 72, 997
[16]	Kim J S, Lee S G, Park H L, et al. Optical and electrical properties of ZnGa₂O₄/Mn²⁺ powder electroluminescent device. Mater Lett, 2004, 58(7/8), 1354
[17]	Minami T, Maeno T, Kuroi Y, et al. High-luminance green-emitting thin-film electroluminescent devices using ZnGa₂O₄: Mn phosphor. Jpn J Appl Phys, 1995, 34(6A), L684 doi: 10.1143/JJAP.34.L684
[18]	Jović N G, Masadeh A S, Kremenović A S, et al. Effects of thermal annealing on structural and magnetic properties of lithium ferrite nanoparticles. J Phys Chem C, 2009, 113(48), 20559 doi: 10.1021/jp907559y
[19]	Sreeja V, Smitha T S, Nand D, et al. Size dependent coordination behavior and cation distribution in MgAl₂O₄ nanoparticles from ²⁷Al solid state NMR studies. J Phys Chem C, 2008, 112(38), 14737 doi: 10.1021/jp800412k
[20]	Mittal V K, Chandramohan P, Bera S, et al. Cation distribution in Ni_xMg_{1− x}Fe₂O₄ studied by XPS and mössbauer spectroscopy. Solid State Commun, 2006, 137(1/2), 6
[21]	Hsieh I J, Chu K T, Yu C F, et al. Cathodoluminescent characteristics of ZnGa₂O₄ phosphor grown by radio frequency magnetron sputtering. 1994, 76(6), 3735
[22]	Omata T, Ueda N, Ueda K, et al. New ultraviolet-transport electroconductive oxide, ZnGa₂O₄ spinel. 1994, 64(9), 1077
[23]	Shea L E, Datta R K, Brown J J. Photoluminescence of Mn²⁺-activated ZnGa₂O₄. J Electrochem Soc, 1994, 141(7), 1950 doi: 10.1149/1.2055033
[24]	Jeong I K, Park H L, Mho S I. Two self-activated optical centers of blue emission in zinc gallate. Solid State Commun, 1998, 105(3), 179 doi: 10.1016/S0038-1098(97)10101-6
[25]	Yu C F, Lin P. Manganese-activated luminescence in ZnGa₂O₄. 1996, 79(9), 7191
[26]	Kim J S, Kim J S, Kim T W, et al. Energy transfer among three luminescent centers in full-color emitting ZnGa₂O₄: Mn²⁺, Cr³⁺ phosphors. Solid State Commun, 2004, 131(8), 493 doi: 10.1016/j.ssc.2004.06.023
[27]	Yu M, Lin J, Zhou Y H, et al. Citrate–gel synthesis and luminescent properties of ZnGa₂O₄ doped with Mn²⁺ and Eu³⁺. Mater Lett, 2002, 56(6), 1007 doi: 10.1016/S0167-577X(02)00664-X
[28]	Xu Z H, Li Y X, Liu Z F, et al. UV and X-ray excited luminescence of Tb³⁺-doped ZnGa₂O₄ phosphors. J Alloys Compd, 2005, 391(1/2), 202
[29]	Kim J S, Kim J S, Park H L. Optical and structural properties of nanosized ZnGa₂O₄: Cr³⁺ phosphor. Solid State Commun, 2004, 131(12), 735 doi: 10.1016/j.ssc.2004.07.026
[30]	Kim J S, Kim J S, Kim T W, et al. Correlation between the crystalline environment and optical property of Mn²⁺ ions in ZnGa₂O₄: Mn²⁺ phosphor. Appl Phys Lett, 2005, 86(9), 091912 doi: 10.1063/1.1869550
[31]	Ohtake T, Sonoyama N, Sakata T. Electrochemical luminescence of ZnGa₂O₄ semiconductor electrodes activated with Cr and Co. Chem Phys Lett, 2000, 318(6), 517 doi: 10.1016/S0009-2614(00)00082-8
[32]	Zhuang Y X, Ueda J, Tanabe S. Enhancement of red persistent luminescence in Cr³⁺-doped ZnGa₂O₄ phosphors by Bi₂O₃ codoping. Appl Phys Express, 2013, 6, 052602 doi: 10.7567/APEX.6.052602
[33]	Rack P D, Peterson J J, Potter M D, et al. Eu⁺³ and Cr⁺³ doping for red cathodoluminescence in ZnGa₂O₄. J Mater Res, 2001, 16(5), 1429 doi: 10.1557/JMR.2001.0199
[34]	Balda R, Fernández J, De Pablos A, et al. Cr³⁺→Nd³⁺ energy transfer in fluorophosphate glass investigated by time-resolved laser spectroscopy. Physical Review B, 1993, 48, 294
[35]	Wu B T, Zhou S F, Ruan J, et al. Energy transfer between Cr³⁺ and Ni²⁺ in transparent silicate glass ceramics containing Cr³⁺/Ni²⁺ Co-doped ZnAl₂O₄ nanocrystals. Opt Express, 2008, 16(4), 2508 doi: 10.1364/OE.16.002508
[36]	Hsu K H, Chen K S. Photoluminescence of ZnGa₂O₄ phosphor prepared by a microencapsulation method. Ceram Int, 2000, 26(5), 469 doi: 10.1016/S0272-8842(99)00081-4
[37]	Jung H K, Park D S, Park Y C. Preparation and characterization of ZnGa₂O₄: Mn phosphors by multistage precipitation method. Mater Res Bull, 1999, 34(1), 43 doi: 10.1016/S0025-5408(98)00216-5
[38]	Hirano M, Imai M, Inagaki M. Preparation of ZnGa₂O₄ spinel fine particles by the hydrothermal method. J Am Ceram Soc, 2000, 83(4), 977 doi: 10.1111/j.1151-2916.2000.tb01310.x
[39]	Li Y D, Duan X F, Liao H W, et al. Self-regulation synthesis of nanocrystalline ZnGa₂O₄ by hydrothermal reaction. Chem Mater, 1998, 10(1), 17 doi: 10.1021/cm970557m
[40]	Persistent luminescence of transition metal . (Co, Ni)-doped ZnGa₂O₄ phosphors for applications in the near-infrared range. Oxide-based Materials and Devices IX, 2018, 196
[41]	Duan X L, Liu J, Wu Y C, et al. Structure and luminescent properties of Co²⁺/Cr³⁺ Co-doped ZnGa₂O₄ nanoparticles. J Lumin, 2014, 153, 361 doi: 10.1016/j.jlumin.2014.03.027
[42]	Li X Y, Liu Q, Hu Z W, et al. Influence of ammonium hydrogen carbonate to metal ions molar ratio on co-precipitated nanopowders for TGG transparent ceramics. Journal of Inorganic Materials, 2019, 34, 791 doi: 10.15541/jim20180574
[43]	Dai Y H, Li J, Zhang Y, et al. Preparation of Er, Yb: (LaLu)₂O₃ ceramic and its upconversion luminescent properties. Chin J Lumin, 2018, 39(4), 488 doi: 10.3788/fgxb20183904.0488
[44]	Wei J B, Toci G, Pirri A, et al. Fabrication and property of Yb: CaF₂ laser ceramics from co-precipitated nanopowders. Journal of Inorganic Materials, 2019, 34, 1341 doi: 10.15541/jim20190121
[45]	White W B, DeAngelis B A. Interpretation of the vibrational spectra of spinels. Spectrochim Acta Part A Mol Spectrosc, 1967, 23(4), 985 doi: 10.1016/0584-8539(67)80023-0
[46]	Bukhari S H, Ahmad J. Infrared active phonons and optical band gap in multiferroic GdMnO₃ studied by infrared and UV-visible spectroscopy. Acta Phys Pol A, 2016, 129(1), 43 doi: 10.12693/APhysPolA.129.43
[47]	Kuleshov N V, Mikhailov V P, Scherbitsky V G. Co-doped spinels: promising materials for solid state lasers . Longer Wavelength Lasers and Applications, 1994, 2138, 175
[48]	Wang B, Wang H, Tu B T, et al. Optical transmission, dispersion, and transition behavior of ZnGa₂O₄ transparent ceramic. J Am Ceram Soc, 2023, 106(2), 1230 doi: 10.1111/jace.18857
[49]	Li N N, Duan X L, Yu F P, et al. Effects of preparation method and temperature on the cation distribution of ZnGa₂O₄ spinel studied by X-ray photoelectron spectroscopy. Vacuum, 2017, 142, 1 doi: 10.1016/j.vacuum.2017.04.035
[50]	Chi Z, Tarntair F G, Frégnaux M, et al. Bipolar self-doping in ultra-wide bandgap spinel ZnGa₂O₄. Mater Today Phys, 2021, 20, 100466 doi: 10.1016/j.mtphys.2021.100466
[51]	Kamal C S, Mishra R K, Rao K R, et al. Influence of Ge⁴⁺ doping on photo- and electroluminescence properties of ZnGa₂O₄. J Alloys Compd, 2021, 852, 156967 doi: 10.1016/j.jallcom.2020.156967
[52]	Drasovean R, Condurache-Bota S. Structural characterization and optical properties of Co₃O₄ and CoO films. J Optoelectron Adv Mater, 2009, 11, 2141
[53]	Ferguson J, Wood D L, Van Uitert L G. Crystal-field spectra of d^{3, 7} ions. V. tetrahedral Co²⁺ in ZnAl₂O₄ spinel. J Chem Phys, 1969, 51(7), 2904
[54]	Donegan J F, Bergin F J, Imbusch G F, et al. Luminescence from LiGa₅O₈: Co. J Lumin, 1984, 31(1), 278
[55]	Duan X L, Yuan D R, Wang L H, et al. Synthesis and optical properties of Co²⁺-doped ZnGa₂O₄ nanocrystals. J Cryst Growth, 2006, 296(2), 234 doi: 10.1016/j.jcrysgro.2006.07.035
[56]	Luo W, Ma P, Xie T F, et al. Fabrication and spectroscopic properties of Co: MgAl₂O₄ transparent ceramics by the HIP post-treatment. Opt Mater, 2017, 69, 152 doi: 10.1016/j.optmat.2017.03.036
[57]	Pappalardo R, Wood D L, Linares R C. Optical absorption spectra of Ni-doped oxide systems. I J ChemPhys, 1961, 35(4), 1460
[58]	Wood D L, Remeika J P. Optical absorption of tetrahedral Co³⁺ and Co²⁺ in garnets. J Chem Phys, 1967, 46(9), 3595 doi: 10.1063/1.1841263
[59]	Izumi K, Miyazaki S, Yoshida S, et al. Optical properties of 3d transition-metal-doped MgAl₂O₄ spinels. Phys Rev B, 2006, 76, 075111
[60]	Goldstein A, Loiko P, Burshtein Z, et al. Development of saturable absorbers for laser passive Q-switching near 1.5 μm based on transparent ceramic Co²⁺: MgAl₂O₄. J Am Ceram Soc, 2016, 99(4), 1324 doi: 10.1111/jace.14102
[61]	Su S, Liu Q, Hu Z W, et al. A simple way to prepare Co: MgAl₂O₄ transparent ceramics for saturable absorber. J Alloys Compd, 2019, 797, 1288 doi: 10.1016/j.jallcom.2019.04.322
[62]	Luo W, Pan Y B, Li C Y, et al. Fabrication and spectral properties of hot-pressed Co: MgAl₂O₄ transparent ceramics for saturable absorber. J Alloys Compd, 2017, 724, 45 doi: 10.1016/j.jallcom.2017.04.292

Search

GET CITATION

shu

Export: BibTex EndNote

Article Metrics

Article views: 130 Times PDF downloads: 17 Times Cited by: 0 Times

History

Received: 13 January 2025 Revised: 08 February 2025 Online: Accepted Manuscript: 20 February 2025Uncorrected proof: 03 April 2025

Article Navigation > Journal of Semiconductors > 2025 > Uncorrected proof

Zhengyuan Li, Jiaqi Wei, Yiyuan Liu, Huihui Li, Yang Li, Zhitai Jia, Xutang Tao, Wenxiang Mu. Growth and optical properties of large-sized Co2+: ZnGa2O4 single crystal[J]. Journal of Semiconductors, 2025, In Press. doi: 10.1088/1674-4926/25010017 ****Z Y Li, J Q Wei, Y Y Liu, H H Li, Y Li, Z T Jia, X T Tao, and W X Mu, Growth and optical properties of large-sized Co2+: ZnGa2O4 single crystal[J]. J. Semicond., 2025, 46(7), 072501 doi: 10.1088/1674-4926/25010017

Citation:

Zhengyuan Li, Jiaqi Wei, Yiyuan Liu, Huihui Li, Yang Li, Zhitai Jia, Xutang Tao, Wenxiang Mu. Growth and optical properties of large-sized Co²⁺: ZnGa₂O₄ single crystal[J]. Journal of Semiconductors, 2025, In Press. doi: 10.1088/1674-4926/25010017 ****

Z Y Li, J Q Wei, Y Y Liu, H H Li, Y Li, Z T Jia, X T Tao, and W X Mu, Growth and optical properties of large-sized Co²⁺: ZnGa₂O₄ single crystal[J]. J. Semicond., 2025, 46(7), 072501 doi: 10.1088/1674-4926/25010017

Citation:

PDF( 4166 KB)

Growth and optical properties of large-sized Co²⁺: ZnGa₂O₄ single crystal

DOI: 10.1088/1674-4926/25010017

CSTR: 32376.14.1674-4926.25010017

1.
State Key Laboratory of Crystal Materials, Institute of Novel Semiconductors, Institute of Crystal Materials, Shandong University, Jinan 250100, China
2.
State Key Laboratory for Mesoscopic Physics and Frontiers Science Center for Nano-optoelectronics, School of Physics, Peking University, Beijing 100871, China

More Information

Zhengyuan Li got his BS degree from Shandong University in 2020. Now he is a PhD student at Shandong University under the supervision of Prof. Zhitai Jia. His research focuses on the crystal growth and investigation of properties of ultrawide-bandgap semiconductor material of β-Ga₂O₃ and ZnGa₂O₄
Wenxiang Mu got his BS degree in 2013 and PhD degree in 2018 at Shandong University. Now he is an associate professor at institute of novel semiconductors of Shandong University. His research interests include crystal growth, substrate processing, performance optimization and device design based on ultrawide-bandgap semiconductor material of β-Ga₂O₃
Corresponding author: mwx@sdu.edu.cn
Received Date: 2025-01-13
Revised Date: 2025-02-08

Available Online: 2025-02-20

Abstract

Abstract

The transition of cobalt ions located at tetrahedral sites will produce strong absorption in the visible and near-infrared regions, and is expected to work in a passively Q-switched solid-state laser at the eye-safe wavelength of 1.5 µm. In this study, Co²⁺ ions were introduced into the wide bandgap semiconductor material ZnGa₂O₄, and large-sized and high-quality Co²⁺-doped ZnGa₂O₄ crystals with a volume of about 20 cm³ were grown using the vertical gradient freeze(VGF) method. Crystal structure and optical properties were analyzed using X-ray powder diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and absorption spectroscopy. XRD results show that the Co²⁺-doped ZnGa₂O₄ crystal has a pure spinel phase without impurity phases and the rocking curve full width at half maximum (FWHM) is only 58 arcsec. The concentration of Co²⁺ in Co²⁺-doped ZnGa₂O₄ crystals was determined to be 0.2 at.% by the energy dispersive X-ray spectroscopy. The optical band gap of Co²⁺-doped ZnGa₂O₄ crystals is 4.44 eV. The optical absorption spectrum for Co²⁺-doped ZnGa₂O₄ reveals a prominent visible absorption band within 550−670 nm and a wide absorption band spanning from 1100 to 1700 nm. This suggests that the Co²⁺ ions have substituted the Zn²⁺ ions, which are typically tetrahedrally coordinated, within the lattice structure of ZnGa₂O₄. The visible region's absorption peak and the near-infrared broad absorption band are ascribed to the ⁴A₂(⁴F) → ⁴T₁(⁴P) and⁴A₂(⁴F) →⁴T₁(⁴F) transitions, respectively. The optimal ground state absorption cross section was determined to be 3.07 × 10⁻¹⁹ cm² in ZnGa₂O₄, a value that is comparatively large within the context of similar materials. This finding suggests that ZnGa₂O₄ is a promising candidate for use in near-infrared passive Q-switched solid-state lasers.
- ZnGa₂O₄,
- bulk single crystals,
- cobalt doping,
- absorption,
- ultra-wide bandgap semiconductors

FullText(HTML)

References(62)
