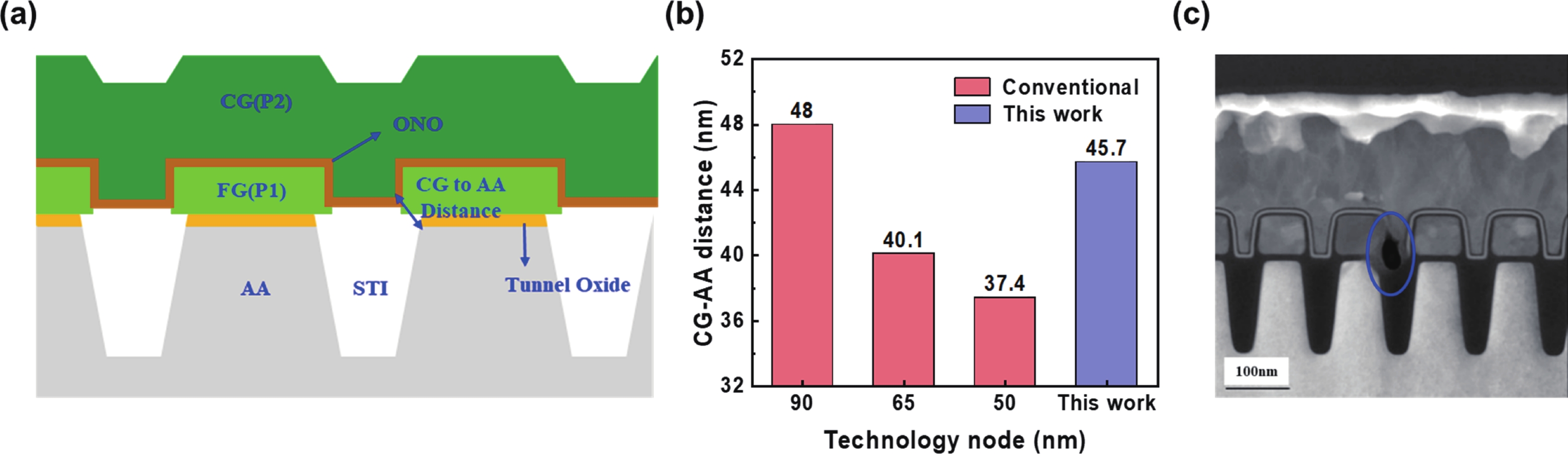

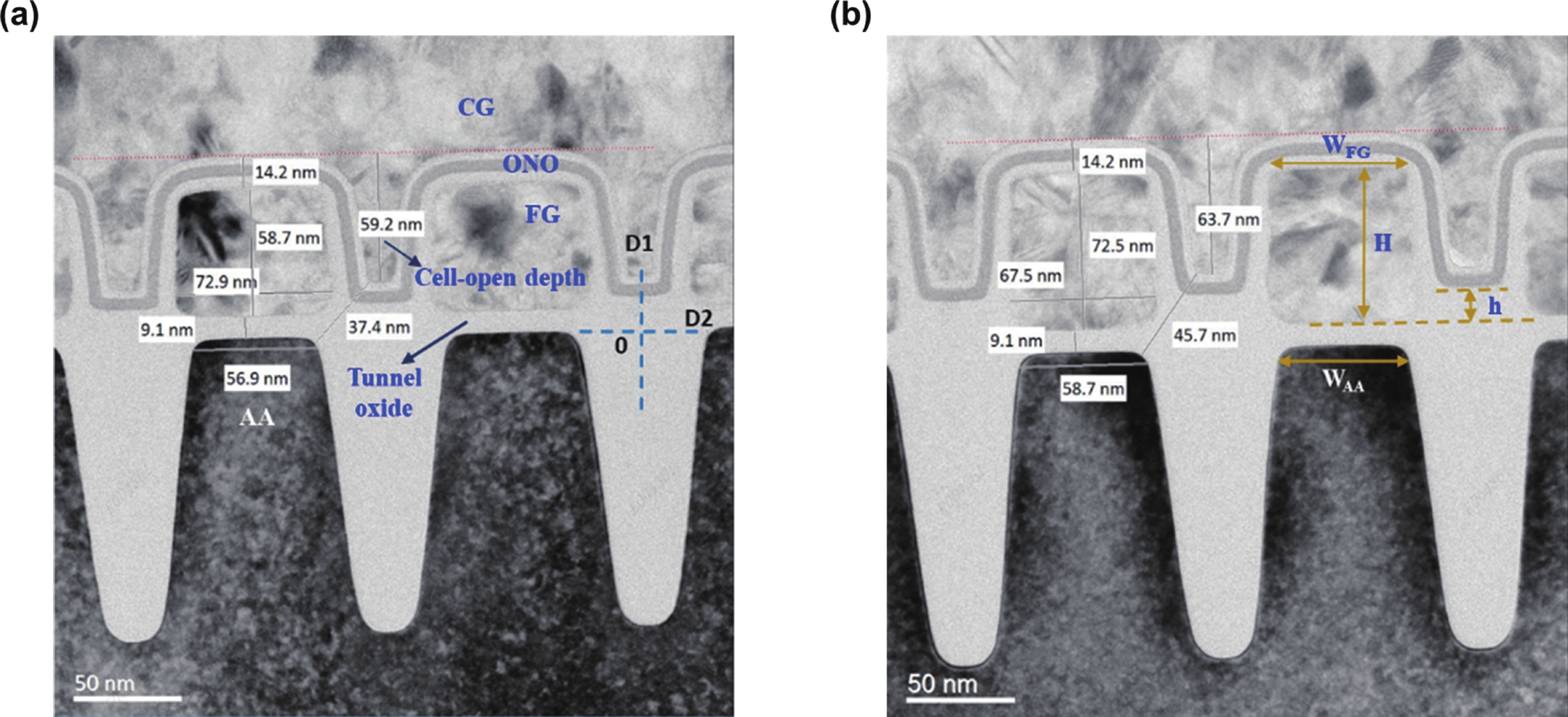

Fig. 1. (Color online) (a) A schematic of NOR flash cell structure. (b) The trend between scaling down node and CG-AA distance. (c) Cross section TEM image of CG-AA burnout issue.

DownLoad: Full-Size Img PowerPoint

Fig. 2. (Color online) Standard 50 nm generation NOR flash cell. (a) C1 cell structure, with narrower CG-AA distance. (b) C2 cell structure, with increased FG thickness, increased cell-open depth, and decreased FG width.

DownLoad: Full-Size Img PowerPoint

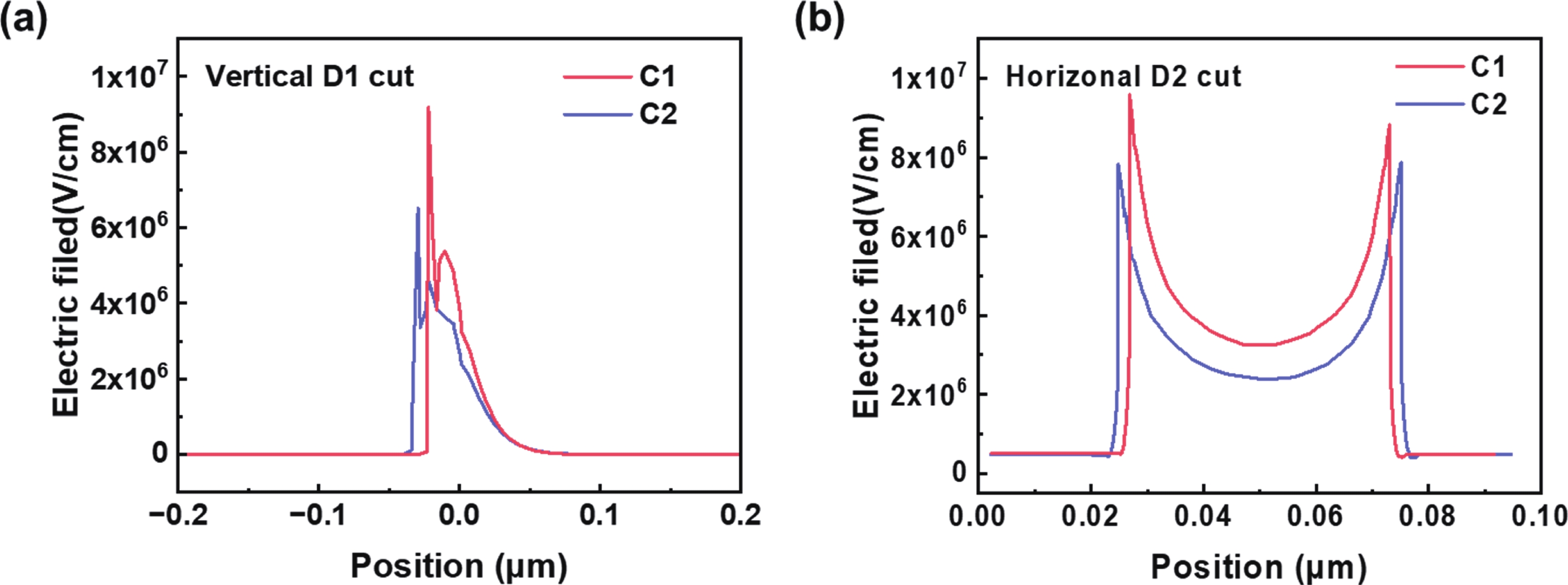

Fig. 3. (Color online) TCAD simulations results in the CG-AA structure. (a) Vertical electric field profile. (b) Horizontal electric field profile.

DownLoad: Full-Size Img PowerPoint

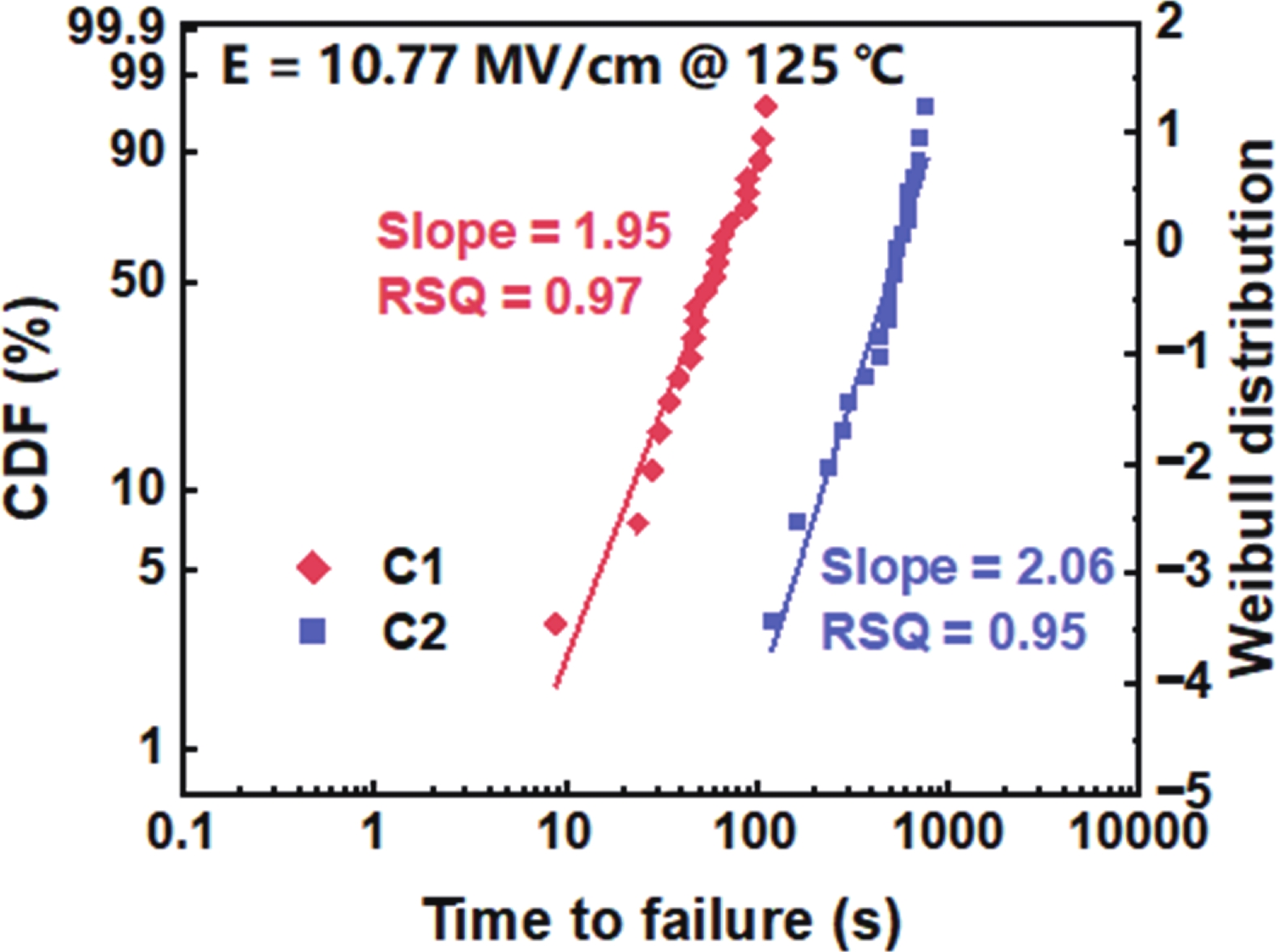

Fig. 4. (Color online) TDDB Weibull Distribution for CG-AA.

DownLoad: Full-Size Img PowerPoint

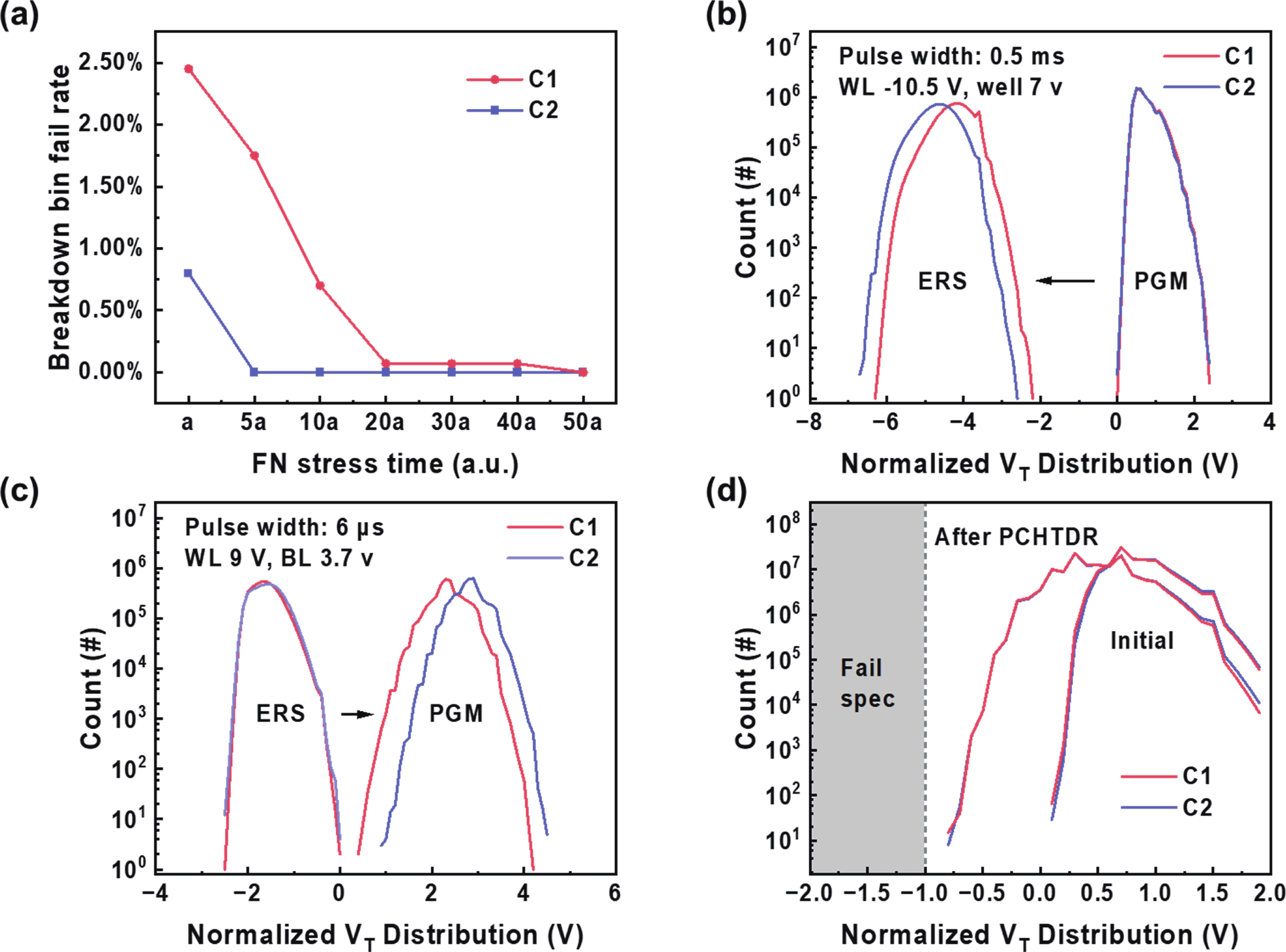

Fig. 5. (Color Online) (a) The correlation between FN stress time and CP breakdown bin fail rate. (b) V_T distribution post erasing. (c) V_T distribution post programming. (d) V_T distribution of data retention test.

DownLoad: Full-Size Img PowerPoint

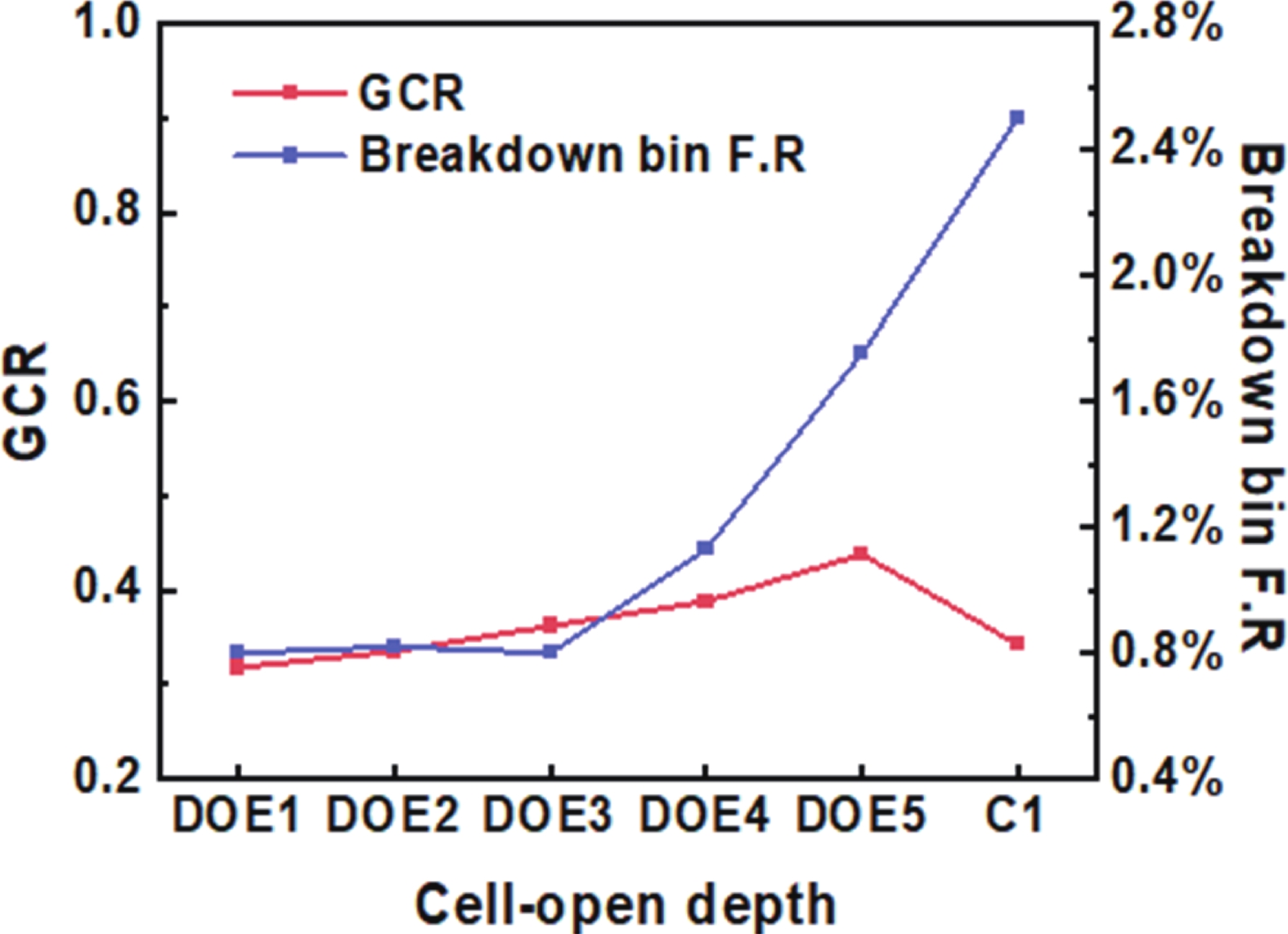

Fig. 6. (Color Online) GCR and breakdown bin correlation with cell-open depth

DownLoad: Full-Size Img PowerPoint

Table 1. Comparison of properties of two NOR flash cell structures C1 and C2.

Parameter	C1 (old)	C2 (new)	Difference
FG thickness (nm)	58.7	72.5	23.5%
FG width (nm)	72.9	67.5	−7.4%
Cell-open depth (nm)	59.2	63.7	7.6%
CG-AA corner distance (nm)	37.4	45.7	22.2%
TCAD vertical e-field peak value (V/cm)	9.17×10⁶	6.50×10⁶	−29.1%
TCAD horizontal e-field peak value (V/cm)	9.58×10⁶	7.82×10⁶	−18.4%
CG-AA TDDB T63% lifetime (s)	68	570	738%
CG-AA burnout failure (PPM)	1000	<10	---
PGM Speed (V/Pulse)	3.9	4.5	15.4%
ERS Speed (V/Pulse)	5.5	5.9	7.3%
Data Retention(V)	0.9	0.9	Comparable

DownLoad: CSV

Table 2. TCAD model and parameters.

Item			Content
Software	Sentaurus TCAD
Input	Simulation Structure
	Main Physical model	Quantum model	Quantum Potential
		Mobility model	Enormal, Doping Dependence, High Field Saturation
		Density of states model	Effective Intrinsic Density (Old Slot boom )
		Recombination model	SRH (DopingDep) Avalanche Band2Band
	Main Parameter	Silicon relative permittivity	11.7
		Silicon electron affinity	4.0727 eV
		Silicon bandgap	1.12416 eV
		Silicon mobility-Electron	1.4170×10³ cm²/V·s
		Silicon mobility-Hole	4.7050×10² cm²/V·s
		Oxide relative permittivity	3.9
		Oxide electron affinity	0.9 eV
		Oxide bandgap	9.0 eV
Output	Electric Field

DownLoad: CSV

Table 3. Cell structure change experiment.

Parameter	C1	DOE1	DOE2	DOE3	DOE4	DOE5
FG thickness (nm)	58.7			58.7×1.235
FG width (nm)	72.9			72.9×0.926
Cell-open depth (nm)	59.2	59.2	59.2×1.022	59.2×1.076	59.2×1.103	59.2×1.136
CG-AA corner distance (nm)	37.4	37.4×1.286	37.4×1.259	37.4×1.222	37.4×1.149	37.4×1.118
Breakdown bin failure rate (%)	2.5	0.8	0.82	0.8	1.13	1.75
GCR	0.342	0.318	0.335	0.362	0.388	0.438

DownLoad: CSV

[1]	Chen H L, Liu B T, Gu L. Data retention enhancement of modern 55nm NOR flash memory. 2022 China Semiconductor Technology International Conference, 2022, 1
[2]	Yu J M, Park J Y, Lee G B, et al. Demonstration of thermally-assisted programming with high speed and improved reliability for junctionless nanowire NOR flash memory. IEEE Trans Nanotechnol, 2019, 18, 1110 doi: 10.1109/TNANO.2019.2945321
[3]	Sun P, Li Y, Yao Y, et al. Study for NOR Flash cell burn out failure improvement in the advanced node below 65nm2019 IEEE 13th International Conference on ASIC, 2019, 1
[4]	Chen H L, Tong Y X, Qi X Y, et al. Silicide profile optimization on active area in 4XNM ETOX NOR flash memory. 2023 China Semiconductor Technology International Conference, 2023, 1
[5]	Du Y H, Gu L, Chen H L, et al. Yield improvement in 4X node technology ETOX NOR flash by optimizing control gate related process and design. 2024 Conference of Science and Technology for Integrated Circuits, 2024, 1
[6]	Chen C Z, Hu D Y, Wu H M. Effective radiation damage to floating gate of flash memory. 2021 China Semiconductor Technology International Conference, 2021, 1
[7]	Vargas-Sierra S, Tanios B, González-Luján J J, et al. Tid Radiation Effects of 1Gb cots nor Flash Memories for the esa juice Mission. 2019 19th European Conference on Radiation and Its Effects on Components and Systems, 2019, 1
[8]	Tanios B, Kaddour M, Forgerit B, et al. Single event effects characterization of 55-65nm NOR flash for space applications. 2021 21th European Conference on Radiation and Its Effects on Components and Systems, 2021, 1
[9]	Verma R. Flash memory quality and reliability issues. IEEE International Workshop on Memory Technology, Design and Testing, 1996, 32
[10]	Lenzlinger M, Snow E H. Fowler-Nordheim tunneling into thermally grown SiO₂. IEEE Trans Electron Devices, 1968, 15(9), 686
[11]	Cottrell P E, Troutman R R, Ning T H. Hot-electron emission in N-channel IGFET’s. IEEE Trans Electron Devices, 1979, 26(4), 520 doi: 10.1109/T-ED.1979.19456
[12]	Eitan B, Frohman-Bentchkowsky D. Hot-electron injection into the oxide in n-channel MOS devices. IEEE Trans Electron Devices, 1981, 28(3), 328 doi: 10.1109/T-ED.1981.20336
[13]	Lee J S. Review paper: Nano-floating gate memory devices. Electron Mater Lett, 2011, 7(3), 175 doi: 10.1007/s13391-011-0901-5
[14]	Yang X N, Liu J, Zheng Z W, et al. Impact of P/E cycling on read current fluctuation of NOR Flash memory cell: A microscopic perspective based on low frequency noise analysis. 2015 IEEE International Reliability Physics Symposium, 2015, 5B.7.1
[15]	Shibata T, Ohmi T. A functional MOS transistor featuring gate-level weighted sum and threshold operations. IEEE Trans Electron Devices, 1992, 39(6), 1444 doi: 10.1109/16.137325
[16]	Chen H L, Xu R, Wang H, et al. Improvement of disturb and endurance in NOR flash memory. 2022 China Semiconductor Technology International Conference, 2022, 1
[17]	Ma J Y, Wang L, Liang C D, et al. Structure optimization of 4X NM nor flash for improving cell performance. 2024 Conference of Science and Technology for Integrated Circuits, 2024, 1

Search

GET CITATION

shu

Export: BibTex EndNote

Article Metrics

Article views: 47 Times PDF downloads: 24 Times Cited by: 0 Times

History

Received: 15 March 2025 Revised: 20 May 2025 Online: Accepted Manuscript: 20 June 2025

Article Navigation > Journal of Semiconductors > 2025 > Accepted Manuscript

Kevin Fang, Wei Wang, Yibai Xue, Fan Wang, Dong Pan, Yi Li, Jerry Zhou. A High Reliability NOR Flash Cell in 50 nm Node Technology[J]. Journal of Semiconductors, 2025, In Press. doi: 10.1088/1674-4926/25030030 ****K Fang, W Wang, Y B Xue, F Wang, D Pan, Y Li, and J Zhou, A High Reliability NOR Flash Cell in 50 nm Node Technology[J]. J. Semicond., 2025, accepted doi: 10.1088/1674-4926/25030030

Citation:

Kevin Fang, Wei Wang, Yibai Xue, Fan Wang, Dong Pan, Yi Li, Jerry Zhou. A High Reliability NOR Flash Cell in 50 nm Node Technology[J]. Journal of Semiconductors, 2025, In Press. doi: 10.1088/1674-4926/25030030 ****

K Fang, W Wang, Y B Xue, F Wang, D Pan, Y Li, and J Zhou, A High Reliability NOR Flash Cell in 50 nm Node Technology[J]. J. Semicond., 2025, accepted doi: 10.1088/1674-4926/25030030

Citation:

K Fang, W Wang, Y B Xue, F Wang, D Pan, Y Li, and J Zhou, A High Reliability NOR Flash Cell in 50 nm Node Technology[J]. J. Semicond., 2025, accepted doi: 10.1088/1674-4926/25030030

PDF( 6613 KB)

A High Reliability NOR Flash Cell in 50 nm Node Technology

DOI: 10.1088/1674-4926/25030030

CSTR: 32376.14.1674-4926.25030030

Kevin Fang^{1, 2},
Wei Wang²,
Yibai Xue¹,
Fan Wang²,
Dong Pan²,
Yi Li^1,,
Jerry Zhou^{1, 2,}

1.
School of Integrated Circuits, Huazhong University of Science and Technology, Wuhan 430074, China
2.
Wuhan Xinxin Semiconductor manufacturing Co.Ltd, Wuhan 403402, China

More Information

Kevin Fang got his bachelor’s degree in 2003 from Tongji University and his master’s degree in 2011 from Huazhong University of Science and Technology. Now his is a doctoral student at Huazhong University of Science and Technology under the supervision of Prof. Yi Li. His research focus on reliability issues of 50 nm floating gate NOR flash memory products
Yi Li currently serves as a professor at Huazhong University of Science and Technology (HUST). He obtained his PhD in microelectronics from HUST in 2014. His primary research interests are centered on memristors and their applications in the realms of in - memory computing and neuromorphic computing
Jerry Zhou got his bachelor’s degree in 2004 from Wuhan University of Technology and his master’s degree in 2014 from Wuhan University. He is currently a doctoral student at Huazhong University of Science and Technology. His research focus on non-volatile memory process and reliability research
Corresponding author: liyi@hust.edu.cn; Jerry_Zhou@xmcwh.com
Received Date: 2025-03-15
Revised Date: 2025-05-20

Available Online: 2025-06-20

Abstract

Abstract

Along with NOR flash cell scaling down, dielectric burnout has gradually become one of the most important factors which affects product reliability, especially for high dropout voltage films. In this study, we demonstrate a reliability-enhanced NOR flash cell in 50 nm node technology through structural optimization of floating gate (FG) dimensions and active area profile. By synergistically increasing FG thickness, reducing FG width, and tuning cell-open depth, the control gate-to-active area corner distance expands by 22%, suppressing peak electric fields by 29% vertically and 18% horizontally. This structural innovation achieves: (1) 100× reduction in early-cycle burnout failures, (2) 7.38× Time Dependent Dielectric Breakdown lifetime improvement, while maintaining data retention and accelerating programming/erasing speeds by 15.4%/7.3%. The enhanced reliability enables 97.5% reduction in Fowler-Nordheim stress time during Characterization Program testing, providing a cost-effective solution for automotive-grade flash memories.
