Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching

Ashrafun Naher Pinky; Thomas Ebel; Robert Plikat; Samaneh Sharbati

doi:10.1088/1674-4926/25110014

J. Semicond. > Just Accepted

ARTICLES

Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching

Ashrafun Naher Pinky¹, Thomas Ebel¹, Robert Plikat² and Samaneh Sharbati^1,

+ Author Affiliations

1. Centre for Industrial Electronics (CIE), Institute of Mechanical and Electrical Engineering (IME), University of Southern Denmark, Sønderborg, Denmark
2. Group Innovation, Functional Materials, K-GERS/F, Volkswagen Aktiengesellschaft, Brieffach 011/17774 38436 Wolfsburg, Germany

Author Bio:

Ashrafun Naher Pinky is currently pursuing a PhD at the Centre for Industrial Electronics (CIE) at the University of Southern Denmark (SDU), focusing on the design of fast-switching vertical GaN power devices. She received her B.Sc. and M.Sc. degrees in electrical and electronic engineering from Rajshahi University of Engineering and Technology, Bangladesh. Her research interests include high-efficiency devices for power electronics applications, in particular improving breakdown voltage and Figure of Merit in vertical GaN devices.

Dr. Thomas Ebel is Professor and Head of Electrical Engineering and the Centre for Industrial Electronics at the University of Southern Denmark. He has extensive industrial and academic leadership experience in power electronics, capacitors, magnetics, electrolyzers, reliability, and AI-based condition monitoring. He has led numerous national and international research projects and currently supervises PhD students and postdoctoral researchers. His scientific output includes 208 publications, 14 patents, and more than 1,500 citations. He received SDU’s TEK Innovation Prize in 2023.

Robert Plikat (M’96) received the Dipl.-Ing. degree in electrical engineering and the Dr.-Ing. (Ph.D.) degree from the University of Bremen, Bremen, Germany, in 1994 and 2000, respectively. He has over 15 years of experience in automotive research and development. He is currently with Powertrain Systems, Group Research, Volkswagen AG, Wolfsburg, Germany. His current research interests include the electrification of vehicles, the respective components, and the related technologies, in particular, power electronics and drives.

Samaneh Sharbati is working as an associate professor at the Centre for Industrial Electronics (CIE) at the University of Southern Denmark (SDU) for the past 6 years. Her research interests include Semiconductor Devices, focusing on GaN Devices. She received the B.Sc. and M.S. degrees in electronic engineering from Semnan University, Semnan, Iran, in 2001 and 2006, and a Ph.D. from Ferdowsi University of Mashhad, Mashhad, Iran, in 2015. She has published more than 30 research papers.

Corresponding author: Samaneh Sharbati, sharbati@sdu.dk

DOI: 10.1088/1674-4926/25110014CSTR: 32376.14.1674-4926.25110014

Abstract: This article presents the design of a Vertical GaN Trench MOSFET featuring a Double-Diffused Base (DDB-TMOS) with an in-depth analysis of its device physics. The introduction of a lightly doped p^– GaN layer, where the channel forms, helps lower the potential barrier, improving electron transport from the n⁺ source into the n-drift region. The simulation study of the DDB-TMOS achieves a substantial reduction in threshold voltage from 10 V to 2.88 V, while the maximum current density increases from 9 kA/cm² to 21 kA/cm². As a result of structural optimization, the specific ON-resistance markedly decreases from 5.15 mΩ·cm² to 1.61 mΩ·cm². Additionally, the switching behavior of the device was systematically analyzed. The reduced base doping beneath the gate oxide led to a notable decrease in the gate-source capacitance by a factor of 1.2, decreasing the turn-on switching loss from 42 µJ/cm2 to 12 µJ/cm2. Following comprehensive static and dynamic analysis, the figure of merits (FOMs) were employed to optimize the device structure. The Baliga’s figure of merit increased from 0.68 to 2.35 GW/cm², while the switching figure of merit improved from 4.49 to 16 GHz/cm². This study confirms that the optimized DDB-TMOS is highly promising for future high-power switching applications.

Keywords: vertical GaN trench MOSFET, threshold voltage, specific ON-resistance, gate-source capacitance, switching loss

References

[1]	Meneghini M, De Santi C, Abid I, et al. GaN-based power devices: Physics, reliability, and perspectives. J Appl Phys, 2021, 130(18): 181101 doi: 10.1063/5.0061354
[2]	Sharbati S, Gharibshahian I, Ebel T, et al. Analytical model for two-dimensional electron gas charge density in recessed-gate GaN high-electron-mobility transistors. J Electron Mater, 2021, 50(7): 3923 doi: 10.1007/s11664-021-08842-7
[3]	Luan T T, Huang S, Jing G J, et al. Recess-free enhancement-mode AlGaN/GaN RF HEMTs on Si substrate. J Semicond, 2024, 45(6): 062301 doi: 10.1088/1674-4926/23120006
[4]	Meneghesso G, Verzellesi G, Danesin F, et al. Reliability of GaN high-electron-mobility transistors: State of the art and perspectives. IEEE Trans Device Mater Relib, 2008, 8(2): 332 doi: 10.1109/TDMR.2008.923743
[5]	Gill L, DasGupta S, Neely J C, et al. A review of GaN HEMT dynamic ON-resistance and dynamic stress effects on field distribution. IEEE Trans Power Electron, 2024, 39(1): 517 doi: 10.1109/TPEL.2023.3318182
[6]	Cioni M, Zagni N, Iucolano F, et al. Partial recovery of dynamic RON versus OFF-state stress voltage in p-GaN gate AlGaN/GaN power HEMTs. IEEE Trans Electron Devices, 2021, 68(10): 4862 doi: 10.1109/TED.2021.3105075
[7]	Zhu R P, Zhou Q, Tao H, et al. A split gate vertical GaN power transistor with intrinsic reverse conduction capability and low gate charge. 2018 IEEE 30th International Symposium on Power Semiconductor Devices and ICs (ISPSD), 2018: 212
[8]	Ji D, Agarwal A, Li H R, et al. 880 V/2.7 mΩ·cm² MIS gate trench CAVET on bulk GaN substrates. IEEE Electron Device Lett, 2018, 39(6): 863 doi: 10.1109/LED.2018.2828844
[9]	Chowdhury S, Wong M H, Swenson B L, et al. CAVET on bulk GaN substrates achieved with MBE-regrown AlGaN/GaN layers to suppress dispersion. IEEE Electron Device Lett, 2012, 33(1): 41 doi: 10.1109/LED.2011.2173456
[10]	Mandal S, Agarwal A, Ahmadi E, et al. Dispersion free 450-V p GaN-gated CAVETs with Mg-ion implanted blocking layer. IEEE Electron Device Lett, 2017, 38(7): 933 doi: 10.1109/LED.2017.2709940
[11]	Zagni N, Fregolent M, Del Fiol A, et al. Physical insights into trapping effects on vertical GaN-on-Si trench MOSFETs from TCAD. J Semicond, 2024, 45(3): 032501 doi: 10.1088/1674-4926/45/3/032501
[12]	Doering P, Driad R, Reiner R, et al. Metal organic chemical vapour deposition regrown large area GaN-on-GaN current aperture vertical electron transistors with high current capability. Electron Lett, 2021, 57(3): 145 doi: 10.1049/ell2.12068
[13]	Wen X Y, Lee K J, Nakazato Y, et al. High current density trench CAVET on bulk GaN substrates with low-temperature GaN suppressing Mg diffusion. Crystals, 2023, 13(4): 709 doi: 10.3390/cryst13040709
[14]	Wen X Y, Shankar B, Lee K, et al. 10 MHz-switching on GaN trench CAVET up to 300 °C operation enabled by high channel mobility. IEEE Electron Device Lett, 2024, 45(4): 653 doi: 10.1109/LED.2024.3360917
[15]	Zhang R Z, Liu J C, Li Q, et al. Breakthrough short circuit robustness demonstrated in vertical GaN fin JFET. IEEE Trans Power Electron, 2022, 37(6): 6253 doi: 10.1109/TPEL.2021.3138451
[16]	He W, Li J, Liao Z L, et al. 1.3kV vertical GaN-based trench MOSFETs on 4-inch free standing GaN wafer. Nanoscale Res Lett, 2022, 17(1): 14 doi: 10.1186/s11671-022-03653-z
[17]	Zhu R Q, Jiang H X, Tang C W, et al. Enhancing ON- and OFF-state performance of quasi-vertical GaN trench MOSFETs on sapphire with reduced interface charges and a thick bottom dielectric. IEEE Electron Device Lett, 2022, 43(3): 346 doi: 10.1109/LED.2022.3146276
[18]	Jaiswal N K, Ramakrishnan V N. An optimized vertical GaN parallel split gate trench MOSFET device structure for improved switching performance. IEEE Access, 2023, 11: 46998 doi: 10.1109/ACCESS.2023.3265477
[19]	Kamiński M, Taube A, Tarenko J, et al. Vertical GaN trench-MOSFETs fabricated on ammonothermally grown bulk GaN substrates. Phys Status Solidi A, 2024, 221(21): 2400077 doi: 10.1002/pssa.202400077
[20]	Jaiswal N K, Ebel T, Sharbati S. Enhancing DC-DC boost converter performance with vertical GaN split-RSO-MOSFET. PCIM Conference 2025; International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management. Nürnberg, Germany. VDE, 2025: 1626
[21]	Pinky A N, Ebel T, Sharbati S. Design approach for lateral optimization of GaN CAVETs: A static characteristics study. Power Electron Devices Compon, 2025, 10: 100075 doi: 10.1016/j.pedc.2024.100075
[22]	Pinky A N, Ebel T, Sharbati S. Optimization of current aperture length for enhanced RF performance in GaN CAVET devices. PCIM Conference 2025; International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management. Nürnberg, Germany. VDE, 2025: 1632
[23]	Pinky A N, Ebel T, Plikat R, et al. A comprehensive analysis of GaN CAVET for power-switching applications. 2025 Energy Conversion Congress & Expo Europe (ECCE Europe). Birmingham, United Kingdom. IEEE, 2025: 1
[24]	Williams R K, Darwish M N, Blanchard R A, et al. The trench power MOSFET: Part I: History, technology, and prospects. IEEE Trans Electron Devices, 2017, 64(3): 674 doi: 10.1109/TED.2017.2653239
[25]	Liu S, Song X F, Zhang J C, et al. Comprehensive design of device parameters for GaN vertical trench MOSFETs. IEEE Access, 2020, 8: 57126 doi: 10.1109/ACCESS.2020.2977381
[26]	Qiu Y H, Wei L. The GaN trench MOSFET with adaptive voltage tolerance achieved through a dual-shielding structure. Semicond Sci Technol, 2024, 39(5): 055004 doi: 10.1088/1361-6641/ad3274
[27]	Sabui G, Parbrook P J, Arredondo-Arechavala M, et al. Modeling and simulation of bulk gallium nitride power semiconductor devices. AIP Adv, 2016, 6(5): 055006 doi: 10.1063/1.4948794
[28]	Prasad C V, Dharmaiah P, Lee G H, et al. Interface engineering of 4H-SiC-based UV photodetectors: A comprehensive review. Mater Today Adv, 2025, 28: 100662 doi: 10.1016/j.mtadv.2025.100662
[29]	Dharmawardana K G P, Amaratunga G A J. Modeling of high current density trench gate MOSFET. IEEE Trans Electron Devices, 2000, 47(12): 2420 doi: 10.1109/16.887031
[30]	Otake H, Chikamatsu K, Yamaguchi A, et al. Vertical GaN-based trench gate metal oxide semiconductor field-effect transistors on GaN bulk substrates. Appl Phys Express, 2008, 1(1): 011105 doi: 10.1143/APEX.1.011105
[31]	Sun S C, Plummer J D. Modeling of the on-resistance of LDMOS, VDMOS, and VMOS power transistors. IEEE Trans Electron Devices, 1980, 27(2): 356 doi: 10.1109/T-ED.1980.19868
[32]	Li S, Liu S Y, Tian Y, et al. High-temperature electrical performances and physics-based analysis of p-GaN HEMT device. IET Power Electron, 2020, 13(3): 420 doi: 10.1049/iet-pel.2019.0510

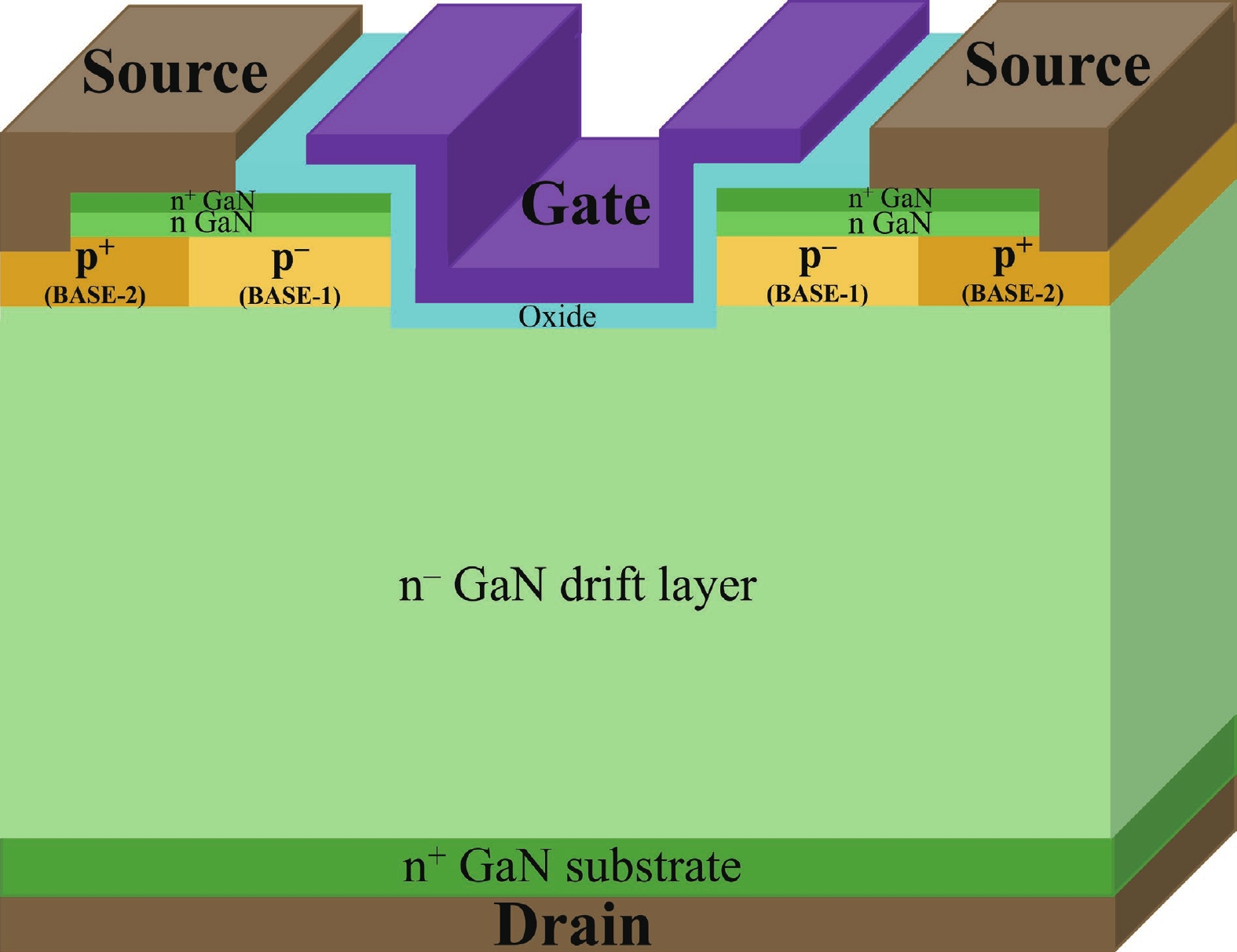

Fig. 1. (Color online) Schematic of the Vertical GaN Double-Diffused Base trench MOSFET (DDB-TMOS).

DownLoad: Full-Size Img PowerPoint

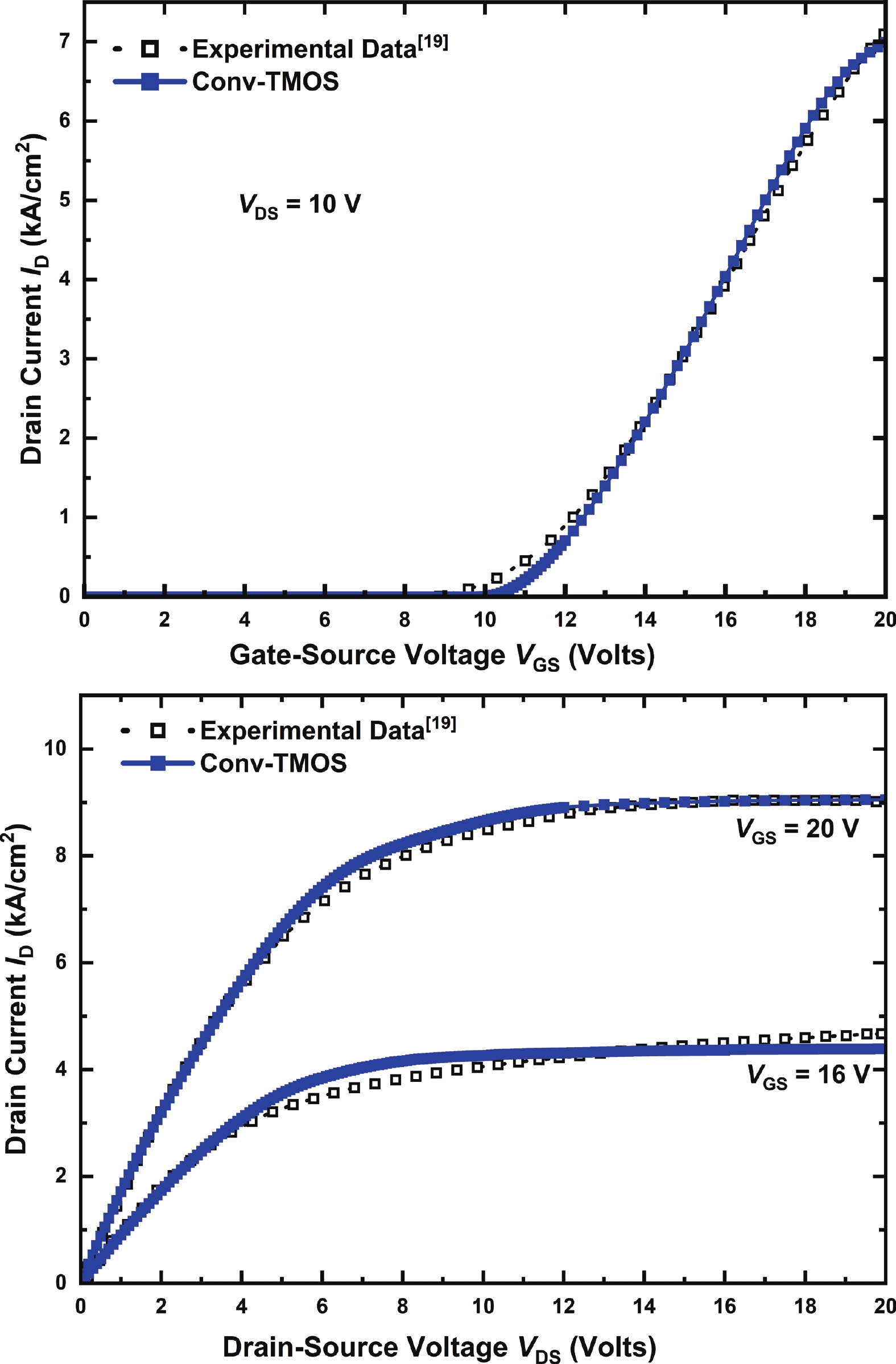

Fig. 2. (Color online) (a) The transfer characteristics and (b) the output characteristics of the experimental and simulated GaN Trench MOSFET.

DownLoad: Full-Size Img PowerPoint

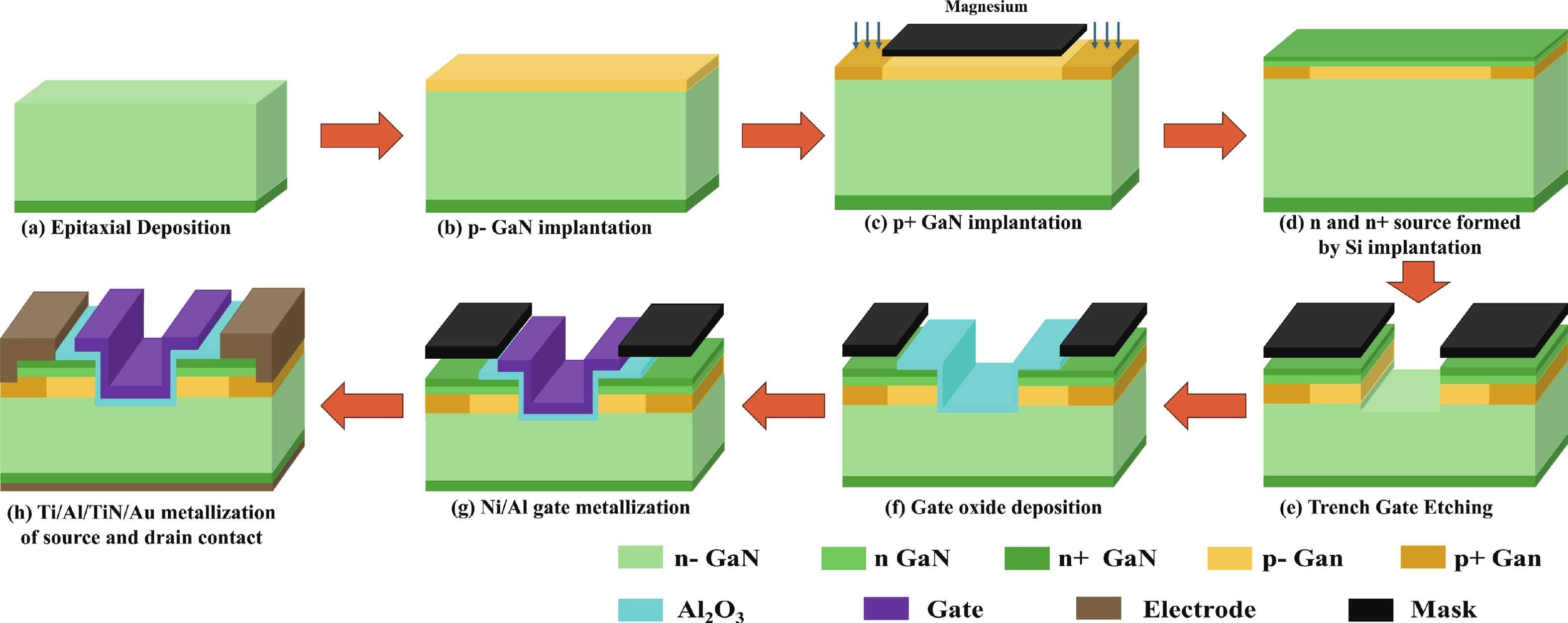

Fig. 3. Fabrication process for the Vertical GaN Double-Diffused Base Trench MOSFET (DDB-TMOS).

DownLoad: Full-Size Img PowerPoint

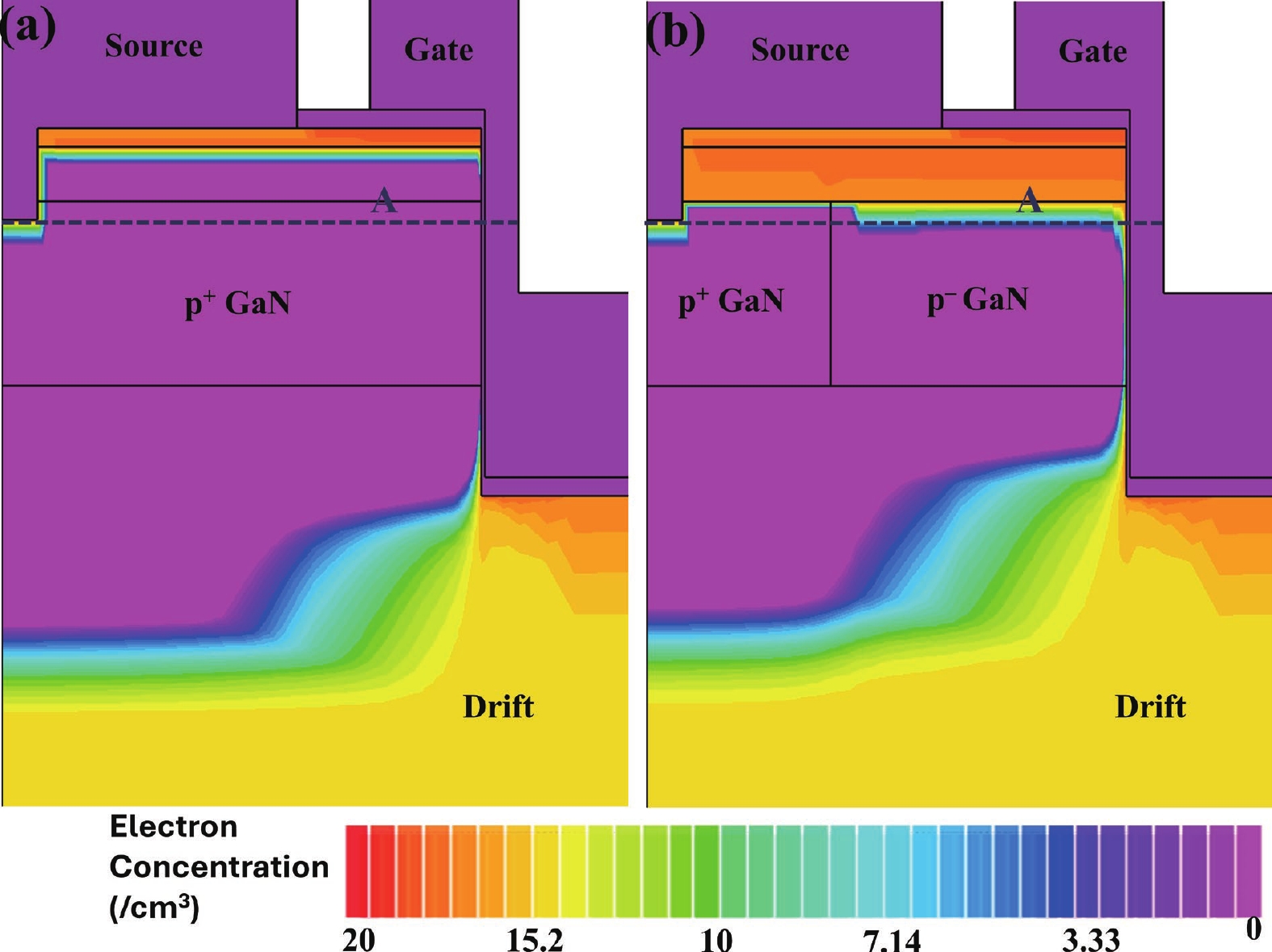

Fig. 4. Electron Concentration of Conv-TMOS and DDB-TMOS at V_GS = 16 V and V_DS = 20 V (Half of the device).

DownLoad: Full-Size Img PowerPoint

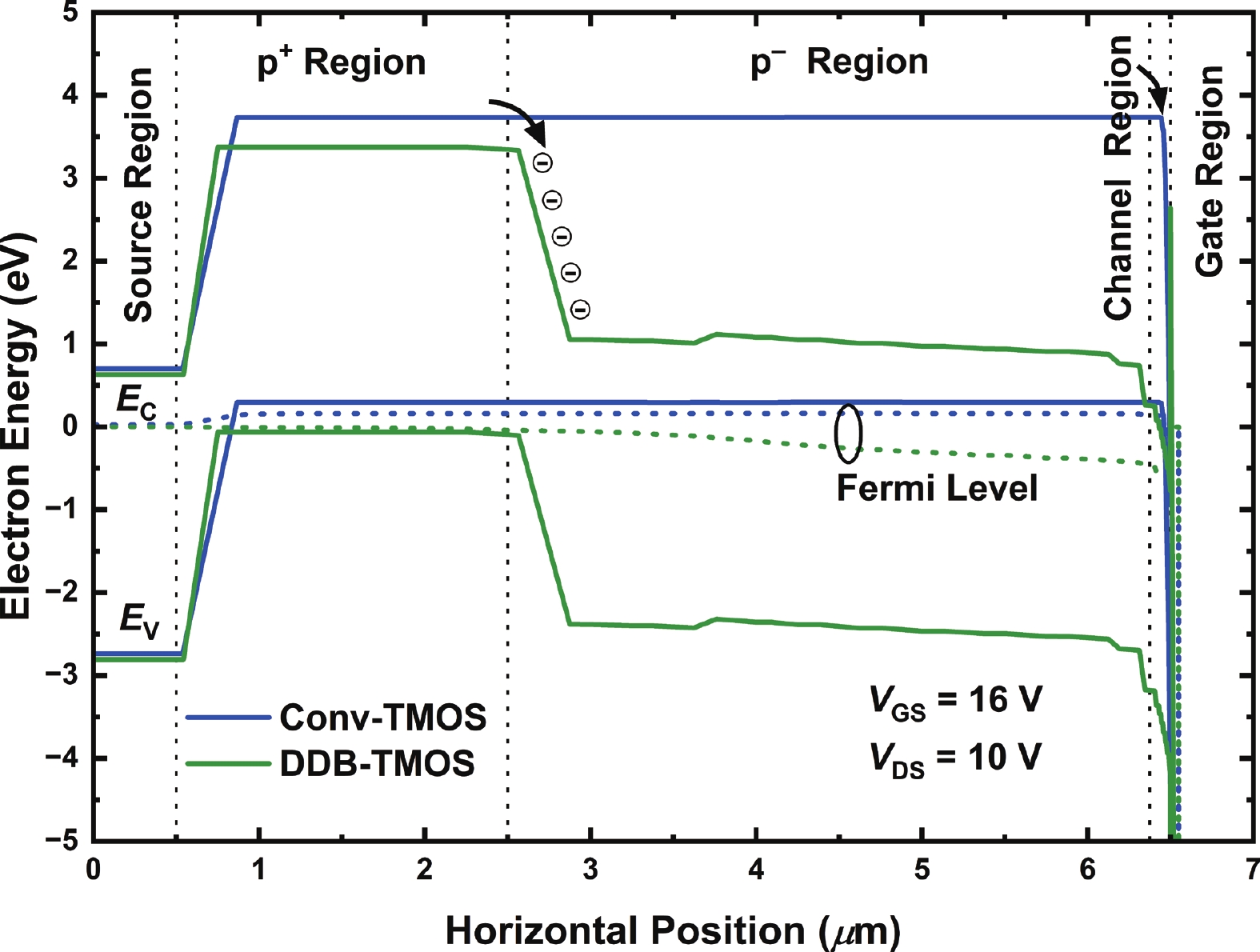

Fig. 5. Energy band diagram of Conv-TMOS and DDB-TMOS along the cutline A (Fig. 4).

DownLoad: Full-Size Img PowerPoint

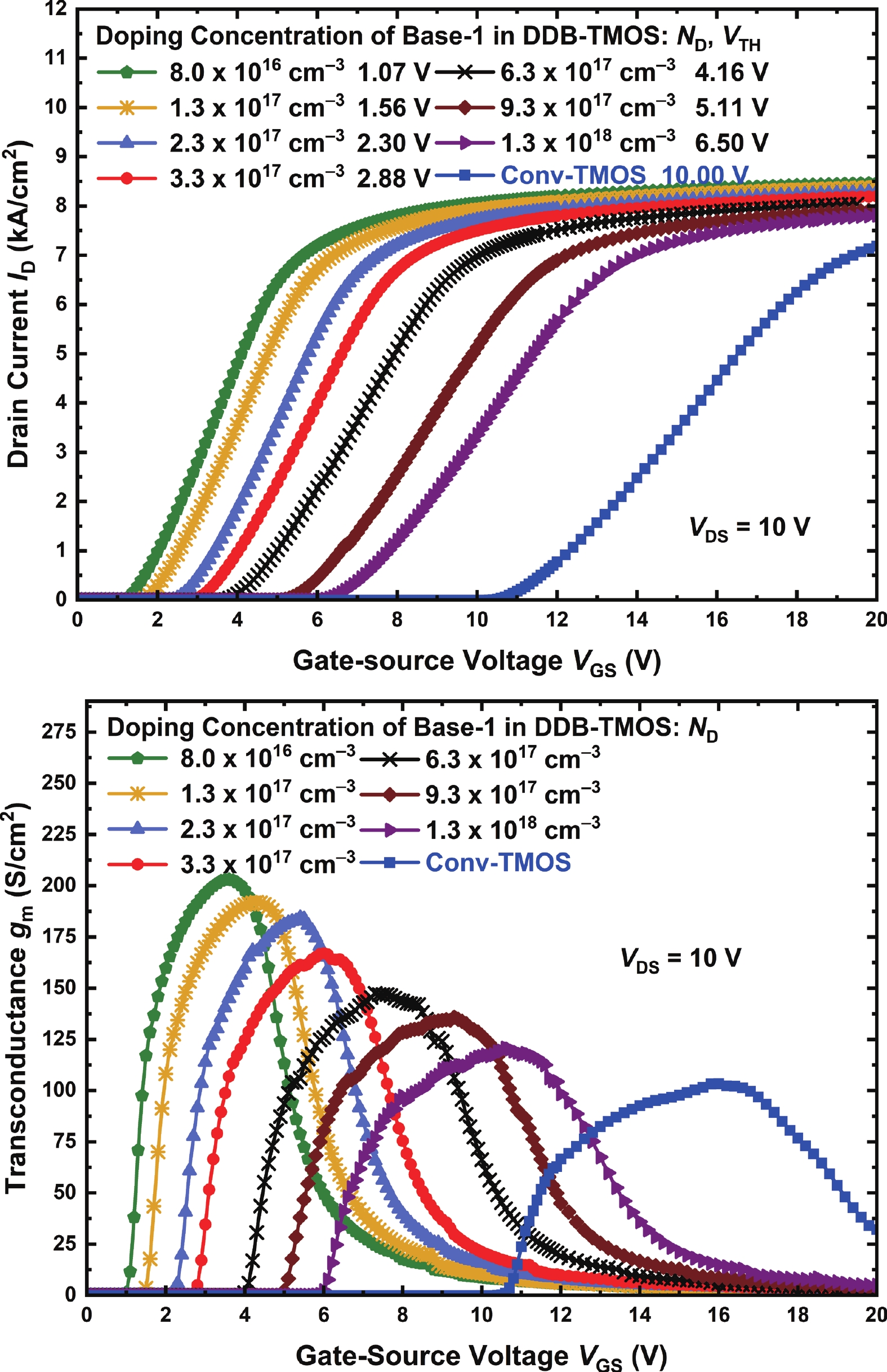

Fig. 6. (a)Transfer characteristics and (b) Transconductance of DDB-TMOS and Conv-TMOS at V_DS = 10 V.

DownLoad: Full-Size Img PowerPoint

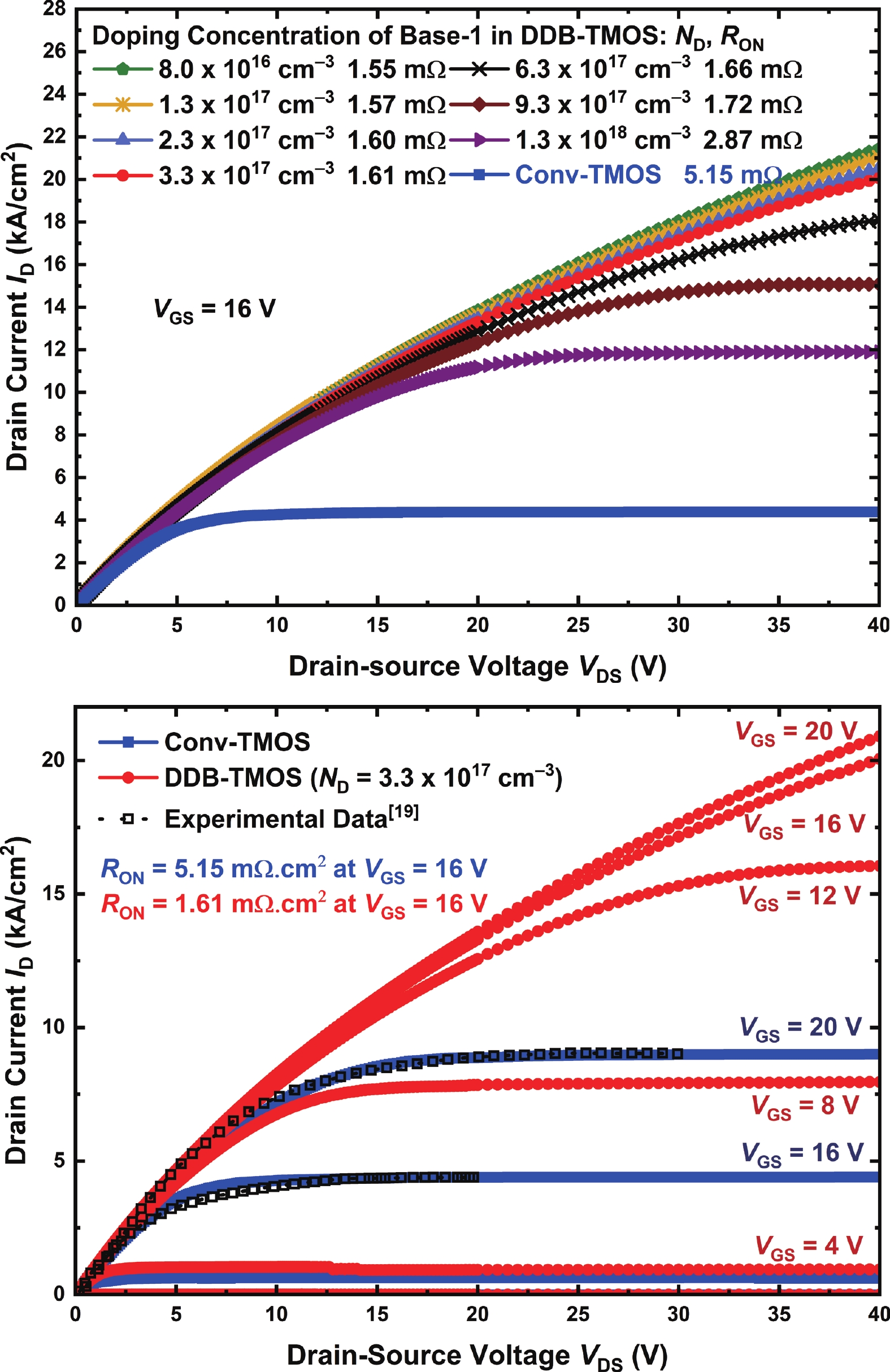

Fig. 7. The output characteristics of DDB-TMOS and Conv-TMOS.

DownLoad: Full-Size Img PowerPoint

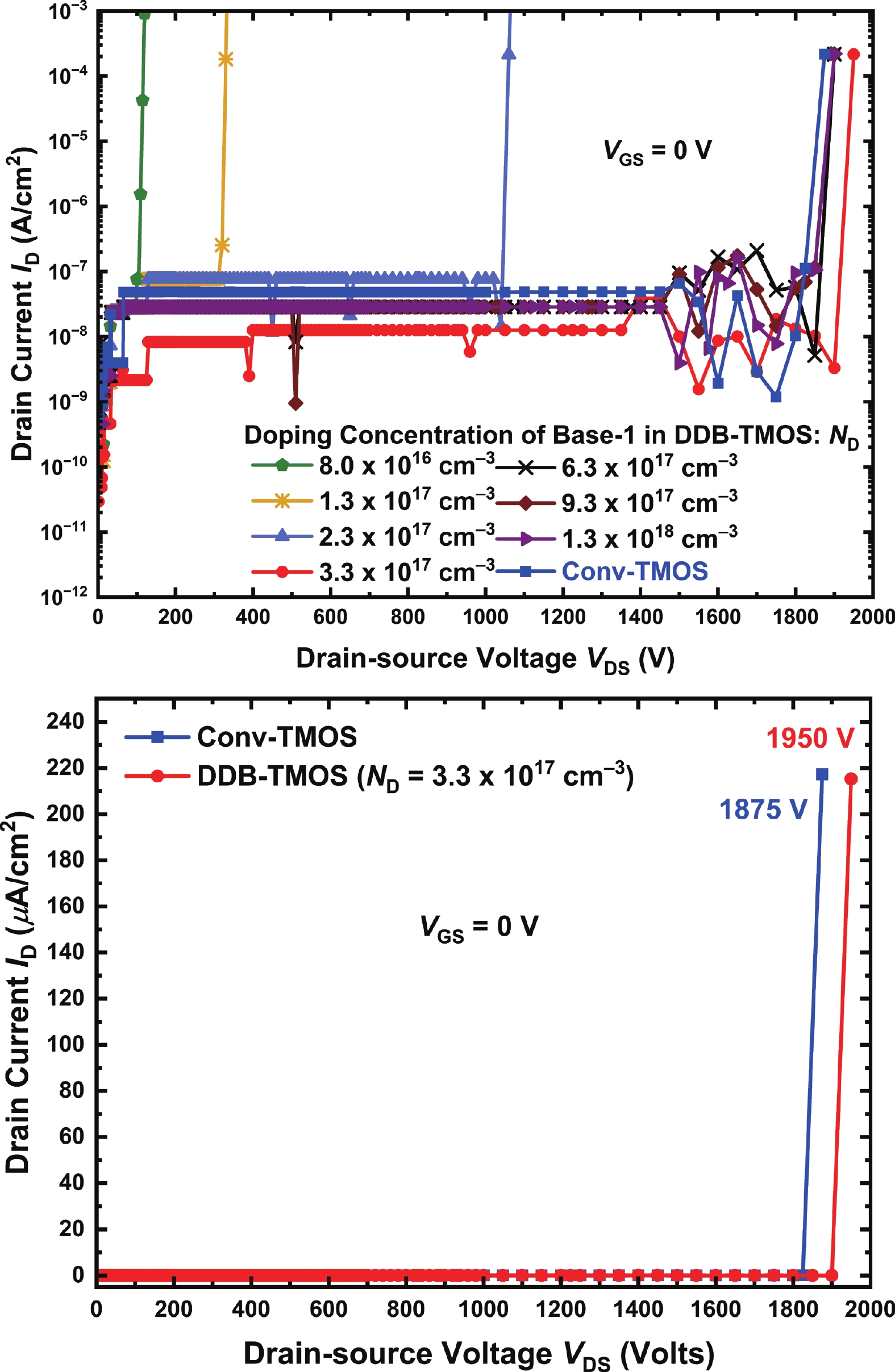

Fig. 8. The off-state characteristics of the DDB-TMOS and Conv-TMOS.

DownLoad: Full-Size Img PowerPoint

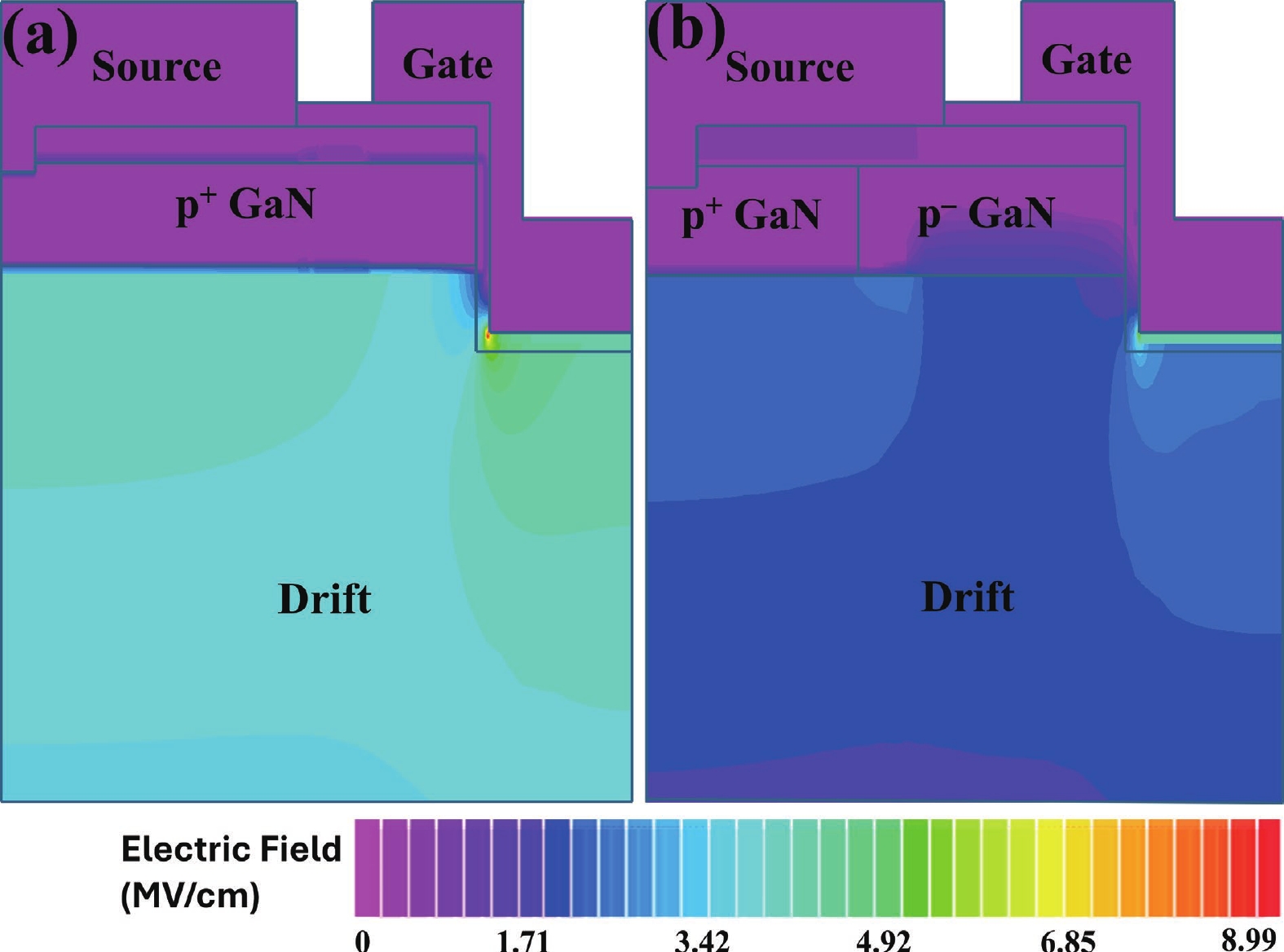

Fig. 9. Off-state critical electric field distributions of the (a) Conv-TMOS and (b) DDB-TMOS at V_GS = 0 V and V_DS = 2000 V.

DownLoad: Full-Size Img PowerPoint

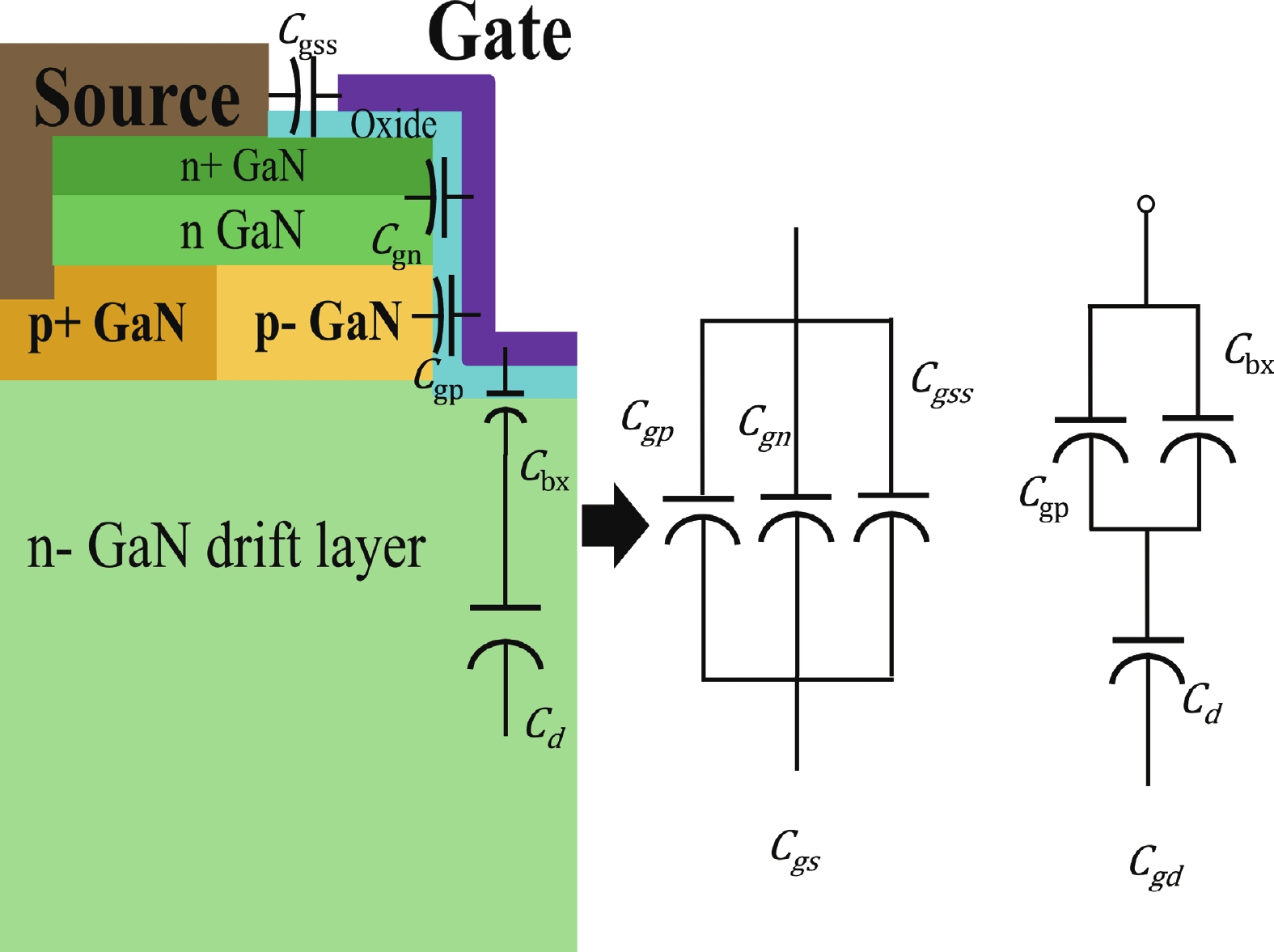

Fig. 10. Schematics of C_gs and C_gd and the corresponding equivalent circuits of the DDB-TMOS.

DownLoad: Full-Size Img PowerPoint

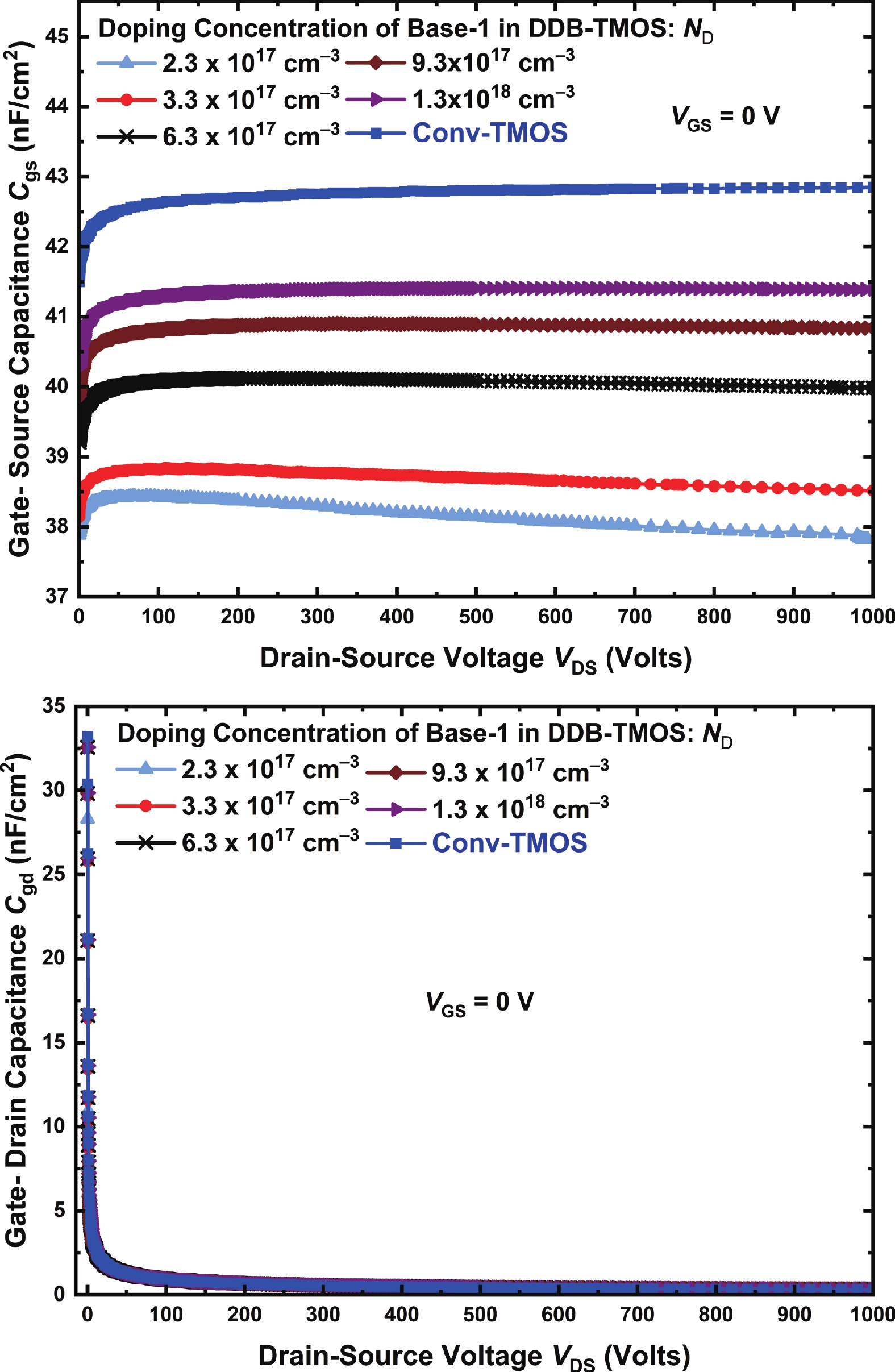

Fig. 11. Comparison of C_gs and C_gd capacitances of the Conv-TMOS and DDB-TMOS with different Base-1 doping concentrations.

DownLoad: Full-Size Img PowerPoint

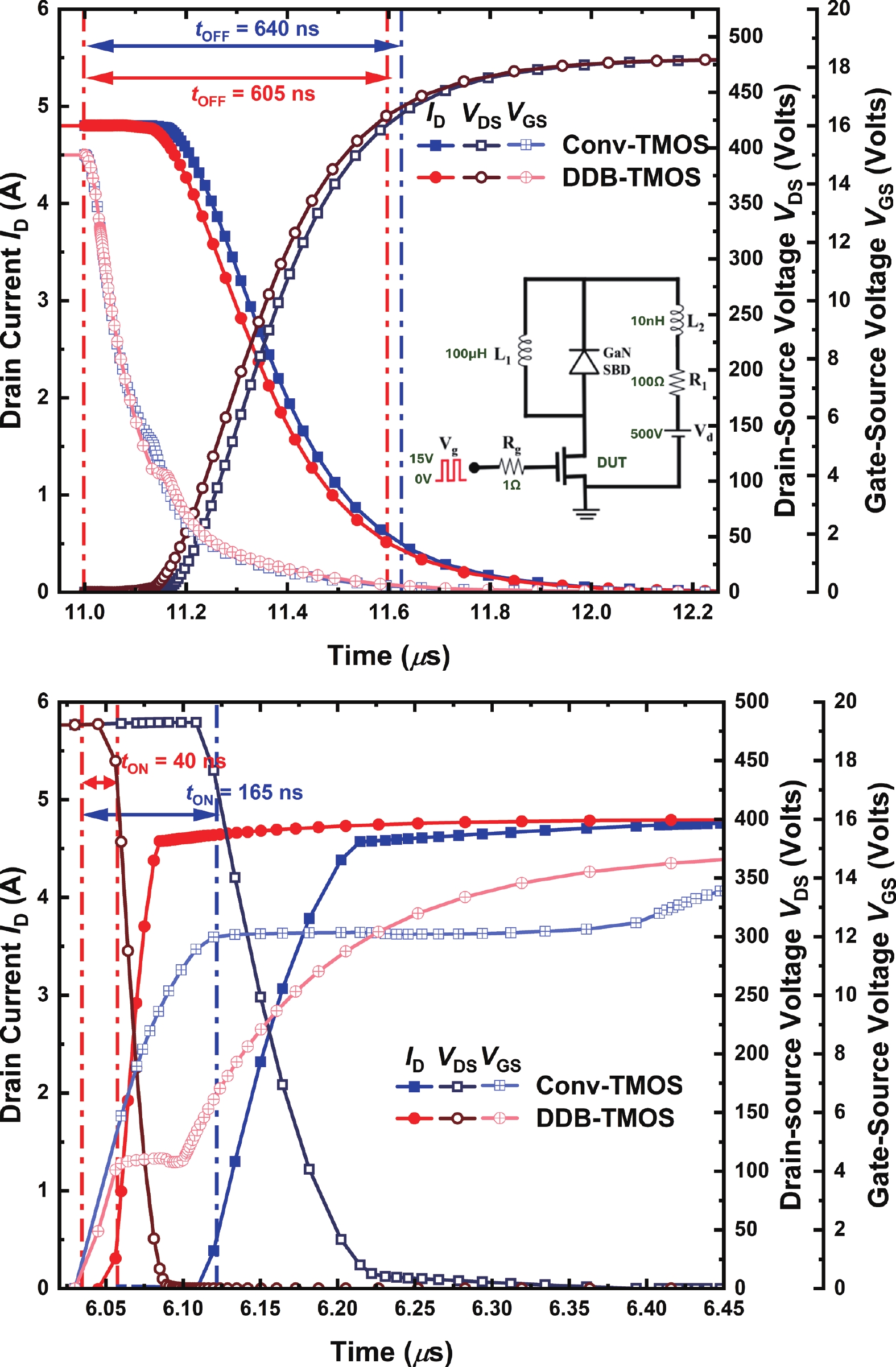

Fig. 12. (a) Turn-off and (b) turn-on switching waveforms of the Conv-TMOS and the DDB-TMOS.

DownLoad: Full-Size Img PowerPoint

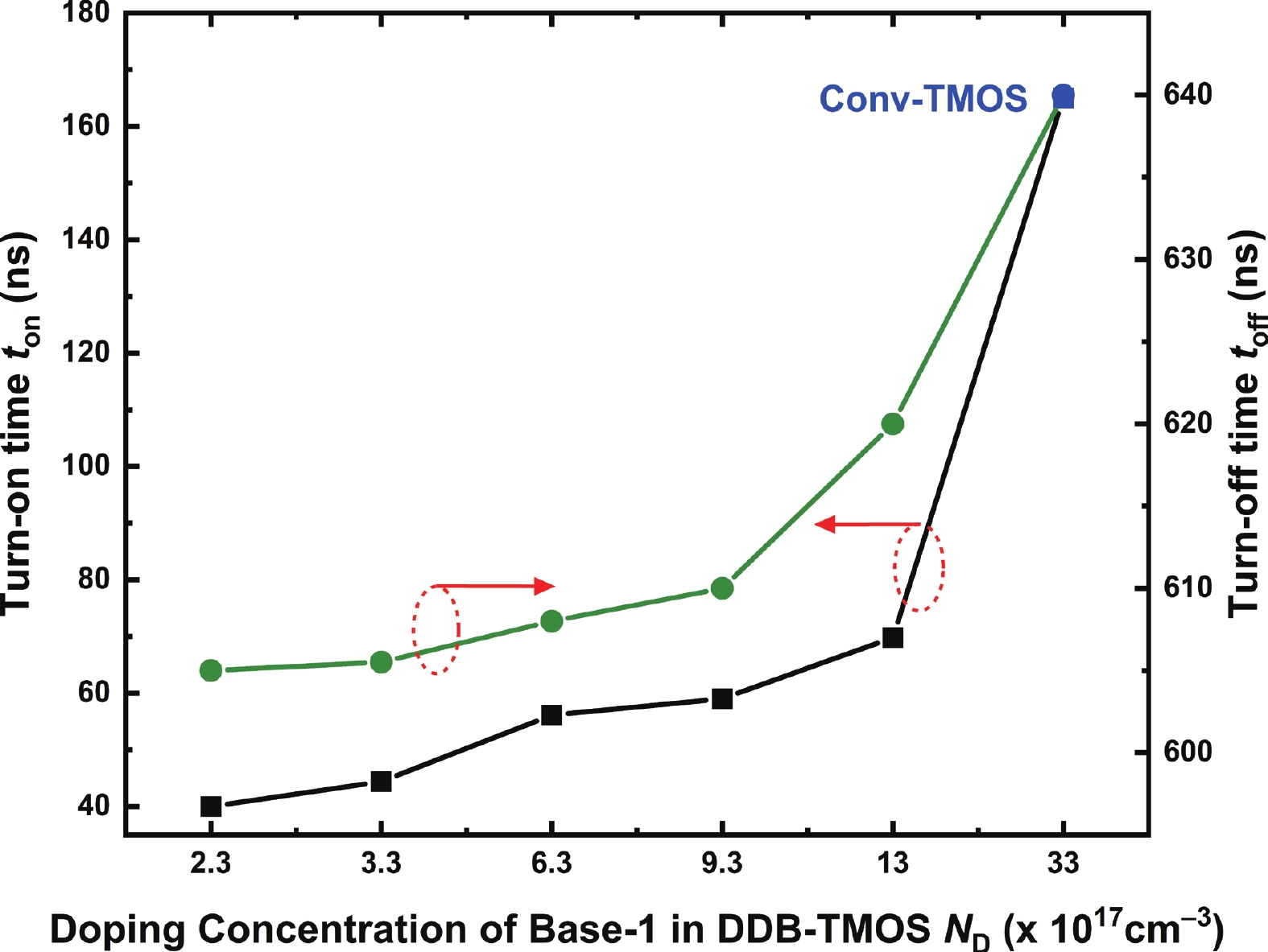

Fig. 13. Turn-off and turn-on switching speed of the DDB-TMOS and Conv-TMOS.

DownLoad: Full-Size Img PowerPoint

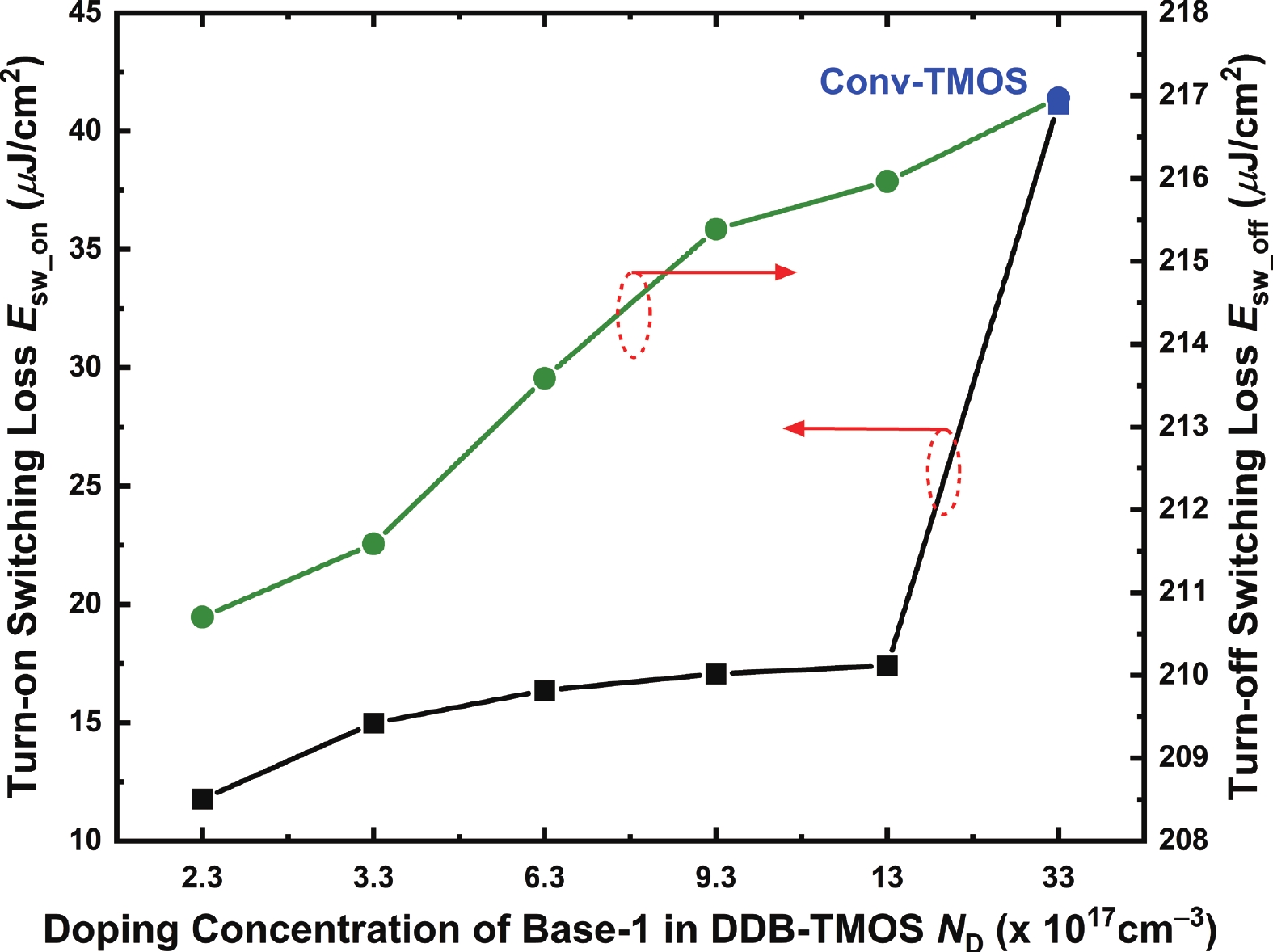

Fig. 14. Switching loss of the DDB-TMOS and Conv-TMOS.

DownLoad: Full-Size Img PowerPoint

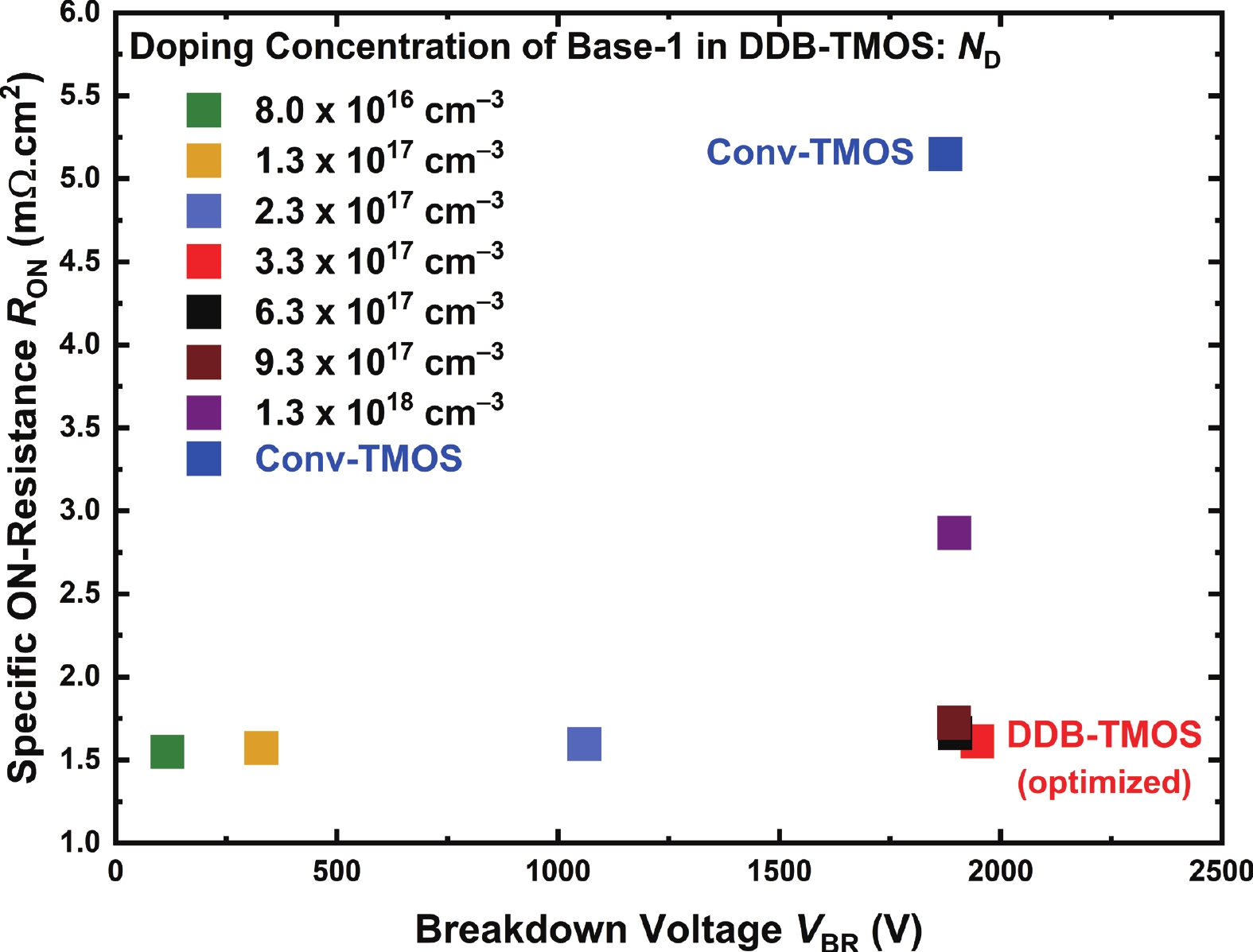

Fig. 15. V_BR vs R_ONCharacteristics curve of the DDB-TMOS and Conv-TMOS.

DownLoad: Full-Size Img PowerPoint

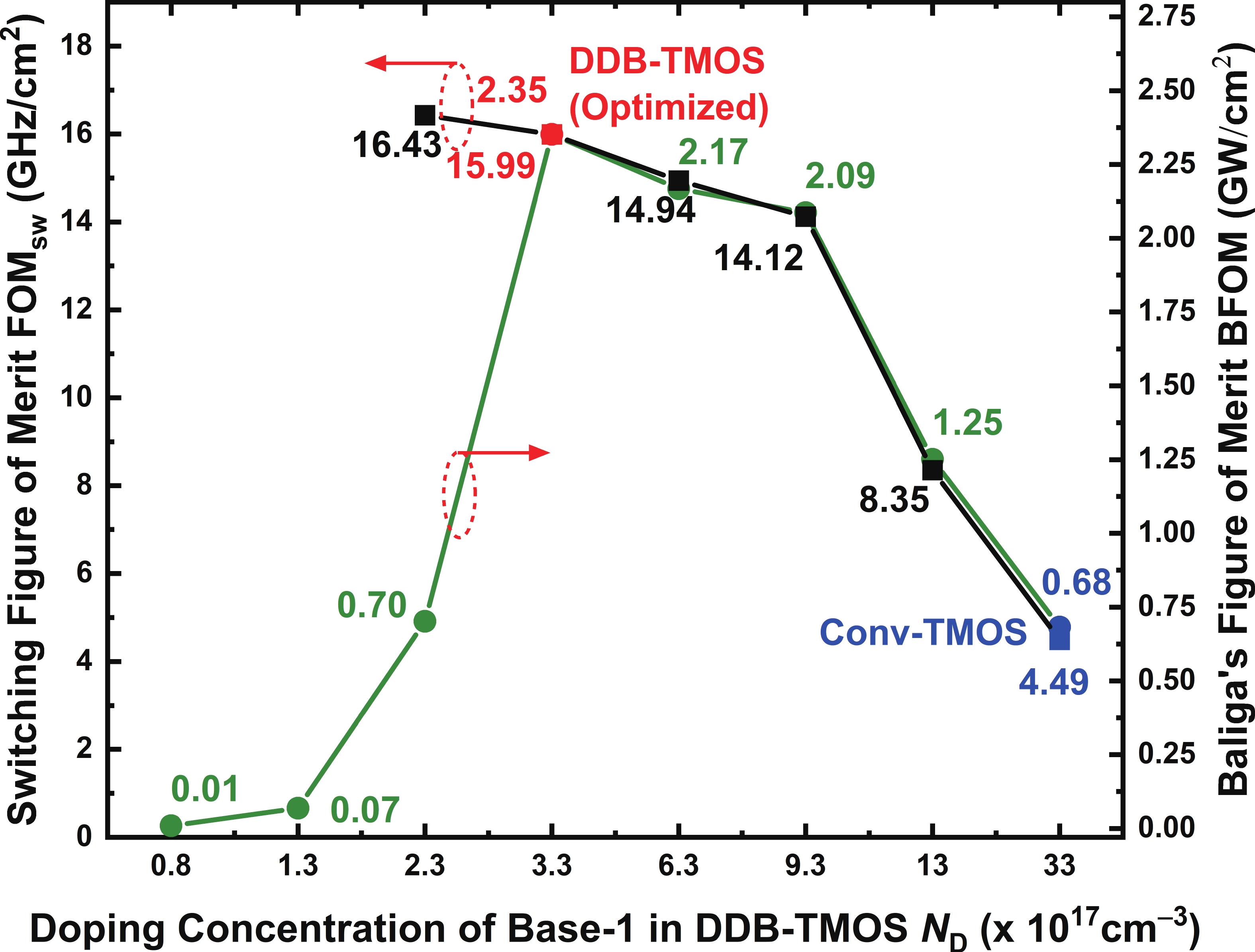

Fig. 16. FOMs as a function of the N_D of Base-1 in DDB-TMOS.

DownLoad: Full-Size Img PowerPoint

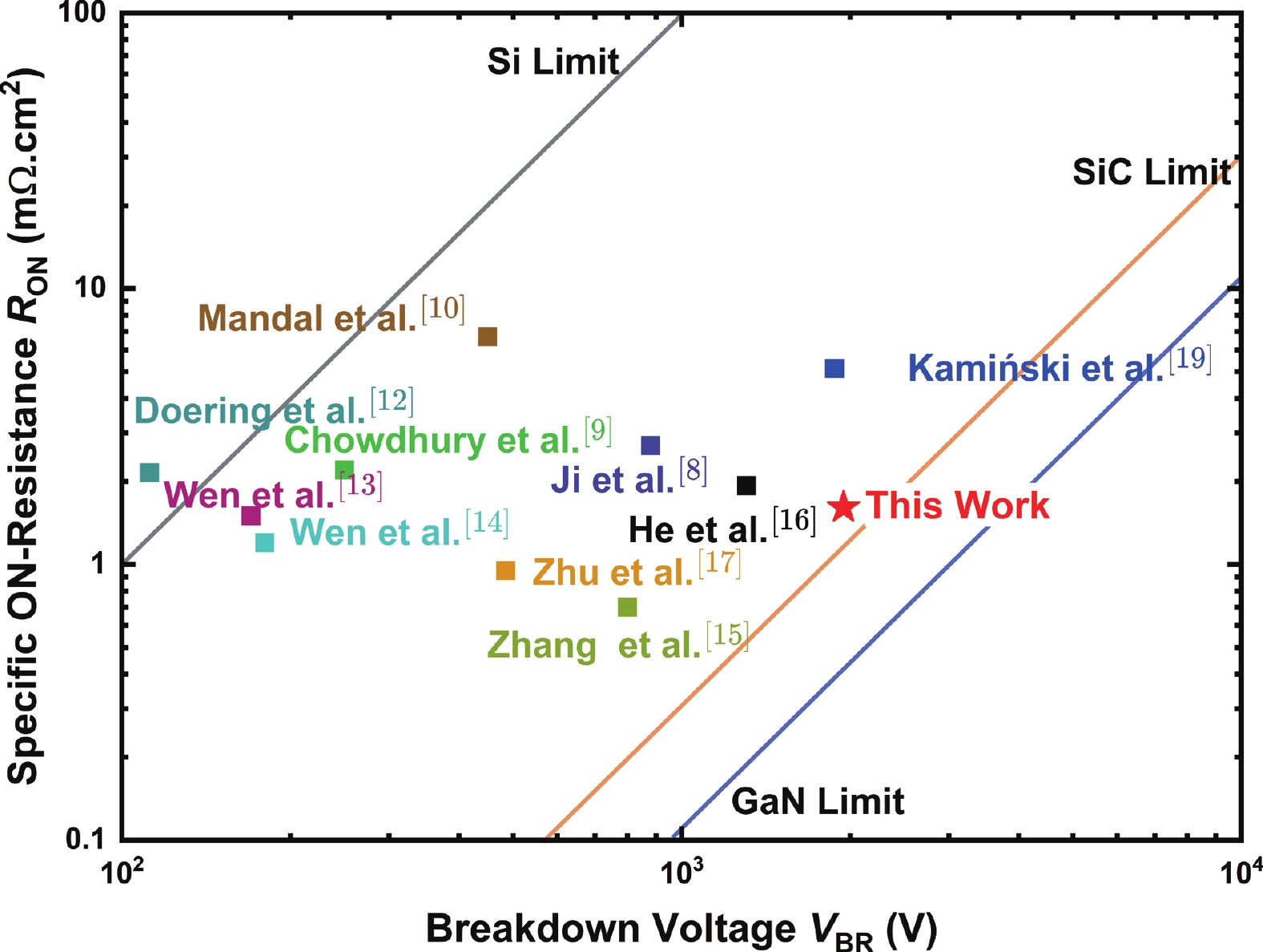

Fig. 17. Performance comparison of the proposed DDB-TMOS with other reported vertical GaN transistors.

DownLoad: Full-Size Img PowerPoint

[1]	Meneghini M, De Santi C, Abid I, et al. GaN-based power devices: Physics, reliability, and perspectives. J Appl Phys, 2021, 130(18): 181101 doi: 10.1063/5.0061354
[2]	Sharbati S, Gharibshahian I, Ebel T, et al. Analytical model for two-dimensional electron gas charge density in recessed-gate GaN high-electron-mobility transistors. J Electron Mater, 2021, 50(7): 3923 doi: 10.1007/s11664-021-08842-7
[3]	Luan T T, Huang S, Jing G J, et al. Recess-free enhancement-mode AlGaN/GaN RF HEMTs on Si substrate. J Semicond, 2024, 45(6): 062301 doi: 10.1088/1674-4926/23120006
[4]	Meneghesso G, Verzellesi G, Danesin F, et al. Reliability of GaN high-electron-mobility transistors: State of the art and perspectives. IEEE Trans Device Mater Relib, 2008, 8(2): 332 doi: 10.1109/TDMR.2008.923743
[5]	Gill L, DasGupta S, Neely J C, et al. A review of GaN HEMT dynamic ON-resistance and dynamic stress effects on field distribution. IEEE Trans Power Electron, 2024, 39(1): 517 doi: 10.1109/TPEL.2023.3318182
[6]	Cioni M, Zagni N, Iucolano F, et al. Partial recovery of dynamic RON versus OFF-state stress voltage in p-GaN gate AlGaN/GaN power HEMTs. IEEE Trans Electron Devices, 2021, 68(10): 4862 doi: 10.1109/TED.2021.3105075
[7]	Zhu R P, Zhou Q, Tao H, et al. A split gate vertical GaN power transistor with intrinsic reverse conduction capability and low gate charge. 2018 IEEE 30th International Symposium on Power Semiconductor Devices and ICs (ISPSD), 2018: 212
[8]	Ji D, Agarwal A, Li H R, et al. 880 V/2.7 mΩ·cm² MIS gate trench CAVET on bulk GaN substrates. IEEE Electron Device Lett, 2018, 39(6): 863 doi: 10.1109/LED.2018.2828844
[9]	Chowdhury S, Wong M H, Swenson B L, et al. CAVET on bulk GaN substrates achieved with MBE-regrown AlGaN/GaN layers to suppress dispersion. IEEE Electron Device Lett, 2012, 33(1): 41 doi: 10.1109/LED.2011.2173456
[10]	Mandal S, Agarwal A, Ahmadi E, et al. Dispersion free 450-V p GaN-gated CAVETs with Mg-ion implanted blocking layer. IEEE Electron Device Lett, 2017, 38(7): 933 doi: 10.1109/LED.2017.2709940
[11]	Zagni N, Fregolent M, Del Fiol A, et al. Physical insights into trapping effects on vertical GaN-on-Si trench MOSFETs from TCAD. J Semicond, 2024, 45(3): 032501 doi: 10.1088/1674-4926/45/3/032501
[12]	Doering P, Driad R, Reiner R, et al. Metal organic chemical vapour deposition regrown large area GaN-on-GaN current aperture vertical electron transistors with high current capability. Electron Lett, 2021, 57(3): 145 doi: 10.1049/ell2.12068
[13]	Wen X Y, Lee K J, Nakazato Y, et al. High current density trench CAVET on bulk GaN substrates with low-temperature GaN suppressing Mg diffusion. Crystals, 2023, 13(4): 709 doi: 10.3390/cryst13040709
[14]	Wen X Y, Shankar B, Lee K, et al. 10 MHz-switching on GaN trench CAVET up to 300 °C operation enabled by high channel mobility. IEEE Electron Device Lett, 2024, 45(4): 653 doi: 10.1109/LED.2024.3360917
[15]	Zhang R Z, Liu J C, Li Q, et al. Breakthrough short circuit robustness demonstrated in vertical GaN fin JFET. IEEE Trans Power Electron, 2022, 37(6): 6253 doi: 10.1109/TPEL.2021.3138451
[16]	He W, Li J, Liao Z L, et al. 1.3kV vertical GaN-based trench MOSFETs on 4-inch free standing GaN wafer. Nanoscale Res Lett, 2022, 17(1): 14 doi: 10.1186/s11671-022-03653-z
[17]	Zhu R Q, Jiang H X, Tang C W, et al. Enhancing ON- and OFF-state performance of quasi-vertical GaN trench MOSFETs on sapphire with reduced interface charges and a thick bottom dielectric. IEEE Electron Device Lett, 2022, 43(3): 346 doi: 10.1109/LED.2022.3146276
[18]	Jaiswal N K, Ramakrishnan V N. An optimized vertical GaN parallel split gate trench MOSFET device structure for improved switching performance. IEEE Access, 2023, 11: 46998 doi: 10.1109/ACCESS.2023.3265477
[19]	Kamiński M, Taube A, Tarenko J, et al. Vertical GaN trench-MOSFETs fabricated on ammonothermally grown bulk GaN substrates. Phys Status Solidi A, 2024, 221(21): 2400077 doi: 10.1002/pssa.202400077
[20]	Jaiswal N K, Ebel T, Sharbati S. Enhancing DC-DC boost converter performance with vertical GaN split-RSO-MOSFET. PCIM Conference 2025; International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management. Nürnberg, Germany. VDE, 2025: 1626
[21]	Pinky A N, Ebel T, Sharbati S. Design approach for lateral optimization of GaN CAVETs: A static characteristics study. Power Electron Devices Compon, 2025, 10: 100075 doi: 10.1016/j.pedc.2024.100075
[22]	Pinky A N, Ebel T, Sharbati S. Optimization of current aperture length for enhanced RF performance in GaN CAVET devices. PCIM Conference 2025; International Exhibition and Conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management. Nürnberg, Germany. VDE, 2025: 1632
[23]	Pinky A N, Ebel T, Plikat R, et al. A comprehensive analysis of GaN CAVET for power-switching applications. 2025 Energy Conversion Congress & Expo Europe (ECCE Europe). Birmingham, United Kingdom. IEEE, 2025: 1
[24]	Williams R K, Darwish M N, Blanchard R A, et al. The trench power MOSFET: Part I: History, technology, and prospects. IEEE Trans Electron Devices, 2017, 64(3): 674 doi: 10.1109/TED.2017.2653239
[25]	Liu S, Song X F, Zhang J C, et al. Comprehensive design of device parameters for GaN vertical trench MOSFETs. IEEE Access, 2020, 8: 57126 doi: 10.1109/ACCESS.2020.2977381
[26]	Qiu Y H, Wei L. The GaN trench MOSFET with adaptive voltage tolerance achieved through a dual-shielding structure. Semicond Sci Technol, 2024, 39(5): 055004 doi: 10.1088/1361-6641/ad3274
[27]	Sabui G, Parbrook P J, Arredondo-Arechavala M, et al. Modeling and simulation of bulk gallium nitride power semiconductor devices. AIP Adv, 2016, 6(5): 055006 doi: 10.1063/1.4948794
[28]	Prasad C V, Dharmaiah P, Lee G H, et al. Interface engineering of 4H-SiC-based UV photodetectors: A comprehensive review. Mater Today Adv, 2025, 28: 100662 doi: 10.1016/j.mtadv.2025.100662
[29]	Dharmawardana K G P, Amaratunga G A J. Modeling of high current density trench gate MOSFET. IEEE Trans Electron Devices, 2000, 47(12): 2420 doi: 10.1109/16.887031
[30]	Otake H, Chikamatsu K, Yamaguchi A, et al. Vertical GaN-based trench gate metal oxide semiconductor field-effect transistors on GaN bulk substrates. Appl Phys Express, 2008, 1(1): 011105 doi: 10.1143/APEX.1.011105
[31]	Sun S C, Plummer J D. Modeling of the on-resistance of LDMOS, VDMOS, and VMOS power transistors. IEEE Trans Electron Devices, 1980, 27(2): 356 doi: 10.1109/T-ED.1980.19868
[32]	Li S, Liu S Y, Tian Y, et al. High-temperature electrical performances and physics-based analysis of p-GaN HEMT device. IET Power Electron, 2020, 13(3): 420 doi: 10.1049/iet-pel.2019.0510

Search

GET CITATION

shu

Export: BibTex EndNote

Article Metrics

Article views: 1 Times PDF downloads: 0 Times Cited by: 0 Times

History

Received: 17 November 2025 Revised: 01 June 2026 Online: Accepted Manuscript: 10 September 2026

Article Navigation > Journal of Semiconductors > 2026 > Accepted Manuscript

Ashrafun Naher Pinky, Thomas Ebel, Robert Plikat, Samaneh Sharbati. Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching[J]. Journal of Semiconductors, 2026, In Press. doi: 10.1088/1674-4926/25110014 ****A N Pinky, T Ebel, R Plikat, and S Sharbati, Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching[J]. J. Semicond., 2026, accepted doi: 10.1088/1674-4926/25110014

Citation:

Ashrafun Naher Pinky, Thomas Ebel, Robert Plikat, Samaneh Sharbati. Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching[J]. Journal of Semiconductors, 2026, In Press. doi: 10.1088/1674-4926/25110014 ****

A N Pinky, T Ebel, R Plikat, and S Sharbati, Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching[J]. J. Semicond., 2026, accepted doi: 10.1088/1674-4926/25110014

Citation:

PDF( 17825 KB)

Design and optimization of vertical GaN double-diffused base MOSFET enabling high-power switching

DOI: 10.1088/1674-4926/25110014

CSTR: 32376.14.1674-4926.25110014

1.
Centre for Industrial Electronics (CIE), Institute of Mechanical and Electrical Engineering (IME), University of Southern Denmark, Sønderborg, Denmark
2.
Group Innovation, Functional Materials, K-GERS/F, Volkswagen Aktiengesellschaft, Brieffach 011/17774 38436 Wolfsburg, Germany

More Information

Ashrafun Naher Pinky is currently pursuing a PhD at the Centre for Industrial Electronics (CIE) at the University of Southern Denmark (SDU), focusing on the design of fast-switching vertical GaN power devices. She received her B.Sc. and M.Sc. degrees in electrical and electronic engineering from Rajshahi University of Engineering and Technology, Bangladesh. Her research interests include high-efficiency devices for power electronics applications, in particular improving breakdown voltage and Figure of Merit in vertical GaN devices
Dr. Thomas Ebel is Professor and Head of Electrical Engineering and the Centre for Industrial Electronics at the University of Southern Denmark. He has extensive industrial and academic leadership experience in power electronics, capacitors, magnetics, electrolyzers, reliability, and AI-based condition monitoring. He has led numerous national and international research projects and currently supervises PhD students and postdoctoral researchers. His scientific output includes 208 publications, 14 patents, and more than 1,500 citations. He received SDU’s TEK Innovation Prize in 2023
Robert Plikat (M’96) received the Dipl.-Ing. degree in electrical engineering and the Dr.-Ing. (Ph.D.) degree from the University of Bremen, Bremen, Germany, in 1994 and 2000, respectively. He has over 15 years of experience in automotive research and development. He is currently with Powertrain Systems, Group Research, Volkswagen AG, Wolfsburg, Germany. His current research interests include the electrification of vehicles, the respective components, and the related technologies, in particular, power electronics and drives
Samaneh Sharbati is working as an associate professor at the Centre for Industrial Electronics (CIE) at the University of Southern Denmark (SDU) for the past 6 years. Her research interests include Semiconductor Devices, focusing on GaN Devices. She received the B.Sc. and M.S. degrees in electronic engineering from Semnan University, Semnan, Iran, in 2001 and 2006, and a Ph.D. from Ferdowsi University of Mashhad, Mashhad, Iran, in 2015. She has published more than 30 research papers
Corresponding author: sharbati@sdu.dk
Received Date: 2025-11-17
Revised Date: 2026-06-01

Available Online: 2026-09-10

Abstract

Abstract

This article presents the design of a Vertical GaN Trench MOSFET featuring a Double-Diffused Base (DDB-TMOS) with an in-depth analysis of its device physics. The introduction of a lightly doped p^– GaN layer, where the channel forms, helps lower the potential barrier, improving electron transport from the n⁺ source into the n-drift region. The simulation study of the DDB-TMOS achieves a substantial reduction in threshold voltage from 10 V to 2.88 V, while the maximum current density increases from 9 kA/cm² to 21 kA/cm². As a result of structural optimization, the specific ON-resistance markedly decreases from 5.15 mΩ·cm² to 1.61 mΩ·cm². Additionally, the switching behavior of the device was systematically analyzed. The reduced base doping beneath the gate oxide led to a notable decrease in the gate-source capacitance by a factor of 1.2, decreasing the turn-on switching loss from 42 µJ/cm2 to 12 µJ/cm2. Following comprehensive static and dynamic analysis, the figure of merits (FOMs) were employed to optimize the device structure. The Baliga’s figure of merit increased from 0.68 to 2.35 GW/cm², while the switching figure of merit improved from 4.49 to 16 GHz/cm². This study confirms that the optimized DDB-TMOS is highly promising for future high-power switching applications.
