J. Semicond. >  In Press

RESEARCH HIGHLIGHTS

Advanced baseband chip designs for B5G and 6G

Chuan Zhang, Yiwei Zhang, Yu Tian, Kangqi Wu, Kunying Li, Houren Ji, Wenyue Zhou, Yi Zhang and Xiaohu You

+ Author Affiliations

 Corresponding author: Chuan Zhang, chzhang@seu.edu.cn; Xiaohu You, xhyu@seu.edu.cn

DOI: 10.1088/1674-4926/26020043CSTR: 32376.14.1674-4926.26020043

PDF

Turn off MathJax



[1]
Studer C, Fateh S, Seethaler D. ASIC implementation of soft-input soft-output MIMO detection using MMSE parallel interference cancellation. IEEE J Solid State Circuits, 2011, 46(7): 1754 doi: 10.1109/JSSC.2011.2144470
[2]
Zhou W Y, Ji Z H, Tan Z Q, et al. Approximate belief-selective propagation detector for massive MIMO systems. IEEE Trans Circuits Syst I Regul Pap, 2024, 71(6): 2938 doi: 10.1109/TCSI.2024.3373434
[3]
Yun S B, Lee Y. A 5.76 Gb/s 79.7 pJ/b 128 × 32 massive deep-learning uplink MIMO detector in 28nm CMOS technology. 2024 IEEE Asian Solid-State Circuits Conference, 2025: 1
[4]
Kam D, Kong B Y, Lee Y. A 1.1μs 1.56Gb/s/mm2 cost-efficient large-list SCL polar decoder using fully-reusable LLR buffers in 28nm CMOS technology. 2022 IEEE Symposium on VLSI Technology and Circuits (VLSI Technology and Circuits), 2022: 204
[5]
Su B S, Lee C H, Chiueh T D. A 58.6/91.3 pJ/b dual-mode belief-propagation decoder for LDPC and polar codes in the 5G communications standard. IEEE Solid State Circuits Lett, 2022, 5: 98 doi: 10.1109/LSSC.2022.3167423
[6]
Prabhu H, Liu L, Sheikh F, et al. A 1070 pJ/b 169 Mb/s quad-core digital baseband SoC for distributed and cooperative massive MIMO in 28 nm FD-SOI. 2021 Symposium on VLSI Circuits, 2021: 1
[7]
Castañeda O, Benini L, Studer C. A 283 pJ/b 240 Mb/s floating-point baseband accelerator for massive MU-MIMO in 22FDX. ESSCIRC 2022-IEEE 48th European Solid State Circuits Conference (ESSCIRC), 2022: 357
[8]
Zhou H Y, Deng X Y, Cai Y Q, et al. A synchro-set-aided breadth-first sphere decoder for polar-coded MIMO systems. IEEE Trans Signal Process, 2022, 70: 6200 doi: 10.1109/TSP.2022.3229949
[9]
Tang W, Prabhu H, Liu L, et al. A 1.8Gb/s 70.6pJ/b 128 × 16 link-adaptive near-optimal massive MIMO detector in 28nm UTBB-FDSOI. 2018 IEEE International Solid-State Circuits Conference-(ISSCC), 2018: 224
[10]
Jeon C, Castaneda O, Studer C. A 354 Mb/s 0.37 mm2 151 mW 32-user 256-QAM near-MAP soft-input soft-output massive MU-MIMO data detector in 28 nm CMOS. IEEE Solid-State Circuits Lett, 2019, 2(9): 127 doi: 10.1109/LSSC.2019.2935567
[11]
Tang W, Chen C H, Zhang Z Y. A 0.58-mm2 2.76-Gb/s 79.8-pJ/b 256-QAM message-passing detector for a 128 × 32 massive MIMO uplink system. IEEE J Solid State Circuits, 2021, 56(6): 1722 doi: 10.1109/JSSC.2021.3069988
[12]
Lee T, Chen T Y, Liu I H, et al. A 40-nm 131-mW 6.4-Gb/s 256 × 32 multi-user MIMO OTFS detector for next-gen communication systems. IEEE J Solid State Circuits, 2025, 60(9): 3428 doi: 10.1109/JSSC.2025.3550001
[13]
Nadal J, Baghdadi A. Parallel and flexible 5G LDPC decoder architecture targeting FPGA. IEEE Trans Very Large Scale Integr VLSI Syst, 2021, 29(6): 1141 doi: 10.1109/TVLSI.2021.3072866
[14]
Verma A, Shrestha R. High-throughput and hardware-efficient ASIC-chip fabrication of reconfigurable LDPC/polar decoder for mMTC and URLLC 5G-NR applications. IEEE Trans Circuits Syst I Regul Pap, 2024, 71(9): 4284 doi: 10.1109/TCSI.2024.3429174
[15]
Yue Y F, Ajayi T, Liu X Y, et al. A unified forward error correction accelerator for multi-mode turbo, LDPC, and polar decoding. Proceedings of the ACM/IEEE International Symposium on Low Power Electronics and Design, 2022: 1
[16]
Ji H R, Zhang Y, Sun Y T, et al. UniDec: A unified factor-graph-based decoder fully compatible with 5G NR LDPC/polar codes. IEEE Trans Circuits Syst I Regul Pap, 2025, 72(8): 4235 doi: 10.1109/TCSI.2025.3575534
[17]
Kam D, Yun S B, Choe J, et al. 2.8 a 21.9ns 15.7 Gbps/mm2 (128, 15) boss fec Decoder for 5g/6g urllc Applications. 2024 IEEE International Solid-State Circuits Conference (ISSCC), 2024: 50
[18]
Kwak H Y, Yun D Y, Kim Y, et al. Boosted neural decoders: Achieving extreme reliability of LDPC codes for 6G networks. IEEE J Sel Areas Commun, 2025, 43(4): 1089 doi: 10.1109/JSAC.2025.3531553
[19]
Zhang Y, Zhou W Y, Zhang Y W, et al. BayesBB: A 9.6Gbps 1.61ms configurable all- message-passing baseband-accelerator for B5G/6G cell-free massive-MIMO in 40nm CMOS. 2024 IEEE International Solid-State Circuits Conference (ISSCC), 2024: 48
[20]
Zhang Y, Zhou W Y, Zhang Y W, et al. BayesBB: A 9.6-Gb/s 1.61-ms configurable all-message-passing baseband-accelerator for B5G/6G cell-free massive-MIMO systems. IEEE J Solid State Circuits, 2026, 61(2): 777 doi: 10.1109/JSSC.2025.3571647

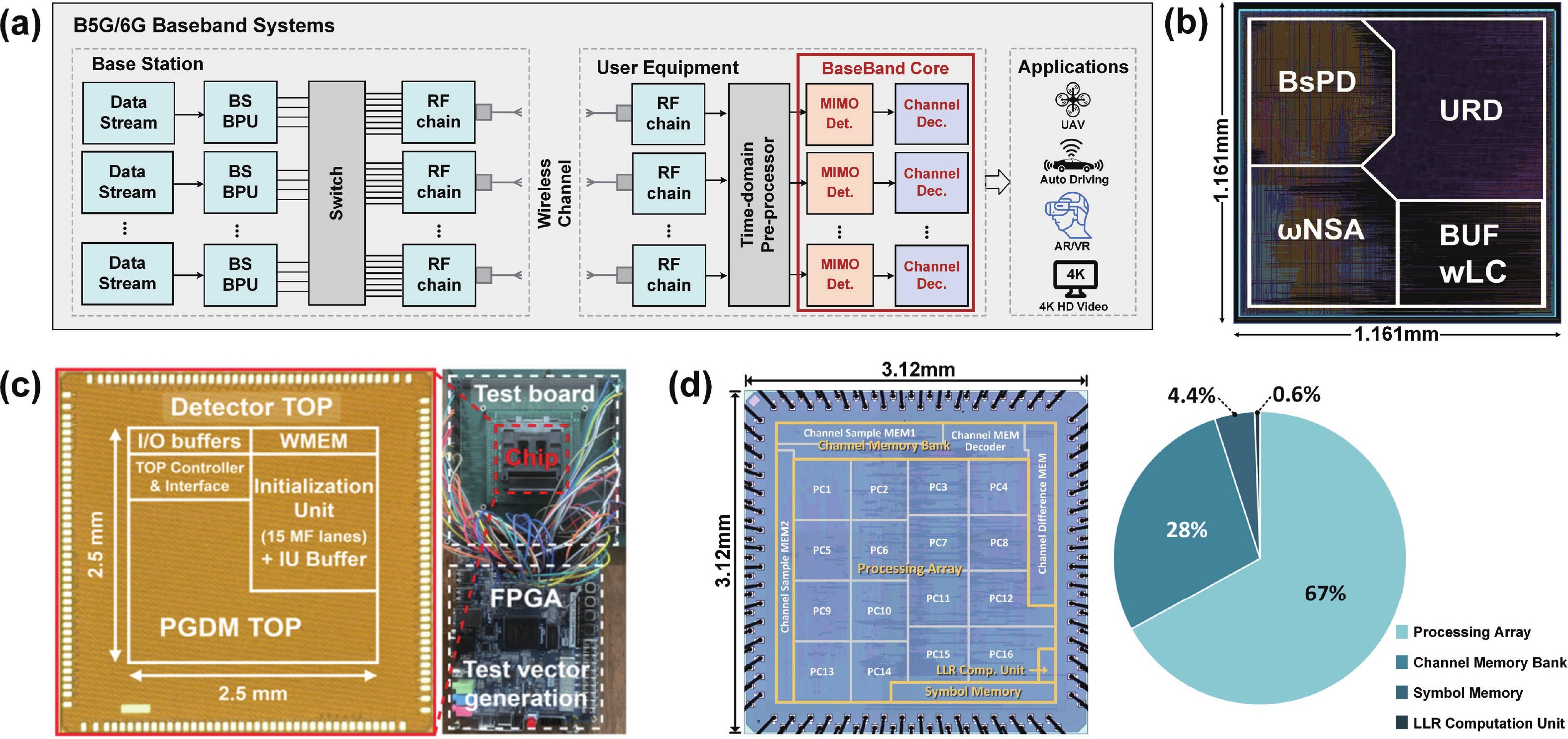

Fig. 1.  (Color online) (a) System diagram for baseband signal processing. (b) The architecture and layout of the BsP MIMO detector[2]. (c) Chip micrograph of the deep-learning detector[3]. (d) Chip micrograph and area breakdown of the MIMO-OTFS detector[12].

DownLoad: Full-Size Img PowerPoint

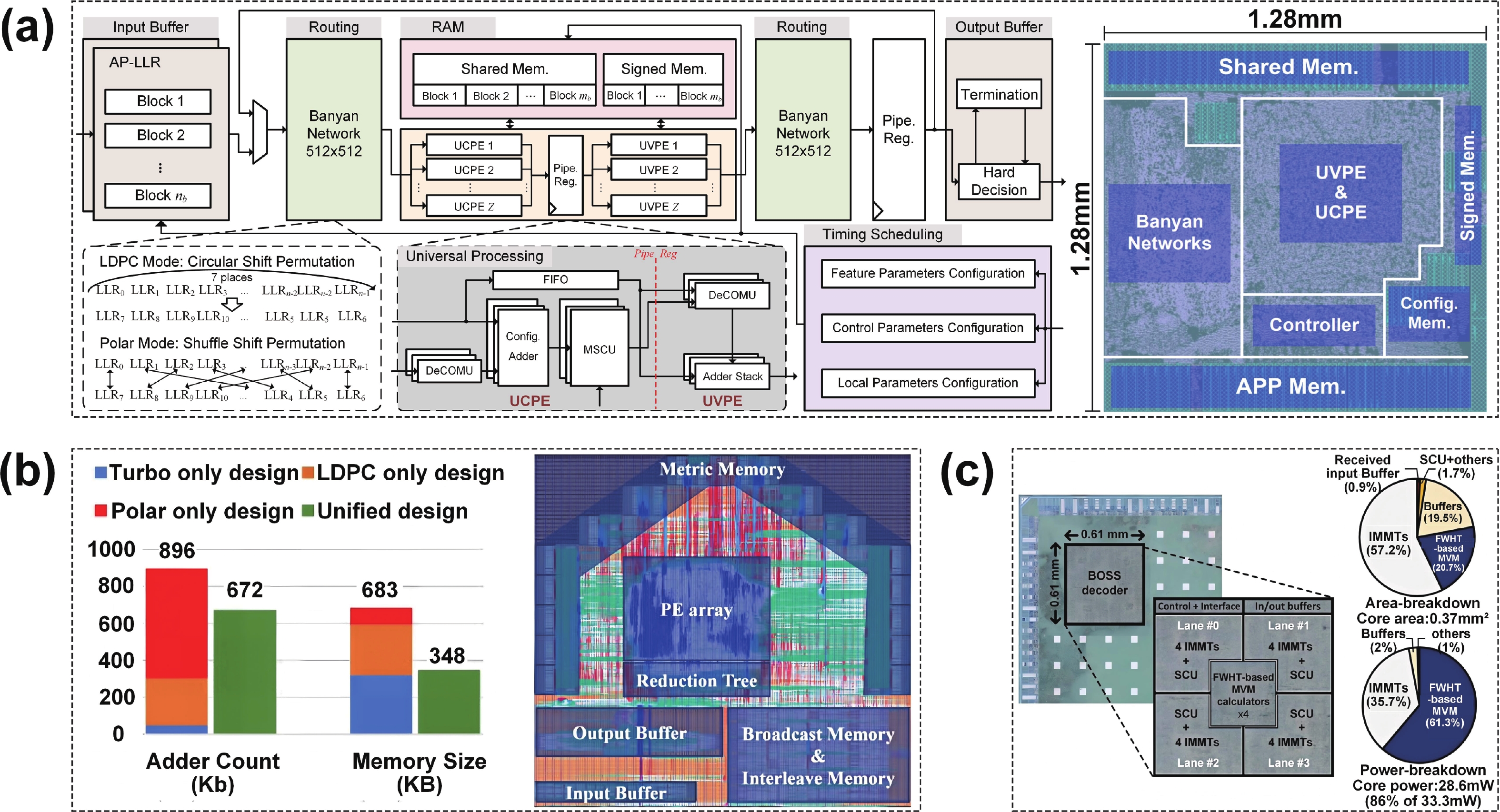

Fig. 2.  (Color online) (a) The architecture and layout of the UniDec[16]. (b) Area saving and chip micrograph of the unified FEC[15]. (c) Chip micrograph and area/power breakdown of the BOSS code decoder[17].

DownLoad: Full-Size Img PowerPoint

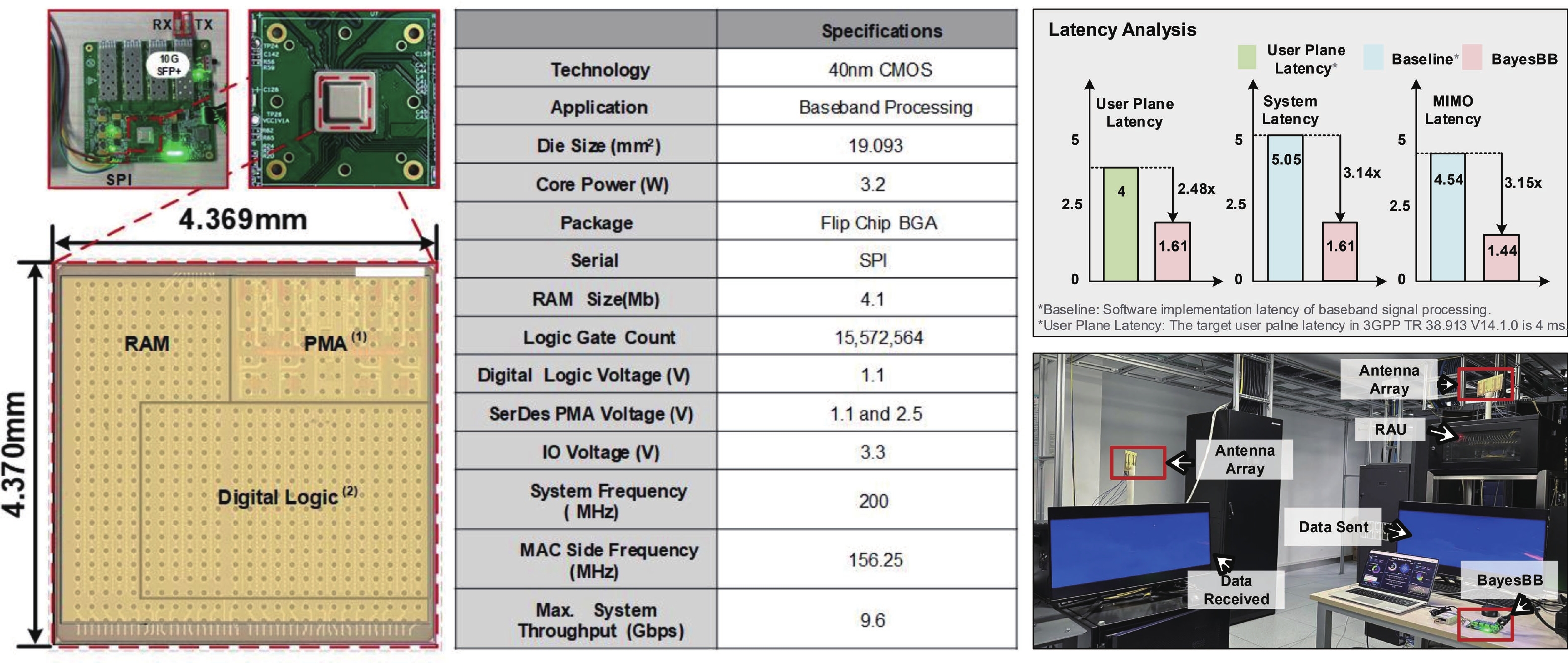

Fig. 3.  (Color online) Implementation and measurement results of the BayesBB processor, including the chip micrograph in 40 nm CMOS, technical specifications, latency analysis compared to software baselines, and the over-the-air measurement setup[19, 20].

DownLoad: Full-Size Img PowerPoint

Table 1.   Comparison of state-of-the-art massive mimo detectors

DetectorStuder
[1]		Zhou
[8]		Tang
[9]		Jeon
[10]		Zhou
[2]		Tang
[11]		Yun
[3]		Lee
[12]
Year20112022201820192024202120242025
Tech node (nm)9040282840402840
AlgorithmMMSEBFSDEPDLAMABPMPDDLMPD
Throughput (Gb/s)0.760.051.800.350.792.765.766.4
Energy efficiency (nJ/b)0.25−0.070.43−0.080.080.02
Core area (mm²)1.50.7820.370.680.586.256.47
DownLoad: CSV

Table 2.   Comparison of state-of-the-art channel-decoders

Detector Kam[4] Verma[14] Su[5] Yue[15] Ji[16] Kam[17]
Year 2022 2024 2022 2022 2025 2024
Tech node [nm] 28 110 40 12 40 28
Algorithm SCL OMSα BP MS BP OMS-BP BOSS
Decoding codes Polar LDPC&Polar LDPC Polar LDPC Polar LDPC Polar BOSS
Throughput (Gb/s) 0.93 3.35 0.92 1.35 0.74 0.95 21.87 10.24 5.8
Energy efficiency (pJ/b) 109.5 59 60.91 91.3 27.4 45.8 6.22 13.28 5.7
Core area (mm²) 0.60 1.96 2.07 − 27.4 45.8
DownLoad: CSV
