High current handling capability in 4H-SiC bipolar diodes via ultraviolet illumination

Xuan Tang1, 2, Zhanwei Shen1, 2, , Guoliang Zhang3, Jinyi Xu1, 2, Hangshuo Shi1, 2, Zhihai Yang3, Xi Wang4, Yanan Guo1, 2, Chao Li5, , Shizhong Yue1, 2, Feng Zhang3, and Zhijie Wang1, 2,

+ Author Affiliations

 Corresponding author: Zhanwei Shen, zwshen@semi.ac.cn; Chao Li, lichao@bise.hrl.ac.cn; Feng Zhang, fzhang@xmu.edu.cn; Zhijie Wang, wangzj@semi.ac.cn

DOI: 10.1088/1674-4926/26030047CSTR: 32376.14.1674-4926.26030047

PDF

Turn off MathJax

Abstract: We demonstrate a significant light-triggered current enhancement in SiC bipolar PIN diodes through ultraviolet (UV) light injection, achieving a 2.74× current gain at 3.5 V under 365 nm illumination. By integrating an optical window for targeted photon injection into the intrinsic region, UV-generated electron-hole pairs enhance conductivity modulation and lower the forward voltage drop. Crucially, we reveal a pronounced structural dependence: vertical devices outperform lateral counterparts due to more effective utilization of photogenerated carriers. This advantage stems from shorter carrier transport path of the vertical architecture and reduced surface recombination losses, whereas lateral devices suffer from enhanced carrier recombination due to surface-parallel carrier drift. This study establishes UV illumination as a scalable and non-invasive strategy for dynamic performance tuning of SiC bipolar devices, bypassing complex lifetime-enhancement processes while enabling adaptive conduction for smart power systems.

Keywords: SiC, bipolar diodes, high current, UV light, conductivity modulation, vertical device



[1]
Singh R, Cooper J A, Melloch M R, et al. SiC power Schottky and PiN diodes. IEEE Trans Electron Devices, 2002, 49(4): 665 doi: 10.1109/16.992877
[2]
Kato M, Watanabe O, Mii T, et al. Suppression of stacking-fault expansion in 4H-SiC PiN diodes using proton implantation to solve bipolar degradation. Sci Rep, 2022, 12: 18790 doi: 10.1038/s41598-022-23691-y
[3]
Cheng L, Palmour J W, Agarwal A K, et al. Strategic overview of high-voltage SiC power device development aiming at global energy savings. Mater Sci Forum, 2014, 778/779/780: 1089
[4]
Almpanis I, Antoniou M, Evans P, et al. Silicon carbide n-IGBTs: Structure optimization for ruggedness enhancement. IEEE Trans Ind Appl, 2024, 60(3): 4251 doi: 10.1109/TIA.2024.3354870
[5]
Watanabe N, Okino H, Shimizu H, et al. Power loss reduction of N-channel 10-kV SiC IGBTs with box cell layout. IEEE Trans Electron Devices, 2023, 70(7): 3768 doi: 10.1109/TED.2023.3279799
[6]
Yu Q S, Huang J, Shen Z G, et al. 16kV 4H-SiC reverse-conducting IGBT with a collector-side injection-enhanced structure for low reverse-conducting voltage. IEEE Electron Device Lett, 2024, 45(6): 1064 doi: 10.1109/LED.2024.3386769
[7]
Chowdhury S, Chow T P. Performance tradeoffs for ultra-high voltage (15 kV to 25 kV) 4H-SiC n-channel and p-channel IGBTs. 2016 28th International Symposium on Power Semiconductor Devices and ICs (ISPSD, 2016: 75 .
[8]
Ryu S H, Capell C, Cheng L, et al. High performance, ultra high voltage 4H-SiC IGBTs. 2012 IEEE Energy Conversion Congress and Exposition (ECCE). Raleigh: IEEE, 2012: 3603
[9]
Singh R, Irvine K G, Capell D C, et al. Large area, ultra-high voltage 4H-SiC p-i-n rectifiers. IEEE Trans Electron Devices, 2002, 49(12): 2308 doi: 10.1109/TED.2002.805576
[10]
Wen Z X, Zhang F, Shen Z W, et al. A novel silicon carbide accumulation channel injection enhanced gate transistor with buried barrier under shielding region. IEEE Electron Device Lett, 2017, 38(7): 941 doi: 10.1109/LED.2017.2709322
[11]
Khera F A, Xie J, Wheeler P. Advanced SSPC based on SiC-MOSFET for aircraft applications. 2024 IEEE Energy Conversion Congress and Exposition (ECCE). Phoenix: IEEE, 2025: 2318
[12]
Shang H, Liang L, Han L B, et al. Design key points and multi-field simulations for half bridge module of converter valve based on SiC IGBT. 2020 IEEE 4th Conference on Energy Internet and Energy System Integration (EI2), 2020: 1031
[13]
Danno K, Nakamura D, Kimoto T. Investigation of carrier lifetime in 4H-SiC epilayers and lifetime control by electron irradiation. Appl Phys Lett, 2007, 90(20): 202109 doi: 10.1063/1.2740580
[14]
Storasta L, Tsuchida H. Reduction of traps and improvement of carrier lifetime in 4H-SiC epilayers by ion implantation. Appl Phys Lett, 2007, 90(6): 062116 doi: 10.1063/1.2472530
[15]
Nishio J, Kushibe M, Asamizu H, et al. Reduction of background carrier concentration and lifetime improvement for 4H-SiC C-face epitaxial growth. Jpn J Appl Phys, 2017, 56(8): 081302 doi: 10.7567/JJAP.56.081302
[16]
Hiyoshi T, Kimoto T. Elimination of the major deep levels in n- and p-type 4H-SiC by two-step thermal treatment. Appl Phys Express, 2009, 2(9): 091101 doi: 10.1143/APEX.2.091101
[17]
Ayedh H M, Nipoti R, Hallén A, et al. Elimination of carbon vacancies in 4H-SiC employing thermodynamic equilibrium conditions at moderate temperatures. Appl Phys Lett, 2015, 107(25): 252102 doi: 10.1063/1.4938242
[18]
Negoro Y, Katsumoto K, Kimoto T, et al. Electronic behaviors of high-dose phosphorus-ion implanted 4H-SiC (0001). J Appl Phys, 2004, 96(1): 224 doi: 10.1063/1.1756213
[19]
Kawahara K, Jun S D, Kimoto T. Analytical model for reduction of deep levels in SiC by thermal oxidation. J Appl Phys, 2012, 111(5): 053710 doi: 10.1063/1.3692766
[20]
Kaji N, Niwa H, Jun S D, et al. Ultrahigh-voltage SiC p-i-n diodes with improved forward characteristics. IEEE Trans Electron Devices, 2015, 62(2): 374 doi: 10.1109/TED.2014.2352279
[21]
Wang J, Ardelean J, Bai Y S, et al. Optical generation of high carrier densities in 2D semiconductor heterobilayers. Sci Adv, 2019, 5(9): eaax0145 doi: 10.1126/sciadv.aax0145
[22]
Mics Z, D’Angio A, Jensen S A, et al. Density-dependent electron scattering in photoexcited GaAs in strongly diffusive regime. Appl Phys Lett, 2013, 102(23): 231120 doi: 10.1063/1.4810756
[23]
Fan M H, Cen W F, Cai X M, et al. The defects regulating for the electronic structure and optical properties of 4H-SiC with (0001) surface. Appl Surf Sci, 2018, 427: 851 doi: 10.1016/j.apsusc.2017.08.173
[24]
Song W D, Chen J X, Li Z L, et al. Self-powered MXene/GaN van der Waals heterojunction ultraviolet photodiodes with superhigh efficiency and stable current outputs. Adv Mater, 2021, 33(27): 2101059 doi: 10.1002/adma.202101059
[25]
Wang X, Xu B, Pu H B, et al. Monolithic integration of 1.2kV optically-controlled SiC npn transistor and antiparallel diode. IEEE Electron Device Lett, 2022, 43(9): 1531 doi: 10.1109/LED.2022.3192457
[26]
Zhao F, Islam M M. Optically activated SiC power transistors for pulsed-power application. IEEE Electron Device Lett, 2010, 31(10): 1146 doi: 10.1109/LED.2010.2058840
[27]
Hsia J H, Perozek J A, Palacios T. First demonstration of optically-controlled vertical GaN finFET for power applications. IEEE Electron Device Lett, 2024, 45(5): 774 doi: 10.1109/LED.2024.3375856
[28]
Koehler A D, Anderson T J, Khachatrian A, et al. High voltage GaN lateral photoconductive semiconductor switches. ECS J Solid State Sci Technol, 2017, 6(11): S3099 doi: 10.1149/2.0231711jss
[29]
Chen Y F, Lu H, Chen D J, et al. High-voltage photoconductive semiconductor switches fabricated on semi-insulating HVPE GaN: Fe template. Phys Status Solidi C, 2016, 13(5/6): 374
[30]
Chang Y F, Liao C L, Zheng B S, et al. Using two-step mesa to prevent the effects of sidewall defects on the GaN p-i-n diodes. IEEE J Quantum Electron, 2015, 51(10): 8300106 doi: 10.1109/jqe.2015.2479465
[31]
Sozzi G, Puzzanghera M, Chiorboli G, et al. OCVD lifetime measurements on 4H-SiC bipolar planar diodes: Dependences on carrier injection and diode area. IEEE Trans Electron Devices, 2017, 64(6): 2572 doi: 10.1109/TED.2017.2691280
[32]
Zheng Z, Jiang S N, Sun Q, et al. Effects of illumination on space-charge-limited current in 4H-SiC photoconductive semiconductor switches. IEEE Trans Electron Devices, 2025, 72(8): 4290 doi: 10.1109/TED.2025.3577153

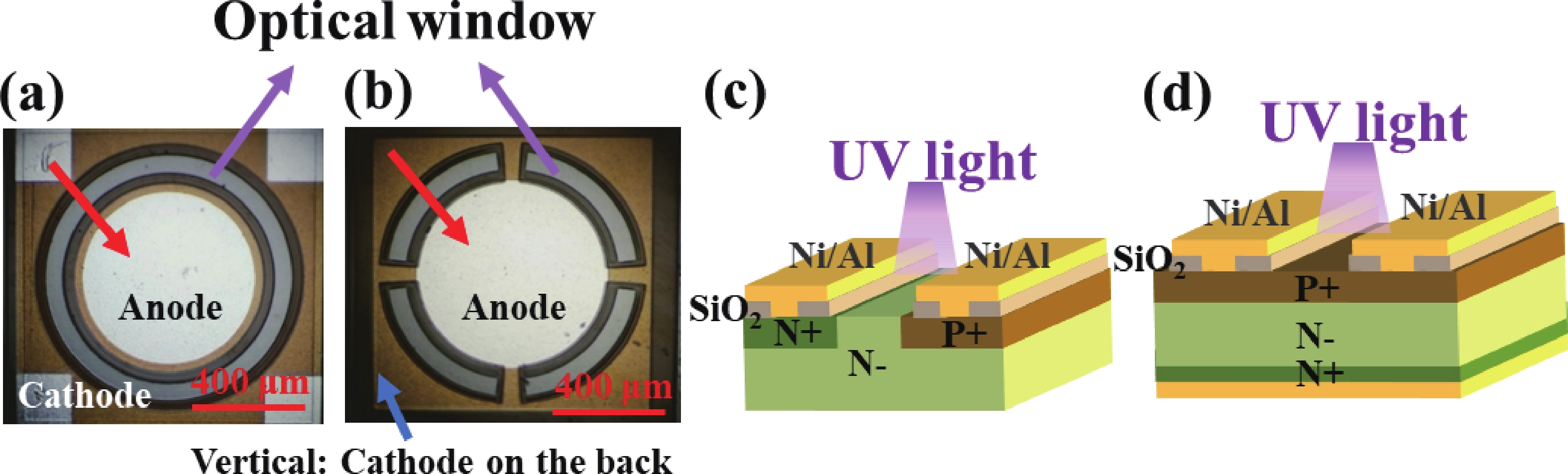

Fig. 1.  (Color online) The optical micrograph of (a) the lateral and (b) vertical PIN diodes. The cross-sectional views in (c) and (d) are taken along the red arrows indicated in (a) and (b), respectively.

DownLoad: Full-Size Img PowerPoint

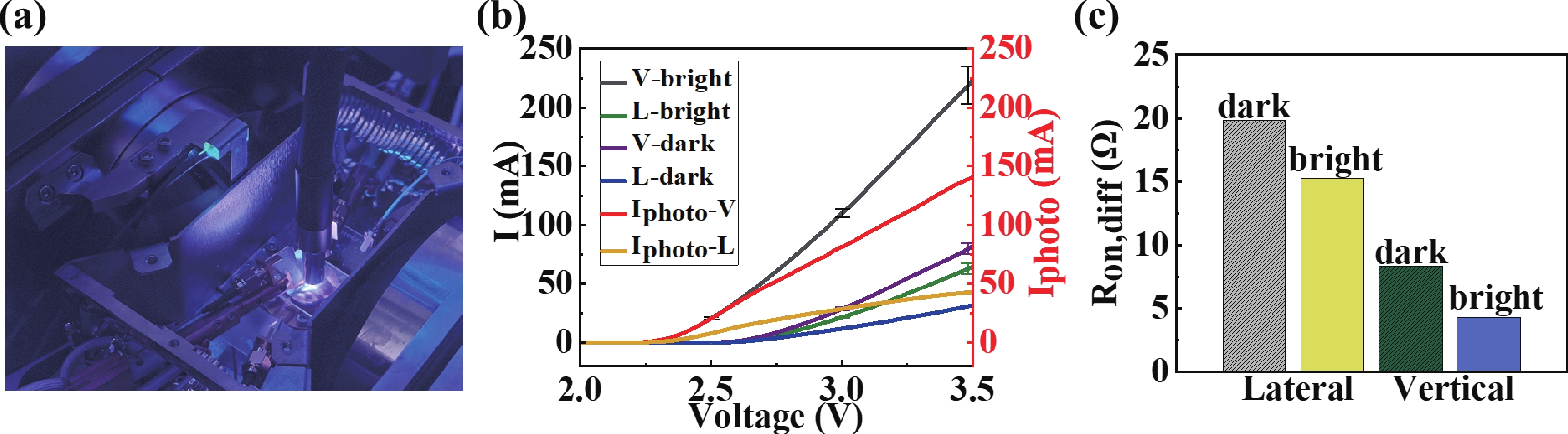

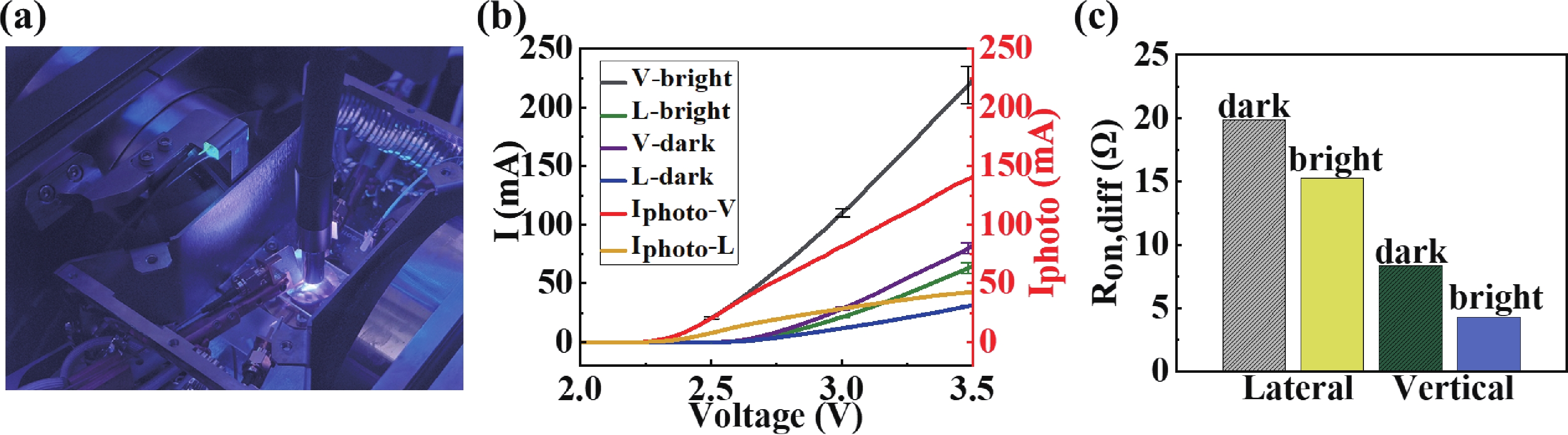

Fig. 2.  (Color online) (a) Optical graph of the device under test with the UV illumination. (b) Current voltage curve, photocurrent voltage curve and (c) differential on-resistance of vertical and lateral devices in dark and bright states.

DownLoad: Full-Size Img PowerPoint

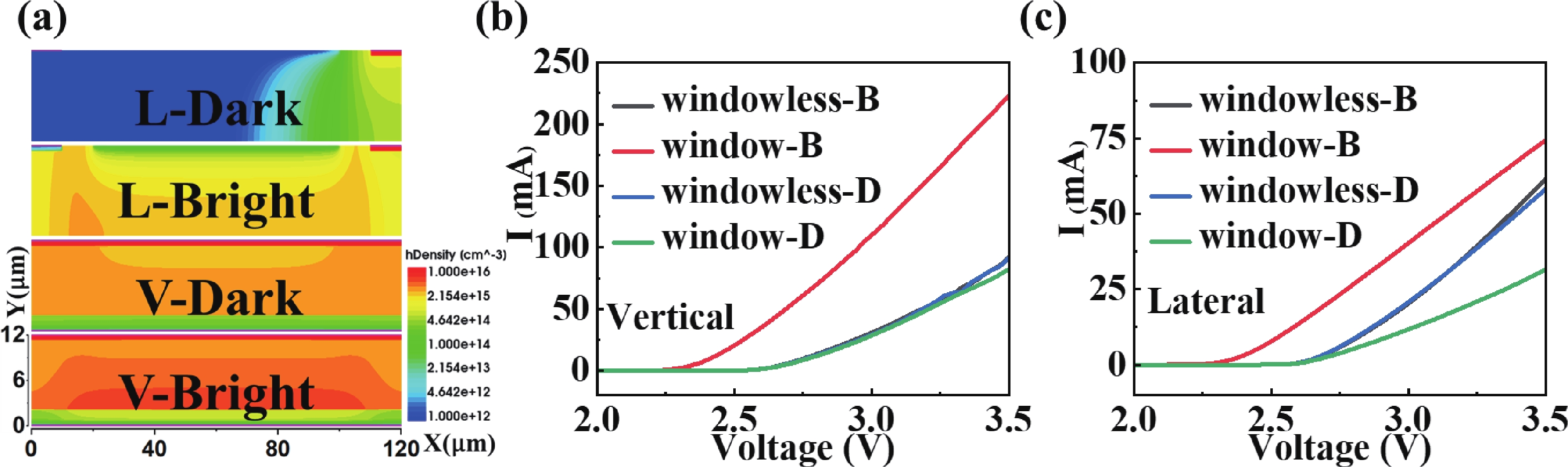

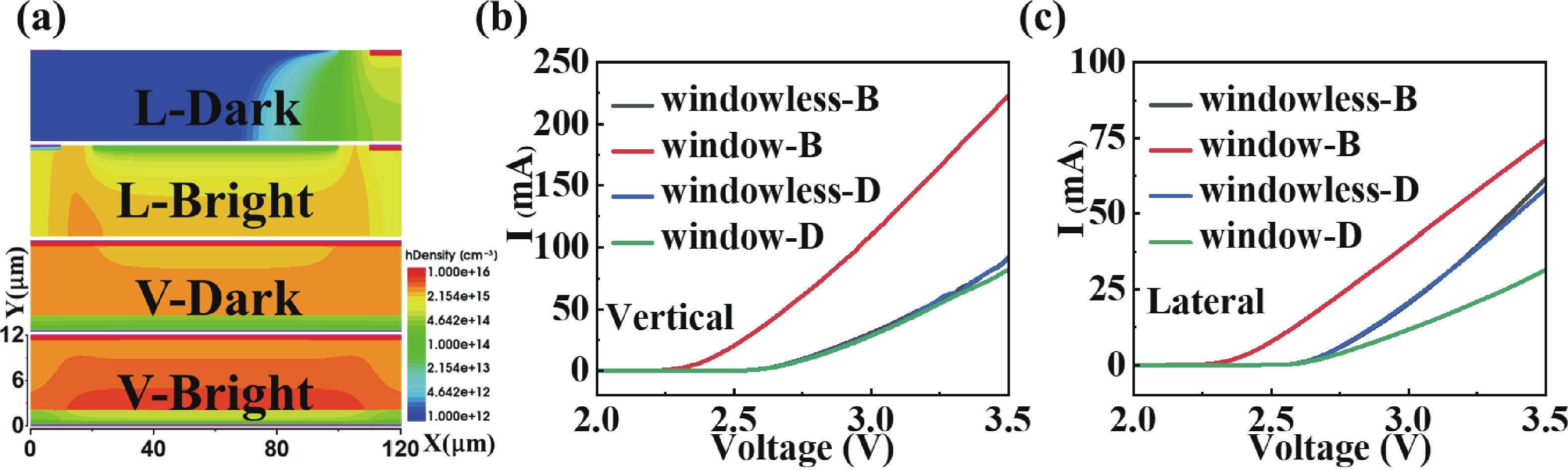

Fig. 3.  (Color online) (a) Hole density distribution of vertical and lateral devices in dark and bright states at a bias of 2.7 V. The bright and dark current curves of (b) vertical and (c) lateral devices with or without optical window.

DownLoad: Full-Size Img PowerPoint

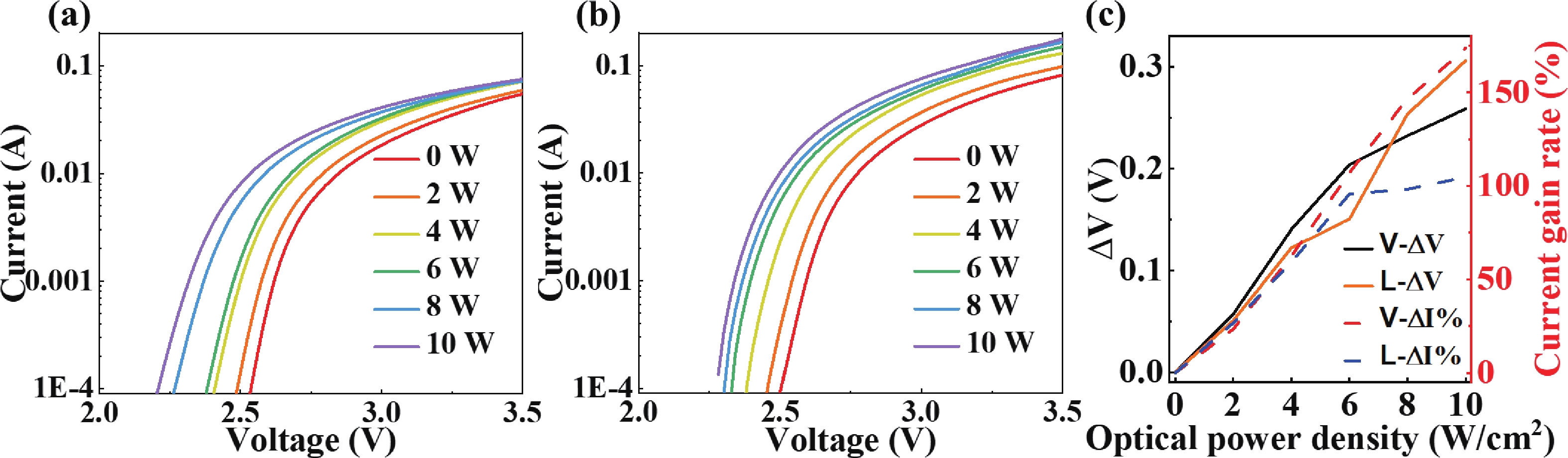

Fig. 4.  (Color online) I−V curves of (a) lateral and (b) vertical devices with optical power density. (c) ΔVf (solid line) and current gain rate (dashed line) of vertical and lateral devices with the change of optical power density.

DownLoad: Full-Size Img PowerPoint

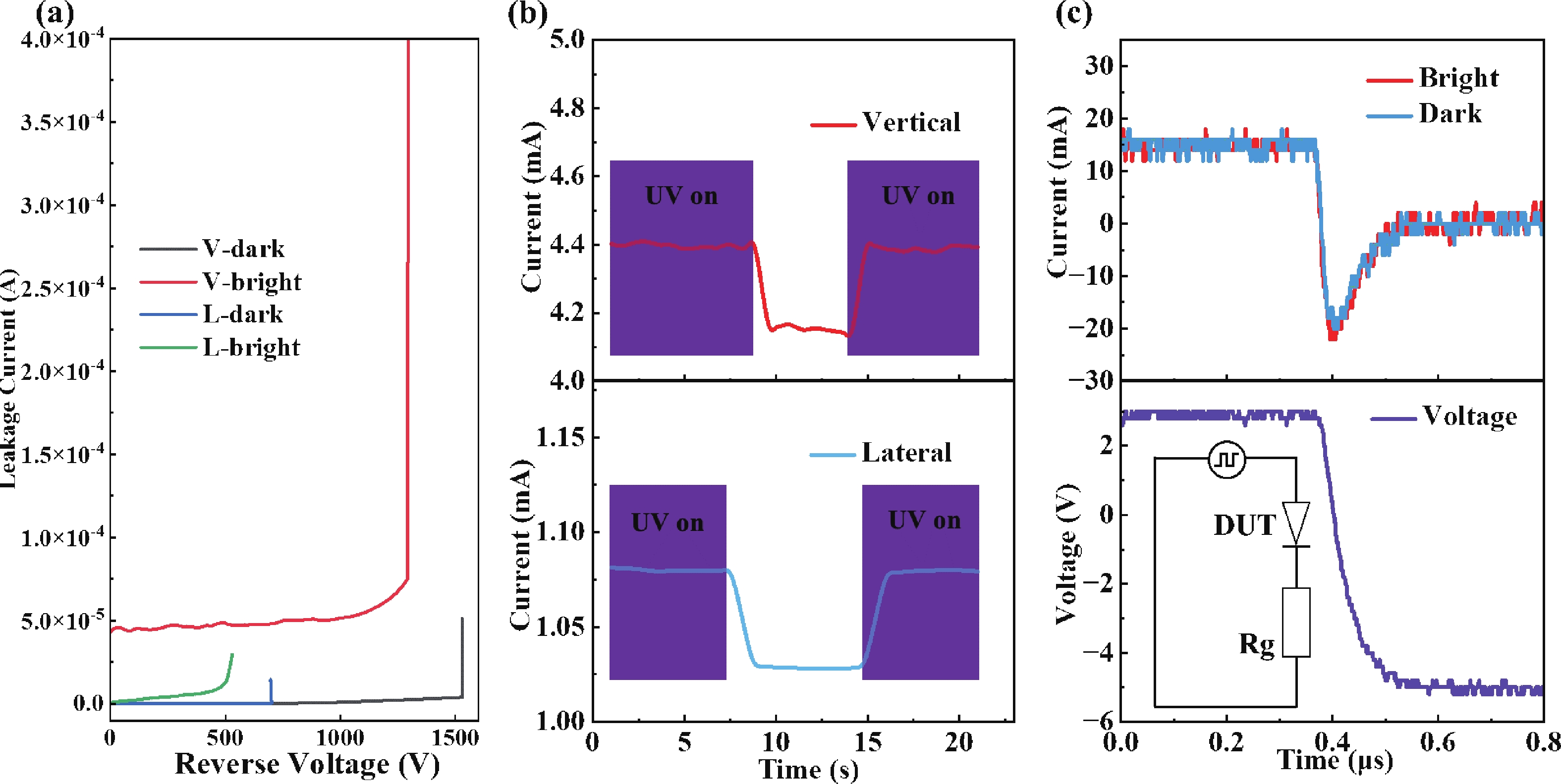

Fig. 5.  (Color online) (a) Blocking voltage and leakage current of vertical and lateral devices. (b) Optical response of vertical and lateral devices. (c) Reverse recovery characteristics of vertical device and test circuit diagram (inset).

DownLoad: Full-Size Img PowerPoint

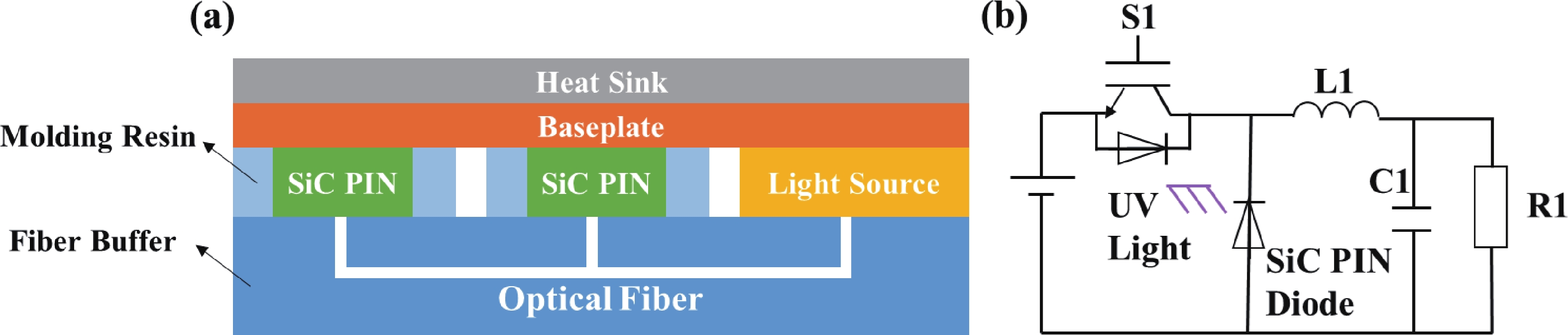

Fig. 6.  (Color online) (a) Schematic illustration of a UV-illuminated SiC PIN diodes device package. The UV light is delivered through a fiber optic cable connected to the window. (b) Schematic of UV-enhanced SiC PIN diode used as freewheeling diode.
