J. Semicond. >  Just Accepted

REVIEWS

A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics

Jiaqi Lu1, §, Shan Li1, §, , Jingpeng Zhang1, Jiaqing Yuan1, Xueqiang Ji1, Zeng Liu2 and Weihua Tang1,

+ Author Affiliations

 Corresponding author: Shan Li, shanli@njupt.edu.cn; Weihua Tang, whtang@njupt.edu.cn

DOI: 10.1088/1674-4926/26050042CSTR: 32376.14.1674-4926.26050042

PDF

Turn off MathJax

Abstract: Ga2O3 is a leading candidate for next-generation high-power electronics and deep-ultraviolet optoelectronics due to its ultrawide bandgap and high theoretical breakdown field. While the stable β-phase has been extensively studied, interest is shifting toward metastable polymorphs to broaden functionality. Among these, the ε/κ phase is distinguished by its non-centrosymmetric orthorhombic structure, offering unique ferroelectric and piezoelectric properties. Despite progress in epitaxial stabilization, a comprehensive understanding of its crystal structure, physical behavior, and device potential remains limited. This review critically examines the ε-κ phase relationship and heteroepitaxial growth mechanisms on Al2O3, GaN, and other substrates, highlighting the roles of supersaturation, doping, and buffer layer engineering in stabilizing metastable phases while suppressing secondary phases. Furthermore, the work explores the unique physical properties of ε/κ-Ga2O3, including the substantial spontaneous polarization, a large piezoelectric coefficient, and the direct-bandgap nature favorable for DUV detection. The practical efficacy of these attributes is showcased across a diverse technological portfolio, including ferroelectric memristors for neuromorphic computing, high-frequency acoustic wave resonators, and high-sensitivity solar-blind photodetectors. Finally, the review identifies remaining challenges-such as rotational domain mitigation and polarization saturation-providing a strategic roadmap for realizing multifunctional ε/κ-Ga2O3-based devices.

Keywords: ε/κ-Ga2O3, crystal Structure, epitaxial growth, ferroelectricity, piezoelectricity, photoelectricity



[1]
Gogova D, Tran D Q, Stanishev V, et al. High crystalline quality homoepitaxial Si-doped β-Ga2O3 (010) layers with reduced structural anisotropy grown by hot-wall MOCVD. J Vac Sci Technol A, 2024, 42(2): 022708 doi: 10.1116/6.0003424
[2]
Chen Z W, Guo D Y, Li P G, et al. Low driven voltage red LEDs using Eu-doped Ga2O3 films on GaAs. Appl Phys Express, 2019, 12(6): 061009 doi: 10.7567/1882-0786/ab2056
[3]
Leedy K D, Chabak K D, Vasilyev V, et al. Highly conductive homoepitaxial Si-doped Ga2O3 films on (010) β-Ga2O3 by pulsed laser deposition. Appl Phys Lett, 2017, 111(1): 012103 doi: 10.1063/1.4991363
[4]
Wang S L, Sun H L, Wang Z, et al. In situ synthesis of monoclinic β-Ga2O3 nanowires on flexible substrate and solar-blind photodetector. J. Alloys Compd., 2019, 787: 133 doi: 10.1016/j.jallcom.2019.02.031
[5]
Yan Z Y, Li S, Liu Z, et al. High sensitivity and fast response self-powered solar-blind ultraviolet photodetector with a β-Ga2O3/spiro-MeOTAD p-n heterojunction. J Mater Chem C, 2020, 8(13): 4502 doi: 10.1039/C9TC06767A
[6]
Li S, Zhi Y S, Lu C, et al. Broadband ultraviolet self-powered photodetector constructed on exfoliated β-Ga2O3/CuI core-shell microwire heterojunction with superior reliability. J Phys Chem Lett, 2021, 12(1): 447 doi: 10.1021/acs.jpclett.0c03382
[7]
Ravindran R, Massoud A M. An overview of wide and ultra wide bandgap semiconductors for next-generation power electronics applications. Microelectron Eng, 2025, 299: 112348 doi: 10.1016/j.mee.2025.112348
[8]
Sun S H, Wang C L, Alghamdi S, et al. Recent advanced ultra-wide bandgap β-Ga2O3 material and device technologies. Adv Electron Mater, 2025, 11(1): 2300844 doi: 10.1002/aelm.202300844
[9]
Zheng W, Guo D Y, Yuan Y. Ultra-wide-bandgap semiconductors: opportunities and challenges. Eur Phys J Spec Top, 2025, 234(2): 225 doi: 10.1140/epjs/s11734-025-01528-9
[10]
Liu Z, Liu Y Y, Wang X, et al. Energy-band alignments at ZnO/Ga2O3 and Ta2O5/Ga2O3 heterointerfaces by X-ray photoelectron spectroscopy and electron affinity rule. J Appl Phys, 2019, 126(4): 045707 doi: 10.1063/1.5112067
[11]
Woo K, Bian Z, Noshin M, et al. From wide to ultrawide-bandgap semiconductors for high power and high frequency electronic devices. J Phys Mater, 2024, 7(2): 022003 doi: 10.1088/2515-7639/ad218b
[12]
Zhang J C, Dong P F, Dang K, et al. Ultra-wide bandgap semiconductor Ga2O3 power diodes. Nat Commun, 2022, 13(1): 3900 doi: 10.1038/s41467-022-31664-y
[13]
Wong M H, Bierwagen O, Kaplar R J, et al. Ultrawide-bandgap semiconductors: An overview. J Mater Res, 2021, 36(23): 4601 doi: 10.1557/s43578-021-00458-1
[14]
Aborah Yeboah L, Abdul Malik A, Agyemang Oppong P, et al. Wide-bandgap semiconductors: A critical analysis of GaN, SiC, AlGaN, diamond, and Ga2O3 synthesis methods, challenges, and prospective technological innovations. Intell Sustain Manuf, 2025, 2(1): 10011 doi: 10.70322/ism.2025.10011
[15]
Gogova D, Ghezellou M, Tran D Q, et al. Epitaxial growth of β-Ga2O3 by hot-wall MOCVD. AIP Adv, 2022, 12(5): 055022 doi: 10.1063/5.0087571
[16]
Itoh T, Mauze A, Zhang Y, et al. Continuous Si doping in (010) and (001) β-Ga2O3 films by plasma-assisted molecular beam epitaxy. APL Mater, 2023, 11(4): 041108 doi: 10.1063/5.0130654
[17]
Liu Z, Tang W H. A review of Ga2O3 deep-ultraviolet metal-semiconductor Schottky photodiodes. J Phys D Appl Phys, 2023, 56(9): 093002
[18]
Li S, Yan Z Y, Liu Z, et al. A self-powered solar-blind photodetector with large Voc enhancing performance based on the PEDOT: PSS/Ga2O3 organic-inorganic hybrid heterojunction. J Mater Chem C, 2020, 8(4): 1292 doi: 10.1039/C9TC06011A
[19]
Lu C, Ji X Q, Liu Z, et al. A review of metal-semiconductor contacts for β-Ga2O3. J Phys D Appl Phys, 2022, 55(46): 463002
[20]
Gottschalch V, Merker S, Blaurock S, et al. Heteroepitaxial growth of α-, β-, γ- and κ-Ga2O3 phases by metalorganic vapor phase epitaxy. J Cryst Growth, 2019, 510: 76 doi: 10.1016/j.jcrysgro.2019.01.018
[21]
Su Y L, Guo D Y, Ye J H, et al. Deep level acceptors of Zn-Mg divalent ions dopants in β-Ga2O3 for the difficulty to p-type conductivity. J Alloys Compd, 2019, 782: 299 doi: 10.1016/j.jallcom.2018.12.199
[22]
Liu Z, Zhi Y S, Li S, et al. Comparison of optoelectrical characteristics between Schottky and Ohmic contacts to β-Ga2O3 thin film. J Phys D Appl Phys, 2020, 53(8): 085105 doi: 10.1088/1361-6463/ab596f
[23]
Chu X L, Liu Z, Zhang S H, et al. Photoresponsive characteristics of EFG-grown iron-doped (100) Ga2O3 substrate with low dark current. Phys Scr, 2021, 96(6): 065801 doi: 10.1088/1402-4896/abed80
[24]
Janzen B M, Mazzolini P, Gillen R, et al. Comprehensive Raman study of orthorhombic κ/ε-Ga2O3 and the impact of rotational domains. J Mater Chem C, 2021, 9(40): 14175 doi: 10.1039/D1TC03500B
[25]
Liu Z, Zhang S H, Zhi Y S, et al. Enhanced deep-ultraviolet sensing by an all-inorganic p-PZT/n-Ga2O3 thin-film heterojunction. J Phys D Appl Phys, 2021, 54(19): 195104 doi: 10.1088/1361-6463/abe1ea
[26]
Li S, Guo D Y, Li P G, et al. Ultrasensitive, superhigh signal-to-noise ratio, self-powered solar-blind-photodetector based on n-Ga2O3/p-CuSCN core-shell microwire heterojunction. ACS Appl Mater Interfaces, 2019, 11(38): 35105 doi: 10.1021/acsami.9b11012
[27]
Gao A, Jiang W Y, Ma G L, et al. A self-powered β-Ga2O3/CsCu2l3 heterojunction photodiode responding to deep ultraviolet irradiation. Curr Appl Phys, 2022, 33: 20 doi: 10.1016/j.cap.2021.10.013
[28]
Qi X H, Yue J Y, Ji X Q, et al. A deep-ultraviolet photodetector of a β-Ga2O3/CuBiI4 heterojunction highlighting ultra-high sensitivity and responsivity. Thin Solid Films, 2022, 757: 139397 doi: 10.1016/j.tsf.2022.139397
[29]
Feng G R, Li S, Tian Y W, et al. 2 in. bulk β-Ga2O3 single crystals grown by EFG method with high wafer-scale quality. ACS Omega, 2024, 9(20): 22084
[30]
Gogova D, Wagner G, Baldini M, et al. Structural properties of Si-doped β-Ga2O3 layers grown by MOVPE. J Cryst Growth, 2014, 401: 665 doi: 10.1016/j.jcrysgro.2013.11.056
[31]
Gogova D, Schmidbauer M, Kwasniewski A. Homo- and heteroepitaxial growth of Sn-doped β-Ga2O3 layers by MOVPE. CrystEngComm, 2015, 17(35): 6744 doi: 10.1039/C5CE01106J
[32]
Li M Z, Xi Z Y, Li M, et al. Boosting the performance of β-Ga2O3/Sn-Ga2O3 n-N homojunction deep ultraviolet photodetector via interfacial Fermi-level reversal. Sci China Technol Sci, 2025, 68(5): 1520901 doi: 10.1007/s11431-024-2912-9
[33]
Liu Z, Zhang M L, Yang L L, et al. Enhancement-mode normally-off β-Ga2O3: Si metal-semiconductor field-effect deep-ultraviolet phototransistor. Semicond Sci Technol, 2022, 37(1): 015001 doi: 10.1088/1361-6641/ac38bd
[34]
Zhao X L, Cui W, Wu Z P, et al. Growth and characterization of Sn doped β-Ga2O3 thin films and enhanced performance in a solar-blind photodetector. J Electron Mater, 2017, 46(4): 2366 doi: 10.1007/s11664-017-5291-5
[35]
Pan J Y, Li C Y, Geng H B, et al. Band engineering to suppress dark current in self-powered solar-blind photodetectors for optoelectronics in harsh environments. Phys Rev Appl, 2025, 24(6): 064043 doi: 10.1103/mnx1-t34v
[36]
Wu G, Guo X, Zhang F B, et al. Radiation damage mechanisms in β-Ga2O3 MSM solar-blind photodetectors: Insights from proton, neutron, and γ-ray irradiation. IEEE Electron Device Lett, 2025, 46(11): 2086-2089 doi: 10.1109/LED.2025.3605225
[37]
Wu G, Guo X, Zhu Z Y, et al. Dose-Dependent γ-Ray Irradiation Damage Effects in β-Ga2O3 Solar-Blind Deep Ultraviolet Photodetector. IEEE Trans Electron Devices, 2025, 72(12): 6814-6821 doi: 10.1109/TED.2025.3616278
[38]
Ricci F, Boschi F, Baraldi A, et al. Theoretical and experimental investigation of optical absorption anisotropy in β-Ga2O3. J Phys Condens Matter, 2016, 28(22): 224005 doi: 10.1088/0953-8984/28/22/224005
[39]
Jiang P Q, Qian X, Li X B, et al. Three-dimensional anisotropic thermal conductivity tensor of single crystalline β-Ga2O3. Appl Phys Lett, 2018, 113(23): 232105 doi: 10.1063/1.5054573
[40]
Ueda N, Hosono H, Waseda R, et al. Anisotropy of electrical and optical properties in β-Ga2O3 single crystals. Appl Phys Lett, 1997, 71(7): 933 doi: 10.1063/1.119693
[41]
Ping L K, Berhanuddin D D, Mondal A K, et al. Properties and perspectives of ultrawide bandgap Ga2O3 in optoelectronic applications. Chin J Phys, 2021, 73: 195 doi: 10.1016/j.cjph.2021.06.015
[42]
Wang K, Wu Z C, Tong H C, et al. Development and challenges of Ga2O3-based heterojunctions for deep-UV detectors. ACS Photonics, 2025, 12(9): 4851 doi: 10.1021/acsphotonics.5c01288
[43]
Raghuvansy S, Mccandless J P, Schowalter M, et al. Growth of β-Ga2O3 and ε/κ-Ga2O3 on AlN (0001) by molecular-beam epitaxy. APL Mater, 2023, 11(11): 111113 doi: 10.1063/5.0174373
[44]
Cora I, Fogarassy Z, Fornari R, et al. In situ TEM study of κ→β and κ→γ phase transformations in Ga2O3. Acta Mater, 2020, 183: 216 doi: 10.1016/j.actamat.2019.11.019
[45]
Yang J F, Xu Y Z, Wang X N, et al. Lattice thermal conductivity of β-, α- and κ-Ga2O3: a first-principles computational study. Appl Phys Express, 2024, 17(1): 011001 doi: 10.35848/1882-0786/ad0ba8
[46]
Cai Y C, Zhang K, Feng Q, et al. Tin-assisted growth of ε-Ga2O3 film and the fabrication of photodetectors on sapphire substrate by PLD. Opt Mater Express, 2018, 8(11): 3506 doi: 10.1364/OME.8.003506
[47]
Cao X, Xing Y H, Han J, et al. Crystalline properties of ε-Ga2O3 film grown on c-sapphire by MOCVD and solar-blind ultraviolet photodetector. Mater Sci Semicond Process, 2021, 123: 105532 doi: 10.1016/j.mssp.2020.105532
[48]
Huang C Y, Hsiao C N, Järrendahl K, et al. Growth mechanism and ferroelectric properties of ε-Ga2O3 heteroepitaxially grown on sapphire substrates. Mater Today Adv, 2025, 28: 100616 doi: 10.1016/j.mtadv.2025.100616
[49]
Wang Y H, Sun Z C, Mei B C. Intrinsic ferroelectricity in ε‐Ga2O3: Experimental and theoretical insights. Adv Funct Mater, 2025, 36(26): e24055
[50]
Mezzadri F, Calestani G, Boschi F, et al. Crystal structure and ferroelectric properties of ε-Ga2O3 films grown on (0001)-sapphire. Inorg Chem, 2016, 55(22): 12079 doi: 10.1021/acs.inorgchem.6b02244
[51]
Shen J Y, Lo W F, Liu C, et al. Robust room-temperature ferroelectricity in the wide-bandgap semiconductor Ga2O3. Sci Adv, 2026, 12(7): eaec5225 doi: 10.1126/sciadv.aec5225
[52]
Maccioni M B, Fiorentini V. Phase diagram and polarization of stable phases of (Ga1−xInx)2O3. Appl Phys Express, 2016, 9(4): 041102 doi: 10.7567/APEX.9.041102
[53]
Chen J H, Huang C H, Luo T C, et al. Isotropic performance of surface acoustic wave resonators based on ε-Ga2O3 (001) thin films. Appl Surf Sci, 2025, 710: 163959 doi: 10.1016/j.apsusc.2025.163959
[54]
Chen J H, Huang C H, Luo T C, et al. Influence of temperature on the performance of ε-Ga2O3-based surface acoustic wave delay lines. J Phys Conf Ser, 2025, 3030(1): 012013 doi: 10.1088/1742-6596/3030/1/012013
[55]
He F, Jiang K Y, Choi Y, et al. High field dielectric response in κ-Ga2O3 films. J Appl Phys, 2023, 134(20): 204101 doi: 10.1063/5.0169420
[56]
Almaev A, Yakovlev N, Kopyev V, et al. High sensitivity low-temperature hydrogen sensors based on SnO2/κ(ε)-Ga2O3: Sn heterostructure. Chemosensors, 2023, 11(6): 325 doi: 10.3390/chemosensors11060325
[57]
Yakovlev N N, Nikolaev V I, Stepanov S I, et al. Effect of oxygen on the electrical conductivity of Pt-contacted α-Ga2O3/ε(κ)-Ga2O3 MSM structures on patterned sapphire substrates. IEEE Sens J, 2021, 21(13): 14636 doi: 10.1109/JSEN.2021.3072664
[58]
Almaev A V, Nikolaev V I, Stepanov S I, et al. Hydrogen influence on electrical properties of Pt-contacted α-Ga2O3/ϵ-Ga2O3 structures grown on patterned sapphire substrates. J Phys D Appl Phys, 2020, 53(41): 414004 doi: 10.1088/1361-6463/ab9c69
[59]
Roy R, Hill V G, Osborn E F. Polymorphism of Ga2O3 and the System Ga2O3-H2O. J Am Chem Soc, 1952, 74(3): 719
[60]
Playford H Y, Hannon A C, Barney E R, et al. Structures of Uncharacterised Polymorphs of Gallium Oxide from Total Neutron Diffraction. Chem Eur J, 2013, 19(8): 2803 doi: 10.1002/chem.201203359
[61]
Matsuzaki K, Yanagi H, Kamiya T, et al. Field-induced current modulation in epitaxial film of deep-ultraviolet transparent oxide semiconductor Ga2O3. Appl Phys Lett, 2006, 88(9): 092106 doi: 10.1063/1.2179373
[62]
Yoshioka S, Hayashi H, Kuwabara A, et al. Structures and energetics of Ga2O3 polymorphs. J Phys Condens Matter, 2007, 19(34): 346211 doi: 10.1088/0953-8984/19/34/346211
[63]
Tang J Y, Jiang K Y, Tseng P-S, et al. Thermal stability and phase transformation of α-, κ(ε)-, and γ-Ga2O3 films under different ambient conditions. Appl Phys Lett, 2024, 125(9): 092104 doi: 10.1063/5.0214500
[64]
Hsu Y H, Wu W Y, Lin K L, et al. ε-Ga2O3 grown on c-plane sapphire by MOCVD with a multistep growth process. Cryst Growth Des, 2022, 22(3): 1837 doi: 10.1021/acs.cgd.1c01395
[65]
Cora I, Mezzadri F, Boschi F, et al. The real structure of ε-Ga2O3 and its relation to κ-phase. CrystEngComm, 2017, 19(11): 1509 doi: 10.1039/C7CE00123A
[66]
Nishinaka H, Komai H, Tahara D, et al. Microstructures and rotational domains in orthorhombic ε-Ga2O3 thin films. Jpn J Appl Phys, 2018, 57(11): 115601 doi: 10.7567/JJAP.57.115601
[67]
Vyvenko O F, Shapenkov S V, Ubyivovk E V, et al. Twin domain and antiphase boundaries in microcrystals of Κ-phase Ga2O3. Materialia, 2023, 32: 101942 doi: 10.1016/j.mtla.2023.101942
[68]
Chen Y T, Ning H K, Kuang Y, et al. Band alignment and polarization engineering in κ-Ga2O3/GaN ferroelectric heterojunction. Sci China Phys Mech Astron, 2022, 65(7): 277311 doi: 10.1007/s11433-022-1907-9
[69]
Bhuiyan A F M A U, Feng Z X, Huang H L, et al. MOCVD growth and band offsets of κ-phase Ga2O3 on c-plane sapphire, GaN- and AlN-on-sapphire, and (100) YSZ substrates. J Vac Sci Technol A, 2022, 40(6): 062704 doi: 10.1116/6.0002106
[70]
Gu S H, Cui M, Yin R M, et al. Phase engineering of κ-Ga2O3 heteroepitaxy on LiNbO3 by strain competition effect. Appl Phys Lett, 2025, 127(6): 061603 doi: 10.1063/5.0283790
[71]
Kneiß M, Hassa A, Splith D, et al. Tin-assisted heteroepitaxial PLD-growth of κ-Ga2O3 thin films with high crystalline quality. APL Mater, 2019, 7(2): 022516 doi: 10.1063/1.5054378
[72]
Kracht M, Karg A, Schörmann J, et al. Tin-assisted synthesis of ε-Ga2O3 by molecular beam epitaxy. Phys Rev Appl, 2017, 8(5): 054002 doi: 10.1103/PhysRevApplied.8.054002
[73]
Li S, Yue J Y, Ji X Q, et al. Oxygen vacancies modulating the photodetector performances in ε-Ga2O3 thin films. J Mater Chem C, 2021, 9(16): 5437 doi: 10.1039/D1TC00616A
[74]
Liang J L, Mi W, Li Q, et al. Structural and optical properties of high crystalline quality orthorhombic к-Ga2O3 heteroepitaxial films grown by HVPE. Appl Phys A, 2025, 131(10): 797 doi: 10.1007/s00339-025-08950-9
[75]
Liu Z, Huang Y Q, Li H R, et al. Fabrication and characterization of Mg-doped ε-Ga2O3 solar-blind photodetector. Vacuum, 2020, 177: 109425 doi: 10.1016/j.vacuum.2020.109425
[76]
Yao S H, Yao Y F, Zhang M L, et al. Mist CVD technology for gallium oxide deposition: A review. Mater Today Phys, 2024, 49: 101604 doi: 10.1016/j.mtphys.2024.101604
[77]
Muazzam U U, Chavan P S, Muralidharan R, et al. Optical properties of mist CVD grown κ-Ga2O3. Semicond Sci Technol, 2022, 37(5): 055011 doi: 10.1088/1361-6641/ac6129
[78]
Stepanov S I, Nikolaev V I, Polyakov A Y, et al. HVPE growth and characterization of thick κ-Ga2O3 layers on GaN/Sapphire templates. ECS J Solid State Sci Technol, 2023, 12(1): 015002 doi: 10.1149/2162-8777/acb174
[79]
Nikolaev V I, Stepanov S I, Pechnikov A I, et al. HVPE growth and characterization of ε-Ga2O3 films on various substrates. ECS J Solid State Sci Technol, 2020, 9(4): 045014 doi: 10.1149/2162-8777/ab8b4c
[80]
Gao Y Y, Xu Z R, Tian X S, et al. Synthesis of n-type ZrO3 doped ε-Ga2O3 thin films by PLD and fabrication of Schottky diode. J Alloys Compd, 2022, 900: 163120 doi: 10.1016/j.jallcom.2021.163120
[81]
Zuo Y, Feng Q, Zhang T, et al. Impacts of oxygen source on band alignment of ALD Al2O3/(α-, ε-)Ga2O3 interface. J Cryst Growth, 2022, 580: 126462 doi: 10.1016/j.jcrysgro.2021.126462
[82]
Higashiwaki M, Fujita S. Gallium Oxide: Materials Properties, Crystal Growth, and Devices. Cham: Springer International Publishing, 2020: 293
[83]
Nishinaka H, Tahara D, Yoshimoto M. Heteroepitaxial growth of ε-Ga2O3 thin films on cubic (111) MgO and (111) yttria-stablized zirconia substrates by mist chemical vapor deposition. Jpn J Appl Phys, 2016, 55(12): 1202BC doi: 10.7567/JJAP.55.1202BC
[84]
Chen W Q, Chen Z M, Li Z Q, et al. Heteroepitaxy of ε-Ga2O3 thin films grown on AlN/Si (111) templates by metal–organic chemical vapor deposition. Appl Surf Sci, 2022, 581: 152335 doi: 10.1016/j.apsusc.2021.152335
[85]
Yusa S, Oka D, Fukumura T. High-κ dielectric ε-Ga2O3 stabilized in a transparent heteroepitaxial structure grown by mist CVD at atmospheric pressure. CrystEngComm, 2020, 22(2): 381 doi: 10.1039/C9CE01532A
[86]
Cho S H, Shin Y J, Jeong S M, et al. Two-step growth of κ-Ga2O3 thin films on 4H-SiC substrates with temperature-varied buffer layers using mist chemical vapor deposition. Jpn J Appl Phys, 2023, 62(1): 015508 doi: 10.35848/1347-4065/acb1e6
[87]
Zhuo Y, Chen Z M, Tu W B, et al. β-Ga2O3 versus ε-Ga2O3: Control of the crystal phase composition of gallium oxide thin film prepared by metal-organic chemical vapor deposition. Appl Surf Sci, 2017, 420: 802 doi: 10.1016/j.apsusc.2017.05.241
[88]
Lu J Q, Wang J P, Zhou C, et al. Temperature dependence of self-powered photodetection performance in hybrid ε-Ga2O3/PEDOT: PSS heterojunction. IEEE Trans Electron Devices, 2024, 71(9): 5541 doi: 10.1109/TED.2024.3436001
[89]
Chen Y P, Xia X C, Liang H W, et al. Growth pressure controlled nucleation epitaxy of pure phase ε- and β-Ga2O3 films on Al2O3 via metal-organic chemical vapor deposition. Cryst Growth Des, 2018, 18(2): 1147 doi: 10.1021/acs.cgd.7b01576
[90]
Yu J, Wang Y H, Li H R, et al. Tailoring the solar-blind photoresponse characteristics of β-Ga2O3 epitaxial films through lattice mismatch and crystal orientation. J Phys D Appl Phys, 2020, 53(24): 24LT01 doi: 10.1088/1361-6463/ab7e67
[91]
Wang Y, Xie Z G, Guan Y Z, et al. Sn-assisted epitaxial growth of high-crystallinity κ/ε-Ga2O3 on sapphire (0001) by low-pressure Mist-CVD. Appl Phys Lett, 2025, 127(10): 102109 doi: 10.1063/5.0280118
[92]
Xu Y B, Park J-H, Yao Z P, et al. Strain-induced metastable phase stabilization in Ga2O3 thin films. ACS Appl Mater Interfaces, 2019, 11(5): 5536 doi: 10.1021/acsami.8b17731
[93]
Bosi M, Seravalli L, Mazzolini P, et al. Thermodynamic and kinetic effects on the nucleation and growth of ε/κ- or β-Ga2O3 by metal-organic vapor phase epitaxy. Cryst Growth Des, 2021, 21(11): 6393 doi: 10.1021/acs.cgd.1c00863
[94]
Seravalli L, Ugolotti A, Bergamaschini R, et al. Supersaturation-dependent competition between β and κ phases in the MOVPE growth of Ga2O3 on Al2O3 (0001) and GaN (0001) substrates. ACS Appl Mater Interfaces, 2025, 17(45): 62261 doi: 10.1021/acsami.5c13401
[95]
Jiang K Y, Tang J Y, Cabral M J, et al. Layered phase composition and microstructure of κ-Ga2O3-dominant heteroepitaxial films grown via MOCVD. J Appl Phys, 2022, 131(5): 055305 doi: 10.1063/5.0073517
[96]
Bertoni I, Ugolotti A, Scalise E, et al. Surface and volume energies of α-, β-, and κ-Ga2O3 under epitaxial strain induced by a sapphire substrate. J Mater Chem C, 2024, 12(5): 1820 doi: 10.1039/D3TC04284G
[97]
Li S, Yue J Y, Lu C, et al. Oxygen vacancies modulating self-powered photoresponse in PEDOT: PSS/ε-Ga2O3 heterojunction by trapping effect. Sci China Technol Sci, 2022, 65(3): 704 doi: 10.1007/s11431-021-1945-x
[98]
Li W J, Li J L, Wang Y, et al. Influence of oxygen on Ga2O3 deposition at low temperature by MOCVD. Cryst Growth Des, 2024, 24(1): 171 doi: 10.1021/acs.cgd.3c00815
[99]
Hidouri T, Nasi L, Ferrari C, et al. Single-phase κ-Ga2O3 films deposited by metal-organic chemical vapor deposition on GaAs and ternary BxGa(1-x)As templates. Appl Surf Sci, 2025, 708: 163764 doi: 10.1016/j.apsusc.2025.163764
[100]
Yue J Y, Ji X Q, Qi X H, et al. Low MOCVD growth temperature controlled phase transition of Ga2O3 films for ultraviolet sensing. Vacuum, 2022, 203: 111270 doi: 10.1016/j.vacuum.2022.111270
[101]
Xia H C, Yang Y T, Cao J, et al. Growth rate control and phase diagram of wafer-scale Ga2O3 films by MOCVD. Vacuum, 2023, 215: 112388 doi: 10.1016/j.vacuum.2023.112388
[102]
Kung P K, Chou H Y, Chiang W H, et al. Phase‐selective MOCVD of orthorhombic ferroelectric gallium oxide: Temperature‐pressure control of phase stability, crystallinity, and ferroelectricity for memristor applications. Adv Electron Mater, 2026, 12(8): e00747 doi: 10.1002/aelm.202500747
[103]
Fei Z Y, Chen Z M, Chen W Q, et al. ε-Ga2O3 thin films grown by metal-organic chemical vapor deposition and its application as solar-blind photodetectors. J Alloys Compd, 2022, 925: 166632 doi: 10.1016/j.jallcom.2022.166632
[104]
Luo T C, Chen X F, Yang Z, et al. Epitaxial lateral overgrowth of ε-Ga2O3 by metal–organic chemical vapor deposition. Eur Phys J Spec Top, 2025, 234(2): 273 doi: 10.1140/epjs/s11734-025-01485-3
[105]
Chen W Q, Zhu S H, Li L X, et al. Modulation of defect structures for MOCVD-grown ε-Ga2O3 thin films by using sapphire substrates with large off-axis angles. Appl Surf Sci, 2025, 710: 164010 doi: 10.1016/j.apsusc.2025.164010
[106]
Wang L, Wang Y, Feng Q, et al. The pulse Sn-assisted growth promotes the preparation of high-quality single-crystal ε-Ga2O3 films using MOCVD technology. Ceram Int, 2025, 51(4): 5095 doi: 10.1016/j.ceramint.2024.11.483
[107]
Kung P K, Chou H Y, Chiang W H, et al. MOCVD-grown ε(κ)-Ga2O3 with highly preferred orientation for memristor applications. Mater Today Adv, 2025, 26: 100589 doi: 10.1016/j.mtadv.2025.100589
[108]
Wang Z W, Huang H, Hou X H, et al. Crystal-phase engineering of ε-Ga2O3 for high-performance deep UV photodetectors via MOCVD. Sci China Mater, 2025, 68(4): 1174 doi: 10.1007/s40843-024-3245-6
[109]
Chen Y F, Xia M Y, Dong X M, et al. Tunable phase stabilization optimization for achieving single-phase ε-Ga2O3 epitaxy. J Alloys Compd, 2025, 1046: 184847 doi: 10.1016/j.jallcom.2025.184847
[110]
Demir B, Peterson R L. Improved heteroepitaxy of κ-Ga2O3 on c-plane sapphire by initial mist flow stabilization during mist chemical vapor deposition. Thin Solid Films, 2024, 791: 140223 doi: 10.1016/j.tsf.2024.140223
[111]
Xu M F, Li Y, Li C L, et al. Optimization of oxygen flow rate toward high-quality ε-Ga2O3 thin films grown on sapphire substrates and solar-blind ultraviolet photodetectors. Opt Mater, 2025, 164: 117011 doi: 10.1016/j.optmat.2025.117011
[112]
Kang H Y, Kang H, Lee E, et al. Sn-induced phase stabilization and enhanced thermal stability of κ-Ga2O3 grown by mist chemical vapor deposition. ACS Omega, 2021, 6(46): 31292 doi: 10.1021/acsomega.1c05130
[113]
Nishinaka H, Ueda O, Ito Y, et al. Plan-view TEM observation of a single-domain κ-Ga2O3 thin film grown on ε-GaFeO3 substrate using GaCl3 precursor by mist chemical vapor deposition. Jpn J Appl Phys, 2022, 61(1): 018002 doi: 10.35848/1347-4065/ac3e17
[114]
Zhang Y J, Gong Y Q, Chen X H, et al. Unlocking the single-domain heteroepitaxy of orthorhombic κ-Ga2O3 via phase engineering. ACS Appl Electron Mater, 2022, 4(1): 461 doi: 10.1021/acsaelm.1c01094
[115]
Polyakov A Y, Nikolaev V I, Pechnikov A I, et al. Structural and electrical properties of thick κ-Ga2O3 grown on GaN/sapphire templates. APL Mater, 2022, 10(6): 061102 doi: 10.1063/5.0091653
[116]
Liu N T, Lin H B, Yang Y X, et al. High performance solar blind avalanche photodetector based on a single-crystalline ɛ-Ga2O3/BaSnO3 heterojunction. Mater Today Phys, 2024, 42: 101385 doi: 10.1016/j.mtphys.2024.101385
[117]
Zhang J G, Liu N T, Chen L, et al. Ultrawide bandgap diamond/ε-Ga2O3 heterojunction pn diodes with breakdown voltages over 3 kV. Nano Lett, 2025, 25(1): 537 doi: 10.1021/acs.nanolett.4c05446
[118]
Zhang J T, Zeng X H, Wu Y, et al. Phase-pure ε-Ga2O3 thin films on c-plane sapphire substrates at low temperature by plasma-enhanced ALD: Growth, characterization, and interface analysis. Vacuum, 2025, 233: 114005 doi: 10.1016/j.vacuum.2024.114005
[119]
Lu J Q, Zhang W, Zhang M L, et al. Effect of the VI/III ratio on the growth of κ-Ga2O3 films via MOCVD. Appl Phys Lett, 2025, 127(20): 201902 doi: 10.1063/5.0288203
[120]
Sun H D, Li K H, Castanedo C G T, et al. HCl flow-induced phase change of α-, β-, and ε-Ga2O3 films grown by MOCVD. Cryst Growth Des, 2018, 18(4): 2370 doi: 10.1021/acs.cgd.7b01791
[121]
Arata Y, Nishinaka H, Tahara D, et al. Heteroepitaxial growth of single-phase ε-Ga2O3 thin films on c -plane sapphire by mist chemical vapor deposition using a NiO buffer layer. CrystEngComm, 2018, 20(40): 6236 doi: 10.1039/C8CE01128A
[122]
Oshima Y, Víllora E G, Matsushita Y, et al. Epitaxial growth of phase-pure ε-Ga2O3 by halide vapor phase epitaxy. J Appl Phys, 2015, 118(8): 085301 doi: 10.1063/1.4929417
[123]
Boschi F, Bosi M, Berzina T, et al. Hetero-epitaxy of ε-Ga2O3 layers by MOCVD and ALD. J Cryst Growth, 2016, 443: 25 doi: 10.1016/j.jcrysgro.2016.03.013
[124]
Kang H Y, Yeom M J, Yang J Y, et al. Epitaxial κ-Ga2O3/GaN heterostructure for high electron-mobility transistors. Mater Today Phys, 2023, 31: 101002 doi: 10.1016/j.mtphys.2023.101002
[125]
Krishna S, Lu Y, Liao C H, et al. Band alignment of orthorhombic Ga2O3 with GaN and AlN semiconductors. Appl Surf Sci, 2022, 599: 153901 doi: 10.1016/j.apsusc.2022.153901
[126]
Zhan Q Q, Li Y, Yue L K, et al. High-performance self-powered solar-blind ultraviolet photodetector based on GaN/κ-Ga2O3 heterojunction. Opt Mater, 2026, 173: 117843 doi: 10.1016/j.optmat.2026.117843
[127]
Leone S, Fornari R, Bosi M, et al. Epitaxial growth of GaN/Ga2O3 and Ga2O3/GaN heterostructures for novel high electron mobility transistors. J Cryst Growth, 2020, 534: 125511 doi: 10.1016/j.jcrysgro.2020.125511
[128]
Kim S, Lee J, Ahn H, et al. Growth and crystal phase transformation of ε-Ga2O3 grown on 4H–SiC by MOCVD. Mater Sci Semicond Process, 2022, 144: 106586 doi: 10.1016/j.mssp.2022.106586
[129]
Cho S B, Mishra R. Epitaxial engineering of polar ε-Ga2O3 for tunable two-dimensional electron gas at the heterointerface. Appl Phys Lett, 2018, 112(16): 162101 doi: 10.1063/1.5019721
[130]
Wang Z J, Chen C X, Meng H Y, et al. Biodegradable piezoelectric materials: Powering the future of bioelectronic medicine. Adv Funct Mater, 2026, 36(22): e19501 doi: 10.1002/adfm.202519501
[131]
Wang L P, Li R W. A more biofriendly piezoelectric material. Science, 2024, 383(6690): 1416 doi: 10.1126/science.ado5706
[132]
Guo S D, Du H M. Piezoelectric properties of Ga2O3: a first-principle study. Eur Phys J B, 2020, 93(1): 7 doi: 10.1140/epjb/e2019-100516-6
[133]
Shimada K. First-principles study of crystal structure, elastic stiffness constants, piezoelectric constants, and spontaneous polarization of orthorhombic Pna21-M2O3 (M = Al, Ga, In, Sc, Y). Mater Res Express, 2018, 5(3): 036502 doi: 10.1088/2053-1591/aab118
[134]
Chen Z M, Lu X, Tu Y J, et al. ε‐Ga2O3: An Emerging Wide Bandgap Piezoelectric Semiconductor for Application in Radio Frequency Resonators. Adv Sci, 2022, 9(32): 2203927 doi: 10.1002/advs.202203927
[135]
Ababneh A, Schmid U, Hernando J, et al. The influence of sputter deposition parameters on piezoelectric and mechanical properties of AlN thin films. Mater Sci Eng B, 2010, 172(3): 253 doi: 10.1016/j.mseb.2010.05.026
[136]
Dubois M A, Muralt P. Stress and piezoelectric properties of aluminum nitride thin films deposited onto metal electrodes by pulsed direct current reactive sputtering. J Appl Phys, 2001, 89(11): 6389 doi: 10.1063/1.1359162
[137]
Martin F, Muralt P, Dubois M A, et al. Thickness dependence of the properties of highlyc-axis textured AlN thin films. J Vac Sci Technol A, 2004, 22(2): 361 doi: 10.1116/1.1649343
[138]
Bowen C R, Kim H A, Weaver P M, et al. Piezoelectric and ferroelectric materials and structures for energy harvesting applications. Energy Environ Sci, 2014, 7(1): 25 doi: 10.1039/C3EE42454E
[139]
Valdez L A, Caravaca M A, Casali R A. Ab-initio study of elastic anisotropy, hardness and volumetric thermal expansion coefficient of ZnO, ZnS, ZnSe in wurtzite and zinc blende phases. J Phys Chem Solids, 2019, 134: 245 doi: 10.1016/j.jpcs.2019.05.019
[140]
Ding J Q, Liu Y, Wang S X, et al. Surface acoustic wave resonator with epitaxial ε-Ga2O3 thin films: performance characteristics and temperature sensor potential. IEEE Microw Wirel Technol Lett, 2025, 35(9): 1424 doi: 10.1109/LMWT.2025.3570271
[141]
Wang Y, Xie Z G, Guan Y Z, et al. Atomic-level revelation of spontaneous polarization orientation and piezoelectricity in ε-Ga2O3. Appl Phys Lett, 2026, 128(12): 122107 doi: 10.1063/5.0321241
[142]
Wu C, Wu F M, Hu H Z, et al. Review of self-powered solar-blind photodetectors based on Ga2O3. Mater Today Phys, 2022, 28: 100883 doi: 10.1016/j.mtphys.2022.100883
[143]
Noskov A I, Kotlyar A B, Katrivas L, et al. Overcoming the indirect band gap: Efficient silicon emission via momentum-engineered photonic states. Nano Lett, 2026, 26(15): 5187 doi: 10.1021/acs.nanolett.6c00596
[144]
Sahare S, Solovan M M, Mostovyi A I, et al. Semiconductor bandgap measurements: Overview of optical, electrical, and device‐level techniques. Adv Opt Mater, 2025, 13(29): e01747 doi: 10.1002/adom.202501747
[145]
Kim J, Tahara D, Miura Y, et al. First-principle calculations of electronic structures and polar properties of (κ, ε)-Ga2O3. Appl Phys Express, 2018, 11(6): 061101 doi: 10.7567/APEX.11.061101
[146]
Dobročka E, Gucmann F, Hušeková K, et al. Structure and thermal stability of ε/κ-Ga2O3 films deposited by liquid-injection MOCVD. Materials, 2022, 16(1): 20 doi: 10.3390/ma16010020
[147]
Banda Y, Jia Y Q, Cho S H, et al. On the structural and bandgap properties of mist-CVD-grown κ-Ga2O3 post continuous temperature annealing. AIP Adv, 2024, 14(11): 115019 doi: 10.1063/5.0233281
[148]
Montedoro V, Torres A, Dadgostar S, et al. Cathodoluminescence of undoped and Si-doped ɛ-Ga2O3 films. Mater Sci Eng B, 2021, 264: 114918 doi: 10.1016/j.mseb.2020.114918
[149]
Xi Z Y, Liu Z, Yang L L, et al. Comprehensive study on ultra-wide band gap La2O3/ε-Ga2O3 p–n heterojunction self-powered deep-UV photodiodes for flame sensing. ACS Appl Mater Interfaces, 2023, 15(34): 40744 doi: 10.1021/acsami.3c07597
[150]
Jia Y Q, Lin H M, Chang H L, et al. Synaptic κ‐Ga2O3 photodetectors for privacy‐enhancing neuromorphic computing. Adv Sci, 2026, 13(36): e75160 doi: 10.1002/advs.75160
[151]
Qin Y, Li L H, Zhao X L, et al. Metal–semiconductor–metal ε-Ga2O3 solar-blind photodetectors with a record-high responsivity rejection ratio and their gain mechanism. ACS Photonics, 2020, 7(3): 812 doi: 10.1021/acsphotonics.9b01727
[152]
Zhang W R, Wang W, Wei J X, et al. Photocarrier transport reconstruction and dramatical performance enhancement in ultrawide-bandgap ε-Ga2O3 photodetectors via surface defect passivation. Mater Today Phys, 2023, 38: 101280 doi: 10.1016/j.mtphys.2023.101280
[153]
Wan J, Liu L, Wu Y, et al. Exploring the polarization photocatalysis of ZnIn2S4 material toward hydrogen evolution by integrating cascade electric fields with hole transfer vehicle. Adv Funct Mater, 2022, 32(35): 2203252 doi: 10.1002/adfm.202203252
[154]
Huang X Y, Wang K Q, Wang Y Z, et al. Enhanced charge carrier separation to improve hydrogen production efficiency by ferroelectric spontaneous polarization electric field. Appl Catal B, 2018, 227: 322 doi: 10.1016/j.apcatb.2018.01.036
[155]
Wang J X, Chu C S, Tian K K, et al. Polarization assisted self-powered GaN-based UV photodetector with high responsivity. Photonics Res, 2021, 9(5): 734 doi: 10.1364/PRJ.418813
[156]
Guo J R, Gu Y, Liu Y S, et al. Polarization assisted interdigital AlGaN/GaN heterostructure ultraviolet photodetectors. IEEE Trans Electron Devices, 2023, 70(5): 2352 doi: 10.1109/TED.2023.3258920
[157]
Li X X, Sun L, Zhao X F, et al. Optoelectronic synaptic devices based on ε-Ga2O3/ZnO heterojunctions grown by an optimized process. Cryst Growth Des, 2025, 25(22): 9610 doi: 10.1021/acs.cgd.5c00641
[158]
Kim I J, Lee J S. Ferroelectric transistors for memory and neuromorphic device applications. Adv Mater, 2023, 35(22): 2206864 doi: 10.1002/adma.202206864
[159]
Wang A J, Chen R, Yun Y, et al. Review of ferroelectric materials and devices toward ultralow voltage operation. Adv Funct Mater, 2025, 35(7): 2412332 doi: 10.1002/adfm.202412332
[160]
Khosla R, Sharma S K. Integration of ferroelectric materials: an ultimate solution for next-generation computing and storage devices. ACS Appl Electron Mater, 2021, 3(7): 2862 doi: 10.1021/acsaelm.0c00851
[161]
Faizan M, Qian Z F, Zhu H, et al. Emerging ferroelectric materials for high-performance next-generation memory devices. ACS Appl Electron Mater, 2025, 7(16): 7473 doi: 10.1021/acsaelm.5c01058
[162]
Kim K H, Karpov I, Olsson R H, et al. Wurtzite and fluorite ferroelectric materials for electronic memory. Nat Nanotechnol, 2023, 18(5): 422 doi: 10.1038/s41565-023-01361-y
[163]
Länge K, Rapp B E, Rapp M. Surface acoustic wave biosensors: a review. Anal Bioanal Chem, 2008, 391(5): 1509 doi: 10.1007/s00216-008-1911-5
[164]
Tu Y J, Chen W Q, Zhang Z P, et al. Surface acoustic wave resonators using a novel ε-Ga2O3 piezoelectric film grown on sapphire. IEEE Electron Device Lett, 2023, 44(6): 895 doi: 10.1109/LED.2023.3269040
[165]
Zhang Y, Cai Y, Zhou J, et al. Surface acoustic wave-based ultraviolet photodetectors: a review. Sci Bull, 2020, 65(7): 587 doi: 10.1016/j.scib.2019.12.001
[166]
Luo J H, Huang C H, Tu Y J, et al. An ε-Ga2O3-based surface acoustic wave resonator for deep ultraviolet detection. IEEE Electron Device Lett, 2024, 45(12): 2510 doi: 10.1109/LED.2024.3480908
[167]
Zhang Z, Yang L L, Liu Z, et al. Theoretical analysis of bulk acoustic wave resonators with emerging ε-Ga2O3 piezoelectric film. Appl Phys Lett, 2024, 124(3): 033502 doi: 10.1063/5.0182451
[168]
Fu Y P, Chen S J, Tu Y J, et al. Demonstration of high-overtone bulk acoustic resonators using an epitaxial ε-Ga2O3 piezoelectric film on SiC. 2023 IEEE International Ultrasonics Symposium (IUS). Montreal, QC, Canada. IEEE, 2023: 1
[169]
Fan P Y, Chettiar U K, Cao L Y, et al. An invisible metal–semiconductor photodetector. Nat Photonics, 2012, 6(6): 380 doi: 10.1038/nphoton.2012.108
[170]
Pecunia V, Anthopoulos T D, Armin A, et al. Guidelines for accurate evaluation of photodetectors based on emerging semiconductor technologies. Nat Photonics, 2025, 19(11): 1178 doi: 10.1038/s41566-025-01759-1
[171]
Lei J M, Cai Q, Cao J Y, et al. High-performance ε-Ga2O3 solar-blind ultraviolet photodetectors with interdigital framework. IEEE Trans Electron Devices, 2024, 71(1): 645 doi: 10.1109/TED.2023.3335897
[172]
Zhou C, Wang J P, Shu L C, et al. ε-Ga2O3 solar-blind photodetector: Pyroelectric effect and flame sensing application. Vacuum, 2025, 234: 114060 doi: 10.1016/j.vacuum.2025.114060
[173]
Hu S D, Liu N T, Li T, et al. High-performance deep-ultraviolet photodetector based on a single-crystalline ϵ-Ga2O3 /Sn-doped In2O3 heterojunction. J Phys D Appl Phys, 2025, 58(2): 025111 doi: 10.1088/1361-6463/ad8758
[174]
Yang Y X, Han D Y, Wu S M, et al. High-performance solar-blind ultraviolet photodetector arrays based on two-inch ϵ-Ga2O3 films for imaging applications. J Phys D Appl Phys, 2025, 58(10): 105108 doi: 10.1088/1361-6463/ada3e0
[175]
Xia K L, Liu Z, Sha S L, et al. Self-powered solar-blind detector array based on ε-Ga2O3 Schottky photodiodes for dual-mode binary UV communication. Opt Lett, 2023, 48(24): 6384 doi: 10.1364/OL.506189
[176]
Lu Y, Miranda Cortez P A, Tang X, et al. κ/β‐Ga2O3 Type‐II Phase Heterojunction. Adv Mater, 2025, 37(8): 2406902 doi: 10.1002/adma.202406902

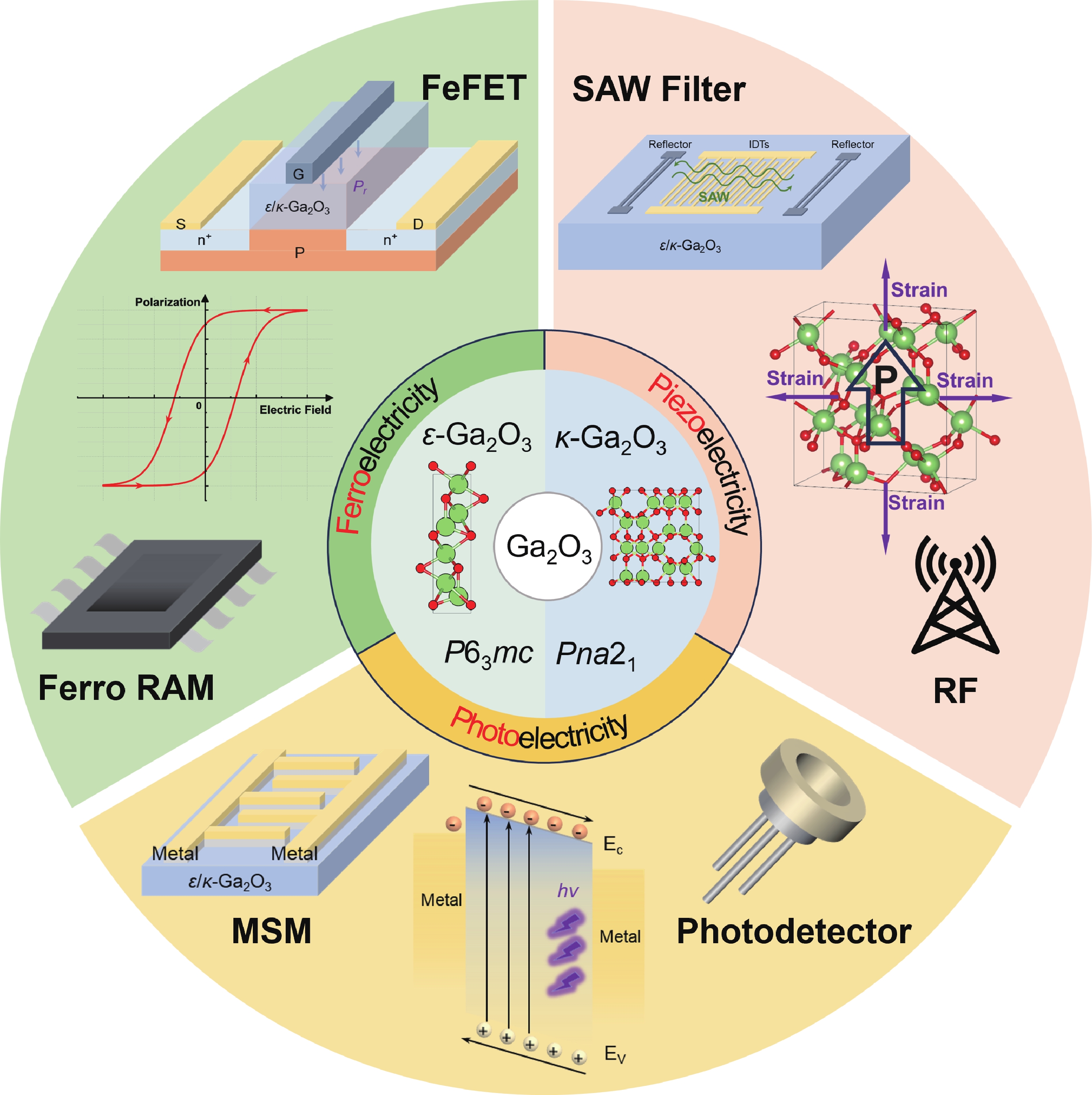

Fig. 1.  (Color online) The key physical properties of ε/κ-Ga2O3.

DownLoad: Full-Size Img PowerPoint

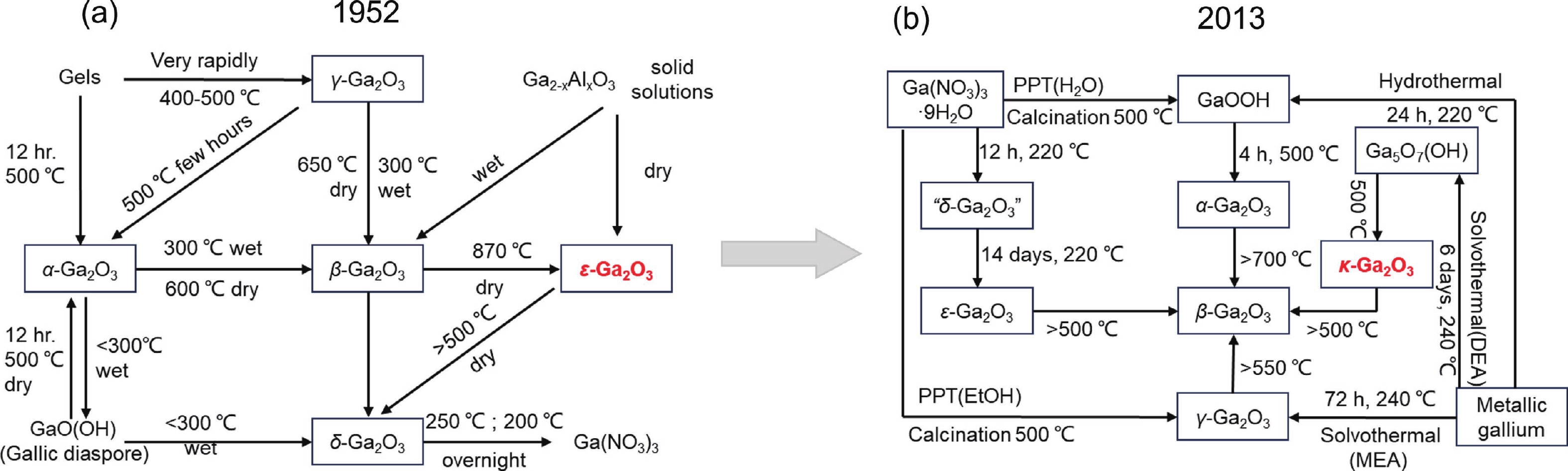

Fig. 2.  (Color online) (a)early transformation relationship; (b) The transformation relationship after adding the κ phase[59, 60].

DownLoad: Full-Size Img PowerPoint

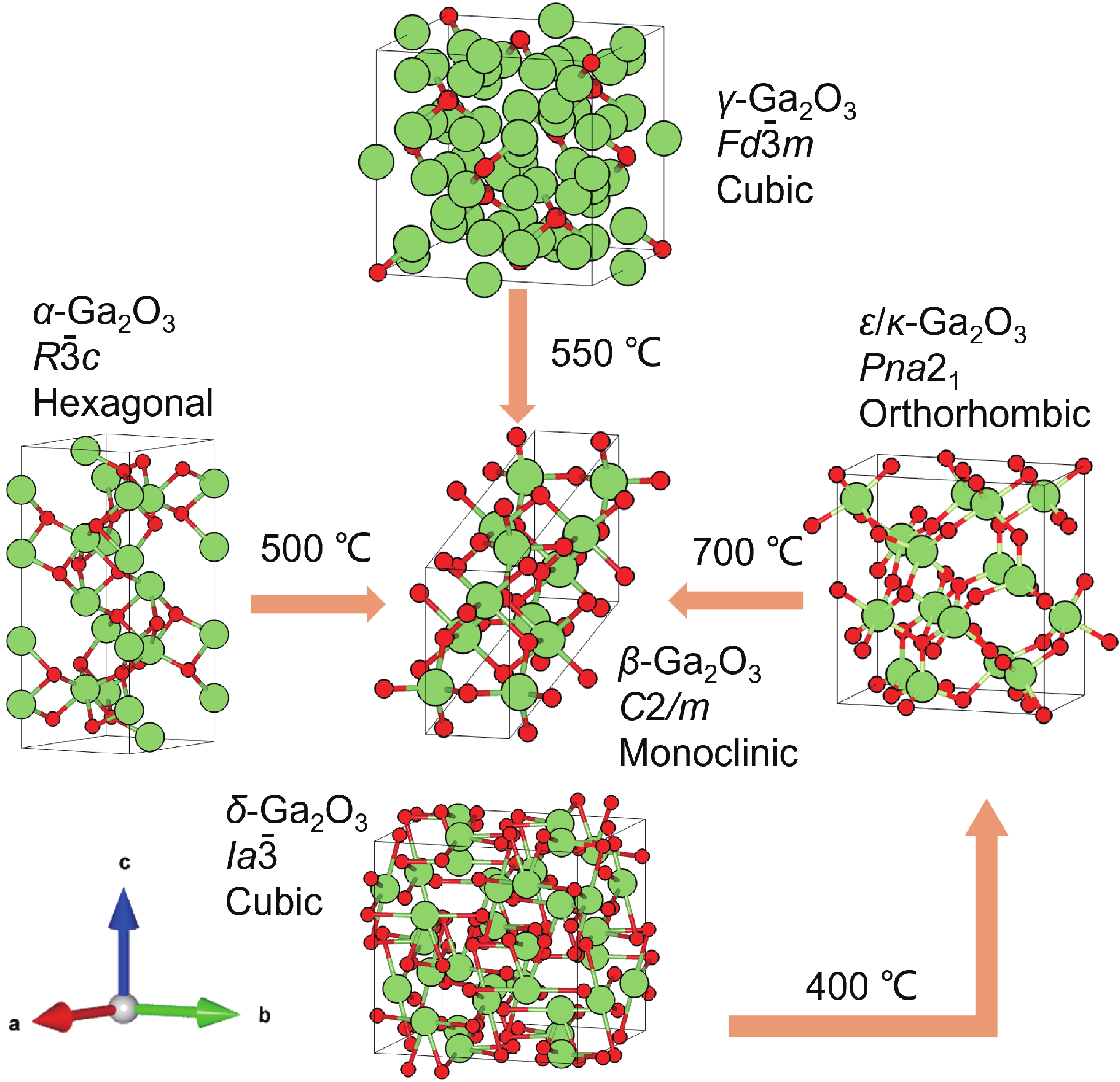

Fig. 3.  (Color online) phase transformation among five crystalline Ga2O3 polymorphs.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) Schematic representations of the oxygen atomic arrangement of ε-Ga2O3 and κ-Ga2O3, showing the real relationship between them, which is based on actual resolution of the probing techniques.

DownLoad: Full-Size Img PowerPoint

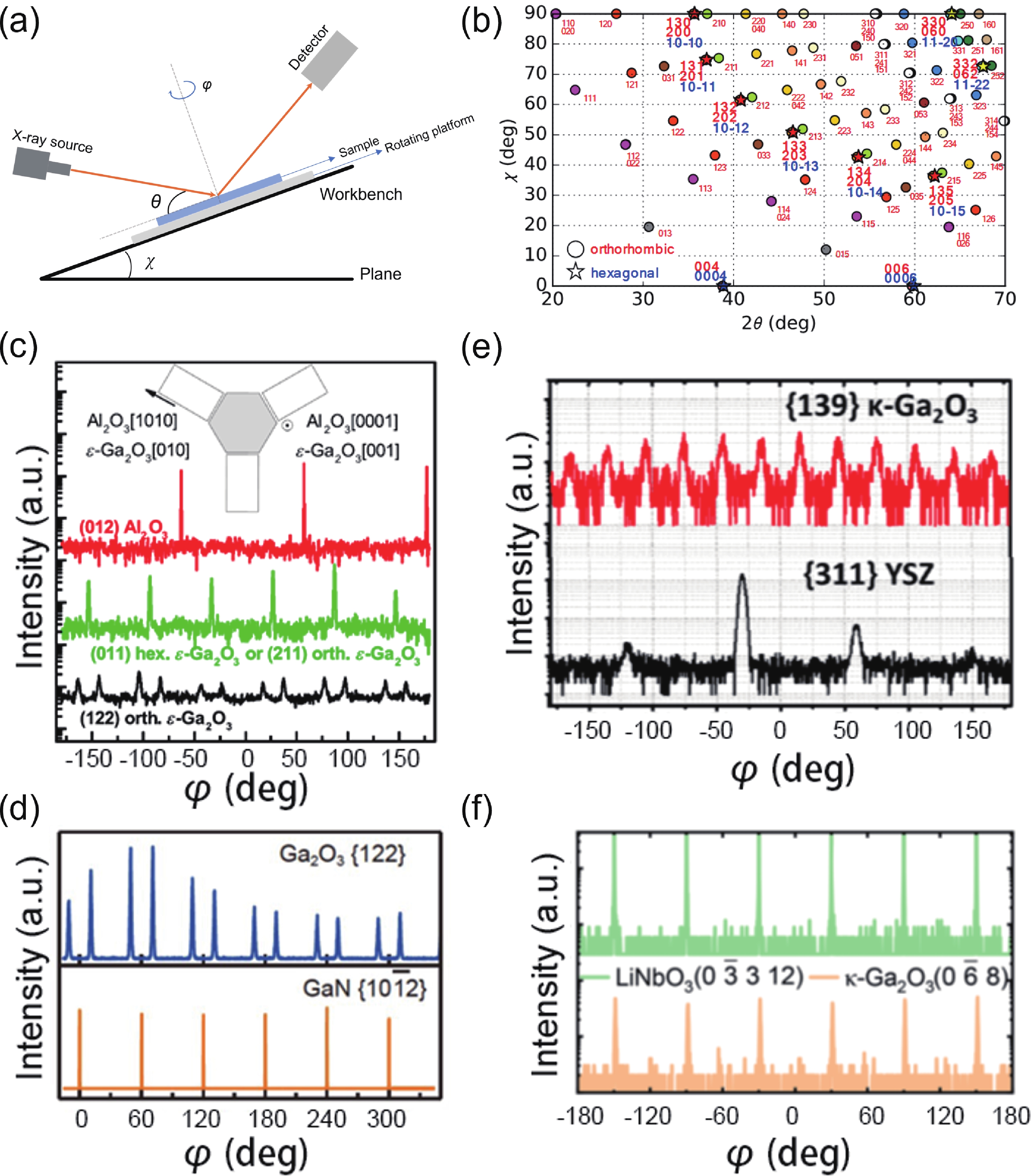

Fig. 5.  (Color online) (a) schematic diagram of XRD φ-scan; (b) XRD angle relationships between the orthorhombic κ-Ga2O3 and the hexagonal ε-Ga2O3. The X-ray source is Cu Kα1 (λ = 1.5405 Å); radiation XRD φ scan of ε/κ-Ga2O3 (c) (122) reflection on Al2O3; (d) (122) reflection on GaN; (e) (139) reflection on STO; (f) (0−68) reflection on LiNbO3[66, 68−71].

DownLoad: Full-Size Img PowerPoint

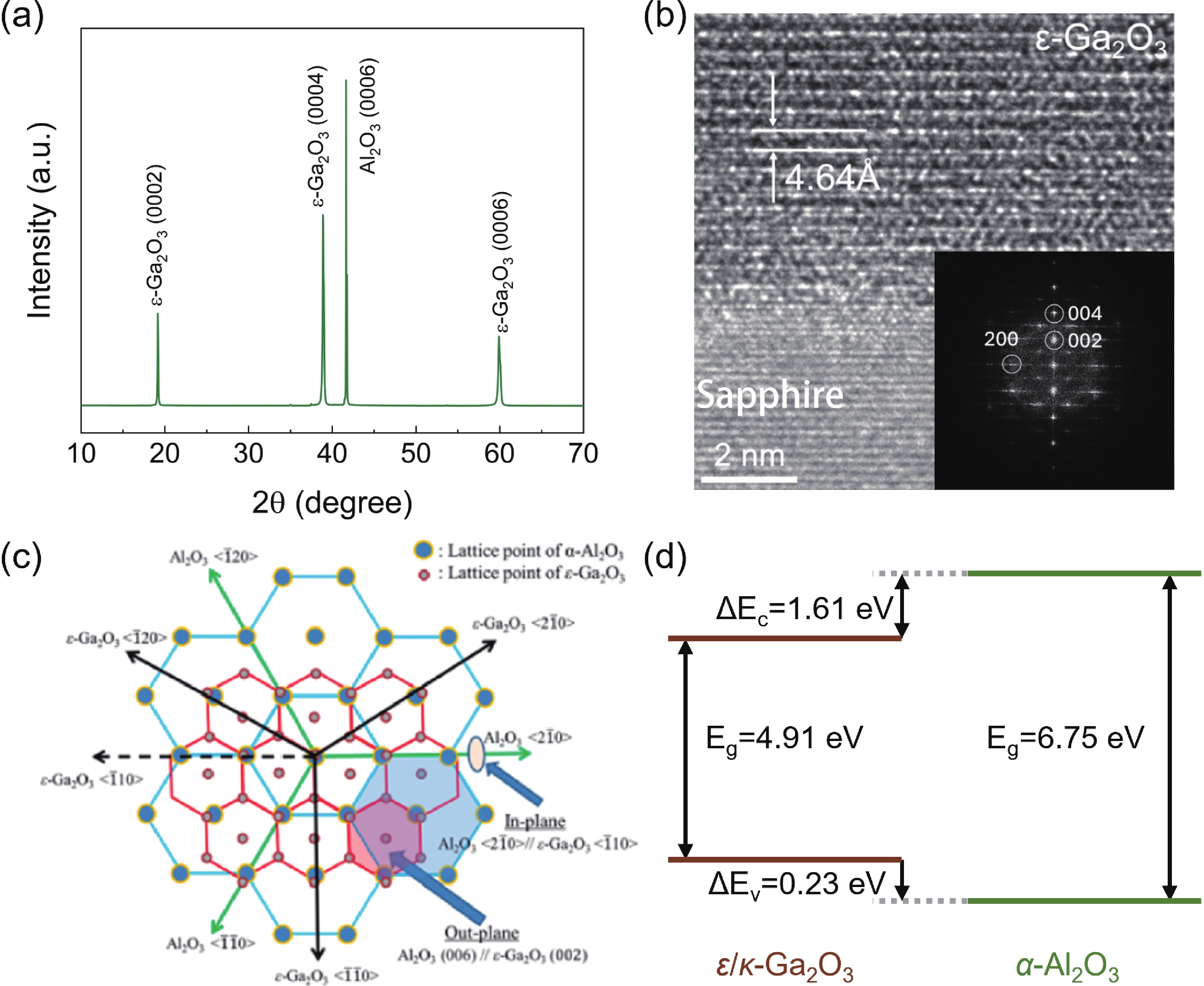

Fig. 6.  (Color online) (a) XRD patterns of ε-Ga2O3 on α-Al2O3 substrate; (b) Cross-section TEM image of ε-Ga2O3/α-Al2O3; (c) The epitaxial relationship between the ε-Ga2O3 and α-Al2O3 substrate; (d) The Band alignment of ε-Ga2O3/α-Al2O3[81, 88, 89, 91].

DownLoad: Full-Size Img PowerPoint

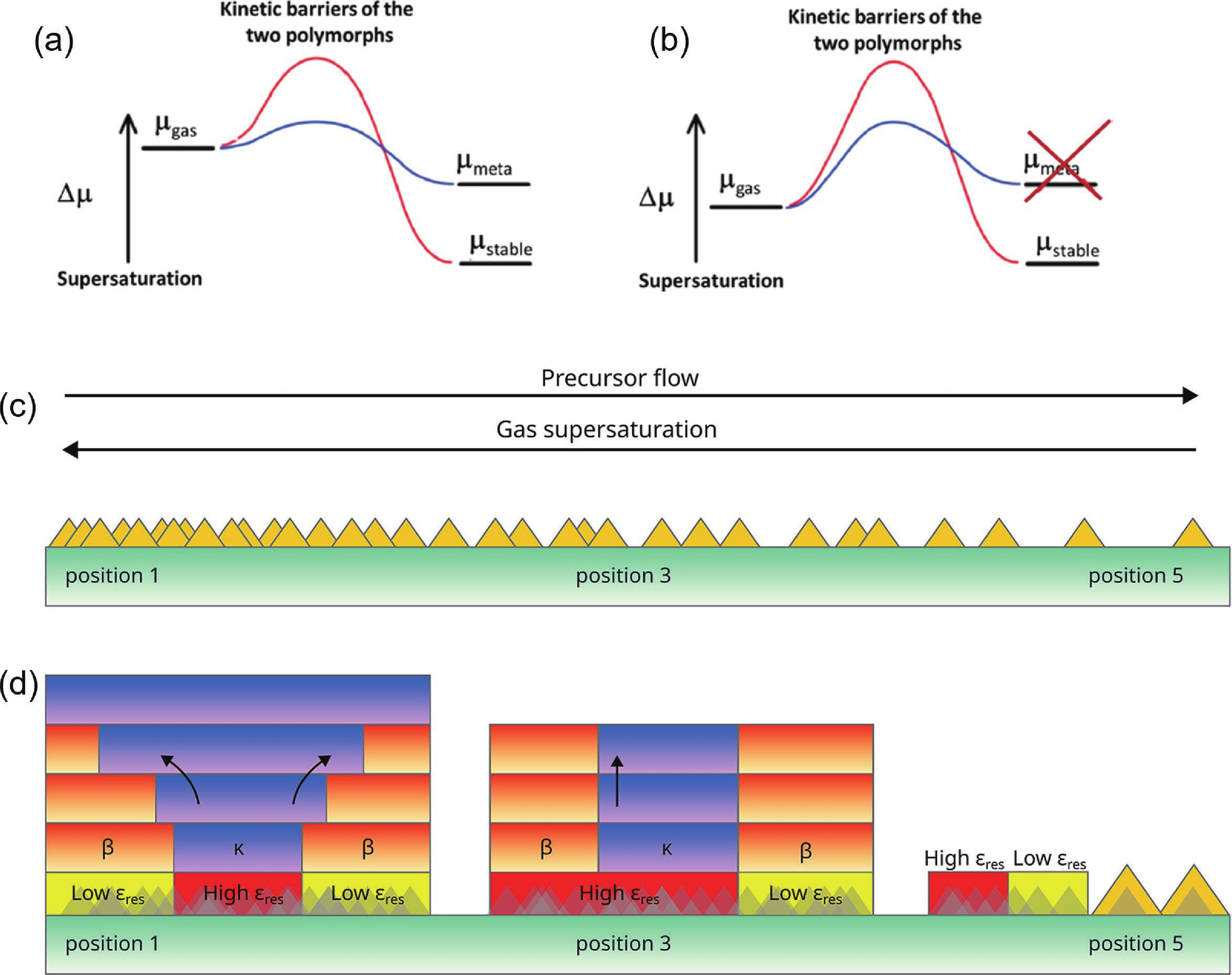

Fig. 7.  (Color online) Schematic mechanism of the formation of (a)metastable or (b) stable phases depending on Δμ; Sketches of the evolution of MOVPE growth of the Ga2O3 polymorphs: (c) the different nucleation mechanisms related to the growth conditions and the strain state of the interlayer; (d) a scheme of the evolution of the competing β and κ grains[93, 94].

DownLoad: Full-Size Img PowerPoint

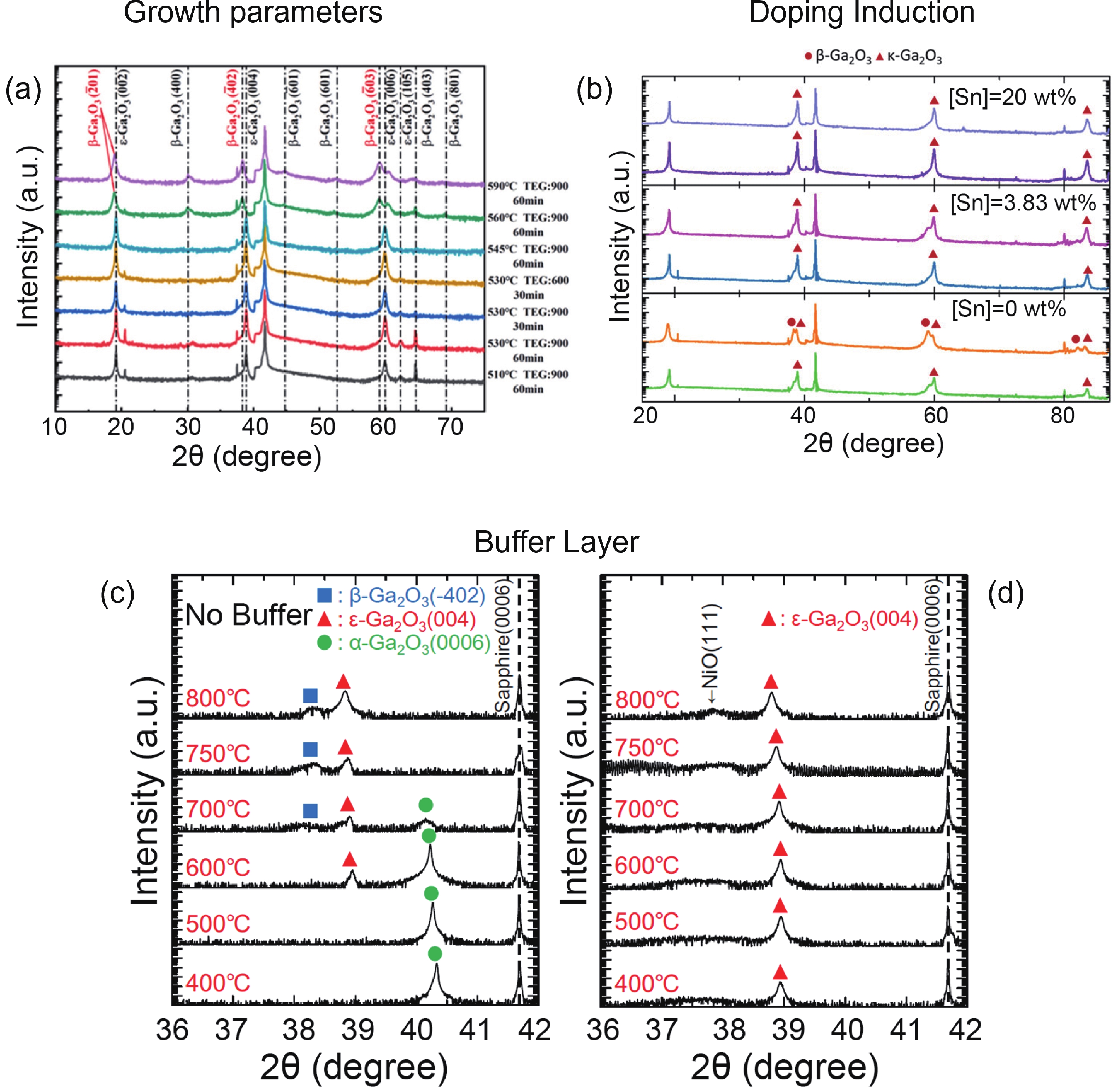

Fig. 8.  (Color online) the methods of phase control: (a) growth parameters modulation; (b) doping-induced modulation; (c) two-step growth with a buffer layer[101, 112, 121].

DownLoad: Full-Size Img PowerPoint

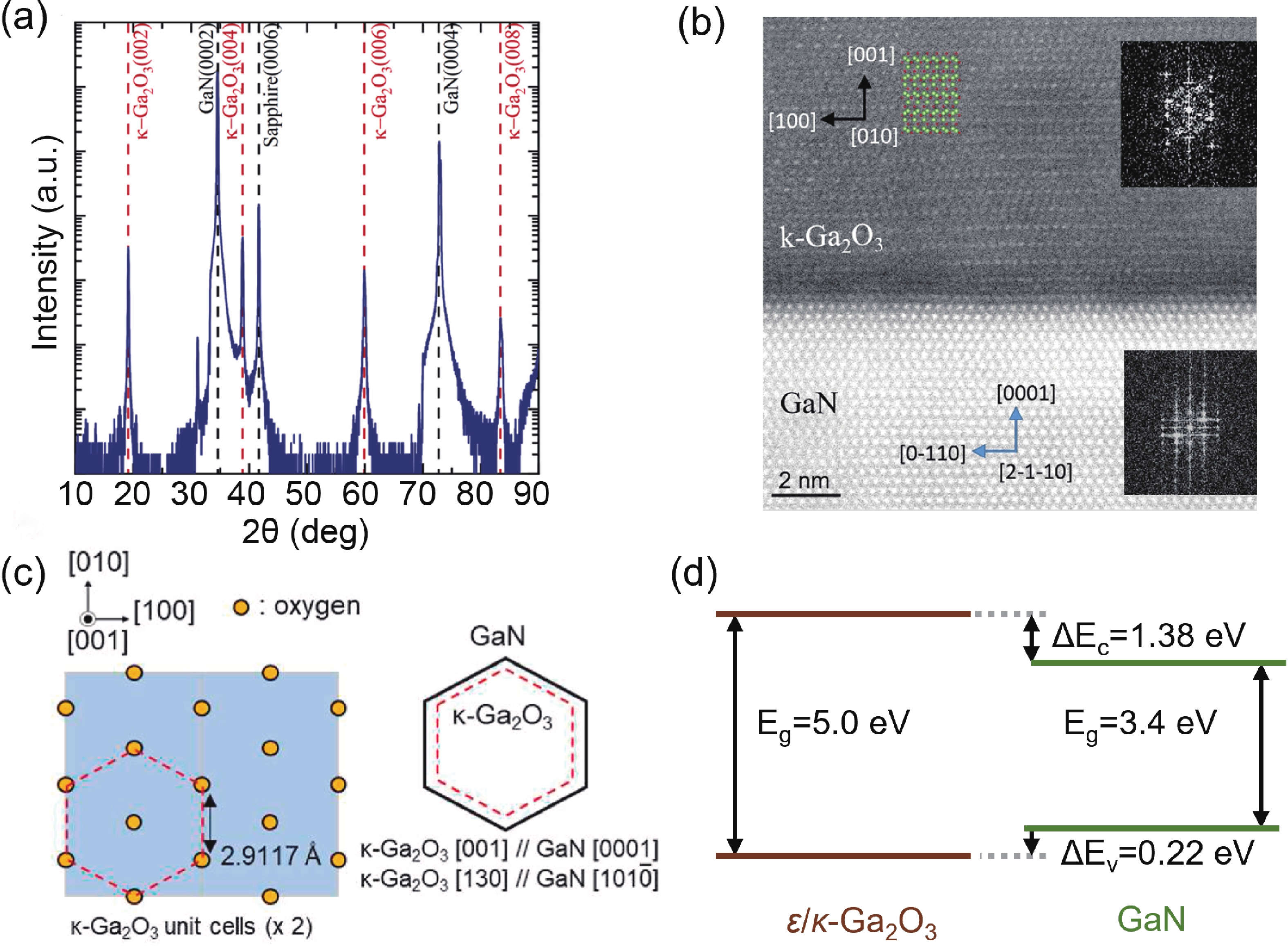

Fig. 9.  (Color online) (a) XRD patterns of κ-Ga2O3 on GaN substrate; (b) Cross-section TEM image of κ-Ga2O3/GaN; (c) The epitaxial relationship between the κ-Ga2O3 and GaN substrate; (d) The Band alignment of κ-Ga2O3/GaN[124−126].

DownLoad: Full-Size Img PowerPoint

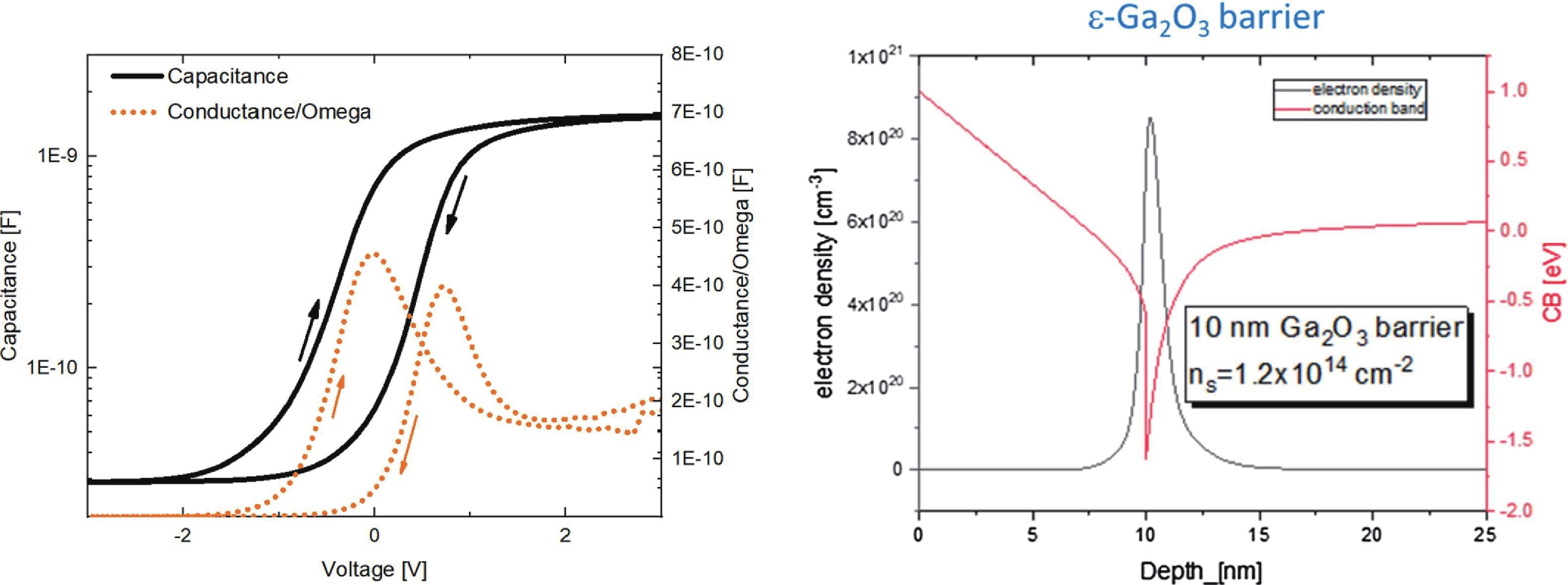

Fig. 10.  (Color online) (a) Capacitance and G/ω in dependence of the applied voltage of 17 min grown ε-Ga2O3 layers on GaN/Al2O3 on-axis template; (b) Simulation of bandgap bending and calculation of electron density in case of ε-Ga2O3 /GaN interfaces[127].

DownLoad: Full-Size Img PowerPoint

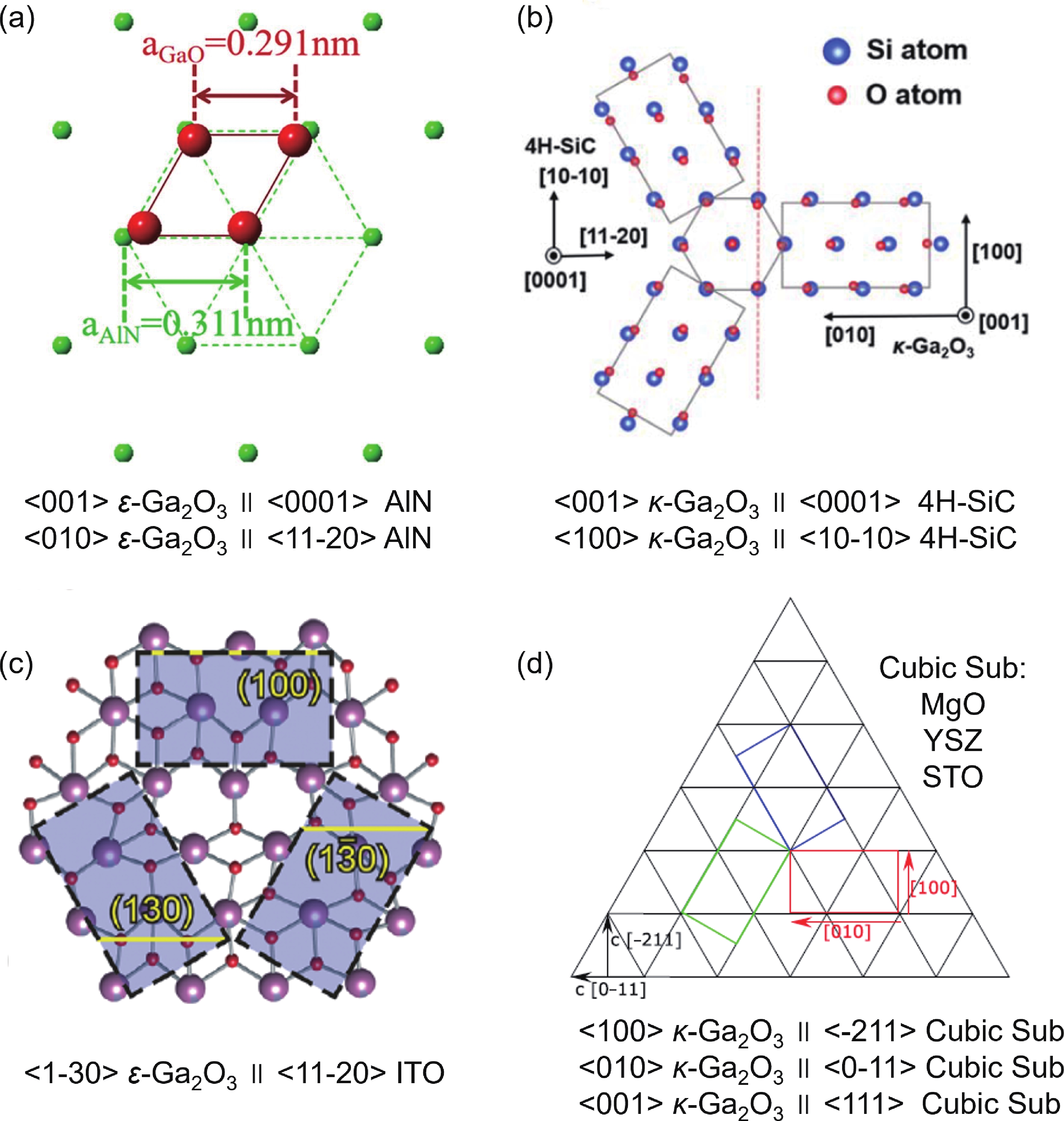

Fig. 11.  (Color online) The epitaxial relationship between the ε/κ-Ga2O3 and (a) AlN; (b) 4H-SiC; (c) ITO; (d) Cubic substrate including MgO, YSZ and STO[71, 84−86].

DownLoad: Full-Size Img PowerPoint

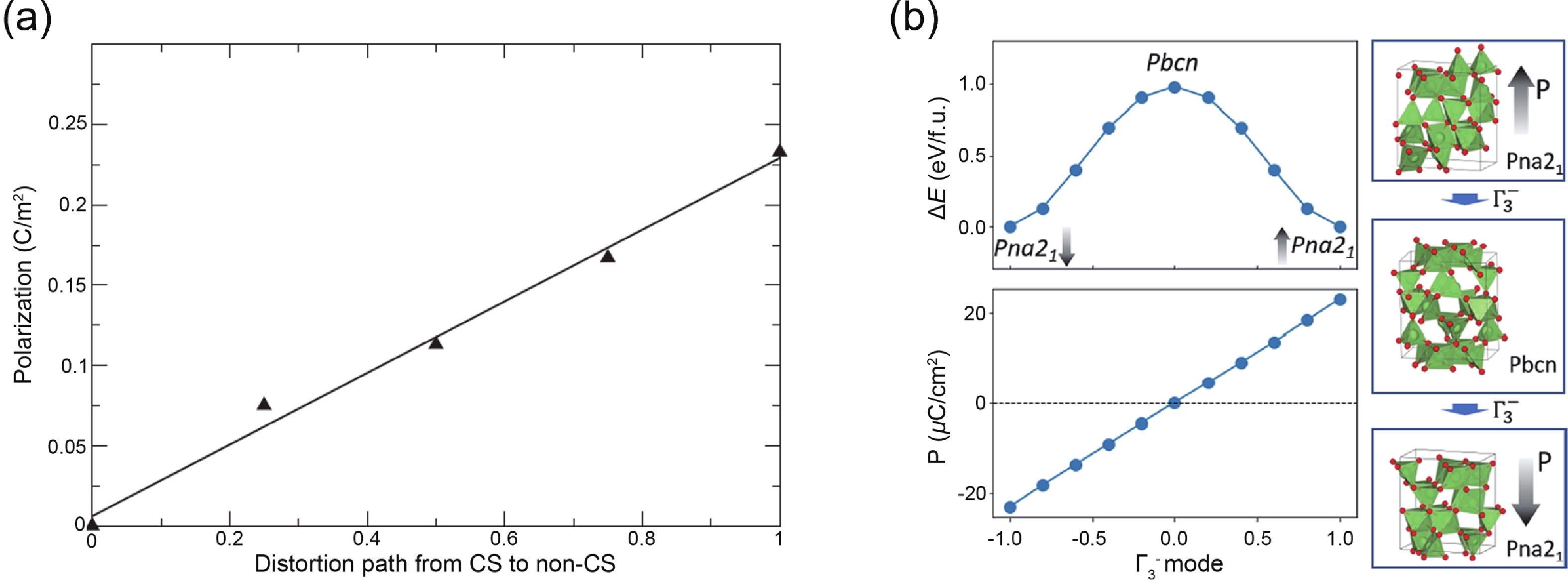

Fig. 12.  (Color online) (a) Evolution of Polarization calculated along the pathway from the centrosymmetric parent phase to non-centrosymmetric ε-Ga2O3; (b) The activation energy and spontaneous polarization along the transition path of ε-Ga2O3[52, 129].

DownLoad: Full-Size Img PowerPoint

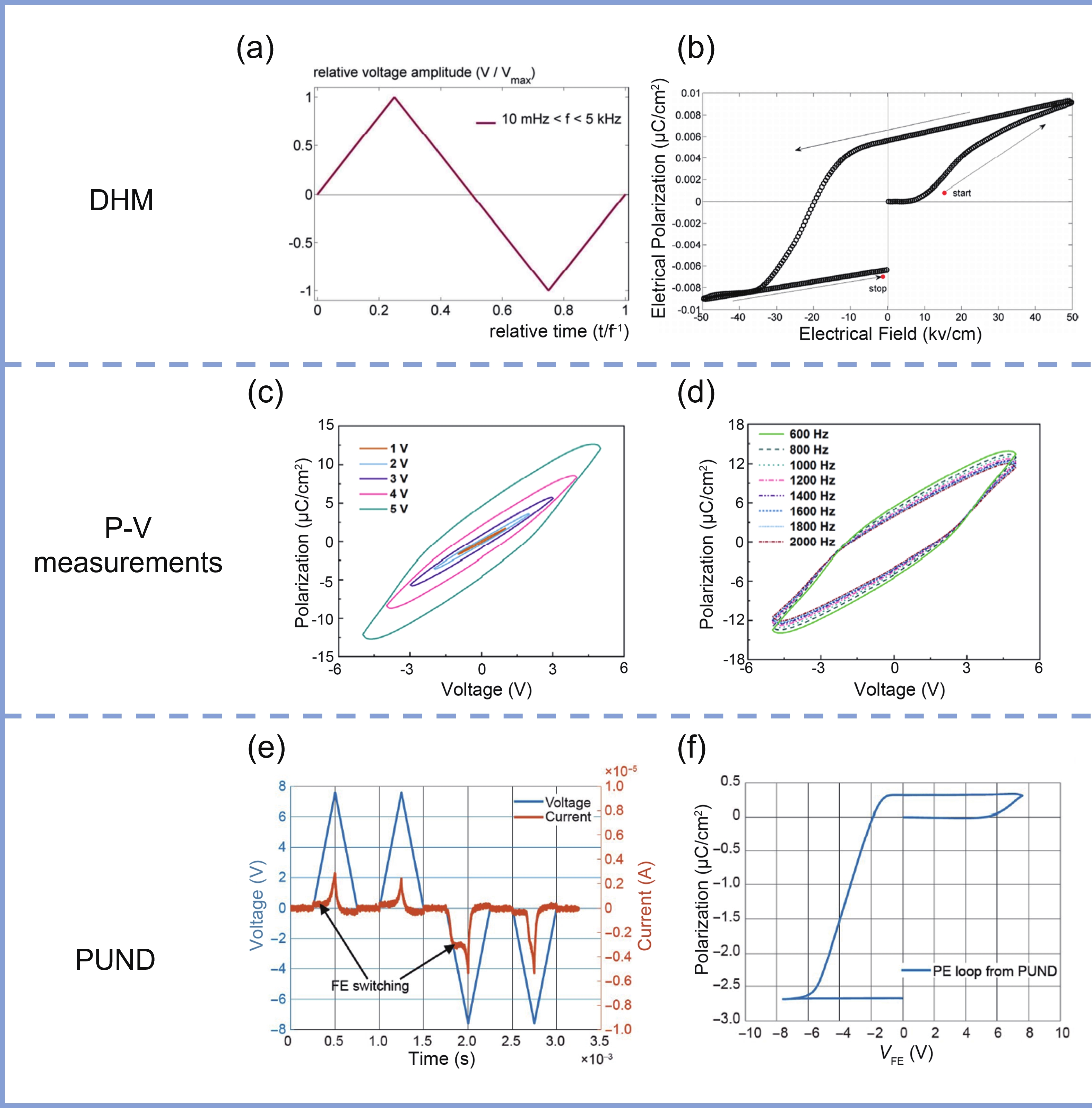

Fig. 13.  (Color online) (a) General signal characteristics of a DHM measurement (b) DHM measurement of the electrical polarization; (c) P−V loops measurement under different applied voltage; (d) Frequency-dependent P−V loops; (e) polarization switching; (f) P−V loop acquired by PUND measurement[50, 51, 125].

DownLoad: Full-Size Img PowerPoint
Fig. 14.  (Color online) (a) Vdc-dependence of the phase and amplitude of PFM measurement; (b) Vdc-dependence of the piezoelectric displacement of the AlN/ε-Ga2O3; (c) Comparison of piezoelectric semiconductors AlN, ε-Ga2O3, and ZnO[134].

DownLoad: Full-Size Img PowerPoint

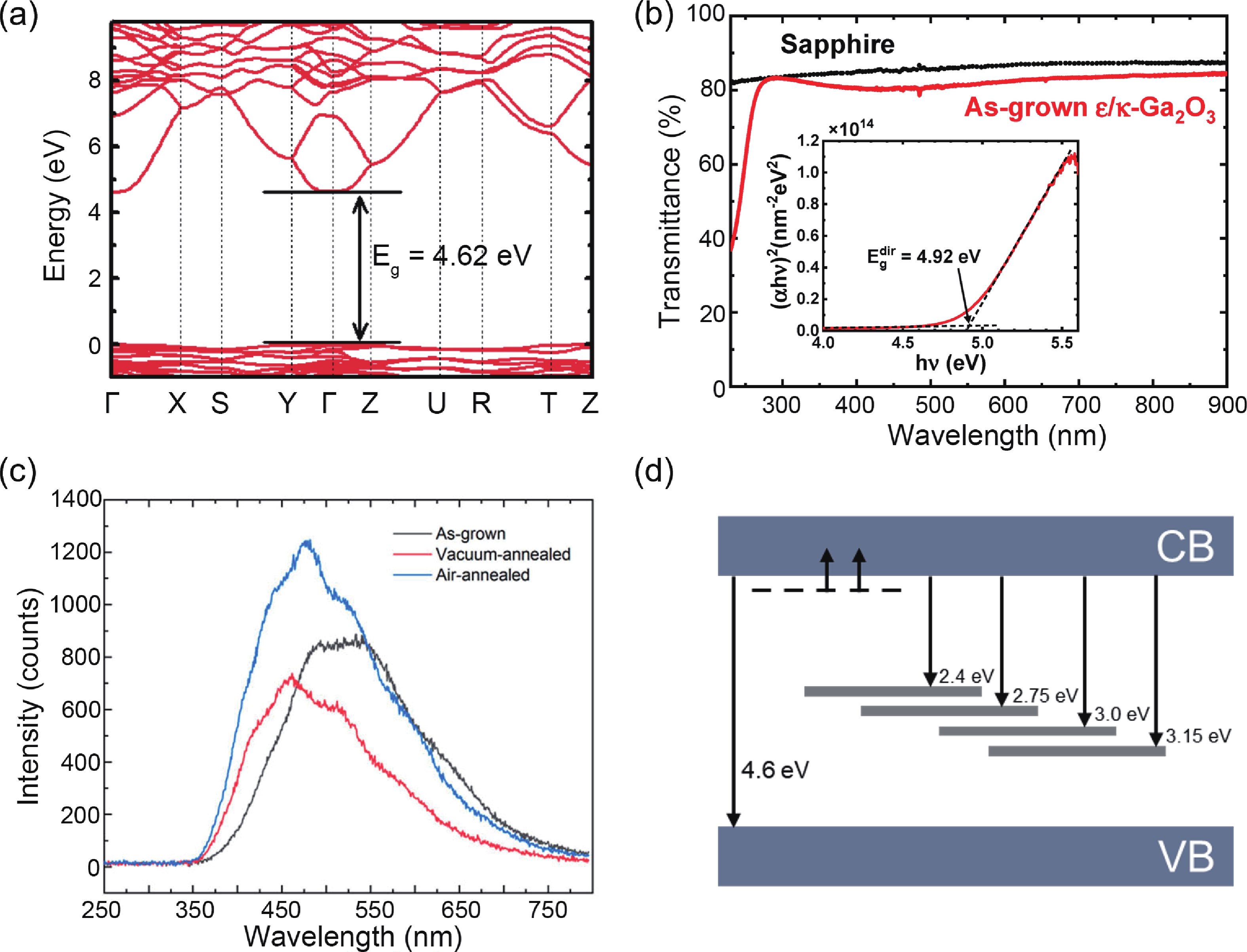

Fig. 15.  (Color online) (a) Band structure of κ-Ga2O3, calculated using the hybrid functional B3LYP potential; (b) Transmittance spectra of κ-Ga2O3 thin film on a sapphire substrate. Inset shows a Tauc plot for bandgap of κ-Ga2O3; (c) Photoluminescence spectra of the κ-Ga2O3; (d) the recombination process in κ-Ga2O3 under illumination[145−148].

DownLoad: Full-Size Img PowerPoint

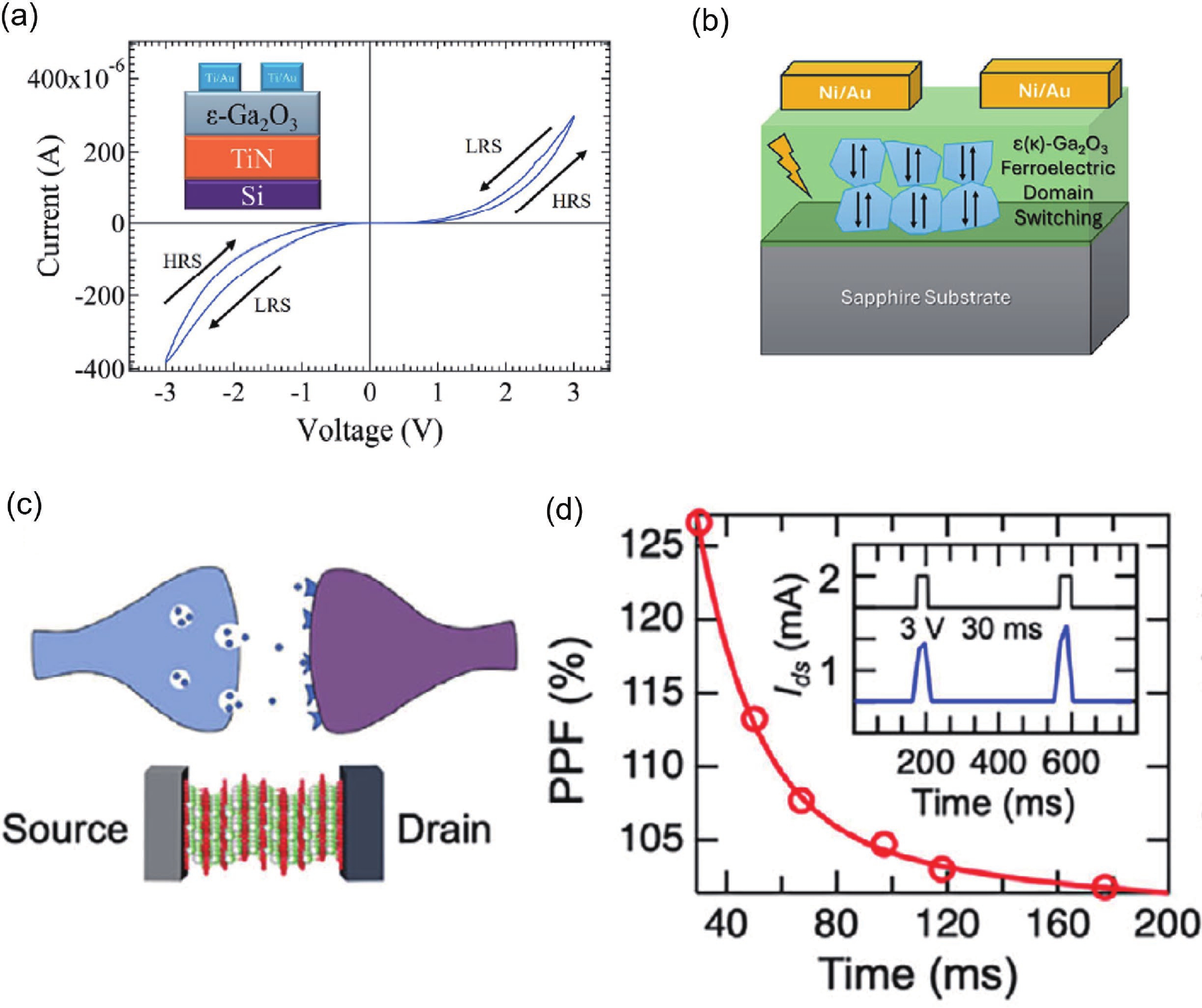

Fig. 16.  (Color online) (a) I−V characteristics of FE memristor based on ε/κ-Ga2O3; (b) pulse-induced current serves as the post-synaptic; (c) Schematic image of information transmission in the human brain; (d) PPF index variation as a function of electrical pulse width. Inset shows the changes in synaptic current triggered by a pair of light pulses[49, 102, 107].

DownLoad: Full-Size Img PowerPoint

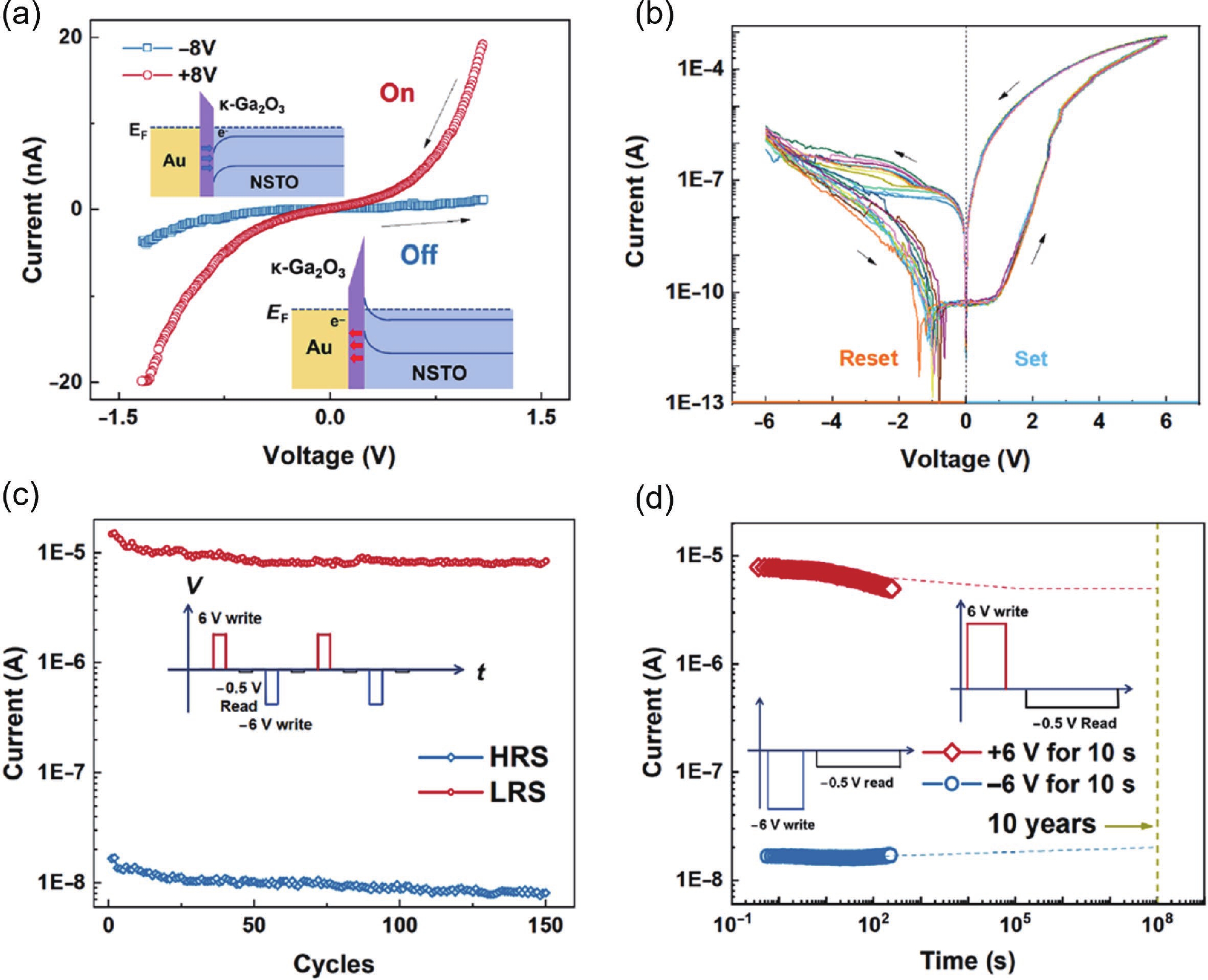

Fig. 17.  (Color online) (a) Current−voltage characteristics in Pt/κ-Ga2O3/ NSTO device; (b) Reproducible resistive switching under programming voltages of ±6 V; (c) Switching cycling stability; (d) Retention measurement[51].

DownLoad: Full-Size Img PowerPoint

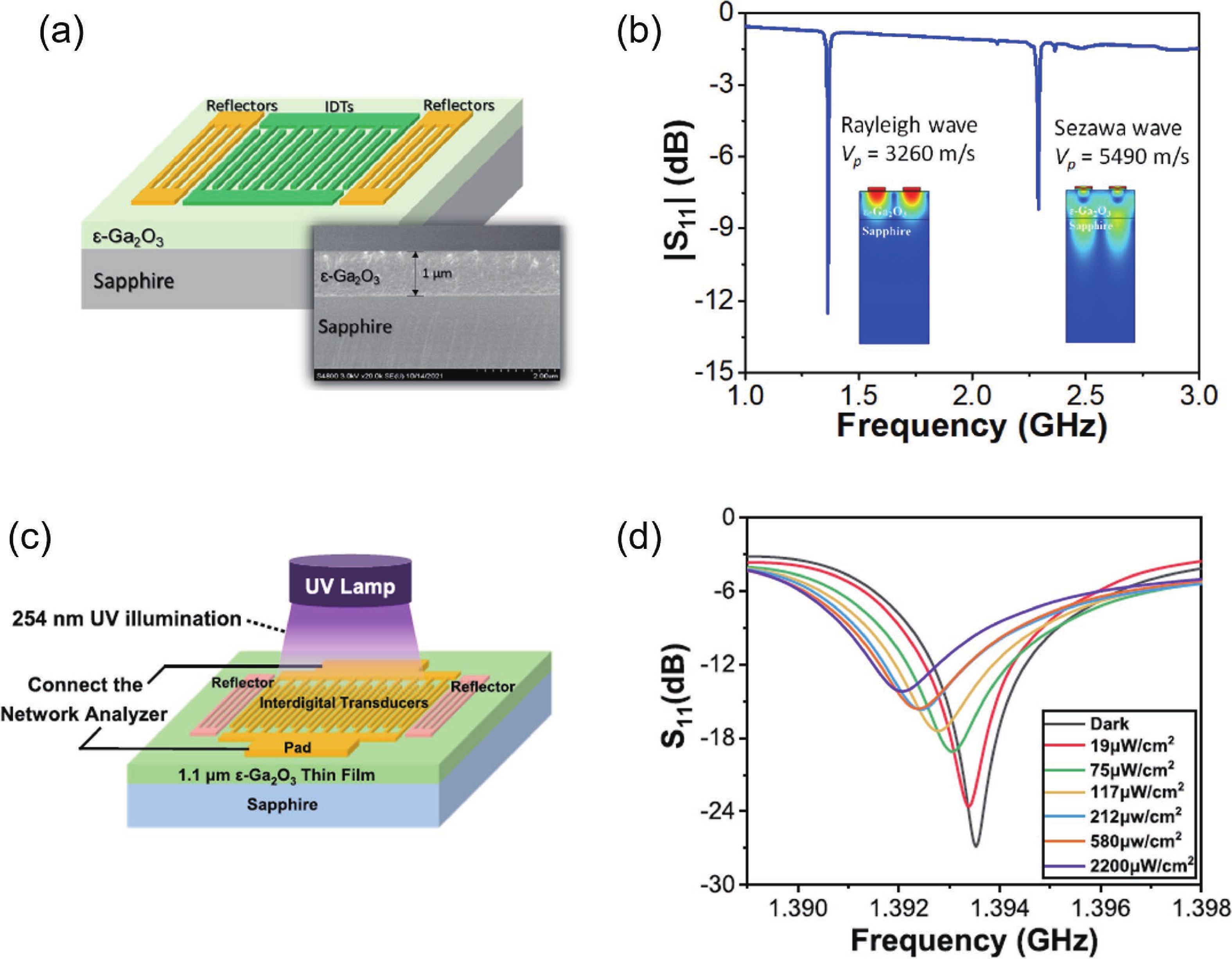

Fig. 18.  (Color online) (a) The schematic of the SAW resonator fabricated using the ε-Ga2O3 on-sapphire structure, and the inset shows the cross-sectional SEM image of the epitaxial ε-Ga2O3 film; (b) The measured S11 parameter of the fabricated SAW resonator. The inset shows the simulated displacement mode shapes at the resonant frequencies; (c) The schematic of the ε-Ga2O3 SAW deep-UV PD; (d) The S11 curves of the Rayleigh mode signal under 254 nm UV illumination with different light intensities[164, 166].

DownLoad: Full-Size Img PowerPoint

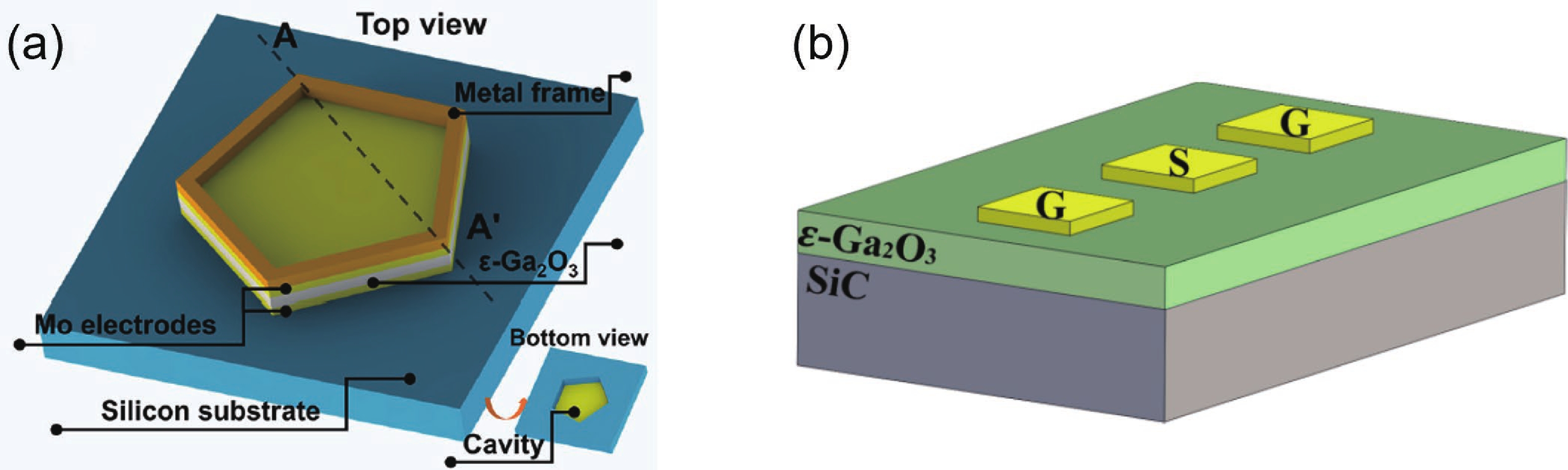

Fig. 19.  (Color online) (a) The schematic diagram of a 3D ε-Ga2O3-based BAW resonator; (b) the schematic of the HBAR with only top electrodes fabricated using the epitaxial ε-Ga2O3 on SiC substrate[167, 168].

DownLoad: Full-Size Img PowerPoint

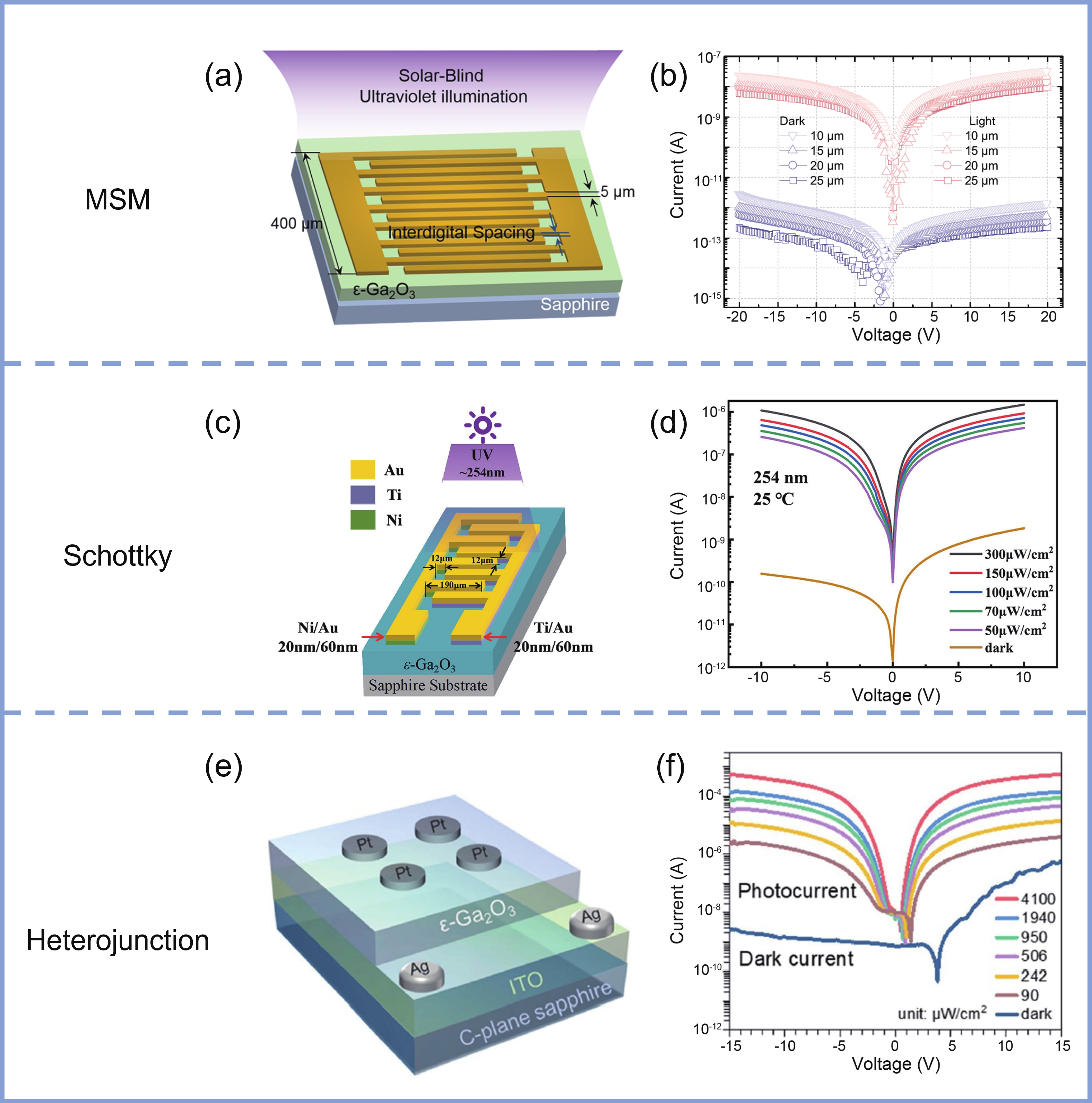

Fig. 20.  (Color online) Different device geometries for ε/κ-Ga2O3-based PDs along with their I−V curves under DUV illumination: (a) and (b) MSM structure; (c) and (d) Schottky structure; (e) and (f) Heterojunction structure[171−173].

DownLoad: Full-Size Img PowerPoint

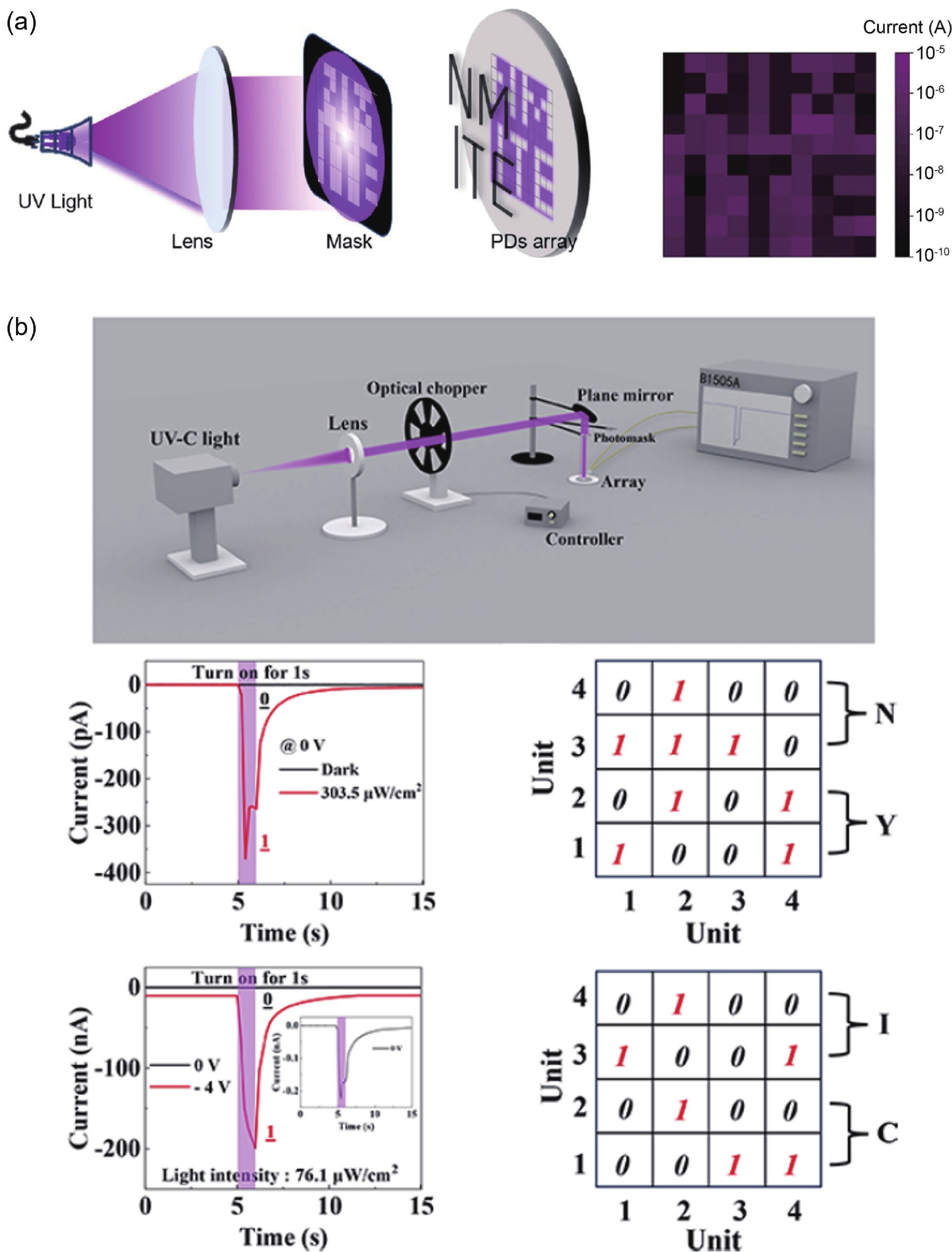

Fig. 21.  (Color online) ε-Ga2O3 PD application: (a) UV imaging; (b) UV communication[174, 175].

DownLoad: Full-Size Img PowerPoint

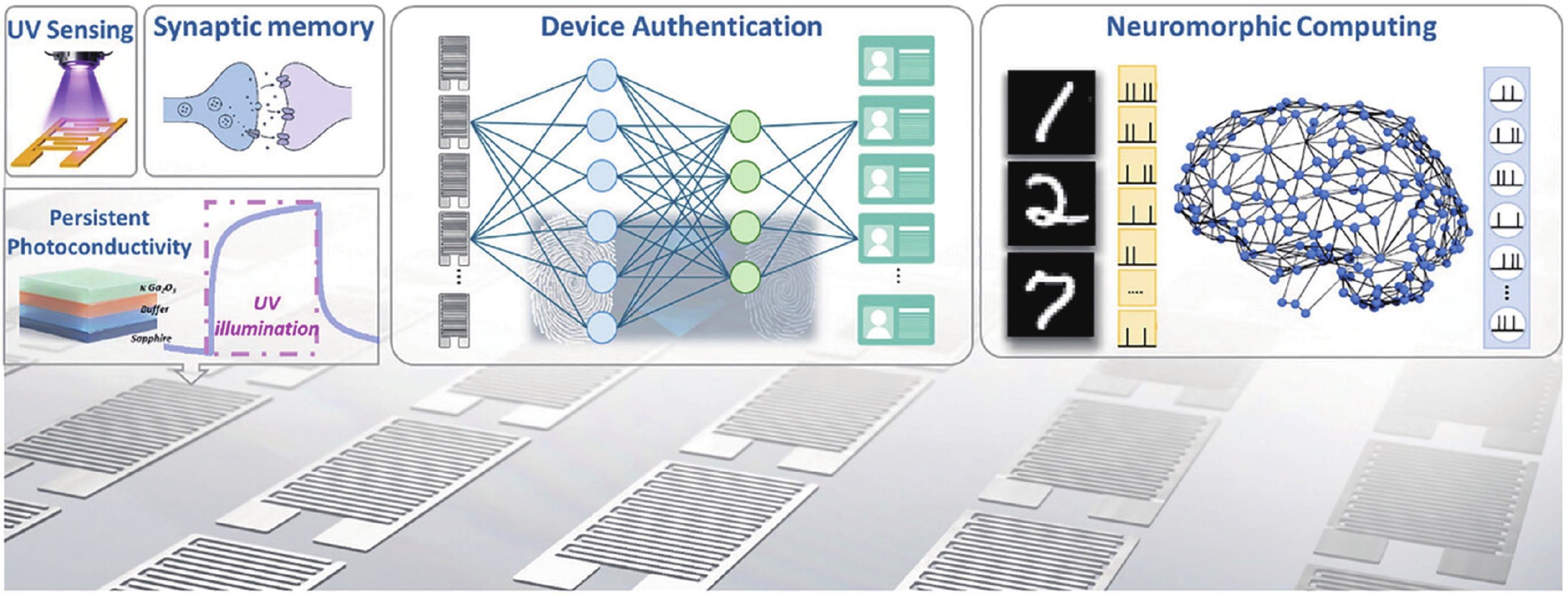

Fig. 22.  (Color online) The device design concept, its structure, and PPC characterization. Schematic diagram of the functional classification of the device, including UV sensing, synaptic memory, device authentication and neuromorphic computing[150].

DownLoad: Full-Size Img PowerPoint

Table 1.   Comparison of the parameters between conventional WBG semiconductors and UWBG semiconductors[8, 14].

Material parameters WBG semiconductors UWBG semiconductors
SiC GaN Ga2O3 AlN Diamond
Bandgap (Eg, eV) 3.3 3.4 4.8 6.0 5.5
Breakdown electric field (EC, MV∙cm−1) 2.5 3.3 8 15.4 10
Mobility (μ, cm2∙V−1∙s−1) 1000 1250 200 30 2000
Thermal conductivity (k, W∙m−1∙K−1) 490 200 23 319 2200
Baliga FOM (BFOM, ε μ EC3) 317 846 3214 9.76 5.5
Tunneling effective mass (m0) − 0.15 0.31 − 0.69
DownLoad: CSV

Table 2.   Epitaxial progress of ε/κ-Ga2O3 in the past 5 years.

MOCVD
Substrate Precursors Temperature Pressure FWHM RMS Highlights Ref
Al2O3TEGa: 350 sccm;
O2: 6000 sccm		420−490 °C25 torr8.316 nmtemperature controlled phase transition[100]
TEGa: 50−100 sccm;
O2: 200 sccm		Buffer: 600 °C;
Film: 700 °C		20 mbara Multistep Growth Process[64]
TEGa; O2;
VI/III ratio: 500−3500		500 °C50 mbar0.66° (002)VI/III ratio regulation[74]
TEGa: 600−1800 sccm;
TMGa: 35 sccm;
O2: 5−20 slpm		510−900 °C44−150 mbar0.963 nmsingle-phase control and wafer-scale growth[101]
TEGa: 160 sccm;
O2: 800 sccm		550−600 °C7.5−50 torr0.56° (002)1.23 nmphase boundaries investigation[102]
TEGa; H2O: 1000−3000 sccm;
N2O: 500−2000 sccm		600−640 °C100 torr2.2 nmH2O and N2O served as oxygen precursors[103]
TEGa; H2O600−640 °C404 arcsec (004)Epitaxial lateral overgrowth[104]
TEGa: 90 sccm;
H2O: 2000 sccm; N2O: 500 sccm		600 °C0.150° (004)8.99 nmsapphire substrates with large off-axis angles[105]
TEGa: 30 sccm;
O2: 4000 sccm
TDMASn		390 °C40 torr0.53° (004)1.77 nmpulse Sn-assisted growth[106]
SiliconTEGa: 160 sccm;
O2: 800 sccm		520−650 °C15 torr0.111° (004)0.143 nma TiN buffer is used[107]
4H-SiCTEGa: 70 sccm;
O2: 1000 sccm		500 °C15−60 torr0.95° (002)4.36 nmPhase engineering on the 4H-SiC substrate[108]
GaAs; BGaAsTEGa; H2O610 °C60 mbarFirstly grown on (001) p-type GaAs and BxGa(1-x)As /GaAs templates[99]
Mist-CVD
SubstratePrecursorsTransducerTemperatureFWHMRMSHighlightsRef
Al2O3Ga(acac)3; H2O; HCl;1.7 MHz560−640 °C0.073° (002);
0.101° (004)		1.83 nmPolycrystalline orientation competition[109]
Ga(acac)3; H2O; HCl;
O2: 0.005 SLPM;		three 2.4 MHz600 °C0.17° (004)1.56 nmcontrolling the initial mist flow[110]
Ga(acac)3; H2O; HCl;1.7 MHz580 °C0.43° (002)3.31 nmOptimization of oxygen flow rate[111]
Ga(acac)3; H2O; HCl;
SnCl4·5H2O;
O2: 1000 sccm;		2.4 MHz550°C0.08° (004)1.51 nmSn-assisted epitaxial growth[91]
Ga(acac)3; H2O; HCl;
SnCl2·2H2O; H2O2:		1.7 MHz450−700 °C0.86° (004)4.079 nmTin doped[112]
4H-SiCGa(acac)3; H2O1.7 MHzBuffer: 350−700 °C;
Film: 500 °C		1900 arcsec (004)1.1 nmTwo-step growth[86]
ε-GaFeO3GaCl3; H2O800 °C184 arcsec (004)0.45 nmε-GaFeO3 substrate; GaCl3 as Precursor[113]
HVPE
SubstratePrecursorsSource Zone TemperatureGrowth Zone TemperatureFWHMRMSHighlightsRef
Al2O3GaCl; HCl: 15 sccm;
O2: 2000 sccm		850 °C525−625 °C0.08 arcdeg (004)0.49 nmexhibiting multistep resembling a terrace morphology, a relatively low screw dislocation density[114]
Ga metal; O2800 °C700−1100 °C0.09° (002)The out-of-plane epitaxial relationship between the κ-Ga2O3 film and Al2O3 is given[74]
GaNGaCl; O2630 °C4.5′ (004)Thick κ-Ga2O3 film investigation[115]
PLD
SubstrateSn content in targetOxygen pressureTemperatureFWHMRMSHighlightsRef
BaSnO31 mol% Sn-doped Ga2O30.027 mbar700 °C2.32 nmε-Ga2O3/BaSnO3 epitaxial heterojunction is formed[116]
Diamond1 mol% Sn-doped Ga2O320 mtorr800 °Cestablished on the diamond substrate[117]
Al2O3high purity Ga2O3; 1.5 at% ZrO2
1 at% SnO2		0.004−0.015 mbar570 °C0.993 nmZrO2 doped[80]
ALD
SubstratePrecursorsTemperaturePlasma powerFWHMRMSHighlightsRef
Al2O3(0001)TEGa;
H2O, O3, O2 plasma		6.57 nmdifferent plasma oxygen source[81]
TEGa; O2 plasma250−400 °C2800 W0.1 °0.068 nmTemperature controlled[118]
MBE
SubstratePrecursorsTemperaturesMethodFWHMRMSHighlightsRef
AlNGa metal and Ga2O3 powder;
O3		700 °CMOCA0.4° (004)2 nmThree different MBE approaches are employed[43]
DownLoad: CSV

Table 3.   Piezoelectric coefficients eij and dij of ε-Ga2O3 along with previous theoretical values shown in parentheses, and the unit is C∙m−2 and pm∙V−1[132, 133].

e31e32e33e24e15
0.011
(0.429)		−0.319
(−0.198)		0.941
(0.844)		0.194
(0.196)		0.595
(0.712)
d31d32d33d24d15
−0.489
(1.37)		−3.060
(−3.43)		4.858
(4.06)		2.345
(2.69)		9.622
(14.60)
DownLoad: CSV
[1]
Gogova D, Tran D Q, Stanishev V, et al. High crystalline quality homoepitaxial Si-doped β-Ga2O3 (010) layers with reduced structural anisotropy grown by hot-wall MOCVD. J Vac Sci Technol A, 2024, 42(2): 022708 doi: 10.1116/6.0003424
[2]
Chen Z W, Guo D Y, Li P G, et al. Low driven voltage red LEDs using Eu-doped Ga2O3 films on GaAs. Appl Phys Express, 2019, 12(6): 061009 doi: 10.7567/1882-0786/ab2056
[3]
Leedy K D, Chabak K D, Vasilyev V, et al. Highly conductive homoepitaxial Si-doped Ga2O3 films on (010) β-Ga2O3 by pulsed laser deposition. Appl Phys Lett, 2017, 111(1): 012103 doi: 10.1063/1.4991363
[4]
Wang S L, Sun H L, Wang Z, et al. In situ synthesis of monoclinic β-Ga2O3 nanowires on flexible substrate and solar-blind photodetector. J. Alloys Compd., 2019, 787: 133 doi: 10.1016/j.jallcom.2019.02.031
[5]
Yan Z Y, Li S, Liu Z, et al. High sensitivity and fast response self-powered solar-blind ultraviolet photodetector with a β-Ga2O3/spiro-MeOTAD p-n heterojunction. J Mater Chem C, 2020, 8(13): 4502 doi: 10.1039/C9TC06767A
[6]
Li S, Zhi Y S, Lu C, et al. Broadband ultraviolet self-powered photodetector constructed on exfoliated β-Ga2O3/CuI core-shell microwire heterojunction with superior reliability. J Phys Chem Lett, 2021, 12(1): 447 doi: 10.1021/acs.jpclett.0c03382
[7]
Ravindran R, Massoud A M. An overview of wide and ultra wide bandgap semiconductors for next-generation power electronics applications. Microelectron Eng, 2025, 299: 112348 doi: 10.1016/j.mee.2025.112348
[8]
Sun S H, Wang C L, Alghamdi S, et al. Recent advanced ultra-wide bandgap β-Ga2O3 material and device technologies. Adv Electron Mater, 2025, 11(1): 2300844 doi: 10.1002/aelm.202300844
[9]
Zheng W, Guo D Y, Yuan Y. Ultra-wide-bandgap semiconductors: opportunities and challenges. Eur Phys J Spec Top, 2025, 234(2): 225 doi: 10.1140/epjs/s11734-025-01528-9
[10]
Liu Z, Liu Y Y, Wang X, et al. Energy-band alignments at ZnO/Ga2O3 and Ta2O5/Ga2O3 heterointerfaces by X-ray photoelectron spectroscopy and electron affinity rule. J Appl Phys, 2019, 126(4): 045707 doi: 10.1063/1.5112067
[11]
Woo K, Bian Z, Noshin M, et al. From wide to ultrawide-bandgap semiconductors for high power and high frequency electronic devices. J Phys Mater, 2024, 7(2): 022003 doi: 10.1088/2515-7639/ad218b
[12]
Zhang J C, Dong P F, Dang K, et al. Ultra-wide bandgap semiconductor Ga2O3 power diodes. Nat Commun, 2022, 13(1): 3900 doi: 10.1038/s41467-022-31664-y
[13]
Wong M H, Bierwagen O, Kaplar R J, et al. Ultrawide-bandgap semiconductors: An overview. J Mater Res, 2021, 36(23): 4601 doi: 10.1557/s43578-021-00458-1
[14]
Aborah Yeboah L, Abdul Malik A, Agyemang Oppong P, et al. Wide-bandgap semiconductors: A critical analysis of GaN, SiC, AlGaN, diamond, and Ga2O3 synthesis methods, challenges, and prospective technological innovations. Intell Sustain Manuf, 2025, 2(1): 10011 doi: 10.70322/ism.2025.10011
[15]
Gogova D, Ghezellou M, Tran D Q, et al. Epitaxial growth of β-Ga2O3 by hot-wall MOCVD. AIP Adv, 2022, 12(5): 055022 doi: 10.1063/5.0087571
[16]
Itoh T, Mauze A, Zhang Y, et al. Continuous Si doping in (010) and (001) β-Ga2O3 films by plasma-assisted molecular beam epitaxy. APL Mater, 2023, 11(4): 041108 doi: 10.1063/5.0130654
[17]
Liu Z, Tang W H. A review of Ga2O3 deep-ultraviolet metal-semiconductor Schottky photodiodes. J Phys D Appl Phys, 2023, 56(9): 093002
[18]
Li S, Yan Z Y, Liu Z, et al. A self-powered solar-blind photodetector with large Voc enhancing performance based on the PEDOT: PSS/Ga2O3 organic-inorganic hybrid heterojunction. J Mater Chem C, 2020, 8(4): 1292 doi: 10.1039/C9TC06011A
[19]
Lu C, Ji X Q, Liu Z, et al. A review of metal-semiconductor contacts for β-Ga2O3. J Phys D Appl Phys, 2022, 55(46): 463002
[20]
Gottschalch V, Merker S, Blaurock S, et al. Heteroepitaxial growth of α-, β-, γ- and κ-Ga2O3 phases by metalorganic vapor phase epitaxy. J Cryst Growth, 2019, 510: 76 doi: 10.1016/j.jcrysgro.2019.01.018
[21]
Su Y L, Guo D Y, Ye J H, et al. Deep level acceptors of Zn-Mg divalent ions dopants in β-Ga2O3 for the difficulty to p-type conductivity. J Alloys Compd, 2019, 782: 299 doi: 10.1016/j.jallcom.2018.12.199
[22]
Liu Z, Zhi Y S, Li S, et al. Comparison of optoelectrical characteristics between Schottky and Ohmic contacts to β-Ga2O3 thin film. J Phys D Appl Phys, 2020, 53(8): 085105 doi: 10.1088/1361-6463/ab596f
[23]
Chu X L, Liu Z, Zhang S H, et al. Photoresponsive characteristics of EFG-grown iron-doped (100) Ga2O3 substrate with low dark current. Phys Scr, 2021, 96(6): 065801 doi: 10.1088/1402-4896/abed80
[24]
Janzen B M, Mazzolini P, Gillen R, et al. Comprehensive Raman study of orthorhombic κ/ε-Ga2O3 and the impact of rotational domains. J Mater Chem C, 2021, 9(40): 14175 doi: 10.1039/D1TC03500B
[25]
Liu Z, Zhang S H, Zhi Y S, et al. Enhanced deep-ultraviolet sensing by an all-inorganic p-PZT/n-Ga2O3 thin-film heterojunction. J Phys D Appl Phys, 2021, 54(19): 195104 doi: 10.1088/1361-6463/abe1ea
[26]
Li S, Guo D Y, Li P G, et al. Ultrasensitive, superhigh signal-to-noise ratio, self-powered solar-blind-photodetector based on n-Ga2O3/p-CuSCN core-shell microwire heterojunction. ACS Appl Mater Interfaces, 2019, 11(38): 35105 doi: 10.1021/acsami.9b11012
[27]
Gao A, Jiang W Y, Ma G L, et al. A self-powered β-Ga2O3/CsCu2l3 heterojunction photodiode responding to deep ultraviolet irradiation. Curr Appl Phys, 2022, 33: 20 doi: 10.1016/j.cap.2021.10.013
[28]
Qi X H, Yue J Y, Ji X Q, et al. A deep-ultraviolet photodetector of a β-Ga2O3/CuBiI4 heterojunction highlighting ultra-high sensitivity and responsivity. Thin Solid Films, 2022, 757: 139397 doi: 10.1016/j.tsf.2022.139397
[29]
Feng G R, Li S, Tian Y W, et al. 2 in. bulk β-Ga2O3 single crystals grown by EFG method with high wafer-scale quality. ACS Omega, 2024, 9(20): 22084
[30]
Gogova D, Wagner G, Baldini M, et al. Structural properties of Si-doped β-Ga2O3 layers grown by MOVPE. J Cryst Growth, 2014, 401: 665 doi: 10.1016/j.jcrysgro.2013.11.056
[31]
Gogova D, Schmidbauer M, Kwasniewski A. Homo- and heteroepitaxial growth of Sn-doped β-Ga2O3 layers by MOVPE. CrystEngComm, 2015, 17(35): 6744 doi: 10.1039/C5CE01106J
[32]
Li M Z, Xi Z Y, Li M, et al. Boosting the performance of β-Ga2O3/Sn-Ga2O3 n-N homojunction deep ultraviolet photodetector via interfacial Fermi-level reversal. Sci China Technol Sci, 2025, 68(5): 1520901 doi: 10.1007/s11431-024-2912-9
[33]
Liu Z, Zhang M L, Yang L L, et al. Enhancement-mode normally-off β-Ga2O3: Si metal-semiconductor field-effect deep-ultraviolet phototransistor. Semicond Sci Technol, 2022, 37(1): 015001 doi: 10.1088/1361-6641/ac38bd
[34]
Zhao X L, Cui W, Wu Z P, et al. Growth and characterization of Sn doped β-Ga2O3 thin films and enhanced performance in a solar-blind photodetector. J Electron Mater, 2017, 46(4): 2366 doi: 10.1007/s11664-017-5291-5
[35]
Pan J Y, Li C Y, Geng H B, et al. Band engineering to suppress dark current in self-powered solar-blind photodetectors for optoelectronics in harsh environments. Phys Rev Appl, 2025, 24(6): 064043 doi: 10.1103/mnx1-t34v
[36]
Wu G, Guo X, Zhang F B, et al. Radiation damage mechanisms in β-Ga2O3 MSM solar-blind photodetectors: Insights from proton, neutron, and γ-ray irradiation. IEEE Electron Device Lett, 2025, 46(11): 2086-2089 doi: 10.1109/LED.2025.3605225
[37]
Wu G, Guo X, Zhu Z Y, et al. Dose-Dependent γ-Ray Irradiation Damage Effects in β-Ga2O3 Solar-Blind Deep Ultraviolet Photodetector. IEEE Trans Electron Devices, 2025, 72(12): 6814-6821 doi: 10.1109/TED.2025.3616278
[38]
Ricci F, Boschi F, Baraldi A, et al. Theoretical and experimental investigation of optical absorption anisotropy in β-Ga2O3. J Phys Condens Matter, 2016, 28(22): 224005 doi: 10.1088/0953-8984/28/22/224005
[39]
Jiang P Q, Qian X, Li X B, et al. Three-dimensional anisotropic thermal conductivity tensor of single crystalline β-Ga2O3. Appl Phys Lett, 2018, 113(23): 232105 doi: 10.1063/1.5054573
[40]
Ueda N, Hosono H, Waseda R, et al. Anisotropy of electrical and optical properties in β-Ga2O3 single crystals. Appl Phys Lett, 1997, 71(7): 933 doi: 10.1063/1.119693
[41]
Ping L K, Berhanuddin D D, Mondal A K, et al. Properties and perspectives of ultrawide bandgap Ga2O3 in optoelectronic applications. Chin J Phys, 2021, 73: 195 doi: 10.1016/j.cjph.2021.06.015
[42]
Wang K, Wu Z C, Tong H C, et al. Development and challenges of Ga2O3-based heterojunctions for deep-UV detectors. ACS Photonics, 2025, 12(9): 4851 doi: 10.1021/acsphotonics.5c01288
[43]
Raghuvansy S, Mccandless J P, Schowalter M, et al. Growth of β-Ga2O3 and ε/κ-Ga2O3 on AlN (0001) by molecular-beam epitaxy. APL Mater, 2023, 11(11): 111113 doi: 10.1063/5.0174373
[44]
Cora I, Fogarassy Z, Fornari R, et al. In situ TEM study of κ→β and κ→γ phase transformations in Ga2O3. Acta Mater, 2020, 183: 216 doi: 10.1016/j.actamat.2019.11.019
[45]
Yang J F, Xu Y Z, Wang X N, et al. Lattice thermal conductivity of β-, α- and κ-Ga2O3: a first-principles computational study. Appl Phys Express, 2024, 17(1): 011001 doi: 10.35848/1882-0786/ad0ba8
[46]
Cai Y C, Zhang K, Feng Q, et al. Tin-assisted growth of ε-Ga2O3 film and the fabrication of photodetectors on sapphire substrate by PLD. Opt Mater Express, 2018, 8(11): 3506 doi: 10.1364/OME.8.003506
[47]
Cao X, Xing Y H, Han J, et al. Crystalline properties of ε-Ga2O3 film grown on c-sapphire by MOCVD and solar-blind ultraviolet photodetector. Mater Sci Semicond Process, 2021, 123: 105532 doi: 10.1016/j.mssp.2020.105532
[48]
Huang C Y, Hsiao C N, Järrendahl K, et al. Growth mechanism and ferroelectric properties of ε-Ga2O3 heteroepitaxially grown on sapphire substrates. Mater Today Adv, 2025, 28: 100616 doi: 10.1016/j.mtadv.2025.100616
[49]
Wang Y H, Sun Z C, Mei B C. Intrinsic ferroelectricity in ε‐Ga2O3: Experimental and theoretical insights. Adv Funct Mater, 2025, 36(26): e24055
[50]
Mezzadri F, Calestani G, Boschi F, et al. Crystal structure and ferroelectric properties of ε-Ga2O3 films grown on (0001)-sapphire. Inorg Chem, 2016, 55(22): 12079 doi: 10.1021/acs.inorgchem.6b02244
[51]
Shen J Y, Lo W F, Liu C, et al. Robust room-temperature ferroelectricity in the wide-bandgap semiconductor Ga2O3. Sci Adv, 2026, 12(7): eaec5225 doi: 10.1126/sciadv.aec5225
[52]
Maccioni M B, Fiorentini V. Phase diagram and polarization of stable phases of (Ga1−xInx)2O3. Appl Phys Express, 2016, 9(4): 041102 doi: 10.7567/APEX.9.041102
[53]
Chen J H, Huang C H, Luo T C, et al. Isotropic performance of surface acoustic wave resonators based on ε-Ga2O3 (001) thin films. Appl Surf Sci, 2025, 710: 163959 doi: 10.1016/j.apsusc.2025.163959
[54]
Chen J H, Huang C H, Luo T C, et al. Influence of temperature on the performance of ε-Ga2O3-based surface acoustic wave delay lines. J Phys Conf Ser, 2025, 3030(1): 012013 doi: 10.1088/1742-6596/3030/1/012013
[55]
He F, Jiang K Y, Choi Y, et al. High field dielectric response in κ-Ga2O3 films. J Appl Phys, 2023, 134(20): 204101 doi: 10.1063/5.0169420
[56]
Almaev A, Yakovlev N, Kopyev V, et al. High sensitivity low-temperature hydrogen sensors based on SnO2/κ(ε)-Ga2O3: Sn heterostructure. Chemosensors, 2023, 11(6): 325 doi: 10.3390/chemosensors11060325
[57]
Yakovlev N N, Nikolaev V I, Stepanov S I, et al. Effect of oxygen on the electrical conductivity of Pt-contacted α-Ga2O3/ε(κ)-Ga2O3 MSM structures on patterned sapphire substrates. IEEE Sens J, 2021, 21(13): 14636 doi: 10.1109/JSEN.2021.3072664
[58]
Almaev A V, Nikolaev V I, Stepanov S I, et al. Hydrogen influence on electrical properties of Pt-contacted α-Ga2O3/ϵ-Ga2O3 structures grown on patterned sapphire substrates. J Phys D Appl Phys, 2020, 53(41): 414004 doi: 10.1088/1361-6463/ab9c69
[59]
Roy R, Hill V G, Osborn E F. Polymorphism of Ga2O3 and the System Ga2O3-H2O. J Am Chem Soc, 1952, 74(3): 719
[60]
Playford H Y, Hannon A C, Barney E R, et al. Structures of Uncharacterised Polymorphs of Gallium Oxide from Total Neutron Diffraction. Chem Eur J, 2013, 19(8): 2803 doi: 10.1002/chem.201203359
[61]
Matsuzaki K, Yanagi H, Kamiya T, et al. Field-induced current modulation in epitaxial film of deep-ultraviolet transparent oxide semiconductor Ga2O3. Appl Phys Lett, 2006, 88(9): 092106 doi: 10.1063/1.2179373
[62]
Yoshioka S, Hayashi H, Kuwabara A, et al. Structures and energetics of Ga2O3 polymorphs. J Phys Condens Matter, 2007, 19(34): 346211 doi: 10.1088/0953-8984/19/34/346211
[63]
Tang J Y, Jiang K Y, Tseng P-S, et al. Thermal stability and phase transformation of α-, κ(ε)-, and γ-Ga2O3 films under different ambient conditions. Appl Phys Lett, 2024, 125(9): 092104 doi: 10.1063/5.0214500
[64]
Hsu Y H, Wu W Y, Lin K L, et al. ε-Ga2O3 grown on c-plane sapphire by MOCVD with a multistep growth process. Cryst Growth Des, 2022, 22(3): 1837 doi: 10.1021/acs.cgd.1c01395
[65]
Cora I, Mezzadri F, Boschi F, et al. The real structure of ε-Ga2O3 and its relation to κ-phase. CrystEngComm, 2017, 19(11): 1509 doi: 10.1039/C7CE00123A
[66]
Nishinaka H, Komai H, Tahara D, et al. Microstructures and rotational domains in orthorhombic ε-Ga2O3 thin films. Jpn J Appl Phys, 2018, 57(11): 115601 doi: 10.7567/JJAP.57.115601
[67]
Vyvenko O F, Shapenkov S V, Ubyivovk E V, et al. Twin domain and antiphase boundaries in microcrystals of Κ-phase Ga2O3. Materialia, 2023, 32: 101942 doi: 10.1016/j.mtla.2023.101942
[68]
Chen Y T, Ning H K, Kuang Y, et al. Band alignment and polarization engineering in κ-Ga2O3/GaN ferroelectric heterojunction. Sci China Phys Mech Astron, 2022, 65(7): 277311 doi: 10.1007/s11433-022-1907-9
[69]
Bhuiyan A F M A U, Feng Z X, Huang H L, et al. MOCVD growth and band offsets of κ-phase Ga2O3 on c-plane sapphire, GaN- and AlN-on-sapphire, and (100) YSZ substrates. J Vac Sci Technol A, 2022, 40(6): 062704 doi: 10.1116/6.0002106
[70]
Gu S H, Cui M, Yin R M, et al. Phase engineering of κ-Ga2O3 heteroepitaxy on LiNbO3 by strain competition effect. Appl Phys Lett, 2025, 127(6): 061603 doi: 10.1063/5.0283790
[71]
Kneiß M, Hassa A, Splith D, et al. Tin-assisted heteroepitaxial PLD-growth of κ-Ga2O3 thin films with high crystalline quality. APL Mater, 2019, 7(2): 022516 doi: 10.1063/1.5054378
[72]
Kracht M, Karg A, Schörmann J, et al. Tin-assisted synthesis of ε-Ga2O3 by molecular beam epitaxy. Phys Rev Appl, 2017, 8(5): 054002 doi: 10.1103/PhysRevApplied.8.054002
[73]
Li S, Yue J Y, Ji X Q, et al. Oxygen vacancies modulating the photodetector performances in ε-Ga2O3 thin films. J Mater Chem C, 2021, 9(16): 5437 doi: 10.1039/D1TC00616A
[74]
Liang J L, Mi W, Li Q, et al. Structural and optical properties of high crystalline quality orthorhombic к-Ga2O3 heteroepitaxial films grown by HVPE. Appl Phys A, 2025, 131(10): 797 doi: 10.1007/s00339-025-08950-9
[75]
Liu Z, Huang Y Q, Li H R, et al. Fabrication and characterization of Mg-doped ε-Ga2O3 solar-blind photodetector. Vacuum, 2020, 177: 109425 doi: 10.1016/j.vacuum.2020.109425
[76]
Yao S H, Yao Y F, Zhang M L, et al. Mist CVD technology for gallium oxide deposition: A review. Mater Today Phys, 2024, 49: 101604 doi: 10.1016/j.mtphys.2024.101604
[77]
Muazzam U U, Chavan P S, Muralidharan R, et al. Optical properties of mist CVD grown κ-Ga2O3. Semicond Sci Technol, 2022, 37(5): 055011 doi: 10.1088/1361-6641/ac6129
[78]
Stepanov S I, Nikolaev V I, Polyakov A Y, et al. HVPE growth and characterization of thick κ-Ga2O3 layers on GaN/Sapphire templates. ECS J Solid State Sci Technol, 2023, 12(1): 015002 doi: 10.1149/2162-8777/acb174
[79]
Nikolaev V I, Stepanov S I, Pechnikov A I, et al. HVPE growth and characterization of ε-Ga2O3 films on various substrates. ECS J Solid State Sci Technol, 2020, 9(4): 045014 doi: 10.1149/2162-8777/ab8b4c
[80]
Gao Y Y, Xu Z R, Tian X S, et al. Synthesis of n-type ZrO3 doped ε-Ga2O3 thin films by PLD and fabrication of Schottky diode. J Alloys Compd, 2022, 900: 163120 doi: 10.1016/j.jallcom.2021.163120
[81]
Zuo Y, Feng Q, Zhang T, et al. Impacts of oxygen source on band alignment of ALD Al2O3/(α-, ε-)Ga2O3 interface. J Cryst Growth, 2022, 580: 126462 doi: 10.1016/j.jcrysgro.2021.126462
[82]
Higashiwaki M, Fujita S. Gallium Oxide: Materials Properties, Crystal Growth, and Devices. Cham: Springer International Publishing, 2020: 293
[83]
Nishinaka H, Tahara D, Yoshimoto M. Heteroepitaxial growth of ε-Ga2O3 thin films on cubic (111) MgO and (111) yttria-stablized zirconia substrates by mist chemical vapor deposition. Jpn J Appl Phys, 2016, 55(12): 1202BC doi: 10.7567/JJAP.55.1202BC
[84]
Chen W Q, Chen Z M, Li Z Q, et al. Heteroepitaxy of ε-Ga2O3 thin films grown on AlN/Si (111) templates by metal–organic chemical vapor deposition. Appl Surf Sci, 2022, 581: 152335 doi: 10.1016/j.apsusc.2021.152335
[85]
Yusa S, Oka D, Fukumura T. High-κ dielectric ε-Ga2O3 stabilized in a transparent heteroepitaxial structure grown by mist CVD at atmospheric pressure. CrystEngComm, 2020, 22(2): 381 doi: 10.1039/C9CE01532A
[86]
Cho S H, Shin Y J, Jeong S M, et al. Two-step growth of κ-Ga2O3 thin films on 4H-SiC substrates with temperature-varied buffer layers using mist chemical vapor deposition. Jpn J Appl Phys, 2023, 62(1): 015508 doi: 10.35848/1347-4065/acb1e6
[87]
Zhuo Y, Chen Z M, Tu W B, et al. β-Ga2O3 versus ε-Ga2O3: Control of the crystal phase composition of gallium oxide thin film prepared by metal-organic chemical vapor deposition. Appl Surf Sci, 2017, 420: 802 doi: 10.1016/j.apsusc.2017.05.241
[88]
Lu J Q, Wang J P, Zhou C, et al. Temperature dependence of self-powered photodetection performance in hybrid ε-Ga2O3/PEDOT: PSS heterojunction. IEEE Trans Electron Devices, 2024, 71(9): 5541 doi: 10.1109/TED.2024.3436001
[89]
Chen Y P, Xia X C, Liang H W, et al. Growth pressure controlled nucleation epitaxy of pure phase ε- and β-Ga2O3 films on Al2O3 via metal-organic chemical vapor deposition. Cryst Growth Des, 2018, 18(2): 1147 doi: 10.1021/acs.cgd.7b01576
[90]
Yu J, Wang Y H, Li H R, et al. Tailoring the solar-blind photoresponse characteristics of β-Ga2O3 epitaxial films through lattice mismatch and crystal orientation. J Phys D Appl Phys, 2020, 53(24): 24LT01 doi: 10.1088/1361-6463/ab7e67
[91]
Wang Y, Xie Z G, Guan Y Z, et al. Sn-assisted epitaxial growth of high-crystallinity κ/ε-Ga2O3 on sapphire (0001) by low-pressure Mist-CVD. Appl Phys Lett, 2025, 127(10): 102109 doi: 10.1063/5.0280118
[92]
Xu Y B, Park J-H, Yao Z P, et al. Strain-induced metastable phase stabilization in Ga2O3 thin films. ACS Appl Mater Interfaces, 2019, 11(5): 5536 doi: 10.1021/acsami.8b17731
[93]
Bosi M, Seravalli L, Mazzolini P, et al. Thermodynamic and kinetic effects on the nucleation and growth of ε/κ- or β-Ga2O3 by metal-organic vapor phase epitaxy. Cryst Growth Des, 2021, 21(11): 6393 doi: 10.1021/acs.cgd.1c00863
[94]
Seravalli L, Ugolotti A, Bergamaschini R, et al. Supersaturation-dependent competition between β and κ phases in the MOVPE growth of Ga2O3 on Al2O3 (0001) and GaN (0001) substrates. ACS Appl Mater Interfaces, 2025, 17(45): 62261 doi: 10.1021/acsami.5c13401
[95]
Jiang K Y, Tang J Y, Cabral M J, et al. Layered phase composition and microstructure of κ-Ga2O3-dominant heteroepitaxial films grown via MOCVD. J Appl Phys, 2022, 131(5): 055305 doi: 10.1063/5.0073517
[96]
Bertoni I, Ugolotti A, Scalise E, et al. Surface and volume energies of α-, β-, and κ-Ga2O3 under epitaxial strain induced by a sapphire substrate. J Mater Chem C, 2024, 12(5): 1820 doi: 10.1039/D3TC04284G
[97]
Li S, Yue J Y, Lu C, et al. Oxygen vacancies modulating self-powered photoresponse in PEDOT: PSS/ε-Ga2O3 heterojunction by trapping effect. Sci China Technol Sci, 2022, 65(3): 704 doi: 10.1007/s11431-021-1945-x
[98]
Li W J, Li J L, Wang Y, et al. Influence of oxygen on Ga2O3 deposition at low temperature by MOCVD. Cryst Growth Des, 2024, 24(1): 171 doi: 10.1021/acs.cgd.3c00815
[99]
Hidouri T, Nasi L, Ferrari C, et al. Single-phase κ-Ga2O3 films deposited by metal-organic chemical vapor deposition on GaAs and ternary BxGa(1-x)As templates. Appl Surf Sci, 2025, 708: 163764 doi: 10.1016/j.apsusc.2025.163764
[100]
Yue J Y, Ji X Q, Qi X H, et al. Low MOCVD growth temperature controlled phase transition of Ga2O3 films for ultraviolet sensing. Vacuum, 2022, 203: 111270 doi: 10.1016/j.vacuum.2022.111270
[101]
Xia H C, Yang Y T, Cao J, et al. Growth rate control and phase diagram of wafer-scale Ga2O3 films by MOCVD. Vacuum, 2023, 215: 112388 doi: 10.1016/j.vacuum.2023.112388
[102]
Kung P K, Chou H Y, Chiang W H, et al. Phase‐selective MOCVD of orthorhombic ferroelectric gallium oxide: Temperature‐pressure control of phase stability, crystallinity, and ferroelectricity for memristor applications. Adv Electron Mater, 2026, 12(8): e00747 doi: 10.1002/aelm.202500747
[103]
Fei Z Y, Chen Z M, Chen W Q, et al. ε-Ga2O3 thin films grown by metal-organic chemical vapor deposition and its application as solar-blind photodetectors. J Alloys Compd, 2022, 925: 166632 doi: 10.1016/j.jallcom.2022.166632
[104]
Luo T C, Chen X F, Yang Z, et al. Epitaxial lateral overgrowth of ε-Ga2O3 by metal–organic chemical vapor deposition. Eur Phys J Spec Top, 2025, 234(2): 273 doi: 10.1140/epjs/s11734-025-01485-3
[105]
Chen W Q, Zhu S H, Li L X, et al. Modulation of defect structures for MOCVD-grown ε-Ga2O3 thin films by using sapphire substrates with large off-axis angles. Appl Surf Sci, 2025, 710: 164010 doi: 10.1016/j.apsusc.2025.164010
[106]
Wang L, Wang Y, Feng Q, et al. The pulse Sn-assisted growth promotes the preparation of high-quality single-crystal ε-Ga2O3 films using MOCVD technology. Ceram Int, 2025, 51(4): 5095 doi: 10.1016/j.ceramint.2024.11.483
[107]
Kung P K, Chou H Y, Chiang W H, et al. MOCVD-grown ε(κ)-Ga2O3 with highly preferred orientation for memristor applications. Mater Today Adv, 2025, 26: 100589 doi: 10.1016/j.mtadv.2025.100589
[108]
Wang Z W, Huang H, Hou X H, et al. Crystal-phase engineering of ε-Ga2O3 for high-performance deep UV photodetectors via MOCVD. Sci China Mater, 2025, 68(4): 1174 doi: 10.1007/s40843-024-3245-6
[109]
Chen Y F, Xia M Y, Dong X M, et al. Tunable phase stabilization optimization for achieving single-phase ε-Ga2O3 epitaxy. J Alloys Compd, 2025, 1046: 184847 doi: 10.1016/j.jallcom.2025.184847
[110]
Demir B, Peterson R L. Improved heteroepitaxy of κ-Ga2O3 on c-plane sapphire by initial mist flow stabilization during mist chemical vapor deposition. Thin Solid Films, 2024, 791: 140223 doi: 10.1016/j.tsf.2024.140223
[111]
Xu M F, Li Y, Li C L, et al. Optimization of oxygen flow rate toward high-quality ε-Ga2O3 thin films grown on sapphire substrates and solar-blind ultraviolet photodetectors. Opt Mater, 2025, 164: 117011 doi: 10.1016/j.optmat.2025.117011
[112]
Kang H Y, Kang H, Lee E, et al. Sn-induced phase stabilization and enhanced thermal stability of κ-Ga2O3 grown by mist chemical vapor deposition. ACS Omega, 2021, 6(46): 31292 doi: 10.1021/acsomega.1c05130
[113]
Nishinaka H, Ueda O, Ito Y, et al. Plan-view TEM observation of a single-domain κ-Ga2O3 thin film grown on ε-GaFeO3 substrate using GaCl3 precursor by mist chemical vapor deposition. Jpn J Appl Phys, 2022, 61(1): 018002 doi: 10.35848/1347-4065/ac3e17
[114]
Zhang Y J, Gong Y Q, Chen X H, et al. Unlocking the single-domain heteroepitaxy of orthorhombic κ-Ga2O3 via phase engineering. ACS Appl Electron Mater, 2022, 4(1): 461 doi: 10.1021/acsaelm.1c01094
[115]
Polyakov A Y, Nikolaev V I, Pechnikov A I, et al. Structural and electrical properties of thick κ-Ga2O3 grown on GaN/sapphire templates. APL Mater, 2022, 10(6): 061102 doi: 10.1063/5.0091653
[116]
Liu N T, Lin H B, Yang Y X, et al. High performance solar blind avalanche photodetector based on a single-crystalline ɛ-Ga2O3/BaSnO3 heterojunction. Mater Today Phys, 2024, 42: 101385 doi: 10.1016/j.mtphys.2024.101385
[117]
Zhang J G, Liu N T, Chen L, et al. Ultrawide bandgap diamond/ε-Ga2O3 heterojunction pn diodes with breakdown voltages over 3 kV. Nano Lett, 2025, 25(1): 537 doi: 10.1021/acs.nanolett.4c05446
[118]
Zhang J T, Zeng X H, Wu Y, et al. Phase-pure ε-Ga2O3 thin films on c-plane sapphire substrates at low temperature by plasma-enhanced ALD: Growth, characterization, and interface analysis. Vacuum, 2025, 233: 114005 doi: 10.1016/j.vacuum.2024.114005
[119]
Lu J Q, Zhang W, Zhang M L, et al. Effect of the VI/III ratio on the growth of κ-Ga2O3 films via MOCVD. Appl Phys Lett, 2025, 127(20): 201902 doi: 10.1063/5.0288203
[120]
Sun H D, Li K H, Castanedo C G T, et al. HCl flow-induced phase change of α-, β-, and ε-Ga2O3 films grown by MOCVD. Cryst Growth Des, 2018, 18(4): 2370 doi: 10.1021/acs.cgd.7b01791
[121]
Arata Y, Nishinaka H, Tahara D, et al. Heteroepitaxial growth of single-phase ε-Ga2O3 thin films on c -plane sapphire by mist chemical vapor deposition using a NiO buffer layer. CrystEngComm, 2018, 20(40): 6236 doi: 10.1039/C8CE01128A
[122]
Oshima Y, Víllora E G, Matsushita Y, et al. Epitaxial growth of phase-pure ε-Ga2O3 by halide vapor phase epitaxy. J Appl Phys, 2015, 118(8): 085301 doi: 10.1063/1.4929417
[123]
Boschi F, Bosi M, Berzina T, et al. Hetero-epitaxy of ε-Ga2O3 layers by MOCVD and ALD. J Cryst Growth, 2016, 443: 25 doi: 10.1016/j.jcrysgro.2016.03.013
[124]
Kang H Y, Yeom M J, Yang J Y, et al. Epitaxial κ-Ga2O3/GaN heterostructure for high electron-mobility transistors. Mater Today Phys, 2023, 31: 101002 doi: 10.1016/j.mtphys.2023.101002
[125]
Krishna S, Lu Y, Liao C H, et al. Band alignment of orthorhombic Ga2O3 with GaN and AlN semiconductors. Appl Surf Sci, 2022, 599: 153901 doi: 10.1016/j.apsusc.2022.153901
[126]
Zhan Q Q, Li Y, Yue L K, et al. High-performance self-powered solar-blind ultraviolet photodetector based on GaN/κ-Ga2O3 heterojunction. Opt Mater, 2026, 173: 117843 doi: 10.1016/j.optmat.2026.117843
[127]
Leone S, Fornari R, Bosi M, et al. Epitaxial growth of GaN/Ga2O3 and Ga2O3/GaN heterostructures for novel high electron mobility transistors. J Cryst Growth, 2020, 534: 125511 doi: 10.1016/j.jcrysgro.2020.125511
[128]
Kim S, Lee J, Ahn H, et al. Growth and crystal phase transformation of ε-Ga2O3 grown on 4H–SiC by MOCVD. Mater Sci Semicond Process, 2022, 144: 106586 doi: 10.1016/j.mssp.2022.106586
[129]
Cho S B, Mishra R. Epitaxial engineering of polar ε-Ga2O3 for tunable two-dimensional electron gas at the heterointerface. Appl Phys Lett, 2018, 112(16): 162101 doi: 10.1063/1.5019721
[130]
Wang Z J, Chen C X, Meng H Y, et al. Biodegradable piezoelectric materials: Powering the future of bioelectronic medicine. Adv Funct Mater, 2026, 36(22): e19501 doi: 10.1002/adfm.202519501
[131]
Wang L P, Li R W. A more biofriendly piezoelectric material. Science, 2024, 383(6690): 1416 doi: 10.1126/science.ado5706
[132]
Guo S D, Du H M. Piezoelectric properties of Ga2O3: a first-principle study. Eur Phys J B, 2020, 93(1): 7 doi: 10.1140/epjb/e2019-100516-6
[133]
Shimada K. First-principles study of crystal structure, elastic stiffness constants, piezoelectric constants, and spontaneous polarization of orthorhombic Pna21-M2O3 (M = Al, Ga, In, Sc, Y). Mater Res Express, 2018, 5(3): 036502 doi: 10.1088/2053-1591/aab118
[134]
Chen Z M, Lu X, Tu Y J, et al. ε‐Ga2O3: An Emerging Wide Bandgap Piezoelectric Semiconductor for Application in Radio Frequency Resonators. Adv Sci, 2022, 9(32): 2203927 doi: 10.1002/advs.202203927
[135]
Ababneh A, Schmid U, Hernando J, et al. The influence of sputter deposition parameters on piezoelectric and mechanical properties of AlN thin films. Mater Sci Eng B, 2010, 172(3): 253 doi: 10.1016/j.mseb.2010.05.026
[136]
Dubois M A, Muralt P. Stress and piezoelectric properties of aluminum nitride thin films deposited onto metal electrodes by pulsed direct current reactive sputtering. J Appl Phys, 2001, 89(11): 6389 doi: 10.1063/1.1359162
[137]
Martin F, Muralt P, Dubois M A, et al. Thickness dependence of the properties of highlyc-axis textured AlN thin films. J Vac Sci Technol A, 2004, 22(2): 361 doi: 10.1116/1.1649343
[138]
Bowen C R, Kim H A, Weaver P M, et al. Piezoelectric and ferroelectric materials and structures for energy harvesting applications. Energy Environ Sci, 2014, 7(1): 25 doi: 10.1039/C3EE42454E
[139]
Valdez L A, Caravaca M A, Casali R A. Ab-initio study of elastic anisotropy, hardness and volumetric thermal expansion coefficient of ZnO, ZnS, ZnSe in wurtzite and zinc blende phases. J Phys Chem Solids, 2019, 134: 245 doi: 10.1016/j.jpcs.2019.05.019
[140]
Ding J Q, Liu Y, Wang S X, et al. Surface acoustic wave resonator with epitaxial ε-Ga2O3 thin films: performance characteristics and temperature sensor potential. IEEE Microw Wirel Technol Lett, 2025, 35(9): 1424 doi: 10.1109/LMWT.2025.3570271
[141]
Wang Y, Xie Z G, Guan Y Z, et al. Atomic-level revelation of spontaneous polarization orientation and piezoelectricity in ε-Ga2O3. Appl Phys Lett, 2026, 128(12): 122107 doi: 10.1063/5.0321241
[142]
Wu C, Wu F M, Hu H Z, et al. Review of self-powered solar-blind photodetectors based on Ga2O3. Mater Today Phys, 2022, 28: 100883 doi: 10.1016/j.mtphys.2022.100883
[143]
Noskov A I, Kotlyar A B, Katrivas L, et al. Overcoming the indirect band gap: Efficient silicon emission via momentum-engineered photonic states. Nano Lett, 2026, 26(15): 5187 doi: 10.1021/acs.nanolett.6c00596
[144]
Sahare S, Solovan M M, Mostovyi A I, et al. Semiconductor bandgap measurements: Overview of optical, electrical, and device‐level techniques. Adv Opt Mater, 2025, 13(29): e01747 doi: 10.1002/adom.202501747
[145]
Kim J, Tahara D, Miura Y, et al. First-principle calculations of electronic structures and polar properties of (κ, ε)-Ga2O3. Appl Phys Express, 2018, 11(6): 061101 doi: 10.7567/APEX.11.061101
[146]
Dobročka E, Gucmann F, Hušeková K, et al. Structure and thermal stability of ε/κ-Ga2O3 films deposited by liquid-injection MOCVD. Materials, 2022, 16(1): 20 doi: 10.3390/ma16010020
[147]
Banda Y, Jia Y Q, Cho S H, et al. On the structural and bandgap properties of mist-CVD-grown κ-Ga2O3 post continuous temperature annealing. AIP Adv, 2024, 14(11): 115019 doi: 10.1063/5.0233281
[148]
Montedoro V, Torres A, Dadgostar S, et al. Cathodoluminescence of undoped and Si-doped ɛ-Ga2O3 films. Mater Sci Eng B, 2021, 264: 114918 doi: 10.1016/j.mseb.2020.114918
[149]
Xi Z Y, Liu Z, Yang L L, et al. Comprehensive study on ultra-wide band gap La2O3/ε-Ga2O3 p–n heterojunction self-powered deep-UV photodiodes for flame sensing. ACS Appl Mater Interfaces, 2023, 15(34): 40744 doi: 10.1021/acsami.3c07597
[150]
Jia Y Q, Lin H M, Chang H L, et al. Synaptic κ‐Ga2O3 photodetectors for privacy‐enhancing neuromorphic computing. Adv Sci, 2026, 13(36): e75160 doi: 10.1002/advs.75160
[151]
Qin Y, Li L H, Zhao X L, et al. Metal–semiconductor–metal ε-Ga2O3 solar-blind photodetectors with a record-high responsivity rejection ratio and their gain mechanism. ACS Photonics, 2020, 7(3): 812 doi: 10.1021/acsphotonics.9b01727
[152]
Zhang W R, Wang W, Wei J X, et al. Photocarrier transport reconstruction and dramatical performance enhancement in ultrawide-bandgap ε-Ga2O3 photodetectors via surface defect passivation. Mater Today Phys, 2023, 38: 101280 doi: 10.1016/j.mtphys.2023.101280
[153]
Wan J, Liu L, Wu Y, et al. Exploring the polarization photocatalysis of ZnIn2S4 material toward hydrogen evolution by integrating cascade electric fields with hole transfer vehicle. Adv Funct Mater, 2022, 32(35): 2203252 doi: 10.1002/adfm.202203252
[154]
Huang X Y, Wang K Q, Wang Y Z, et al. Enhanced charge carrier separation to improve hydrogen production efficiency by ferroelectric spontaneous polarization electric field. Appl Catal B, 2018, 227: 322 doi: 10.1016/j.apcatb.2018.01.036
[155]
Wang J X, Chu C S, Tian K K, et al. Polarization assisted self-powered GaN-based UV photodetector with high responsivity. Photonics Res, 2021, 9(5): 734 doi: 10.1364/PRJ.418813
[156]
Guo J R, Gu Y, Liu Y S, et al. Polarization assisted interdigital AlGaN/GaN heterostructure ultraviolet photodetectors. IEEE Trans Electron Devices, 2023, 70(5): 2352 doi: 10.1109/TED.2023.3258920
[157]
Li X X, Sun L, Zhao X F, et al. Optoelectronic synaptic devices based on ε-Ga2O3/ZnO heterojunctions grown by an optimized process. Cryst Growth Des, 2025, 25(22): 9610 doi: 10.1021/acs.cgd.5c00641
[158]
Kim I J, Lee J S. Ferroelectric transistors for memory and neuromorphic device applications. Adv Mater, 2023, 35(22): 2206864 doi: 10.1002/adma.202206864
[159]
Wang A J, Chen R, Yun Y, et al. Review of ferroelectric materials and devices toward ultralow voltage operation. Adv Funct Mater, 2025, 35(7): 2412332 doi: 10.1002/adfm.202412332
[160]
Khosla R, Sharma S K. Integration of ferroelectric materials: an ultimate solution for next-generation computing and storage devices. ACS Appl Electron Mater, 2021, 3(7): 2862 doi: 10.1021/acsaelm.0c00851
[161]
Faizan M, Qian Z F, Zhu H, et al. Emerging ferroelectric materials for high-performance next-generation memory devices. ACS Appl Electron Mater, 2025, 7(16): 7473 doi: 10.1021/acsaelm.5c01058
[162]
Kim K H, Karpov I, Olsson R H, et al. Wurtzite and fluorite ferroelectric materials for electronic memory. Nat Nanotechnol, 2023, 18(5): 422 doi: 10.1038/s41565-023-01361-y
[163]
Länge K, Rapp B E, Rapp M. Surface acoustic wave biosensors: a review. Anal Bioanal Chem, 2008, 391(5): 1509 doi: 10.1007/s00216-008-1911-5
[164]
Tu Y J, Chen W Q, Zhang Z P, et al. Surface acoustic wave resonators using a novel ε-Ga2O3 piezoelectric film grown on sapphire. IEEE Electron Device Lett, 2023, 44(6): 895 doi: 10.1109/LED.2023.3269040
[165]
Zhang Y, Cai Y, Zhou J, et al. Surface acoustic wave-based ultraviolet photodetectors: a review. Sci Bull, 2020, 65(7): 587 doi: 10.1016/j.scib.2019.12.001
[166]
Luo J H, Huang C H, Tu Y J, et al. An ε-Ga2O3-based surface acoustic wave resonator for deep ultraviolet detection. IEEE Electron Device Lett, 2024, 45(12): 2510 doi: 10.1109/LED.2024.3480908
[167]
Zhang Z, Yang L L, Liu Z, et al. Theoretical analysis of bulk acoustic wave resonators with emerging ε-Ga2O3 piezoelectric film. Appl Phys Lett, 2024, 124(3): 033502 doi: 10.1063/5.0182451
[168]
Fu Y P, Chen S J, Tu Y J, et al. Demonstration of high-overtone bulk acoustic resonators using an epitaxial ε-Ga2O3 piezoelectric film on SiC. 2023 IEEE International Ultrasonics Symposium (IUS). Montreal, QC, Canada. IEEE, 2023: 1
[169]
Fan P Y, Chettiar U K, Cao L Y, et al. An invisible metal–semiconductor photodetector. Nat Photonics, 2012, 6(6): 380 doi: 10.1038/nphoton.2012.108
[170]
Pecunia V, Anthopoulos T D, Armin A, et al. Guidelines for accurate evaluation of photodetectors based on emerging semiconductor technologies. Nat Photonics, 2025, 19(11): 1178 doi: 10.1038/s41566-025-01759-1
[171]
Lei J M, Cai Q, Cao J Y, et al. High-performance ε-Ga2O3 solar-blind ultraviolet photodetectors with interdigital framework. IEEE Trans Electron Devices, 2024, 71(1): 645 doi: 10.1109/TED.2023.3335897
[172]
Zhou C, Wang J P, Shu L C, et al. ε-Ga2O3 solar-blind photodetector: Pyroelectric effect and flame sensing application. Vacuum, 2025, 234: 114060 doi: 10.1016/j.vacuum.2025.114060
[173]
Hu S D, Liu N T, Li T, et al. High-performance deep-ultraviolet photodetector based on a single-crystalline ϵ-Ga2O3 /Sn-doped In2O3 heterojunction. J Phys D Appl Phys, 2025, 58(2): 025111 doi: 10.1088/1361-6463/ad8758
[174]
Yang Y X, Han D Y, Wu S M, et al. High-performance solar-blind ultraviolet photodetector arrays based on two-inch ϵ-Ga2O3 films for imaging applications. J Phys D Appl Phys, 2025, 58(10): 105108 doi: 10.1088/1361-6463/ada3e0
[175]
Xia K L, Liu Z, Sha S L, et al. Self-powered solar-blind detector array based on ε-Ga2O3 Schottky photodiodes for dual-mode binary UV communication. Opt Lett, 2023, 48(24): 6384 doi: 10.1364/OL.506189
[176]
Lu Y, Miranda Cortez P A, Tang X, et al. κ/β‐Ga2O3 Type‐II Phase Heterojunction. Adv Mater, 2025, 37(8): 2406902 doi: 10.1002/adma.202406902

    • Search

    Advanced Search >>

    GET CITATION

    shu

    Export: BibTex EndNote

    Article Metrics

    Article views: 3 Times PDF downloads: 0 Times Cited by: 0 Times

    History

    Received: 26 May 2026 Revised: 24 June 2026 Online: Accepted Manuscript: 03 August 2026

    Catalog

      Email This Article

      User name:
      Email:*请输入正确邮箱
      Code:*验证码错误
      Send
      Article Navigation >  Journal of Semiconductors  > 2026  > Accepted Manuscript
      Jiaqi Lu, Shan Li, Jingpeng Zhang, Jiaqing Yuan, Xueqiang Ji, Zeng Liu, Weihua Tang. A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics[J]. Journal of Semiconductors, 2026, In Press. doi: 10.1088/1674-4926/26050042 ****J Q Lu, S Li, J P Zhang, J Q Yuan, X Q Ji, Z Liu, and W H Tang, A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics[J]. J. Semicond., 2026, accepted doi: 10.1088/1674-4926/26050042
      Citation:
      Jiaqi Lu, Shan Li, Jingpeng Zhang, Jiaqing Yuan, Xueqiang Ji, Zeng Liu, Weihua Tang. A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics[J]. Journal of Semiconductors, 2026, In Press. doi: 10.1088/1674-4926/26050042 ****
      J Q Lu, S Li, J P Zhang, J Q Yuan, X Q Ji, Z Liu, and W H Tang, A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics[J]. J. Semicond., 2026, accepted doi: 10.1088/1674-4926/26050042
      shu

      A review of metastable ε/κ-Ga2O3: Phase identification, epitaxy, and emerging device physics

      DOI: 10.1088/1674-4926/26050042
      CSTR: 32376.14.1674-4926.26050042
      • 1.

        College of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210023, China

      • 2.

        School of Electronic Information Engineering, Inner Mongolia University, Hohhot 010021, China

      More Information
      • Jiaqi Lu is a second-year Ph.D. student at Innovation Center for Gallium Oxide Semiconductor (IC-GAO), College of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications. His major research focuses on the crystal growth and device applications of metastable gallium oxide
      • Shan Li is an associate professor at College of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications. He received his Ph.D. degree from Beijing University of Posts and Telecommunications. His research mainly focuses on ultrawide bandgap semiconductor materials and information-sensing devices
      • Weihua Tang received his PhD degree from the Institute of Physics (IOP), CAS, Beijing. He is currently a full professor at Nanjing University of Posts and Telecommunications. He has been devoted to the research of ultrawide bandgap gallium oxide semiconductors for more than a decade
      • Corresponding author: shanli@njupt.edu.cn; whtang@njupt.edu.cn
      • Received Date: 2026-05-26
      • Revised Date: 2026-06-24
        • Available Online: 2026-08-03

      Catalog

        Journal of Semiconductors © 2017 All Rights Reserved   京ICP备05085259号-2

        /

        DownLoad:  Full-Size Img  PowerPoint
        Return
        Return
