Optimization of annealing conditions and doping concentration for high-performance PEALD Al-doped ZnO thin-film transistors

Xue Chen¹, Liwei Ji², Hao Wu^3, and Chang Liu^2,

+ Author Affiliations

Corresponding author: Hao Wu, h.wu@whu.edu.cn; Chang Liu, chang.liu@whu.edu.cn

DOI: 10.1088/1674-4926/26070004CSTR: 32376.14.1674-4926.26070004

Abstract: In this study, the effects of post-deposition annealing conditions and Al-doping concentrations on the electrical characteristics and bias-stress stability of ZnO-based thin-film transistors (TFTs) were systematically investigated. Experimental results reveal that an optimal annealing condition of 200°C for 30 minutes effectively promotes the activation of ionic species and the passivation of detrimental defects, thereby facilitating superior device performance. At an optimized Al-doping ratio of 1:20, the AZO TFTs exhibit excellent electrical characteristics, including a field-effect mobility of 5.03 cm²–V^–1–s^–1, a positive threshold voltage of 3.47 V and a subthreshold swing of 0.29 V/dec. Compared to pure ZnO TFTs, the Al-doped devices demonstrate exceptional bias-stress stability, which can be attributed to appropriate Al doping concentration suppressing the density of trap states, including oxygen vacancies and residual carbon-oxygen related impurities.

Keywords: AlZnO, thin film transistors, annealing, plasma enhanced atomic layer deposition (PEALD)

References

[1]	Xu W Y, Xu C Y, Zhou J L, et al. Overcoming mobility–off current and mobility–stability trade-offs in solution-processed two-dimensional In2O3 transistors via in-situ ultrathin Ga2O3 passivation. Mater Today Phys, 2025, 59: 101936 doi: 10.1016/j.mtphys.2025.101936
[2]	Lin Z Y, Kang L, Zhao J X, et al. The role of oxygen vacancy and hydrogen on the PBTI reliability of ALD IGZO transistors and process optimization. IEEE Trans Electron Devices, 2024, 71(5): 3002 doi: 10.1109/TED.2024.3374247
[3]	Ren S H, Huang Q, Li D W, et al. Oxide semiconductor thin-film transistors for low-power electronics. Adv Sci, 2026, 13(11): e22487 doi: 10.1002/advs.202522487
[4]	Nomura K, Ohta H, Takagi A, et al. Room-temperature fabrication of transparent flexible thin-film transistors using amorphous oxide semiconductors. Nature, 2004, 432(7016): 488 doi: 10.1038/nature03090
[5]	Yan G P, Yang H, Liu W B, et al. Mechanism analysis of ultralow leakage and abnormal instability in InGaZnO thin-film transistor toward DRAM. IEEE Trans Electron Devices, 2022, 69(5): 2417 doi: 10.1109/TED.2022.3159266
[6]	Hong J H, Kim D, Park Y, et al. Facile diffusion of sulfur and fluorine into a-IGTO thin films for high-performance and reliability of transparent amorphous oxide semiconductor thin-film transistors. Mater Sci Semicond Process, 2024, 169: 107872 doi: 10.1016/j.mssp.2023.107872
[7]	Chen X, Zhang G Z, Wan J X, et al. Transparent and flexible thin-film transistors with high performance prepared at ultralow temperatures by atomic layer deposition. Adv Electron Mater, 2019, 5(2): 1800583 doi: 10.1002/aelm.201800583
[8]	Zhang N, Zhao W P, Yao C, et al. Transparent multi-level NAND flash memory and circuits based on ZnO thin film transistor. IEEE Electron Device Lett, 2023, 44(4): 610 doi: 10.1109/LED.2023.3248068
[9]	Li S Z, Zhu S Y, Liu L, et al. Modulating electrical characteristics of ZnO thin-film transistors by scaling down gate dielectric thickness. IEEE Trans Electron Devices, 2024, 71(2): 1089 doi: 10.1109/TED.2023.3343678
[10]	Trinh B N Q, Chien T D, Hoa N Q, et al. Solution-processable zinc oxide based thin films with different aluminum doping concentrations. J Sci Adv Mater Devices, 2020, 5(4): 497 doi: 10.1016/j.jsamd.2020.08.006
[11]	Fortunato E, Barquinha P, Martins R. Oxide semiconductor thin-film transistors: A review of recent advances. Adv Mater, 2012, 24(22): 2945 doi: 10.1002/adma.201103228
[12]	Bukke R N, Mude N N, Saha J K, et al. Effect of lanthanum doping on the electrical performance of spray coated ZnO thin film transistor. Proc Int Disp Work, 2019: 482
[13]	Yue D W, Guo S B, Han S, et al. Facile fabrication of MgZnO/ZnO composites for high performance thin film transistor. J Alloys Compd, 2021, 873: 159840 doi: 10.1016/j.jallcom.2021.159840
[14]	Saha J K, Ali A, Bukke R N, et al. Performance improvement for spray-coated ZnO TFT by F doping with spray-coated Zr–Al–O gate insulator. IEEE Trans Electron Devices, 2021, 68(3): 1063 doi: 10.1109/TED.2021.3051918
[15]	Yang J, Zhang Y P, Qin C P, et al. Enhanced stability in Zr-doped ZnO TFTs with minor influence on mobility by atomic layer deposition. IEEE Trans Electron Devices, 2019, 66(4): 1760 doi: 10.1109/TED.2019.2896313
[16]	Tang Q, Chen X, Wan J X, et al. Influence of Ga doping on electrical performance and stability of ZnO thin-film transistors prepared by atomic layer deposition. IEEE Trans Electron Devices, 2020, 67(8): 3129 doi: 10.1109/TED.2020.3000197
[17]	Dong J C, Li Q, Han D D, et al. Atomic layer deposition deposited Al-doped ZnO films for transistor application. 2021 5th IEEE Electron Devices Technology & Manufacturing Conference (EDTM), 2021: 1
[18]	Zhou X B, Han D D, Dong J C, et al. High-performance Al-Zn-O thin-film transistors sputtering at different power. IEEE Trans Electron Devices, 2019, 66(11): 4774 doi: 10.1109/TED.2019.2942950
[19]	Choi J, Choi J, Lee Y, et al. Optimization of atomic-layer-deposited zinc–tin-oxide thin-film transistors via controlled aluminum doping. ACS Appl Electron Mater, 2025, 7(11): 5184 doi: 10.1021/acsaelm.5c00575
[20]	Petrova D, Napoleonov B, Minh C N H, et al. The effect of post deposition treatment on properties of ALD Al-doped ZnO films. Nanomaterials, 2023, 13(5): 800 doi: 10.3390/nano13050800
[21]	Oviroh P O, Akbarzadeh R, Pan D Q, et al. New development of atomic layer deposition: Processes, methods and applications. Sci Technol Adv Mater, 2019, 20(1): 465 doi: 10.1080/14686996.2019.1599694
[22]	Lee W B, Kim Y S, Park J S. Control of subthreshold swing using an in situ PEALD nano-laminated IGZO/Al2O3 multi-channel structured TFT. J Inf Disp, 2024, 25(2): 179 doi: 10.1080/15980316.2023.2249244
[23]	Kim Y S, Lee W B, Oh H J, et al. Remarkable stability improvement with a high-performance PEALD-IZO/IGZO top-gate thin-film transistor via modulating dual-channel effects. Adv Mater Interfaces, 2022, 9(16): 2200501 doi: 10.1002/admi.202200501
[24]	Yoon S H, Cho J H, Cho I, et al. Tailoring subthreshold swing in A-IGZO thin-film transistors for amoled displays: Impact of conversion mechanism on peald deposition sequences (small methods 8/2024). Small Meth, 2024, 8(8): 2470043 doi: 10.1002/smtd.202470043
[25]	Woo N, Cho S I, Park S K. Optimal aluminum doping method in PEALD for designing outstandingly stable InAlZnO TFT. Adv Mater Interfaces, 2023, 10(12): 2300128 doi: 10.1002/admi.202300128
[26]	Alev O, Özdemir O, Kılıç A, et al. Effect of Al doping on structural and optical properties of atomic layer deposited ZnO thin films. Surf Interfaces, 2024, 52: 104942 doi: 10.1016/j.surfin.2024.104942
[27]	Shiah Y S, Sim K, Shi Y H, et al. Mobility–stability trade-off in oxide thin-film transistors. Nat Electron, 2021, 4(11): 800 doi: 10.1038/s41928-021-00671-0

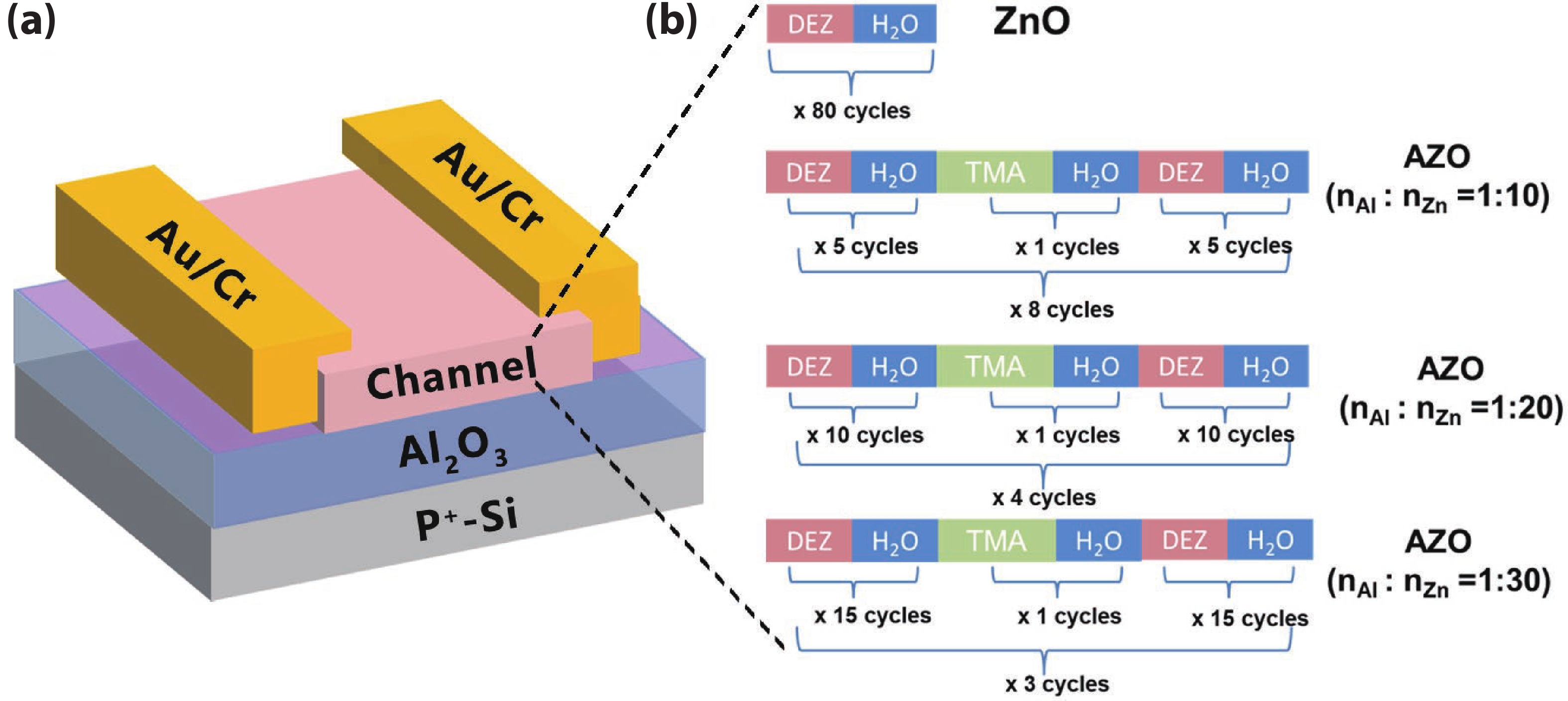

Fig. 1. (Color online) (a) Schematic device structure of AZO TFTs. (b) Diagram of different deposition sequence for ZnO and AZO films using PEALD.

DownLoad: Full-Size Img PowerPoint

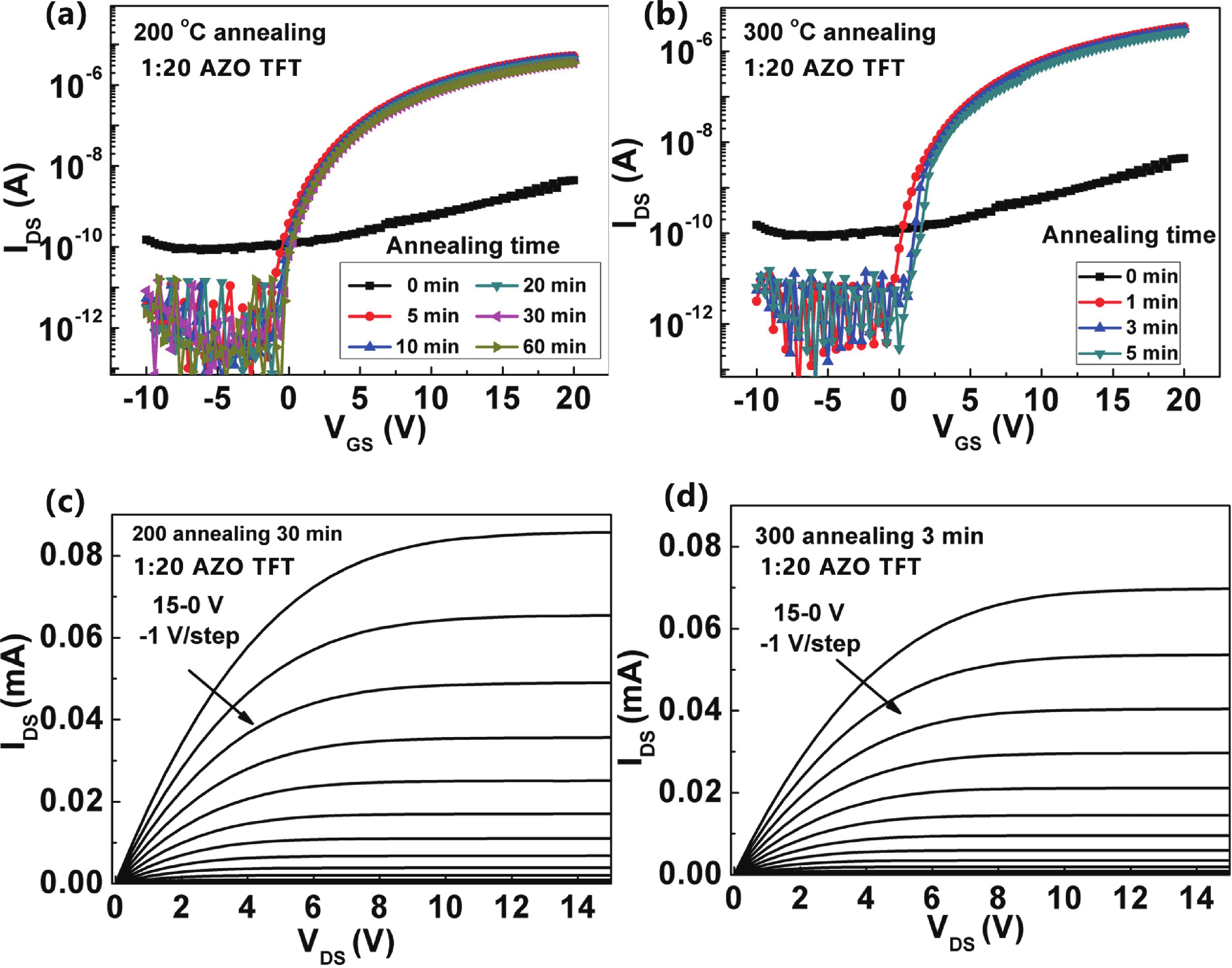

Fig. 2. (Color online)(a) The I_DS-V_GS curves of AZO TFTs with 1∶20 doping concentration annealed at 200 °C for different durations. (b) The I_DS-V_GS curves of AZO TFTs with 1∶20 doping concentration annealed at 300 °C for different durations. (c) The I_DS-V_DS curves of AZO TFTs with 1∶20 doping concentration annealed at 200 °C for 30 min. (d) The I_DS-V_DS curves of AZO TFTs with 1∶20 doping concentration annealed at 300 °C for 3 min.

DownLoad: Full-Size Img PowerPoint

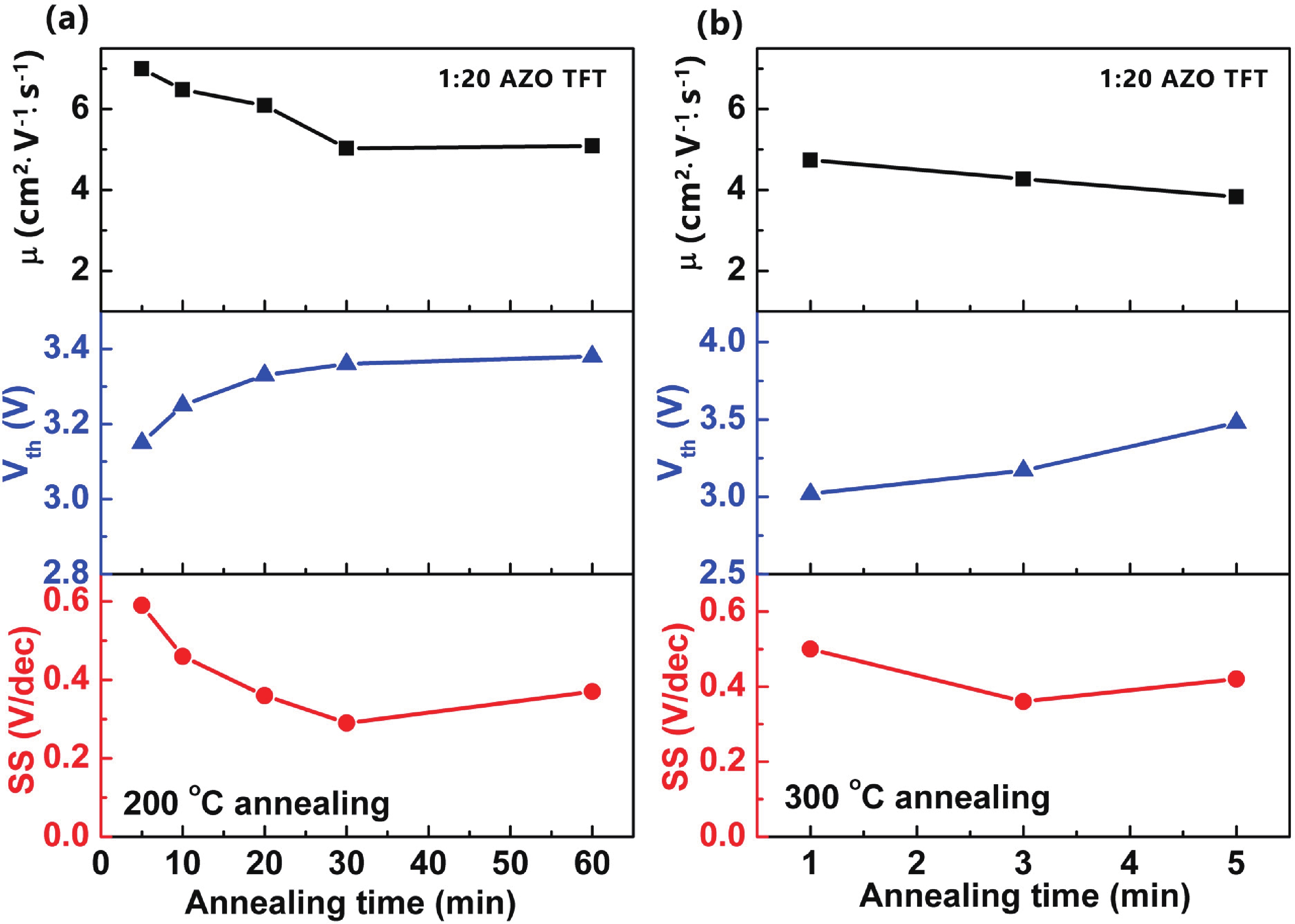

Fig. 3. (Color online) μ_FE, V_th, and SS as a function of annealing duration for AZO TFTs annealed at 200 °C (a) and 300 °C (b).

DownLoad: Full-Size Img PowerPoint

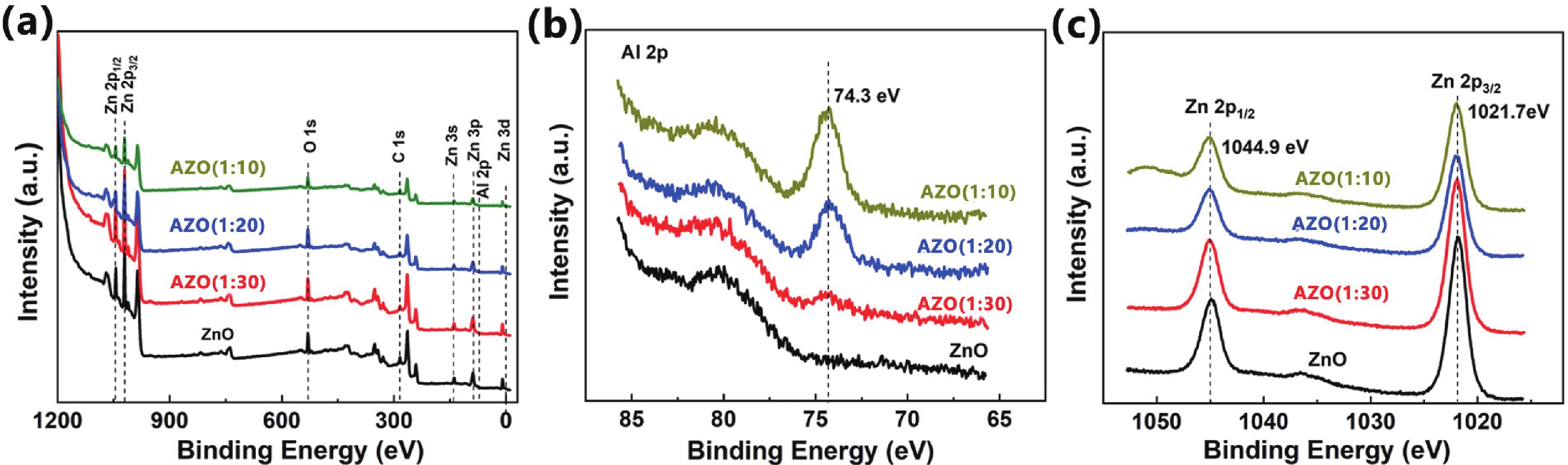

Fig. 4. (Color online) (a) XPS survey spectra, (b) Al 2p core-level spectra and (c) Zn 2p core-level spectra of the ZnO and AZO films with various doping concentrations.

DownLoad: Full-Size Img PowerPoint

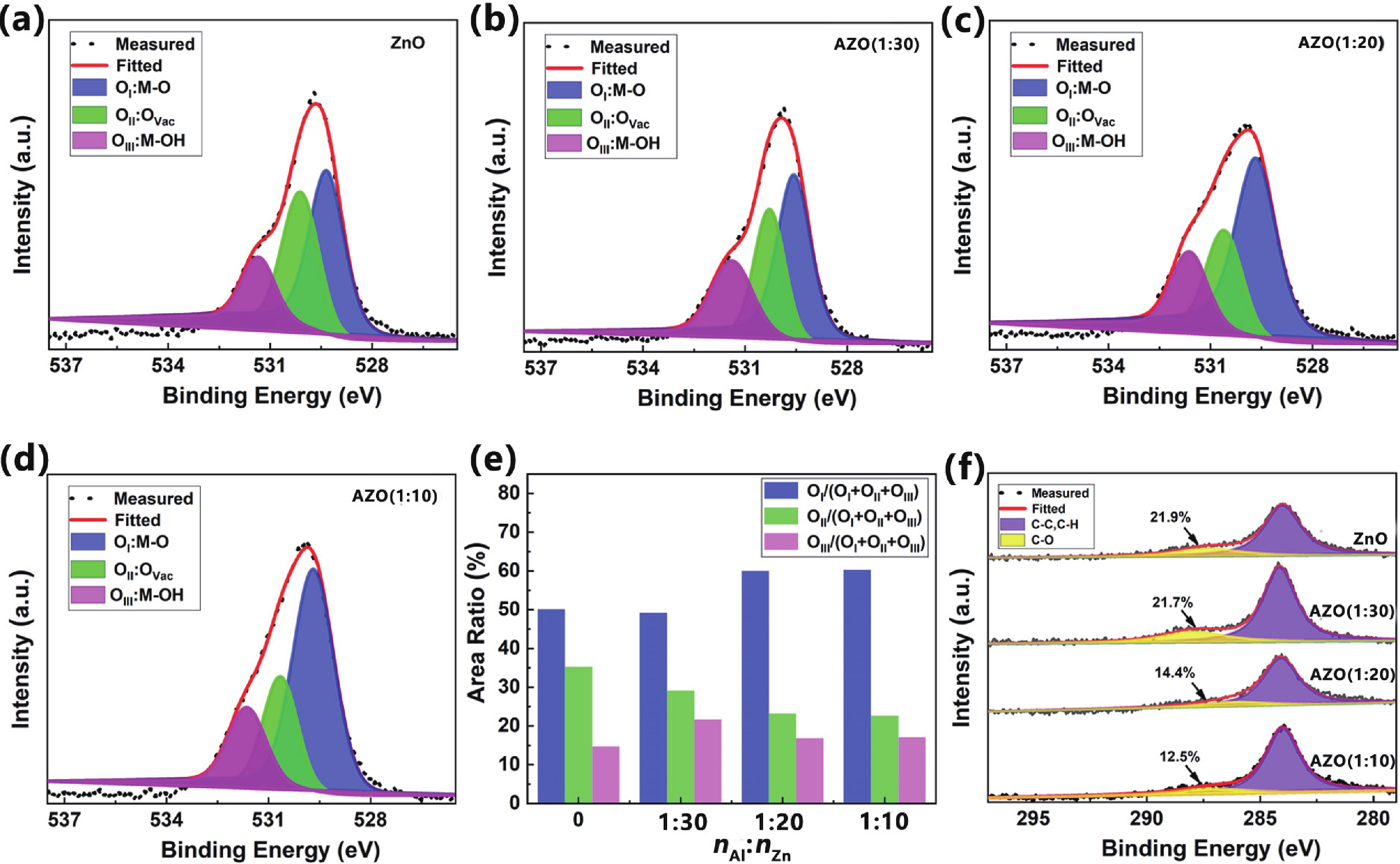

Fig. 5. (Color online) (a) The core O 1s XPS spectra of the ZnO thin films. The core O 1s XPS spectra of the AZO thin films with different doping concentrations (b) 1∶30, (c) 1∶20 and (d) 1∶10. (e) The relative contents of O_I peaks (O^2- ions bonding), O_II peaks (V_o) and O_III peaks (impurities) as a function of the doping concentration. (f) XPS spectra of C 1s for ZnO and AZO thin films with different doping concentrations.

DownLoad: Full-Size Img PowerPoint

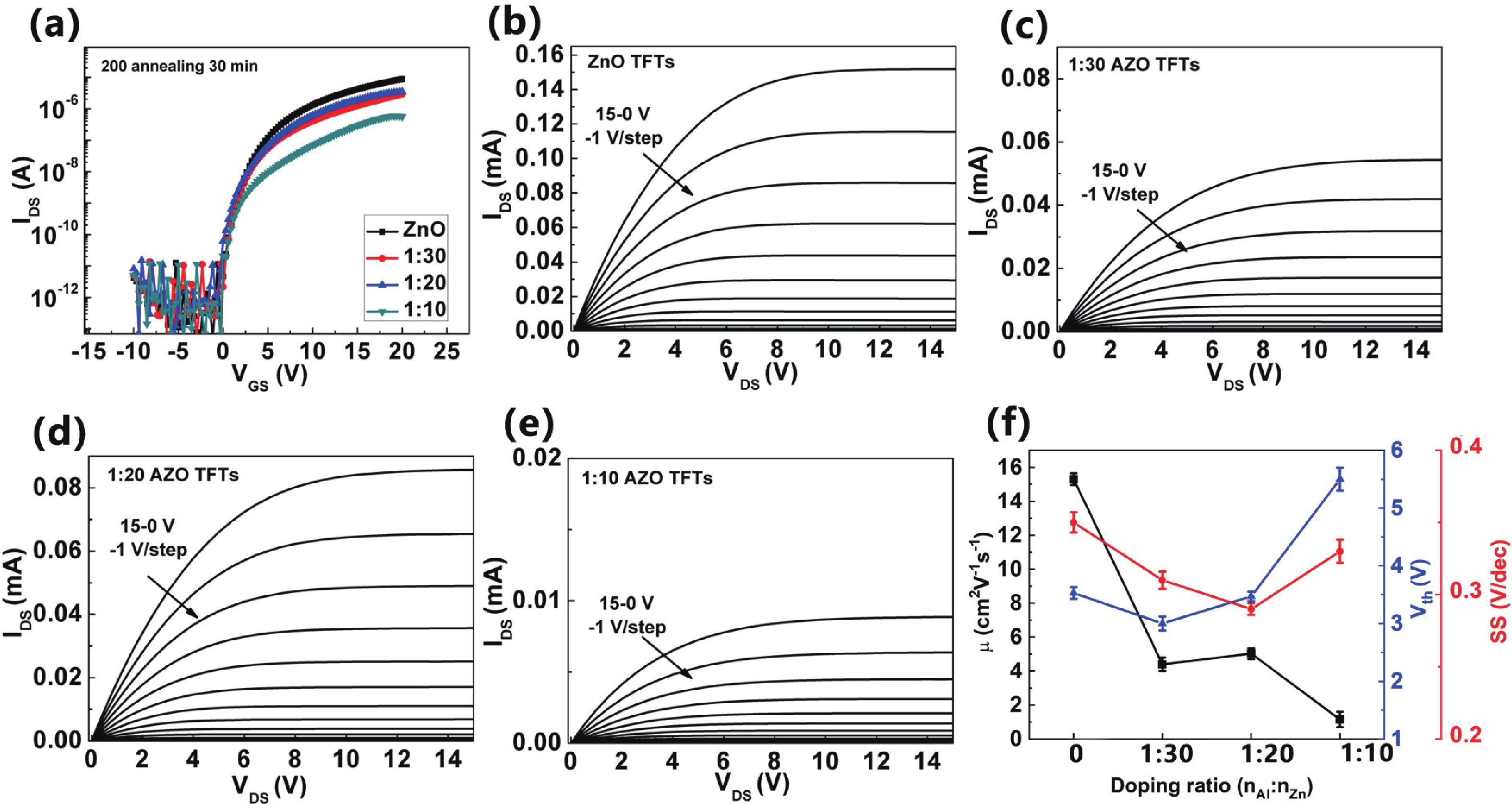

Fig. 6. (Color online) (a) Transfer characteristics and (b)–(e) output characteristics of the ZnO TFTs and AZO TFTs with different doping concentrations, nAl:nZn = 1∶30, 1∶20, and 1∶10. (f) The device electrical parameters as a function of Al doping concentration.

DownLoad: Full-Size Img PowerPoint

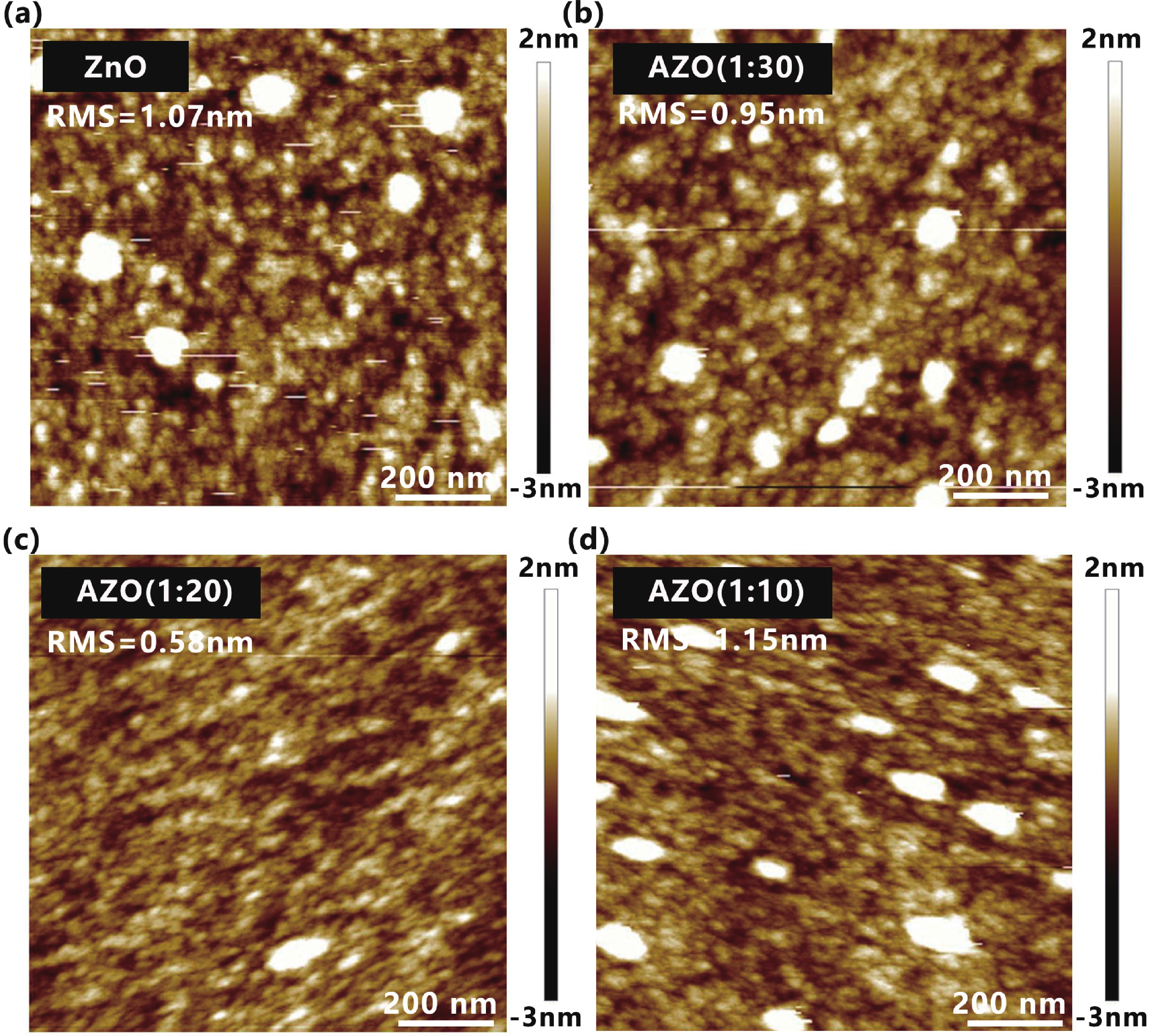

Fig. 7. (Color online) AFM topographical images of (a) the ZnO films and AZO films with (b) 1∶30, (c) 1∶20, (d) 1∶10 Al doping concentrations.

DownLoad: Full-Size Img PowerPoint

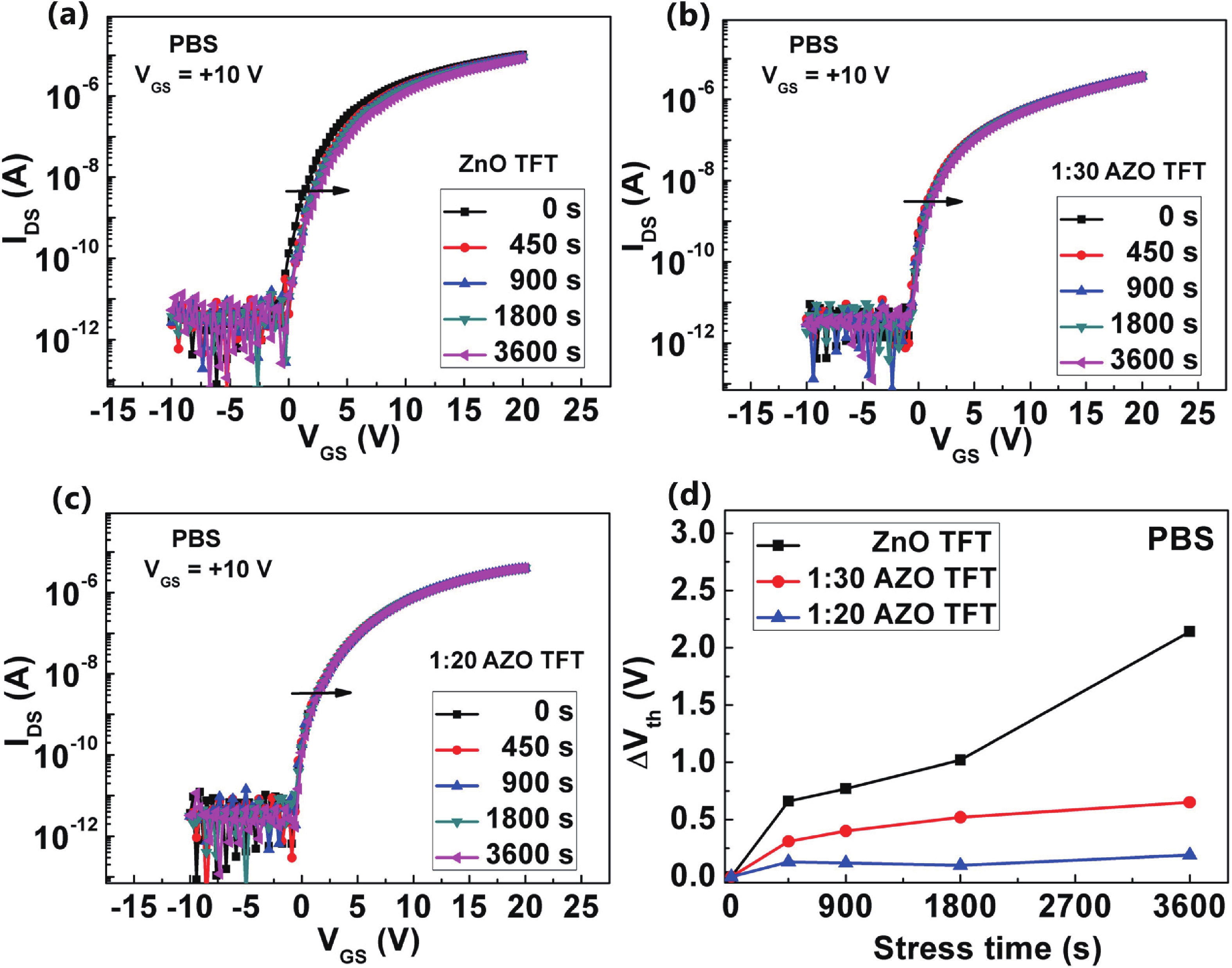

Fig. 8. (Color online) The transfer characteristics of (a) the ZnO TFTs and AZO TFTs with (b) 1∶30, (c) 1∶20 doping concentrations under PBS. (d) $ \Delta {V}_{\text{th}}$ versus stress time under PBS.

DownLoad: Full-Size Img PowerPoint

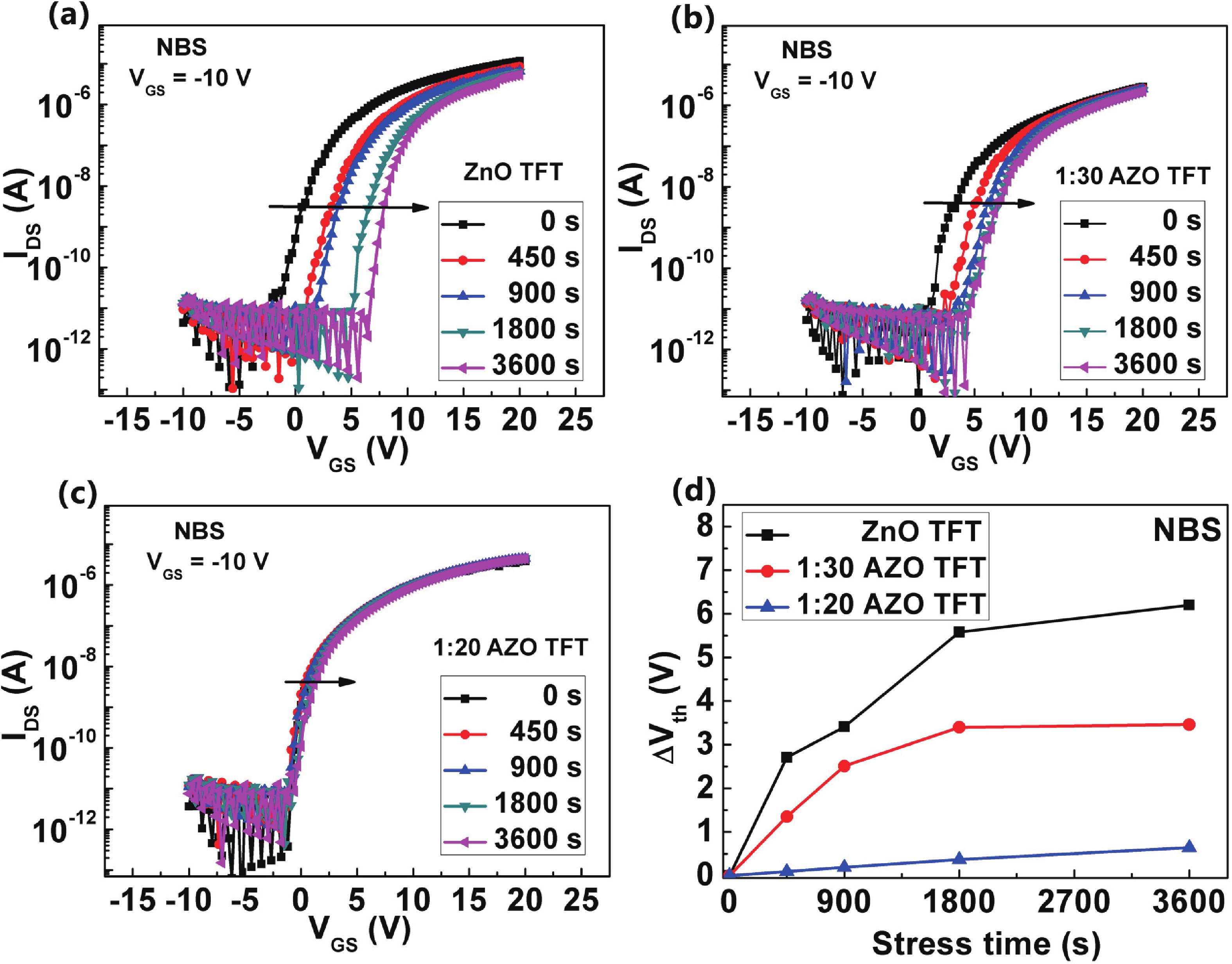

Fig. 9. (Color online) The transfer characteristics of (a) the ZnO TFTs and AZO TFTs with (b) 1∶30, (c) 1∶20 Al doping concentrations under NBS. (d) $ \Delta {V}_{\text{th}}$ versus stress time under NBS.
