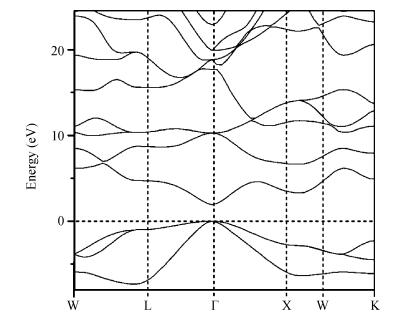

Fig. 1.
Band structure of the GaN.
DownLoad:
| Citation: |
Yingce Yan, Qi Wang, Huifang Ma. First principles calculations of electronic and optical properties of GaN1-xBix alloys[J]. Journal of Semiconductors, 2014, 35(12): 122002. doi: 10.1088/1674-4926/35/12/122002
****
Y C Yan, Q Wang, H F Ma. First principles calculations of electronic and optical properties of GaN1-xBix alloys[J]. J. Semicond., 2014, 35(12): 122002. doi: 10.1088/1674-4926/35/12/122002.
|
First principles calculations of electronic and optical properties of GaN1-xBix alloys
DOI: 10.1088/1674-4926/35/12/122002
More Information
-
Abstract
The electronic and optical properties of the ternary GaN1-xBix alloys in the zinc-blende structure are theoretically investigated by first principles calculations. Geometric optimization is performed before all the simulations to get accurate results. The band gaps of the alloys are found to be direct even with x=6.25%, and would become smaller when increasing the Bi compositions. The decrease ratio of band gaps is approximately 227 meV when 1% of N is replaced by Bi in the range of x=0-6.25%. Meanwhile, the absorption coefficient is shown to be significantly changed induced by the incorporation of Bi. These interesting properties indicate that GaN1-xBix alloys could be a promising candidate in future optoelectronic applications. -
References
[1] Pettinari G, Polimeni A, Capizzi M, et al. Influence of bismuth incorporation on the valence and conduction band edges of GaAs1-xBix. Appl Phys Lett, 2008, 92:262105 doi: 10.1063/1.2953176[2] Walukiewicz W, Shan W, Yu K M, et al. Interaction of localized electronic states with the conduction band:band anticrossing in Ⅱ-Ⅵ semiconductor ternaries. Phys Rev Lett, 2000, 85:1552 doi: 10.1103/PhysRevLett.85.1552[3] Cooke D G, Hegmann F A, Young E C, et al. Electron mobility in dilute GaAs bismide and nitride alloys measured by time-resolved terahertz spectroscopy. Appl Phys Lett, 2006, 89:12213[4] Levander A X, Yu K M, Novikov S V, et al. GaAs1-xBix:extremely mismatched semiconductor alloys. Appl Phys Lett, 2010, 97:141919 doi: 10.1063/1.3499753[5] Levander A X, Novikov S V, Liliental-Weber Z, et al. Growth and transport properties of p-type GaNBi alloys. J Mater Research, 2011, 26(23):2887 doi: 10.1557/jmr.2011.376[6] Alberi K, Wu J, Walukiewicz W, et al. Valence-band anticrossing in mismatched Ⅲ-Ⅴ semiconductor alloys. Phys Rev B, 2007, 75:045203[7] Pacebutas V, Bertulis K, Aleksejenko G, et al. Molecular-beam-epitaxy grown GaBiAs for terahertz optoelectronic applications. J Mater Sci:Mater Electron, 2009, 20:363 doi: 10.1007/s10854-008-9625-1[8] Mohmad A R, Bastiman F, Ng J S, et al. Photoluminescence investigation of high quality GaAs1-xBix on GaAs. Appl Phys Lett, 2011, 98:122107 doi: 10.1063/1.3565244[9] Kohn W, Sham L J. Self-consistent equations including exchange and correlation effects. Phys Rev A, 1965, 140:1133 doi: 10.1103/PhysRev.140.A1133[10] Furthmuller J, Kachell P, Bechstedt F. Extreme softening of Vanderbilt pseudopotentials:general rules and case studies of first-row and d-electron elements. Phys Rev B, 2000, 61:4576M[11] Segall D, Lindan P J D, Probert M J, et al. First-principles simulation:ideas, illustrations and the CASTEP code. J Phys:Condens Matter, 2002, 14:2717 doi: 10.1088/0953-8984/14/11/301[12] Monkhorst H J, Pack J D. Special points for Brillouin-zone integrations. Phys Rev B, 1976, 13:5188 doi: 10.1103/PhysRevB.13.5188[13] Mordecai A. Nonlinear programming:analysis and methods. 3rd ed. New York: Dover, 2003[14] Leszczynski M, Teisseyre H, Suski T, et al. Lattice parameters of gallium nitride. Appl Phys Lett, 1996, 69:73 doi: 10.1063/1.118123[15] Alberi K, Wu J, Walukiewicz W, et al. Valence-band anticrossing in mismatched Ⅲ-Ⅴ semiconductor alloys. Phys Rev B, 2007, 75:045203[16] Usman M, Broderick C A, Lindsaym A, et al. Tight-binding analysis of the electronic structure of dilute bismide alloys of GaP and GaAs. Phys Rev B, 2011, 84:245202 doi: 10.1103/PhysRevB.84.245202[17] Feneberg M, Roppischer M, Cobet C, et al. Optical properties of cubic GaN from 1 to 20 eV. Phys Rev B, 2012, 85:155207 doi: 10.1103/PhysRevB.85.155207 -
