The effect of multi-intermediate bands on the behavior of an InAs1-xNx/GaAs1-ySby quantum dot solar cell

Abou El-Maaty M. Aly1, 3 and A. Nasr2, 3

+ Author Affiliations

 Corresponding author: Abou El-Maaty M. Aly, E-mail: abouelmaaty67@gmail.com; A. Nasr, E-mail: ashraf.nasr@gmail.com

DOI: 10.1088/1674-4926/36/4/042001

PDF

Abstract: A mathematical model of quantum dot intermediate band solar cells (QDIBSCs) is investigated using two intermediate bands (IBs). These two IBs arise from the quantum dot (QD) semiconductor material within the bandgap energy. Some parameters such as the width of the QD (WQD) and the barrier thickness or the inter-dot distances between the QDs (BT) are studied to show their influence on the performance of the QDIBSC. The time-independent Schrödinger equation, which is solved using the Kronig-Penney model, is used to determine the position and bandwidth energies of the two IBs. In our proposed model, the cubic shape of the QDs from InAs0.9N0.1 and the barrier or host semiconductor material from GaAs0.98Sb0.02 are utilized. It is shown from the results obtained that changing the parameters WQD and BT has more influence on the bandwidth energy for the first IB, Δ1, than in the case of the second IB, Δ2. The optimum power conversion efficiencies (PCEs) of the QDIBSCs with two IBs for the model under study are 58.01% and 73.55% at 1 Sun and maximum solar concentration, respectively. One can observe that, in the case of the two IBs, an improvement of the PCE is achieved.

Key words: intermediate bands, solar cells, quantum dots, efficiency, solar concentration



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]

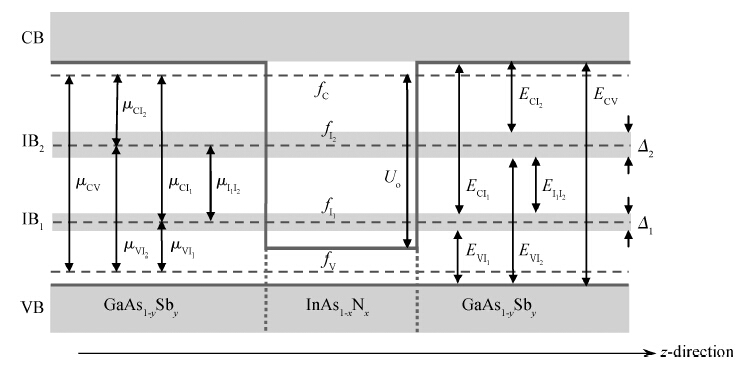

Fig. 1.  The energy diagram of the InAs$_{1-x}$N$_{x}$/GaAs$_{1-y}$Sb$_{y}$ QDIBSC with four energy bands (VB,IB$_{1}$,IB$_{2}$,and CB),chemical potentials ($\mu )$,and quasi Fermi levels ($f_{\rm c}$,$f_{\rm I_1}$,$f_{\rm I_2}$,$f_{\rm v})$.

DownLoad: Full-Size Img PowerPoint

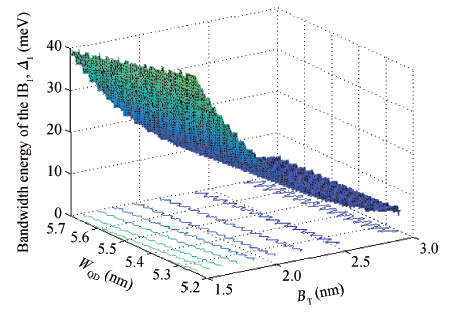

Fig. 2.  The bandwidth energy behavior of the IB$_{1}$,$\Delta_{1}$,as a function of both QD width,$W_{\rm QD}$,and barrier thickness,$B_{\rm T}$,for the two IBs QDIBSC model.

DownLoad: Full-Size Img PowerPoint

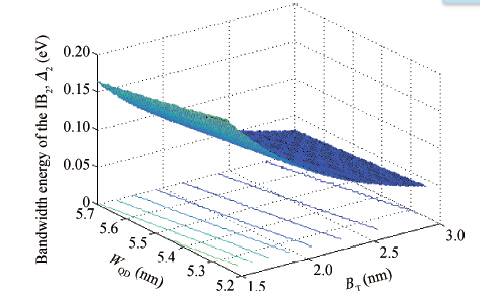

Fig. 3.  The bandwidth energy behavior of the IB$_{2}$,$\Delta_{2}$,as a function of both QD width,$W_{\rm QD}$,and barrier thickness,$B_{\rm T}$,for the two IBs QDIBSC model.

DownLoad: Full-Size Img PowerPoint

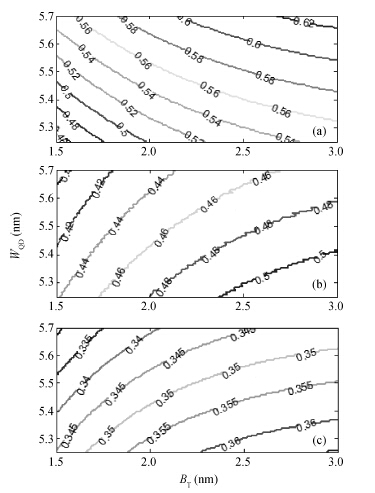

Fig. 4.  The contours of sub-bandgap energies (a) $E_{\rm CI_2}$,(b) $E_{\rm I_1I_2}$,and (c) $E_{\rm VI_1}$ resulting from the variations of $W_{\rm QD}$ and $B_{\rm T}$ for the two IBs QDIBSC.

DownLoad: Full-Size Img PowerPoint

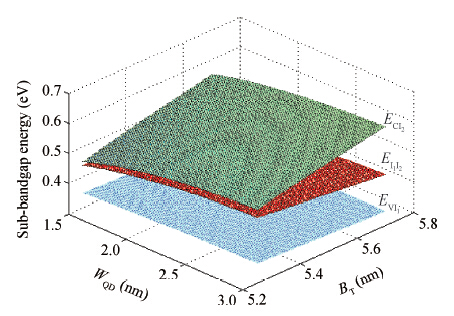

Fig. 5.  The relation between the sub-bandgap energies ($E_{\rm VI_1}$,$E_{\rm I_1I_2}$,and $E_{\rm CI_2})$ and both $W_{\rm QD}$ and $B_{\rm T}$ for the two-IB QDIBSC.

DownLoad: Full-Size Img PowerPoint

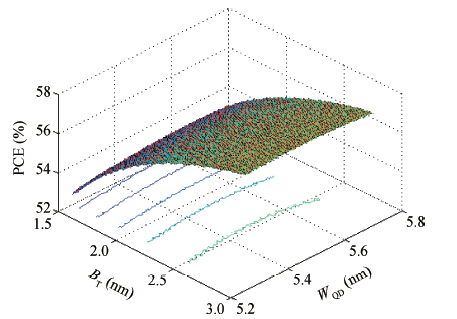

Fig. 6.  The PCE behavior of the two IBs QDIBSC as a function of both QD width,$W_{\rm QD}$,and barrier thickness,$B_{\rm T}$,for 1 Sun solar concentration.

DownLoad: Full-Size Img PowerPoint

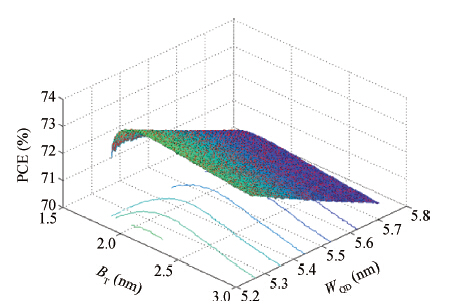

Fig. 7.  The PCE behavior of the two IBs QDIBSC as a function of both QD width,$W_{\rm QD}$,and barrier thickness,$B_{\rm T}$,for maximum solar concentration.
