A high speed direct digital frequency synthesizer based on multi-channel structure

Ling Yuan, Qiang Zhang and Yin Shi

+ Author Affiliations

 Corresponding author: Ling Yuan, Email: lyuan@semi.ac.cn

DOI: 10.1088/1674-4926/36/6/065006

PDF

Abstract: This paper presents a direct digital frequency synthesizer (DDFS) for high speed application based on multi-channel structure. This DDFS has phase resolution of 32 bits and magnitude resolution of 12 bits. In order to ensure the high speed and high resolution at the same time, the multi-channel sampling technique is used and a 12 bits linear digital-to-analog converter is implemented. The chip is fabricated in TSMC 130 nm CMOS technology with active area of 0.89 × 0.98 mm2 and total power consumption of 300 mW at a single 1.2 V supply voltage. The maximum operating speed is up to 2.0 GHz at room temperature.

Key words: direct digital frequency synthesizer (DDFS), multi-channel, phase-to-sine-amplitude converters (PSAC)



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]

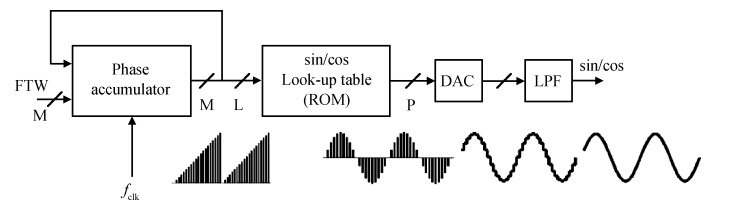

Fig. 1.  Conventional DDFS architecture.

DownLoad: Full-Size Img PowerPoint

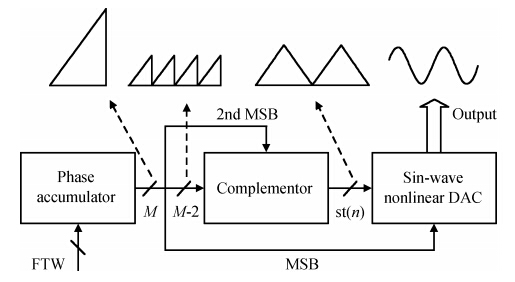

Fig. 2.  DDFS based on nonlinear DAC architecture.

DownLoad: Full-Size Img PowerPoint

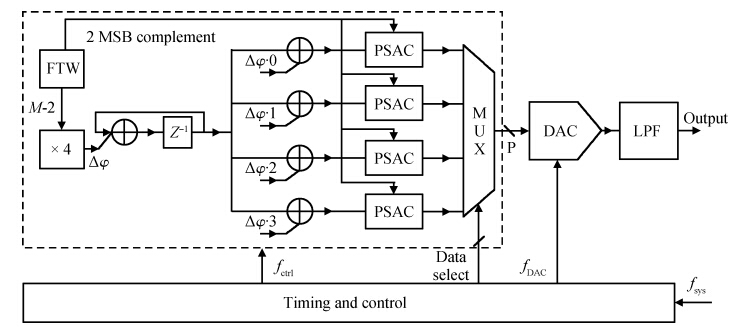

Fig. 3.  Architecture for the proposed multi-channel DDFS.

DownLoad: Full-Size Img PowerPoint

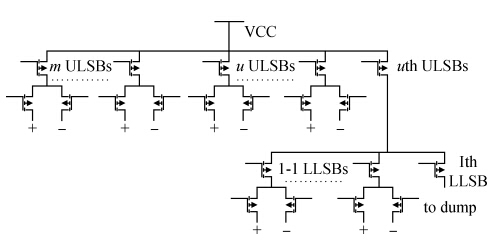

Fig. 4.  Simplified diagram for the DAC cell.

DownLoad: Full-Size Img PowerPoint

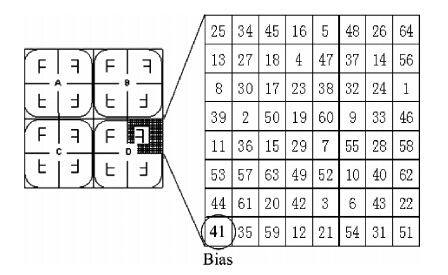

Fig. 5.  $Q^2$ random walk scheme.

DownLoad: Full-Size Img PowerPoint

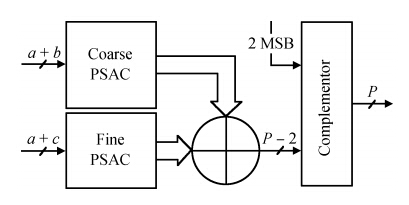

Fig. 6.  Architecture for the PSAC.

DownLoad: Full-Size Img PowerPoint

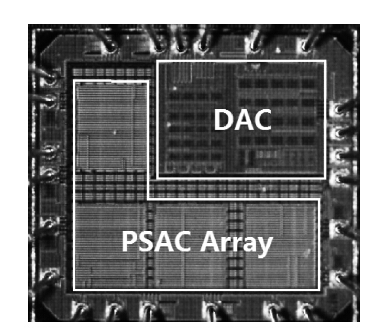

Fig. 7.  Die photo.

DownLoad: Full-Size Img PowerPoint

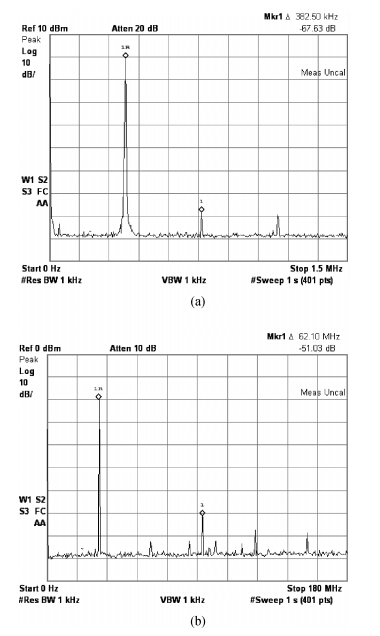

Fig. 8.  Measured DDFS output spectrum. (a) SFDR: 67 dBc @ 382.5 kHz (b) SFDR: 51 dBc @ 62.1 MHz

DownLoad: Full-Size Img PowerPoint

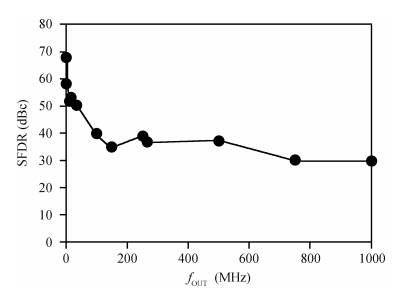

Fig. 9.  The measured DDFS SFDR versus output frequency at clock frequency of 2.0 GHz.
