Effect of FA/O complexing agents and H2O2 on chemical mechanical polishing of ruthenium in weakly alkaline slurry

Bo Duan, Weijing An, Jianwei Zhou and Shuai Wang

+ Author Affiliations

 Corresponding author: Jianwei Zhou, E-mail: 1152058759@qq.com

DOI: 10.1088/1674-4926/36/7/076002

PDF

Abstract: This paper investigated the effect of FA/O and hydrogen peroxide (H2O2) on ruthenium (Ru) removal rate (RR) and static etching rate (SER). It was revealed that Ru RR and SER first linearly increased then slowly decreaseed with the increasing H2O2 probably due to the formation of uniform Ru oxides on the surface during polishing. Their corrosion behaviors and states of surface oxidation were analyzed. In addition, FA/O could chelate Ru oxides (such as (RuO4)2- and RuO4- changed into soluble amine salts [R(NH3)4] (RuO4)2) and enhance Ru RR. The non-ionic surfactant AD was used to improve the Ru CMP performance. In particular, the addition of AD can lead to significant improvement of the surface roughness.

Key words: Ru chemical mechanical polishing, FA/O complexing agents, hydrogen peroxide, non-ionic surfactant AD



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]

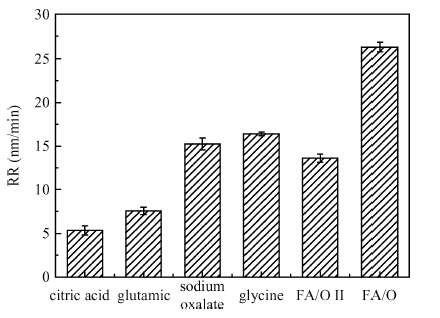

Fig. 1.  Ru RR in colloidal silica-based slurry as a function of complexing agents.

DownLoad: Full-Size Img PowerPoint

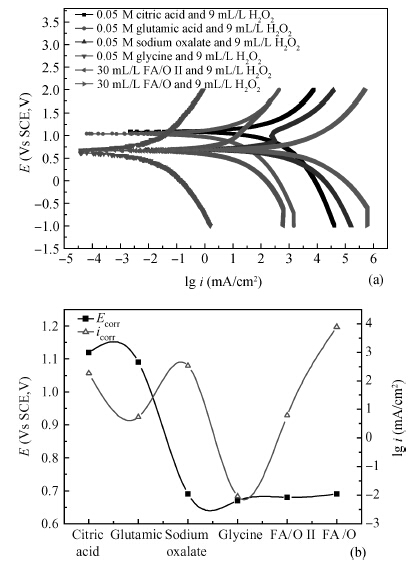

Fig. 2.  (a) Tafel plot of Ru as a function of complexing agents at pH 9. (b) The calculated corresponding corrosion current density and corrosion potential.

DownLoad: Full-Size Img PowerPoint

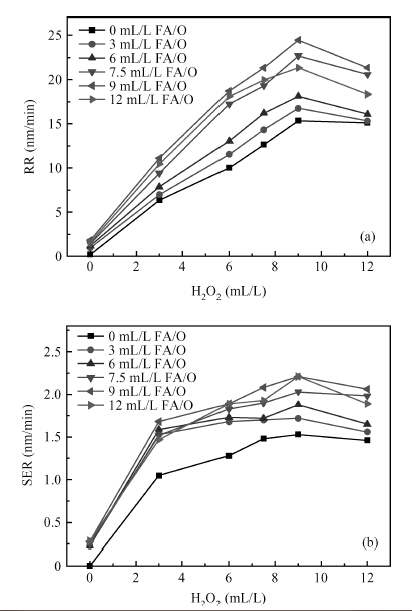

Fig. 3.  Effect of H$_{2}$O$_{2}$ and FA/O on (a) the Ru RR and (b) the Ru SER.

DownLoad: Full-Size Img PowerPoint

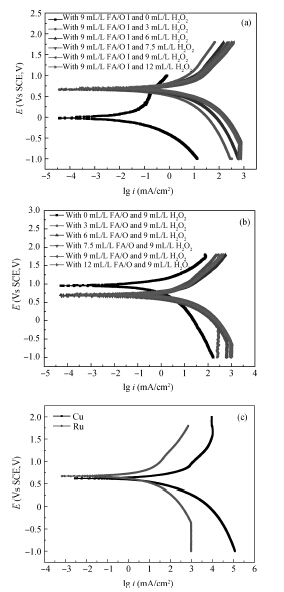

Fig. 4.  Tafel plot of Ru as a function of concentration of (a) H$_{2}$O$_{2}$ and (b) FA/O at pH 9, (c) potentiodynamic scan of Cu and Ru in 9~mL/L H$_{2}$O$_{2}$ and 9 mL/L FA/O solution.

DownLoad: Full-Size Img PowerPoint

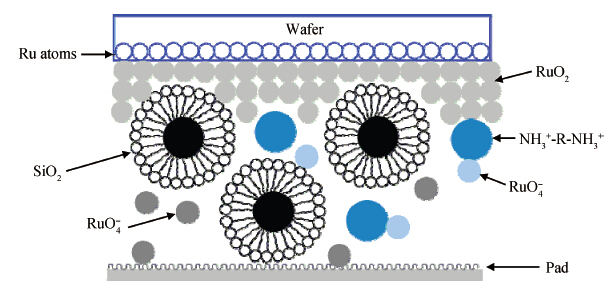

Fig. 5.  Schematic diagram of the polishing process.

DownLoad: Full-Size Img PowerPoint

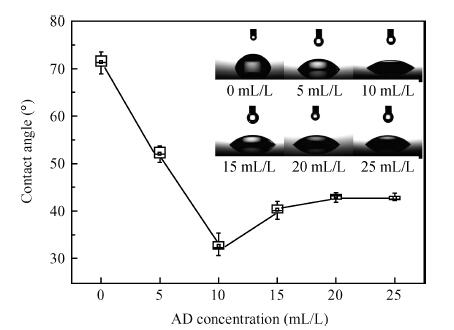

Fig. 6.  Contact angles between the polished copper wafers and DI water.

DownLoad: Full-Size Img PowerPoint

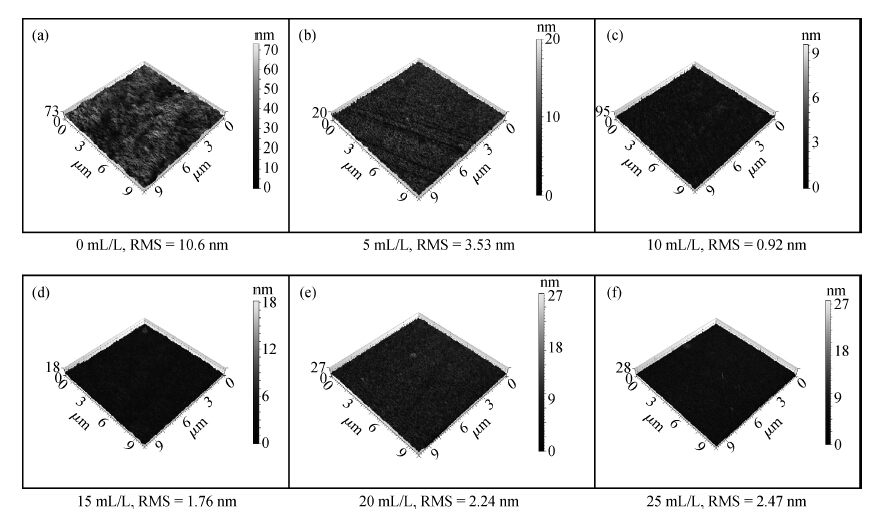

Fig. 7.  AFM images of the Ru surface morphology after it had been treated with solutions at concentrations of non-ionic surfactant AD.

DownLoad: Full-Size Img PowerPoint
