Citation: |
Yi Hu, Yan Li, Yuling Liu, Yangang He. The optimization of FA/O barrier slurry with respect to removal rate selectivity on patterned Cu wafers[J]. Journal of Semiconductors, 2016, 37(2): 026003. doi: 10.1088/1674-4926/37/2/026003
****
Y Hu, Y Li, Y L Liu, Y G He. The optimization of FA/O barrier slurry with respect to removal rate selectivity on patterned Cu wafers[J]. J. Semicond., 2016, 37(2): 026003. doi: 10.1088/1674-4926/37/2/026003.
|
The optimization of FA/O barrier slurry with respect to removal rate selectivity on patterned Cu wafers
DOI: 10.1088/1674-4926/37/2/026003
More Information
-
Abstract

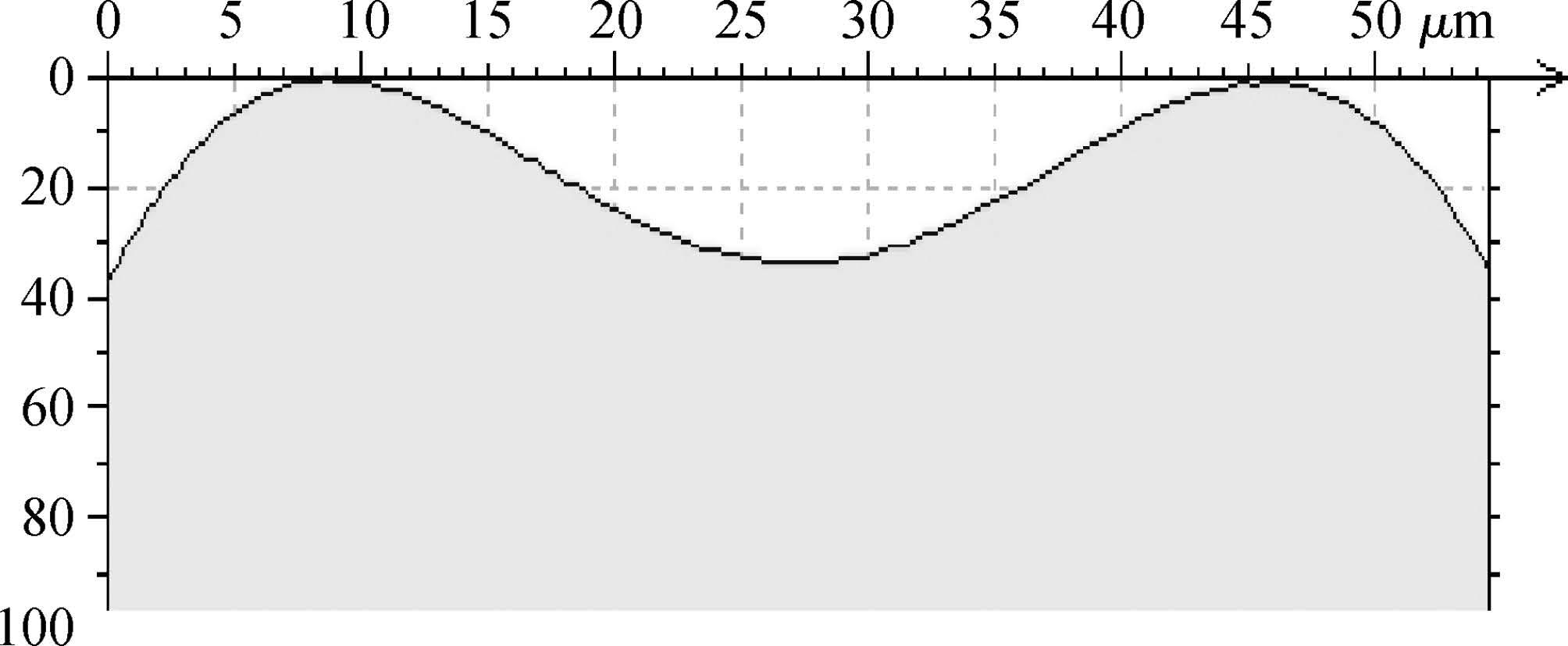

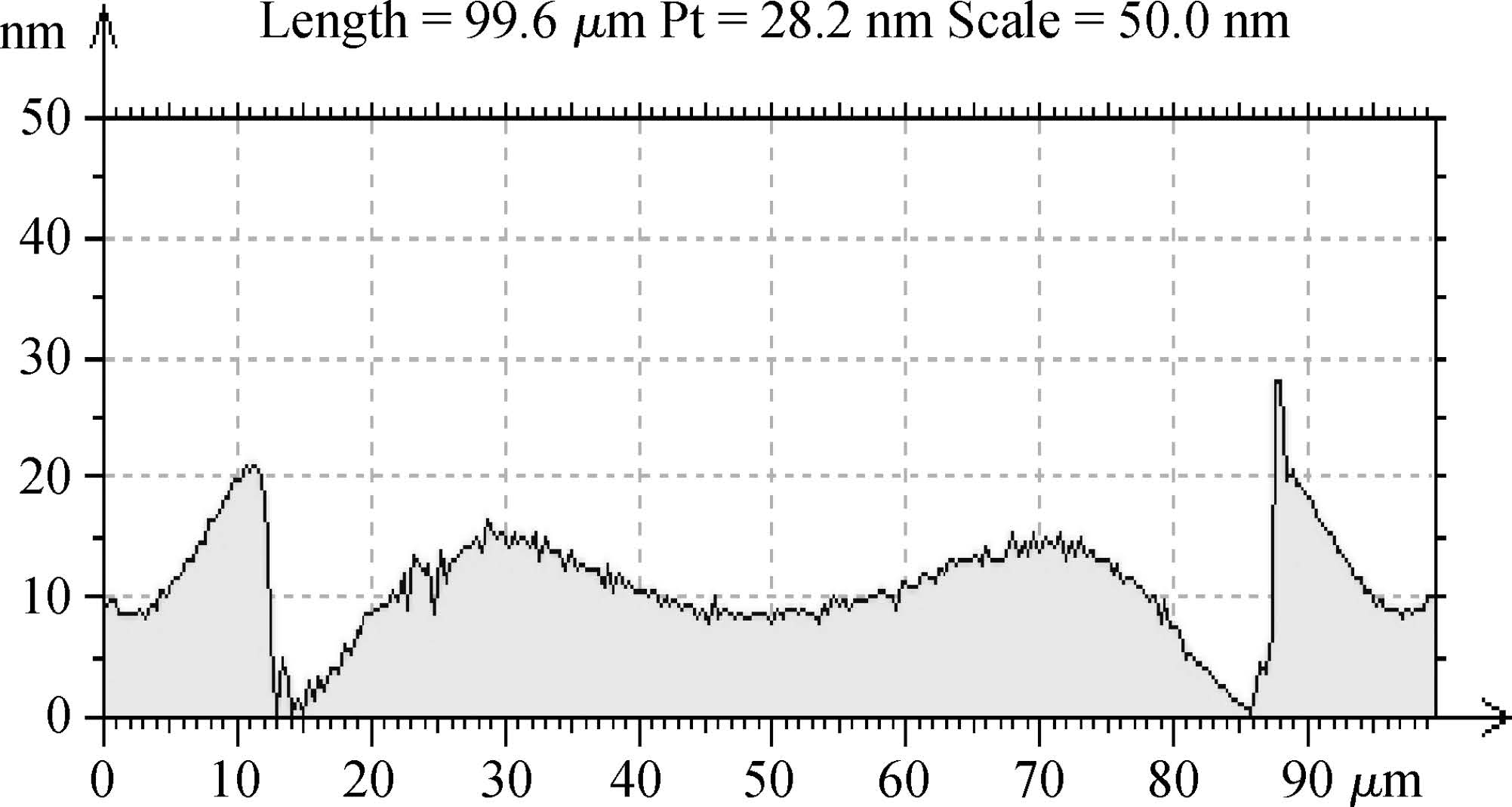

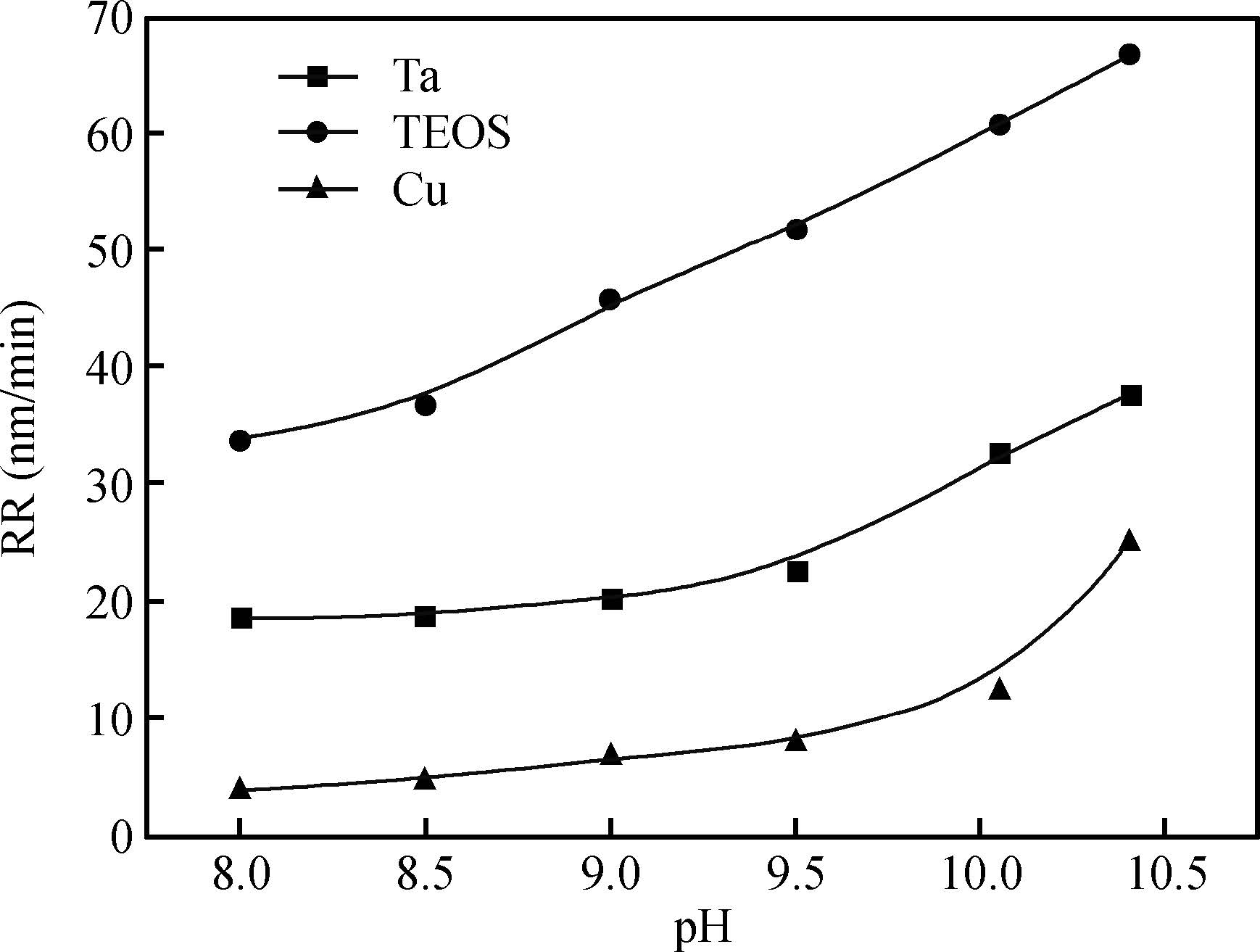

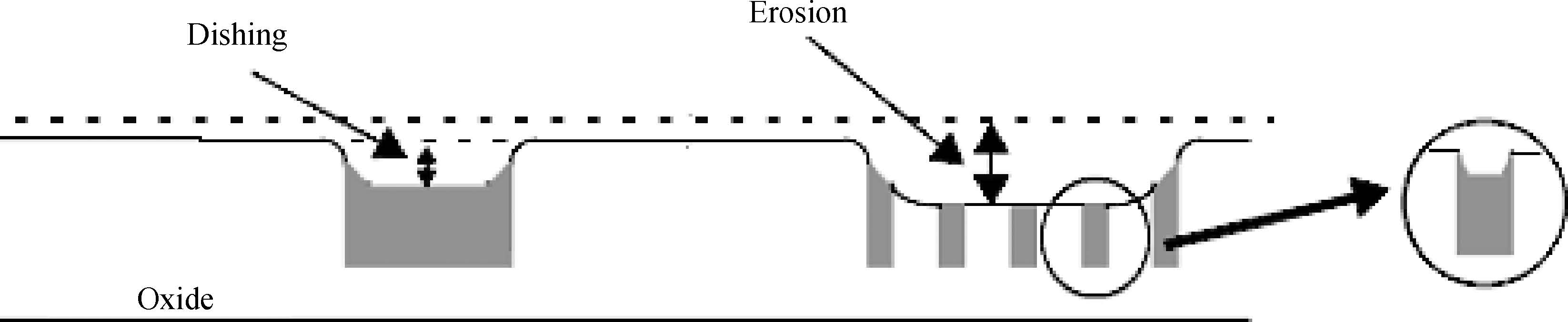

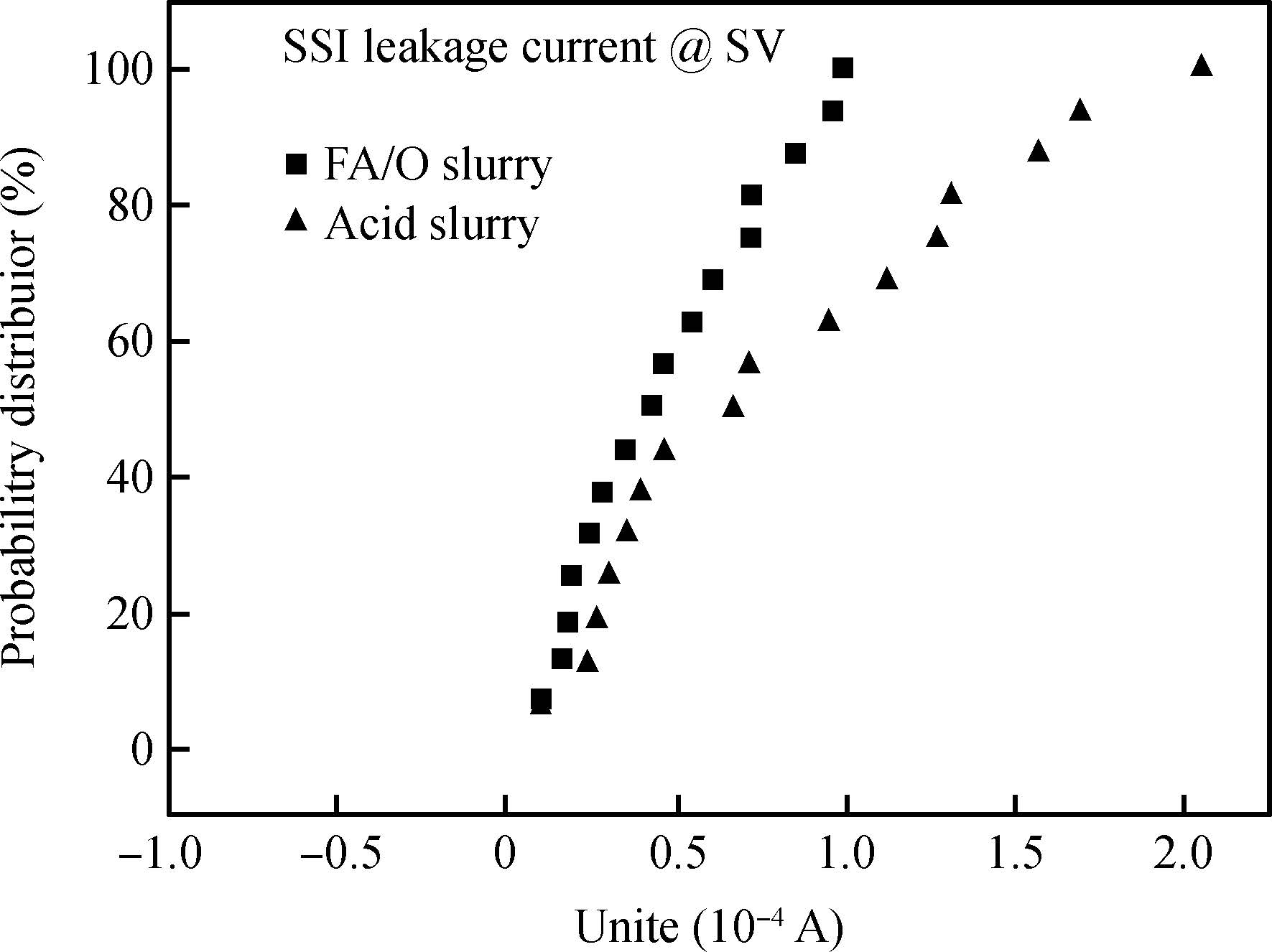

Because the polishing of different materials is required in barrier chemical mechanical planarization (CMP) processes, the development of a kind of barrier slurry with improved removal rate selectivity for Cu/barrier/TEOS would reduce erosion and dishing defects on patterned Cu wafers. In this study, we developed a new benzotriazole-free barrier slurry named FA/O barrier slurry, containing 20 mL/L of the chelating agent FA/O, 5 mL/L surfactant, and a 1:5 concentration of abrasive particles. By controlling the polishing slurry ingredients, the removal rate of different materials could be controlled. For process integration considerations, the effect of the FA/O barrier slurry on the dielectric layer of the patterned Cu wafer was investigated. After CMP processing by the FA/O barrier slurry, the characteristics of the dielectric material were tested. The results showed that the dielectric characteristics met demands for industrial production. The current leakage was of pA scale. The resistance and capacitance were 2.4 kΩ and 2.3 pF, respectively. The dishing and erosion defects were both below 30 nm in size. CMP-processed wafers using this barrier slurry could meet industrial production demands. -
References
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] -
