Comparative research on the influence of varied Al component on the active layer of AlGaN photocathode

Minyou He1, Liang Chen1, 2, , Lingai Su1, Lin Yin1 and Yunsheng Qian2

+ Author Affiliations

 Corresponding author: Liang Chen Email:812416369@qq.com

DOI: 10.1088/1674-4926/38/6/063004

PDF

Abstract: To theoretically research the influence of a varied Al component on the active layer of AlGaN photocathodes, the first principle based on density functional theory is used to calculate the formation energy and band structure of AlxGa1-xN with x at 0, 0.125, 0.25, 0.325, and 0.5. The calculation results show that the formation energy declines along with the Al component rise, while the band gap is increasing with Al component increasing. AlxGa1-x with x at 0, 0.125, 0.25, 0.325, and 0.5 are direct band gap semiconductors, and their absorption coefficient curves have the same variation tendency. For further study, we designed two kinds of reflection-mode AlGaN photocathode samples. Sample 1 has an AlxGa1-x active layer with varied Al component ranging from 0.5 to 0 and decreasing from the bulk to the surface, while sample 2 has an AlxGa1-x active layer with the fixed Al component of 0.25. Using the multi-information measurement system, we measured the spectral response of the activated samples at room temperature. Their photocathode parameters were obtained by fitting quantum efficiency curves. Results show that sample 1 has a better spectral response than sample 2 at the range of short-wavelength. This work provides a reference for the structure design of the AlGaN photocathode.

Key words: first-principles, electronic structure, absorption coefficient, spectral response, quantum efficiency, fitting parameter



[1]
Munoz E, Monroy E, Pau J L, et al. Ⅲ nitrides and UV detection. J Phys:Condens Matter, 2001, 13(32):7115 doi: 10.1088/0953-8984/13/32/316
[2]
Seghier D, Gislason H P. Characterization of photoconductivity in AlxGa1-x materials. J Phys D:Appl Phys, 2009, 42(9):095103 doi: 10.1088/0022-3727/42/9/095103
[3]
Cicek E, Vashaei Z, Huang E K, et al. AlxGa1-x-based deepultraviolet 320×256320×256 focal plane array. Opt Lett, 2012, 37(5):896 doi: 10.1364/OL.37.000896
[4]
Hanser A D, Nam O H, Bremser M D, et al. Growth, doping and characterization of epitaxial thin films and patterned structures of AlN, GaN, and AlxGa1-x. Diamond Relat Mater, 1999, 8(2):288 http://www.sciencedirect.com/science/article/pii/S0925963598003410
[5]
Sumiya M, Kamo Y, Ohashi N, et al. Fabrication and hard X-ray photoemission analysis of photocathodes with sharp solar-blind sensitivity using AlGaN films grown on Si substrates. Appl Surf Sci, 2010, 256(14):4442 doi: 10.1016/j.apsusc.2010.01.038
[6]
Halidou I, Touré A, Nguyen L, et al. Influence of GaN template thickness and morphology on AlxGa1-x luminescence properties. Opt Mater, 2013, 35(5):988 doi: 10.1016/j.optmat.2012.12.009
[7]
Moustakas T D, Pankove J I, Hamakawa Y. Wide band-gap semiconductors. Materi Res Soc, 1992, 242:335 doi: 10.1557/PROC-242-335
[8]
Robert F D. Thin films and devices of diamond, silicon carbide and gallium nitride. Physica B, 1993, 185(1):1 https://www.researchgate.net/publication/222180625_Thin_films_and_devices_of_diamond_silicon_carbide_and_gallium_nitride
[9]
Martinelli R U, Fisher D G. The application of semiconductors with negative electron affinity surfaces to electron emission devices. Proc IEEE, 1974, 62(10):1339 doi: 10.1109/PROC.1974.9626
[10]
Ainbund M R, Alekseev A N, Alymov O V, et al. Solar-blind UV photocathodes based on AlGaN heterostructures with a 300-to 330-nm spectral sensitivity threshold. Tech Phys Lett, 2012, 38(5):439 doi: 10.1134/S1063785012050033
[11]
Sumiya M, Kamo Y, Ohashi N, et al. Fabrication and hard X-ray photoemission analysis of photocathodes with sharp solar-blind sensitivity using AlGaN films grown on Si substrates. Appl Surf Sci, 2010, 256(14):4442 doi: 10.1016/j.apsusc.2010.01.038
[12]
Albanesi E A, Lambrecht W R L, Segall B. Electronic structure and equilibrium properties of GaxAl1-xN alloys. Phys Rev B, 1993, 48(24):17841 doi: 10.1103/PhysRevB.48.17841
[13]
Hao G H, Chang B K, Shi F, et al. Influence of Al fraction on photoemission performance of AlGaN photocathode. Appl Opt, 2014, 53(17):3637 doi: 10.1364/AO.53.003637
[14]
Hao G H, Shi F, Cheng H C, et al. Photoemission performance of thin graded structure AlGaN photocathode. Appl Opt, 2015, 54(10):2572 doi: 10.1364/AO.54.002572
[15]
Yan J, Jacobsen K W, Thygesen K S. Conventional and acoustic surface plasmons on noble metal surfaces:a time-dependent density functional theory study. Phys Rev B, 2012, 86:241404 doi: 10.1103/PhysRevB.86.241404
[16]
Du Y J, Chang B K, Zhang J J, et al. First-principles study of the electronic structure and optical properties of GaN(0001) surface. Acta Phys Sin, 2012, 61(6):067101 doi: 10.1117/12.841130
[17]
Du Y J, Chang B K, Wang X H, et al. Study of the optical properties of superlattices ZnO doped with indium. Acta Phys Sin, 2012, 61(5):057101 http://en.cnki.com.cn/Article_en/CJFDTotal-WLXB201205056.htm
[18]
Zhang L X, McMahon W E, Wei S H. Passivation of deep electronic states of partial dislocations in GaAs:a theoretical study. Appl Phys Lett, 2012, 96:121912 http://adsabs.harvard.edu/abs/2010ApPhL..96l1912Z
[19]
Yu X H, Ge Z H, Chang B K, et al. First principles study on the influence of vacancy defects on electronic structure and optical properties of Ga0.5Al0.5As photocathodes. Optik, 2014, 125(1):587 doi: 10.1016/j.ijleo.2013.07.058
[20]
Pickett W E. Pseudopotential methods in condensed matter applications. Phys Rep, 1989, 9(3):115 http://www.sciencedirect.com/science/article/pii/0167797789900026
[21]
Ceperley D M, Alder B J. Ground state of the electron gas by a stochastic method. Phys Rev Lett, 1980, 45:566 doi: 10.1103/PhysRevLett.45.566
[22]
Wang W C, Xiong K, Wallace R M, et al. First-principles study of initial growth of GaXO layer on GaAs-β2(2×4) surface and interface passivation by F. J Appl Phys, 2011, 110:103714 doi: 10.1063/1.3662892
[23]
Silva A M, Silva B P, Sales F A M, et al. Optical absorption and DFT calculations in L-aspartic acid anhydrous crystals:charge carrier effective masses point to semiconducting behavior. Phys Rev B, 2012, 86:195201 doi: 10.1103/PhysRevB.86.195201
[24]
Kresse G, Hafner J. Ab initio molecular dynamics for liquid metals. Phys Rev B, 1993, 47:558 doi: 10.1103/PhysRevB.47.558
[25]
Perdew J P, Burke K, Ernzerhof M. Generalized gradient approximation made simple. Appl Phys Lett, 1996, 77:3865 doi: 10.1103/PhysRevLett.77.3865
[26]
Monkhorst H J, Pack J D. Special points for Brillouin-zone integrations. Phys Rev B, 1976, 13:5188 doi: 10.1103/PhysRevB.13.5188
[27]
Ke F S, Fu Y X, Duan G Y, et al. CrO codoping effect on electronic and optical properties of GaN. J Infrared Millimeter Wave, 2011, 30(3):825 http://www.oalib.com/paper/1598084
[28]
Scarrozza M, Pourtois G, Houssa M, et al. A first-principles study of the structural and electronic properties of Ⅲ-Ⅴ/thermal oxide interfaces. Surf Sci, 2009, 86(7):1747
[29]
Wang W, Lee G, Huang M, et al. First-principles study of GaAs(001)-β2(2×4) surface oxidation and passivation with H, Cl, S, F, and GaO. J Appl Phys, 2010, 107:103720 doi: 10.1063/1.3369540
[30]
Rinke P, Scheffler M, Qteish A, et al. Band gap and band parameters of InN and GaN from quasiparticle energy calculations based on exact-exchange density-functional theory. Appl Phys Lett, 2006, 89:161919 doi: 10.1063/1.2364469
[31]
Scarrozza M, Pourtois G, Houssa M, et al. Adsorption of molecular oxygen the reconstructed b2(2×4)-GaAs(001) surface:a first-principles study. Surf Sci, 2009, 603:203 doi: 10.1016/j.susc.2008.11.002
[32]
Rinke P, Scheffler M, Qteish A, et al. Band gap and band parameters of InN and GaN from quasiparticle energy calculations based on exact-exchange density-functional theory. Appl Phys Lett, 2006, 89:161919 doi: 10.1063/1.2364469
[33]
Spicer W E, Herrera-Gõmez A. Modern theory and applications of photocathodes. Proc SPIE, 1993, 2022(1):18 doi: 10.1117/12.158575
[34]
Long J P, Yang L J, Li D M, et al. First-principles calculations of structural, electronic, optical and elastic properties of LiEu2Si3. Solid State Sci, 2013, 20:36 doi: 10.1016/j.solidstatesciences.2013.03.007
[35]
Hanser A D, Nam O H, Bremser M D, et al. Growth, doping and characterization of epitaxial thin films and patterned structures of AlN, GaN, and AlxGa1-x. Diamond Relat Mater, 1999, 8(2):288 http://www.sciencedirect.com/science/article/pii/S0925963598003410
[36]
Wang X H, Gao P, Wang H G, et al. Influence of wet chemical cleaning on quantum efficiency of GaN photocathode. Chin Phys B, 2013, 22(2):027901 doi: 10.1088/1674-1056/22/2/027901
[37]
Zhang Y, Niu J, Zhou J, et al. Variation of spectral response for exponential-doped transmission-mode GaAs photocathodes in the preparation process. Appl Opt, 2010, 20(20):3935 https://www.researchgate.net/publication/6895162_Spectral_response_variation_of_a_negative-electron-affinity_photocathode_in_the_preparation_process
[38]
Chen X, Zhang Y, Chang B, et al. Research on quantum efficiency of reflection-mode GaAs photocathode with thin emission layer. Opt Commun, 2013, 287:35 doi: 10.1016/j.optcom.2012.09.030
[39]
Zhang Y, Niu J, Zhao J, et al. Influence of exponential-doping structure on photoemission capability of transmission-mode GaAs photocathodes. J Appl Phys, 2010, 108:093108 doi: 10.1063/1.3504193

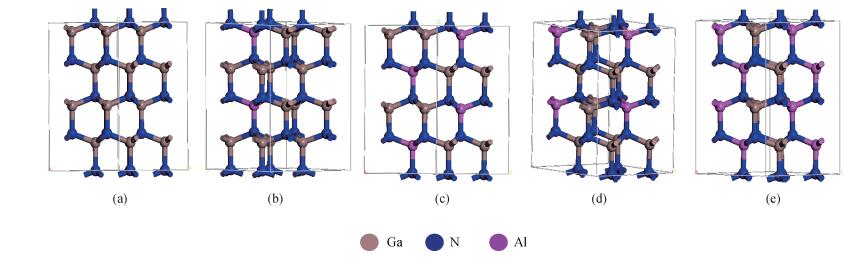

Fig. 1.  (Color online) Al$_{x}$Ga$_{1-x}$N models. (a) GaN. (b) Al$_{0.125}$Ga$_{0.875}$N. (c) Al$_{0.25}$Ga$_{0.75}$N. (d) Al$_{0.375}$Ga$_{0.625}$N. (e) Al$_{0.5}$Ga$_{0.5}$N.

DownLoad: Full-Size Img PowerPoint

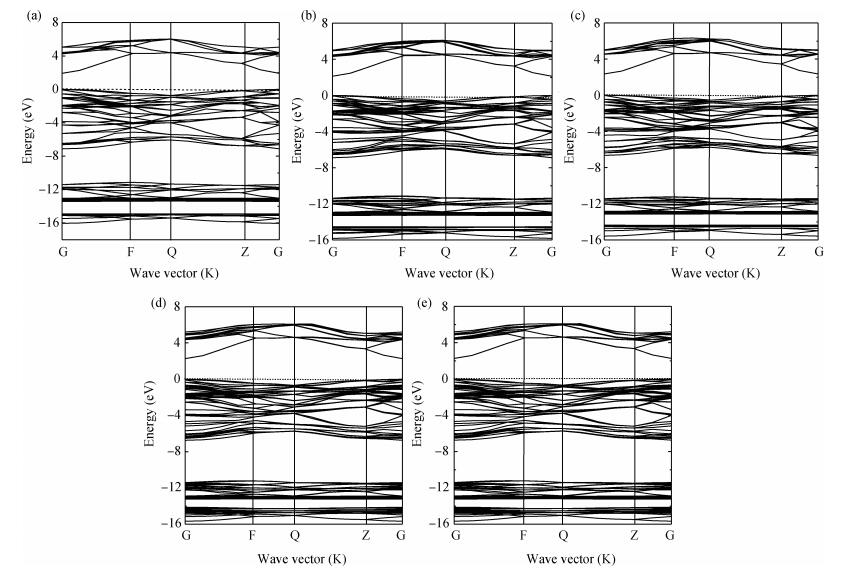

Fig. 2.  Band structures of Al$_{x}$Ga$_{1-x}$N models. (a) GaN. (b) Al$_{{0.125}}$Ga$_{{0.875}}$N. (c) Al$_{{0.25}}$Ga$_{{0.75}}$N. (d) Al$_{{0.375}}$Ga$_{{0.625}}$N. (e) Al$_{{0.5}}$Ga$_{{0.5}}$N.

DownLoad: Full-Size Img PowerPoint

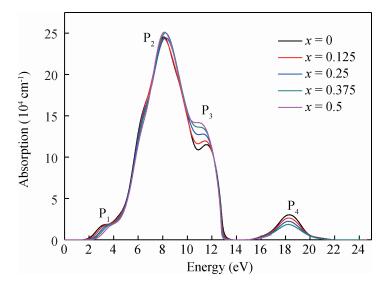

Fig. 3.  (Color online) Absorption coefficient of Al$_{x}$Ga$_{1-x}$N models.

DownLoad: Full-Size Img PowerPoint

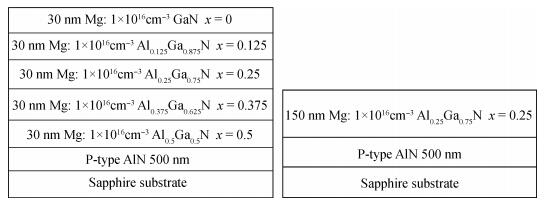

Fig. 4.  Structure diagrams of AlGaN photocathode. (a) Sample 1. (b) Sample 2.

DownLoad: Full-Size Img PowerPoint

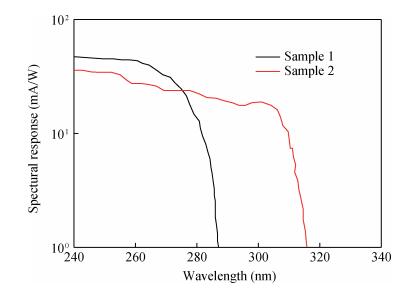

Fig. 5.  (Color online) Spectral response curves of two samples.

DownLoad: Full-Size Img PowerPoint

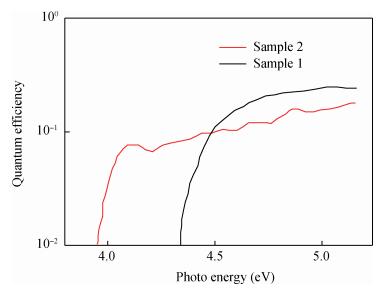

Fig. 6.  (Color online) Quantum efficiency curves of two samples.
