Fig. 1.
(Color online) (a) Schematic of intracavity frequency AO Qswitched green laser. (b) Five laser diode stacked arrays of pumping Nd:YAG laser module.
DownLoad:
| Citation: |
Xiandan Yuan, Jinsong Wang, Yongqi Chen, Yulong Wu, Yunfei Qi, Meijiao Sun, Qi Wang. Laser at 532 nm by intracavity frequency-doubling in BBO[J]. Journal of Semiconductors, 2017, 38(6): 064007. doi: 10.1088/1674-4926/38/6/064007
****
X D Yuan, J S Wang, Y Q Chen, Y L Wu, Y F Qi, M J Sun, Q Wang. Laser at 532 nm by intracavity frequency-doubling in BBO[J]. J. Semicond., 2017, 38(6): 064007. doi: 10.1088/1674-4926/38/6/064007.
|
Laser at 532 nm by intracavity frequency-doubling in BBO
DOI: 10.1088/1674-4926/38/6/064007
More Information
-
Abstract

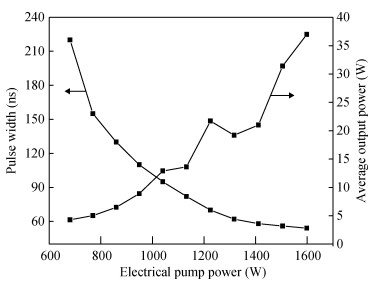

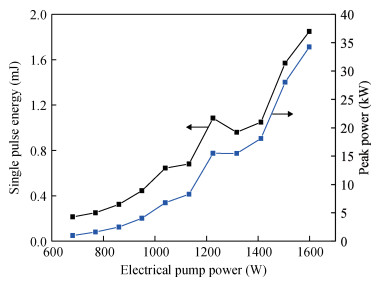

A simple and compact linear resonator green laser at 532 nm is generated by intracavity frequencydoubling of a diode-side-pumped acousto-optically (AO) Q-switched Nd:YAG laser at 1064 nm. Two acoustooptic Q-switches were placed orthogonally with each other to improve the hold-off capacity. As high as 214 W of continuous-wave (CW) and 154 W of quasi-continuous-wave (QCW) output power at 1064 nm were obtained when the pumping power was 1598 W. The type Ⅰ phase-matched BBO crystal was used as the nonlinear medium in the second harmonic generation. A green laser with an average output power of 37 W was obtained at a repetition rate of 20 kHz and a pulse width of 54 ns, which corresponds to pulse energy of 1.85 mJ per pulse and a peak power 34.26 kW, respectively. -
References
[1] Xu D G, Wang Y Y, Li H F, et al. 104 W high stability green laser generation by using diode laser pumped intracavity frequency doubling Q-switched composite ceramic Nd:YAG laser. Opt Express, 200715(7):3991 doi: 10.1364/OE.15.003991[2] Zhang L, Li K, Xu D G, et al. A 7.81 W 355 nm ultraviolet picosecond laser using La2CaB10O19 as a nonlinear optical crystal. Opt Express, 201422(14):17187 doi: 10.1364/OE.22.017187[3] Li X, Zhao D G, Jiang D S, et al. Fabrication of ridge waveguide of 808 nm GaAs-based laser diodes by wet chemical etching. J Semicond, 2015, 36(7):074009 doi: 10.1088/1674-4926/36/7/074009[4] Li X, Zhao D G, Jiang D S, et al. Suppression of electron leakage in 808 nm laser diodes with asymmetric waveguide layer. J Semicond, 2016, 37(1):014007 doi: 10.1088/1674-4926/37/1/014007[5] Yang K J, Zhao S Z, Li G Q, et al. Theoretical and experimental study of a laser-diode-pumped actively Q-switched Nd:YVO4 laser with acoustic-optic modulator. Opt Laser Technol, 2005, 37(5):381 doi: 10.1016/j.optlastec.2004.05.006[6] Liu Q, Yan X P, Gong M L, et al. 103 W high beam quality green laser with an extra-cavity second harmonic generation. Opt Express, 2008, 16(19):14335 doi: 10.1364/OE.16.014335[7] Ren Z Y, Huang Z M, Jia S, et al. 532 nm laser based on Ⅴ-type doubly resonant intra-cavity frequency-doubling. Opt Commun, 2009, 282(2):263 doi: 10.1016/j.optcom.2008.09.033[8] Chen H W, Chen X Y, Li X, et al. High average power Qswitched green beam generation by intracavity frequency doubling of diode-side-pumped Nd:YAG/HGTR-KTP laser. Opt Laser Technol, 2009, 41(1):1 doi: 10.1016/j.optlastec.2008.05.003[9] Li K, Zhang L, Xu D G, et al. High-power picosecond 355 nm laser based on La2CaB10O19 crystal. Opt Lett, 2014, 39(11):3305 doi: 10.1364/OL.39.003305[10] Cheng K, Zhao S Z, Li Y F, et al. Diode-pumped doubly passively Q-switched Nd:LuVO4/KTP green laser with Cr4+YAG and GaAs saturable absorbers. Opt Commun, 2011, 284(1):344 doi: 10.1016/j.optcom.2010.08.052[11] Yang X, Song L, Zhang L X, et al. All-solid-state continuouswave frequency-doubling Nd:LuVO4/GBCOB laser at 533 nm. Laser Phys, 2012, 22(5):836 doi: 10.1134/S1054660X12050313[12] Wang Y Y, Xu D G, Liu C M, et al. A high-power high-stability Q-switched green laser with intracavity frequency doubling using a diode-pumped composite ceramic Nd:YAG laser. Chin Phys B, 2012, 21(9):094212 doi: 10.1088/1674-1056/21/9/094212[13] Liu J H, Shao Z S, Zhang H J, et al. Diode-laser-array end-pumped intracavity frequency-doubled 3.6 W CW Nd:GdVO4/KTP green laser. Opt Commun, 2000, 173(1):311 https://www.researchgate.net/publication/229293646_Diode-laser-array_end-pumped_intracavity_frequency-doubled_36_W_CW_NdGdVO4KTP_green_laser[14] Wang Y, Fan X W, Peng Q Q, et al. Laser-diode pumped Nd:GdVO4 ultraviolet laser with LBO frequency tripling. Optoelectron Lett, 2005, 1(2):0111 https://www.researchgate.net/publication/225499675_Laser-diode_pumped_Nd_GdVO4_ultraviolet_laser_with_LBO_frequency_tripling[15] Zhang S, Guo L, Xiong B, et al. High electro-to-optical efficiency 180 W Q-switched 532 nm laser with a pulse width of 70 ns. Appl Phys B, 2011, 104:861 doi: 10.1007/s00340-011-4462-y[16] Zhang Z, L Liu Q, Gong M L, et al. 32.5 mJ and 4.6 ns 532 nm Q-switched Nd:YAG laser at 500 Hz. Appl Opt, 2012, 52(12):2735 https://www.researchgate.net/publication/236739592_325_mJ_and_46_ns_532_nm_Q-switched_NdYAG_laser_at_500_Hz[17] Maillard R S, Maillard A, Polgár K, et al. Visible and UV effective non-linear optical coefficients of β-BaB2O4 as function of the growth technique. Opt Mater, 2009, 31:899 doi: 10.1016/j.optmat.2008.10.043[18] Borsutzky A, Briinger R, Huang C, et al. Harmonic and sumfrequency generation of pulsed laser radiation in BBO LBO and KDP. Appl Phys B, 1991, 52:55 doi: 10.1007/BF00405687 -
