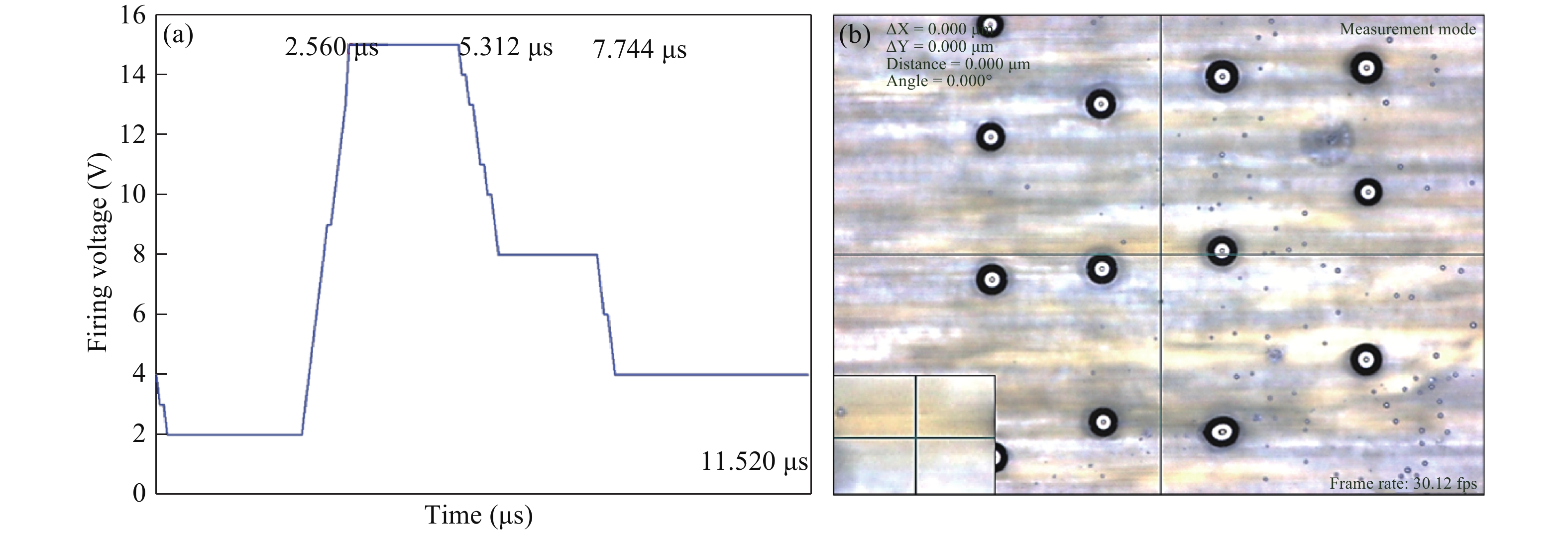

Fig. 1.
(Color online) (a) The waveforms used to print silver lines. (b) The optical image of the inkjet-printed silver lines on PDMS/PET substrate without plasma treatment, splitting into a series of scatters.
DownLoad:
| Citation: |
Tao Cheng, Youwei Wu, Xiaoqin Shen, Wenyong Lai, Wei Huang. Inkjet printed large-area flexible circuits: a simple methodology for optimizing the printing quality[J]. Journal of Semiconductors, 2018, 39(1): 015001. doi: 10.1088/1674-4926/39/1/015001
****
T Cheng, Y W Wu, X Q Shen, W Y Lai, W Huang, Inkjet printed large-area flexible circuits: a simple methodology for optimizing the printing quality[J]. J. Semicond., 2018, 39(1): 015001. doi: 10.1088/1674-4926/39/1/015001.
|
Inkjet printed large-area flexible circuits: a simple methodology for optimizing the printing quality
DOI: 10.1088/1674-4926/39/1/015001
More Information
-
Abstract
In this work, a simple methodology was developed to enhance the patterning resolution of inkjet printing, involving process optimization as well as substrate modification and treatment. The line width of the inkjet-printed silver lines was successfully reduced to 1/3 of the original value using this methodology. Large-area flexible circuits with delicate patterns and good morphology were thus fabricated. The resultant flexible circuits showed excellent electrical conductivity as low as 4.5 Ω/□ and strong tolerance to mechanical bending. The simple methodology is also applicable to substrates with various wettability, which suggests a general strategy to enhance the printing quality of inkjet printing for manufacturing high-performance large-area flexible electronics. -
