Studies of Water VI. One-Band, Two-Band and Three-Band, Trappy, Protonic, Semiconductor Lattice Models for Pure Liquid Water

Binbin Jie1, , Tianhui Jie2 and Chihtang Sah1, 3

+ Author Affiliations

 Corresponding author: Binbin Jie, binjie@xmu.edu.cn

DOI: 10.1088/1674-4926/39/11/111001

PDF

Turn off MathJax

Abstract: This report adds three protonic semiconductor models to explain the " abnormally” high electrical conductivity of pure liquid water characterized by the three industrial consensus parameters, the ion product (or pH) and the two ion mobilities. Existence of long-range order in fluid water under numerous daily conditions led us to extend the 1933 Bernal-Fowler hexagonally close packed crystalline Ice Lattice to model liquid water as Melted Ice. Protonic kinetic energy band and bound (trap) pictures provide semiconductor-physics based new models of these three parameters. They are extrapolatable engineered-models for developing novel biological, chemical, electrical, mechanical and medical applications of liquid water.

Key words: solid and soft-fluid-liquid materials physics, pure water, point-mass positive proton and negative prohol, proton-ion product (pH) and mobilities, propagating-and-localized phonon scattering and detrapping-trapping of propagating-and-localized protons and prohols, Protonic Fermionic Bosons and Bosonic Fermions



[1]
Jie B B, Sah C T. Studies of Water V. Five Phonons in Protonic Semiconductor Lattice Model of Pure Liquid Water. J Semicond, 2017, 38(7): 071001 doi: 10.1088/1674-4926/38/7/071001
[2]
Sah C T. Fundamentals of Solid-State Electronics. 1010pp. 1991. World Scientific, Singapore. For A1G, see Preface. For electron-hole grtt models, see Section 360, Generation, Recombination, Trapping and Tunneling, and its subsection on p. 270−290

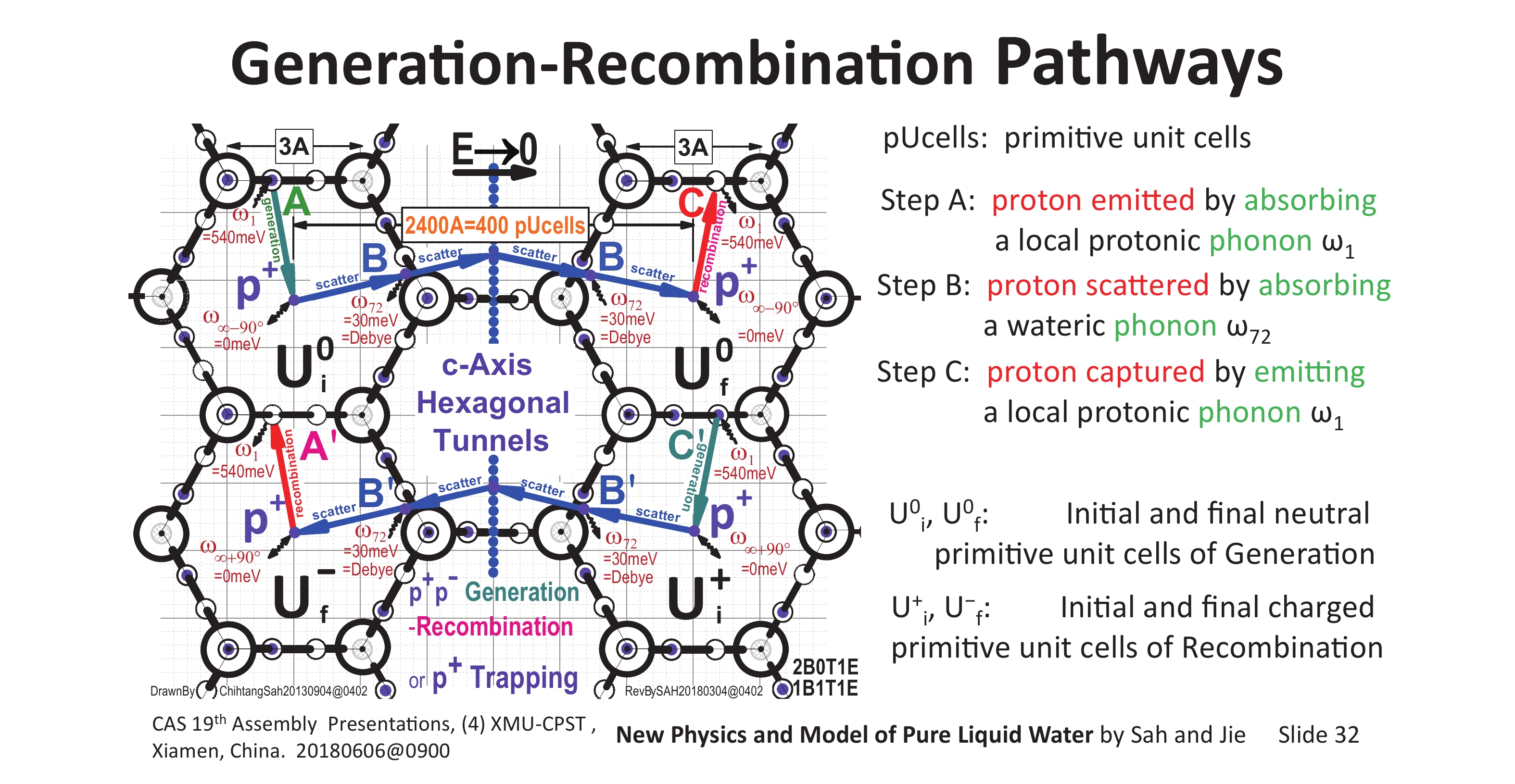

Fig. 1.  (Color online) Position space diagram of our 3-step (A, B, C) Collision Dynamics (DD Transport and GRT Kinetics: DDGRT − Drift, Diffusion, Generation, Recombination and Trapping) of point-mass protons in our Born-Von Karman Periodic Lattice Model of the melted ice for pure liquid water from the 1933 Bernal-Fowler Ice Model of Hexagonal Close Packed (hcp) Lattice. The Primitive Unit Cell (PUC), U, contains 4 water molecules in the hcp configuration with four tetrahedrally directed nearest neighbor Oxygen nuclei at 3 Angstroms (300 picometers) distance apart, and two trisector proton trapping sites at 100 pm from the nearest Oxygen nucleus. Only one of two proton trapping sites is occupied by or filled with a proton when water is frozen (T = 0°K) or KE(Kinetic Energy) = 0 meV. The 2-D plane view is the projection along the c-axis of the HCP Ice Lattice. The numerical values are the thermal activation energies and scattering energy changes of the protons and their corresponding absorbed or emitted phonon energies of the vibrating protons or oxygen nuclei.

DownLoad: Full-Size Img PowerPoint

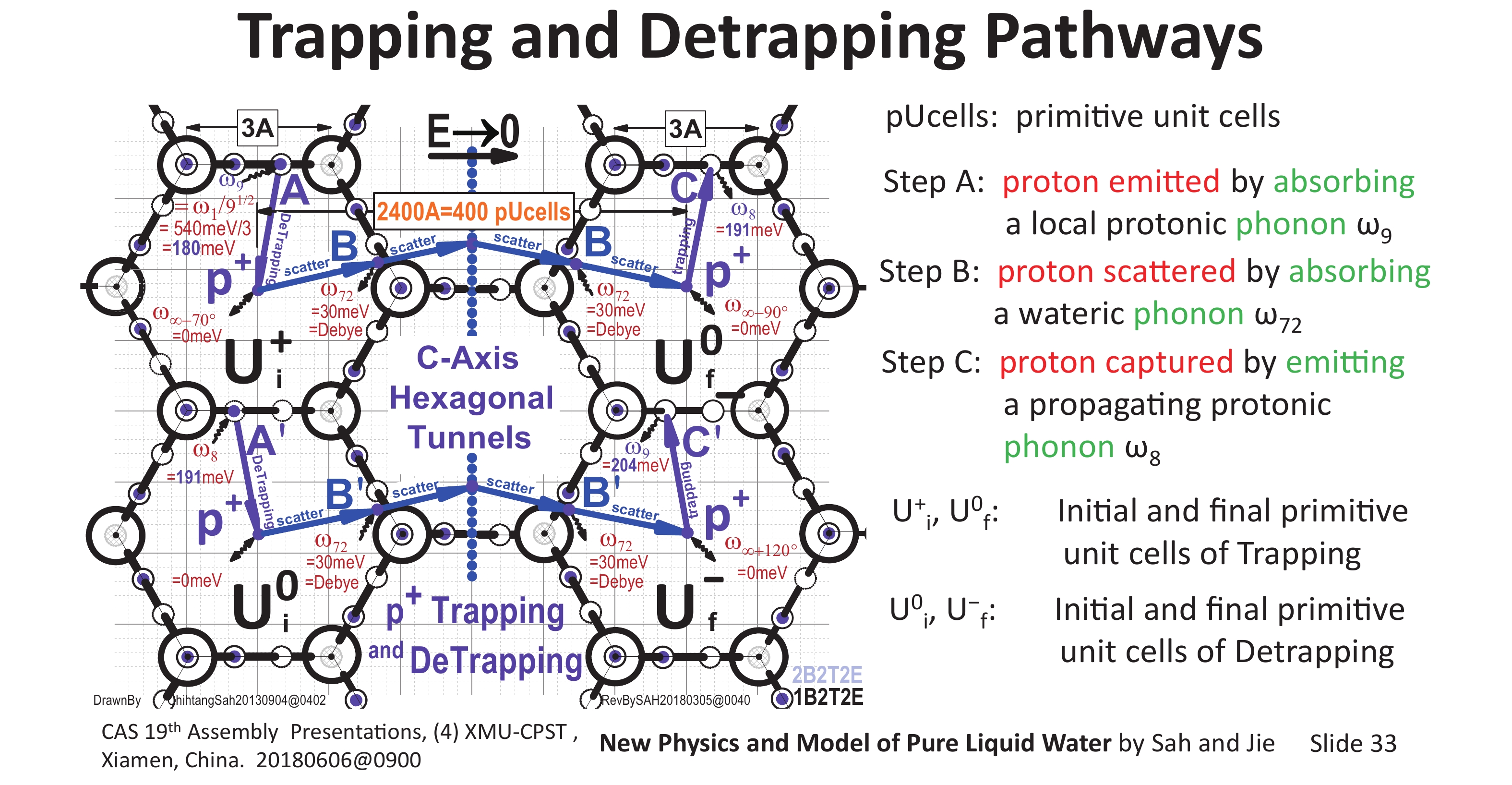

Fig. 2.  (Color online) Same as Fig. 1 except showing the route details of the phonon-assisted 3-step (A, B, C) trapping-limited diffusion-drift transport processes.

DownLoad: Full-Size Img PowerPoint

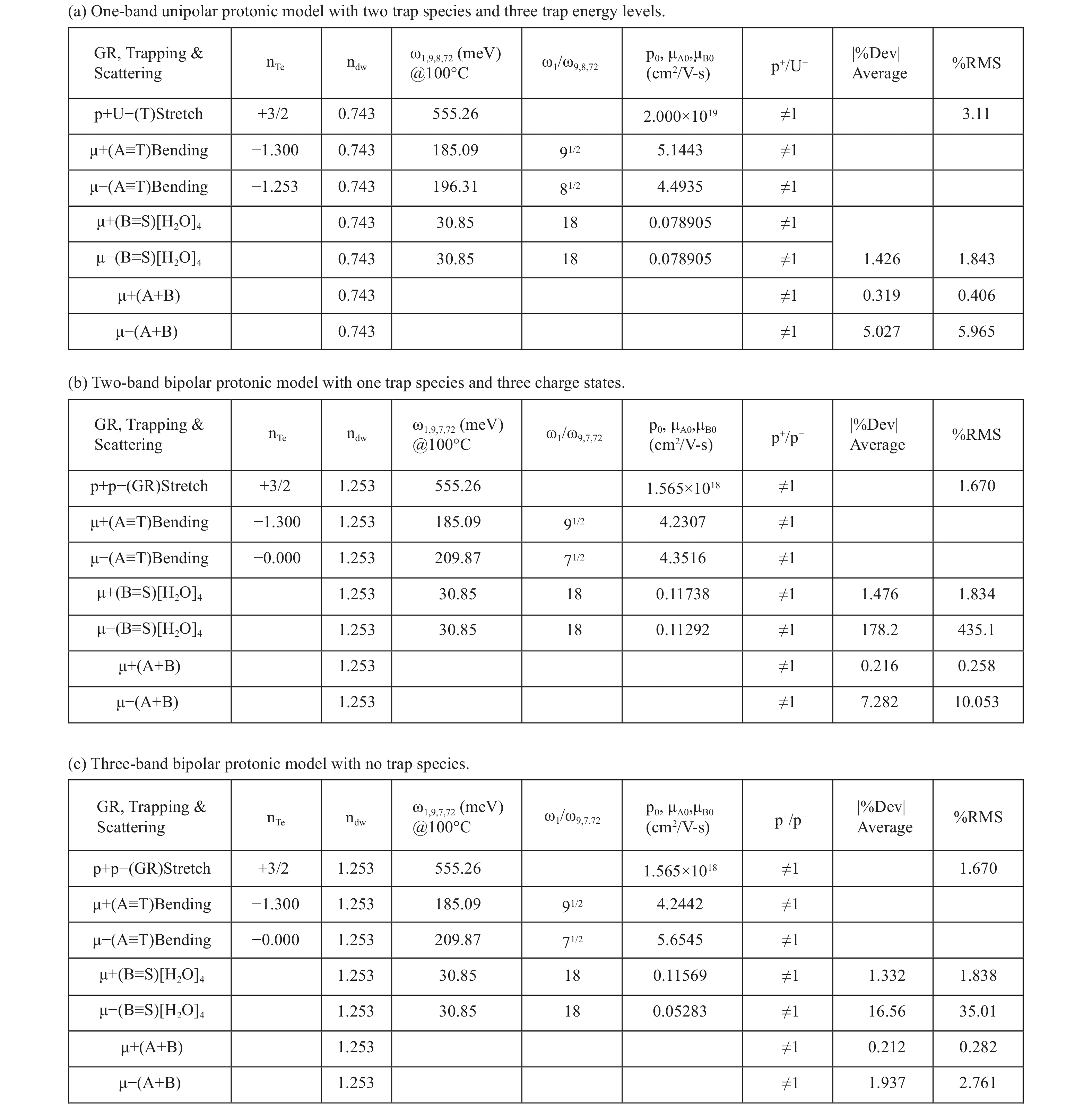

Fig. 4.  The comparison table of three new protonic models for pure liquid water. (a) one-band unipolar model with two trap species and three trap energy levels, (b) two-band bipolar model with one trap species and three charge states, and (c) three-band bipolar model with no trap species. Different from the models in Fig. 3, these three models are with the charge neutrality from the mobile charges and trap charges, which leads to the inequality of mobile positive charge and mobile negative charge. Also, the phonon energies at the boiling temperature 100 °C are derived from the symmetrical stretching mode frequency of isolated water molecules based on the 1-D inverse bond length force constant assumption.

DownLoad: Full-Size Img PowerPoint

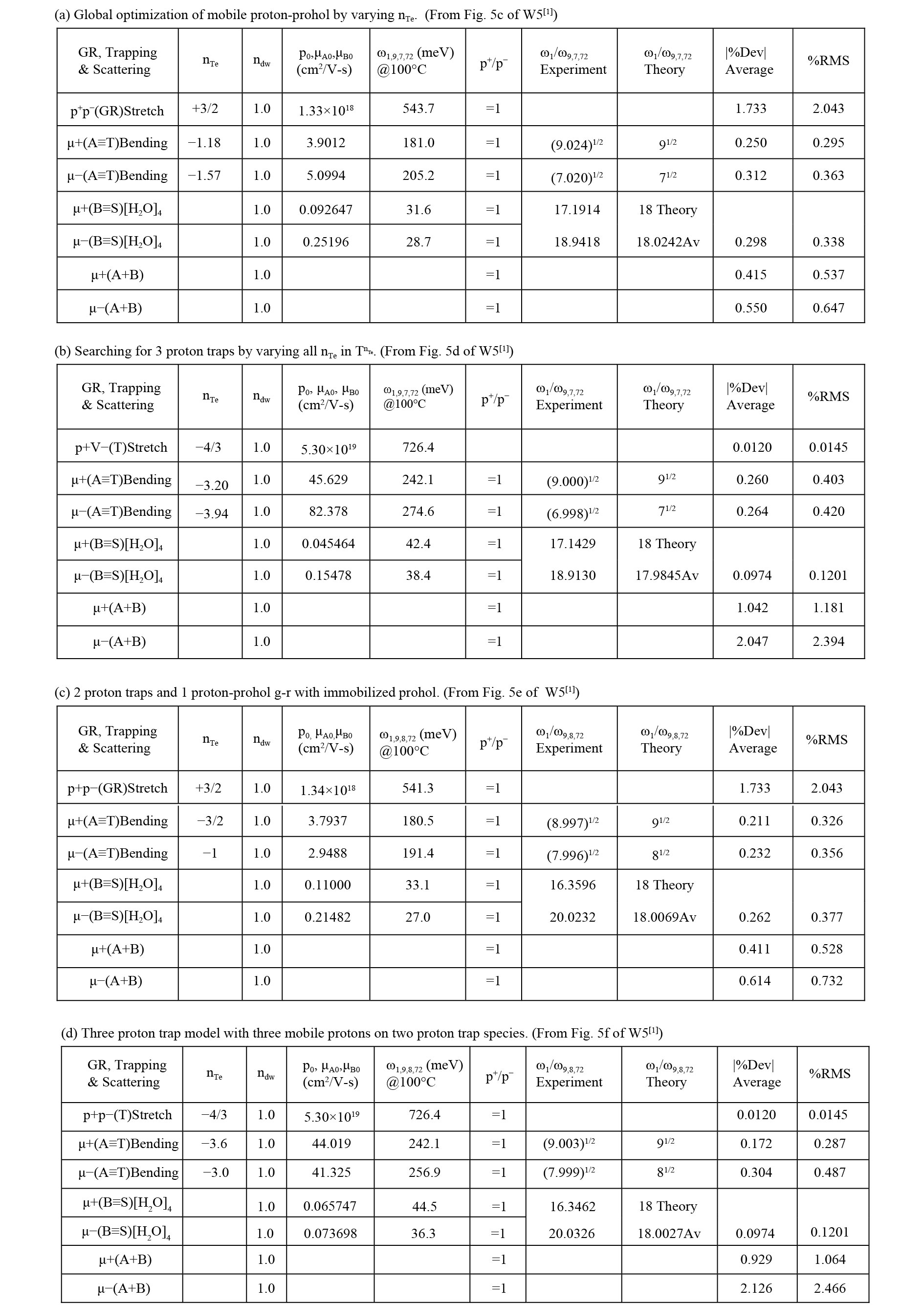

Fig. 3.  Reproduce Fig. 5 of W5[1] for easy comparison with the following modification. The column labels for the activation energies E± and Eμ+, μ− were replaced by the corresponding protonic phonon energies. The energy coefficients were changed to the protonic phonon energies at the boiling temperature 100 °C. In addition, one column was replaced by the p+/p− column to indicate that the charge neutrality was not applied in W5[1] and the mobile charge ratio is set to be 1.

DownLoad: Full-Size Img PowerPoint
[1]
Jie B B, Sah C T. Studies of Water V. Five Phonons in Protonic Semiconductor Lattice Model of Pure Liquid Water. J Semicond, 2017, 38(7): 071001 doi: 10.1088/1674-4926/38/7/071001
[2]
Sah C T. Fundamentals of Solid-State Electronics. 1010pp. 1991. World Scientific, Singapore. For A1G, see Preface. For electron-hole grtt models, see Section 360, Generation, Recombination, Trapping and Tunneling, and its subsection on p. 270−290
