Electrical properties of Si/Si bonded wafers based on an amorphous Ge interlayer

Shaoming Lin, Shaoying Ke, Yujie Ye, Donglin Huang, Jinyong Wu, Songyan Chen, Cheng Li, Jianyuan Wang and Wei Huang

+ Author Affiliations

 Corresponding author: Songyan Chen, Email: sychen@xmu.edu.cn

PDF

Turn off MathJax

Abstract: An amorphous Ge (a-Ge) intermediate layer is introduced into the Si bonded interface to lower the annealing temperature and achieve good electrical characteristics. The interface and electrical characteristics of n-Si/n-Si and p-Si/n-Si junctions manufactured by low-temperature wafer bonding based on a thin amorphous Ge are investigated. It is found that the bubble density tremendously decreases when the a-Ge film is not immersed in DI water. This is due to the decrease of the –OH groups. In addition, when the samples are annealed at 400 °C for 20 h, the bubbles totally disappear. This can be explained by the appearance of the polycrystalline Ge (absorption of H2) at the bonded interface. The junction resistance of the n-Si/n-Si bonded wafers decreases with the increase of the annealing temperature. This is consistent with the recrystallization of the a-Ge when high-temperature annealing is conducted. The carrier transport of the Si-based PN junction annealed at 350 °C is consistent with the trap-assisted tunneling model and that annealed at 400 °C is related to the carrier recombination model.

Key words: carrier transport, amorphous Ge interlayer, bubble-free interface, electrical characteristics



[1]
Iyer S S, Auberton-Herve A J. Silicon wafer bonding technology for VLSI and MEMS applications: INSPEC. The Institute of Electrical Engineers, London, United Kingdom, 2002
[2]
Miki N, Zhang X, Khanna R, et al. Multi-stack silicon-direct wafer bonding for 3D MEMS manufacturing. Sens Actuators A, 2003, 103(1/2): 194
[3]
Gity F, Yeol Byun K, Lee K H, et al. Characterization of germanium/silicon p-n junction fabricated by low temperature direct wafer bonding and layer exfoliation. Appl Phys Lett, 2012, 100(9): 092102 doi: 10.1063/1.3688174
[4]
Tseng C K, Chen W T, Chen K H, et al. A self-assembled microbonded germanium/silicon heterojunction photodiode for 25 Gb/s high-speed optical interconnects. Sci Rep, 2013, 3: 3225 doi: 10.1038/srep03225
[5]
Maszara W P. Silicon-on-insulator by wafer bonding: a review. J Electrochem Soc, 1991, 138(1): 341 doi: 10.1149/1.2085575
[6]
Lasky J B. Wafer bonding for silicon-on-insulator technologies. Appl Phys Lett, 1986, 48(1): 78 doi: 10.1063/1.96768
[7]
Hayashi S, Goorsky M, Noori A, et al. materials issues for the heterogeneous integration of III–V compounds exfoliation and layer transfer. J Electrocheml Soc, 2006, 153(12): G1011 doi: 10.1149/1.2353607
[8]
Howlader M M R, Kagami G, Lee S H, et al. Sequential plasma-activated bonding mechanism of silicon/silicon wafers. J Microelectromechan Syst, 2010, 19(4): 840 doi: 10.1109/JMEMS.2010.2049731
[9]
Miao G J, Zhang Z H, Ren T L, et al. Electrical properties measurement for interface research in silicon bonding. ECS Trans, 2010, 25(33): 203
[10]
Liang J, Chai L, Nishida S, et al. Investigation on the interface resistance of Si/GaAs heterojunctions fabricated by surface-activated bonding. Jpn J Appl Phys, 2015, 54(3): 030211 doi: 10.7567/JJAP.54.030211
[11]
Yablonovitch E, Allara D L, Chang C C, et al. Unusually low surface-recombination velocity on silicon and germanium surfaces. Phys Rev Lett, 1986, 57(2): 249 doi: 10.1103/PhysRevLett.57.249
[12]
Howlader M M R, Zhang F. Void-free strong bonding of surface activated silicon wafers from room temperature to annealing at 600 °C. Thin Solid Films, 2010, 519(2): 804 doi: 10.1016/j.tsf.2010.08.144
[13]
Bengtsson S, Engström O. Interface charge control of directly bonded silicon structures. J Appl Phys, 1989, 66(3): 1231 doi: 10.1063/1.343469
[14]
Esser R H, Hobart K D, Kub F J. Direct wafer bonded abrupt junction tunnel diodes. J Electrochem Soc, 2004, 151(6): G387 doi: 10.1149/1.1731558
[15]
Esser R H, Hobart K D, Kub F J. Rapid thermal processing of wafer bonded abrupt junction tunnel diodes. New Jersey: Electrochemical Society, 2003
[16]
Ke S, Lin S, Ye Y, et al. Bubble evolution mechanism and stress-induced crystallization in low-temperature silicon wafer bonding based on a thin intermediate amorphous Ge layer. J Phys D, 2017, 50(40): 405305 doi: 10.1088/1361-6463/aa81ee
[17]
Ke S, Ye Y, Lin S, et al. Low-temperature oxide-free silicon and germanium wafer bonding based on a sputtered amorphous Ge. Appl Phys Lett, 2018, 112(4): 041601 doi: 10.1063/1.4996800
[18]
Hekmatshoar B, Shahrjerdi D, Mohajerzadeh S, et al. Low temperature crystallization of germanium on plastic by externally applied compressive stress. J Vac Sci Technol A, 2003, 21(3): 752 doi: 10.1116/1.1569923
[19]
Morimoto M, Liang J, Nishida S, et al. Effects of annealing on electrical properties of Si/Si junctions by surface-activated bonding. Jpn J Appl Phys, 2015, 54(3): 030212 doi: 10.7567/JJAP.54.030212
[20]
Liang J, Miyazaki T, Morimoto M, et al. Electrical properties of Si/Si interfaces by using surface-activated bonding. J Appl Phys, 2013, 114(18): 183703 doi: 10.1063/1.4829676
[21]
Thareja G, Cheng S L, Kamins T, et al. Electrical characteristics of germanium n+/p junctions obtained using rapid thermal annealing of coimplanted P and Sb. IEEE Electron Device Lett, 2011, 32(5): 608 doi: 10.1109/LED.2011.2119460
[22]
Tauc J, Grigorovici R, Vancu A. Optical properties and electronic structure of amorphous germanium. Physic Status Solidi B, 1966, 15(2): 627 doi: 10.1002/(ISSN)1521-3951
[23]
Brodsky M. Amorphous semiconductors. Springer Verlag, 1979
[24]
Mott N F. Conduction in non-crystalline systems: IV. Anderson localization in a disordered lattice. Philosophical Magazine, 1970, 22(175): 7 doi: 10.1080/14786437008228147

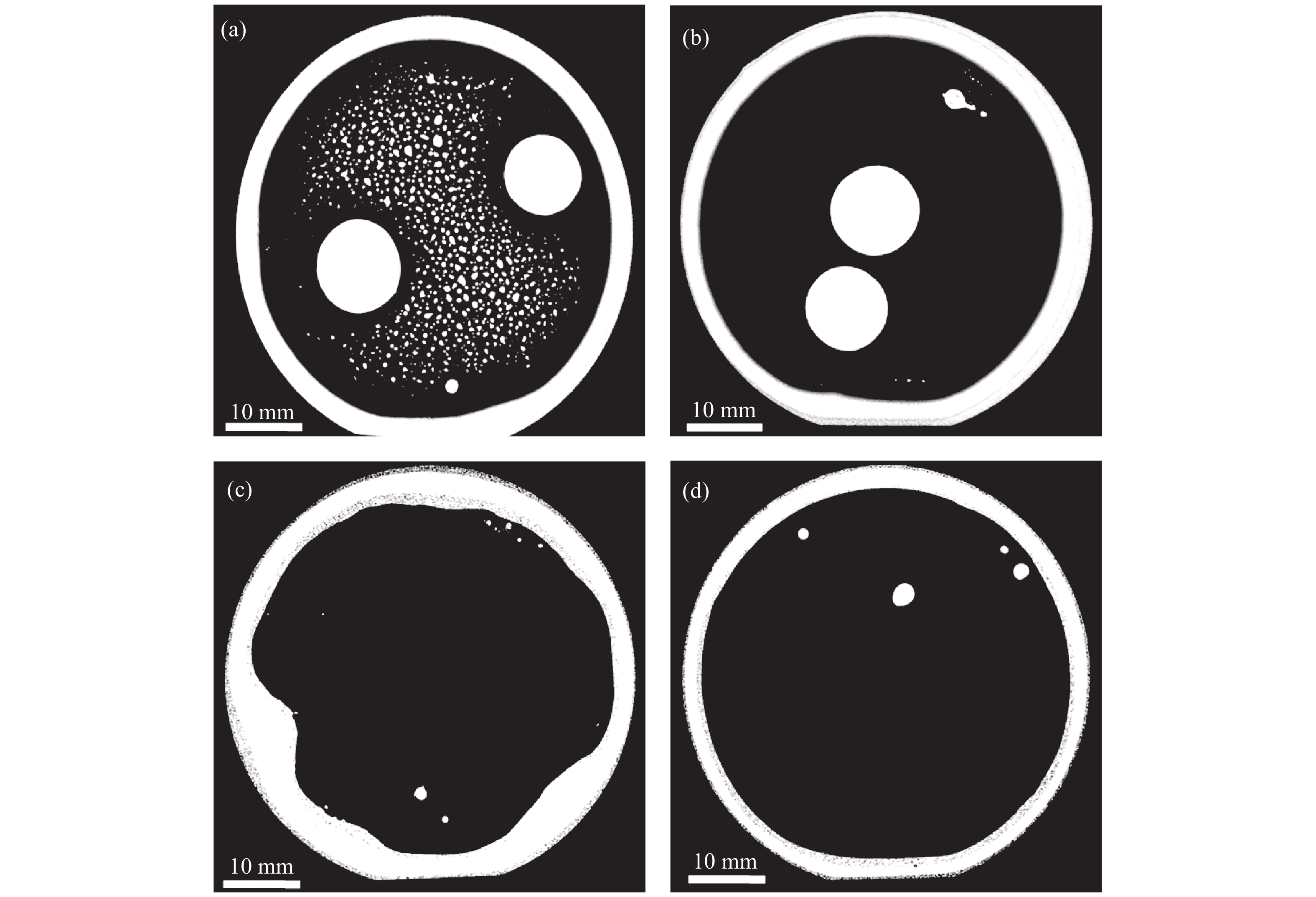

Fig. 1.  CSAM bubble photographs of the bonded wafer pairs (20 nm) annealed at (a) 350 °C for 20 h with the DI water immersion, (b) 400 °C for 20 h with the DI water immersion, (c) 350 °C for 20 h without the DI water immersion, and (d) 400 °C for 20 h without the DI water immersion.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  SEM photograph of the Si/Si interface of the wafer pairs annealed at 400 °C for 20 h without the DI water immersion.

DownLoad: Full-Size Img PowerPoint

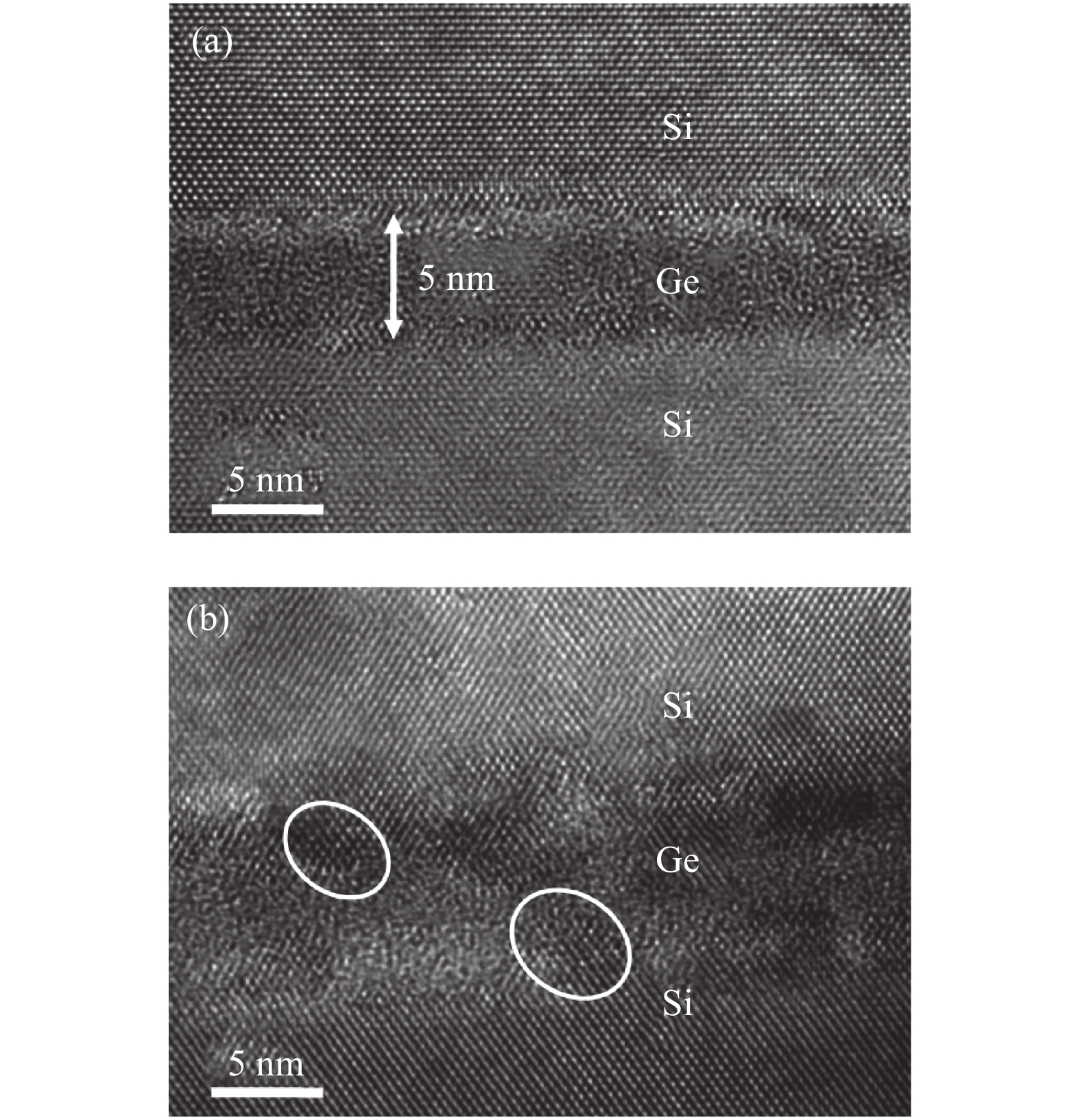

Fig. 3.  HRTEM cross-section photographs of the bonded interface (3 nm). (a) Annealing at 350 °C. (b) Annealing at 400 °C.

DownLoad: Full-Size Img PowerPoint

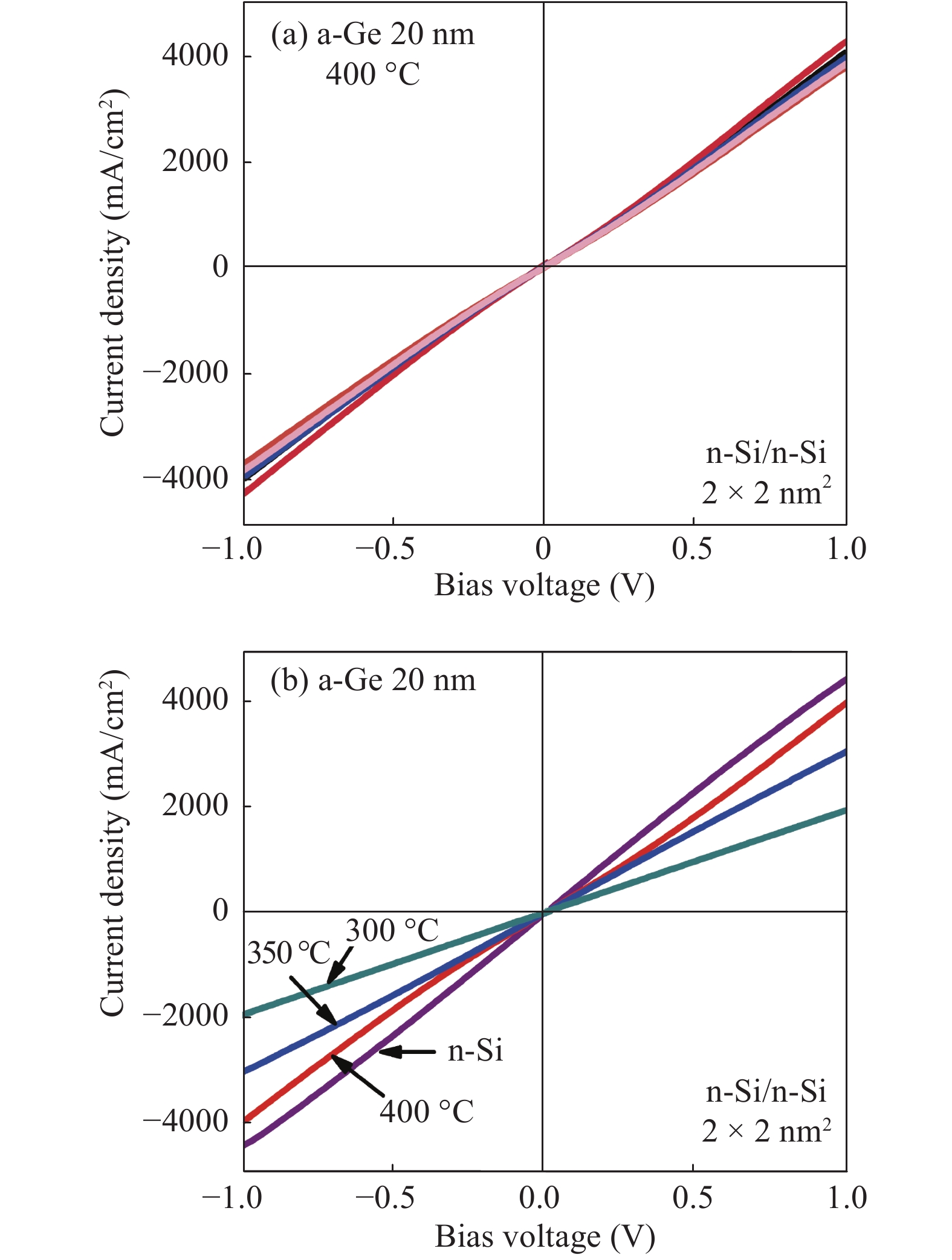

Fig. 4.  (Color online) (a) I–V characteristics of twenty n-Si/n-Si pieces measured at room temperature. (b) I–V characteristics of n-Si/n-Si bonded wafers (20 nm) with annealing at different annealing temperatures.

DownLoad: Full-Size Img PowerPoint

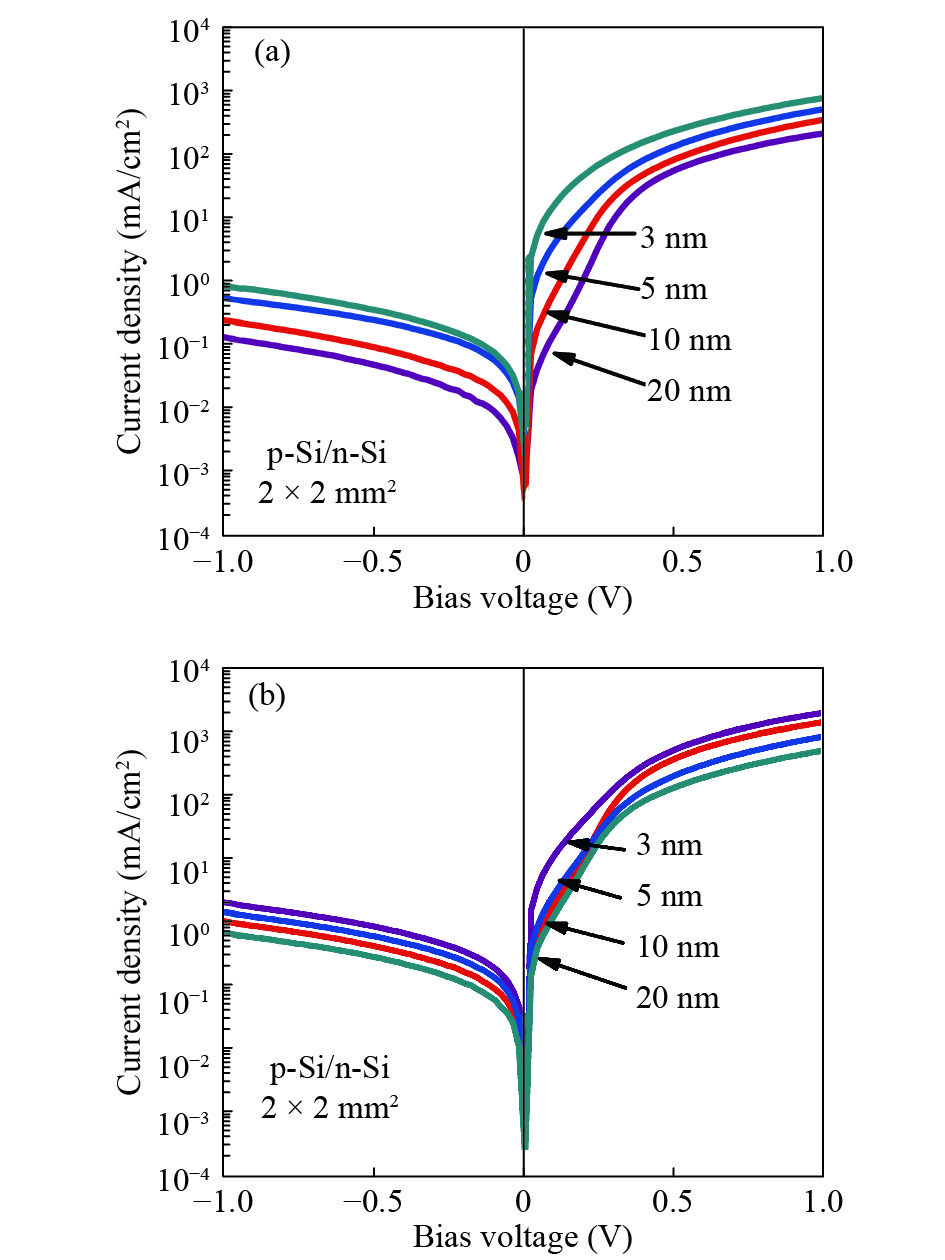

Fig. 5.  (Color online) I–V characteristics of Si-based PN with different a-Ge interlayer thickness annealed at (a) 350 °C for 20 h and (b) 400 °C for 20 h.

DownLoad: Full-Size Img PowerPoint

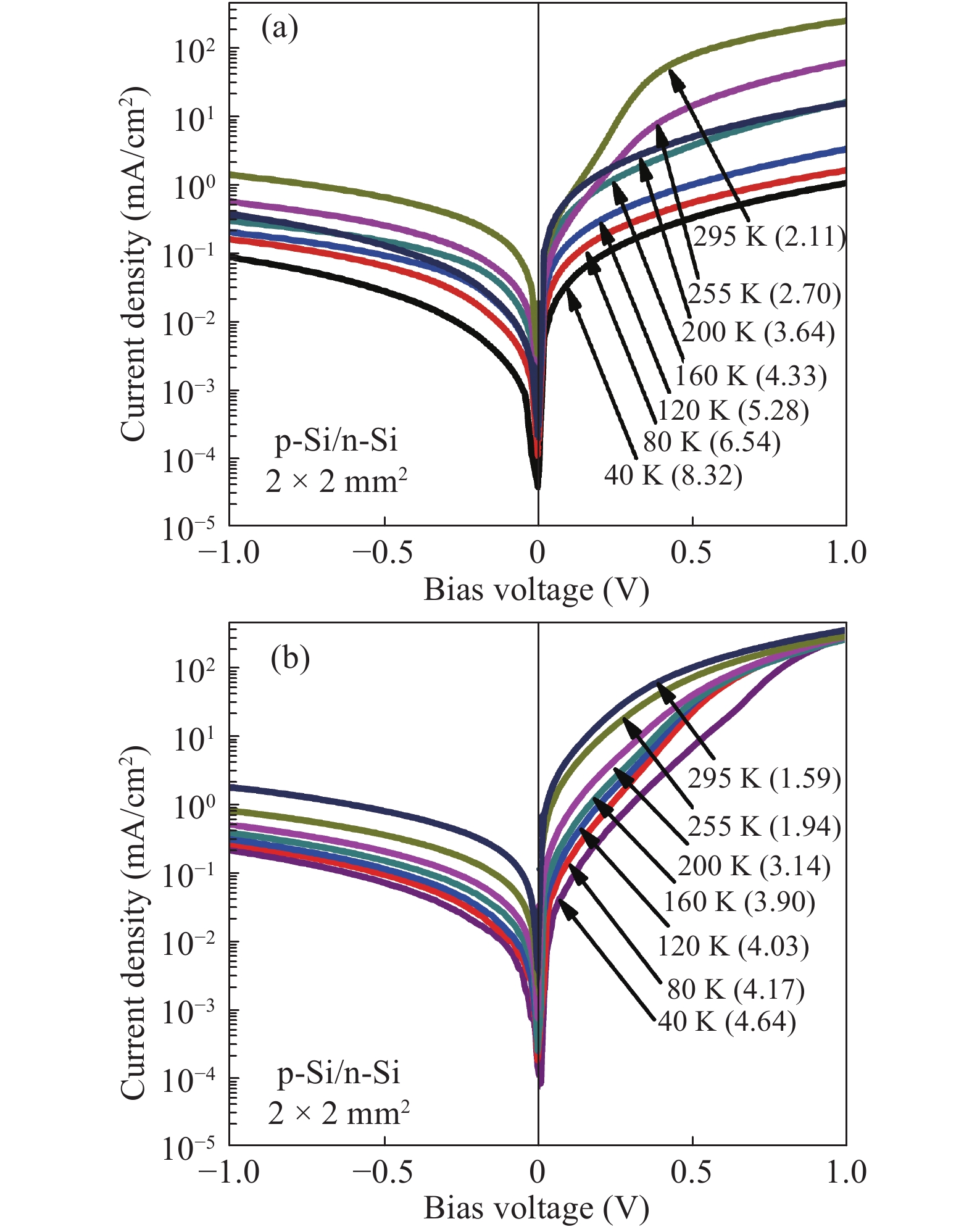

Fig. 6.  (Color online) I–V characteristics of Si-based PN junctions and the ideality factors measured at different temperatures. (a) Annealed at 350 °C. (b) Annealed at 400 °C.

DownLoad: Full-Size Img PowerPoint

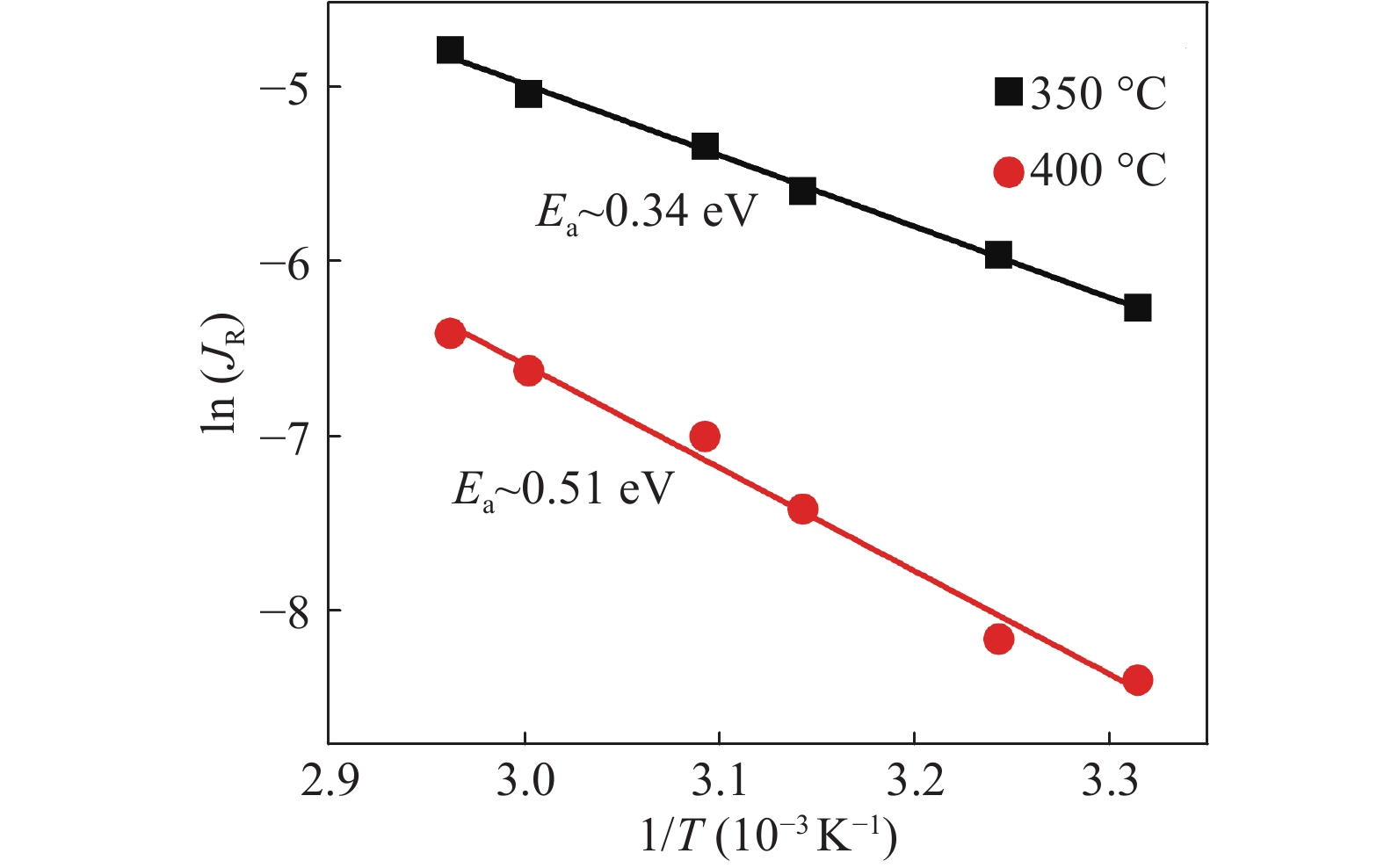

Fig. 7.  (Color online) Activation energy of the Si-based PN junctions (20 nm) annealed at 350 and 400 °C.

DownLoad: Full-Size Img PowerPoint

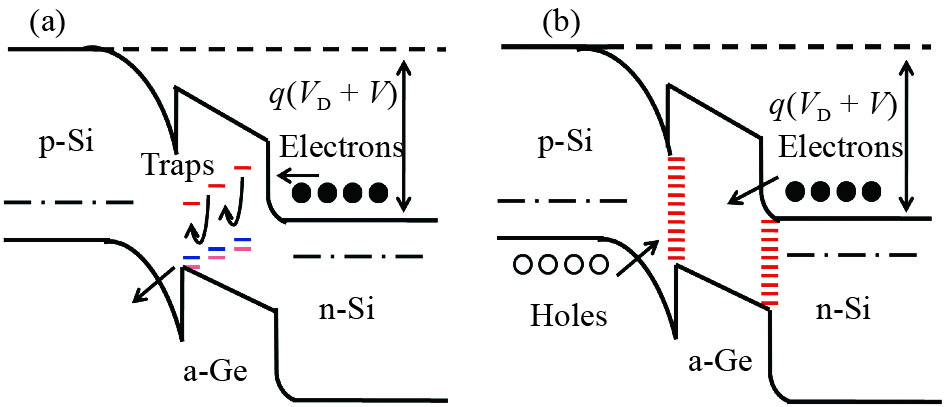

Fig. 8.  (Color online) Schematic representation of p-Si/n-Si (20 nm) junctions band diagram illustrating the carrier transport mechanism at reverse bias voltage –1 V. (a) Annealed at 350 °C. (b) Annealed at 400 °C.
