InAs-based interband cascade lasers at 4.0 <i>μ</i>m operating at room temperature

Tian Yu; Shuman Liu; Jinchuan Zhang; Bo Xu; Lijun Wang; Junqi Liu; Ning Zhuo; Shenqiang Zhai; Xiaoling Ye; Yonghai Chen; Fengqi Liu; Zhanguo Wang

doi:10.1088/1674-4926/39/11/114003

J. Semicond. > 2018, Volume 39 > Issue 11 > 114003, doi: 10.1088/1674-4926/39/11/114003

SEMICONDUCTOR DEVICES

InAs-based interband cascade lasers at 4.0 μm operating at room temperature

Tian Yu^{1, 2}, Shuman Liu^{1, 2,}, Jinchuan Zhang^{1, 2}, Bo Xu^{1, 2}, Lijun Wang^{1, 2}, Junqi Liu^{1, 2}, Ning Zhuo¹, Shenqiang Zhai¹, Xiaoling Ye^{1, 2}, Yonghai Chen^{1, 2}, Fengqi Liu^{1, 2,} and Zhanguo Wang^{1, 2}

+ Author Affiliations

Corresponding author: Shuman Liu, Email: liusm@semi.ac.cn; Fengqi Liu, fqliu@semi.ac.cn

Abstract: InAs-based interband cascade lasers (ICLs) with InAs plasmon waveguides or InAs/AlSb superlattice (SL) waveguides were demonstrated at emission wavelengths below 4.1 μm. The threshold current densities of the lasers with SL waveguides were 37 A/cm² at 77 K in continuous wave mode. The operation temperature of these lasers reached room temperature in pulsed mode. Compared with the thick InAs n⁺⁺ plasmon cladding layer, the InAs/AlSb superlattice cladding layers have greater advantages for ICLs with wavelengths less than 4 μm even in InAs based ICLs because in the short-wavelength region they have a higher confinement factor than InAs plasmon waveguides.

Key words: interband cascade laser, InAs-based, InAs/AlSb superlattice

References

[1]	Faist J, Capasso F, Sivco D L, et al. Quantum cascade laser. Science, 1994, 264: 553 doi: 10.1126/science.264.5158.553
[2]	Vitiello M S, Scalari G, Williams B, et al. Quantum cascade lasers: 20 years of challenges. Opt Express, 2015, 23: 5167 doi: 10.1364/OE.23.005167
[3]	Hou C C, Zhao Y, Zhang J C, et al. Room temperature continuous wave operation of quantum cascade laser at λ ~ 9.4 μm. J Semicond, 2018, 39: 034001 doi: 10.1088/1674-4926/39/3/034001
[4]	Ciaffoni L, Grilli R, Hancock G, et al. 3.5-μm high-resolution gas sensing employing a LiNbO₃ QPM–DFG waveguide module. Appl Phys B, 2008, 94: 517
[5]	Bauer A, Rössner K, Lehnhardt T, et al. Mid-infrared semiconductor heterostructure lasers for gas sensing applications. Semicond Sci Technol, 2011, 26: 014032 doi: 10.1088/0268-1242/26/1/014032
[6]	Bandyopadhyay N, Slivken S, Bai Y, et al. High power, continuous wave, room temperature operation of λ ~ 3.4 μm and λ~3.55 μm InP-based quantum cascade lasers. Appl Phys Lett, 2012, 100: 212104 doi: 10.1063/1.4719110
[7]	Bandyopadhyay N, Bai Y, Gokden B, et al. Watt level performance of quantum cascade lasers in room temperature continuous wave operation at λ ~ 3.76 μm. Appl Phys Lett, 2010, 97: 131117 doi: 10.1063/1.3496489
[8]	Yang R Q. Infrared laser based on intersubband transitions in quantum well. Superlattices Microstruct, 1995, 17: 77 doi: 10.1006/spmi.1995.1017
[9]	Kim M, Bewley W W, Canedy C L, et al. High-power continuous-wave interband cascade lasers with 10 active stages. Opt Express, 2015, 23: 9664 doi: 10.1364/OE.23.009664
[10]	Vurgaftman I, Bewley W W, Canedy C L, et al. Rebalancing of internally generated carriers for mid-infrared cascade lasers with very low power consumption. Nature Commun, 2011, 2: 585 doi: 10.1038/ncomms1595
[11]	Edlinger M, Weih R, Scheuermann J, et al. Monolithic single mode interband cascade lasers with wide wavelength tunability. Appl Phys Lett, 2016, 109: 201109 doi: 10.1063/1.4968535
[12]	Weih R, Nähle L, Höfling S, et al. Single mode interband cascade lasers based on lateral metal gratings. Appl Phys Lett, 2014, 105: 071111 doi: 10.1063/1.4893788
[13]	Yang R Q, Li L, Zhao L, et al. Recent progress in development of InAs-based interband cascade lasers. Proc SPIE, 2013, 8640: 86400Q doi: 10.1117/12.2005271
[14]	Li L, Jiang Y, Ye H, et al. Low-threshold InAs-based interband cascade lasers operating at high temperatures. Appl Phys Lett, 2015, 106: 251102 doi: 10.1063/1.4922995
[15]	Tian Z, Yang R Q, Mishima T D, et al. InAs-based interband cascade lasers near 6 μm. Electron Lett, 2008, 45: 48
[16]	Rassel S M S, Li L, Li Y, et al. High-temperature and low-threshold interband cascade lasers at wavelengths longer than 6 μm. Opt Eng, 2018, 57: 011021
[17]	Dallner M, Hau F, Höfling S, et al. InAs-based interband-cascade-lasers emitting around 7 μm with threshold current densities below 1 kA/cm² at room temperature. Appl Phys Lett, 2015, 106: 041108 doi: 10.1063/1.4907002
[18]	Tian Z, Li L, Ye H, et al. InAs-based interband cascade lasers with emission wavelength at 10.4 μm. Electron Lett, 2012, 48: 113 doi: 10.1049/el.2011.3555

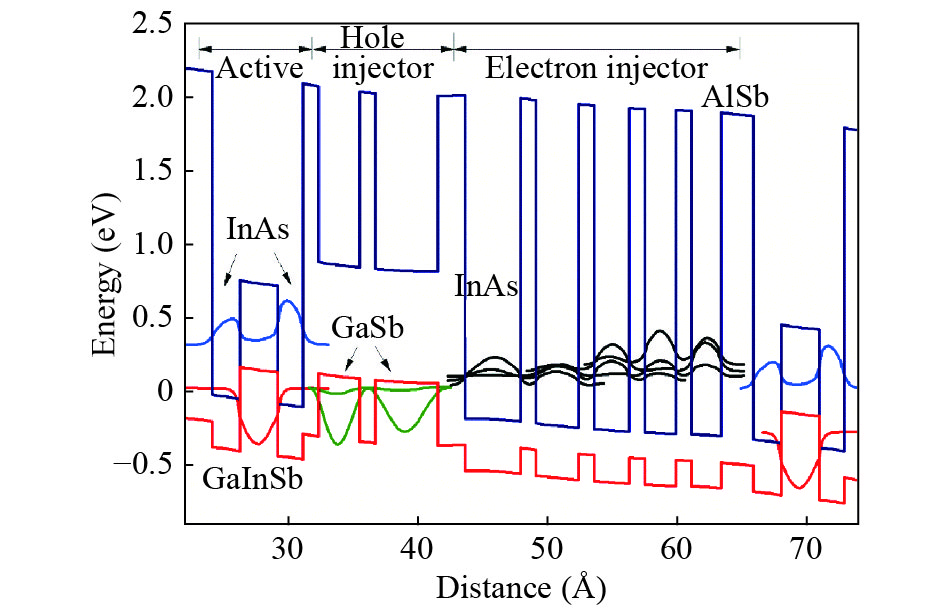

Fig. 2. (Color online) Calculated band diagram for one cascade stage. The layer structure starting with the barrier separating the active region and the electron injector is as follows: 25 Å AlSb/21.5 Å InAs/29 Å Ga_0.7In_0.3Sb/19.5 Å InAs/12 Å AlSb/32 Å GaSb/12 Å AlSb/48 Å GaSb/21 Å AlSb/43 Å InAs/12 Å AlSb/33 Å InAs/12 Å AlSb/27 Å.

DownLoad: Full-Size Img PowerPoint

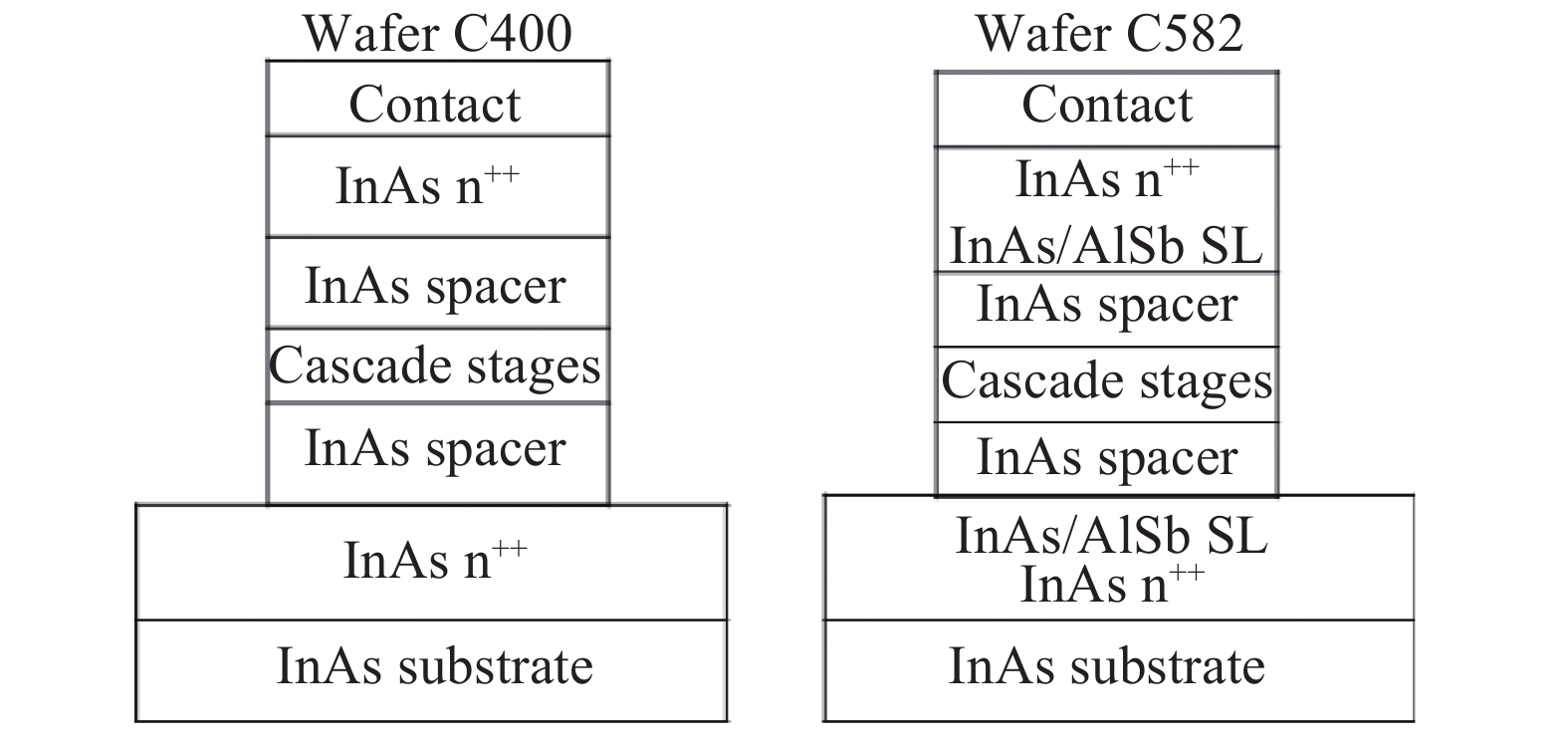

Fig. 1. Schematic diagram of two ICL structures with different waveguides.

DownLoad: Full-Size Img PowerPoint

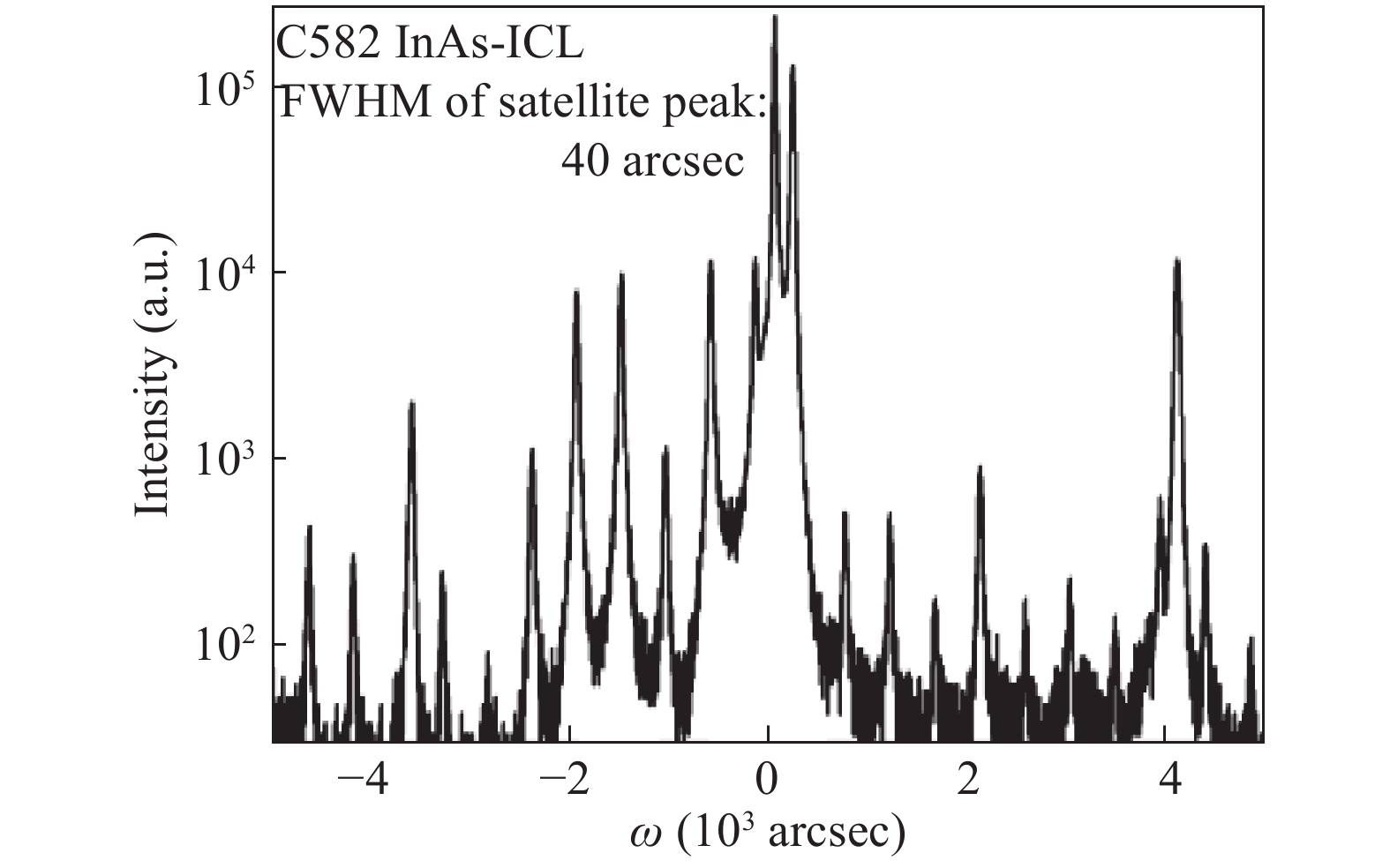

Fig. 4. DCXRD patterns of wafer C582 with thinner InAs spacer layers and InAs/AlSb SL cladding layers.

DownLoad: Full-Size Img PowerPoint

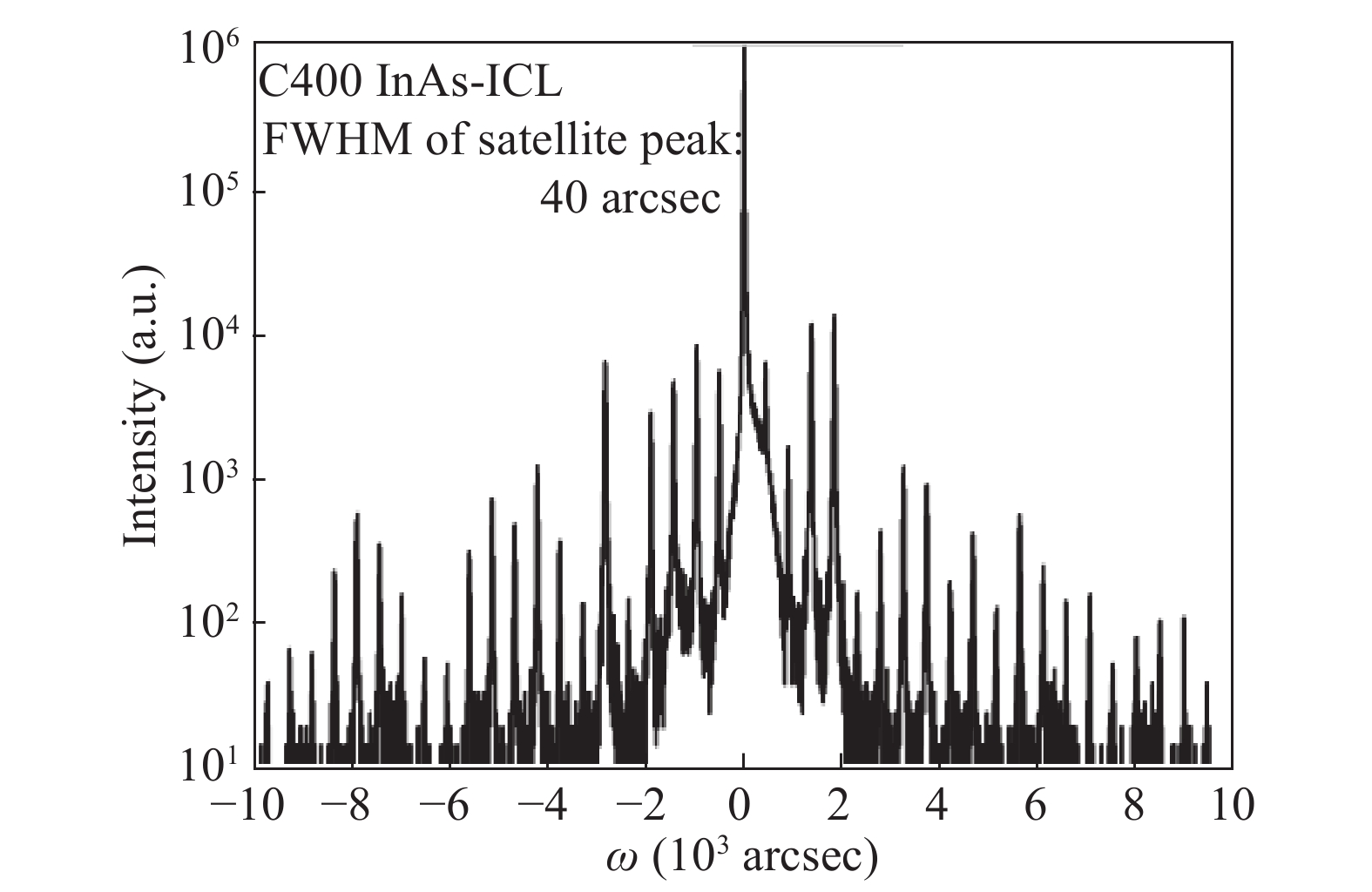

Fig. 3. DCXRD patterns of wafer C400 with thicker InAs spacer and cladding layers.

DownLoad: Full-Size Img PowerPoint

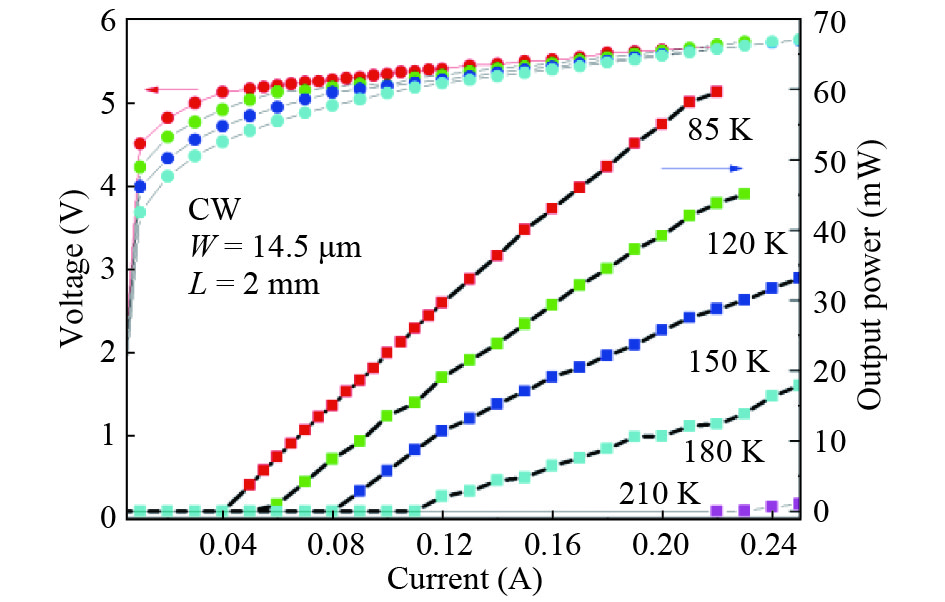

Fig. 6. (Color online) Measured I–V–P characteristics of a narrow ridge laser (14.5 μm × 2 mm) from wafer C400 in cw mode.

DownLoad: Full-Size Img PowerPoint

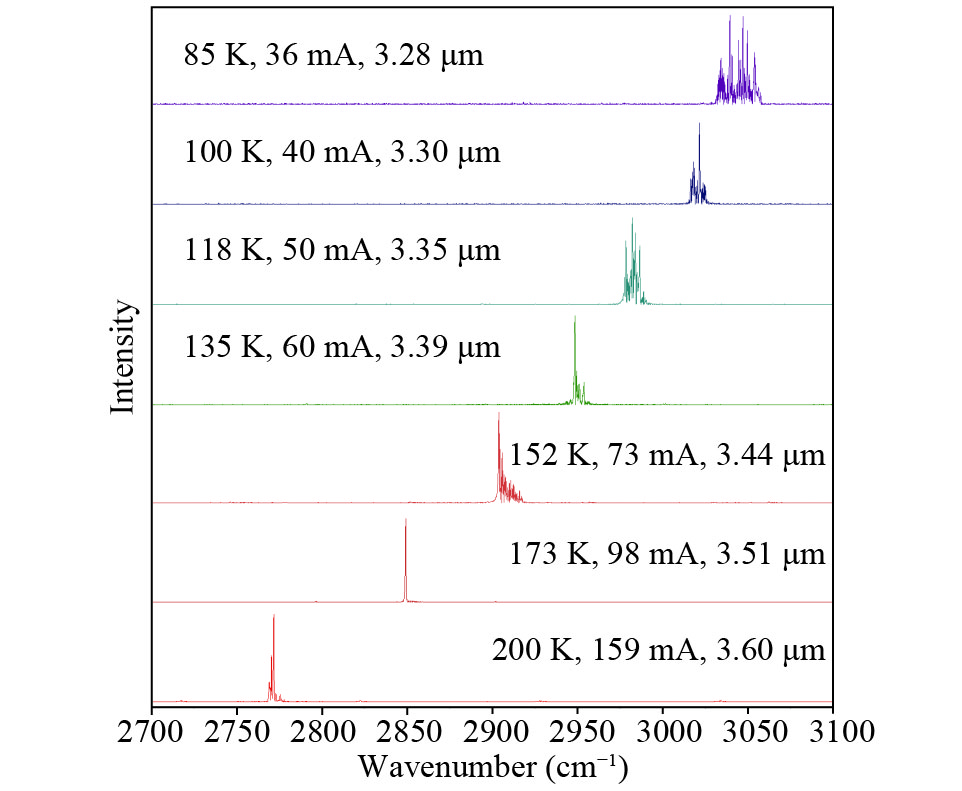

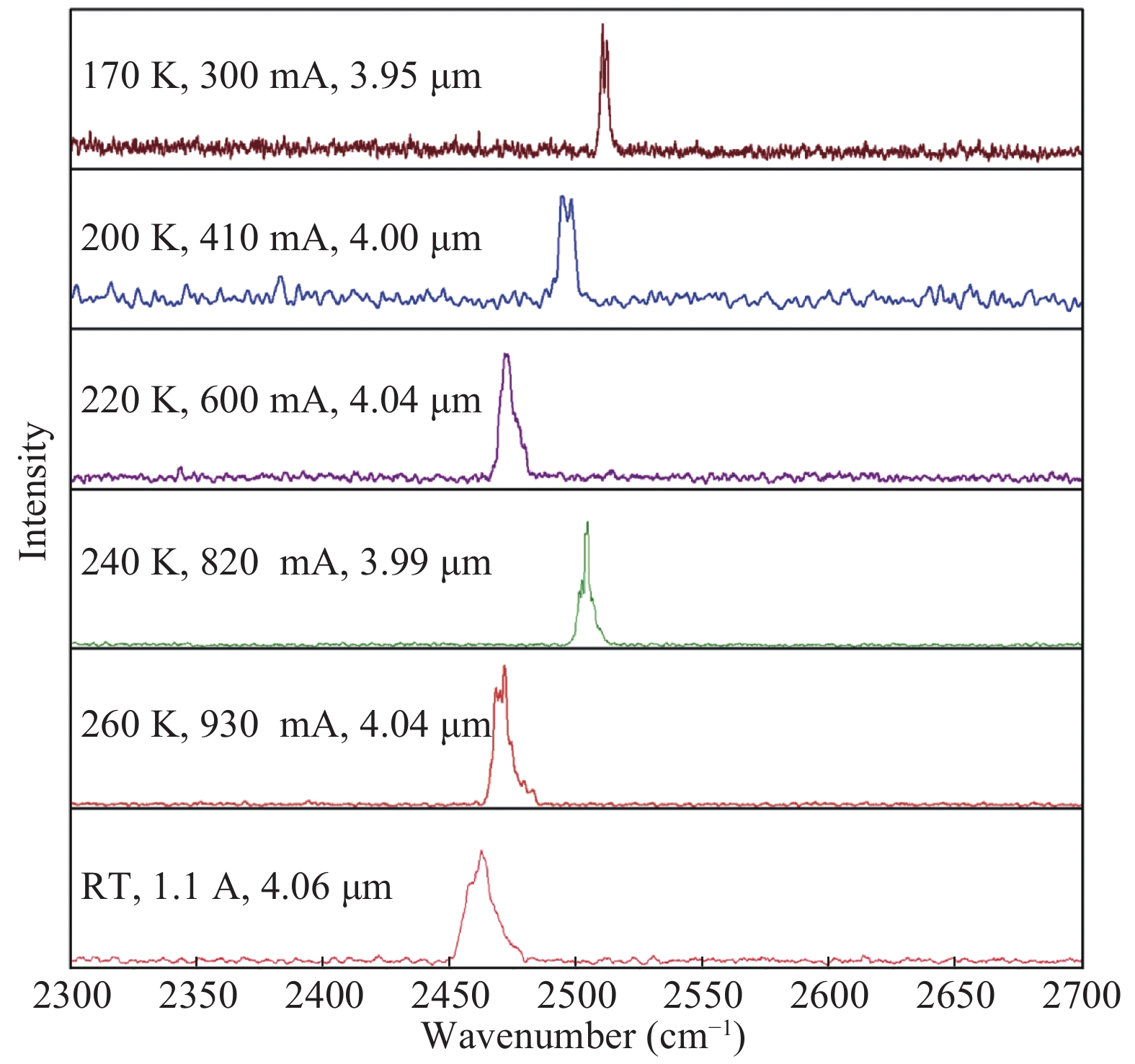

Fig. 5. (Color online) Temperature dependent emission spectra of a narrow ridge laser (14.5 μm × 2 mm) from wafer C400 in cw mode.

DownLoad: Full-Size Img PowerPoint

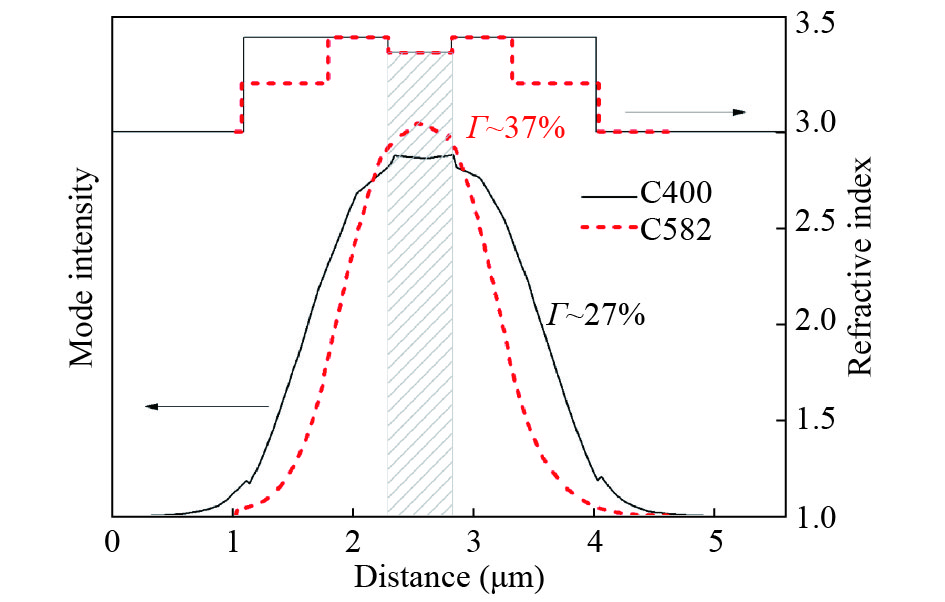

Fig. 7. (Color online) Optical mode and refractive index profiles of wafers C400 and C582.

DownLoad: Full-Size Img PowerPoint

Fig. 8. (Color online) Temperature dependent emission spectra of a wide ridge laser (70 μm × 3 mm) from wafer C582 in pulsed mode.

DownLoad: Full-Size Img PowerPoint

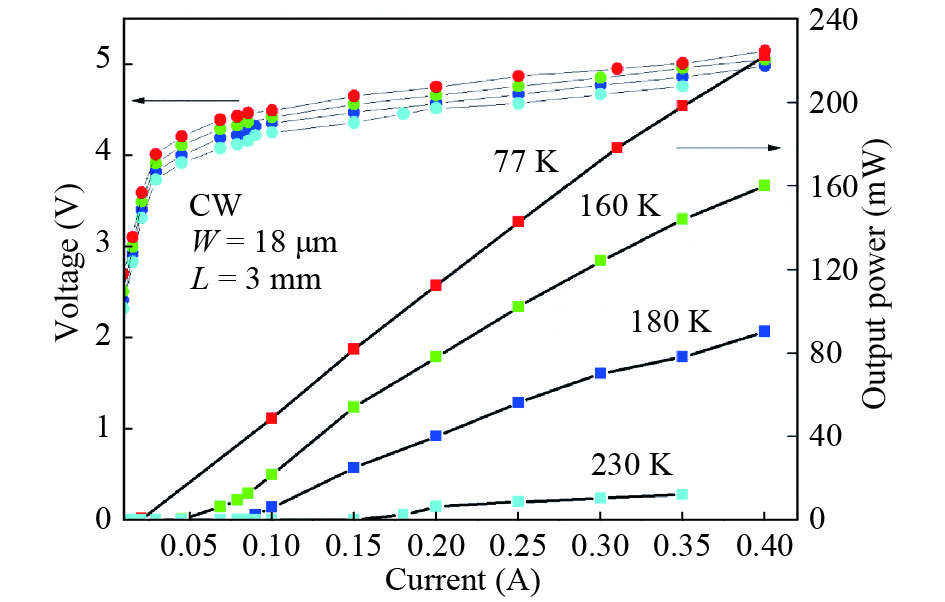

Fig. 9. (Color online) Measured I–V–P characteristics of a narrow ridge laser (18 μm × 3 mm) from wafer C582 in cw mode.
