Abstract: This study focused on the evolution of growth front about AlN growth on nano-patterned sapphire substrate by metal-organic chemical vapor deposition. The substrate with concave cones was fabricated by nano-imprint lithography and wet etching. Two samples with different epitaxy procedures were fabricated, manifesting as two-dimensional growth mode and three-dimensional growth mode, respectively. The results showed that growth temperature deeply influenced the growth modes and thus played a critical role in the coalescence of AlN. At a relatively high temperature, the AlN epilayer was progressively coalescence and the growth mode was two-dimensional. In this case, we found that the inclined semi-polar facets arising in the process of coalescence were {11ˉ21} type. But when decreasing the temperature, the {11ˉ22} semi-polar facets arose, leading to inverse pyramid morphology and obtaining the three-dimensional growth mode. The 3D inverse pyramid AlN structure could be used for realizing 3D semi-polar UV-LED or facet-controlled epitaxial lateral overgrowth of AlN.

Key words: AlNepitaxial lateral overgrowthgrowth front evolution2D and 3D growth modesMOCVD

High-quality AlN template is essential to fabricate high-efficiency deep-ultraviolet light-emitting diodes (LEDs) and laser diodes (LDs), which can be widely used in sterilization, water purification, medicine, and biochemistry. Sapphire is one of the most suitable substrates for high-quality AlN template, thanks to its mature processing technique and high transparency in UV-light range[1]. However, the heteroepitaxy of AlN template in sapphire substrate leads to high threading dislocation density (TDD), typically in the order of 109–1010 cm–2, and deteriorates internal quantum efficiency (IQE) of the devices. Epitaxial lateral overgrowth (ELOG) on patterned sapphire substrate (PSS) or AlN/sapphire template has been proven to be an effective technique to obtain low TDD and crack-free AlN template since part of the threading dislocations would bend and get annihilated[2, 3]. Many groups used those techniques to obtain high-performance device which was benefited from high internal quantum efficiency due to the improvement of crystal quality[46].

Various patterns are selected to serve for the ELOG, such as stripe[3, 4, 717], concave cone[5, 1820] or convex cone[21]. As for the stripe pattern, realizing coalescence of AlN has been a crucial issue. Many groups discussed the influence of stripe direction[3, 8, 9, 13], and found that if the stripe is along 11ˉ20AlN, the coalescence is very difficult. The other growth conditions, such as growth temperature[3, 8, 9, 12], V/III ratio[12, 16] were also optimized to obtain flat AlN. Some groups combined the ELOG with migration enhanced technique[7, 11], which is useful to accelerate the coalescence. For the convex cone pattern, which is widely used for commercial blue LED, none report has been heard that AlN can coalesce like GaN by MOCVD. However, Hagedorn et al.[21] realized coalescence of AlN grown on the top of the truncated cone, which is more like the coalescence of AlN rods[6, 22].

ELOG on concave patterned sapphire substrate can bring significant improvements for the crystal quality and device performance, which has reported by Dong et al.[5, 18]. Wang et al.[20] and Zhang et al.[19] further explored the V/III radio and pattern’s size to reduce the TDD. However, the morphology evolution and coalescence mechanism of AlN grown on the concave patterned sapphire substrate has been rarely reported. In fact, coalescence mechanism of the AlN differs greatly from the GaN. The {11ˉ22} facet which typically exists in the process of ELOG of GaN is almost invisible in the ELOG of AlN, unless modulating the growth temperature, which would be shown later. And purely modulating the V/III ratio could not obtain the stabilized growth of {11ˉ22} facet.

It should be noted that evolution of the facets might affect the evolution of the dislocation. For instance, with reference to the ELOG of GaN, the inclined facets arising in the process of coalescence play an important role in reducing the dislocation, as the threading dislocations which terminate at the inclined facets will bend in the basal plane during the lateral growth. Consequently, two steps ELOG of GaN including both 3D process which makes the surface contain as large inclined facets as possible and 2D recovery process was mentioned to improve crystal quality, which is called facet-controlled epitaxial lateral overgrowth (FACELO)[2326]. To our knowledge, such concept has been rarely studied in the ELOG of AlN. However, as for ELOG of AlN, high-density threading dislocations might still exist above the mesa region[9, 10].

In this paper, morphology evolution of AlN growth on NPSS under different growth conditions was detailly discussed and the growth habit of the {11ˉ22} facet of AlN was reported. For the common growth conditions (high temperature and appropriate V/III ratio), the AlN has 2D growth mode. The {11ˉ21} facets arise and then vanish in the process, thus leading to coalescence. And when decreasing the temperature, the {11ˉ22} facets arise, leading to 3D growth mode. Keeping growth at the lower temperature, the (0001) c-plane facet vanishes and growth front entirely consists of {11ˉ22} facets, appearing to inverse pyramid AlN structure.

In this research, the NPSS was fabricated by nano-imprint lithography. As shown in Fig. 1, the opening diameter of circular hole is about 350 nm, and the period of the pattern is about 500 nm. A home-made low-pressure metal–organic chemical vapor deposition (LP–MOCVD) system with a vertical shower-head reactor was used to process epitaxial growth. Trimethylaluminum (TMAl) and ammonia (NH3) were used as precursors for Al and N, respectively. High-purity hydrogen (H2 )was used as the carrier gas. The reaction pressure was set as 50 Torr. Two samples with different structures were fabricated, as shown in Fig. 2, which manifested as different growth modes. The sample I contained the HT-AlN layers purely, which were grown at 1200 °C as normal growth temperature. The growth time for the HT-AlN in sample I was two hours, leading to near coalescence of the AlN epilayer. And the growth process of sample I was divided into three stages, which were labeled as S1 (0~40 min), S2 (40–60 min) and S3 (60–120 min), to investigate the evolution of the surface morphology. For sample II, an MT-AlN layer was grown based on the HT-AlN layer at 1130 °C. The growth time for the both HT-AlN layer and MT-AlN layer in sample II was 40 min. In addition, the V/III ratios of the HT-AlN and MT-AlN were 578 and 1156, respectively. Both samples were grown based on low-temperature buffer layer at 790 °C. The growth rate of HT-AlN and MT-AlN under the abovementioned growth condition was about 1.2 μm/h. After growth, scanning electron microscopy (SEM) and atomic force microscope (AFM) were used to study the surface morphology of the AlN.

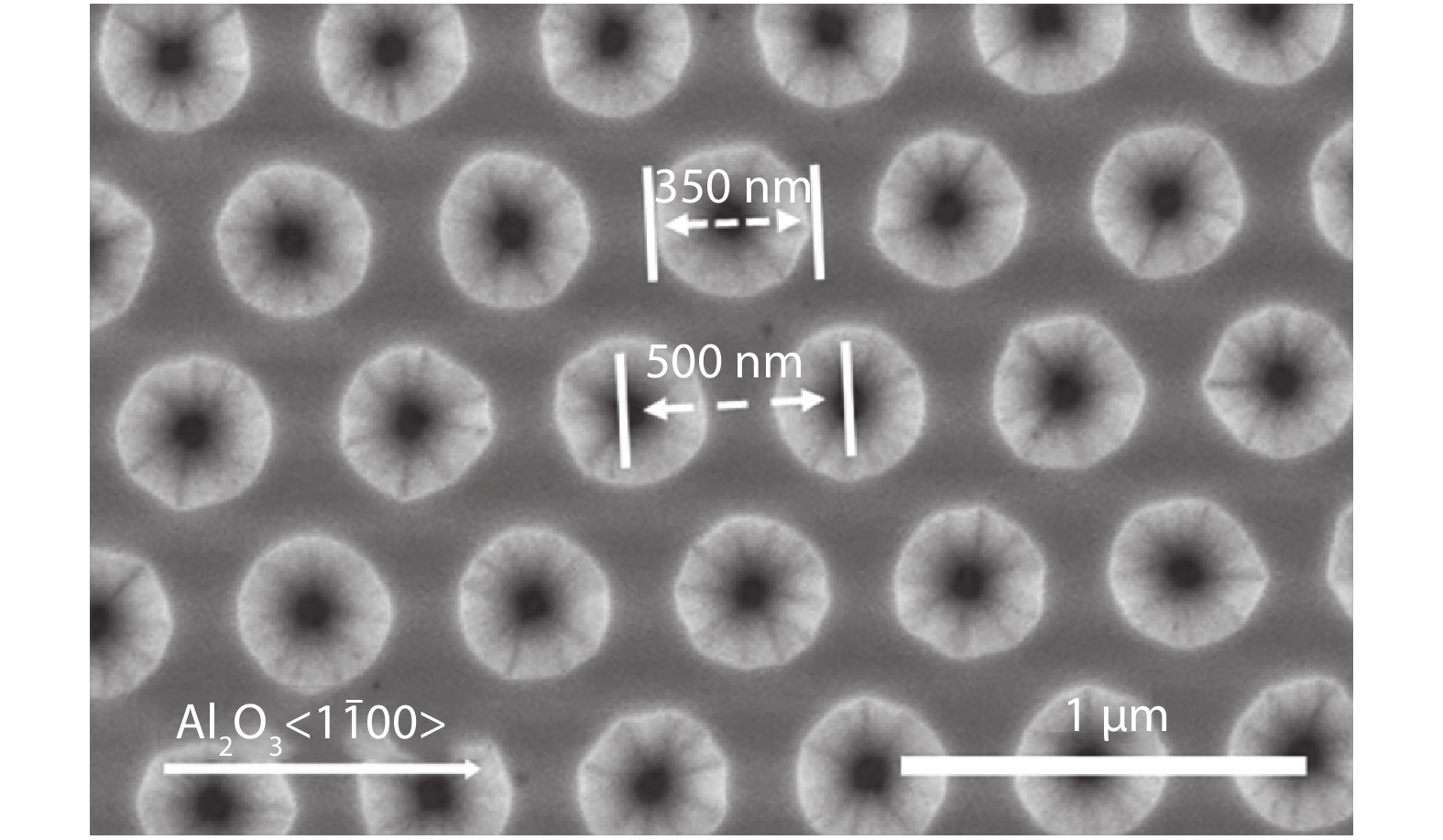

Figure  1.  Plan-view SEM image of the NPSS.

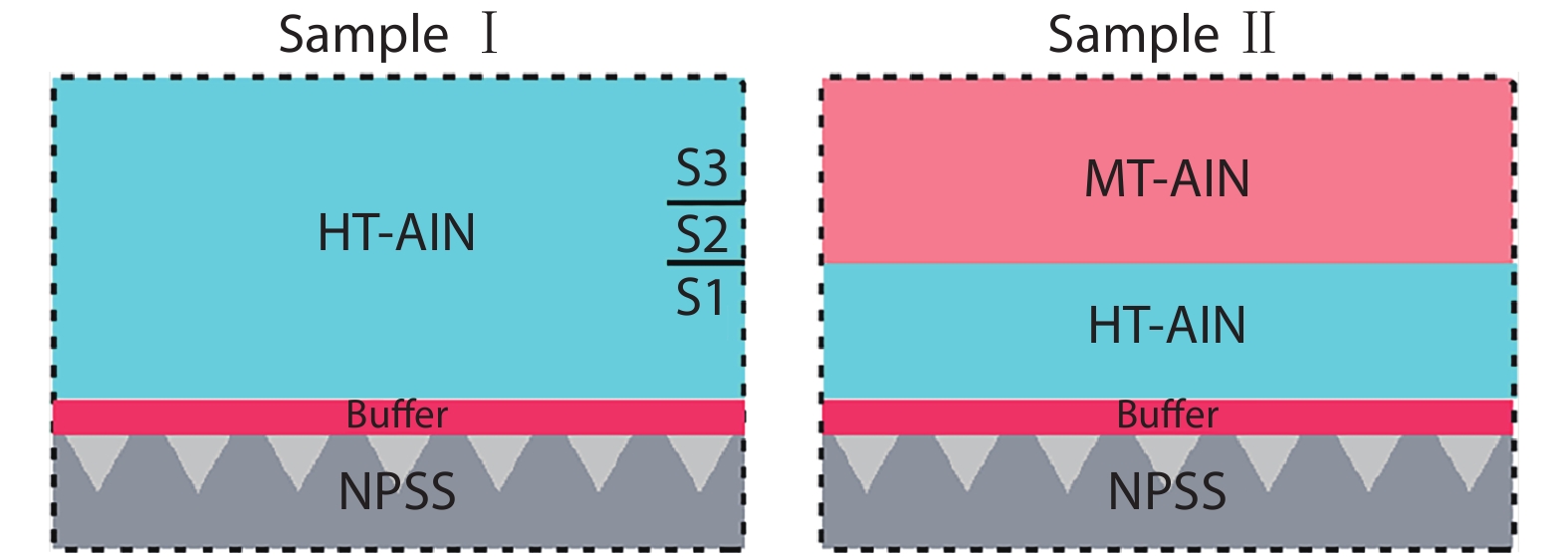

Figure  2.  (Color online) Schematic diagrams of two samples with different structures.

Fig. 3 presents the morphology of three distinguishing stages of Sample I. The corresponding growth time was 40, 60, and 120 min, respectively. At the initial stage, locally continuous AlN film with circular holes was gradually formed above un-etched mesa zones of the substrate after hundreds-nanometer growth. Then the outer contour of the holes turned into a hexagon shape when thickness of the AlN is around 800 nm, as shown in Fig. 3(a). Six inclined {11ˉ2x} facets were exposed, due to the lateral growth of the AlN. The angle θ between the {11ˉ2x} facets and the (0001) facet (c-plane) is determined by following equation

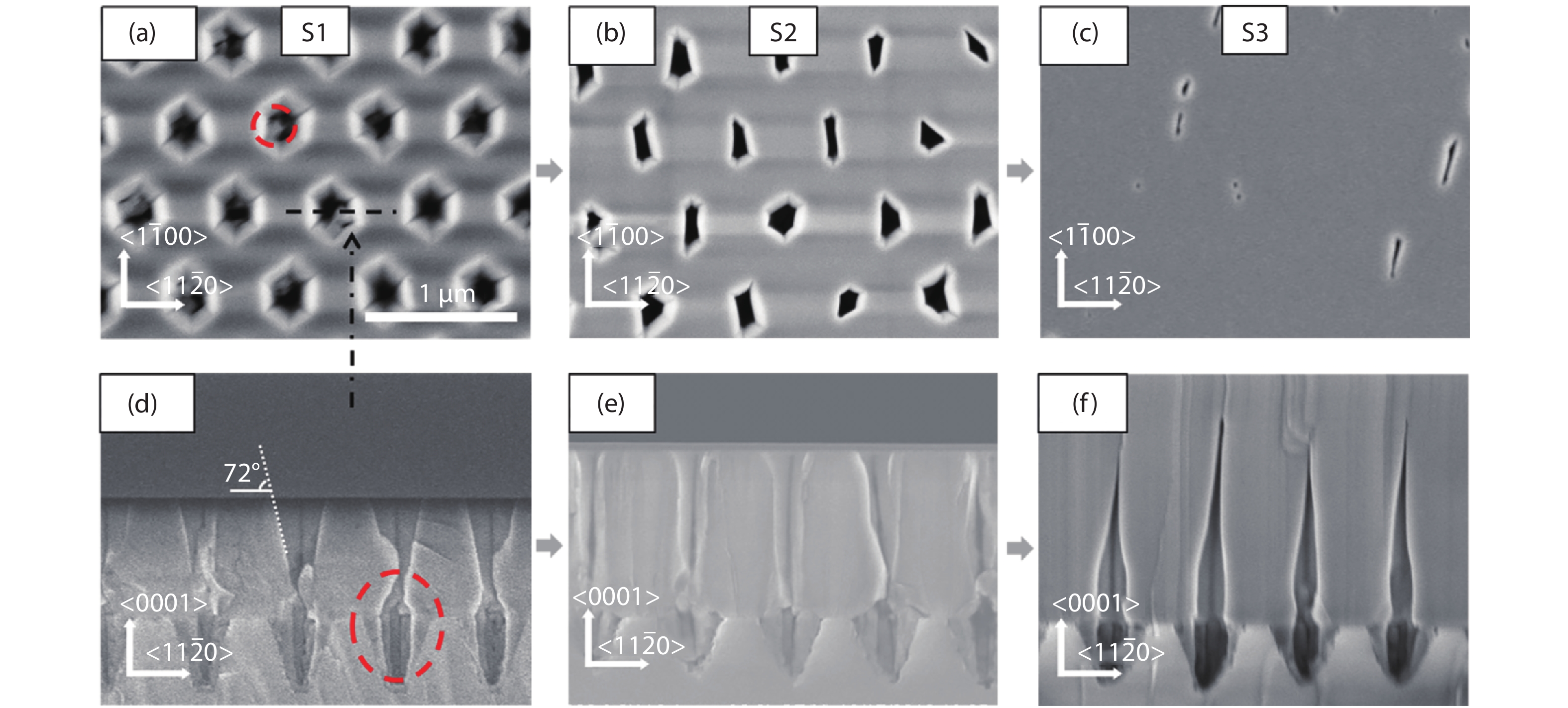

Figure  3.  (a–c) Plan-view SEM images of surface morphology of sample I at end of the three growth stages. (d–f) The corresponding cross-sectional SEM images for (a), (b) and (c). The black dashed line in (a) indicates direction of the cross-sectional view as (d), (e) and (f). All images use the same scale bar as (a).

θ=tan1(2cxa).

As shown in Fig. 3(d), the value of θ is around 72°, thus the value of x is deduced to be ~1. According to the Wulff growth theory[27], the facets dominating the growth morphology have the max growth rate, for the inward growing (concave) situation.

As shown in Figs. 3(b) and 3(e), the sidewall of the holes became vertical and the outer contour of the holes evolved to trapezium or triangle after totally 60 min growth. It illustrates that the six inclined facets are unstable. In addition, some misoriented AlN grew in the holes of sapphire substrate, as marked in the red dotted line circle in Figs. 3(a) and 3(d). Nevertheless, the misoriented AlN appearing in Fig. 3(a) is invisible in Fig. 3(b), deducing that continued growth of the misoriented AlN had been hindered when the inclined facets turned into vertical. As shown in Figs. 3(c) and 3(f), invert V-shaped air gap had been formed when the entire AlN film was nearly coalescent. The reason for the formation of the invert V-shaped air gap might be that the reactant which flowed into the holes was not sufficient for the growth of the lower part of the holes when the opening was small.

This process is quite different from GaN growth on the PSS. As for GaN[28], the entire process of coalescence keeps the symmetrical hexagonal morphology which consisted of the six {11ˉ22} facets. On the contrary, hexagonal symmetry only existed in the first stage of ELOG-AlN, as mentioned above. One of the possible reasons might be low surface migration of the Al atoms, which means the morphology was influenced mainly by reactant flow rather than surface energy. Also, we believe that the {11ˉ22} facet was crucial for the symmetrical growth, and it will be discussed later.

Fig. 4 shows the evolution of facets for sample II. The typical morphology with six hexagonal inclined facets after HT-AlN growth for 40 min can be seen in Fig. 4(a). Continuing to react at the condition as HT-AlN will obtain the flat film, thus it can be called the 2D growth mode of the AlN. Conversely, the MT-AlN grown based on HT-AlN reveals no tendency of coalescence, as shown in Fig. 4(b). Growth front of the MT-AlN film is dominated by inclined facets, as the (0001) facet shrinks and even disappears. Thus the MT-AlN epilayer has 3D growth mode.

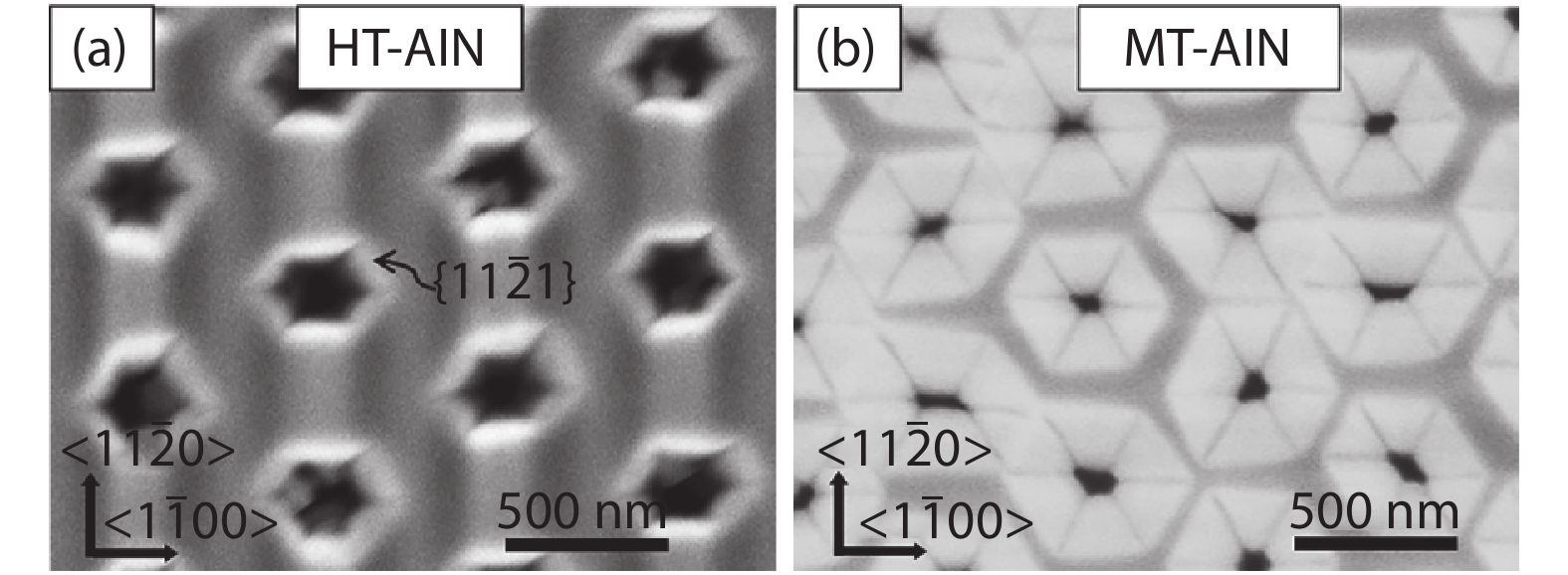

Figure  4.  Plan-view SEM images of surface morphology of Sample II.

Fig. 5(a) shows the tilted-view SEM image of surface morphology after the growth of the MT-AlN, which has been already exhibited in Fig. 4(b). It reveals that the nanoholes with inverse pyramid morphology are well-arrayed. Each hole has nearly closed bottom and six inclined facets. From the cross-sectional SEM image, as shown in the inset of Fig. 5(a), the inclination angle of the facets was measured to be 58°, implying that the facets are {11ˉ22} type. As mentioned above, the inclined facets are {11ˉ21} type for the first stage of the HT-AlN. Thus the {11ˉ22} facets were “induced” by decreasing the growth temperature based on {11ˉ21} facets. The phenomenon is related to the surface atom of the facets[29]. As shown in Fig. 5(c), the semi-polar {11ˉ22} facet has the possibilities to be N-terminated or Al-terminated. The N-terminated surface will be passivated with N–H bonds in the growth ambiance of hydrogen[3032] and hardly accommodate Al adatom, especially for the low growth temperature and N-rich condition (high V/III). Thus the {11ˉ22} facets with N-polarity which have a low growth rate are stabilized in such growth condition. While for {11ˉ21} facet, dangling bonds of Al atoms and N atoms both exist in the surface, which is not stabilized, as shown in Fig. 5(d). Stably and slowly growth of the semi-polar {11ˉ22} facets leads to the inverse pyramid morphology, which can be illustrated in a plain geometrical relationship. Fig. 5(b) is a schematic diagram of the cross section of the hole. vh represents the vertical growth rate of c-plane, and vs represents the growth rate of the sloped facet. If the point A arrives at the position A’ after a period of growth, the contour lines of the hole evolve from the solid lines to the broken lines. In this case, the relationship of growth rates vh and vs needs to satisfy

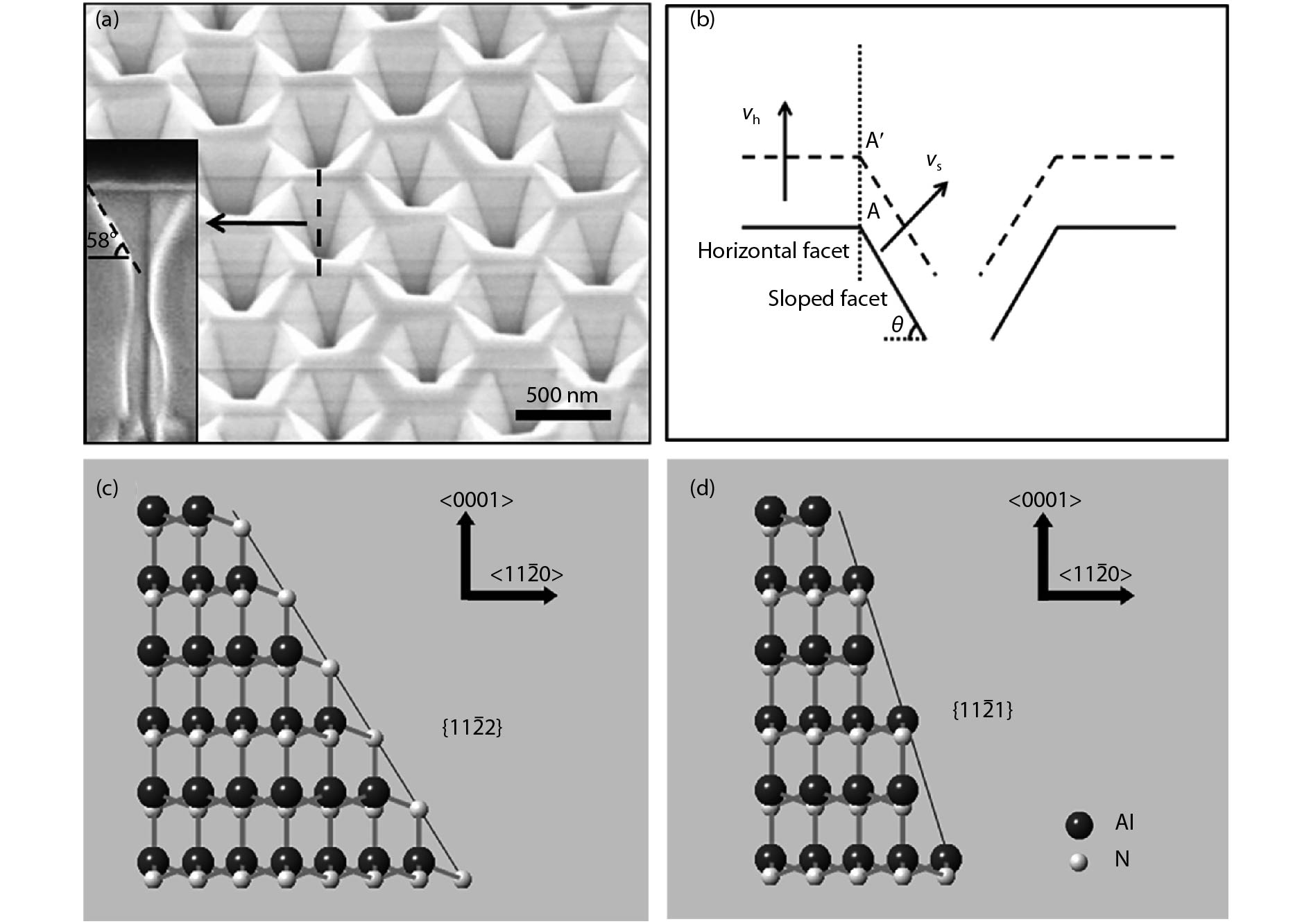

Figure  5.  (a) 25° tilted-view SEM image of surface morphology of for as-grown MT-AlN. The inset shows cross-sectional view with the direction indicated by the black dashed line. (b) Schematic diagram of AlN growth keeping the 3D morphology. (c) and (d) Schematic of the AlN atomic structure.

νs=νhcosθ.

Thus if the growth rate of the sloped gets smaller, point A will move left and top facet will shrink. So, the growth velocity of the {11ˉ22} facets should be below 0.63 μm/h at the growth condition as MT-AlN. Such inverse pyramid structure also can be used for three-dimensional semi-polar LED[33, 34], which is beneficial to reduce the quantum confined stark effect (QCSE) and the efficiency droop, and enhance the LED performance.

In addition, we also tried to realize 2D growth based on MT-AlN. The growth temperature was 1270 °C and the V/III ratio was 578. Flat surface had been obtained after the growth for 2 hours. As shown in Fig. 6(a), the total coalescence thickness was around 2.5 μm. Fig. 6(b) presents a 2 × 2 μm2 atomic force microscopy (AFM) image of the surface morphology of the sample II after 2D growth. AlN had a flat surface with a step-flow growth mode and a root-mean-square (RMS) roughness of 0.17 nm.

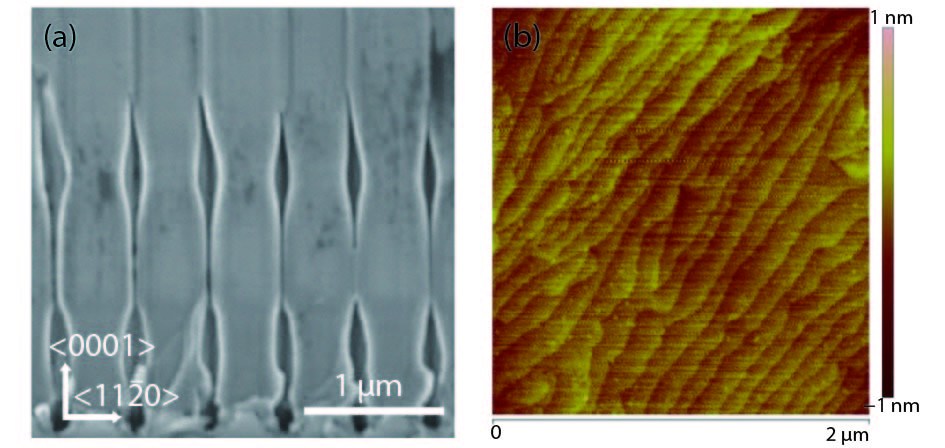

Figure  6.  (Color online) (a) Cross-sectional SEM image and (b) AFM image (2 × 2 μm2) of the Sample II after 2D growth.

Another characteristic of the 2D growth based on MT-AlN is that two rows of air gaps in the coalescence region, as shown in Fig. 6(a). The phenomenon is different with typical ELOG of AlN as sample I, which was caused by the behavior of the {11ˉ21} facets and the {11ˉ22} facets when grew the MT-AlN. Fig. 7 displays the morphology evolution of the two samples and illustrates the process of forming the air gaps in sample II. As mentioned above, the HT-AlN at the first stage has the inclined facets in {11ˉ21} type, whereas the as-grown MT-AlN which based on HT-AlN consists of {11ˉ22} facets. It’s necessary to figure out the process how the {11ˉ21} facets “transform” to {11ˉ22} facets. As shown in Fig. 7, the {11ˉ22} facets induced by low temperature in sample II derived from the upper part of {11ˉ21} facets. The {11ˉ22} facets become larger after subsequent growth due to the slow growth rate of themselves. In the meantime the other part of the {11ˉ21} facets had the same behavior as the sample I, hence a row of air gaps was formed closed to the substrate. After HT-AlN growth, the 3D structure transformed to 2D smooth surface, another row of air gaps would be formed above the first.

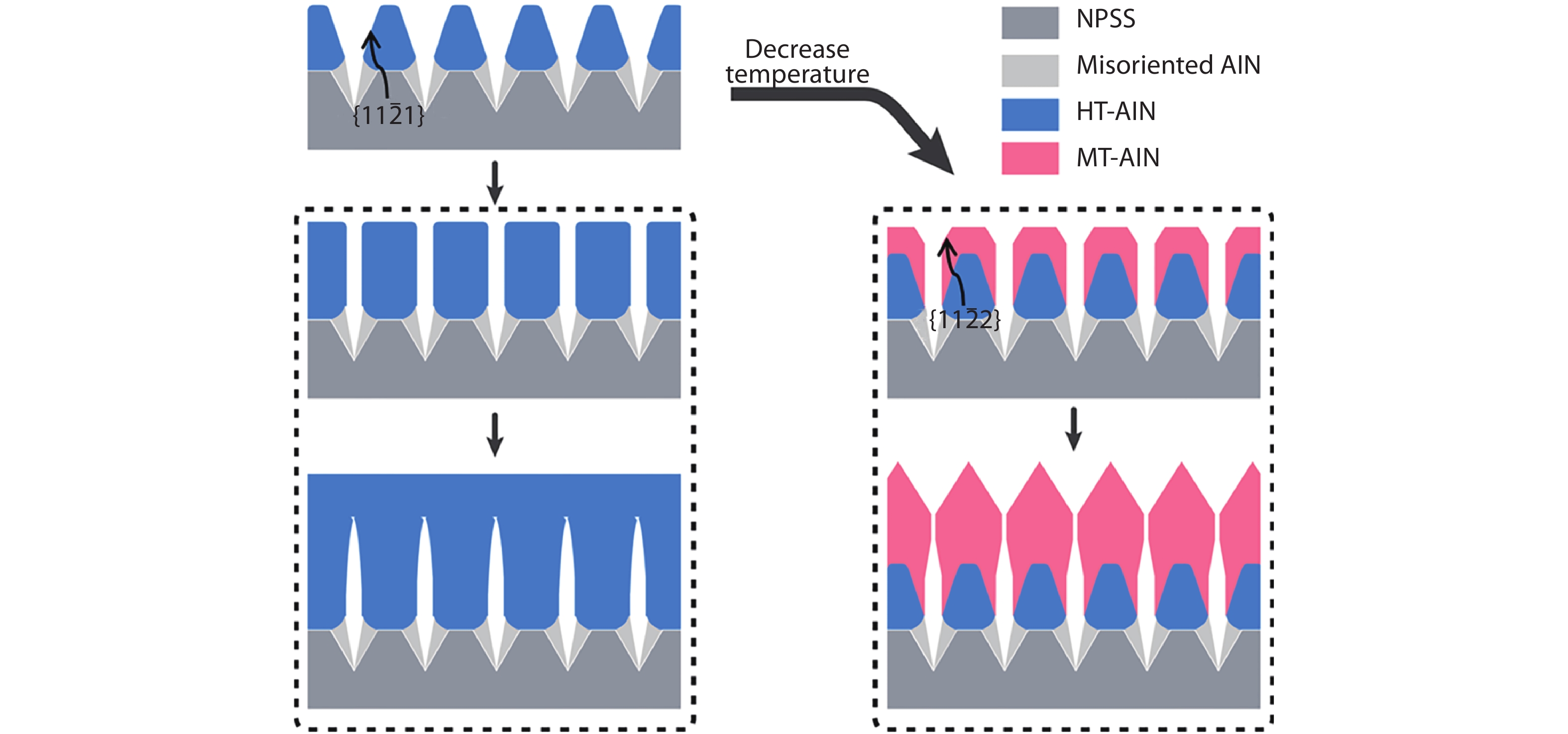

Figure  7.  (Color online) Schematic diagram of the facet evolution of both samples.

We analyzed the morphology evolution of AlN grown on NPSS. We found the process that the {11ˉ21} type facets emerge and vanish at the relatively high temperature, which illustrates instability of such type facets. And we decreased the growth temperature, inducing the growth of {11ˉ22} facets and making the growth mode transforms from the initial 2D growth mode to 3D growth mode. In this growth mode, the growth front would get rid of the {0001} type facet. Purely inverse pyramid structure was formed. Also, we implemented the high-temperature growth to transform such inverse pyramid structure to the flat surface, demonstrating temperature plays an important role in the coalescence of AlN. However, the morphology evolution related to the misfit dislocation needs to be further explored.
