J. Semicond. > 2021, Volume 42 > Issue 10 > 101602

REVIEWS

Flexible energy storage devices for wearable bioelectronics

Xiaohao Ma1, 2, Zhengfan Jiang1 and Yuanjing Lin1, 2,

+ Author Affiliations

 Corresponding author: Yuanjing Lin, linyj2020@sustech.edu.cn

DOI: 10.1088/1674-4926/42/10/101602

PDF

Turn off MathJax

Abstract: With the growing market of wearable devices for smart sensing and personalized healthcare applications, energy storage devices that ensure stable power supply and can be constructed in flexible platforms have attracted tremendous research interests. A variety of active materials and fabrication strategies of flexible energy storage devices have been intensively studied in recent years, especially for integrated self-powered systems and biosensing. A series of materials and applications for flexible energy storage devices have been studied in recent years. In this review, the commonly adopted fabrication methods of flexible energy storage devices are introduced. Besides, recent advances in integrating these energy devices into flexible self-powered systems are presented. Furthermore, the applications of flexible energy storage devices for biosensing are summarized. Finally, the prospects and challenges of the self-powered sensing system for wearable electronics are discussed.

Key words: flexible electronicsenergy storage devicesself-powered systemswearable bioelectronics



[1]
Ernst T, Guillemaud R, Mailley P, et al. Sensors and related devices for IoT, medicine and smart-living. 2018 IEEE Symposium on VLSI Technology, 2018, 35
[2]
Huraj L, Šimon M, Horák T. Resistance of IoT sensors against DDoS attack in smart home environment. Sensors, 2020, 20, 5298 doi: 10.3390/s20185298
[3]
Wang C, Qu X, Zheng Q, et al. Stretchable, self-healing, and skin-mounted active sensor for multipoint muscle function assessment. ACS Nano, 2021, 15, 10130 doi: 10.1021/acsnano.1c02010
[4]
Zhao Y F, Guo J C. Development of flexible Li-ion batteries for flexible electronics. InfoMat, 2020, 2, 866 doi: 10.1002/inf2.12117
[5]
Yu P, Zeng Y X, Zhang H Z, et al. Flexible Zn-ion batteries: Recent progresses and challenges. Small, 2019, 15, 1804760 doi: 10.1002/smll.201804760
[6]
He Y H, Matthews B, Wang J Y, et al. Innovation and challenges in materials design for flexible rechargeable batteries: From 1D to 3D. J Mater Chem A, 2018, 6, 735 doi: 10.1039/C7TA09301B
[7]
Ghouri A S, Aslam R, Siddiqui M S, et al. Recent progress in textile-based flexible supercapacitor. Front Mater, 2020, 7, 58 doi: 10.3389/fmats.2020.00058
[8]
Xiong W, Hu K, Li Z, et al. A wearable system based on core-shell structured peptide-Co9S8 supercapacitor and triboelectric nanogenerator. Nano Energy, 2019, 66, 104149 doi: 10.1016/j.nanoen.2019.104149
[9]
Huang H T, Lu L F, Wang J, et al. Performance enhancement of thin-film amorphous silicon solar cells with low cost nanodent plasmonic substrates. Energy Environ Sci, 2013, 6, 2965 doi: 10.1039/c3ee41139g
[10]
Woo S, Nam D, Chang W, et al. A layer-by-layer assembly route to electroplated fibril-based 3D porous current collectors for energy storage devices. Small, 2021, 17, 2007579 doi: 10.1002/smll.202007579
[11]
Orangi J, Hamade F, Davis V A, et al. 3D printing of additive-free 2D Ti3C2Tx (MXene) ink for fabrication of micro-supercapacitors with ultra-high energy densities. ACS Nano, 2020, 14, 640 doi: 10.1021/acsnano.9b07325
[12]
He W, Wang C, Wang H, et al. Integrated textile sensor patch for real-time and multiplex sweat analysis. Sci Adv, 2019, 5, eaax0649 doi: 10.1126/sciadv.aax0649
[13]
Zhang S M, Cicoira F. Flexible self-powered biosensors. Nature, 2018, 561, 466 doi: 10.1038/d41586-018-06788-1
[14]
Gao W, Emaminejad S, Nyein H Y Y, et al. Fully integrated wearable sensor arrays for multiplexed in situ perspiration analysis. Nature, 2016, 529, 509 doi: 10.1038/nature16521
[15]
Jiang D J, Ouyang H, Shi B J, et al. A wearable noncontact free-rotating hybrid nanogenerator for self-powered electronics. InfoMat, 2020, 2, 1191 doi: 10.1002/inf2.12103
[16]
Wang Y K, Yang Q, Zhao Y, et al. Recent advances in electrode fabrication for flexible energy-storage devices. Adv Mater Technol, 2019, 4, 1900083 doi: 10.1002/admt.201900083
[17]
Zheng S S, Li Q, Xue H G, et al. A highly alkaline-stable metal oxide@metal-organic framework composite for high-performance electrochemical energy storage. Natl Sci Rev, 2020, 7, 305 doi: 10.1093/nsr/nwz137
[18]
Naresh B, Punnoose D, Rao S S, et al. Hydrothermal synthesis and pseudocapacitive properties of morphology-tuned nickel sulfide (NiS) nanostructures. New J Chem, 2018, 42, 2733 doi: 10.1039/C7NJ05054B
[19]
Yin C J, Zhou H M, Li J. Facile one-step hydrothermal synthesis of PEDOT: PSS/MnO2 nanorod hybrids for high-rate supercapacitor electrode materials. Ionics, 2019, 25, 685 doi: 10.1007/s11581-018-2680-6
[20]
Wu F F, Gao X B, Xu X L, et al. MnO2 nanosheet-assembled hollow polyhedron grown on carbon cloth for flexible aqueous zinc-ion batteries. ChemSusChem, 2020, 13, 1537 doi: 10.1002/cssc.201903006
[21]
Surthi K K, Kar K K, Janakarajan R. Shape controlled and structurally stabilized Co-doped olivine lithium phosphate cathodes for high voltage conventional, thin and flexible Li-ion batteries. Chem Eng J, 2020, 399, 125858 doi: 10.1016/j.cej.2020.125858
[22]
Zhu K X, Gao H Y, Hu G X. A flexible mesoporous Li4Ti5O12-rGO nanocomposite film as free-standing anode for high rate lithium ion batteries. J Power Sources, 2018, 375, 59 doi: 10.1016/j.jpowsour.2017.11.053
[23]
Peng T, Hou X Y, Liu C, et al. Controlled synthesis of hierarchical CoMn2O4 nanostructures for flexible all-solid-state battery-type electrodes. J Solid State Electrochem, 2017, 21, 1579 doi: 10.1007/s10008-017-3516-4
[24]
Li Z J, Yang J X, Guang T J, et al. Controlled hydrothermal/solvothermal synthesis of high-performance LiFePO4 for Li-ion batteries. Small Methods, 2021, 5, 2100193 doi: 10.1002/smtd.202100193
[25]
Singh S B, Singh T I, Kim N H, et al. A core–shell MnO2@Au nanofiber network as a high-performance flexible transparent supercapacitor electrode. J Mater Chem A, 2019, 7, 10672 doi: 10.1039/C9TA00778D
[26]
Han Y, Chatti M, Ge Y, et al. Binder-free electrodes derived from interlayer-expanded MoS2 nanosheets on carbon cloth with a 3D porous structure for lithium storage. ChemElectroChem, 2019, 6, 2338 doi: 10.1002/celc.201900270
[27]
Ardon M, Hayes P D, Hogarth G. Microwave-assisted reflux in organometallic chemistry: Synthesis and structural determination of molybdenum carbonyl complexes. an intermediate-level organometallic-inorganic experiment. J Chem Educ, 2002, 79, 1249 doi: 10.1021/ed079p1249
[28]
Vijay S K, Prabhu R K, Annie D, et al. Microwave-assisted preparation of precursor for the synthesis of nanocrystalline boron carbide powder. Trans Indian Ceram Soc, 2020, 79, 244 doi: 10.1080/0371750X.2020.1832581
[29]
Zhao J, Gong J W, Zhou C L, et al. Utilizing human hair for solid-state flexible fiber-based asymmetric supercapacitors. Appl Surf Sci, 2020, 508, 145260 doi: 10.1016/j.apsusc.2020.145260
[30]
Hong X D, Fu J W, Liu Y, et al. Strawberry-like carbonized cotton Cloth@Polyaniline nanocomposite for high-performance symmetric supercapacitors. Mater Chem Phys, 2021, 258, 123999 doi: 10.1016/j.matchemphys.2020.123999
[31]
Jeon H, Jeong J M, Hong S B, et al. Facile and fast microwave-assisted fabrication of activated and porous carbon cloth composites with graphene and MnO2 for flexible asymmetric supercapacitors. Electrochim Acta, 2018, 280, 9 doi: 10.1016/j.electacta.2018.05.108
[32]
Tan J B, Thomas T, Liu J X, et al. Rapid microwave-assisted preparation of high-performance bifunctional Ni3Fe/Co-N-C for rechargeable Zn-air battery. Chem Eng J, 2020, 395, 125151 doi: 10.1016/j.cej.2020.125151
[33]
Dirican M, Yildiz O, Lu Y, et al. Flexible binder-free silicon/silica/carbon nanofiber composites as anode for lithium-ion batteries. Electrochim Acta, 2015, 169, 52 doi: 10.1016/j.electacta.2015.04.035
[34]
Gomez De Arco L, Zhang Y, Schlenker C W, et al. Continuous, highly flexible, and transparent graphene films by chemical vapor deposition for organic photovoltaics. ACS Nano, 2010, 4, 2865 doi: 10.1021/nn901587x
[35]
Dogru I B, Durukan M B, Turel O, et al. Flexible supercapacitor electrodes with vertically aligned carbon nanotubes grown on aluminum foils. Prog Nat Sci: Mater Int, 2016, 26, 232 doi: 10.1016/j.pnsc.2016.05.011
[36]
Zhang Z J, Ren Z, Zhang S F, et al. High-yielding carbon nanofibers grown on NIPS-derived porous nickel as a flexible electrode for supercapacitors. Mater Chem Front, 2020, 4, 2976 doi: 10.1039/D0QM00483A
[37]
Zang X N, Jiang Y Q, Sanghadasa M, et al. Chemical vapor deposition of 3D graphene/carbon nanotubes networks for hybrid supercapacitors. Sens Actuators A, 2020, 304, 111886 doi: 10.1016/j.sna.2020.111886
[38]
Gao H X, Hou F, Zheng X R, et al. Electrochemical property studies of carbon nanotube films fabricated by CVD method as anode materials for lithium-ion battery applications. Vacuum, 2015, 112, 1 doi: 10.1016/j.vacuum.2014.10.017
[39]
Yang Z D, Yang X Y, Liu T, et al. In situ CVD derived co-N-C composite as highly efficient cathode for flexible Li-O2 batteries. Small, 2018, 14, 1800590 doi: 10.1002/smll.201800590
[40]
Manjakkal L, Pullanchiyodan A, Yogeswaran N, et al. A wearable supercapacitor based on conductive PEDOT:PSS-coated cloth and a sweat electrolyte. Adv Mater, 2020, 32, 1907254 doi: 10.1002/adma.201907254
[41]
Ma F, Dai X Q, Jin J, et al. Hierarchical core-shell hollow CoMoS4@Ni-Co-S nanotubes hybrid arrays as advanced electrode material for supercapacitors. Electrochim Acta, 2020, 331, 135459 doi: 10.1016/j.electacta.2019.135459
[42]
Xie C, Shan H, Song X X, et al. Flexible S@C-CNTs cathodes with robust mechanical strength via blade-coating for lithium-sulfur batteries. J Colloid Interface Sci, 2021, 592, 448 doi: 10.1016/j.jcis.2021.02.065
[43]
Song J Y, Lee H H, Hong W, et al. A polysulfide-infiltrated carbon cloth cathode for high-performance flexible lithium–sulfur batteries. Nanomaterials, 2018, 8, 90 doi: 10.3390/nano8020090
[44]
Kim D H, Lee Y H, Song Y B, et al. Thin and flexible solid electrolyte membranes with ultrahigh thermal stability derived from solution-processable Li argyrodites for all-solid-state Li-ion batteries. ACS Energy Lett, 2020, 5, 718 doi: 10.1021/acsenergylett.0c00251
[45]
Yuan H, Wang G, Zhao Y X, et al. A stretchable, asymmetric, coaxial fiber-shaped supercapacitor for wearable electronics. Nano Res, 2020, 13, 1686 doi: 10.1007/s12274-020-2793-x
[46]
Kim S W, Yun J H, Son B, et al. Graphite/silicon hybrid electrodes using a 3D current collector for flexible batteries. Adv Mater, 2014, 26, 2977 doi: 10.1002/adma.201305600
[47]
Cheng M, Deivanayagam R, Shahbazian-Yassar R. 3D printing of electrochemical energy storage devices: A review of printing techniques and electrode/electrolyte architectures. Batter Supercaps, 2020, 3, 130 doi: 10.1002/batt.201900130
[48]
Krishnadoss V, Kanjilal B, Hesketh A, et al. In situ 3D printing of implantable energy storage devices. Chem Eng J, 2021, 409, 128213 doi: 10.1016/j.cej.2020.128213
[49]
Bao Y H, Liu Y, Kuang Y D, et al. 3D-printed highly deformable electrodes for flexible lithium ion batteries. Energy Storage Mater, 2020, 33, 55 doi: 10.1016/j.ensm.2020.07.010
[50]
Kong D, Wang Y, Huang S, et al. 3D printed compressible quasi-solid-state nickel-iron battery. ACS Nano, 2020, 14, 9675 doi: 10.1021/acsnano.0c01157
[51]
Wang Z Q, Meng X Y, Chen K, et al. Development of high-capacity periodate battery with three-dimensional-printed casing accommodating replaceable flexible electrodes. ACS Appl Mater Interfaces, 2018, 10, 30257 doi: 10.1021/acsami.8b05578
[52]
Praveen S, Sim G S, Ho C W, et al. 3D-printed twisted yarn-type Li-ion battery towards smart fabrics. Energy Storage Mater, 2021, 41, 748 doi: 10.1016/j.ensm.2021.07.024
[53]
Lou Z, Li L, Wang L L, et al. Recent progress of self-powered sensing systems for wearable electronics. Small, 2017, 13, 1701791 doi: 10.1002/smll.201701791
[54]
Liu Y M, Wang L Y, Zhao L, et al. Recent progress on flexible nanogenerators toward self-powered systems. InfoMat, 2020, 2, 318 doi: 10.1002/inf2.12079
[55]
Hu Y X, Ding S S, Chen P, et al. Flexible solar-rechargeable energy system. Energy Storage Mater, 2020, 32, 356 doi: 10.1016/j.ensm.2020.06.028
[56]
Ostfeld A E, Gaikwad A M, Khan Y, et al. High-performance flexible energy storage and harvesting system for wearable electronics. Sci Rep, 2016, 6, 26122 doi: 10.1038/srep26122
[57]
Yang X Y, Feng X L, Jin X, et al. An illumination-assisted flexible self-powered energy system based on a Li-O2 battery. Angew Chem Int Ed, 2019, 58, 16411 doi: 10.1002/anie.201907805
[58]
Zamarayeva A M, Ostfeld A E, Wang M, et al. Flexible and stretchable power sources for wearable electronics. Sci Adv, 2017, 3, e1602051 doi: 10.1126/sciadv.1602051
[59]
Hashemi S A, Ramakrishna S, Aberle A G. Recent progress in flexible–wearable solar cells for self-powered electronic devices. Energy Environ Sci, 2020, 13, 685 doi: 10.1039/C9EE03046H
[60]
Lin Y J, Chen J Q, Tavakoli M M, et al. Printable fabrication of a fully integrated and self-powered sensor system on plastic substrates. Adv Mater, 2019, 31, 1804285 doi: 10.1002/adma.201804285
[61]
Dong P, Rodrigues M T F, Zhang J, et al. A flexible solar cell/supercapacitor integrated energy device. Nano Energy, 2017, 42, 181 doi: 10.1016/j.nanoen.2017.10.035
[62]
Nozariasbmarz A, Collins H, Dsouza K, et al. Review of wearable thermoelectric energy harvesting: From body temperature to electronic systems. Appl Energy, 2020, 258, 114069 doi: 10.1016/j.apenergy.2019.114069
[63]
Liu Y Q, Zhang S, Zhou Y T, et al. Advanced wearable thermocells for body heat harvesting. Adv Energy Mater, 2020, 10, 2002539 doi: 10.1002/aenm.202002539
[64]
Yang Y, Zhang H L, Zhu G, et al. Flexible hybrid energy cell for simultaneously harvesting thermal, mechanical, and solar energies. ACS Nano, 2013, 7, 785 doi: 10.1021/nn305247x
[65]
Xia K Q, Tang H C, Fu J M, et al. A high strength triboelectric nanogenerator based on rigid-flexible coupling design for energy storage system. Nano Energy, 2020, 67, 104259 doi: 10.1016/j.nanoen.2019.104259
[66]
Jiang Q, Wu C S, Wang Z J, et al. MXene electrochemical microsupercapacitor integrated with triboelectric nanogenerator as a wearable self-charging power unit. Nano Energy, 2018, 45, 266 doi: 10.1016/j.nanoen.2018.01.004
[67]
Yi F, Wang J, Wang X, et al. Stretchable and waterproof self-charging power system for harvesting energy from diverse deformation and powering wearable electronics. ACS Nano, 2016, 10, 6519 doi: 10.1021/acsnano.6b03007
[68]
Maitra A, Paria S, Karan S K, et al. Triboelectric nanogenerator driven self-charging and self-healing flexible asymmetric supercapacitor power cell for direct power generation. ACS Appl Mater Interfaces, 2019, 11, 5022 doi: 10.1021/acsami.8b19044
[69]
Pu X, Li L X, Liu M M, et al. Wearable self-charging power textile based on flexible yarn supercapacitors and fabric nanogenerators. Adv Mater, 2016, 28, 98 doi: 10.1002/adma.201504403
[70]
Chun S, Son W, Lee G, et al. Single-layer graphene-based transparent and flexible multifunctional electronics for self-charging power and touch-sensing systems. ACS Appl Mater Interfaces, 2019, 11, 9301 doi: 10.1021/acsami.8b20143
[71]
Vyas A, Li Q, Eeckhoudt R V D, et al. Towards integrated flexible energy harvester and supercapacitor for self-powered wearable sensors. 2019 19th International Conference on Micro and Nanotechnology for Power Generation and Energy Conversion Applications (PowerMEMS), 2019, 1
[72]
Gilshteyn E P, Amanbaev D, Silibin M V, et al. Flexible self-powered piezo-supercapacitor system for wearable electronics. Nanotechnology, 2018, 29, 325501 doi: 10.1088/1361-6528/aac658
[73]
He H X, Fu Y M, Zhao T M, et al. All-solid-state flexible self-charging power cell basing on piezo-electrolyte for harvesting/storing body-motion energy and powering wearable electronics. Nano Energy, 2017, 39, 590 doi: 10.1016/j.nanoen.2017.07.033
[74]
Zou Y, Liao J W, Ouyang H, et al. A flexible self-arched biosensor based on combination of piezoelectric and triboelectric effects. Appl Mater Today, 2020, 20, 100699 doi: 10.1016/j.apmt.2020.100699
[75]
Cheng C, Li X, Xu G, et al. Battery-free, wireless, and flexible electrochemical patch for in situ analysis of sweat cortisol via near field communication. Biosens Bioelectron, 2021, 172, 112782 doi: 10.1016/j.bios.2020.112782
[76]
Zhang W, Guan H Y, Zhong T Y, et al. Wearable battery-free perspiration analyzing sites based on sweat flowing on ZnO nanoarrays. Nano Micro Lett, 2020, 12, 1 doi: 10.1007/s40820-019-0337-2
[77]
Mazzaracchio V, Fiore L, Nappi S, et al. Medium-distance affordable, flexible and wireless epidermal sensor for pH monitoring in sweat. Talanta, 2021, 222, 121502 doi: 10.1016/j.talanta.2020.121502
[78]
Lim H R, Lee Y, Jones K A, et al. All-in-one, wireless, fully flexible sodium sensor system with integrated Au/CNT/Au nanocomposites. Sens Actuators B, 2021, 331, 129416 doi: 10.1016/j.snb.2020.129416
[79]
Manjakkal L, Núñez C G, Dang W T, et al. Flexible self-charging supercapacitor based on graphene-Ag-3D graphene foam electrodes. Nano Energy, 2018, 51, 604 doi: 10.1016/j.nanoen.2018.06.072
[80]
Cai G, Hao B, Luo L, et al. Highly stretchable sheath-core yarns for multifunctional wearable electronics. ACS Appl Mater Interfaces, 2020, 12, 29717 doi: 10.1021/acsami.0c08840
[81]
Wang Q F, Ran X, Shao W K, et al. High performance flexible supercapacitor based on metal-organic-framework derived CoSe2 nanosheets on carbon nanotube film. J Power Sources, 2021, 490, 229517 doi: 10.1016/j.jpowsour.2021.229517
[82]
Sun T R, Shen L X, Jiang Y, et al. Wearable textile supercapacitors for self-powered enzyme-free smartsensors. ACS Appl Mater Interfaces, 2020, 12, 21779 doi: 10.1021/acsami.0c05465
[83]
Wu T, Wu X J, Li L H, et al. Anisotropic boron-carbon hetero-nanosheets for ultrahigh energy density supercapacitors. Angew Chem Int Ed, 2020, 59, 23800 doi: 10.1002/anie.202011523
[84]
Wang L, Zhang Y, Pan J, et al. Stretchable lithium-air batteries for wearable electronics. J Mater Chem A, 2016, 4, 13419 doi: 10.1039/C6TA05800K
[85]
Sun H Y, Pan N, Jin X, et al. Active-powering pressure-sensing fabric devices. J Mater Chem A, 2020, 8, 358 doi: 10.1039/C9TA09395H
[86]
Wang Z F, Mo F N, Ma L T, et al. Highly compressible cross-linked polyacrylamide hydrogel-enabled compressible Zn–MnO2 battery and a flexible battery–sensor system. ACS Appl Mater Interfaces, 2018, 10, 44527 doi: 10.1021/acsami.8b17607
[87]
Liao M, Wang J W, Ye L, et al. A high-capacity aqueous zinc-ion battery fiber with air-recharging capability. J Mater Chem A, 2021, 9, 6811 doi: 10.1039/D1TA00803J
[88]
Song Y, Min J H, Yu Y, et al. Wireless battery-free wearable sweat sensor powered by human motion. Sci Adv, 2020, 6, eaay9842 doi: 10.1126/sciadv.aay9842
[89]
Han W X, He H X, Zhang L L, et al. A self-powered wearable noninvasive electronic-skin for perspiration analysis based on piezo-biosensing unit matrix of enzyme/ZnO nanoarrays. ACS Appl Mater Interfaces, 2017, 9, 29526 doi: 10.1021/acsami.7b07990
[90]
Peng Z, Jia D S, Tang J, et al. CoNiO2/TiN–TiO xN y composites for ultrahigh electrochemical energy storage and simultaneous glucose sensing. J Mater Chem A, 2014, 2, 10904 doi: 10.1039/c4ta00875h
[91]
Ngo Y L T, Chung J S, Hur S H. Multi-functional NiO/g-C3N4 hybrid nanostructures for energy storage and sensor applications. Korean J Chem Eng, 2020, 37, 1589 doi: 10.1007/s11814-020-0531-4
[92]
Zhao J, Lin Y, Wu J, et al. A fully integrated and self-powered smartwatch for continuous sweat glucose monitoring. ACS Sens, 2019, 4, 1925 doi: 10.1021/acssensors.9b00891
[93]
Punetha D, Kar M, Pandey S K. A new type low-cost, flexible and wearable tertiary nanocomposite sensor for room temperature hydrogen gas sensing. Sci Rep, 2020, 10, 2151 doi: 10.1038/s41598-020-58965-w
[94]
Wu J, Wu Z X, Ding H J, et al. flexible, 3D SnS2/reduced graphene oxide heterostructured NO2 sensor. Sens Actuators B, 2020, 305, 127445 doi: 10.1016/j.snb.2019.127445
[95]
Lee S H, Eom W, Shin H, et al. Room-temperature, highly durable Ti3C2Tx MXene/graphene hybrid fibers for NH3 gas sensing. ACS Appl Mater Interfaces, 2020, 12, 10434 doi: 10.1021/acsami.9b21765
[96]
Yuan S Y, Zhang S L. Recent progress on gas sensors based on graphene-like 2D/2D nanocomposites. J Semicond, 2019, 40, 111608 doi: 10.1088/1674-4926/40/11/111608
[97]
Benedict S, Nagarajan A, Thejas K, et al. Heterogenous integration of MEMS gas sensor using FOWLP: Personal environment monitors. 2020 IEEE 70th Electronic Components and Technology Conference (ECTC), 2020, 824
[98]
Wang Y, Huang J. Recent advancements in flexible humidity sensors. J Semicond, 2020, 41, 040401 doi: 10.1088/1674-4926/41/4/040401
[99]
Zhang D Z, Wang M Y, Zhang W Y, et al. Flexible humidity sensing and portable applications based on MoSe2 nanoflowers/copper tungstate nanoparticles. Sens Actuators B, 2020, 304, 127234 doi: 10.1016/j.snb.2019.127234
[100]
Zhuang Z, Li Y F, Li X F, et al. A novel polymer-salt complex based on LiCl doped SPEEK/poly(ether ether ketone)-co-poly(ethylene glycol) for humidity sensors. IEEE Sens J, 2021, 21, 8886 doi: 10.1109/JSEN.2021.3054397
[101]
Meng X Y, Yang J H, Liu Z G, et al. Non-contact, fibrous cellulose acetate/aluminum flexible electronic-sensor for humidity detecting. Compos Commun, 2020, 20, 100347 doi: 10.1016/j.coco.2020.04.013
[102]
Tulliani J M, Inserra B, Ziegler D. Carbon-based materials for humidity sensing: A short review. Micromachines, 2019, 10, 232 doi: 10.3390/mi10040232
[103]
Pereira N, Correia V, Peřinka N, et al. All-printed smart label with integrated humidity sensors and power supply. Adv Eng Mater, 2021, 23, 2001229 doi: 10.1002/adem.202001229
[104]
Costa R S, Guedes A, Pereira A M, et al. Fabrication of all-solid-state textile supercapacitors based on industrial-grade multi-walled carbon nanotubes for enhanced energy storage. J Mater Sci, 2020, 55, 10121 doi: 10.1007/s10853-020-04709-0
[105]
Liang X, Long G H, Fu C W, et al. High performance all-solid-state flexible supercapacitor for wearable storage device application. Chem Eng J, 2018, 345, 186 doi: 10.1016/j.cej.2018.03.104
[106]
Rajendran V, Mohan A M V, Jayaraman M, et al. All-printed, interdigitated, freestanding serpentine interconnects based flexible solid state supercapacitor for self powered wearable electronics. Nano Energy, 2019, 65, 104055 doi: 10.1016/j.nanoen.2019.104055
[107]
Yu L H, Yi Y Y, Yao T, et al. All VN-graphene architecture derived self-powered wearable sensors for ultrasensitive health monitoring. Nano Res, 2019, 12, 331 doi: 10.1007/s12274-018-2219-1
[108]
Li H F, Han C P, Huang Y, et al. An extremely safe and wearable solid-state zinc ion battery based on a hierarchical structured polymer electrolyte. Energy Environ Sci, 2018, 11, 941 doi: 10.1039/C7EE03232C
[109]
Du X, Tian M, Sun G, et al. Self-powered and self-sensing energy textile system for flexible wearable applications. ACS Appl Mater Interfaces, 2020, 12, 55876 doi: 10.1021/acsami.0c16305
[110]
Xiong C Y, Li M R, Zhao W, et al. A smart paper@polyaniline nanofibers incorporated vitrimer bifunctional device with reshaping, shape-memory and self-healing properties applied in high-performance supercapacitors and sensors. Chem Eng J, 2020, 396, 125318 doi: 10.1016/j.cej.2020.125318
[111]
Huang J R, Peng S J, Gu J F, et al. Correction: Self-powered integrated system of a strain sensor and flexible all-solid-state supercapacitor by using a high performance ionic organohydrogel. Mater Horiz, 2020, 7, 2768 doi: 10.1039/D0MH90063J
[112]
Ge G, Huang W, Shao J J, et al. Recent progress of flexible and wearable strain sensors for human-motion monitoring. J Semicond, 2018, 39, 011012 doi: 10.1088/1674-4926/39/1/011012
[113]
Shit A, Heo S B, In I, et al. Mineralized soft and elastic polymer dot hydrogel for a flexible self-powered electronic skin sensor. ACS Appl Mater Interfaces, 2020, 12, 34105 doi: 10.1021/acsami.0c08677
[114]
Li Z M, Dall'Agnese Y, Guo J, et al. Flexible freestanding all-MXene hybrid films with enhanced capacitive performance for powering a flex sensor. J Mater Chem A, 2020, 8, 16649 doi: 10.1039/D0TA05710J
[115]
Wang X, Wang S, Yang Y, et al. Hybridized electromagnetic-triboelectric nanogenerator for scavenging air-flow energy to sustainably power temperature sensors. ACS Nano, 2015, 9, 4553 doi: 10.1021/acsnano.5b01187
[116]
Kim H, Kim S, Lee M, et al. Smart patch for skin temperature: Preliminary study to evaluate psychometrics and feasibility. Sensors, 2021, 21, 1855 doi: 10.3390/s21051855
[117]
Seema R, Mandal S, Singh P, et al. Fiber Bragg grating sensors for in situ temperature measurement on bending a flexible planar supercapacitor. Sens Actuators A, 2020, 314, 112266 doi: 10.1016/j.sna.2020.112266
[118]
Sun H X, Tian W, Cao F R, et al. Ultrahigh-performance self-powered flexible double-twisted fibrous broadband perovskite photodetector. Adv Mater, 2018, 30, 1706986 doi: 10.1002/adma.201706986
[119]
Wang Z P, Cheng J L, Huang H, et al. Flexible self-powered fiber-shaped photocapacitors with ultralong cyclelife and total energy efficiency of 5.1%. Energy Storage Mater, 2020, 24, 255 doi: 10.1016/j.ensm.2019.08.011
[120]
Tao J Y, Xiao Z J, Wang J F, et al. A self-powered, flexible photodetector based on perovskite nanowires with Ni-Al electrodes. J Alloys Compd, 2020, 845, 155311 doi: 10.1016/j.jallcom.2020.155311
[121]
Yildirim M A, Teker K. Self-powered fine-pattern flexible SiC single nanowire ultraviolet photodetector. J Alloys Compd, 2021, 868, 159255 doi: 10.1016/j.jallcom.2021.159255
[122]
Zong L, Li X K, Zhu L T, et al. Photo-responsive heterojunction nanosheets of reduced graphene oxide for photo-detective flexible energy devices. J Mater Chem A, 2019, 7, 7736 doi: 10.1039/C8TA11442K
[123]
Bandodkar A J, Lee S P, Huang I, et al. Sweat-activated biocompatible batteries for epidermal electronic and microfluidic systems. Nat Electron, 2020, 3, 554 doi: 10.1038/s41928-020-0443-7
[124]
Wu X Y, Feng J Y, Deng J, et al. Fiber-shaped organic electrochemical transistors for biochemical detections with high sensitivity and stability. Sci China Chem, 2020, 63, 1281 doi: 10.1007/s11426-020-9779-1
[125]
Wei J, Teng Y C, Meng T T, et al. A multicomponent interconnected composite paper for triple-mode sensors and flexible micro-supercapacitors. J Mater Chem A, 2020, 8, 24620 doi: 10.1039/D0TA06775J
[126]
Park H, Kim J W, Hong S Y, et al. Microporous polypyrrole-coated graphene foam for high-performance multifunctional sensors and flexible supercapacitors. Adv Funct Mater, 2018, 28, 1707013 doi: 10.1002/adfm.201707013
Fig. 1.  (Color online) The fabrication methods and energy sources for flexible energy storage devices and their applications in wearable biosensing[815].

Fig. 2.  (Color online) Chemical methods for flexible energy storage devices fabrication. (a) Two-step hydrothermal synthesis of MnO2 nanosheet-assembled hollow polyhedrons on carbon cloth[20]. (b) Metal-like conductive paper electrodes based on Au nanoparticle assembly followed by nickel electroplating[10]. (c) A microwave-assisted rapid sysnthesis of nickel-iron-based catalysts for rechargeable zinc-air battery[32]. (d) Synthesis of 3D nanofiber electrode via CVD[36].

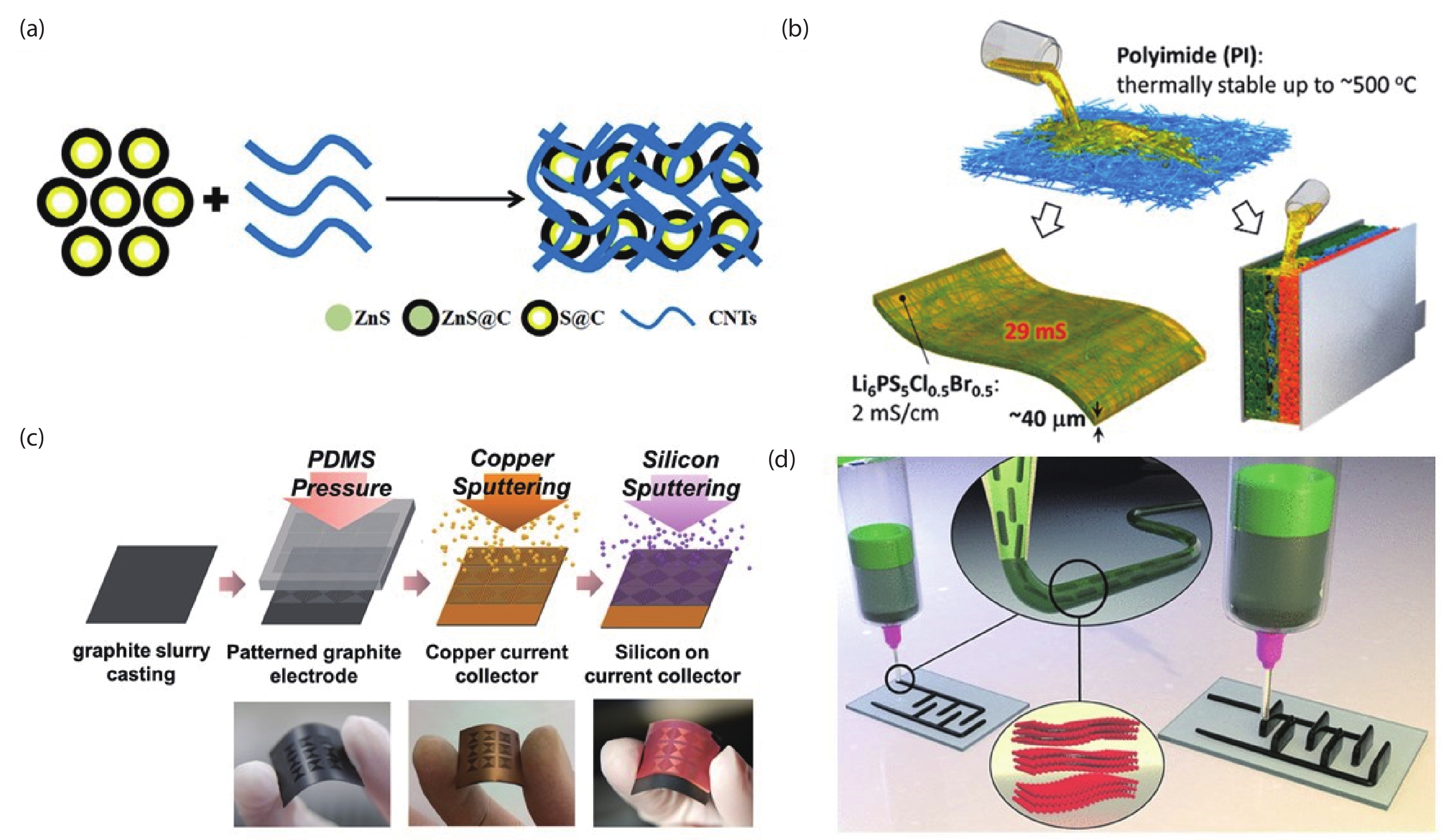

Fig. 3.  (Color online) Physical methods for flexible energy storage devices fabrication. (a) The coating process to achieve flexible CNT-based cathodes[42]. (b) Infiltration of electrospun porous polyimide nanowires for sulfide solid elelctrolyte membranes[44]. (c) Fabrication of graphite/Si hybrid electrode via sputtering[46]. (d) Schematic of the 3D printed interdigital electrodes for micro-supercapacitors[11].

Fig. 4.  (Color online) Self-powered systems consists of flexible energy storage devices and energy harvesting components. (a) Schematic of a printable self-powered system consists of solar cells, supercapacitors and gas sensor[60]. (b) Design of a thermocell for harvesting body heat and charging supercapacitors[63]. (c) Self-powered cloth consists of TENG, supercapacitor and wearable sensor[69]. (d) An all-solid-state self-powered system with high performance PENG using a particular mesoporous film[73].

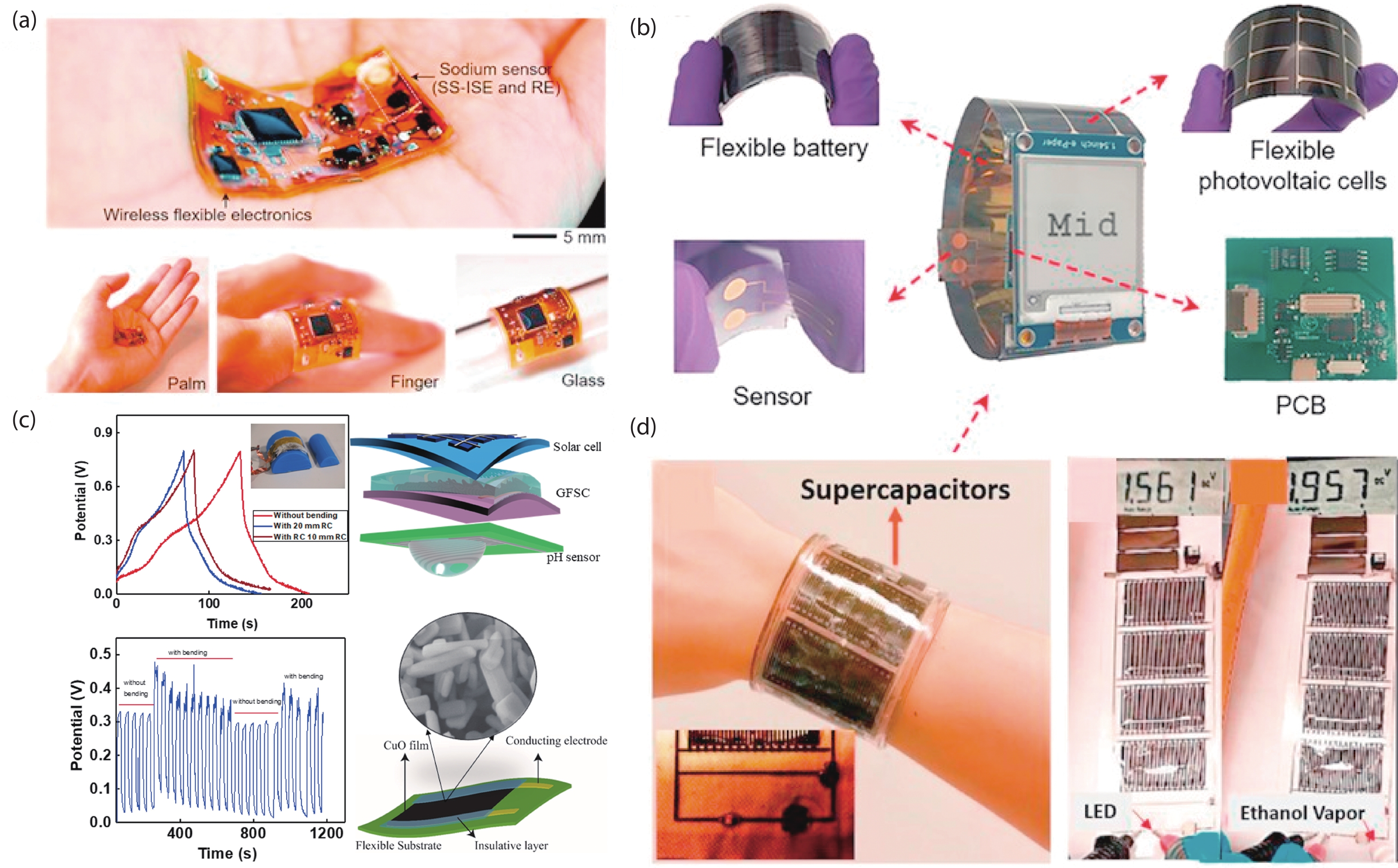

Fig. 5.  (Color online) Physiological sensing systems integrated with flexible energy storage devices. (a) An all-in-one, and flexible self-powered sodium sensing patch with wireless data transmission[78]. (b) A self-powered smartwatch for non-invasive sweat glucose monitoring[92]. (c) Schematic of a self-powered system with pH sensor and its performance under dynamic bending conditions[79]. (d) A self-powered wristband that can power up LED as an indicator of gas detection[60].

Fig. 6.  (Color online) Physical sensing systems integrated with flexible energy storage devices. (a) A screen-printed flexible solid-state supercapacitor for self-powered pulse sensing[106]. (b) Schematic illustration of an integrated self-powered tactile sensor[114]. (c) The structure design of the FBG sensor for in-situ temperature measurement[117]. (d) Integration of the dual-mode strain sensor and supercapacitor on a deformable substrate[126].

Table 1.   Summary of recent flexible energy storage devices integrated with sensing systems.

CategoryMaterialCycleCapacitance/CapacityNoveltyBiosensing applicationRef.
SupercapacitorGraphene-silver-3D foam25 00038 mF/cm2Excellent cycling stabilitypH sensor[79]
The sheath-core yarn10 000761.2 mF/cm2Highly stretchableStrain sensor[80]
Nanosheets of CoSe2 on CNT4000593.5 mF/cm2Superior mechanical stabilityOpto-sensor[81]
Textile10 000644 mF/cm2Excellent flexible stabilityGlucose sensor[82]
Boron-carbon nanosheets10 000534.5 F/cm3Large interlayer conductivityPulse sensor[83]
Sweat as the electrolyte400010 mF/cm2Sustainable and safeSweat sensor[40]
Lithium-air battery1000680 mA·h/gHigh energy densityPhysiological sensor[84]
BatteryZinc-air battery60002.6 mA·h/cm2High safety and high force-resistanceGesture sensor[85]
Zinc-MnO2 battery1000277.5 mA·h/gHighly compressiblePressure sensor[86]
Aqueous zinc-ion fiber5000371 mA·h/gHigh specific capacityStrain sensor[87]
DownLoad: CSV
[1]
Ernst T, Guillemaud R, Mailley P, et al. Sensors and related devices for IoT, medicine and smart-living. 2018 IEEE Symposium on VLSI Technology, 2018, 35
[2]
Huraj L, Šimon M, Horák T. Resistance of IoT sensors against DDoS attack in smart home environment. Sensors, 2020, 20, 5298 doi: 10.3390/s20185298
[3]
Wang C, Qu X, Zheng Q, et al. Stretchable, self-healing, and skin-mounted active sensor for multipoint muscle function assessment. ACS Nano, 2021, 15, 10130 doi: 10.1021/acsnano.1c02010
[4]
Zhao Y F, Guo J C. Development of flexible Li-ion batteries for flexible electronics. InfoMat, 2020, 2, 866 doi: 10.1002/inf2.12117
[5]
Yu P, Zeng Y X, Zhang H Z, et al. Flexible Zn-ion batteries: Recent progresses and challenges. Small, 2019, 15, 1804760 doi: 10.1002/smll.201804760
[6]
He Y H, Matthews B, Wang J Y, et al. Innovation and challenges in materials design for flexible rechargeable batteries: From 1D to 3D. J Mater Chem A, 2018, 6, 735 doi: 10.1039/C7TA09301B
[7]
Ghouri A S, Aslam R, Siddiqui M S, et al. Recent progress in textile-based flexible supercapacitor. Front Mater, 2020, 7, 58 doi: 10.3389/fmats.2020.00058
[8]
Xiong W, Hu K, Li Z, et al. A wearable system based on core-shell structured peptide-Co9S8 supercapacitor and triboelectric nanogenerator. Nano Energy, 2019, 66, 104149 doi: 10.1016/j.nanoen.2019.104149
[9]
Huang H T, Lu L F, Wang J, et al. Performance enhancement of thin-film amorphous silicon solar cells with low cost nanodent plasmonic substrates. Energy Environ Sci, 2013, 6, 2965 doi: 10.1039/c3ee41139g
[10]
Woo S, Nam D, Chang W, et al. A layer-by-layer assembly route to electroplated fibril-based 3D porous current collectors for energy storage devices. Small, 2021, 17, 2007579 doi: 10.1002/smll.202007579
[11]
Orangi J, Hamade F, Davis V A, et al. 3D printing of additive-free 2D Ti3C2Tx (MXene) ink for fabrication of micro-supercapacitors with ultra-high energy densities. ACS Nano, 2020, 14, 640 doi: 10.1021/acsnano.9b07325
[12]
He W, Wang C, Wang H, et al. Integrated textile sensor patch for real-time and multiplex sweat analysis. Sci Adv, 2019, 5, eaax0649 doi: 10.1126/sciadv.aax0649
[13]
Zhang S M, Cicoira F. Flexible self-powered biosensors. Nature, 2018, 561, 466 doi: 10.1038/d41586-018-06788-1
[14]
Gao W, Emaminejad S, Nyein H Y Y, et al. Fully integrated wearable sensor arrays for multiplexed in situ perspiration analysis. Nature, 2016, 529, 509 doi: 10.1038/nature16521
[15]
Jiang D J, Ouyang H, Shi B J, et al. A wearable noncontact free-rotating hybrid nanogenerator for self-powered electronics. InfoMat, 2020, 2, 1191 doi: 10.1002/inf2.12103
[16]
Wang Y K, Yang Q, Zhao Y, et al. Recent advances in electrode fabrication for flexible energy-storage devices. Adv Mater Technol, 2019, 4, 1900083 doi: 10.1002/admt.201900083
[17]
Zheng S S, Li Q, Xue H G, et al. A highly alkaline-stable metal oxide@metal-organic framework composite for high-performance electrochemical energy storage. Natl Sci Rev, 2020, 7, 305 doi: 10.1093/nsr/nwz137
[18]
Naresh B, Punnoose D, Rao S S, et al. Hydrothermal synthesis and pseudocapacitive properties of morphology-tuned nickel sulfide (NiS) nanostructures. New J Chem, 2018, 42, 2733 doi: 10.1039/C7NJ05054B
[19]
Yin C J, Zhou H M, Li J. Facile one-step hydrothermal synthesis of PEDOT: PSS/MnO2 nanorod hybrids for high-rate supercapacitor electrode materials. Ionics, 2019, 25, 685 doi: 10.1007/s11581-018-2680-6
[20]
Wu F F, Gao X B, Xu X L, et al. MnO2 nanosheet-assembled hollow polyhedron grown on carbon cloth for flexible aqueous zinc-ion batteries. ChemSusChem, 2020, 13, 1537 doi: 10.1002/cssc.201903006
[21]
Surthi K K, Kar K K, Janakarajan R. Shape controlled and structurally stabilized Co-doped olivine lithium phosphate cathodes for high voltage conventional, thin and flexible Li-ion batteries. Chem Eng J, 2020, 399, 125858 doi: 10.1016/j.cej.2020.125858
[22]
Zhu K X, Gao H Y, Hu G X. A flexible mesoporous Li4Ti5O12-rGO nanocomposite film as free-standing anode for high rate lithium ion batteries. J Power Sources, 2018, 375, 59 doi: 10.1016/j.jpowsour.2017.11.053
[23]
Peng T, Hou X Y, Liu C, et al. Controlled synthesis of hierarchical CoMn2O4 nanostructures for flexible all-solid-state battery-type electrodes. J Solid State Electrochem, 2017, 21, 1579 doi: 10.1007/s10008-017-3516-4
[24]
Li Z J, Yang J X, Guang T J, et al. Controlled hydrothermal/solvothermal synthesis of high-performance LiFePO4 for Li-ion batteries. Small Methods, 2021, 5, 2100193 doi: 10.1002/smtd.202100193
[25]
Singh S B, Singh T I, Kim N H, et al. A core–shell MnO2@Au nanofiber network as a high-performance flexible transparent supercapacitor electrode. J Mater Chem A, 2019, 7, 10672 doi: 10.1039/C9TA00778D
[26]
Han Y, Chatti M, Ge Y, et al. Binder-free electrodes derived from interlayer-expanded MoS2 nanosheets on carbon cloth with a 3D porous structure for lithium storage. ChemElectroChem, 2019, 6, 2338 doi: 10.1002/celc.201900270
[27]
Ardon M, Hayes P D, Hogarth G. Microwave-assisted reflux in organometallic chemistry: Synthesis and structural determination of molybdenum carbonyl complexes. an intermediate-level organometallic-inorganic experiment. J Chem Educ, 2002, 79, 1249 doi: 10.1021/ed079p1249
[28]
Vijay S K, Prabhu R K, Annie D, et al. Microwave-assisted preparation of precursor for the synthesis of nanocrystalline boron carbide powder. Trans Indian Ceram Soc, 2020, 79, 244 doi: 10.1080/0371750X.2020.1832581
[29]
Zhao J, Gong J W, Zhou C L, et al. Utilizing human hair for solid-state flexible fiber-based asymmetric supercapacitors. Appl Surf Sci, 2020, 508, 145260 doi: 10.1016/j.apsusc.2020.145260
[30]
Hong X D, Fu J W, Liu Y, et al. Strawberry-like carbonized cotton Cloth@Polyaniline nanocomposite for high-performance symmetric supercapacitors. Mater Chem Phys, 2021, 258, 123999 doi: 10.1016/j.matchemphys.2020.123999
[31]
Jeon H, Jeong J M, Hong S B, et al. Facile and fast microwave-assisted fabrication of activated and porous carbon cloth composites with graphene and MnO2 for flexible asymmetric supercapacitors. Electrochim Acta, 2018, 280, 9 doi: 10.1016/j.electacta.2018.05.108
[32]
Tan J B, Thomas T, Liu J X, et al. Rapid microwave-assisted preparation of high-performance bifunctional Ni3Fe/Co-N-C for rechargeable Zn-air battery. Chem Eng J, 2020, 395, 125151 doi: 10.1016/j.cej.2020.125151
[33]
Dirican M, Yildiz O, Lu Y, et al. Flexible binder-free silicon/silica/carbon nanofiber composites as anode for lithium-ion batteries. Electrochim Acta, 2015, 169, 52 doi: 10.1016/j.electacta.2015.04.035
[34]
Gomez De Arco L, Zhang Y, Schlenker C W, et al. Continuous, highly flexible, and transparent graphene films by chemical vapor deposition for organic photovoltaics. ACS Nano, 2010, 4, 2865 doi: 10.1021/nn901587x
[35]
Dogru I B, Durukan M B, Turel O, et al. Flexible supercapacitor electrodes with vertically aligned carbon nanotubes grown on aluminum foils. Prog Nat Sci: Mater Int, 2016, 26, 232 doi: 10.1016/j.pnsc.2016.05.011
[36]
Zhang Z J, Ren Z, Zhang S F, et al. High-yielding carbon nanofibers grown on NIPS-derived porous nickel as a flexible electrode for supercapacitors. Mater Chem Front, 2020, 4, 2976 doi: 10.1039/D0QM00483A
[37]
Zang X N, Jiang Y Q, Sanghadasa M, et al. Chemical vapor deposition of 3D graphene/carbon nanotubes networks for hybrid supercapacitors. Sens Actuators A, 2020, 304, 111886 doi: 10.1016/j.sna.2020.111886
[38]
Gao H X, Hou F, Zheng X R, et al. Electrochemical property studies of carbon nanotube films fabricated by CVD method as anode materials for lithium-ion battery applications. Vacuum, 2015, 112, 1 doi: 10.1016/j.vacuum.2014.10.017
[39]
Yang Z D, Yang X Y, Liu T, et al. In situ CVD derived co-N-C composite as highly efficient cathode for flexible Li-O2 batteries. Small, 2018, 14, 1800590 doi: 10.1002/smll.201800590
[40]
Manjakkal L, Pullanchiyodan A, Yogeswaran N, et al. A wearable supercapacitor based on conductive PEDOT:PSS-coated cloth and a sweat electrolyte. Adv Mater, 2020, 32, 1907254 doi: 10.1002/adma.201907254
[41]
Ma F, Dai X Q, Jin J, et al. Hierarchical core-shell hollow CoMoS4@Ni-Co-S nanotubes hybrid arrays as advanced electrode material for supercapacitors. Electrochim Acta, 2020, 331, 135459 doi: 10.1016/j.electacta.2019.135459
[42]
Xie C, Shan H, Song X X, et al. Flexible S@C-CNTs cathodes with robust mechanical strength via blade-coating for lithium-sulfur batteries. J Colloid Interface Sci, 2021, 592, 448 doi: 10.1016/j.jcis.2021.02.065
[43]
Song J Y, Lee H H, Hong W, et al. A polysulfide-infiltrated carbon cloth cathode for high-performance flexible lithium–sulfur batteries. Nanomaterials, 2018, 8, 90 doi: 10.3390/nano8020090
[44]
Kim D H, Lee Y H, Song Y B, et al. Thin and flexible solid electrolyte membranes with ultrahigh thermal stability derived from solution-processable Li argyrodites for all-solid-state Li-ion batteries. ACS Energy Lett, 2020, 5, 718 doi: 10.1021/acsenergylett.0c00251
[45]
Yuan H, Wang G, Zhao Y X, et al. A stretchable, asymmetric, coaxial fiber-shaped supercapacitor for wearable electronics. Nano Res, 2020, 13, 1686 doi: 10.1007/s12274-020-2793-x
[46]
Kim S W, Yun J H, Son B, et al. Graphite/silicon hybrid electrodes using a 3D current collector for flexible batteries. Adv Mater, 2014, 26, 2977 doi: 10.1002/adma.201305600
[47]
Cheng M, Deivanayagam R, Shahbazian-Yassar R. 3D printing of electrochemical energy storage devices: A review of printing techniques and electrode/electrolyte architectures. Batter Supercaps, 2020, 3, 130 doi: 10.1002/batt.201900130
[48]
Krishnadoss V, Kanjilal B, Hesketh A, et al. In situ 3D printing of implantable energy storage devices. Chem Eng J, 2021, 409, 128213 doi: 10.1016/j.cej.2020.128213
[49]
Bao Y H, Liu Y, Kuang Y D, et al. 3D-printed highly deformable electrodes for flexible lithium ion batteries. Energy Storage Mater, 2020, 33, 55 doi: 10.1016/j.ensm.2020.07.010
[50]
Kong D, Wang Y, Huang S, et al. 3D printed compressible quasi-solid-state nickel-iron battery. ACS Nano, 2020, 14, 9675 doi: 10.1021/acsnano.0c01157
[51]
Wang Z Q, Meng X Y, Chen K, et al. Development of high-capacity periodate battery with three-dimensional-printed casing accommodating replaceable flexible electrodes. ACS Appl Mater Interfaces, 2018, 10, 30257 doi: 10.1021/acsami.8b05578
[52]
Praveen S, Sim G S, Ho C W, et al. 3D-printed twisted yarn-type Li-ion battery towards smart fabrics. Energy Storage Mater, 2021, 41, 748 doi: 10.1016/j.ensm.2021.07.024
[53]
Lou Z, Li L, Wang L L, et al. Recent progress of self-powered sensing systems for wearable electronics. Small, 2017, 13, 1701791 doi: 10.1002/smll.201701791
[54]
Liu Y M, Wang L Y, Zhao L, et al. Recent progress on flexible nanogenerators toward self-powered systems. InfoMat, 2020, 2, 318 doi: 10.1002/inf2.12079
[55]
Hu Y X, Ding S S, Chen P, et al. Flexible solar-rechargeable energy system. Energy Storage Mater, 2020, 32, 356 doi: 10.1016/j.ensm.2020.06.028
[56]
Ostfeld A E, Gaikwad A M, Khan Y, et al. High-performance flexible energy storage and harvesting system for wearable electronics. Sci Rep, 2016, 6, 26122 doi: 10.1038/srep26122
[57]
Yang X Y, Feng X L, Jin X, et al. An illumination-assisted flexible self-powered energy system based on a Li-O2 battery. Angew Chem Int Ed, 2019, 58, 16411 doi: 10.1002/anie.201907805
[58]
Zamarayeva A M, Ostfeld A E, Wang M, et al. Flexible and stretchable power sources for wearable electronics. Sci Adv, 2017, 3, e1602051 doi: 10.1126/sciadv.1602051
[59]
Hashemi S A, Ramakrishna S, Aberle A G. Recent progress in flexible–wearable solar cells for self-powered electronic devices. Energy Environ Sci, 2020, 13, 685 doi: 10.1039/C9EE03046H
[60]
Lin Y J, Chen J Q, Tavakoli M M, et al. Printable fabrication of a fully integrated and self-powered sensor system on plastic substrates. Adv Mater, 2019, 31, 1804285 doi: 10.1002/adma.201804285
[61]
Dong P, Rodrigues M T F, Zhang J, et al. A flexible solar cell/supercapacitor integrated energy device. Nano Energy, 2017, 42, 181 doi: 10.1016/j.nanoen.2017.10.035
[62]
Nozariasbmarz A, Collins H, Dsouza K, et al. Review of wearable thermoelectric energy harvesting: From body temperature to electronic systems. Appl Energy, 2020, 258, 114069 doi: 10.1016/j.apenergy.2019.114069
[63]
Liu Y Q, Zhang S, Zhou Y T, et al. Advanced wearable thermocells for body heat harvesting. Adv Energy Mater, 2020, 10, 2002539 doi: 10.1002/aenm.202002539
[64]
Yang Y, Zhang H L, Zhu G, et al. Flexible hybrid energy cell for simultaneously harvesting thermal, mechanical, and solar energies. ACS Nano, 2013, 7, 785 doi: 10.1021/nn305247x
[65]
Xia K Q, Tang H C, Fu J M, et al. A high strength triboelectric nanogenerator based on rigid-flexible coupling design for energy storage system. Nano Energy, 2020, 67, 104259 doi: 10.1016/j.nanoen.2019.104259
[66]
Jiang Q, Wu C S, Wang Z J, et al. MXene electrochemical microsupercapacitor integrated with triboelectric nanogenerator as a wearable self-charging power unit. Nano Energy, 2018, 45, 266 doi: 10.1016/j.nanoen.2018.01.004
[67]
Yi F, Wang J, Wang X, et al. Stretchable and waterproof self-charging power system for harvesting energy from diverse deformation and powering wearable electronics. ACS Nano, 2016, 10, 6519 doi: 10.1021/acsnano.6b03007
[68]
Maitra A, Paria S, Karan S K, et al. Triboelectric nanogenerator driven self-charging and self-healing flexible asymmetric supercapacitor power cell for direct power generation. ACS Appl Mater Interfaces, 2019, 11, 5022 doi: 10.1021/acsami.8b19044
[69]
Pu X, Li L X, Liu M M, et al. Wearable self-charging power textile based on flexible yarn supercapacitors and fabric nanogenerators. Adv Mater, 2016, 28, 98 doi: 10.1002/adma.201504403
[70]
Chun S, Son W, Lee G, et al. Single-layer graphene-based transparent and flexible multifunctional electronics for self-charging power and touch-sensing systems. ACS Appl Mater Interfaces, 2019, 11, 9301 doi: 10.1021/acsami.8b20143
[71]
Vyas A, Li Q, Eeckhoudt R V D, et al. Towards integrated flexible energy harvester and supercapacitor for self-powered wearable sensors. 2019 19th International Conference on Micro and Nanotechnology for Power Generation and Energy Conversion Applications (PowerMEMS), 2019, 1
[72]
Gilshteyn E P, Amanbaev D, Silibin M V, et al. Flexible self-powered piezo-supercapacitor system for wearable electronics. Nanotechnology, 2018, 29, 325501 doi: 10.1088/1361-6528/aac658
[73]
He H X, Fu Y M, Zhao T M, et al. All-solid-state flexible self-charging power cell basing on piezo-electrolyte for harvesting/storing body-motion energy and powering wearable electronics. Nano Energy, 2017, 39, 590 doi: 10.1016/j.nanoen.2017.07.033
[74]
Zou Y, Liao J W, Ouyang H, et al. A flexible self-arched biosensor based on combination of piezoelectric and triboelectric effects. Appl Mater Today, 2020, 20, 100699 doi: 10.1016/j.apmt.2020.100699
[75]
Cheng C, Li X, Xu G, et al. Battery-free, wireless, and flexible electrochemical patch for in situ analysis of sweat cortisol via near field communication. Biosens Bioelectron, 2021, 172, 112782 doi: 10.1016/j.bios.2020.112782
[76]
Zhang W, Guan H Y, Zhong T Y, et al. Wearable battery-free perspiration analyzing sites based on sweat flowing on ZnO nanoarrays. Nano Micro Lett, 2020, 12, 1 doi: 10.1007/s40820-019-0337-2
[77]
Mazzaracchio V, Fiore L, Nappi S, et al. Medium-distance affordable, flexible and wireless epidermal sensor for pH monitoring in sweat. Talanta, 2021, 222, 121502 doi: 10.1016/j.talanta.2020.121502
[78]
Lim H R, Lee Y, Jones K A, et al. All-in-one, wireless, fully flexible sodium sensor system with integrated Au/CNT/Au nanocomposites. Sens Actuators B, 2021, 331, 129416 doi: 10.1016/j.snb.2020.129416
[79]
Manjakkal L, Núñez C G, Dang W T, et al. Flexible self-charging supercapacitor based on graphene-Ag-3D graphene foam electrodes. Nano Energy, 2018, 51, 604 doi: 10.1016/j.nanoen.2018.06.072
[80]
Cai G, Hao B, Luo L, et al. Highly stretchable sheath-core yarns for multifunctional wearable electronics. ACS Appl Mater Interfaces, 2020, 12, 29717 doi: 10.1021/acsami.0c08840
[81]
Wang Q F, Ran X, Shao W K, et al. High performance flexible supercapacitor based on metal-organic-framework derived CoSe2 nanosheets on carbon nanotube film. J Power Sources, 2021, 490, 229517 doi: 10.1016/j.jpowsour.2021.229517
[82]
Sun T R, Shen L X, Jiang Y, et al. Wearable textile supercapacitors for self-powered enzyme-free smartsensors. ACS Appl Mater Interfaces, 2020, 12, 21779 doi: 10.1021/acsami.0c05465
[83]
Wu T, Wu X J, Li L H, et al. Anisotropic boron-carbon hetero-nanosheets for ultrahigh energy density supercapacitors. Angew Chem Int Ed, 2020, 59, 23800 doi: 10.1002/anie.202011523
[84]
Wang L, Zhang Y, Pan J, et al. Stretchable lithium-air batteries for wearable electronics. J Mater Chem A, 2016, 4, 13419 doi: 10.1039/C6TA05800K
[85]
Sun H Y, Pan N, Jin X, et al. Active-powering pressure-sensing fabric devices. J Mater Chem A, 2020, 8, 358 doi: 10.1039/C9TA09395H
[86]
Wang Z F, Mo F N, Ma L T, et al. Highly compressible cross-linked polyacrylamide hydrogel-enabled compressible Zn–MnO2 battery and a flexible battery–sensor system. ACS Appl Mater Interfaces, 2018, 10, 44527 doi: 10.1021/acsami.8b17607
[87]
Liao M, Wang J W, Ye L, et al. A high-capacity aqueous zinc-ion battery fiber with air-recharging capability. J Mater Chem A, 2021, 9, 6811 doi: 10.1039/D1TA00803J
[88]
Song Y, Min J H, Yu Y, et al. Wireless battery-free wearable sweat sensor powered by human motion. Sci Adv, 2020, 6, eaay9842 doi: 10.1126/sciadv.aay9842
[89]
Han W X, He H X, Zhang L L, et al. A self-powered wearable noninvasive electronic-skin for perspiration analysis based on piezo-biosensing unit matrix of enzyme/ZnO nanoarrays. ACS Appl Mater Interfaces, 2017, 9, 29526 doi: 10.1021/acsami.7b07990
[90]
Peng Z, Jia D S, Tang J, et al. CoNiO2/TiN–TiO xN y composites for ultrahigh electrochemical energy storage and simultaneous glucose sensing. J Mater Chem A, 2014, 2, 10904 doi: 10.1039/c4ta00875h
[91]
Ngo Y L T, Chung J S, Hur S H. Multi-functional NiO/g-C3N4 hybrid nanostructures for energy storage and sensor applications. Korean J Chem Eng, 2020, 37, 1589 doi: 10.1007/s11814-020-0531-4
[92]
Zhao J, Lin Y, Wu J, et al. A fully integrated and self-powered smartwatch for continuous sweat glucose monitoring. ACS Sens, 2019, 4, 1925 doi: 10.1021/acssensors.9b00891
[93]
Punetha D, Kar M, Pandey S K. A new type low-cost, flexible and wearable tertiary nanocomposite sensor for room temperature hydrogen gas sensing. Sci Rep, 2020, 10, 2151 doi: 10.1038/s41598-020-58965-w
[94]
Wu J, Wu Z X, Ding H J, et al. flexible, 3D SnS2/reduced graphene oxide heterostructured NO2 sensor. Sens Actuators B, 2020, 305, 127445 doi: 10.1016/j.snb.2019.127445
[95]
Lee S H, Eom W, Shin H, et al. Room-temperature, highly durable Ti3C2Tx MXene/graphene hybrid fibers for NH3 gas sensing. ACS Appl Mater Interfaces, 2020, 12, 10434 doi: 10.1021/acsami.9b21765
[96]
Yuan S Y, Zhang S L. Recent progress on gas sensors based on graphene-like 2D/2D nanocomposites. J Semicond, 2019, 40, 111608 doi: 10.1088/1674-4926/40/11/111608
[97]
Benedict S, Nagarajan A, Thejas K, et al. Heterogenous integration of MEMS gas sensor using FOWLP: Personal environment monitors. 2020 IEEE 70th Electronic Components and Technology Conference (ECTC), 2020, 824
[98]
Wang Y, Huang J. Recent advancements in flexible humidity sensors. J Semicond, 2020, 41, 040401 doi: 10.1088/1674-4926/41/4/040401
[99]
Zhang D Z, Wang M Y, Zhang W Y, et al. Flexible humidity sensing and portable applications based on MoSe2 nanoflowers/copper tungstate nanoparticles. Sens Actuators B, 2020, 304, 127234 doi: 10.1016/j.snb.2019.127234
[100]
Zhuang Z, Li Y F, Li X F, et al. A novel polymer-salt complex based on LiCl doped SPEEK/poly(ether ether ketone)-co-poly(ethylene glycol) for humidity sensors. IEEE Sens J, 2021, 21, 8886 doi: 10.1109/JSEN.2021.3054397
[101]
Meng X Y, Yang J H, Liu Z G, et al. Non-contact, fibrous cellulose acetate/aluminum flexible electronic-sensor for humidity detecting. Compos Commun, 2020, 20, 100347 doi: 10.1016/j.coco.2020.04.013
[102]
Tulliani J M, Inserra B, Ziegler D. Carbon-based materials for humidity sensing: A short review. Micromachines, 2019, 10, 232 doi: 10.3390/mi10040232
[103]
Pereira N, Correia V, Peřinka N, et al. All-printed smart label with integrated humidity sensors and power supply. Adv Eng Mater, 2021, 23, 2001229 doi: 10.1002/adem.202001229
[104]
Costa R S, Guedes A, Pereira A M, et al. Fabrication of all-solid-state textile supercapacitors based on industrial-grade multi-walled carbon nanotubes for enhanced energy storage. J Mater Sci, 2020, 55, 10121 doi: 10.1007/s10853-020-04709-0
[105]
Liang X, Long G H, Fu C W, et al. High performance all-solid-state flexible supercapacitor for wearable storage device application. Chem Eng J, 2018, 345, 186 doi: 10.1016/j.cej.2018.03.104
[106]
Rajendran V, Mohan A M V, Jayaraman M, et al. All-printed, interdigitated, freestanding serpentine interconnects based flexible solid state supercapacitor for self powered wearable electronics. Nano Energy, 2019, 65, 104055 doi: 10.1016/j.nanoen.2019.104055
[107]
Yu L H, Yi Y Y, Yao T, et al. All VN-graphene architecture derived self-powered wearable sensors for ultrasensitive health monitoring. Nano Res, 2019, 12, 331 doi: 10.1007/s12274-018-2219-1
[108]
Li H F, Han C P, Huang Y, et al. An extremely safe and wearable solid-state zinc ion battery based on a hierarchical structured polymer electrolyte. Energy Environ Sci, 2018, 11, 941 doi: 10.1039/C7EE03232C
[109]
Du X, Tian M, Sun G, et al. Self-powered and self-sensing energy textile system for flexible wearable applications. ACS Appl Mater Interfaces, 2020, 12, 55876 doi: 10.1021/acsami.0c16305
[110]
Xiong C Y, Li M R, Zhao W, et al. A smart paper@polyaniline nanofibers incorporated vitrimer bifunctional device with reshaping, shape-memory and self-healing properties applied in high-performance supercapacitors and sensors. Chem Eng J, 2020, 396, 125318 doi: 10.1016/j.cej.2020.125318
[111]
Huang J R, Peng S J, Gu J F, et al. Correction: Self-powered integrated system of a strain sensor and flexible all-solid-state supercapacitor by using a high performance ionic organohydrogel. Mater Horiz, 2020, 7, 2768 doi: 10.1039/D0MH90063J
[112]
Ge G, Huang W, Shao J J, et al. Recent progress of flexible and wearable strain sensors for human-motion monitoring. J Semicond, 2018, 39, 011012 doi: 10.1088/1674-4926/39/1/011012
[113]
Shit A, Heo S B, In I, et al. Mineralized soft and elastic polymer dot hydrogel for a flexible self-powered electronic skin sensor. ACS Appl Mater Interfaces, 2020, 12, 34105 doi: 10.1021/acsami.0c08677
[114]
Li Z M, Dall'Agnese Y, Guo J, et al. Flexible freestanding all-MXene hybrid films with enhanced capacitive performance for powering a flex sensor. J Mater Chem A, 2020, 8, 16649 doi: 10.1039/D0TA05710J
[115]
Wang X, Wang S, Yang Y, et al. Hybridized electromagnetic-triboelectric nanogenerator for scavenging air-flow energy to sustainably power temperature sensors. ACS Nano, 2015, 9, 4553 doi: 10.1021/acsnano.5b01187
[116]
Kim H, Kim S, Lee M, et al. Smart patch for skin temperature: Preliminary study to evaluate psychometrics and feasibility. Sensors, 2021, 21, 1855 doi: 10.3390/s21051855
[117]
Seema R, Mandal S, Singh P, et al. Fiber Bragg grating sensors for in situ temperature measurement on bending a flexible planar supercapacitor. Sens Actuators A, 2020, 314, 112266 doi: 10.1016/j.sna.2020.112266
[118]
Sun H X, Tian W, Cao F R, et al. Ultrahigh-performance self-powered flexible double-twisted fibrous broadband perovskite photodetector. Adv Mater, 2018, 30, 1706986 doi: 10.1002/adma.201706986
[119]
Wang Z P, Cheng J L, Huang H, et al. Flexible self-powered fiber-shaped photocapacitors with ultralong cyclelife and total energy efficiency of 5.1%. Energy Storage Mater, 2020, 24, 255 doi: 10.1016/j.ensm.2019.08.011
[120]
Tao J Y, Xiao Z J, Wang J F, et al. A self-powered, flexible photodetector based on perovskite nanowires with Ni-Al electrodes. J Alloys Compd, 2020, 845, 155311 doi: 10.1016/j.jallcom.2020.155311
[121]
Yildirim M A, Teker K. Self-powered fine-pattern flexible SiC single nanowire ultraviolet photodetector. J Alloys Compd, 2021, 868, 159255 doi: 10.1016/j.jallcom.2021.159255
[122]
Zong L, Li X K, Zhu L T, et al. Photo-responsive heterojunction nanosheets of reduced graphene oxide for photo-detective flexible energy devices. J Mater Chem A, 2019, 7, 7736 doi: 10.1039/C8TA11442K
[123]
Bandodkar A J, Lee S P, Huang I, et al. Sweat-activated biocompatible batteries for epidermal electronic and microfluidic systems. Nat Electron, 2020, 3, 554 doi: 10.1038/s41928-020-0443-7
[124]
Wu X Y, Feng J Y, Deng J, et al. Fiber-shaped organic electrochemical transistors for biochemical detections with high sensitivity and stability. Sci China Chem, 2020, 63, 1281 doi: 10.1007/s11426-020-9779-1
[125]
Wei J, Teng Y C, Meng T T, et al. A multicomponent interconnected composite paper for triple-mode sensors and flexible micro-supercapacitors. J Mater Chem A, 2020, 8, 24620 doi: 10.1039/D0TA06775J
[126]
Park H, Kim J W, Hong S Y, et al. Microporous polypyrrole-coated graphene foam for high-performance multifunctional sensors and flexible supercapacitors. Adv Funct Mater, 2018, 28, 1707013 doi: 10.1002/adfm.201707013
  • Search

    Advanced Search >>

    GET CITATION

    shu

    Export: BibTex EndNote

    Article Metrics

    Article views: 5640 Times PDF downloads: 379 Times Cited by: 0 Times

    History

    Received: 30 June 2021 Revised: 28 August 2021 Online: Accepted Manuscript: 06 September 2021Uncorrected proof: 08 September 2021Published: 15 October 2021

    Catalog

      Email This Article

      User name:
      Email:*请输入正确邮箱
      Code:*验证码错误
      Xiaohao Ma, Zhengfan Jiang, Yuanjing Lin. Flexible energy storage devices for wearable bioelectronics[J]. Journal of Semiconductors, 2021, 42(10): 101602. doi: 10.1088/1674-4926/42/10/101602 ****X H Ma, Z F Jiang, Y J Lin, Flexible energy storage devices for wearable bioelectronics[J]. J. Semicond., 2021, 42(10): 101602. doi: 10.1088/1674-4926/42/10/101602.
      Citation:
      Xiaohao Ma, Zhengfan Jiang, Yuanjing Lin. Flexible energy storage devices for wearable bioelectronics[J]. Journal of Semiconductors, 2021, 42(10): 101602. doi: 10.1088/1674-4926/42/10/101602 ****
      X H Ma, Z F Jiang, Y J Lin, Flexible energy storage devices for wearable bioelectronics[J]. J. Semicond., 2021, 42(10): 101602. doi: 10.1088/1674-4926/42/10/101602.

      Flexible energy storage devices for wearable bioelectronics

      DOI: 10.1088/1674-4926/42/10/101602
      More Information
      • Xiaohao Ma:received his B.E. degree from Southern University of Science and Technology in 2018. He is currently a PhD student in the joint program of Southern University of Science and Technology and Hong Kong Polytechnic University. His research focuses on textile-based sensors
      • Zhengfan Jiang:was admitted by Southern University of Science and Technology in 2018 and is currently a senior student at the School of Microelectronics. His research interests focus on flexible electronics and electrochemical devices
      • Yuanjing Lin:received her Ph.D degree in Electronic and Computer Science, Hong Kong University of Science and Technology in 2018. From 2019 to 2020, she was a Postdoctoral Fellow in Electrical Engineering and Computer Sciences at the University of California, Berkeley. She is currently an Assistant Professor at the Southern University of Science and Technology. Her research interests focus on flexible electronics and wearable sensing systems
      • Corresponding author: linyj2020@sustech.edu.cn
      • Received Date: 2021-06-30
      • Revised Date: 2021-08-28
      • Published Date: 2021-10-10

      Catalog

        /

        DownLoad:  Full-Size Img  PowerPoint
        Return
        Return
