Side-channel attack-resistant AES S-box with hidden subfield inversion and glitch-free masking

Xiangyu Li; Pengyuan Jiao; Chaoqun Yang

doi:10.1088/1674-4926/42/3/032402

J. Semicond. > 2021, Volume 42 > Issue 3 > 032402

ARTICLES

Side-channel attack-resistant AES S-box with hidden subfield inversion and glitch-free masking

Xiangyu Li^{1, 2,}, Pengyuan Jiao^{1, 3} and Chaoqun Yang^{1, 3}

+ Author Affiliations

Corresponding author: Xiangyu Li, xiangyuli@tsinghua.edu.cn

DOI: 10.1088/1674-4926/42/3/032402

Abstract: A side-channel attack (SCA)-resistant AES S-box implementation is proposed, which is an improvement from the power-aware hiding (PAH) S-box but with higher security and a smaller area. We use the composite field approach and apply the PAH method to the inversion in the nonlinear kernel and a masking method to the other parts. In addition, a delay-matched enable control technique is used to suppress glitches in the masked parts. The evaluation results show that its area is contracted to 63.3% of the full PAH S-box, and its power-delay product is much lower than that of the masking implementation. The leakage assessment using simulation power traces concludes that it has no detectable leakage under t-test and that it at least can thwart the moment-correlation analysis using 665 000 noiseless traces.

Key words: ASIC, side-channel attack, AES S-box, power-aware hiding, glitch-free

References

[1]	Dinu D, Kizhvatov I. EM analysis in the IoT context: Lessons learned from an attack on thread. IACR Trans Cryptogr Hardw Embed Syst, 2018, 73
[2]	Tsai K L, Huang Y L, Leu F Y, et al. AES-128 based secure low power communication for LoRaWAN IoT environments. IEEE Access, 2018, 6, 45325 doi: 10.1109/ACCESS.2018.2852563
[3]	Taha M, Schaumont P. Key updating for leakage resiliency with application to AES modes of operation. IEEE Trans Inform Forensic Secur, 2015, 10, 519 doi: 10.1109/TIFS.2014.2383359
[4]	Moradi A, Poschmann A, Ling S, et al. Pushing the limits: A very compact and a threshold implementation of AES. Adv Cryptol - EUROCRYPT 2011, 2011, 69 doi: 10.1007/978-3-642-20465-4_6
[5]	Gao S, Roy A, Oswald E. Constructing TI-friendly substitution boxes using shift-invariant permutations. Cryptographers Track RSA Conference, 2019, 433
[6]	Boss E, Grosso V, Güneysu T, et al. Strong 8-bit Sboxes with efficient masking in hardware extended version. J Cryptogr Eng, 2017, 7, 149 doi: 10.1007/s13389-017-0156-7
[7]	Burns F, Bystrov A, Koelmans A, et al. Security evaluation of balanced 1-of-n circuits. IEEE Trans VLSI Syst, 2011, 19, 2135 doi: 10.1109/TVLSI.2010.2064793
[8]	Liu P C, Chang H C, Lee C Y. A low overhead DPA countermeasure circuit based on ring oscillators. IEEE Trans Circuits Syst II, 2010, 57, 546 doi: 10.1109/TCSII.2010.2048400
[9]	Singh A, Kar M, Mathew S, et al. Improved power side channel attack resistance of a 128-bit AES engine with random fast voltage dithering. European Solid-State Device Research Conference, 2017, 51
[10]	van Woudenberg J G J, Witteman M F, Bakker B. Improving differential power analysis by elastic alignment. Cryptographers Track RSA Conference, 2011, 104
[11]	Lu S, Zhang Z, Papaefthymiou M C. A 1.25 pJ/bit 0.048 mm² AES core with DPA resistance for IoT devices. IEEE Asian Solid-State Circuits Conference, 2017, 65
[12]	Ma J S, Wang M Y, Li X Y. Power-aware hiding method for S-box protection. Electron Lett, 2014, 50, 1604 doi: 10.1049/el.2014.1559
[13]	Li X Y, Yang C Q, Ma J S, et al. Energy-efficient side-channel attack countermeasure with awareness and hybrid configuration based on it. IEEE Trans VLSI Syst, 2017, 25, 3355 doi: 10.1109/TVLSI.2017.2752212
[14]	Yang C Q, Li X Y, Yin S J. Low-cost energy-efficient side-channel attacks resistant AES S-box with power-aware hiding inverter in GF(2⁴). International Conference on Trust, Security and Privacy in Computing and Communications, 2018, 1526
[15]	Canright D, Batina L. A very compact “perfectly masked” S-box for AES. Applied Cryptography and Network Security. Berlin, Heidelberg: Springer Berlin Heidelberg, 2008, 446
[16]	Nikova S, Rijmen V, Schläffer M. Secure hardware implementation of nonlinear functions in the presence of glitches. J Cryptol, 2011, 24, 292 doi: 10.1007/s00145-010-9085-7
[17]	Canright D. A very compact S-box for AES. Conference on Cryptographic Hardware and Embedded Systems, 2005, 441
[18]	Schneider T, Moradi A. Leakage assessment methodology. Conference on Cryptographic Hardware and Embedded Systems, 2015, 495
[19]	Moradi A, Standaert F X. Moments-correlating DPA. Proceedings of the 2016 ACM Workshop on Theory of Implementation Security - TIS'16, 2016, 5
[20]	Zeng J L, Wang Y, Xu C, et al. Improvement on masked S-box hardware implementation. IEEE International Conference on Innovations in Information Technology, 2012, 113

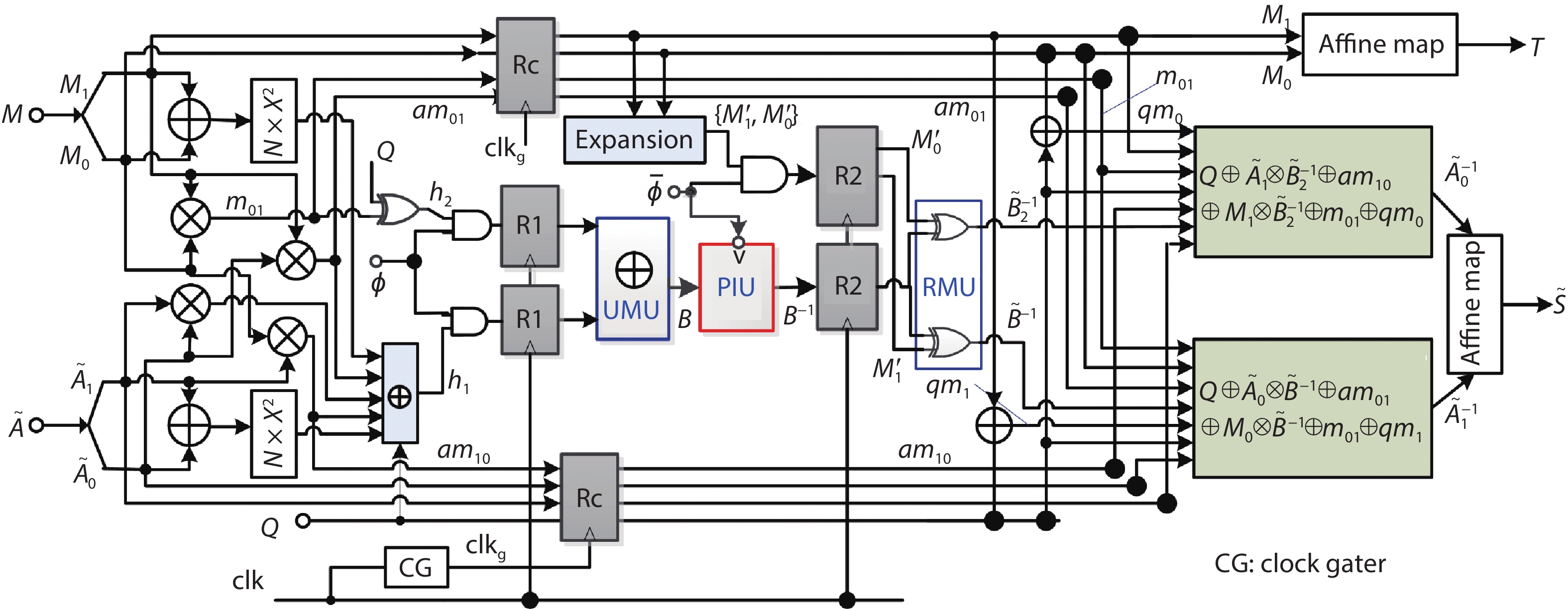

Fig. 1. (Color online) PAH-masking mixed S-box structure (modified from Ref. [14]).

DownLoad: Full-Size Img PowerPoint

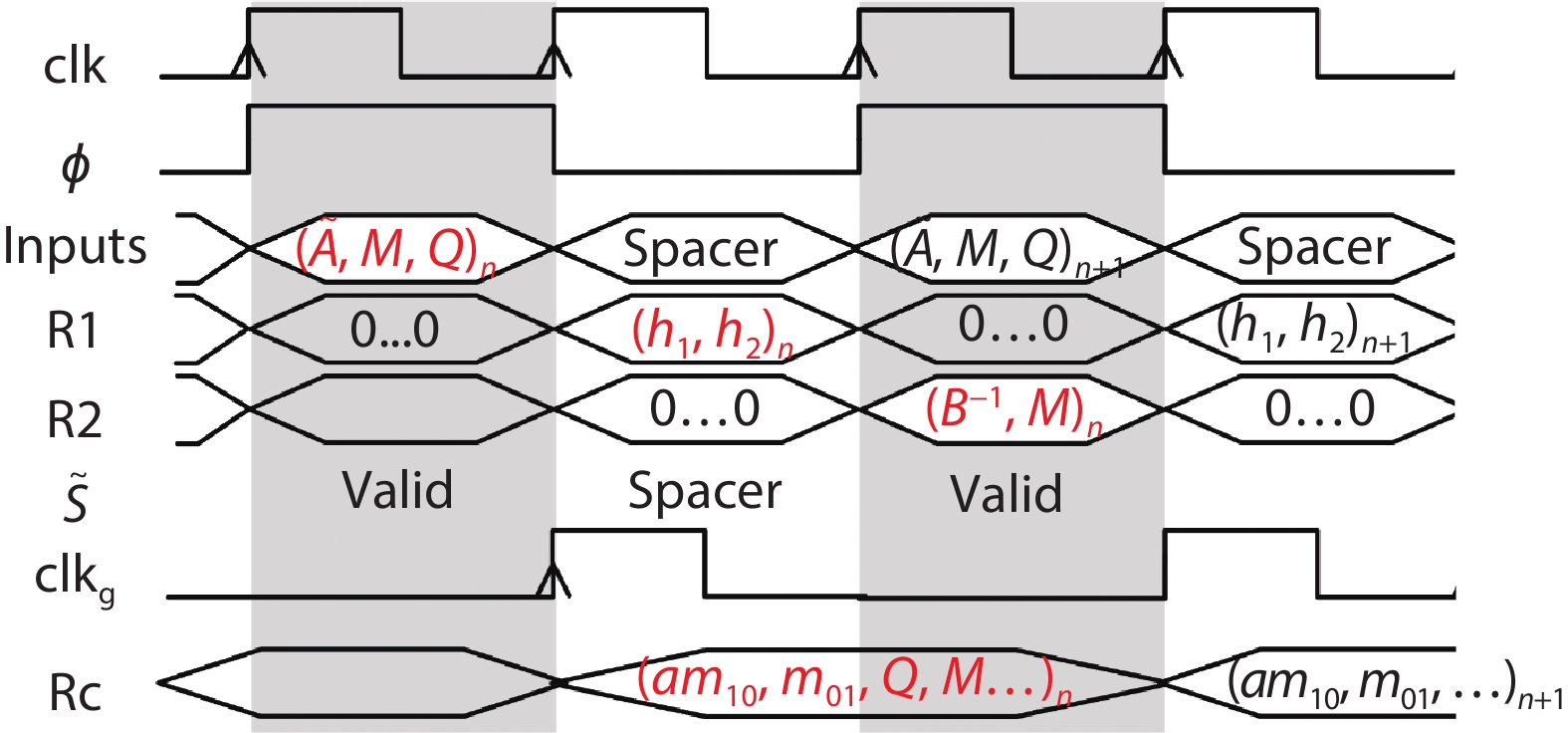

Fig. 2. (Color online) PAH-masking mixed S-box timing diagram (modified from Ref. [14]).

DownLoad: Full-Size Img PowerPoint

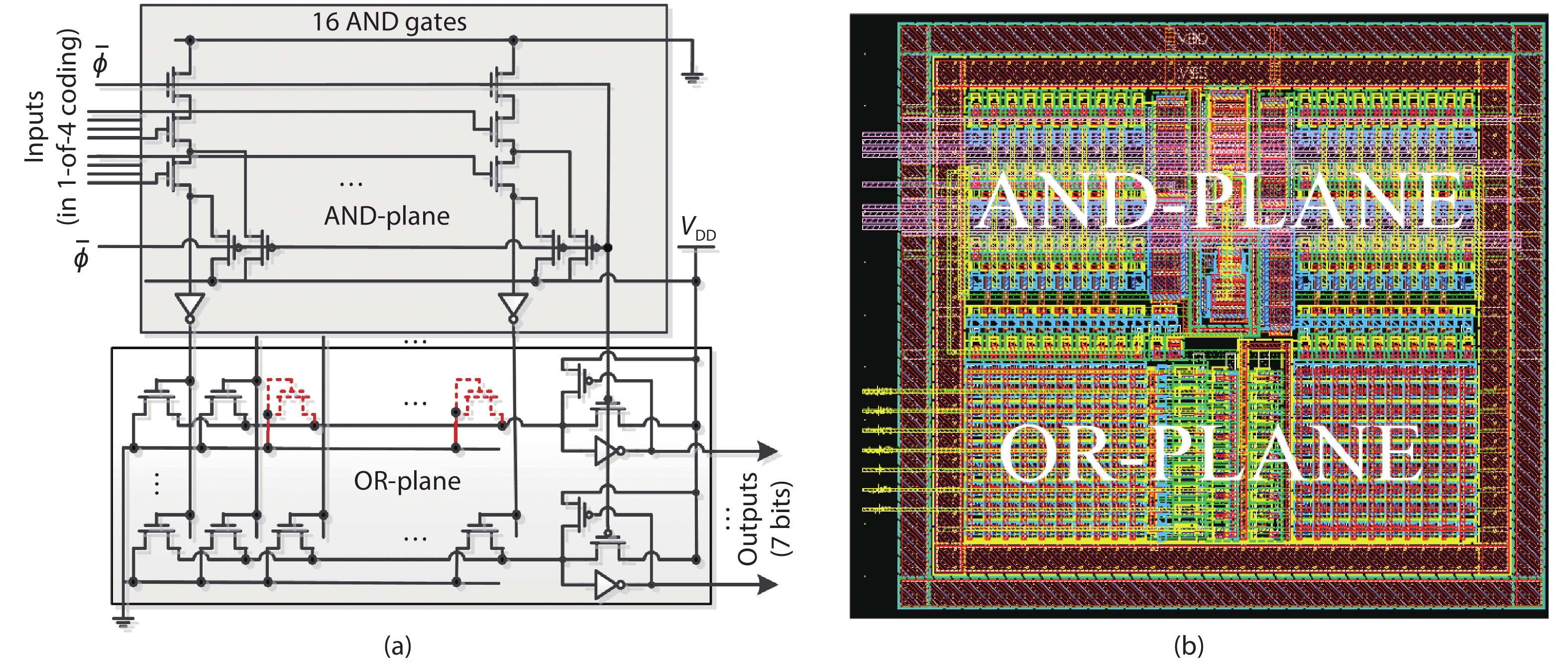

Fig. 3. (Color online) PAH inversion in GF(2⁴) unit. (a) Circuit^[14]. (b) Layout (62 × 56 μm²).

DownLoad: Full-Size Img PowerPoint

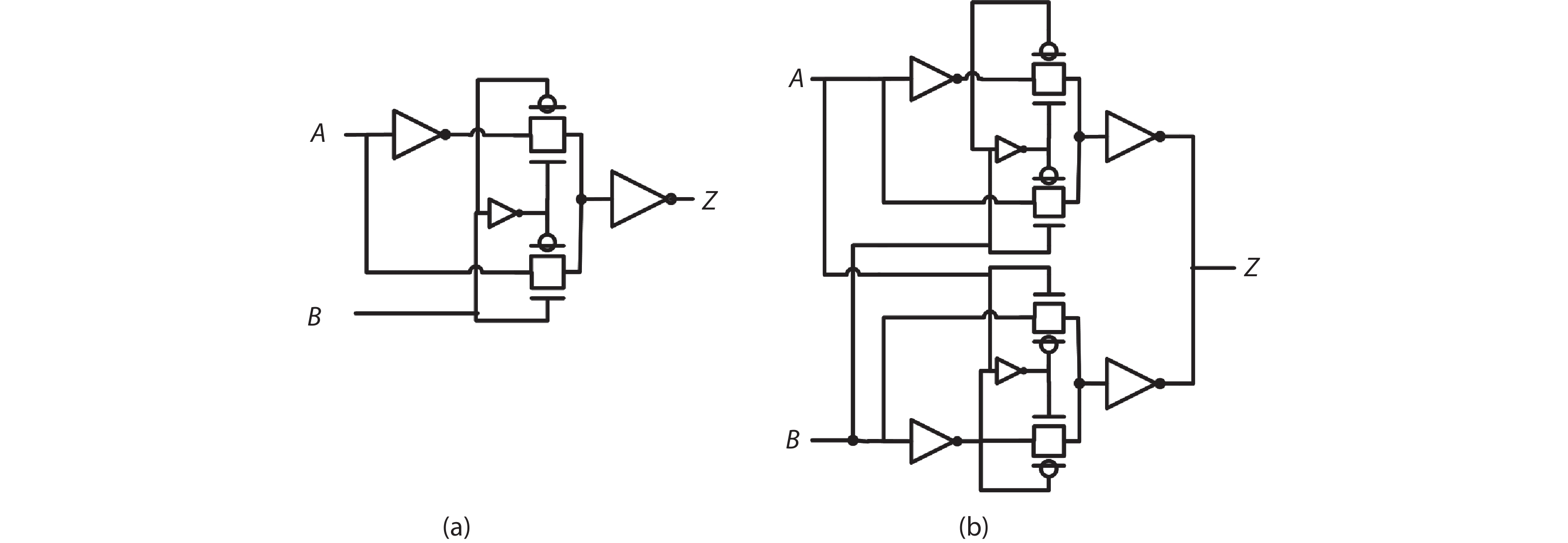

Fig. 4. Modification of XOR gates in RMU.

DownLoad: Full-Size Img PowerPoint

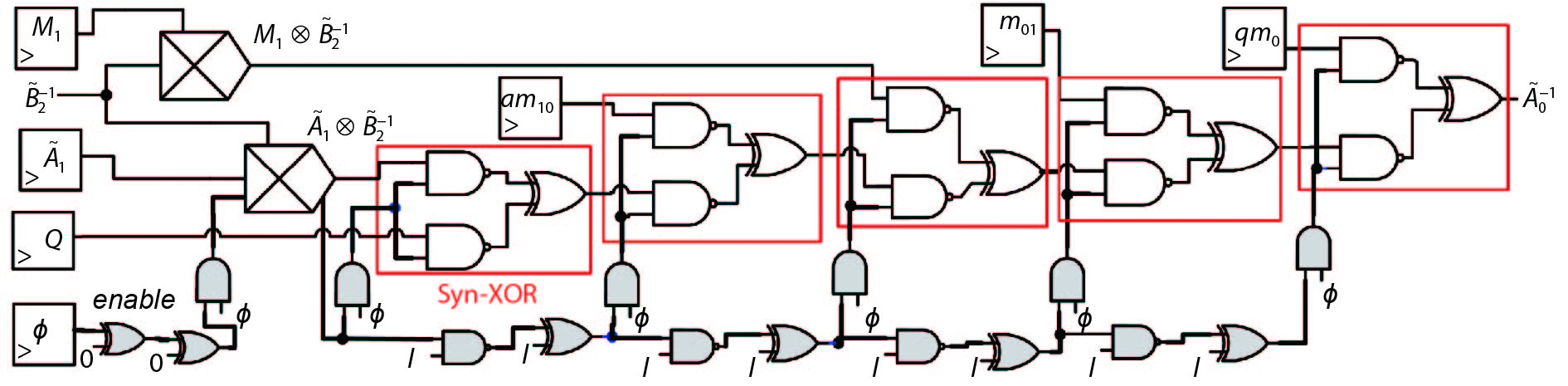

Fig. 5. Structure of $\widetilde {A_0^{ - 1}}$ calculation logic with enable chain.

DownLoad: Full-Size Img PowerPoint

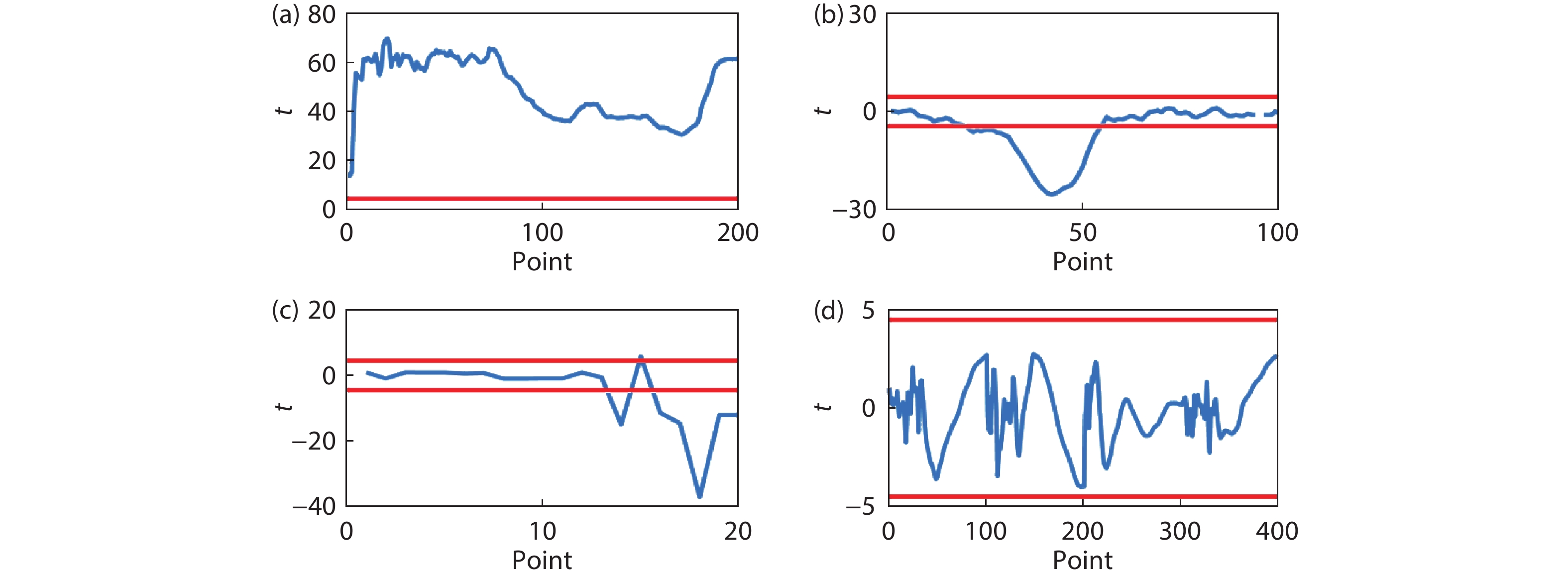

Fig. 6. (Color online) Nonspecific t-test results (with 10 000 traces). (a) Unprotected. (b) Full-masking. (c) Full-PAH. (d) Proposed.

DownLoad: Full-Size Img PowerPoint

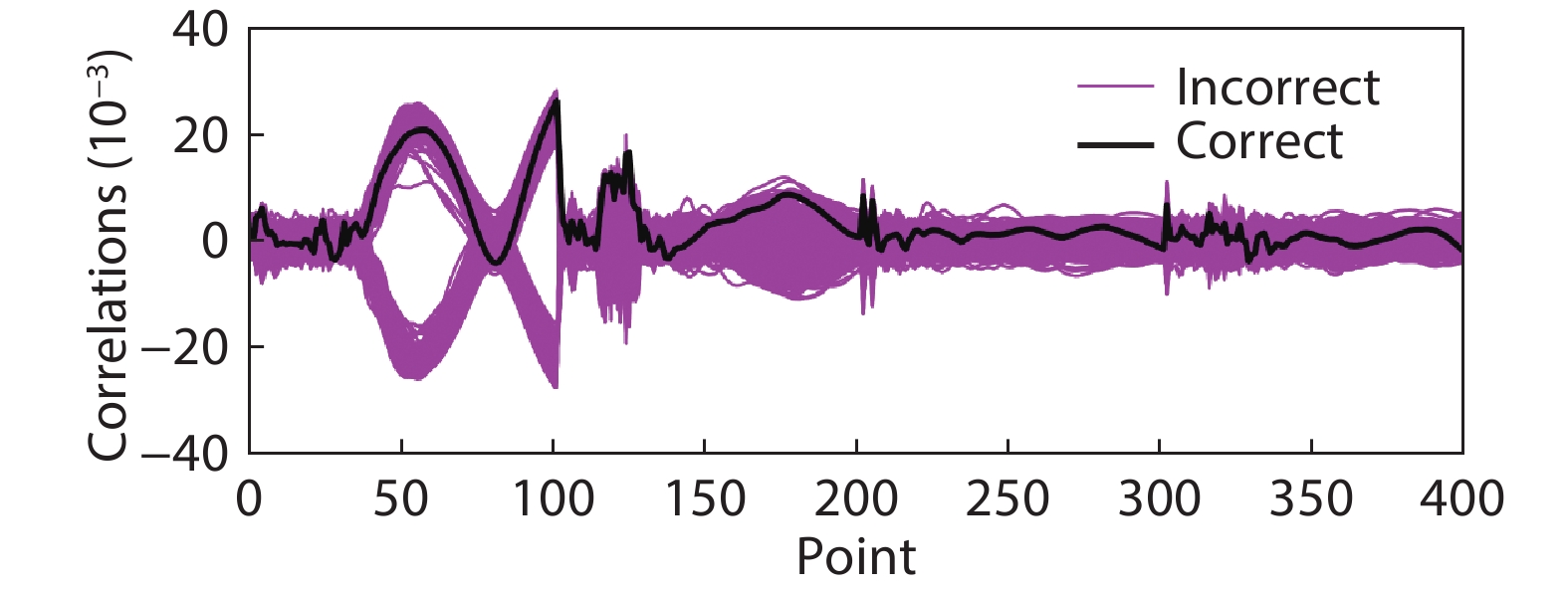

Fig. 7. (Color online) MCP-DPA attack result (332 500 traces for profiling and 332 500 traces for correlation).

DownLoad: Full-Size Img PowerPoint

Table 1. Comparison with other DPA-resistant S-box in terms of security.

Design	Ref. [17]	Full-masking	Ref. [13]	Ref. [9]	This work (with glitches)	This work
Countermeasure	Unprotected	Full-masking	Full-PAH	RFVD	PAH-masking	PAH-glitch-free masking
${\left\| t \right\|_{\rm{max }}}$	69.8	25.2	37.2	4.2	14.4	3.9

DownLoad: CSV

Table 2. Comparison with other DPA-resistant S-box in terms of delay, energy, and cost.

Parameter	Ref. [17]	Ref. [20]	Ref. [13]	This work (with glitches)	This work
Countermeasure	No	Masking	Full-PAH	PIU+masking	Proposed
Technology (nm)	180	180	180	180	180
Delay (ns)	4	9.44	1.56	5.55	5.71
Area (GE)	373	635	3865	1558	2365
Energy (pJ)	24.56	152.93	5.6	24.08	26.87

DownLoad: CSV
