J. Semicond. > 2022, Volume 43 > Issue 12 > 122802
|

ARTICLES

A 4H-SiC semi-super-junction shielded trench MOSFET: p-pillar is grounded to optimize the electric field characteristics

Xiaojie Wang1, Zhanwei Shen2, , Guoliang Zhang1, Yuyang Miao1, Tiange Li1, Xiaogang Zhu1, Jiafa Cai1, Rongdun Hong1, 3, Xiaping Chen1, Dingqu Lin1, Shaoxiong Wu1, Yuning Zhang1, Deyi Fu1, Zhengyun Wu1 and Feng Zhang1, 4,

+ Author Affiliations

 Corresponding author: Zhanwei Shen, zwshen@semi.ac.cn; Feng Zhang, fzhang@xmu.edu.cn

DOI: 10.1088/1674-4926/43/12/122802

PDF

Turn off MathJax

Abstract: A 4H-SiC trench gate metal–oxide–semiconductor field-effect transistor (UMOSFET) with semi-super-junction shielded structure (SS-UMOS) is proposed and compared with conventional trench MOSFET (CT-UMOS) in this work. The advantage of the proposed structure is given by comprehensive study of the mechanism of the local semi-super-junction structure at the bottom of the trench MOSFET. In particular, the influence of the bias condition of the p-pillar at the bottom of the trench on the static and dynamic performances of the device is compared and revealed. The on-resistance of SS-UMOS with grounded (G) and ungrounded (NG) p-pillar is reduced by 52% (G) and 71% (NG) compared to CT-UMOS, respectively. Additionally, gate oxide in the GSS-UMOS is fully protected by the p-shield layer as well as semi-super-junction structure under the trench and p-base regions. Thus, a reduced electric-field of 2 MV/cm can be achieved at the corner of the p-shield layer. However, the quasi-intrinsic protective layer cannot be formed in NGSS-UMOS due to the charge storage effect in the floating p-pillar, resulting in a large electric field of 2.7 MV/cm at the gate oxide layer. Moreover, the total switching loss of GSS-UMOS is 1.95 mJ/cm2 and is reduced by 18% compared with CT-UMOS. On the contrary, the NGSS-UMOS has the slowest overall switching speed due to the weakened shielding effect of the p-pillar and the largest gate-to-drain capacitance among the three. The proposed GSS-UMOS plays an important role in high-voltage and high-frequency applications, and will provide a valuable idea for device design and circuit applications.

Key words: breakdown voltage, specific on-resistance, silicon carbide, switching energy loss, super-junction-shield (SS), trench gate MOSFET, grounded (G), ungrounded (NG)



[1]
Shin G, Lee W C. High frequency switching inverter using Si and SiC. J Korean Institute Illumin Electr Instal Eng, 2017, 31, 45
[2]
Hatakeyama T, Watanabe T, Shinohe T, et al. Impact ionization coefficients of 4H silicon carbide. Appl Phys Lett, 2004, 85, 1380 doi: 10.1063/1.1784520
[3]
Gao Y, Huang A, Krishnaswami S, et al. Comparison of static and switching characteristics of 1200V 4H-SiC BJT and 1200V Si-IGBT. Conf Rec IAS Annu Meet IEEE Ind Appl Soc, 2006, 1, 325 doi: 10.1109/IAS.2006.256541
[4]
Hosseini Aghdam G. Comparison of Si and SiC power semiconductor devices in power electronics converters to be used in plug-In hybrid electric vehicles. EPE J, 2012, 22, 20 doi: 10.1080/09398368.2012.11463814
[5]
Jordan J, Esteve V, Sanchis-Kilders E, et al. A comparative performance study of a 1200 V Si and SiC MOSFET intrinsic diode on an induction heating inverter. IEEE Trans Power Electron, 2013, 29, 2550 doi: 10.1109/TPEL.2013.2282658
[6]
Nayak P, Hatua K. Parasitic inductance and capacitance-assisted active gate driving technique to minimize switching loss of SiC MOSFET. IEEE Trans Ind Electron, 2017, 64, 8288 doi: 10.1109/TIE.2017.2711512
[7]
Wang D B, Feng Q Y, Chen X P, et al. Failure analysis and improvement of 60 V power UMOSFET. Microelectron Reliab, 2014, 54, 2782 doi: 10.1016/j.microrel.2014.07.003
[8]
Juang M H, Chen W T, Ou-Yang C I, et al. Fabrication of trench-gate power MOSFETs by using a dual doped body region. Solid State Electron, 2004, 48, 1079 doi: 10.1016/j.sse.2003.07.007
[9]
Kim T, Kim K. High breakdown voltage and low on-resistance 4H-SiC UMOSFET with source-trench optimization. ECS J Solid State Sci Technol, 2019, 8, Q147 doi: 10.1149/2.0091908jss
[10]
Onishi Y, Hashimoto Y. Numerical analysis of specific on-resistance for trench gate superjunction MOSFETs. Jpn J Appl Phys, 2015, 54, 024101 doi: 10.7567/JJAP.54.024101
[11]
Wang Y, Lan H, Cao F, et al. A novel power UMOSFET with a variable K dielectric layer. Chin Phys B, 2012, 21, 068503 doi: 10.1088/1674-1056/21/6/068503
[12]
Wang Y, Ma Y C, Hao Y, et al. Simulation study of 4H-SiC UMOSFET structure with p+-polySi/SiC shielded region. IEEE Trans Electron Devices, 2017, 64, 3719 doi: 10.1109/TED.2017.2723502
[13]
Zou X, Wu Z M, Wang W P, et al. Optimized design of 4H-SiC UMOSFET for high breakdown voltage. Proc SPIE 11567, AOPC 2020: Optical Sensing and Imaging Technology, 2020, 11567, 939 doi: 10.1117/12.2580265
[14]
Jozi M, Orouji A A, Fathipour M. Control of electric field in 4H-SiC UMOSFET: Physical investigation. Phys E, 2016, 83, 107 doi: 10.1016/j.physe.2016.04.010
[15]
Roig J, Stefanov E, Morancho F. Thermal behavior of a superjunction MOSFET in a high-current conduction. IEEE Trans Electron Devices, 2006, 53, 1712 doi: 10.1109/TED.2006.876277
[16]
Chen Y, Liang Y C, Samudra G S, et al. Progressive development of superjunction power MOSFET devices. IEEE Trans Electron Devices, 2008, 55, 211 doi: 10.1109/TED.2007.911344
[17]
Xia Y, Chen W J, Sun R Z, et al. A superjunction MOSFET with ultralow reverse recovery charge and low switching losses. J Electron Mater, 2021, 50, 6297 doi: 10.1007/s11664-021-09142-w
[18]
Goh J, Kim K. Low on-resistance 4H-SiC UMOSFET with local floating superjunction. J Comput Electron, 2020, 19, 234 doi: 10.1007/s10825-019-01408-1
[19]
Saito W, Omura I, Aida S, et al. Semisuperjunction MOSFETs: New design concept for lower on-resistance and softer reverse-recovery body diode. IEEE Trans Electron Devices, 2003, 50, 1801 doi: 10.1109/TED.2003.815126
[20]
Saxena R S, Kumar M J. Polysilicon spacer gate technique to reduce gate charge of a trench power MOSFET. IEEE Trans Electron Devices, 2012, 59, 738 doi: 10.1109/TED.2011.2176946
[21]
Wang Y, Liu Y J, Yu C H, et al. A novel trench-gated power MOSFET with reduced gate charge. IEEE Electron Device Lett, 2015, 36, 165 doi: 10.1109/LED.2014.2382112
[22]
Feng H, Yang W T, Onozawa Y, et al. A new fin p-body insulated gate bipolar transistor with low miller capacitance. IEEE Electron Device Lett, 2015, 36, 591 doi: 10.1109/LED.2015.2426197
[23]
Kim S G. Fabrication of superjunction trench gate power MOSFETs using BSG-doped deep trench of p-pillar. ETRI J, 2013, 35, 632 doi: 10.4218/etrij.13.1912.0012
[24]
Huang Q Y, Huang A Q. Hybrid low-frequency switch for bridgeless PFC. IEEE Trans Power Electron, 2020, 35, 9982 doi: 10.1109/TPEL.2020.2978698
[25]
Huh Y Y, Choi J M, Kim J M, et al. A study on the optimization of deep-trench super junction metal oxide semiconductor field-effect transistor. J Nanoelectron Optoelectron, 2021, 16, 781 doi: 10.1166/jno.2021.3006
[26]
Saito W, Omura I, Aida S, et al. Over 1000V semi-superjunction MOSFET with ultra-low on-resistance below the Si-limit. The 17th International Symposium on Power Semiconductor Devices and ICs, 2005, 27 doi: 10.1109/ISPSD.2005.1487942
[27]
Vudumula P, Kotamraju S. Design and optimization of SiC super-junction MOSFET using vertical variation doping profile. IEEE Trans Electron Devices, 2019, 66, 1402 doi: 10.1109/TED.2019.2894650
[28]
Wang Y, Hu H F, Yu C H, et al. High-performance split-gate enhanced UMOSFET with p-pillar structure. IEEE Trans Electron Devices, 2013, 60, 2302 doi: 10.1109/TED.2013.2260547
[29]
Kobayashi Y, Kyogoku S, Morimoto T, et al. High-temperature performance of 1.2 kV-class SiC super junction MOSFET. 2019 31st International Symposium on Power Semiconductor Devices and ICs, 2019, 31 doi: 10.1109/ISPSD.2019.8757609
[30]
Masuda T, Saito Y, Kumazawa T, et al. 0.63 mΩ·cm2/1170 V 4H-SiC super junction V-groove trench MOSFET. 2018 IEEE International Electron Devices Meeting, 2018 doi: 10.1109/IEDM.2018.8614610
[31]
Okada M, Kyogoku S, Kumazawa T, et al. Superior short-circuit performance of SiC superjunction MOSFET. 2020 32nd International Symposium on Power Semiconductor Devices and ICs, 2020, 70 doi: 10.1109/ISPSD46842.2020.9170126
[32]
Shen P, Wang Y, Li X J, et al. Improved 4H-SiC UMOSFET with super-junction shield region. Chin Phys B, 2021, 30, 058502 doi: 10.1088/1674-1056/abd740
[33]
Cha K, Kim K. 3.3 kV 4H-SiC DMOSFET with a source-contacted dummy gate for high-frequency applications. J Semicond, 2021, 42, 062801 doi: 10.1088/1674-4926/42/6/062801
[34]
Luo X R, Liao T, Wei J, et al. A novel 4H-SiC trench MOSFET with double shielding structures and ultralow gate-drain charge. J Semicond, 2019, 40, 052803 doi: 10.1088/1674-4926/40/5/052803
[35]
Wei J, Zhang M, Jiang H P, et al. Superjunction MOSFET with dual built-In Schottky diodes for fast reverse recovery: A numerical simulation study. IEEE Electron Device Lett, 2019, 40, 1155 doi: 10.1109/LED.2019.2917556
[36]
Kang H, Lee J, Lee K, et al. Trench angle: A key design factor for a deep trench superjunction MOSFET. Semicond Sci Technol, 2015, 30, 125008 doi: 10.1088/0268-1242/30/12/125008
[37]
Wang Y D, Duan B X, Zhang C, et al. AC-SJ VDMOS with ultra‐low resistance. Micro Nano Lett, 2020, 15, 230 doi: 10.1049/mnl.2019.0497
[38]
Tian R, Ma C, Wu J M, et al. A review of manufacturing technologies for silicon carbide superjunction devices. J Semicond, 2021, 42, 061801 doi: 10.1088/1674-4926/42/6/061801
[39]
Shen Z W, Zhang F, Yan G G, et al. High-frequency switching properties and low oxide electric field and energy loss in a reverse-channel 4H-SiC UMOSFET. IEEE Trans Electron Devices, 2020, 67, 4046 doi: 10.1109/TED.2020.3005899
[40]
Kim M, Forbes J J, Hirsch E A, et al. Evaluation of long-term reliability and overcurrent capabilities of 15-kV SiC MOSFETs and 20-kV SiC IGBTs during narrow current pulsed conditions. IEEE Trans Plasma Sci, 2020, 48, 3962 doi: 10.1109/TPS.2020.3030295
[41]
Appaswamy A, Chakraborty P, Cressler J D. Influence of interface traps on the temperature sensitivity of MOSFET drain-current variations. IEEE Electron Device Lett, 2010, 31, 387 doi: 10.1109/LED.2010.2041892
[42]
Chen R Z, Wang L X, Jiu N X, et al. Simulation and result analysis of split gate resurf stepped oxide UMOFSET with floating electrode for improved performance. Electronics, 2019, 8, 1553 doi: 10.3390/electronics8121553
[43]
Yoon J, Kim K. A 3.3 kV 4H-SiC split gate MOSFET with a central implant region for superior trade-off between static and switching performance. J Semicond, 2021, 42, 062803 doi: 10.1088/1674-4926/42/6/062803
[44]
Chen R Z, Wang L X, Zhang H K, et al. A new split gate resurf stepped oxide UMOSFET structure with high doped epitaxial layer for improving figure of merit (FOM). Appl Sci, 2020, 10, 7895 doi: 10.3390/app10217895
[45]
Wang Y, Hu H F, Wang L G, et al. Split gate resurf stepped oxide UMOSFET with p-pillar for improved performance. IET Power Electron, 2014, 7, 965 doi: 10.1049/iet-pel.2013.0363
[46]
Ahmad S S, Narayanan G. Double pulse test based switching characterization of SiC MOSFET. 2017 National Power Electronics Conference, 2017, 319 doi: 10.1109/NPEC.2017.8310478
[47]
Wang Y, Jiao W L, Hu H F, et al. Split-gate-enhanced power UMOSFET with soft reverse recovery. IEEE Trans Electron Devices, 2013, 60, 2084 doi: 10.1109/TED.2013.2257789
[48]
Liu Q, Wang Q, Liu H, et al. Low on-resistance 1.2 kV 4H-SiC power MOSFET with Ron, sp of 3.4 mΩ· cm2. J Semicond, 2020, 41, 062801 doi: 10.1088/1674-4926/41/6/062801
[49]
Han Z, Song G, Bai Y, et al. A novel 4H-SiC MOSFET for low switching loss and high-reliability applications. Semicond Sci Technol, 2020, 35, 085017 doi: 10.1088/1361-6641/ab8fbf
[50]
Tian K, Hallén A, Qi J W, et al. An improved 4H-SiC trench-gate MOSFET with low ON-resistance and switching loss. IEEE Trans Electron Devices, 2019, 66, 2307 doi: 10.1109/TED.2019.2905636
[51]
An J J, Hu S D. Heterojunction diode shielded SiC split-gate trench MOSFET with optimized reverse recovery characteristic and low switching loss. IEEE Access7, 2019, 7, 28592 doi: 10.1109/ACCESS.2019.2902246
Fig. 1.  (Color online) Schematic cross-sections of (a) the CT-UMOS and (b) proposed SS-UMOS (G & NG) (Please refer to Table 1 for detailed parameters).

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) Process flow of the proposed SS-UMOS (G & NG) structure of SiC MOSFET.

DownLoad: Full-Size Img PowerPoint

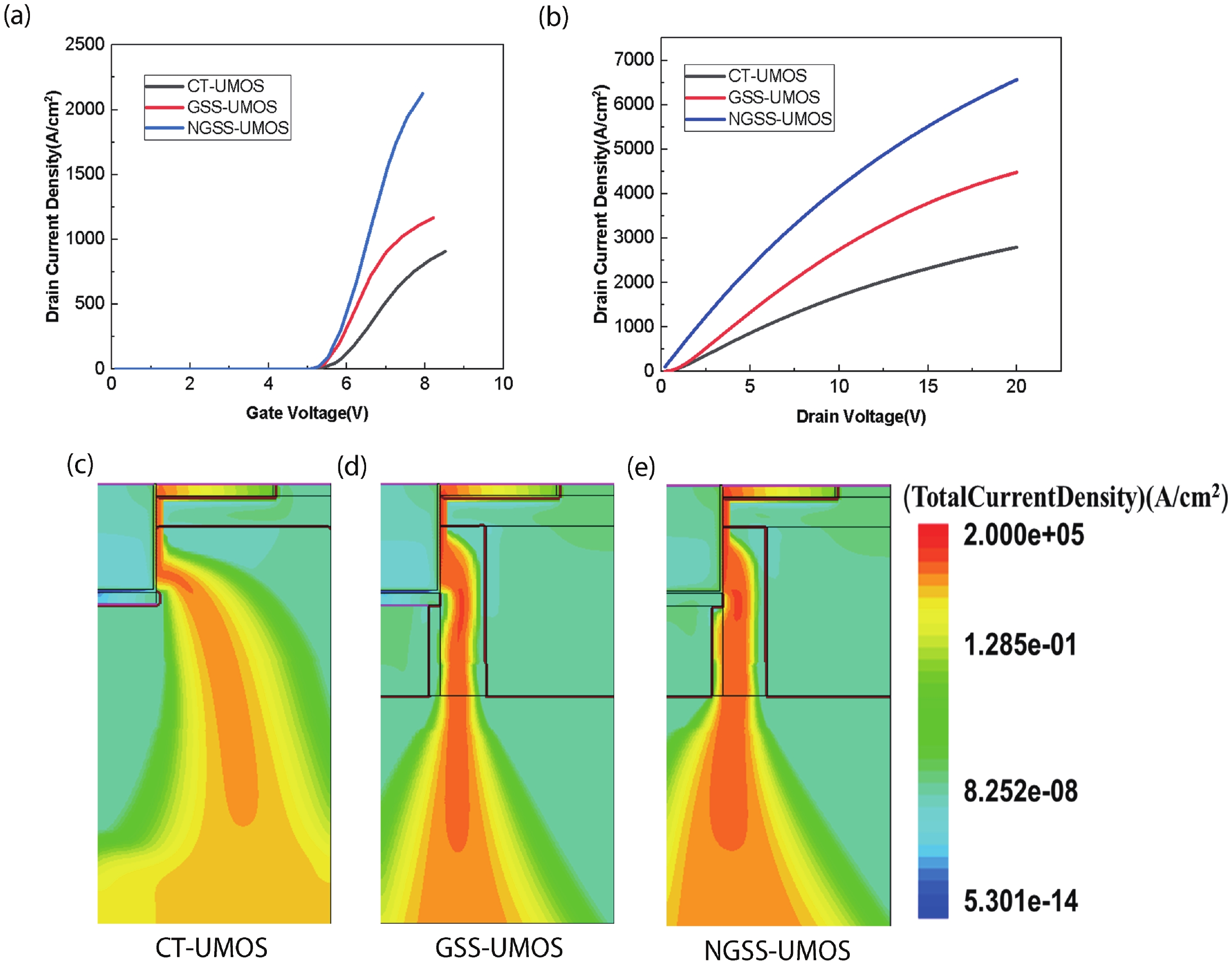

Fig. 3.  (Color online) (a) The transfer characteristic curves (VDS = 5 V), (b) output characteristic curves and current density of (c) CT-UMOS, (d) GSS-UMOS, (e) NGSS-UMOS. (VGS = 15 V, VDS = 20 V)

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) (a) Breakdown characteristic curves, (b–d) corresponding electric field distributions (VGS = 0 V, VDS = 1200 V), two-dimensional electric fields of (e) CT-UMOS and (f) GSS-UMOS (VGS = 0 V, VDS = 1200 V), and current density distribution of (g) CT-UMOS and (h) GSS-UMOS at breakdown voltage.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  (Color online) (a) Feedback capacitance CGD as a function of drain voltage VDS at gate voltage VGS = 0 V and (b) voltage VGS as a function of gate charge QG and the inset is the testing circuit for QG.

DownLoad: Full-Size Img PowerPoint

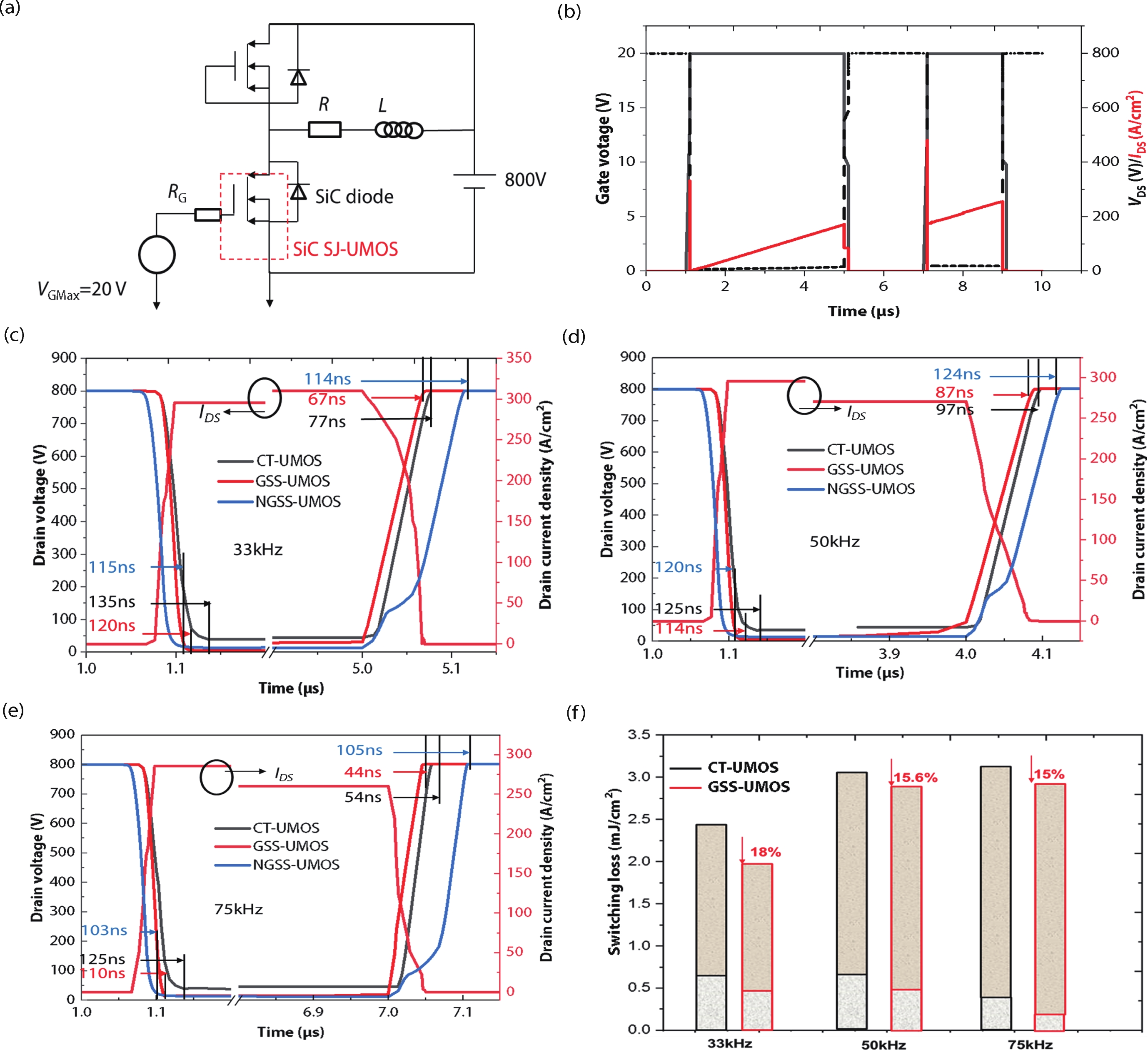

Fig. 6.  (Color online) (a) Test circuit of switch characteristics, (b) voltage and current characteristic of the GSS-UMOS in the switching transients, (c) detailed comparisons of the turn-on and turn-off transients for the CT-UMOS and SS-UMOS (G & NG) at switching frequency of 33 kHz, (d) the switching frequency is 50 kHz, (e) the switching frequency is 75 kHz, (f) comparison of the switching loss at different switching frequencies.

DownLoad: Full-Size Img PowerPoint

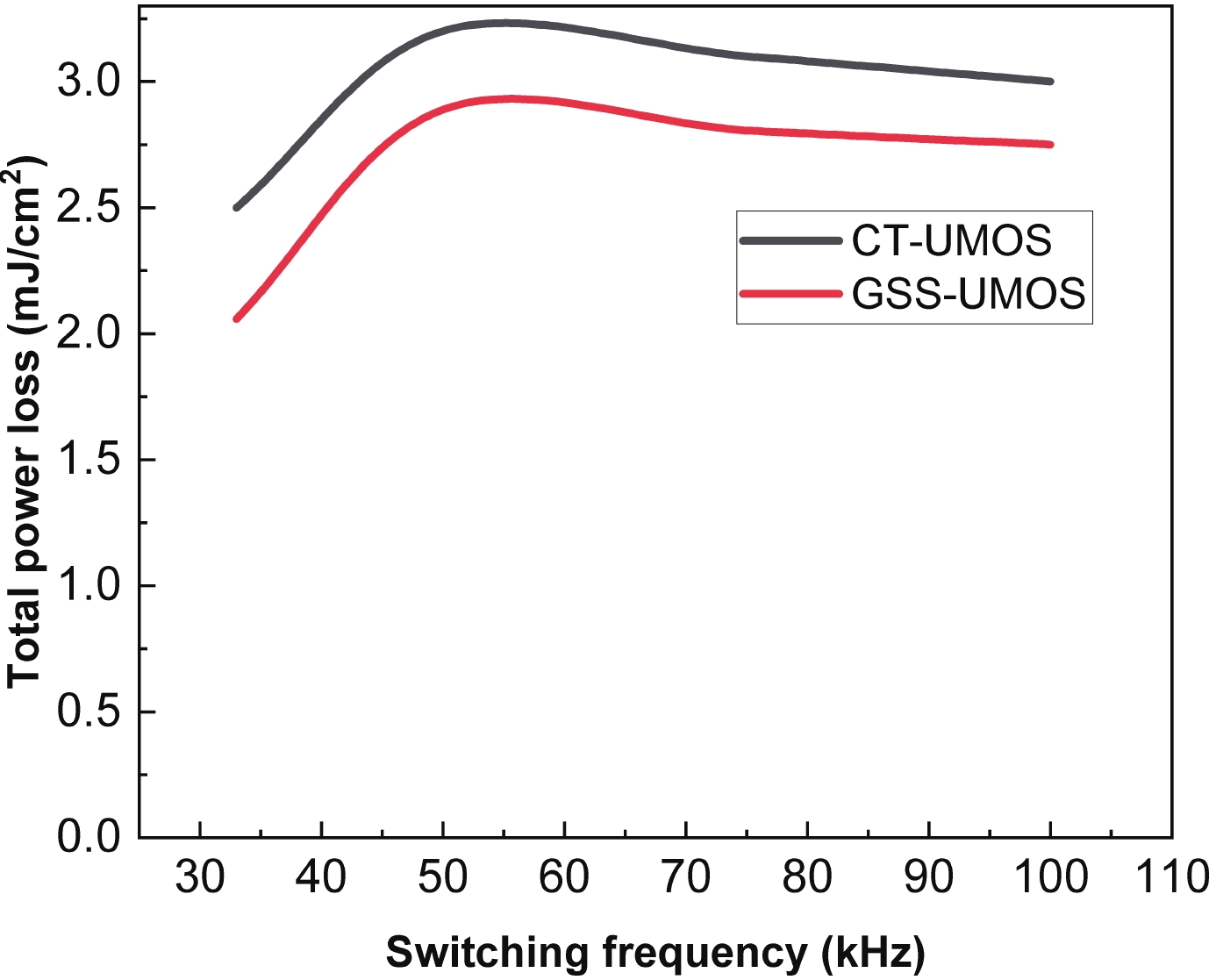

Fig. 7.  (Color online) The relationship between the total power loss and switching frequency.

DownLoad: Full-Size Img PowerPoint

Table 1.   Device parameters for CT-UMOS and SS-UMOS (G & NG).

Device parameterCT-UMOSSS-UMOS
p-body junction depth (μm)0.50.5
p+ junction depth (μm)0.20.2
Gate trench depth (μm)1.81.8
Thickness of n-drift (μm)1212
n-pillar depth (Tt) (μm)–1.5
p-pillar depth (Tt) (μm)–1.5
n-pillar depth (Tc) (μm)–2.8
p-pillar depth (Tc) (μm)–2.8
p-pillar width (Wc) (μm)–2.2
p-pillar width (Wt) (μm)–1.6
Width of trench (μm)2.02.0
n-drift doping concentration (1015 cm−3)1.01.0
p-body doping concentration (1017 cm−3)1.01.0
p-pillar doping concentration (1016 cm−3)–3.0
n-pillar doping concentration (1016 cm−3)–2.0
DownLoad: CSV

Table 2.   Comparisons of the characteristics for the CT-UMOS and the SS-UMOS (G & NG).

ParameterCT-UMOSGSS-UMOSNGSS-UMOSr
Isat (kA/cm2)2.403.906.70
Ron,sp (mΩ·cm2) 6.203.001.80
BV (V)124017501530
Eox-max (MV/cm)3.002.202.70
Eox (MV/cm)1.501.002.70
Etotal (mJ/cm2)2.401.95–
FOM (kV2/(mΩ·cm2))0.260.901.30
QGD (nC/cm2)24580450
QG (nC/cm2)302829222980
Ciss (nF/cm2)6730 108
QGD·Ron,sp (mΩ·nC)1550240810
DownLoad: CSV
