Effect of drying methods on perovskite films and solar cells

Ling Liu1, Chuantian Zuo1, 2, , Guang-Xing Liang3, Hua Dong4, Jingjing Chang5 and Liming Ding1,

+ Author Affiliations

 Corresponding author: Chuantian Zuo, zuocht@nanoctr.cn; Liming Ding, ding@nanoctr.cn

DOI: 10.1088/1674-4926/45/1/010501

PDF

Turn off MathJax



[1]
Zhao Y, Ma F, Qu Z H, et al. Inactive (PbI2)2RbCl stabilizes perovskite films for efficient solar cells. Science, 2022, 377, 531 doi: 10.1126/science.abp8873
[2]
Chen X, Guo B, Zhang Z Y, et al. Binary hole transport layer enables stable perovskite solar cells with PCE exceeding 24%. DeCarbon, 2023, 1, 100004 doi: 10.1016/j.decarb.2023.100004
[3]
Liu W G, Raza H, Hu X D, et al. Key bottlenecks and distinct contradictions in fast commercialization of perovskite solar cells. Mater Futures, 2023, 2, 012103 doi: 10.1088/2752-5724/acba35
[4]
Tang G Q, Yan F. Flexible perovskite solar cells: Materials and devices. J Semicond, 2021, 42, 101606 doi: 10.1088/1674-4926/42/10/101606
[5]
Zhang L X, Pan X Y, Liu L, et al. Star perovskite materials. J Semicond, 2022, 43, 030203 doi: 10.1088/1674-4926/43/3/030203
[6]
Yang J, Hu J F, Zhang W H, et al. The opportunities and challenges of ionic liquids in perovskite solar cells. J Energy Chem, 2023, 77, 157 doi: 10.1016/j.jechem.2022.10.048
[7]
Zhou W, Pan T, Ning Z J. Strategies for enhancing the stability of metal halide perovskite towards robust solar cells. Sci China Mater, 2022, 65, 3190 doi: 10.1007/s40843-022-2277-9
[8]
Shao J Y, Li D M, Shi J J, et al. Recent progress in perovskite solar cells: Material science. Sci China Chem, 2023, 66, 10 doi: 10.1007/s11426-022-1445-2
[9]
Ma Y Z, Zhao Q. A strategic review on processing routes towards scalable fabrication of perovskite solar cells. J Energy Chem, 2022, 64, 538 doi: 10.1016/j.jechem.2021.05.019
[10]
Huang F, Li M J, Siffalovic P, et al. From scalable solution fabrication of perovskite films towards commercialization of solar cells. Energy & Environ Sci, 2019, 12, 518 doi: 10.1039/C8EE03025A
[11]
Yao H H, Shi S H, Li Z Z, et al. Strategies from small-area to scalable fabrication for perovskite solar cells. J Energy Chem, 2021, 57, 567 doi: 10.1016/j.jechem.2020.08.033
[12]
Jiang Z Y, Wang B K, Zhang W J, et al. Solvent engineering towards scalable fabrication of high-quality perovskite films for efficient solar modules. J Energy Chem, 2023, 80, 689 doi: 10.1016/j.jechem.2023.02.017
[13]
Castro-Hermosa S, Wouk L, Bicalho I S, et al. Efficient fully blade-coated perovskite solar cells in air with nanometer-thick bathocuproine buffer layer. Nano Res, 2021, 14, 1034 doi: 10.1007/s12274-020-3147-4
[14]
Gu Z K, Wang Y, Wang S H, et al. Controllable printing of large-scale compact perovskite films for flexible photodetectors. Nano Res, 2022, 15, 1547 doi: 10.1007/s12274-021-3700-9
[15]
Li H, Liu M Z, Li M C, et al. Applications of vacuum vapor deposition for perovskite solar cells: A progress review. iEnergy, 2022, 1, 434 doi: 10.23919/IEN.2022.0053
[16]
Chang X M, Fan Y Y, Zhao K, et al. Perovskite solar cells toward eco-friendly printing. Research, 2021, 2021, 9671892 doi: 10.34133/2021/9671892
[17]
Zhu Y Q, Hu M, Xu M, et al. Bilayer metal halide perovskite for efficient and stable solar cells and modules. Mater Futures, 2022, 1, 042102 doi: 10.1088/2752-5724/ac9248
[18]
Gao C, Wang H, Wang P, et al. Defect passivation with potassium trifluoroborate for efficient spray-coated perovskite solar cells in air. J Semicond, 2022, 43, 092201 doi: 10.1088/1674-4926/43/9/092201
[19]
Chen B B, Wang P Y, Ren N Y, et al. Tin dioxide buffer layer-assisted efficiency and stability of wide-bandgap inverted perovskite solar cells. J Semicond, 2022, 43, 052201 doi: 10.1088/1674-4926/43/5/052201
[20]
Zuo C T, Scully A D, Vak D, et al. Self-assembled 2D perovskite layers for efficient printable solar cells. Adv Energy Mater, 2019, 9, 1803258 doi: 10.1002/aenm.201803258
[21]
Zuo C T, Scully A D, Gao M. Drop-casting method to screen Ruddlesden–Popper perovskite formulations for use in solar cells. ACS Appl Mater Interfaces, 2021, 13, 56217 doi: Drop-castingmethodtoscreenRuddlesden–Popperperovskiteformulationsforuseinsolarcells
[22]
Zuo C T, Ding L M. Drop-casting to make efficient perovskite solar cells under high humidity. Angew Chem Int Ed, 2021, 60, 11242 doi: 10.1002/anie.202101868
[23]
Zhang L X, Zuo C T, Ding L M. Efficient MAPbI3 solar cells made via drop-coating at room temperature. J Semicond, 2021, 42, 072201 doi: 10.1088/1674-4926/42/7/072201
[24]
Xiao H R, Zuo C T, Zhang L X, et al. Efficient inorganic perovskite solar cells made by drop-coating in ambient air. Nano Energy, 2023, 106, 108061 doi: 10.1016/j.nanoen.2022.108061
[25]
Xiao H R, Zuo C T, Yan K Y, et al. Highly efficient and air-stable inorganic perovskite solar cells enabled by polylactic acid modification. Adv Energy Mater, 2023, 13, 2300738 doi: 10.1002/aenm.202300738
[26]
Xiao H R, Zuo C T, Liu F Y, et al. Drop-coating produces efficient CsPbI2Br solar cells. J Semicond, 2021, 42, 050502 doi: 10.1088/1674-4926/42/5/050502
[27]
Liu L, Xiao H R, Jin K, et al. 4-Terminal inorganic perovskite/organic tandem solar cells offer 22% efficiency. Nano-Micro Letters, 2022, 15, 23 doi: 10.1007/s40820-022-00995-2
[28]
Zuo C T, Tan L G, Dong H, et al. Natural drying yields efficient perovskite solar cells. DeCarbon, 2023, 2, 100020 doi: 10.1016/j.decarb.2023.100020
[29]
Zuo C T, Zhang L X, Pan X Y, et al. Perovskite films with gradient bandgap for self-powered multiband photodetectors and spectrometers. Nano Res, 2023, 16, 10256 doi: 10.1007/s12274-023-5714-y
[30]
Liu L, Zuo C T, Ding L M. Self-spreading produces highly efficient perovskite solar cells. Nano Energy, 2021, 90, 106509 doi: 10.1016/j.nanoen.2021.106509
[31]
Zhang H, Park N G. Progress and issues in p-i-n type perovskite solar cells. DeCarbon, 2023, 100025 doi: 10.1016/j.decarb.2023.100025
[32]
Li C, Sun H X, Gan S, et al. Perovskite single crystals: Physical properties and optoelectronic applications. Mater Futures, 2023, 2, 042101 doi: 10.1088/2752-5724/ace8aa
[33]
Zhang L X, Li H, Zhang K, et al. Major strategies for improving the performance of perovskite solar cells. iEnergy, 2023, 2, 172 doi: 10.23919/IEN.2023.0026
[34]
Tao L, Qiu J, Sun B, et al. Stability of mixed-halide wide bandgap perovskite solar cells: Strategies and progress. J Energy Chem, 2021, 61, 395 doi: 10.1016/j.jechem.2021.03.038
[35]
Tian W J, Song P Q, Zhao Y P, et al. Monolithic bilayered In2O3 as an efficient interfacial material for high-performance perovskite solar cells. Interdiscip Mater, 2022, 1, 526 doi: 10.1002/idm2.12047

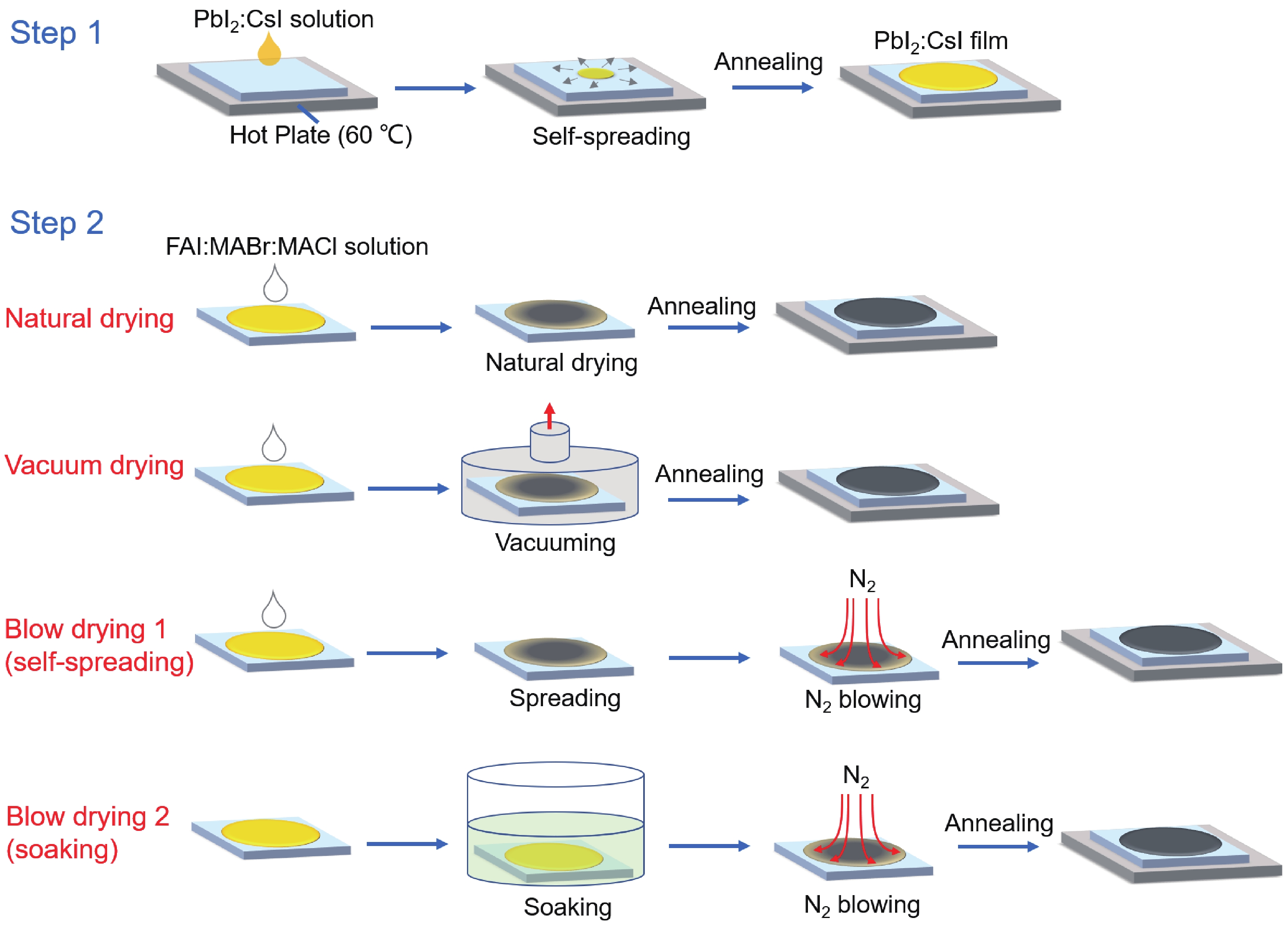

Fig. 1.  (Color online) The preparation process for perovskite films and the different drying methods in the second step.

DownLoad: Full-Size Img PowerPoint

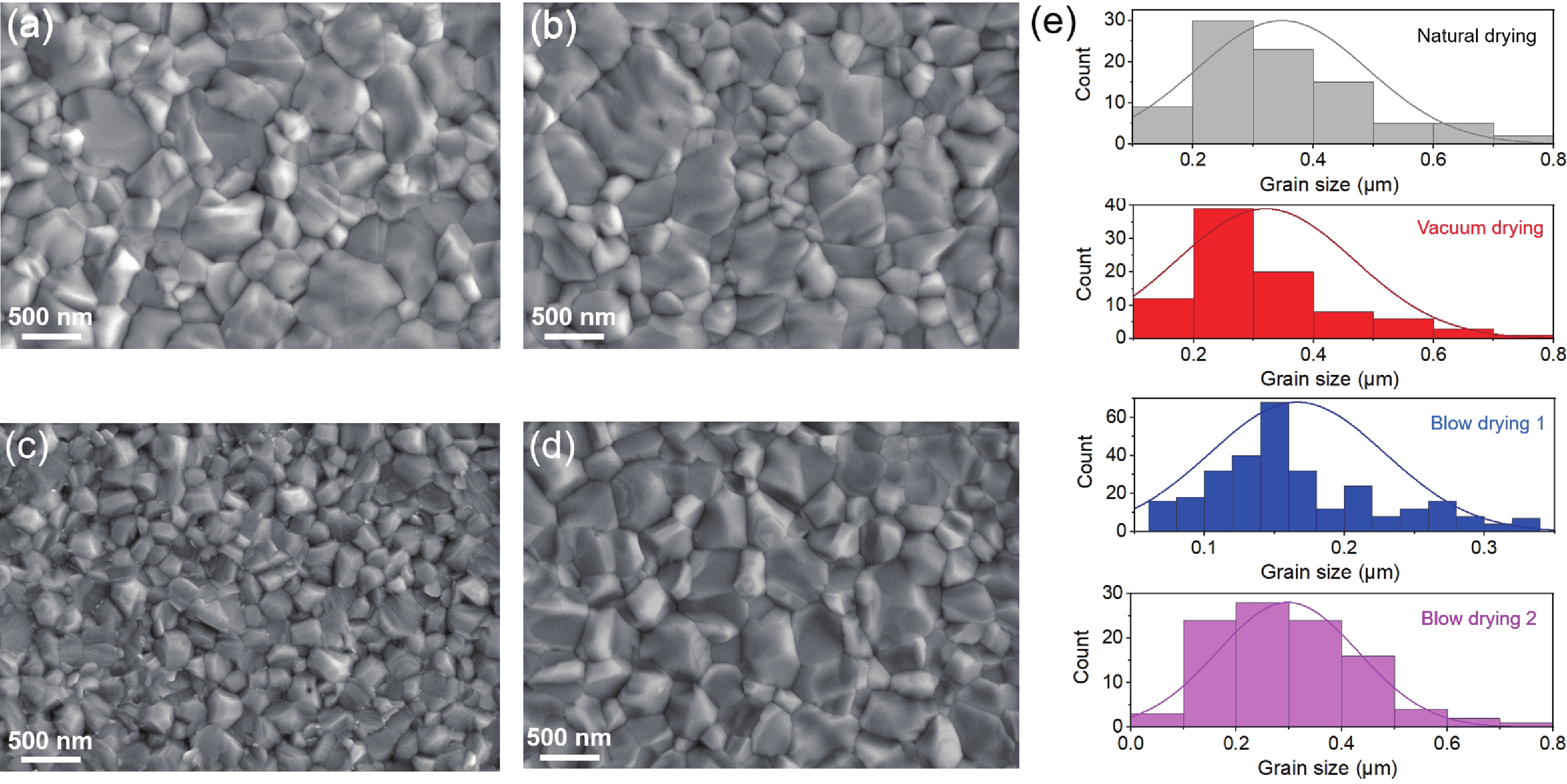

Fig. 2.  (Color online) SEM images for perovskite films made by natural drying (a), vacuum drying (b), blow drying 1 (c), and blow drying 2 (d). (e) Distribution of grain size for the perovskite films made by different drying methods.

DownLoad: Full-Size Img PowerPoint

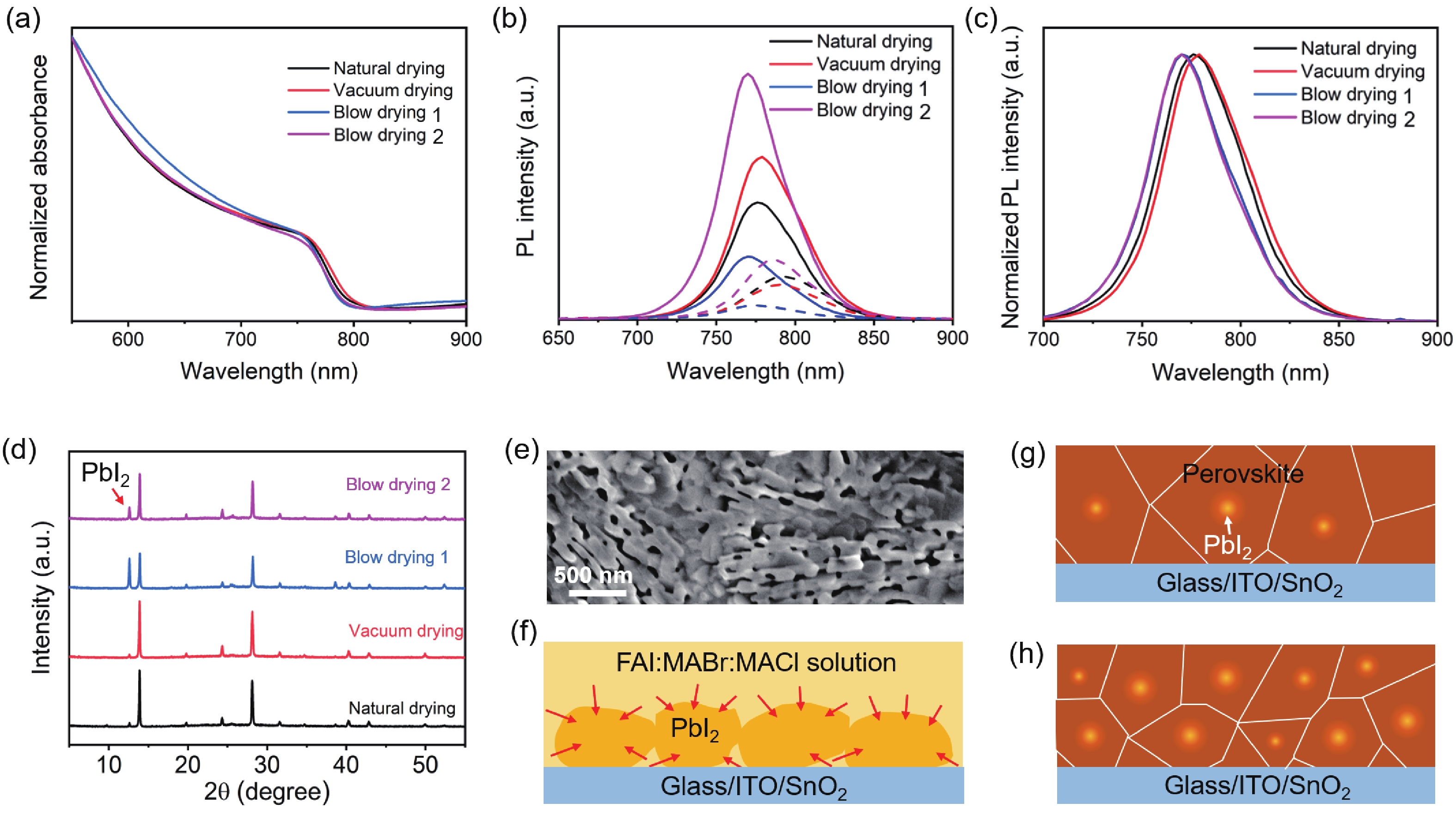

Fig. 3.  (Color online) UV−Vis absorption spectra (a), PL spectra (solid line: on glass substrate; dash line: on glass/SnO2 substrate) (b), normalized PL spectra (on glass substrate) (c), and XRD patterns (d) for the perovskite films made by using different drying methods. (e) SEM image (top view) for PbI2 film made by self-spreading. (f) Scheme for the reaction between PbI2 and FAI:MABr:MACl in the second step. (g) Scheme for the perovskite film with large grains and a small amount of unreacted PbI2. (h) Scheme for the perovskite film with small grains and a large amount of unreacted PbI2.

DownLoad: Full-Size Img PowerPoint

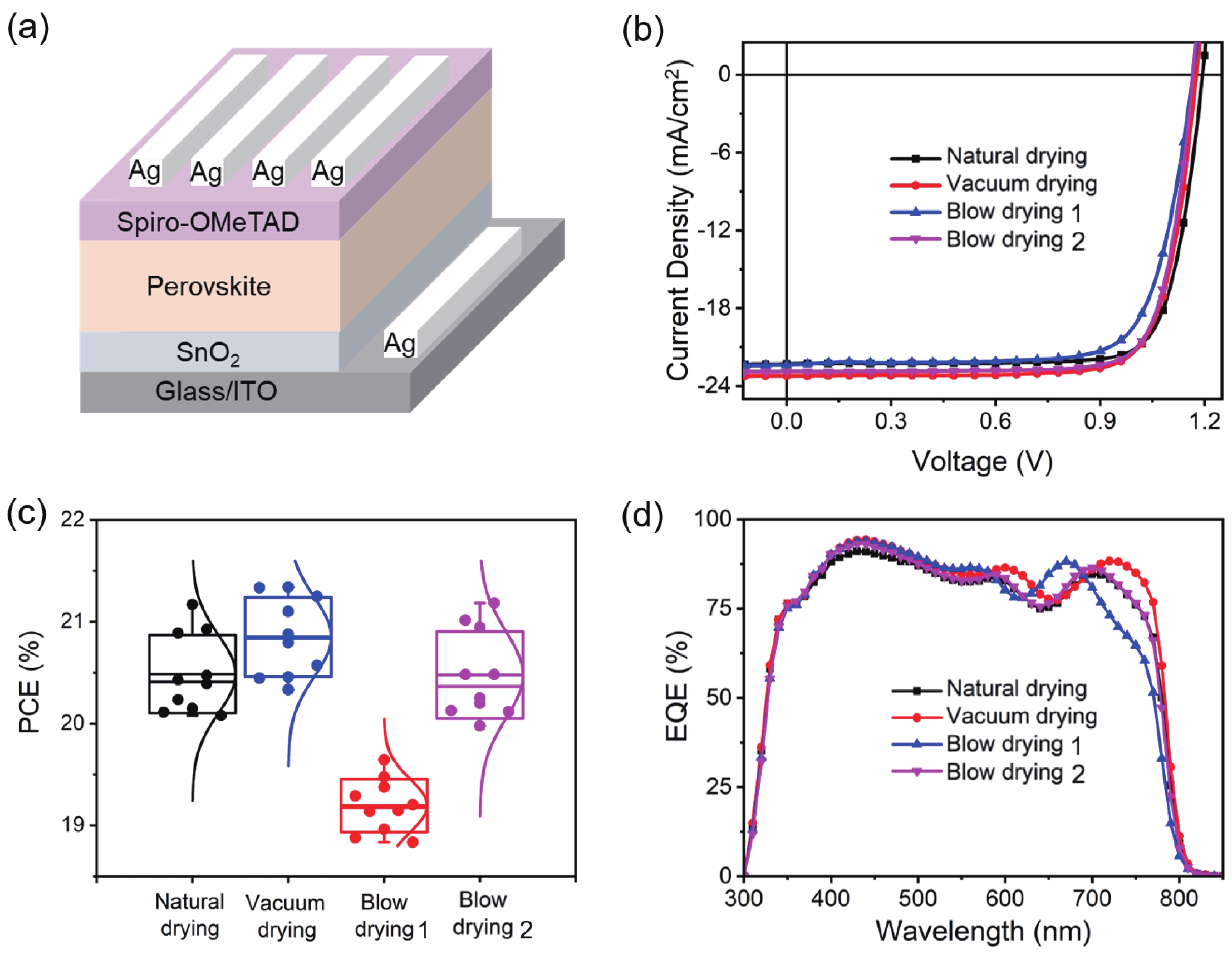

Fig. 4.  (Color online) (a) Structure for perovskite solar cells. (b) J−V curves for the cells made by using different drying methods. (c) Distribution of PCE for the cells made by using different drying methods. (d) EQE spectra for the cells.
