1. Introduction

Ferroelectric materials, which possess spontaneous polarization that an external electric field can control, have massive potential for applications in field-effect transistors^[1-13] (FETs), non-volatile memory^[14-22], ferroelectric tunnel junctions (FTJ) devices^[23-27], optoelectronic devices^{[28, 29]}, neuromorphic computing^[30-33], flexible nanoelectronics^[34-36], sensors and etc.^{[37, 38]}. In 1920, ferroelectricity was first discovered by Valasek^[39]. Then, ferroelectric films of perovskite structures were found in the 1950s. However, the spontaneous polarization of conventional perovskite ferroelectric thin films disappears as the film thickness is below a critical value of tens of nanometers to a few nanometers^{[40, 41]}. In the meantime, due to the rapid development of integrated circuits, the feature size of integrated devices is shrinking and the precision is increasing. The nano-scale thin ferroelectric films are becoming extremely crucial.

Since the successful exfoliation of graphene in 2004 by Novoselov et al.^[42], 2D van der Waals (vdW) materials have received much attention. Compared to bulk materials, the symmetry of vdW 2D materials with weak interlayer interactions is lowered due to reduced dimensions. This opens up a new way to obtain 2D ferroelectric materials beyond the traditional limits of size and dimension^[43]. 2D vdW ferroelectric materials, typically with a non-symmetry structure, can be classified into two groups, intrinsic 2D ferroelectrics and twisted 2D ferroelectrics. To date, intrinsic 2D ferroelectrics have been experimentally reported, like d1T-MoTe₂^[44], In₂Se₃^[45-50], CuInP₂S₆^{[51, 52]}, SnTe^[53], WTe₂^[54] and BA₂PbCl₄^[55] (Table 1). 2D vdW heterostructures can be obtained through layer-by-layer mechanical restacking, which displays unprecedented physical properties far exceeding the single layer^[56]. Ferroelectric ordering arises from spontaneous symmetry breaking, and ferroelectric materials with different properties have been discovered in this system. And as the research on 2D vdW materials continued, the fabrication of heterogeneous structures became possible, and people began to realize that reducing the material size is not the only way to change the material properties, twisted 2D layered materials are also possible. The twist is a new degree of freedom that manipulate unique properties^[57-73] by rotating alternating monolayers to form an angle with each other. When two layers of nonpolar materials are stacked at a certain angle, new synthetic ferroelectrics emerge, and this new way is rapidly attracting attention. It initially appeared in twisted bilayers graphene/BN^[74] and then extended to other vdW layered systems, such as stacked bilayers boron nitride^[75] (BN) and 2H-type transition metal dichalcogenides (TMDs)^[76], MX₂ (M = Mo, W; X = S, Se) (Table 2). In this review, we will divide it into four parts to illustrate intrinsic 2D ferroelectrics and summarize the current status of the twisted 2D ferroelectrics. Section 2 will briefly introduce intrinsic 2D ferroelectrics, like In₂Se₃, CuInP₂S₆ and d1T-MoTe₂. In Section 3, we will review the twisted 2D ferroelectrics in detail. Finally, we will provide perspectives and conclusions on the future development of twisted 2D ferroelectrics.

2. Intrinsic 2D ferroelectric

Due to the rapid development of 2D layered materials with various physical properties, the realization of monolayer ferroelectric films has become possible. With the development of preparation and detection techniques, one can accurately measure the ferroelectric signal of ultrathin ferroelectrics. Intrinsic 2D ferroelectrics are a class of 2D vdW materials in which spontaneous ferroelectric polarization arises from their intrinsic structural symmetry. As a result, various 2D ferroelectric materials have been discovered. Here, we will discuss the intrinsic 2D ferroelectric materials, such as In₂Se₃, CuInP₂S₆ and d1T-MoTe₂.

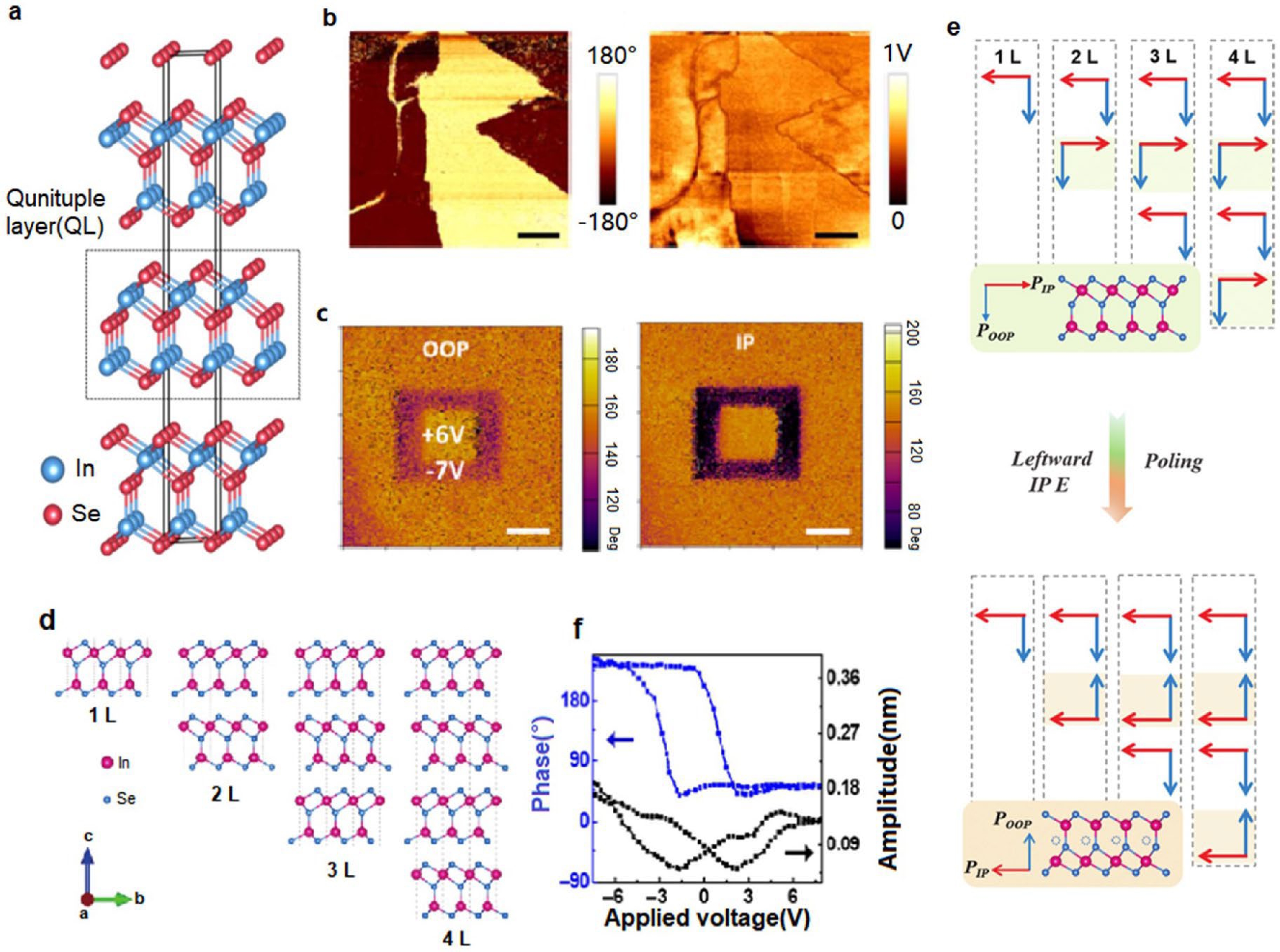

In₂Se₃ has five forms (α, β, γ, δ, κ) depending on the stacking order, among which α-In₂Se₃ is the most stable at room temperature. In monolayer In₂Se₃, Se and In consist of different covalent bonds in the quintuple layer (QL) 2D In₂Se₃, vertically stacking by weak vdW interaction^[77]. The stacking order of the five monolayers in QL is Se–In–Se–In–Se as shown in Fig. 1(a). Through piezoresponse force microscopy (PFM), a 180° phase difference is observed in a 10 nm thick α-In₂Se₃ flake (Fig. 1(b)), corresponding to an out-of-plane (OOP) polarization that shifts from up to down perpendicular to the surface^[45]. The switching of α-In₂Se₃ OOP and IP polarization can be obtained by writing opposite electric field, which shows that the external electric field can control the polarization direction (Fig. 1(c)). Moreover, the IP and OOP polarizations change simultaneously, indicating that the IP polarization and OOP polarizations coexist^[46]. In 2H α-In₂Se₃, it possesses a special interlayer 180° IP rotation stacking structure (Fig. 1(d)) and the IP polarization directions between the layers arranged in an anti-parallel manner^[50]. This indicates that the IP polarization is layer-dependent. As illustrated in Fig. 1(e), for even layers, the polarizations of adjacent IP polarization directions cancel each other and the total IP polarization is zero. However, for odd layers, there is always a remnant IP polarization. When an electric field is applied in the leftward direction, the IP polarization of all layers changes its pointing to the left (Fig. 1(e)). At the same time, due to the strong intercorrelation between IP and OOP polarization, the IP and OOP polarizations are reversed at the same time, which lead to the interlayer cancellation of OOP polarizations for even layers^[50]. This particular polarization relationship originates from a lateral shift of the central Se atomic layer induced by the electric field. And the local amplitude and phase shown in Fig. 1(f) display a butterfly loop and hysteresis loop with a sharp phase change, which is the hallmark of ferroelectrics^[48].

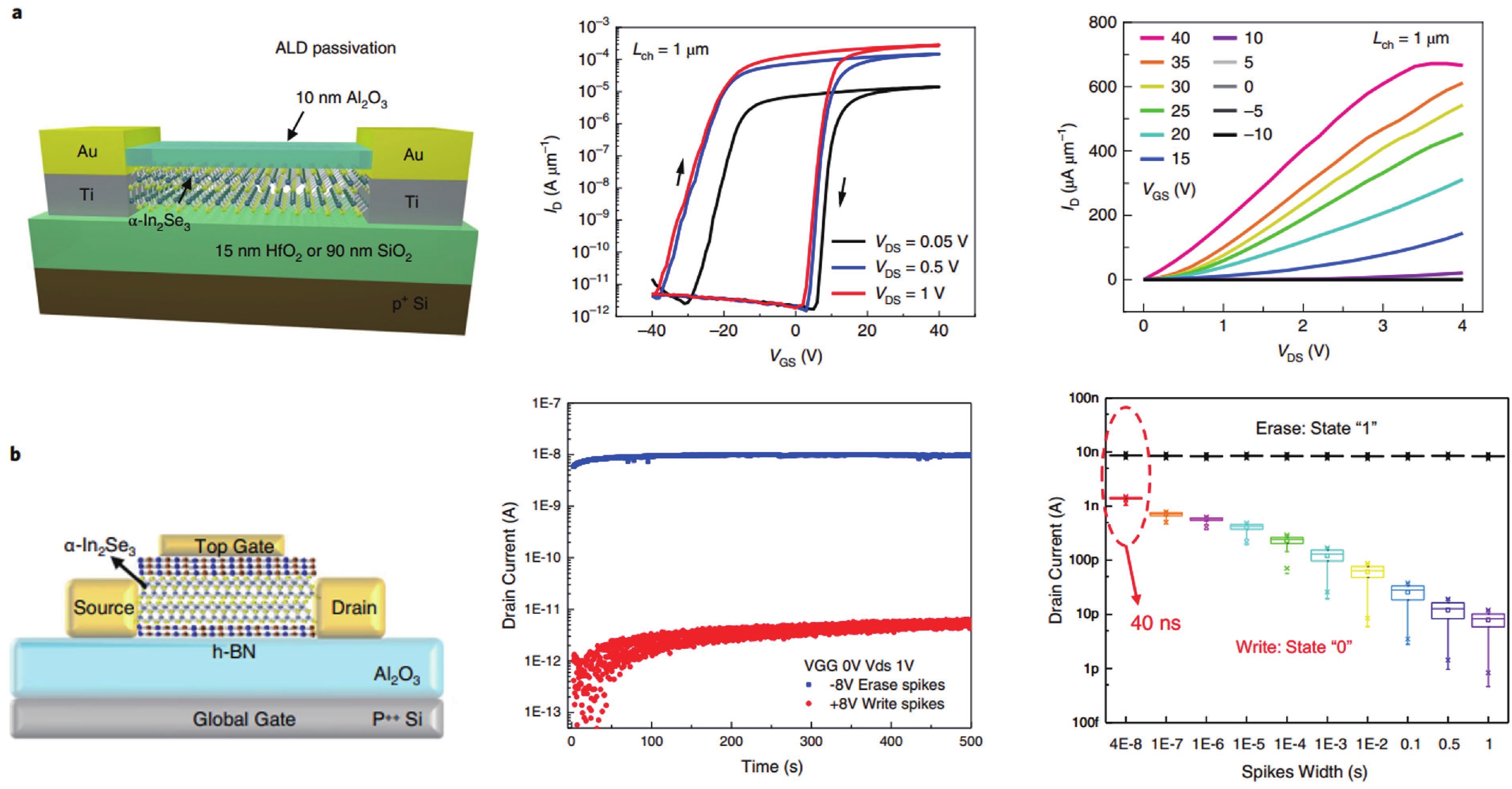

The strong out-of-plane polarization of α-In₂Se₃ can improve the sustainability of switchable polarization and provide a new pathway for field-effect transistors and nonvolatile memories. Based on this, Si et al.^[3] proposed a novel ferroelectric semiconductor field-effect transistor (FeS-FET) as shown in Fig. 2(a). The FeS-FET consists of a heavy p-type doped Si substrate as the back gate electrode, 15 nm HfO₂ or 90 nm SiO₂ as the gate insulating layer, 2D α-In₂Se₃ as the ferroelectric semiconductor channel and 30 nm Ti/50 nm Au as the source/drain electrode. Finally, an optimized 10 nm Al₂O₃ capping layer is grown on top of the α-In₂Se₃ channel. The device exhibits high performance with a large memory window, a high switching ratio of over 10⁸, a maximum on-state current of 862 μA/μm and a low supply voltage. The conventional Fe-FET structure has a short hold time due to the depolarization field and gate leakage current^[78-80]. In contrast, the FeS-FET design can eliminate the charge trap by moving charge to shield the depolarization field. At the same time, a high-quality amorphous gate insulator is chosen to eliminate the gate leakage current and improve performance. For ferroelectric memories, ferroelectric materials with two switchable stable polarization states are suitable for random access measurement systems that require easy switching between the two stable states to store information^[5]. α-In₂Se₃ exhibits strong out-of-plane ferroelectricity at room temperature and maintains ferroelectric polarization at the atomic scale, making it a basis for making nonvolatile memories. Unlike the conventional Fe-FETs, Wang et al.^[19] demonstrated ferroelectric channel transistors (FeCTs) for a nonvolatile memory using the 2D ferroelectric semiconductor material α-In₂Se₃ as a channel, and the structure is shown in Fig. 2(b). A 30 nm Al₂O₃ is used as the bottom substrate layer, the conducting channel is an h-BN/α-In₂Se₃/h-BN layer, and a heavily p-doped Si substrate is used as the global gate (GG). With sufficient write and erase spikes, the FeCTs exhibit stable nonvolatility with high and low states exceeding 10³. Meanwhile, the nonvolatility of FeCTs is programmed at a basic erase and write (LRS-HRS). The LRS-HRS ratio decreases with decreasing write width, but still writes efficiently for 40 ns, which is consistent with the ultrafast switching of ferroelectric polarization. Overall, 2D α-In₂Se₃ provides a promising prospect to build high-density and high-efficiency emerging memory and computation-integrated devices as an alternative solution.

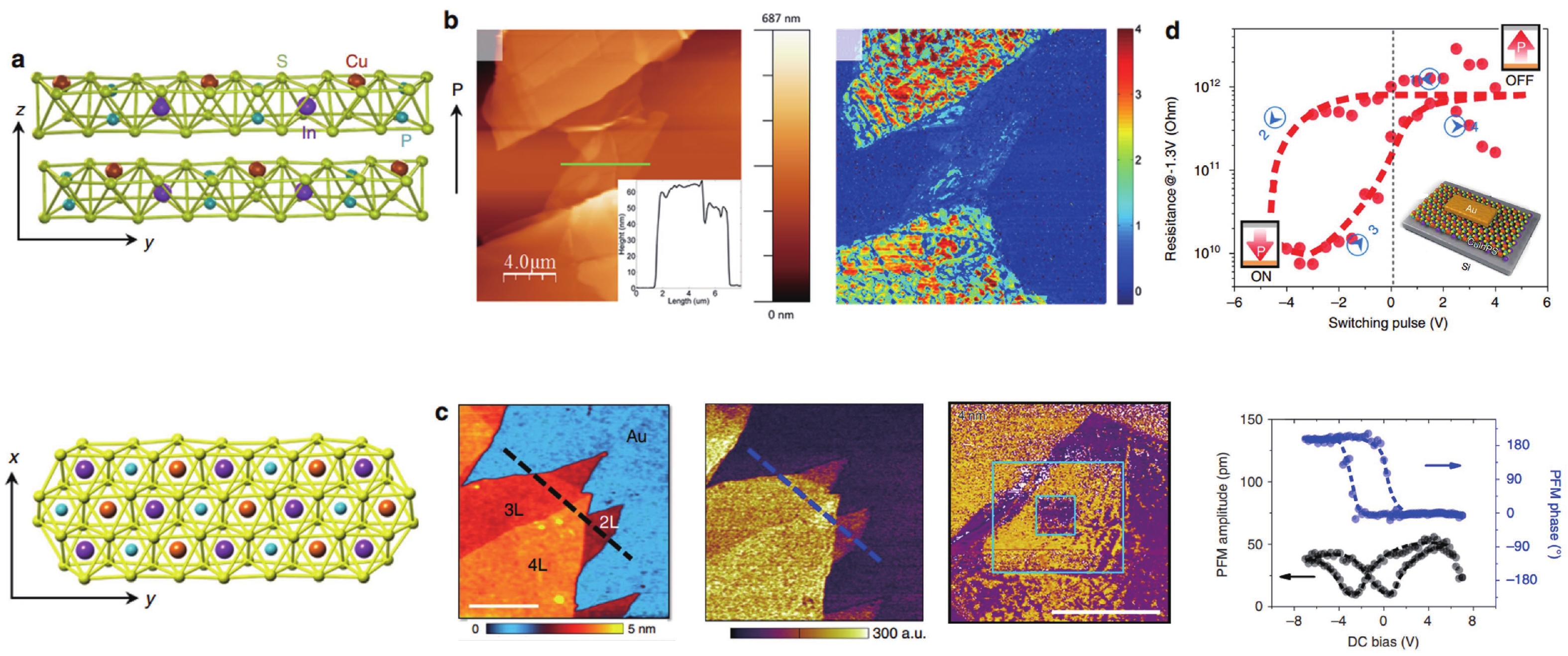

In addition to In₂Se₃, CuInP₂S₆ and MoTe₂ have also attracted extensive studies as intrinsic ferroelectrics. The atomic structure of CuInP₂S₆ consists of a sulfur framework in which Cu, In, and P–P triangular patterns are filled by octahedral voids. Its bulk consists of vertically stacked vdW interactions filled with weakly interacting layers (Fig. 3(a)). The ferroelectric phase transition of the bulk CuInP₂S₆ was first observed in 1994^[81]. The origin of the ferroelectricity was demonstrated in 1997 by predicting the hopping mechanism of the thermally activated Cu(I) migration along the polar axis in the paraelectric phase^[82]. About 21 years later, Belianinov et al.^[51] reported that CuInP₂S₆ reached 50 nm experimentally, and the thickness of the films varied from 50 to 500 nm. Using band excitation PFM (BE-PFM) to detect the films, the domain with a thickness of 100 or more than 100 nm has good contrast and the 50 nm domain is likewise recognizable. However, it cannot be detected beyond this range, as in Fig. 3(b). One year later, Liu et al.^[52] reported the room temperature ferroelectricity of ultrathin CuInP₂S₆. As demonstrated in Fig. 3(c), the CuInP₂S₆ ultrathin flakes were still ferroelectric at a thickness of a few nanometers. At the same time, a significant butterfly loop and 180° switching of the phase signal were observed at 4 nm, thus further confirming the ferroelectric polarization in ultrathin CuInP₂S₆. Besides, Liu et al. proposed a ferroelectric diode based on CuInP₂S₆/Si heterostructure using a 30 nm CuInP₂S₆ flake with Au as the top electrode, which can be assigned ON and OFF states, corresponding to its low and high resistance states, respectively (Fig. 3(d)).

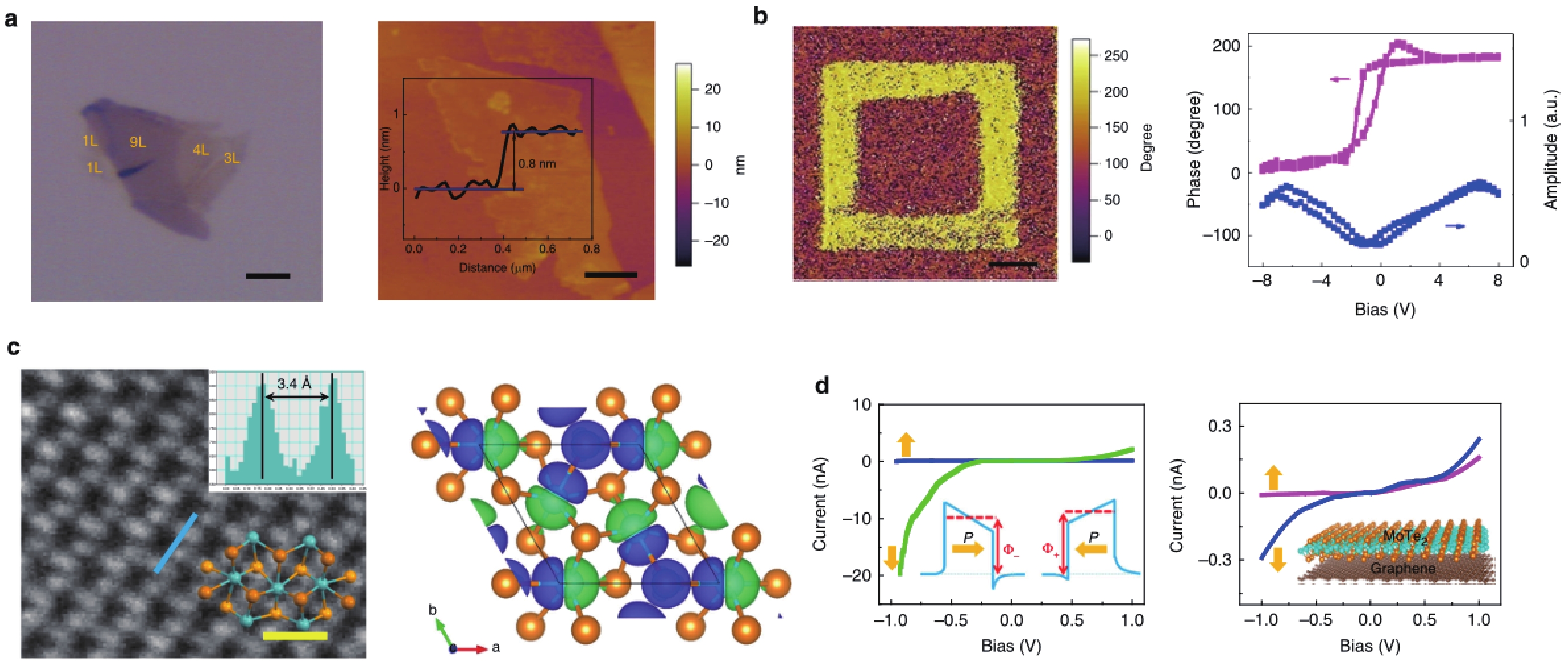

Compared to CuInP₂S₆ and In₂Se₃, TMDs still need to achieve ferroelectricity. Various structural phases are based on different TMD compositions, such as 2H, 1T, 1T' and d1T^[83]. Among them, 2H structure is a stable semiconductor, 1T structure is unstable^{[84, 85]}, and 1T' is an octahedral structure distorted from the unstable 1T structure^{[84, 86]}. And the difference between 1T' and d1T phases mainly stems from the different ways of atomic distortion. While several materials in the family of TMDs have theoretically been demonstrated to be ferroelectric potentially^[87-89], few experiments have accurately confirmed their ferroelectricity. In 2019, the room-temperature ferroelectricity of monolayer d1T-MoTe₂ was approved by Yuan et al.^[44]. Fig. 4(a) shows images of d1T-MoTe₂ under optical microscopy and atomic force microscopy (AFM). d1T-MoTe₂ monolayer thickness is about 0.8 nm, similar to expected. PFM measurements recorded the phase and amplitude of the out-of-plane hysteresis of monolayer d1T-MoTe₂ with a 180° difference between the two polarization states, indicating room-temperature ferroelectricity. Also, the PFM phase comparison shows an antiparallel polarization of d1T-MoTe₂, further confirming the d1T-MoTe₂ ferroelectricity (Fig. 4(b)). To determine the intrinsic reason for the appearance of ferroelectricity in d1T-MoTe₂, the structure of d1T-MoTe₂ was further characterized as shown in Fig. 4(c), which demonstrates the trimerized structure of d1T-MoTe₂, confirming the non-centrosymmetric and similar to their calculations. Trimerized structures with vertical displacement of Te atoms cause spontaneous polarization. In addition, the monolayer d1T-MoTe₂ ferroelectric film is well suited to build nanoscale nonvolatile ferroelectric tunnel junctions (FTJ) devices because of its thinnest thickness, out-of-plane polarization, and room temperature stability. In this study, a 2D vdW d1T-MoTe₂/graphene FTJ device was fabricated. The two polarization directions were distinguished by representing the on and off states of the device, which has an on/off resistance ratio of about 1000 and good reproducibility (Fig. 4(d)).

In conclusion, although the current evidence is insufficient, the research has provided opportunities for potential 2D ferroelectric materials, including vdW and conventional ferroelectric materials. Based on the demand for the miniaturization of next-generation memory and logic devices, more experiments are needed to add new members to the 2D ferroelectric family. Recently a new type of stacked engineering is quietly changing the future of 2D ferroelectrics.

3. Twisted 2D ferroelectricity

vdW materials with natural ferroelectricity are scarce. Many layered vdW crystals, such as graphite, h-BN and TMD have a stable stacking structure and are usually centrosymmetric, so they are not qualified as ferroelectrics. However, the vertical polarization of ferroelectric materials interprets another property for the localized stacking between layers: moiré ferroelectricity. Bilayer twisted 2D ferroelectrics can induce the moiré ferroelectricity, and different ferroelectric domains can be generated by stacking. New research in stacking engineering has changed the recognition of 2D vdW ferroelectrics and brought a path to discover new ferroelectrics. In this review, we will discuss some twisted 2D ferroelectric materials including Bernal-stacked bilayer graphene/BN, bilayer boron nitride, and bilayer TMDs.

3.1 Bernal-stacked bilayer graphene/BN

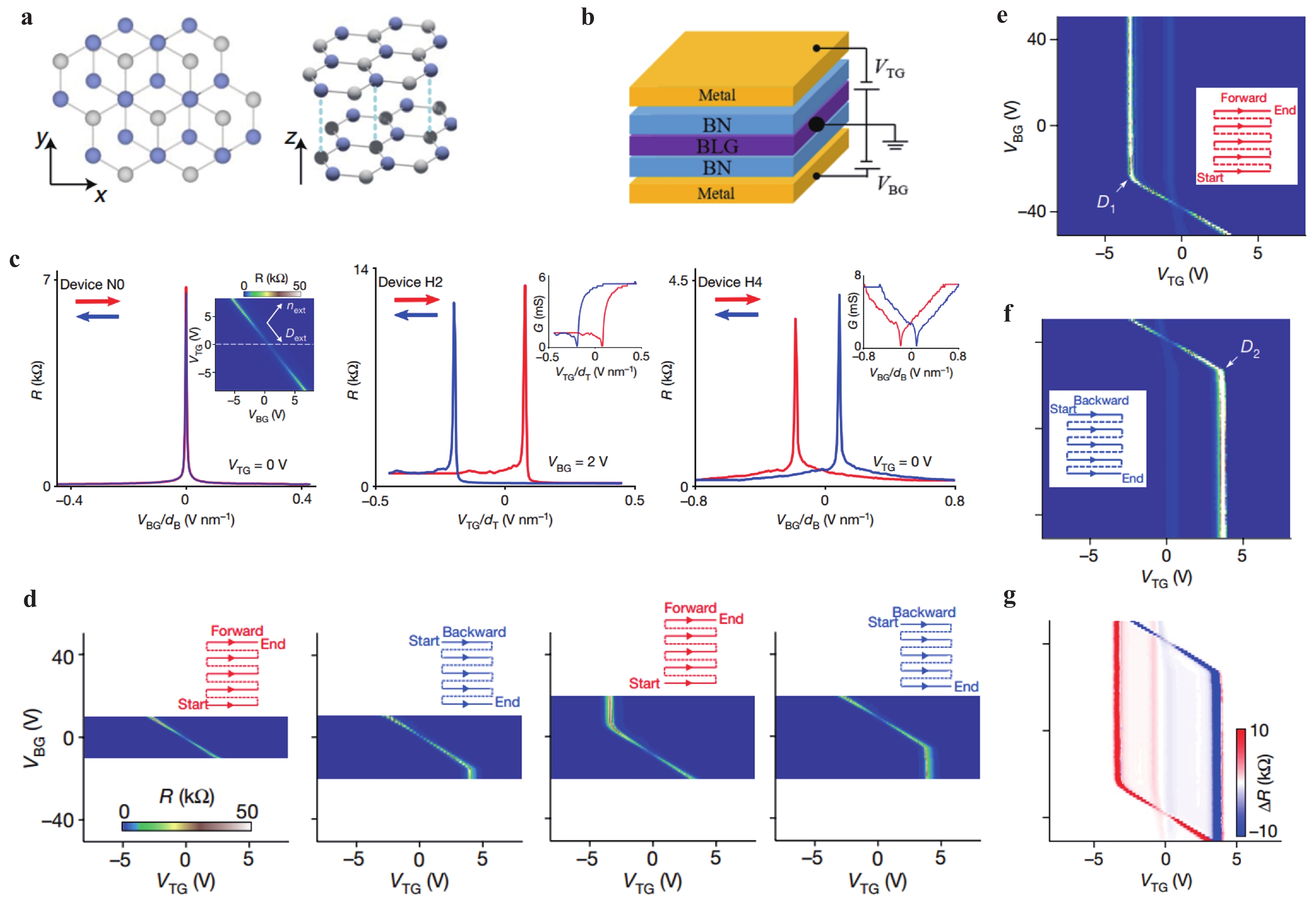

Ferroelectric materials have electrically tunable electric dipoles induced by spatial separation between the average centers of positive and negative charges within a unit cell. Therefore, graphene, composed only of carbon atoms, is theoretically challenging to achieve ferroelectricity^[90]. However, Zheng et al.^[74] proposed a new device structure by aligning a bilayer graphene sandwiched by two BN flakes, which exhibit a significant hysteresis behavior of graphene resistance under the applied external electric field. Fig. 5(a) shows a Bernal-stacked (AB) bilayer graphene (BLG) structure with half of the carbon atoms in the upper layer on top of the empty centers of carbon hexagons in the lower layer^[91]. Fig. 5(b) illustrates a schematic of a bilayer graphene dual-gate device with Bernal-stack graphene sandwiched between two hexagonal boron nitrides. And there is a certain relative angle between the two BN at the top and bottle. Device H2 and H4 both use two BN flakes sandwich a BLG with different angles. The relative angles of the device H2 and H4 are 30° and 0°, respectively. H2 and H4 show striking hysteresis behavior (Fig. 5(c)). The standard BLG device N0 (without BN layers) shows no hysteresis when scanning the bottom gate voltage (V_BG) or top gate voltage (V_TG) backward and forward, while H2 and H4 exhibit significant hysteresis. The difference is that the resistance peak appears in the opposite sequence, showing an advanced mode for H2 and a retarded mode for H4. To explain these phenomena more closely, they tested the relationship between the four-probe resistance and the variation of V_BG and V_TG.

First, V_TG is in the range of –8 to 8 V, V_BG is in the range of –10 to 10 V and V_TG is scanning fast and V_BG is scanning slow with the origin at V_TG = V_BG = 0 V (Fig. 5(d)). At this point, the device H4 is indistinguishable from a normal BLG. Then, reversing the scan direction and extending V_BG down to –15 V, the resistance ridge suddenly becomes parallel to the V_BG axis. This behavior is like the bottom gate losing its function, which the authors describe as ‘layer-specific anomalous screening’ (LSAS). After V_BG = –20 V, reversing V_BG again (Fig. 5(d)), the LSAS phenomenon stops and restores to normal BLG behavior, however, the LSAS phenomenon also occurs after scanning a certain distance from the origin. Similarly, after reversing again, the resistance changes immediately into the normal BLG behavior, and the LSAS behavior appears after a distance beyond the origin (Figs. 5(e) and 5(f)). Finally, a parallelogram formed by the resistance peaks can be obtained using the backward-and-forward scan direction (Fig. 5(g)), this points to the fact that the BLG/BN structure exhibits a dramatic hysteresis phenomenon under the action of an external electric field, demonstrating the ferroelectricity of BLG/BN. The system described in this study has strong hysteresis and stability and can be used as a high-performance memory.

The first presentation of this stacking engineering approach brings an entirely new way of thinking. It opens up a new field for vdW assembly where it is possible to create artificial vdW ferroelectric structures from non-ferroelectric material. Not only in Bernal-stacked bilayer graphene/BN, but also in bilayer twisted BN demonstrates unprecedented ferroelectricity.

3.2 Bilayer boron nitride

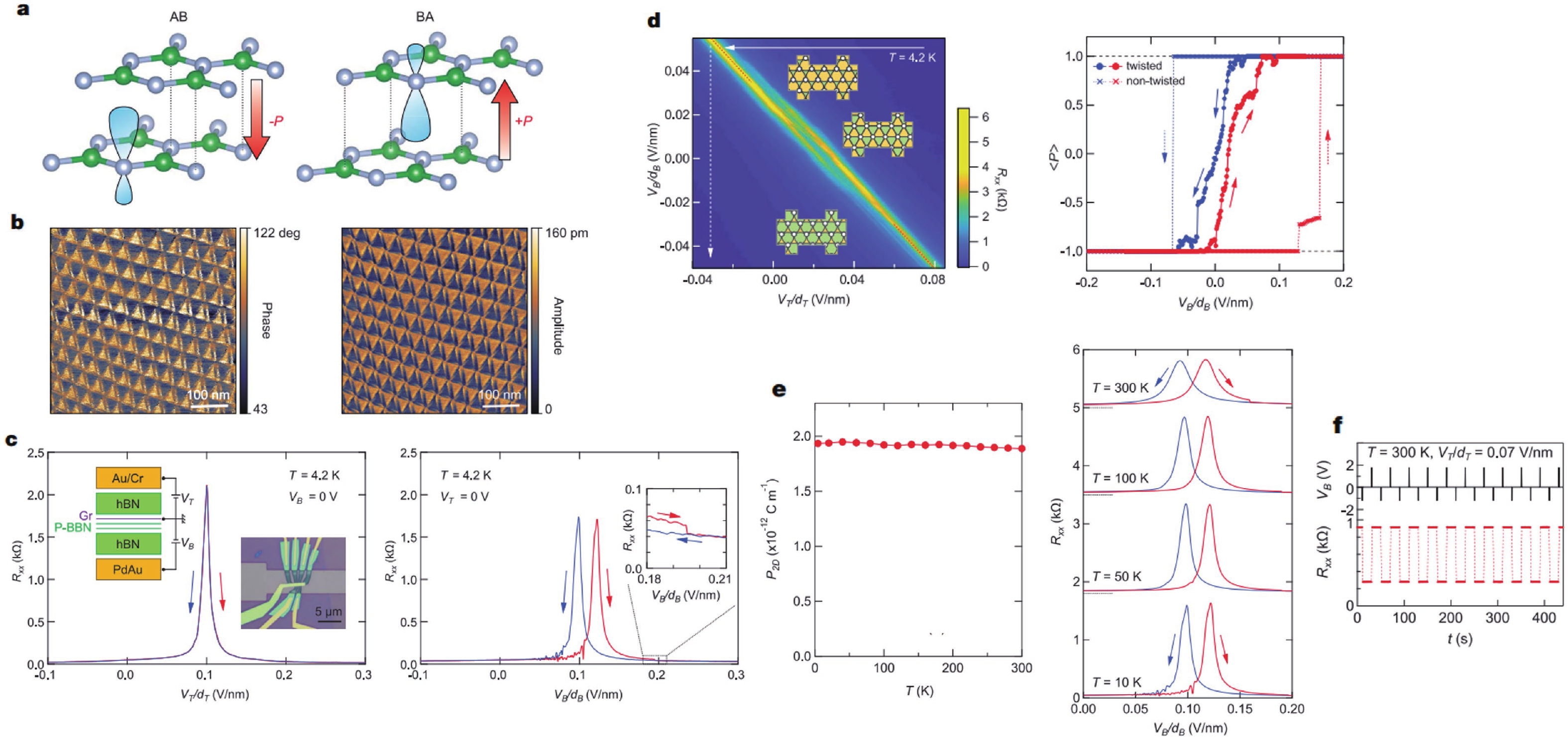

In 2021, Yasuda et al.^[75] have revealed the electric polarization and ferroelectric switching in twisted BN with AB stacking structure. Unlike bulk hBN, bilayer BN is formed by two BN monolayers stacked in parallel with two polarization AB or BA stacking orders^{[92, 93]}. In the AB (BA) stack, the B (N) atoms in the upper layer are on top of the N (B) atom in the lower layer while the N (B) atom in the upper layer is on top of the B (N) lower in an atom (Fig. 6(a)). Using PFM, the polarization of small-angle twisted bilayer BN have been probed, where the different piezoelectric response of AB and BA domain regions responds to different out-of-plane polarization (Fig. 6(b))^[94]. Interestingly, the out-of-plane polarization is correlated with the stacking order. Namely, the polarization can be switched by the shear motion of one-third of a unit cell^[94], which differs from the conventional ferroelectric switching mechanism. Yasuda et al. fabricated a dual-gate device composed by metal top gate (Au/Cr)/hBN/Graphene/bilayer 0° parallel stacked BN (P-BBN)/hBN/metal bottom gate (PdAu). Fig. 6(c) demonstrates the graphene resistance as a function of top gate voltage (V_T), by scanning the top gate backward and forward, and no hysteresis phenomenon is observed. In contrast, a clear hysteresis phenomenon can be seen (Fig. 6(c)) as the bottom gate is scanned backward and forward to explore the graphene resistance related to the bottom gate voltage (V_B). For a dual-gate scan can independently control the charge on graphene and the electric field on P-BBN, the standard dual-gate device have a unique diagonal resistance peak characteristic, which corresponds to the charge neutralization condition, following the equation: $n={\epsilon }_{\mathrm{h}\mathrm{B}\mathrm{N}}({V}_{\mathrm{B}}/{d}_{\mathrm{B}}+{V}_{\mathrm{T}}/{d}_{\mathrm{T}})/e$, where ${\epsilon }_{\mathrm{h}\mathrm{B}\mathrm{N}}$ is the charge permittivity of hBN, ${d}_{\mathrm{B}}$ and ${d}_{\mathrm{T}}$ are the distances from the bottom gate electrode and the top gate electrode to the graphene, respectively, and $e$ is the charge. As illustrated in Fig. 6(d), the device T1 which composed by metal top gate (Au/Cr)/hBN/Graphene/bilayer 0.6° parallel stacked BN (P-BBN)/hBN/metal bottom gate (PdAu) exhibit two diagonal peaks, corresponding to BA and AB stacking, respectively. Instead of abrupt changes, the two diagonals gradually shift to the other diagonal, the origin is mainly due to the change of domains from the BA stack to the AB stack (shown in the inset). As the polarization flips, the total carrier concentration changes from $n={\epsilon }_{\mathrm{h}\mathrm{B}\mathrm{N}}({V}_{\mathrm{B}}/{d}_{\mathrm{B}}+{V}_{\mathrm{T}}/{d}_{\mathrm{T}})/e+\Delta {n}_{\mathrm{p}}$ (BA stack) to $n={\epsilon }_{\mathrm{h}\mathrm{B}\mathrm{N}}({V}_{\mathrm{B}}/{d}_{\mathrm{B}}+{V}_{\mathrm{T}}/{d}_{\mathrm{T}})/e-\Delta {n}_{\mathrm{p}}$ (AB stack), resulting in a shift of the resistive peak. Comparing the twisted and non-twisted devices, there are two differences: (1) The coercive field of the twisted bilayer BN is much smaller than that of the non-twisted bilayer BN. (2) The polarization switching of the twisted bilayer BN occurs slowly, and the polarization switching of the non-twisted bilayer BN changes sharply. Finally, the temperature and polarization relationship of P-BBN is demonstrated in Fig. 6(e). Remarkably, the measured polarization is almost independent of temperature below room temperature^[92]. The thermal vibration of atoms within in-plane is inhibited by the covalent bonds within the intralayer, making the polarization insensitive to temperature. Although an increasing temperature causes a broadening of the resistance peak, the ferroelectric hysteresis phenomenon is still persisted at room temperature. Such a feature allows a bilayer BN to write polarization by a voltage pulse of a few Volts and read it in a nonvolatile way (Fig. 6(f)). These works’ research expands the prospects of 2D ferroelectric materials for electronic, spintronic and optical applications.

3.3 Transition metal dichalcogenides (TMDs)

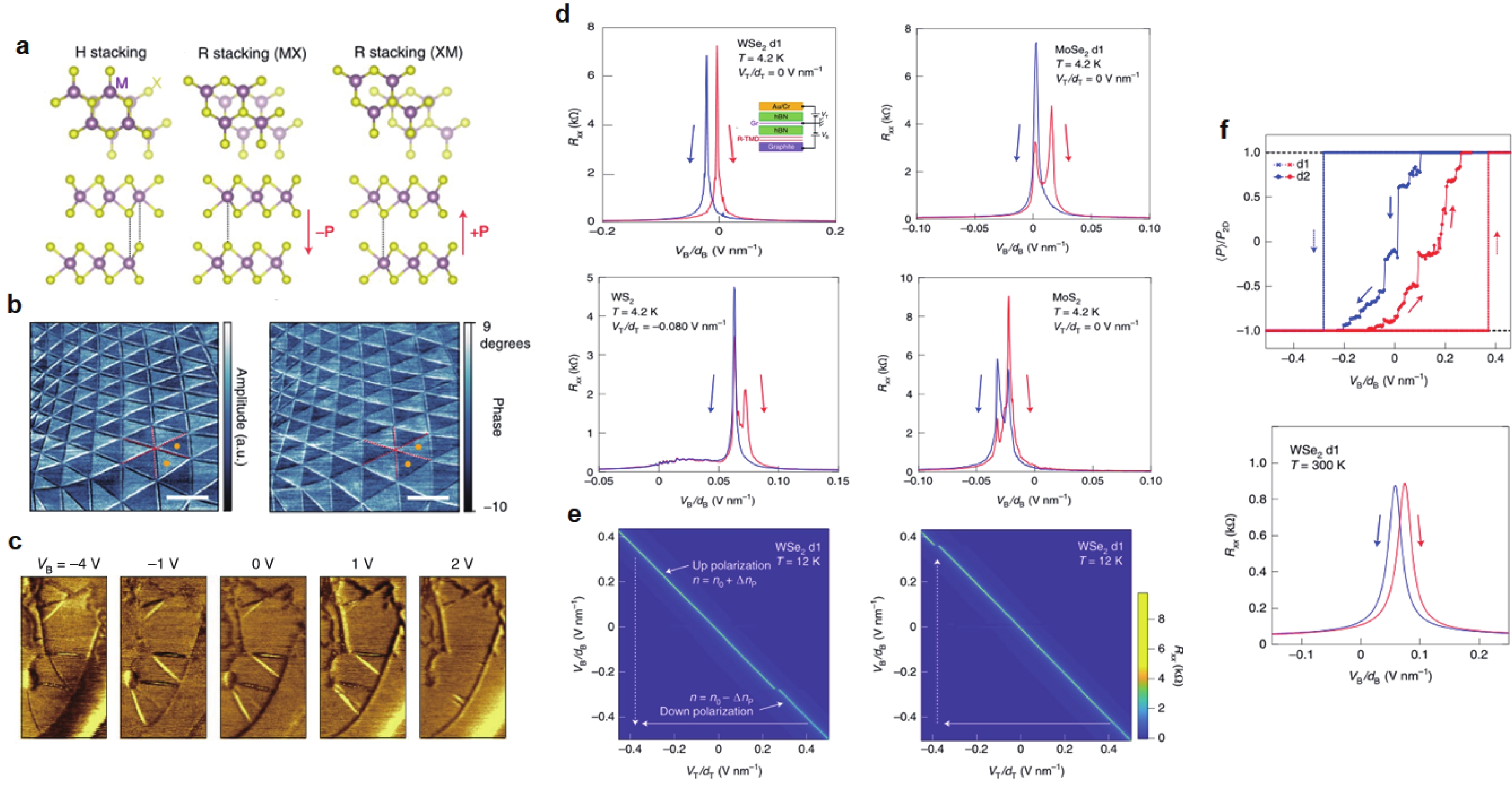

Similarly, synthetic ferroelectricity was achieved in the twisted TMDs system. In the conventional 2D ferroelectrics, the ferroelectricity of 1T phase TMDs have been predicted or experimentally confirmed^[90]. The bulk TMD crystal is the symmetric inversion, but the symmetry is broken when exfoliated to a monolayer. Alternatively, the symmetry of TMDs can be tuned by controlling the stacking angle of two monolayers. When two layers are stacked in an antiparallel manner, the hexagonal-stacked (H-stacked) is formed and symmetry is restored. Conversely, when two layers are stacked in parallel, the rhombohedral-stacked (R-stacked) is formed^[95], which breaks the out-of-plane mirror symmetry. There are two forms of R-stacked arrangements, MX- and XM-stacked forms. In MX-stacked, every M-atom is on top of an X-atom, and in XM-stacked, each X-atom is located on an M-atom^[96] (Fig. 7(a)). At the same time, the two stacking orders are converted by lateral shift. The out-of-plane polarization is switched to each other by interlayer shear motion, thus achieving interfacial ferroelectricity^[94]. Wang et al.^[76] has revealed ferroelectricity in twisted MoS₂, MoSe₂, WS₂ and WSe₂. Fig. 7(b) shows the PFM image of 0.25° bilayer twisted MoSe₂ at room-temperature, showing clear contrast between MX and XM domains with opposite out-of-plane polarization for each adjacent domain, originating from the piezoelectric or electrostatic effects^[96]. Lateral PFM images of 0.2° bilayer twisted MoSe₂ in Fig. 7(c) are applied to study the response of the opposite out-of-plane polarization of MX and XM domains under out-of-plane electric fields. As the bottom voltage V_B changes from –4 to 2 V, the domain walls move, causing the domains to shrink until it disappears, and when V_B is swept back, the domains expand. Furthermore, Wang et al. fabricated a dual-gate device comprising R-stacked bilayer twisted TMDs as shown in the inset of Fig. 7(d), which demonstrates the ferroelectricity by recording the graphene resistance as a function of the bottom gate. The structure of both device d1 and d2 from top to bottom are the metal Au/Cr, top hBN flake, 0° bilayer WSe₂, bottom hBN flake and graphene, while the top hBN thickness (d_T) of d1 device is 25.6 nm and the d_T of d2 device is 16.1 nm. Fig. 7(d) displays the twisted bilayer WSe₂, MoSe₂, WS₂, and MoS₂ devices, respectively. They all show prominent hysteresis when sweeping the bottom gate, and the hysteresis mainly originates from the change of MX (XM)-stacked to XM (MX)-stacked. The hysteresis only occurs as the bottom gate scan indicates that the hysteresis originates from the bilayer twisted TMDs between the bottom gate and graphene. Further, ferroelectric polarization changes the carrier concentration in graphene, causing a shift of graphene resistance peak. Thus, the 0° bilayer WSe₂ d1 device exhibits a diagonal feature corresponding to the graphene charge neutrality point resistance peak for a fast scan of the top gate and a slow scan of the bottom gate. As the bottom gate is swept backward, the diagonal feature of the graphene resistance peak changes abruptly (Fig. 7(e)). The shift of the resistance peak is due to the carrier concentration change caused by the electric polarization of the R-stacked bilayer twisted TMDs, which, like the bilayer twisted BN, changes from ${n}_{0}+\mathrm{\Delta }{n}_{p}$ (Up polarization) to ${n}_{0}-\mathrm{\Delta }{n}_{p}$ (Down polarization). Unlike the 0° bilayer WSe₂ d1 device, the 0° bilayer WSe₂ d2 device (d_T is 16.1 nm) has a stepped ferroelectric polarization switching (Fig. 7(f)). The independent shift of every domain wall causes this multi-step switching. In Fig. 7(g), the 0° bilayer WSe₂ d1 device can maintain ferroelectricity at room temperature. The R-stacked bilayer TMDs can embed ferroelectricity in the semiconductor to realize ferroelectric semiconductor field-effect transistors^[97].

Stacking engineering opens new directions for the discovery of ferroelectric materials. Theoretically, any two nonpolar vdW layered structures can be stacked together to achieve ferroelectricity heterogeneous/homogeneous structures as long as the inversion symmetry is broken at the interface. Such an approach dramatically expands the variety of 2D vdW ferroelectric materials. In the future, it may involve coupling between different types of materials, giving rise to the discovery of more novel materials, such as coupling with magnetic vdW materials, which may lead to the discovery of atomically thin multiferroic vdW systems. Although twisted 2D ferroelectrics have fantastic potential, people need more time to explore various physical mechanisms due to stacking and face many challenges, such as stability, scalability, and practical applications in electronic devices. Our discussion here is just the beginning of this new field.

4. Summary and perspective

The twisted 2D ferroelectrics based on stacking-engineered is a new and promising research field. It has many unknown phenomena and essences. In this review, we summarize the recent research and progress of twisted 2D ferroelectrics and provide a platform for subsequent practical and theoretical studies. Traditional 3D ferroelectric materials have been successfully used in many industrial applications, driving the rapid development of technology. With the development of characterization and fabrication methods, there will be more and more ways to discover new twisted 2D ferroelectric materials and reveal their unique physical properties and mechanisms.

Generally, this stacking-engineered design approach for twisted 2D ferroelectrics can be extended to other 2D vdW materials, such as group III chalcogenides GaS, GaSe and InSe^[94], and even 2D ferromagnetic insulator CrI₃, to explore novel twisted 2D multiferroics. Meanwhile, the distinctive physical properties of twisted 2D ferroelectric materials empower next-generation electronic devices with high performance, low power consumption and high integration, for example, non-volatile memory with a high switching ratio and low leakage current, new Fe-FET and the ability to complete the neural network calculation of the memory and computing integrated device has great potential. Still, at present, the design of electronic devices using twisted 2D ferroelectrics is very lacking, the main reason is that for the new type of ferroelectrics, people still need to be more explicit about its internal mechanisms. This is something that needs to be gradually explored in future research. At present, only a few vdW materials can maintain ferroelectricity for a long time at room temperature. There is an urgent need to develop new approaches to improve their stability, as well as twisted 2D ferroelectrics are currently insufficient in optical, electrical, thermal, mechanical and magnetic studies, and probing tiny ferroelectric polarization is still a significant challenge. Finally, the ultimate goal of 2D ferroelectric materials is to design intelligent devices with better performance, so more 2D ferroelectric materials with ideal properties and new corresponding intelligent device structures need to be discovered and realized. In summary, the study of twisted 2D vdW ferroelectrics is still in its infancy. It requires further exploration not only in the material selection but also in the potential mechanisms and properties. And this research may lead to exciting breakthroughs in nanoelectronics, photonics, non-volatile memory, memory and computation integration and communication.
