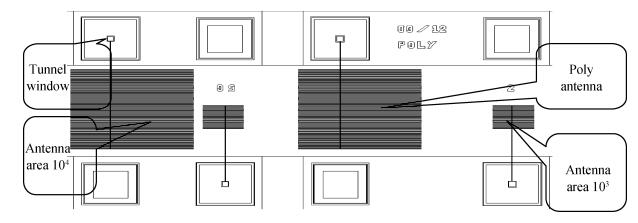

Fig. 1.
Layout of the poly antenna for the PID test structure
DownLoad:
| Citation: |
Qi He, Wenbin Zhao, Li Peng, Zongguang Yu. Prevention of plasma-induced damage on thin gate oxides in BEOL sub-half micron CMOS processing[J]. Journal of Semiconductors, 2013, 34(6): 066003. doi: 10.1088/1674-4926/34/6/066003
****
Q He, W B Zhao, L Peng, Z G Yu. Prevention of plasma-induced damage on thin gate oxides in BEOL sub-half micron CMOS processing[J]. J. Semicond., 2013, 34(6): 066003. doi: 10.1088/1674-4926/34/6/066003.
|
Prevention of plasma-induced damage on thin gate oxides in BEOL sub-half micron CMOS processing
DOI: 10.1088/1674-4926/34/6/066003
More Information
-
Abstract

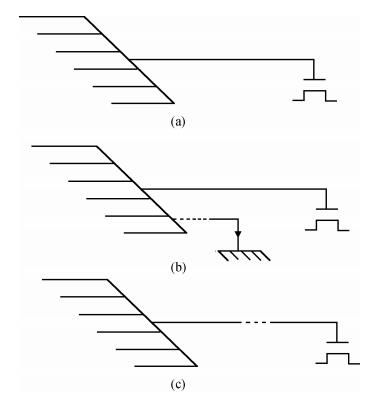

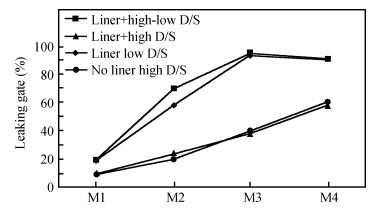

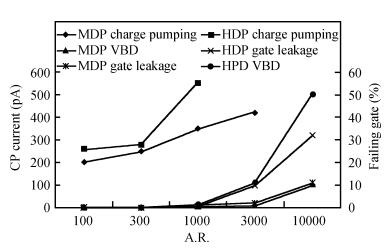

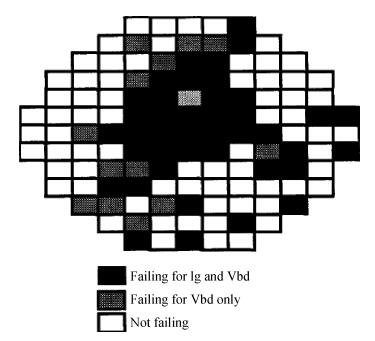

A comparison is made of several plasma-induced damage (PID) measurement techniques. A novel PID mechanism using high-density plasma (HDP) inter-metal dielectric (IMD) deposition is proposed. The results of a design of experiment (DOE) on Ar pre-clean minimizing PID are presented. For HDP oxide deposition, the plasma damage is minimal, assuring minimal exposure time of the metal line to the plasma using a maximal deposition to sputter ratio. This process induces less PID than classic SOG processing. Ar pre-clean induces minimal plasma damage using minimal process time, high ion energy and high plasma power. For metal etching, an HDP etch is compared to a reactive ion etch, and the impact of the individual process steps are identified by specialized antenna structures. The measurement results of charge pumping, breakdown voltage and gate oxide leakage correlate very well. On metal etching, the reactive ion etching induces less plasma damage than HDP etching. For both reactors, PID is induced only in the metal over-etch step. -
References
[1] Lin W. A new technique for measuring gate oxide leakage in charging protected MOSFETs. IEEE Trans Electron Devices, 2007, 54(4):683 doi: 10.1109/TED.2007.892010[2] Stanley W, Richard N T. Silicon processing for the VLSI era. California: Lattice Press, 2003[3] Cheung K P. Plasma charging damage. Great Britain: Springer, 2001[4] Creusen M, Ackaert J, De B E. Impact of reactor-and transistor-type on electron shading effects. 4th International Symposium on Plasma Process-Induced Damage, 1999:8 http://ieeexplore.ieee.org/document/798796/[5] Krishnan S, Brennan K, Xing G. A transient fuse scheme for plasma etch damage detection. 3rd International Symposium on Plasma Process-Induced Damage, 1998:201 http://ieeexplore.ieee.org/document/725609/?reload=true&arnumber=725609[6] Hwang G S, Giapis K P. Mechanism of charging damage during interlevel oxide deposition in high-density plasma tools. 3rd International Symposium on Plasma Process-Induced Damage, 1998:164 http://ieeexplore.ieee.org/document/725600/keywords[7] Shih H H, Tsai C Y, Yang G S, et al. The prevention of charge damage on thin gate oxide from high density plasma deposition. 4th International Symposium on Plasma Process-Induced Damage, 1999:88 http://ieeexplore.ieee.org/document/798820/[8] Yamartino J M, Loewenhardt P K, Huang K. The sensitivity of electron shading damage to electron temperature, electron density and the plasma-to-wafer electron energy threshold. 4th International Symposium on Plasma Process-Induced Damage, 1999:33 http://ieeexplore.ieee.org/document/798802/?reload=true&arnumber=798802&punumber%3D6495[9] Roger P, Vahedi V, Alba S, et al. Effect of plasma density and uniformity, electron temperature, process gas, and chamber on electron shading damage. 4th International Symposium on Plasma Process-Induced Damage, 1999:25 http://ieeexplore.ieee.org/document/798800/ -
