Source-field-plated Ga2O3 MOSFET with a breakdown voltage of 550 V

Yuanjie Lü, Xubo Song, Zezhao He, Yuangang Wang, Xin Tan, Shixiong Liang, Cui Wei, Xingye Zhou and Zhihong Feng

+ Author Affiliations

 Corresponding author: Xingye Zhou, Email: xyzhoufly@163.com; Zhihong Feng, ga917vv@163.com

PDF

Turn off MathJax

Abstract: Ga2O3 metal–oxide–semiconductor field-effect transistors (MOSFETs) with high-breakdown characteristics were fabricated on a homoepitaxial n-typed β-Ga2O3 film, which was grown by metal organic chemical vapor deposition (MOCVD) on an Fe-doped semi-insulating (010) Ga2O3 substrate. The structure consisted of a 400 nm unintentionally doped (UID) Ga2O3 buffer layer and an 80 nm Si-doped channel layer. A high k HfO2 gate dielectric film formed by atomic layer deposition was employed to reduce the gate leakage. Moreover, a source-connected field plate was introduced to enhance the breakdown characteristics. The drain saturation current density of the fabricated device reached 101 mA/mm at Vgs of 3 V. The off-state current was as low as 7.1 × 10−11 A/mm, and the drain current ION/IOFF ratio reached 109. The transistors exhibited three-terminal off-state breakdown voltages of 450 and 550 V, corresponding to gate-to-drain spacing of 4 and 8 μm, respectively.

Key words: Ga2O3MOSFETbreakdown voltagefiled plate



[1]
Zhang H Z, Wang L J, Xia C T, et al. Research progress of wide-gap semiconductor β-Ga2O3 single crystal. J Synth Cryst, 2015, 44: 2943
[2]
Gogova D, Wagner G, Balndini M, et al. Structural properties of Si-doped β-Ga2O3 layers grown by MOVPE. J Cryst Growth, 2014, 401: 665 doi: 10.1016/j.jcrysgro.2013.11.056
[3]
Higashiwaki M, Sasali K, Kuramata T, et al. Depletion-mode Ga2O3 metal–oxide–semiconductor field-effect transistors on β-Ga2O3 (010) substrates and temperature dependence of their device characteristics. Appl Phys Lett, 2013, 103: 123511 doi: 10.1063/1.4821858
[4]
Wong M H, Sasaki K, Kuramata A, et al. Field-plated Ga2O3 MOSFET with a breakdown voltage of over 750V. IEEE Electron Device Lett, 2016, 37: 212 doi: 10.1109/LED.2015.2512279
[5]
Zhou H, Maize K, Qiu G, et al. β-Ga2O3 on insulator field-effect transistors with drain currents exceeding 1.5 A/mm and their self-heating effect. Appl Phys Lett, 2017, 111: 092102 doi: 10.1063/1.5000735
[6]
Han T T, Lv Y J, Liu P, et al. Research and Fabrication of Ga2O3 MOSFET device with HfO2 gate dielectric. Semicond Technol, 2018, 43: 177
[7]
Lv Y J, Mo J H, Song X B, et al. Influence of gate recess on the electronic characteristics of β-Ga2O3 MOSFETs. Superlattices Microstruct, 2018, 117:132 doi: 10.1016/j.spmi.2018.03.013

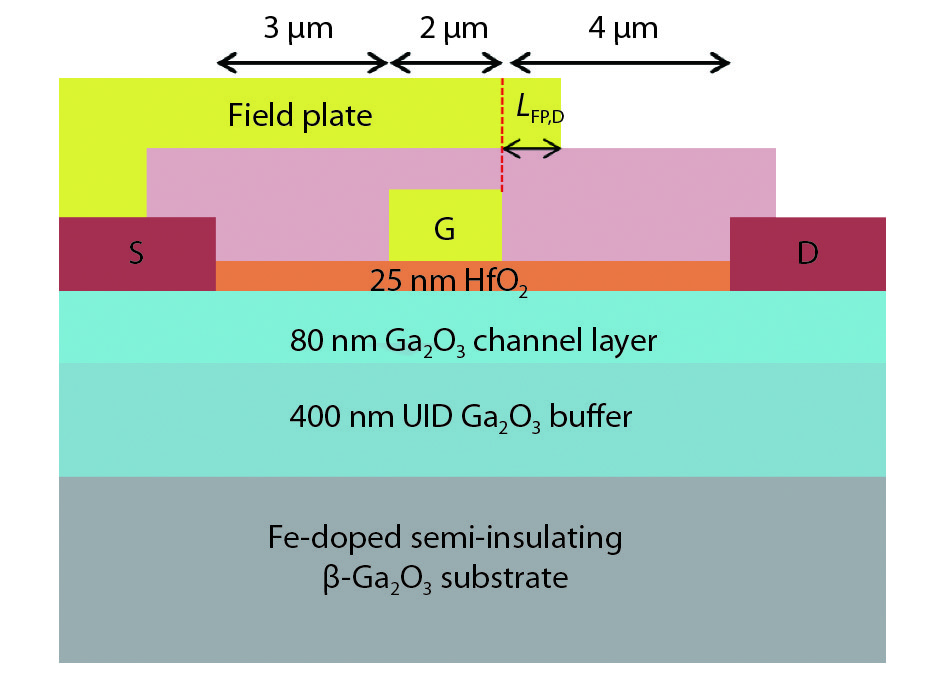

Fig. 1.  (Color online) Schematic cross section of the fabricated Ga2O3 MOSFET with Lgd of 4 μm.

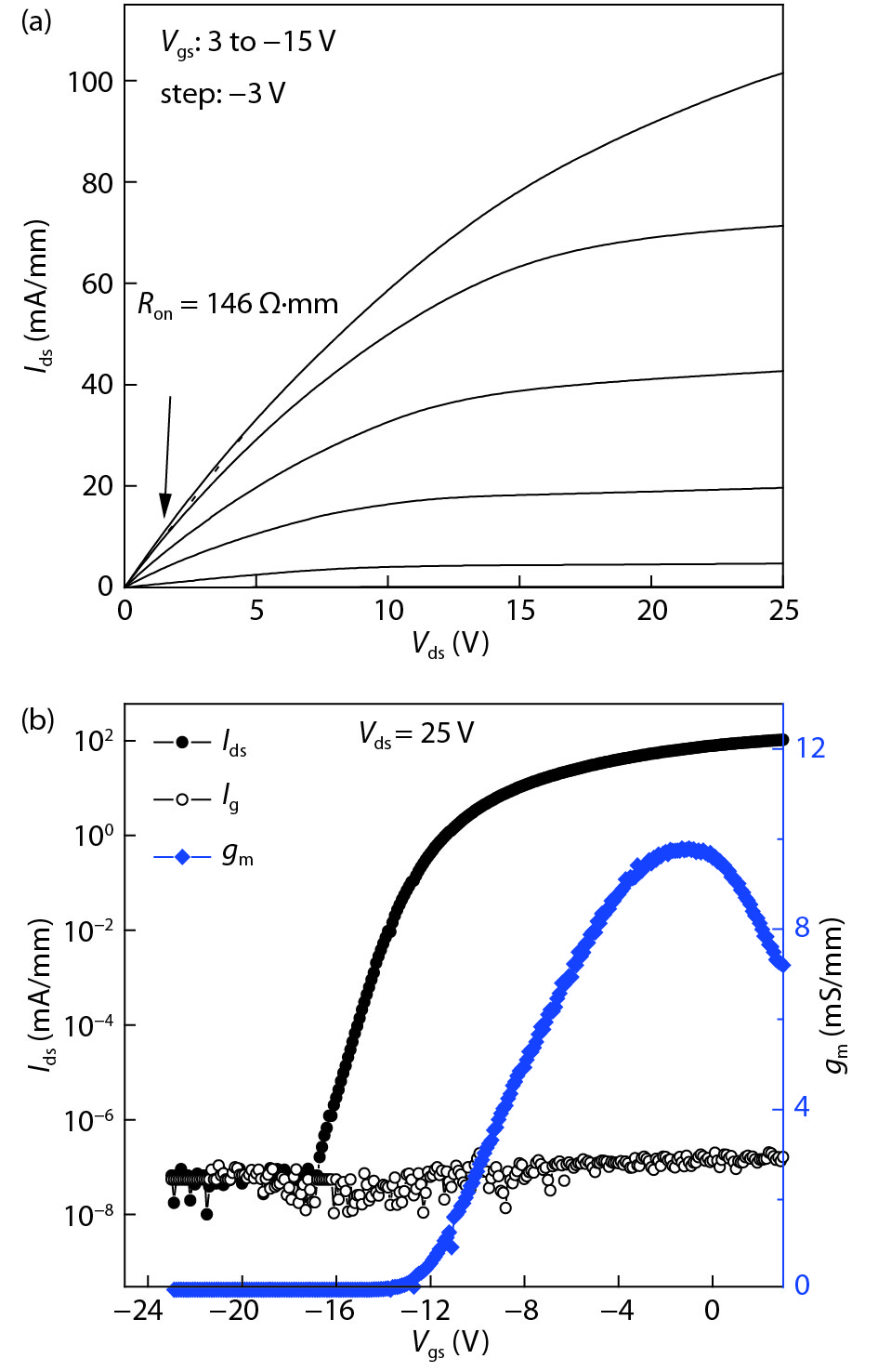

Fig. 2.  (Color online) (a) DC output and (b) transfer characteristics of the Ga2O3 MOSFET with Lgd of 4 μm.

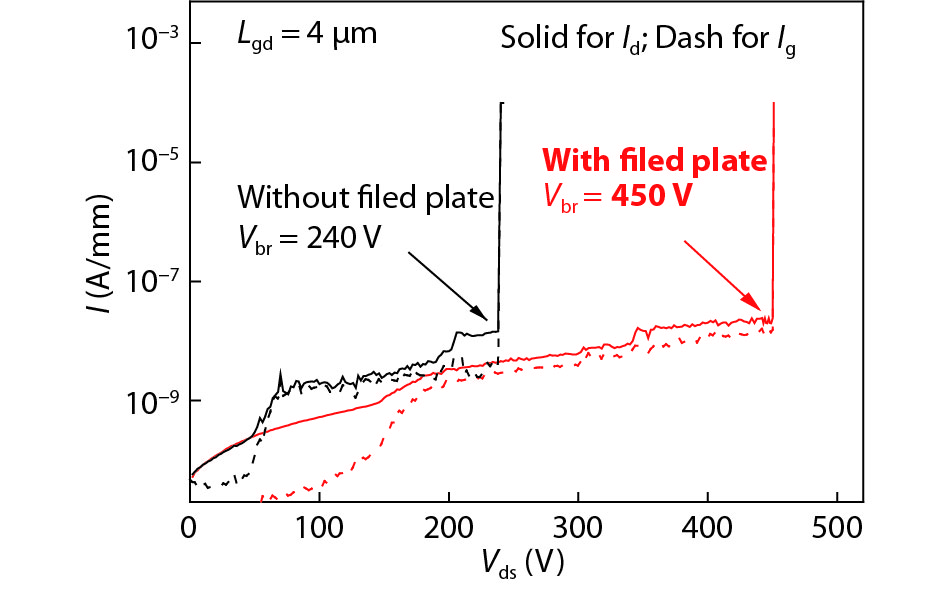

Fig. 3.  (Color online) Three-terminal off-state breakdown characteristics for the Ga2O3 MOSFET with and without source-field plate.

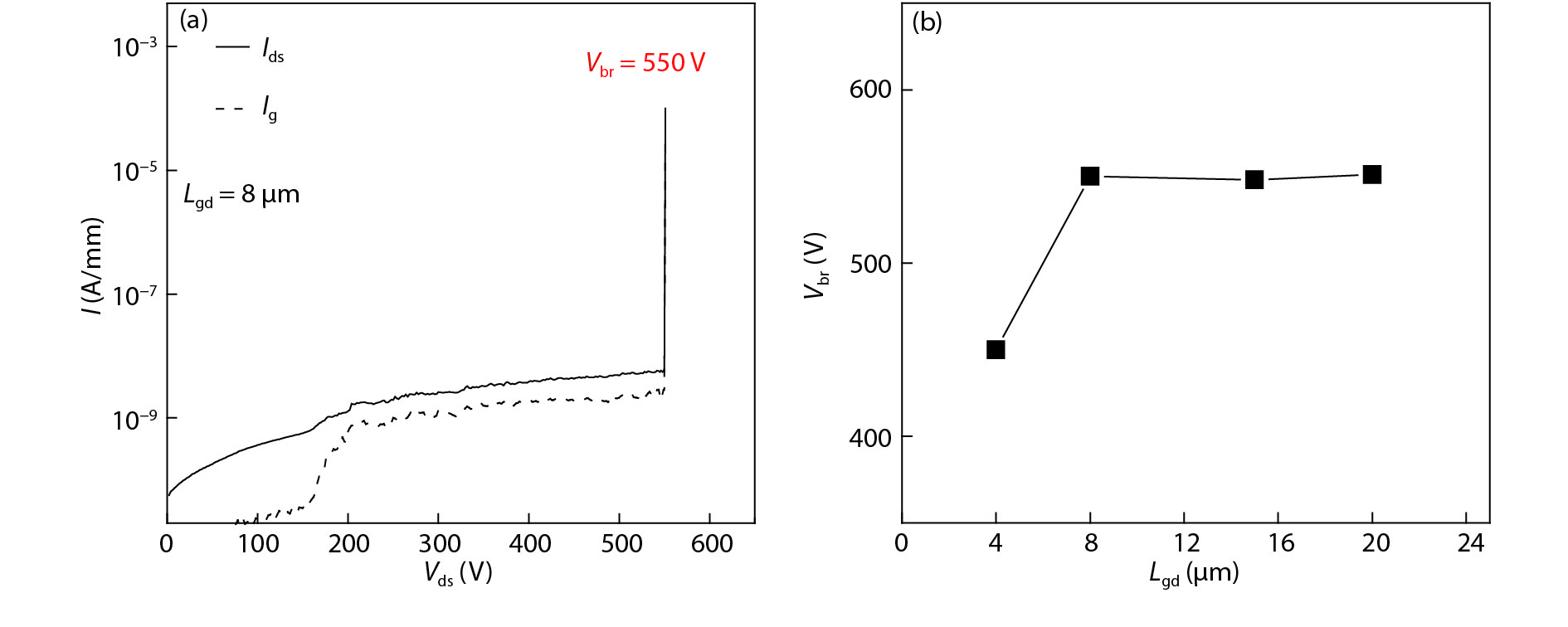

Fig. 4.  (Color online) Breakdown characteristics for the Ga2O3 MOSFET with Lgd of (a) 8 μm and (b) different gate-to-drain length.
