Flexible inorganic oxide thin-film electronics enabled by advanced strategies

Tianyao Zhang, Guang Yao, Taisong Pan, Qingjian Lu and Yuan Lin

+ Author Affiliations

 Corresponding author: Guang Yao, gyao@uesct.edu.cn; Yuan Lin, linyuan@uestc.edu.cn

PDF

Turn off MathJax

Abstract: With the advent of human-friendly intelligent life, as well as increasing demands for natural and seamless human-machine interactions, flexibility and wearability are among the inevitable development trends for electronic devices in the future. Due to the advantages of rich physicochemical properties, flexible and stretchable inorganic oxide thin-film electronics play an increasingly important role in the emerging and exciting flexible electronic field, and they will act as a critical player in next-generation electronics. However, a stable strategy to render flexibility while maintaining excellent performance of oxide thin films is the most demanding and challenging problem, both for academic and industrial communities. Thus, this review focuses on the latest advanced strategies to achieve flexible inorganic oxide thin-film electronics. This review emphasizes the physical transferring strategies that are based on mechanical peeling and the chemical transferring strategies that are based on sacrificial layer etching. Finally, this review evaluates and summarizes the merits and demerits of these strategies toward actual applications, concluding with a future perspective into the challenges and opportunities for the next-generation of flexible inorganic oxide thin-film electronics.

Key words: flexible electronicslaser lift-offvan der Waals epitaxytransfer printing



[1]
Choi K J, Biegalski M, Li Y L, et al. Enhancement of ferroelectricity in strained BaTiO3 thin films. Science, 2004, 306(5698), 1005 doi: 10.1126/science.1103218
[2]
Wang C, Ke X, Wang J, et al. Ferroelastic switching in a layered-perovskite thin film. Nat Commun, 2016, 7, 10636 doi: 10.1038/ncomms10636
[3]
Lan H, Liang F, Jiang X, et al. Pushing nonlinear optical oxides into the mid-infrared spectral region beyond 10 μm: design, synthesis, and characterization of La3SnGa5O14. J Am Chem Soc, 2018, 140(13), 4684 doi: 10.1021/jacs.8b01009
[4]
Chen Z, Chen Z, Kuo C Y, et al. Complex strain evolution of polar and magnetic order in multiferroic BiFeO3 thin films. Nat Commun, 2018, 9, 3764 doi: 10.1038/s41467-018-06190-5
[5]
Himcinschi C, Rix J, Röder C, et al. Ferroelastic domain identification in BiFeO3 crystals using Raman spectroscopy. Sci Rep, 2019, 9, 379 doi: 10.1038/s41598-018-36462-5
[6]
Lin Y, Feng D Y, Gao M, et al. Reducing dielectric loss in CaCu3Ti4O12 thin films by high-pressure oxygen annealing. J Mater Chem C, 2015, 3(14), 3438 doi: 10.1039/C5TC00197H
[7]
Yao G, Gao M, Ji Y, et al. Surface step terrace tuned microstructures and dielectric properties of highly epitaxial CaCu3Ti4O12 thin films on vicinal LaAlO3 substrates. Sci Rep, 2016, 6, 34683 doi: 10.1038/srep34683
[8]
Yao G, Ji Y, Liang W, et al. Influence of vicinal surface on the anisotropic dielectric properties of highly epitaxial Ba0.7Sr0.3TiO3 thin films. Nanoscale, 2017, 9(9), 3068 doi: 10.1039/C6NR09044C
[9]
Choi M C, Kim Y, Ha C S. Polymers for flexible displays: from material selection to device applications. Prog Polym Sci, 2008, 33(6), 581 doi: 10.1016/j.progpolymsci.2007.11.004
[10]
Jiang J, Bitla Y, Huang C W, et al. Flexible ferroelectric element based on van der Waals heteroepitaxy. Sci Adv, 2017, 3(6), e1700121 doi: 10.1126/sciadv.1700121
[11]
Ahn J H, Kim H S, Lee K J, et al. Heterogeneous three-dimensional electronics by use of printed semiconductor nanomaterials. Science, 2006, 314(5806), 1754 doi: 10.1126/science.1132394
[12]
Yao G, Jiang D, Li J, et al. Self-activated electrical stimulation for effective hair regeneration via a wearable omnidirectional pulse generator. ACS Nano, 2019, 13(11), 12345 doi: 10.1021/acsnano.9b03912
[13]
Yao G, Kang L, Li J, et al. Effective weight control via an implanted self-powered vagus nerve stimulation device. Nat Commun, 2018, 9, 5349 doi: 10.1038/s41467-018-07764-z
[14]
Yao G, Zhang H, Zhang S, et al. Highly sensitive pressure switch sensors and enhanced near ultraviolet photodetectors based on 3D hybrid film of graphene sheets decorated with silver nanoparticles. RSC Adv, 2017, 7(44), 27281 doi: 10.1039/C7RA02342A
[15]
Zhang S, Zhang H, Yao G, et al. Highly stretchable, sensitive, and flexible strain sensors based on silver nanoparticles/carbon nanotubes composites. J Alloys Compd, 2015, 652, 48 doi: 10.1016/j.jallcom.2015.08.187
[16]
Kim D H, Song J, Choi W M, et al. Materials and noncoplanar mesh designs for integrated circuits with linear elastic responses to extreme mechanical deformations. Proc Natl Acad Sci USA, 2008, 105(48), 18675 doi: 10.1073/pnas.0807476105
[17]
Kim R H, Kim D H, Xiao J, et al. Waterproof AlInGaP optoelectronics on stretchable substrates with applications in biomedicine and robotics. Nat Mater, 2010, 9(11), 929 doi: 10.1038/nmat2879
[18]
Khang D Y, Jiang H, Huang Y, et al. A stretchable form of single-crystal silicon for high-performance electronics on rubber substrates. Science, 2006, 311(5758), 208 doi: 10.1126/science.1121401
[19]
Ko H C, Shin G, Wang S, et al. Curvilinear electronics formed using silicon membrane circuits and elastomeric transfer elements. Small, 2009, 5(23), 2703 doi: 10.1002/smll.200900934
[20]
Mohan A M V, Kim N H, Gu Y, et al. Merging of thin- and thick-film fabrication technologies: toward soft stretchable “island-bridge” devices. Adv Mater Technol, 2017, 2(4), 1600284 doi: 10.1002/admt.201600284
[21]
Xu S, Zhang Y, Jia L, et al. Soft microfluidic assemblies of sensors, circuits, and radios for the skin. Science, 2014, 344(6179), 70 doi: 10.1126/science.1250169
[22]
Huang Z, Hao Y, Li Y, et al. Three-dimensional integrated stretchable electronics. Nat Electron, 2018, 1(8), 473 doi: 10.1038/s41928-018-0116-y
[23]
Jang K I, Li K, Chung H U, et al. Self-assembled three dimensional network designs for soft electronics. Nat Commun, 2017, 8, 15894 doi: 10.1038/ncomms15894
[24]
Wong W S, Sands T, Cheung N W, et al. Fabrication of thin-film InGaN light-emitting diode membranes by laser lift-off. Appl Phys Lett, 1999, 75(10), 1360 doi: 10.1063/1.124693
[25]
Fujii T, David A, Schwach C, et al. Micro cavity effect in GaN-based light-emitting diodes formed by laser lift-off and etch-back technique. Jpn J Appl Phys, 2004, 43(3B), L411 doi: 10.1143/jjap.43.l411
[26]
Chu C F, Lai F I, Chu J T, et al. Study of GaN light-emitting diodes fabricated by laser lift-off technique. J Appl Phys, 2004, 95(8), 3916 doi: 10.1063/1.1651338
[27]
Li C I, Lin J C, Liu H J, et al. Van der Waal epitaxy of flexible and transparent VO2 film on muscovite. Chem Mater, 2016, 28(11), 3914 doi: 10.1021/acs.chemmater.6b01180
[28]
Utama M I B, Mata M D L, Magen C, et al. Twinning-, polytypism-, and polarity-induced morphological modulation in nonplanar nanostructures with van der Waals epitaxy. Adv Funct Mater, 2013, 23(13), 1636 doi: 10.1002/adfm.201202027
[29]
Ma C H, Lin J C, Liu H J, et al. Van der Waals epitaxy of functional MoO2 film on mica for flexible electronics. Appl Phys Lett, 2016, 108(25), 253104 doi: 10.1063/1.4954172
[30]
Wong W S, Sands T, Cheung N W, et al. Damage-free separation of GaN thin films from sapphire substrates. Appl Phys Lett, 1998, 72(5), 599 doi: 10.1063/1.120816
[31]
Luo J, Pohl R, Qi L, et al. Printing functional 3D microdevices by laser-induced forward transfer. Small, 2017, 13(9), 1602553 doi: 10.1002/smll.201602553
[32]
Serra P, Piqué A. Laser-induced forward transfer: fundamentals and applications. Adv Mater Technol, 2018, 4(1), 1800099 doi: 10.1002/admt.201800099
[33]
Fernández-Pradas J M, Sopeña P, González-Torres S, et al. Laser-induced forward transfer for printed electronics applications. Appl Phys A, 2018, 124(2), 214 doi: 10.1007/s00339-018-1648-8
[34]
Sorkio A, Koch L, Koivusalo L, et al. Human stem cell based corneal tissue mimicking structures using laser-assisted 3D bioprinting and functional bioinks. Biomaterials, 2018, 171, 57 doi: 10.1016/j.biomaterials.2018.04.034
[35]
Kérourédan O, Ribot E, Fricain J, et al. Magnetic resonance imaging for tracking cellular patterns obtained by laser-assisted bioprinting. Sci Rep, 2018, 8, 15777 doi: 10.1038/s41598-018-34226-9
[36]
Koch L, Brandt O, Deiwick A, et al. Laser-assisted bioprinting: a novel approach for bone regeneration application. Med Sci, 2018, 34(2), 125 doi: 10.1051/medsci/20183402008
[37]
Keriquel V, Oliveira H, Rémy M, et al. In situ printing of mesenchymal stromal cells, by laser-assisted bioprinting, for in vivo bone regeneration applications. Sci Rep, 2017, 7(1), 1778 doi: 10.1038/s41598-017-01914-x
[38]
Gao Y, Li Y, Li R, et al. An accurate thermomechanical model for laser-driven microtransfer printing. J Appl Mech-T ASME, 2017, 84(6), 064501 doi: 10.1115/1.4036257
[39]
Luo H, Wang C, Linghu C, et al. Laser-driven programmable non-contact transfer printing of objects onto arbitrary receivers via an active elastomeric micro-structured stamp. Natl Sci Rev, 2019, 7, 296 doi: 10.1093/nsr/nwz109
[40]
Kim S, Son J H, Lee S H, et al. Flexible crossbar-structured resistive memory arrays on plastic substrates via inorganic-based laser lift-off. Adv Mater, 2014, 26(44), 7480 doi: 10.1002/adma.201402472
[41]
Lee H E, Kim S, Ko J, et al. Skin-like oxide thin-film transistors for transparent displays. Adv Funct Mater, 2016, 26(34), 6170 doi: 10.1002/adfm.201601296
[42]
Cheung Y F, Li K H, Choi H W, et al. Flexible free-standing III-nitride thin films for emitters and displays. ACS Appl Mater Interfaces, 2016, 8(33), 21440 doi: 10.1021/acsami.6b04413
[43]
Kim T I, Jung Y H, Song J, et al. High-efficiency, microscale GaN light-emitting diodes and their thermal properties on unusual substrates. Small, 2012, 8(11), 1643 doi: 10.1002/smll.201200382
[44]
Lee H E, Choi J, Lee S H, et al. Monolithic flexible vertical GaN light-emitting diodes for a transparent wireless brain optical stimulator. Adv Mater, 2018, 30(28), e1800649 doi: 10.1002/adma.201800649
[45]
Kim S J, Lee H E, Choi H, et al. High-performance flexible thermoelectric power generator using laser multiscanning lift-off process. ACS Nano, 2016, 10(12), 10851 doi: 10.1021/acsnano.6b05004
[46]
Park K I, Son J H, Hwang G T, et al. Highly-efficient, flexible piezoelectric PZT thin film nanogenerator on plastic substrates. Adv Mater, 2014, 26(16), 2514 doi: 10.1002/adma.201305659
[47]
Lee H S, Chung J, Hwang G T, et al. Flexible inorganic piezoelectric acoustic nanosensors for biomimetic artificial hair cells. Adv Funct Mater, 2014, 24(44), 6914 doi: 10.1002/adfm.201402270
[48]
Mendes M, Fu J, Porneala C, et al. Lasers in the manufacturing of LEDs. Proc SPIE, 2010, 7584, 75840T doi: 10.1117/12.843815
[49]
Chuang S H, Pan C T, Shen K C, et al. Thin film GaN LEDs using a patterned oxide sacrificial layer by chemical lift-off process. IEEE Photonics Technol Lett, 2013, 25(24), 2435 doi: 10.1109/LPT.2013.2287892
[50]
Morimoto A, Tanimura H, Yang H, et al. Platinum film patterning by laser lift-off using hydrocarbon film on insulating substrates. Appl Phys A, 2004, 79(4–6), 1015 doi: 10.1007/s00339-004-2617-y
[51]
Palneedi H, Park J H, Maurya D, et al. Laser irradiation of metal oxide films and nanostructures: applications and advances. Adv Mater, 2018, 30(14), e1705148 doi: 10.1002/adma.201705148
[52]
Xu X, Liu W, Li Y, et al. Flexible mica films for high-temperature energy storage. J Materiom, 2018, 4(3), 173 doi: 10.1016/j.jmat.2018.04.003
[53]
Ohta S I. Synthetic mica and its applications. Clay Sci, 2006, 12, 119
[54]
Shen L, Liu M, Ma C, et al. Enhanced bending tuned magnetic properties in epitaxial cobalt ferrite nanopillar arrays on flexible substrate. Mater Horiz, 2018, 5(2), 230 doi: 10.1039/C7MH00939A
[55]
Gao D, Tan Z, Fan Z, et al. All-inorganic flexible Ba0.67Sr0.33TiO3 thin films with excellent dielectric properties over a wide range of frequencies. ACS Appl Mater Interfaces, 2019, 11(30), 27088 doi: 10.1021/acsami.9b08712
[56]
Tsai M F, Jiang J, Shao P W, et al. Oxide heteroepitaxy based flexible ferroelectric transistor. ACS Appl Mater Interfaces, 2019, 11(29), 25882 doi: 10.1021/acsami.9b06332
[57]
Quynh L T, Van C N, Tzeng W Y, et al. Flexible heteroepitaxy photoelectrode for photo-electrochemical water splitting. ACS Appl Energy Mater, 2018, 1(8), 3900 doi: 10.1021/acsaem.8b00645
[58]
Liu H J, Wang C K, Su D, et al. Flexible heteroepitaxy of CoFe2O4/muscovite bimorph with large magnetostriction. ACS Appl Mater Interfaces, 2017, 9(8), 7297 doi: 10.1021/acsami.6b16485
[59]
Wu P C, Chen P F, Do T H, et al. Heteroepitaxy of Fe3O4/muscovite: a new perspective for flexible spintronics. ACS Appl Mater Interfaces, 2016, 8(49), 33794 doi: 10.1021/acsami.6b11610
[60]
Hou W, Zhou Z, Zhang L, et al. Low-voltage-manipulating spin dynamics of flexible Fe3O4 films through ionic gel gating for wearable devices. ACS Appl Mater Interfaces, 2019, 11(24), 21727 doi: 10.1021/acsami.9b06505
[61]
Liu W, Ma R, Liu M, et al. Highly stable in-plane microwave magnetism in flexible Li0.35Zn0.3Fe2.35O4 (111) epitaxial thin films for wearable devices. ACS Appl Mater Interfaces, 2018, 10(38), 32331 doi: 10.1021/acsami.8b09984
[62]
Liu W, Liu M, Ma R, et al. Mechanical strain-tunable microwave magnetism in flexible CuFe2O4 epitaxial thin film for wearable sensors. Adv Funct Mater, 2018, 28(10), 1705928 doi: 10.1002/adfm.201705928
[63]
Amrillah T, Bitla Y, Shin K, et al. Flexible multiferroic bulk heterojunction with giant magnetoelectric coupling via the van der Waals epitaxy. ACS Nano, 2017, 11(6), 6122 doi: 10.1021/acsnano.7b02102
[64]
Yang Y, Yuan G, Yan Z, et al. Flexible, semitransparent, and inorganic resistive memory based on BaTi0.95Co0.05O3 film. Adv Mater, 2017, 29(26), 1700425 doi: 10.1002/adma.201700425
[65]
Gao W, You L, Wang Y, et al. Flexible PbZr0.52Ti0.48O3 capacitors with giant piezoelectric response and dielectric tunability. Adv Electron Mater, 2017, 3(8), 1600542 doi: 10.1002/aelm.201600542
[66]
Liang Z, Ma C, Shen L, et al. Flexible lead-free oxide film capacitors with ultrahigh energy storage performances in extremely wide operating temperature. Nano Energy, 2019, 57, 519 doi: 10.1016/j.nanoen.2018.12.056
[67]
Liang Z, Liu M, Shen L, et al. All-inorganic flexible embedded thin film capacitors for dielectric energy storage with high performance. ACS Appl Mater Interfaces, 2019, 11(5), 5247 doi: 10.1021/acsami.8b18429
[68]
Wu J, Liang Z, Ma C, et al. Flexible lead-free BaTiO3 ferroelectric elements with high performance. IEEE Electron Device Lett, 2019, 40(6), 889 doi: 10.1109/LED.2019.2911956
[69]
Wu P C, Lin Y P, Juan Y H, et al. Epitaxial yttria-stabilized zirconia on muscovite for flexible transparent ionic conductors. ACS Appl Nano Mater, 2018, 1(12), 6890 doi: 10.1021/acsanm.8b01698
[70]
Bitla Y, Chen C, Lee H C, et al. Oxide heteroepitaxy for flexible optoelectronics. ACS Appl Mater Interfaces, 2016, 8(47), 32401 doi: 10.1021/acsami.6b10631
[71]
Ke S, Chen C, Fu N, et al. Transparent indium tin oxide electrodes on muscovite mica for high-temperature-processed flexible optoelectronic devices. ACS Appl Mater Interfaces, 2016, 8(42), 28406 doi: 10.1021/acsami.6b09166
[72]
Li M, Wang Y, Wang Y, et al. AZO/Ag/AZO transparent flexible electrodes on mica substrates for high temperature application. Ceram Int, 2017, 43(17), 15442 doi: 10.1016/j.ceramint.2017.08.089
[73]
Yang Y, Gao W, Xie Z, et al. An all-inorganic, transparent, flexible, and nonvolatile resistive memory. Adv Electron Mater, 2018, 4(12), 1800412 doi: 10.1002/aelm.201800412
[74]
Zhang Y, Cao Y, Hu H, et al. Flexible metal-insulator transitions based on van der Waals oxide heterostructures. ACS Appl Mater Interfaces, 2019, 11(8), 8284 doi: 10.1021/acsami.8b22664
[75]
Menard E, Lee K J, Khang D Y, et al. A printable form of silicon for high performance thin film transistors on plastic substrates. Appl Phys Lett, 2004, 84(26), 5398 doi: 10.1063/1.1767591
[76]
Lee K J, J Lee J, Hwang H, et al. A printable form of single-crystalline gallium nitride for flexible optoelectronic systems. Small, 2005, 1(12), 1164 doi: 10.1002/smll.200500166
[77]
Meitl M A, Zhu Z T, Kumar V, et al. Transfer printing by kinetic control of adhesion to an elastomeric stamp. Nat Mater, 2005, 5(1), 33 doi: 10.1038/nmat1532
[78]
Feng X, Meitl M A, Bowen A M, et al. Competing fracture in kinetically controlled transfer printing. Langmuir, 2007, 23(25), 12555 doi: 10.1021/la701555n
[79]
Yan Z, Pan T, Xue M, et al. Thermal release transfer printing for stretchable conformal bioelectronics. Adv Sci, 2017, 4(11), 1700251 doi: 10.1002/advs.201700251
[80]
Park K I, Lee S Y, Kim S, et al. Bendable and transparent barium titanate capacitors on plastic substrates for high performance flexible ferroelectric devices. Electrochem Solid State Lett, 2010, 13(7), G57 doi: 10.1149/1.3407622
[81]
Yao G, Pan T, Yan Z, et al. Tailoring the energy band in flexible photodetector based on transferred ITO/Si heterojunction via interface engineering. Nanoscale, 2018, 10(8), 3893 doi: 10.1039/C8NR00171E
[82]
Feng X, Yang B D, Liu Y, et al. Stretchable ferroelectric nanoribbons with wavy configurations on elastomeric substrates. ACS Nano, 2011, 5(4), 3326 doi: 10.1021/nn200477q
[83]
Chen L, Nagy J, M Reano R M, et al. Patterned ion-sliced lithium niobate for hybrid photonic integration on silicon. Opt Mater Express, 2016, 6(7), 2460 doi: 10.1364/OME.6.002460
[84]
Liang W, Gao M, Lu C, et al. Enhanced metal-insulator transition performance in scalable vanadium dioxide thin films prepared using a moisture-assisted chemical solution approach. ACS Appl Mater Interfaces, 2018, 10(9), 8341 doi: 10.1021/acsami.7b18533
[85]
Liao F, Yan Z, Liang W, et al. Tuning the metal-insulator transition of vanadium dioxide thin films using a stretchable structure. J Alloys Compd, 2017, 705, 468 doi: 10.1016/j.jallcom.2016.12.063
[86]
Liao F, Zhu Z, Yan Z, et al. Ultrafast response flexible breath sensor based on vanadium dioxide. J Breath Res, 2017, 11(3), 036002 doi: 10.1088/1752-7163/aa757e
[87]
Liao F, Lu C, Yao G, et al. Ultrasensitive flexible temperature-mechanical dual-parameter sensor based on vanadium dioxide films. IEEE Electron Device Lett, 2017, 38(8), 1128 doi: 10.1109/LED.2017.2714260
[88]
Gao M, Qi Z, Lu C, et al. Interplay between extra charge injection and lattice evolution in VO2/CH3NH3PbI3 heterostructure. Phys Status Solidi RRL, 2018, 12(4), 1700416 doi: 10.1002/pssr.201700416
[89]
Kang Z, Gao M, Lu C, et al. Thickness-modulated temperature dependent optical properties of VO2 thin films. Appl Phys A, 2019, 125, 63 doi: 10.1007/s00339-018-2308-8
[90]
Lu C, Liang W, G Min G, et al. Terahertz transmittance of cobalt-doped VO2 thin film: investigated by terahertz spectroscopy and effective medium theory. IEEE Trans THz Sci Technol, 2019, 9(2), 177 doi: 10.1109/TTHZ.2019.2894516
[91]
Liang W, Zhuo Z, Ji Y, et al. In-plane orientation-dependent metal-insulator transition in vanadium dioxide induced by sublattice strain engineering. npj Quantum Mater, 2019, 4, 39 doi: 10.1038/s41535-019-0176-x
[92]
Fratzl P, Barth F G. Biomaterial systems for mechanosensing and actuation. Nature, 2009, 462(7272), 442 doi: 10.1038/nature08603
[93]
Schlom D G, Chen L Q, Fennie C J, et al. Elastic strain engineering of ferroic oxides. MRS Bull, 2014, 39(2), 118 doi: 10.1557/mrs.2014.1
[94]
Chen A, Su Q, Han H, et al. Metal oxide nanocomposites: a perspective from strain, defect, and interface. Adv Mater, 2018, 31(4), 1803241 doi: 10.1002/adma.201803241
[95]
Bridoux G, Barzola-Quiquia J, Bern F, et al. An alternative route towards micro- and nano-patterning of oxide films. Nanotechnology, 2012, 23(8), 085302 doi: 10.1088/0957-4484/23/8/085302
[96]
Bakaul S R, Serrao C R, Lee M, et al. Single crystal functional oxides on silicon. Nat Commun, 2016, 7, 10547 doi: 10.1038/ncomms10547
[97]
Shen L, Wu L, Sheng Q, et al. Epitaxial lift-off of centimeter-scaled spinel ferrite oxide thin films for flexible electronics. Adv Mater, 2017, 29(33), 1702411 doi: 10.1002/adma.201702411
[98]
Qi Y, Jafferis N T, Lyons K, et al. Piezoelectric ribbons printed onto rubber for flexible energy conversion. Nano Lett, 2010, 10(2), 524 doi: 10.1021/nl903377u
[99]
Qi Y, Kim J, Nguyen T D, et al. Enhanced piezoelectricity and stretchability in energy harvesting devices fabricated from buckled PZT ribbons. Nano Lett, 2011, 11(3), 1331 doi: 10.1021/nl104412b
[100]
Zhang Y, Shen L, Liu M, et al. Flexible quasi-two-dimensional CoFe2O4 epitaxial thin films for continuous strain tuning of magnetic properties. ACS Nano, 2017, 11(8), 8002 doi: 10.1021/acsnano.7b02637
[101]
Ji D, Cai S, Paudel T R, et al. Freestanding crystalline oxide perovskites down to the monolayer limit. Nature, 2019, 570, 87 doi: 10.1038/s41586-019-1255-7
[102]
Lu D, Baek D J, Hong S S, et al. Synthesis of freestanding single-crystal perovskite films and heterostructures by etching of sacrificial water-soluble layers. Nat Mater, 2016, 15(12), 1255 doi: 10.1038/nmat4749
[103]
Wang H, Shen L, Duan T, et al. Integration of both invariable and tunable microwave magnetisms in a single flexible La0.67Sr0.33MnO3 thin film. ACS Appl Mater Interfaces, 2019, 11(25), 22677 doi: 10.1021/acsami.9b04877
[104]
Dong G, Li S, Yao M, et al. Super-elastic ferroelectric single-crystal membrane with continuous electric dipole rotation. Science, 2019, 366(6464), 475 doi: 10.1126/science.aay7221
Fig. 1.  (Color online) Advanced strategies for high quality inorganic oxide thin-film flexibility. In particular, the physical flexible strategies include LLO and van der Waal epitaxy, while the chemical flexible strategies include transferring films from silicon-based substrates and traditional single crystal oxide substrates to flexible substrates after etching the sacrificial layer.

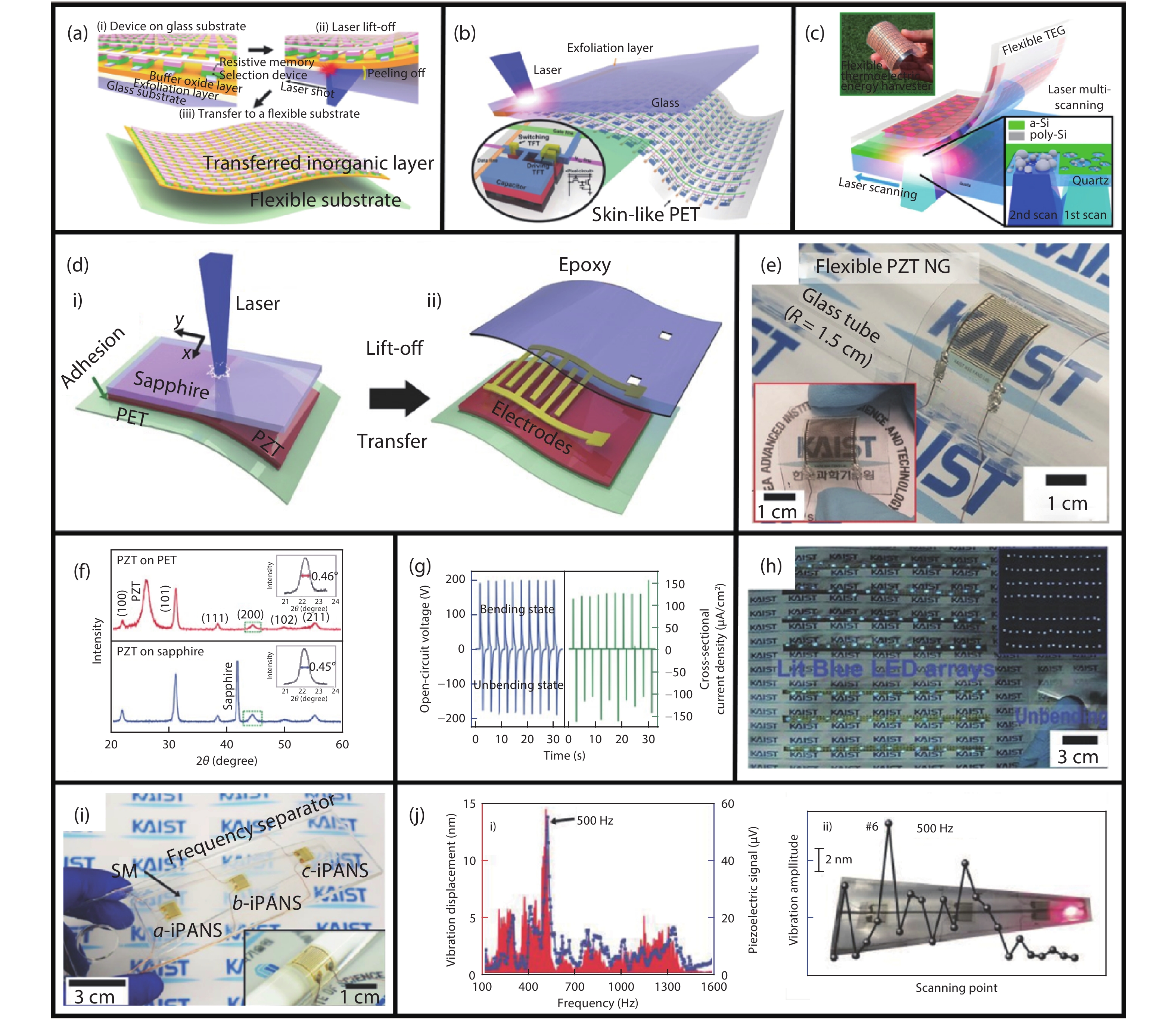

Fig. 2.  (Color online) Mechanical peeling through LLO. (a–d) Schematic illustrations of the LLO process in fabricating flexible memory, skin-like transistor, thermoelectric generator, NG[40, 41, 45, 46]. (e) Photograph of the flexible PZT thin film-based NG attached to a glass tube, and the inset shows the bent NG[46]. (f) X-ray diffraction results of PZT thin films on a flexible (top, red) PET and a sapphire (bottom, blue) substrate[46]. (g) The open-circuit voltage and cross-sectional current density measured from PZT thin film-based NG in the forward connections[46]. (h) The instantaneous lighting up of 105 blue LEDs in series when an NG device is unbent after slight bending, and the inset shows the driven LED arrays in a darkroom[46]. (i) Photograph of the frequency separator with iPANS, and the inset shows a single iPANS unit attached to a glass rod with a radius of curvature of 1.0 cm[47]. (j) The vibration displacement i) and vibration amplitude ii) information of the a-iPANS versus to sound wave with a frequency range of 100–1600 Hz[47].

Fig. 3.  (Color online) Mechanical peeling by van der Waal epitaxy on mica. (a) Schematic of deposition process for flexible CFO film monitored by RHEED in real time (left), and the magnetic hysteresis loops (right) show that the flexible CFO/mica exhibits solid magnetic properties regardless of bending[58]. (b) Crystal structure of the interface region between the CFO−BFO composite and mica substrate (left), and the M−H loops of BFO−CFO under bending conditions (right) are in agreement with the flexible CFO/mica[63]. (c) Optical images of bending mica/ SRO/BTCO (left) which shows great resistance switch characteristics (right)[64]. (d) MoO2/M-Mica can remain the resistance under different bending radii (right), and the whole MoO2 film can be removed from M-Mica (left)[29]. (e) Photo of mechanical peeling 10-μm-thick mica (left) and P–E loops before and after the PZT film being bent to bending radius of 2.2 mm for 104 times[65]. (f) The flexible and transparent AZO/ Ag (8 nm)/AZO multilayer films (left) shows great resistivity (right) and transmittance even after annealing at 750 °C[72].

Fig. 4.  (Color online) Transfer printing technology. (a) Schematic illustration of the generic process flow for transfer printing[77]. (b) Schematic diagrams of pick up (left) and printing (right) of a thin film[78]. (c) Schematic diagram of critical energy release rates for the film/substrate interface and for the stamp/film interface[78].

Fig. 5.  (Color online) Transferring of oxide thin films grown on silicon-based substrates. (a–c) A cross sectional image (a), optical image (b) and dielectric properties (c) of the bendable PEO/Au/BTO/Pt/TiO2/SiO2/Si structure[80]. (d–f) Schematic illustration of etching SiO2 for flexible ITO/Si structure (d) and the measurement of the photodetector (e), and the barrier height of the bent ITO/Si heterojunction versus its bending radius (f) shows that the barrier height decreases with the bending radius[81]. (g–i) Schematic illustration of printing transfers the PZT nanoribbons to the pre-stretched PDMS (g), and the optical image and three-dimensional (3D) rendering of wavy PZT nanoribbon devices on PDMS (h), which the measured wavelength of wavy PZT nanoribbons as a function of applied tensile strain fits well with that of theory (i)[82]. (j) Schematic illustration of ion-sliced LNO exfoliation[83]. (k–m) SEM of the cross-section (k) and the transfer surface (l) of the LNO thin film, and the wavelength detuning with voltage as parameter of Si/LNO racetrack resonator (m)[83].

Fig. 6.  (Color online) Flexible sensors based on VO2/PDMS structure. (a) The resistance versus temperature curves for the VO2 film in different states[85]. (b) Applied strain, relaxed strain and strain on VO2 at different slipping displacements[85]. (c) Strain on VO2 under heating and cooling cycles[85]. (d) The photograph of the breath sensor based on PI/VO2/PDMS structure[86]. (e) Response time and recovery time to breath[86]. (f) Resistance changes at different environment temperatures[86]. (g) Schematic illustration of electrical conductance of the sensor and the behavior of the disconnection-reconnection when applied strain on the x-axis (transverse) and y-axis (longitudinal)[87]. (h–j) Real-time monitoring signals (h), temperature signals (i) and pulse signals (j) of the flexible temperature-strain composite sensor[87].

Fig. 7.  (Color online) Transferring oxide thin films grown on traditional oxide substrates. (a) Crystal structure of biaxial compression and stretching process during depositing films on substrate with a smaller or larger lattice[93]. (b) The strain induced by substrates as BFO films grown on different substrates[93]. (c) The magneto-optical effect of the same strain ETO grown on (110) DSO substrate, which proves that ETO becomes multiferroic under sufficient biaxial strain[93]. (d) Schematic illustration of transferring PZT by etching LSMO as a sacrificial layer[96]. (e) The IDVG (top gate) characteristics of the ferroelectric PZT-gated transistor at VG (back gate) = 0[96]. (f) Schematic illustration of transfer processes of CFO thin films on flexible substrates[100]. (g, h) IP (g) and OPP (h) M−H hysteresis loops of the CFO thin films measured by vibrating sample magnetometer under different outward bending strains[100]. (i) Process schematic for heterostructure growth, oxide membrane release and transfer[102]. (j, k) IP magnetization loops of the SL (j) before and (k) after release[102].
