J. Semicond. > 2025, Volume 46 > Issue 1 > 011609
|

REVIEWS

Advancements in implantable temperature sensors: Materials, mechanisms, and biological applications

Zhuofan Yang1, Hongcheng Song2, and He Ding1,

+ Author Affiliations

 Corresponding author: Hongcheng Song, songhch1975@126.com; He Ding, heding@bit.edu.cn

DOI: 10.1088/1674-4926/24100003CSTR: 32376.14.1674-4926.24100003

PDF

Turn off MathJax

Abstract: Implantable temperature sensors are revolutionizing physiological monitoring and playing a crucial role in diagnostics, therapeutics, and life sciences research. This review classifies the materials used in these sensors into three categories: metal-based, inorganic semiconductor, and organic semiconductor materials. Metal-based materials are widely used in medical and industrial applications due to their linearity, stability, and reliability. Inorganic semiconductors provide rapid response times and high miniaturization potential, making them promising for biomedical and environmental monitoring. Organic semiconductors offer high sensitivity and ease of processing, enabling the development of flexible and stretchable sensors. This review analyzes recent studies for each material type, covering design principles, performance characteristics, and applications, highlighting key advantages and challenges regarding miniaturization, sensitivity, response time, and biocompatibility. Furthermore, critical performance parameters of implantable temperature sensors based on different material types are summarized, providing valuable references for future sensor design and optimization. The future development of implantable temperature sensors is discussed, focusing on improving biocompatibility, long-term stability, and multifunctional integration. These advancements are expected to expand the application potential of implantable sensors in telemedicine and dynamic physiological monitoring.

Key words: implantable, temperature sensors, biological applications, flexible electronics



[1]
Koydemir H C, Ozcan A. Wearable and implantable sensors for biomedical applications. Annual Rev Anal Chem, 2018, 11, 127 doi: 10.1146/annurev-anchem-061417-125956
[2]
Pang C, Lee C, Suh K Y. Recent advances in flexible sensors for wearable and implantable devices. J Appl Polym Sci, 2013, 130, 1429 doi: 10.1002/app.39461
[3]
Kiyatkin E A, Brown P L, Wise R A. Brain temperature fluctuation: A reflection of functional neural activation. Eur J Neurosci, 2002, 16, 164 doi: 10.1046/j.1460-9568.2002.02066.x
[4]
Sim D, Brothers M C, Slocik J M, et al. Biomarkers and detection platforms for human health and performance monitoring: A review. Adv Sci, 2022, 9, 2104426 doi: 10.1002/advs.202104426
[5]
Cramer M N, Gagnon D, Laitano O, et al. Human temperature regulation under heat stress in health, disease, and injury. Physiol Rev, 2022, 102, 1907 doi: 10.1152/physrev.00047.2021
[6]
Niedermann R, Wyss E, Annaheim S, et al. Prediction of human core body temperature using non-invasive measurement methods. Int J Biometeorol, 2014, 58, 7 doi: 10.1007/s00484-013-0687-28、10.1002/adhm.202000790
[7]
Lahiri B B, Bagavathiappan S, Jayakumar T, et al. Medical applications of infrared thermography: A review. Infrared Phys Technol, 2012, 55, 221 doi: 10.1016/j.infrared.2012.03.007
[8]
Singh R, Bathaei M J, Istif E, et al. A review of bioresorbable implantable medical devices: Materials, fabrication, and implementation. Adv Healthcare Mater, 2020, 9, 2000790 doi: 10.1002/adhm.202000790
[9]
Ashammakhi N, Hernandez A L, Unluturk B D, et al. Biodegradable implantable sensors: Materials design, fabrication, and applications. Adv Funct Mater, 2021, 31, 2104149 doi: 10.1002/adfm.202104149
[10]
Lu D, Yan Y, Avila R, et al. Bioresorbable, wireless, passive sensors as temporary implants for monitoring regional body temperature. Adv Healthcare Mater, 2020, 9, 2000942 doi: 10.1002/adhm.202000942
[11]
Dakurah M N, Koo C, Choi W, et al. Implantable bladder sensors: A methodological review. Int Neurourol J, 2015, 19, 133 doi: 10.5213/inj.2015.19.3.133
[12]
Scholten K, Meng E. Materials for microfabricated implantable devices: A review. Lab Chip, 2015, 15, 4256 doi: 10.1039/C5LC00809C
[13]
Koo J H, Song J K, Yoo S, et al. Unconventional device and material approaches for monolithic biointegration of implantable sensors and wearable electronics. Adv Mater Technol, 2020, 5, 2000407 doi: 10.1002/admt.202000407
[14]
Yang T, Deng W L, Chu X, et al. Hierarchically microstructure-bioinspired flexible piezoresistive bioelectronics. ACS Nano, 2021, 15, 11555 doi: 10.1021/acsnano.1c01606
[15]
Qin Y, Mo J L, Liu Y H, et al. Stretchable triboelectric self-powered sweat sensor fabricated from self-healing nanocellulose hydrogels. Adv Funct Mater, 2022, 32, 2201846 doi: 10.1002/adfm.202201846
[16]
He M, Du W W, Feng Y M, et al. Flexible and stretchable triboelectric nanogenerator fabric for biomechanical energy harvesting and self-powered dual-mode human motion monitoring. Nano Energy, 2021, 86, 106058 doi: 10.1016/j.nanoen.2021.106058
[17]
Andreu-Perez J, Leff D R, Ip H M D, et al. From wearable sensors to smart implants−toward pervasive and personalized healthcare. IEEE Trans Biomed Eng, 2015, 62, 2750 doi: 10.1109/TBME.2015.2422751
[18]
Liu Y Q, Yu Q, Yang L, et al. Materials and biomedical applications of implantable electronic devices. Adv Mater Technol, 2023, 8, 2200853 doi: 10.1002/admt.202200853
[19]
Liu Z J, Tian B, Fan X, et al. A temperature sensor based on flexible substrate with ultra-high sensitivity for low temperature measurement. Sens Actuat A Phys, 2020, 315, 112341 doi: 10.1016/j.sna.2020.112341
[20]
Mailly F, Giani A, Bonnot R, et al. Anemometer with hot platinum thin film. Sens Actuat A Phys, 2001, 94, 32 doi: 10.1016/S0924-4247(01)00668-9
[21]
Ali M S, Ali M S, Mallick S, et al. Dual parameter smart sensor for nitrogen and temperature sensing based on defect-engineered 1T-MoS2. Sci Rep, 2024, 14, 21469 doi: 10.1038/s41598-024-72632-4
[22]
Sun X, Li Z C, Fu W Y, et al. Li/Fe modified Zn0.3Ni0.7O NTC thermistors with adjustable resistivities and temperature sensitivity. J Mater Sci Mater Electron, 2018, 29, 343 doi: 10.1007/s10854-017-7922-2
[23]
Paladiya C, Kiani A. Nano structured sensing surface: Significance in sensor fabrication. Sens Actuat B Chem, 2018, 268, 494 doi: 10.1016/j.snb.2018.04.085
[24]
Chatterjee S, Saxena M, Padmanabhan D, et al. Futuristic medical implants using bioresorbable materials and devices. Biosens Bioelectron, 2019, 142, 111489 doi: 10.1016/j.bios.2019.111489
[25]
Wang J Q, Xie H, Chung T, et al. Neural probes with integrated temperature sensors for monitoring retina and brain implantation and stimulation. IEEE Trans Neural Syst Rehabil Eng, 2017, 25, 1663 doi: 10.1109/TNSRE.2016.2634584
[26]
Moser Y, Gijs M A M. Miniaturized flexible temperature sensor. J Microelectromech Syst, 2007, 16, 1349 doi: 10.1109/JMEMS.2007.908437
[27]
Xiao S Y, Che L F, Li X X, et al. A novel fabrication process of MEMS devices on polyimide flexible substrates. Microelectron Eng, 2008, 85, 452 doi: 10.1016/j.mee.2007.08.004
[28]
Li Q, Zhang L N, Tao X M, et al. Review of flexible temperature sensing networks for wearable physiological monitoring. Adv Healthcare Mater, 2017, 6, 1601371 doi: 10.1002/adhm.201601371
[29]
Shao Z C, Pala S, Liang Y, et al. Non-contact surface temperature sensing based on a single bimorph pMUTS array. 2020 IEEE 33rd International Conference on Micro Electro Mechanical Systems (MEMS), 2020, 861 doi: 10.1109/MEMS46641.2020.9056314
[30]
Han M D, Chen L, Aras K, et al. Catheter-integrated soft multilayer electronic arrays for multiplexed sensing and actuation during cardiac surgery. Nat Biomed Eng, 2020, 4, 997 doi: 10.1038/s41551-020-00604-w
[31]
Kim D H, Lu N S, Ghaffari R, et al. Materials for multifunctional balloon catheters with capabilities in cardiac electrophysiological mapping and ablation therapy. Nat Mater, 2011, 10, 316 doi: 10.1038/nmat2971
[32]
Lee S P, Klinker L E, Ptaszek L, et al. Catheter-based systems with integrated stretchable sensors and conductors in cardiac electrophysiology. Proc IEEE, 2015, 103, 682 doi: 10.1109/JPROC.2015.2401596
[33]
Kim Y, Parada G A, Liu S D, et al. Ferromagnetic soft continuum robots. Sci Robot, 2019, 4, eaax7329 doi: 10.1126/scirobotics.aax7329
[34]
Yokota T, Zalar P, Kaltenbrunner M, et al. Ultraflexible organic photonic skin. Sci Adv, 2016, 2, e1501856 doi: 10.1126/sciadv.150185639、10.1038/s41528-017-0003-z
[35]
Arndt-Jovin D J, Robert-Nicoud M, Kaufman S J, et al. Fluorescence digital imaging microscopy in cell biology. Science, 1985, 230, 247 doi: 10.1126/science.4048934
[36]
Cho M, Han J K, Suh J, et al. Fully bioresorbable hybrid opto-electronic neural implant system for simultaneous electrophysiological recording and optogenetic stimulation. Nat Commun, 2024, 15, 2000 doi: 10.1038/s41467-024-45803-0
[37]
Jiang N, Chang X H, Hu D W, et al. Flexible, transparent, and antibacterial ionogels toward highly sensitive strain and temperature sensors. Chem Eng J, 2021, 424, 130418 doi: 10.1016/j.cej.2021.130418
[38]
Cui Y Y, Sun M W, Liu C B, et al. All-inorganic ultrathin high-sensitivity transparent temperature sensor based on a Mn–Co–Ni–O nanofilm. Microsyst Nanoeng, 2024, 10, 70 doi: 10.1038/s41378-024-00706-4
[39]
Yu K J, Yan Z, Han M D, et al. Inorganic semiconducting materials for flexible and stretchable electronics. NPJ Flex Electron, 2017, 1, 4
[40]
Liu G, Lv Z Y, Batool S, et al. Biocompatible material-based flexible biosensors: From materials design to wearable/implantable devices and integrated sensing systems. Small, 2023, 19, 2207879 doi: 10.1002/smll.202207879
[41]
Kwon K, Kim J U, Won S M, et al. A battery-less wireless implant for the continuous monitoring of vascular pressure, flow rate and temperature. Nat Biomed Eng, 2023, 7, 1215 doi: 10.1038/s41551-023-01022-4
[42]
Milani-Nejad N, Janssen P M L. Small and large animal models in cardiac contraction research: Advantages and disadvantages. Pharmacol Ther, 2014, 141, 235 doi: 10.1016/j.pharmthera.2013.10.007
[43]
Coffey S, Roberts-Thomson R, Brown A, et al. Global epidemiology of valvular heart disease. Nat Rev Cardiol, 2021, 18, 12 doi: 10.1038/s41569-021-00570-z
[44]
Charthad J, Weber M J, Chang T C, et al. A mm-sized implantable medical device (IMD) with ultrasonic power transfer and a hybrid bi-directional data link. IEEE J Solid State Circuits, 2015, 50, 1741 doi: 10.1109/JSSC.2015.2427336
[45]
Lee S, Cortese A J, Gandhi A P, et al. A 250 μm × 57 μm microscale opto-electronically transduced electrodes (MOTEs) for neural recording. IEEE Trans Biomed Circuits Syst, 2018, 12, 1256 doi: 10.1109/TBCAS.2018.2876069
[46]
Cortese A J, Smart C L, Wang T Y, et al. Microscopic sensors using optical wireless integrated circuits. Proc Natl Acad Sci USA, 2020, 117, 9173 doi: 10.1073/pnas.1919677117
[47]
Xu M, Zou X M, Su Q Q, et al. Ratiometric nanothermometer in vivo based on triplet sensitized upconversion. Nat Commun, 2018, 9, 2698 doi: 10.1038/s41467-018-05160-1
[48]
Chen G Y, Qiu H L, Prasad P N, et al. Upconversion nanoparticles: Design, nanochemistry, and applications in theranostics. Chem Rev, 2014, 114, 5161 doi: 10.1021/cr400425h
[49]
Chernov M V, Gushchin S V, Kuzmin A M, et al. Infrared to visible up-conversion luminescence of SrF2: Ho particles upon excitation of the 5I7 level of Ho3+ ions. J Lumin, 2023, 261, 119942 doi: 10.1016/j.jlumin.2023.119942
[50]
Lee G H, Moon H, Kim H, et al. Multifunctional materials for implantable and wearable photonic healthcare devices. Nat Rev Mater, 2020, 5, 149 doi: 10.1038/s41578-019-0167-3
[51]
Ding H, Lv G Q, Cai X, et al. An Optoelectronic thermometer based on microscale infrared-to-visible conversion devices. Light Sci Appl, 2022, 11, 130 doi: 10.1038/s41377-022-00825-5
[52]
Shin J, Liu Z H, Bai W B, et al. Bioresorbable optical sensor systems for monitoring of intracranial pressure and temperature. Sci Adv, 2019, 5, eaaw1899 doi: 10.1126/sciadv.aaw1899
[53]
Zhu C X, Wu H C, Nyikayaramba G, et al. Intrinsically stretchable temperature sensor based on organic thin-film transistors. IEEE Electron Device Lett, 2019, 40, 1630 doi: 10.1109/LED.2019.2933838
[54]
Someya T, Bao Z N, Malliaras G G. The rise of plastic bioelectronics. Nature, 2016, 540, 379 doi: 10.1038/nature21004
[55]
Yokota T, Inoue Y, Terakawa Y, et al. Ultraflexible, large-area, physiological temperature sensors for multipoint measurements. Proc Natl Acad Sci USA, 2015, 112, 14533 doi: 10.1073/pnas.1515650112
[56]
Chen Y, Pépin A. Nanofabrication: Conventional and nonconventional methods. Electrophoresis, 2001, 22, 187 doi: 10.1002/1522-2683(200101)22:2<187::AID-ELPS187>3.0.CO;2-0
[57]
Mittal M, Sardar S, Jana A. Nanofabrication techniques for semiconductor chemical sensors. Handbook of Nanomaterials for Sensing Applications. Amsterdam: Elsevier, 2021, 119 doi: 10.1002/1522-2683(200101)22:2%3C187::AID-ELPS187%3E3.0.CO;2-0
[58]
Ahmad S. Organic semiconductors for device applications: Current trends and future prospects. J Polym Eng, 2014, 34, 279 doi: 10.1515/polyeng-2013-0267
[59]
Eslamian M. Inorganic and organic solution-processed thin film devices. Nanomicro Lett, 2017, 9, 3 doi: 10.1007/s40820-016-0106-4
[60]
Vishwakarma A, Bhise N S, Evangelista M B, et al. Engineering immunomodulatory biomaterials to tune the inflammatory response. Trends Biotechnol, 2016, 34, 470 doi: 10.1016/j.tibtech.2016.03.009
[61]
Zhang D H, Chen Q, Shi C, et al. Dealing with the foreign-body response to implanted biomaterials: Strategies and applications of new materials. Adv Funct Mater, 2021, 31, 2007226 doi: 10.1002/adfm.202007226
[62]
Ding Y, Ma R C, Liu G H, et al. Fabrication of a new hyaluronic acid/gelatin nanocomposite hydrogel coating on titanium-based implants for treating biofilm infection and excessive inflammatory response. ACS Appl Mater Interfaces, 2023, 15, 13783 doi: 10.1021/acsami.2c23320
[63]
Basova T V, Vikulova E S, Dorovskikh S I, et al. The use of noble metal coatings and nanoparticles for the modification of medical implant materials. Mater Des, 2021, 204, 109672 doi: 10.1016/j.matdes.2021.109672
[64]
Kros A, Gerritsen M, Sprakel V S I, et al. Silica-based hybrid materials as biocompatible coatings for glucose sensors. Sens Actuat B Chem, 2001, 81, 68 doi: 10.1016/S0925-4005(01)00933-9
[65]
Chen K, Ren J Y, Chen C Y, et al. Safety and effectiveness evaluation of flexible electronic materials for next generation wearable and implantable medical devices. Nano Today, 2020, 35, 100939 doi: 10.1016/j.nantod.2020.100939

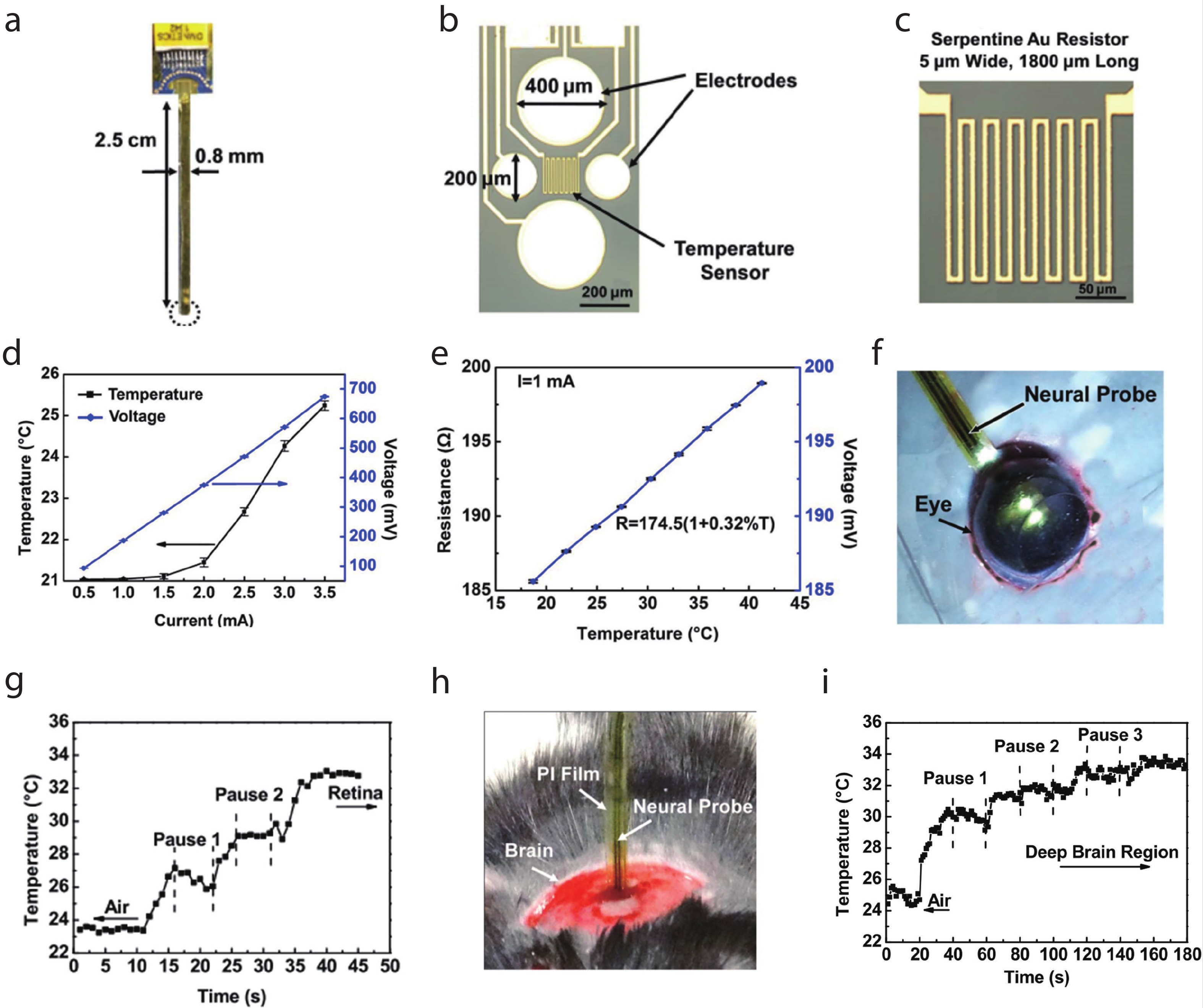

Fig. 1.  (Color online) Implantable, biocompatible Au resistive temperature sensors. (a) A flexible implantable neural probe on a polyimide (PI) substrate, attached to printed circuit boards (PCBs) with connectors. (b) A detailed view of the probe tip, containing electrodes and temperature sensors. (c) Temperature sensor made of a serpentine gold wire 5 μm wide and 1800 μm long. (d) The temperature and voltage responses of the temperature sensor when a 1 mA current is applied. (e) The resistive temperature sensor exhibits a linear relationship between resistance and voltage under a 1 mA current, with a temperature coefficient of 0.32%. (f) Optical image of the neural probe implanted in the retina, monitoring temperature changes during insertion. (g) Temperature changes during probe implantation in the retina. (h) Optical image of the neural probe implanted in the deep brain region. (i) Temperature changes during probe implantation were monitored in the deep brain. Reproduced with permission from Ref. [25]. Copyright (2017) IEEE.

DownLoad: Full-Size Img PowerPoint

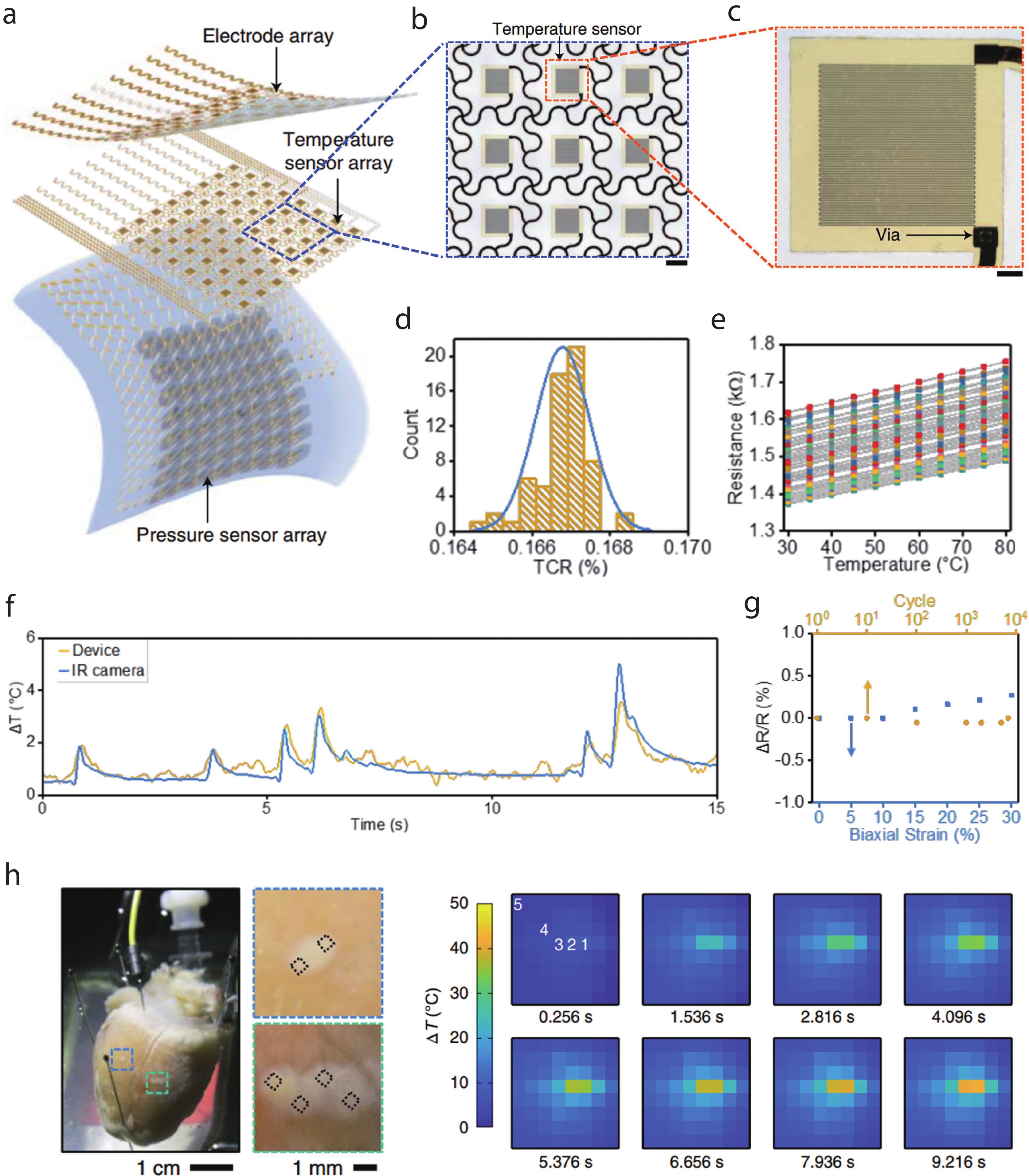

Fig. 2.  (Color online) Implantable, biocompatible soft multilayer electronic arrays for the functional temperature sensor. (a) Schematic illustration of the multimodal, multiplexed soft sensors in a multilayer configuration, including 8 × 8 electrodes for radiofrequency ablation (RFA) and irreversible electroporation (IRE), temperature sensors for precision thermography, and pressure sensors for measuring forces associated with soft-tissue contact. (b) Detailed view of the temperature sensor array in a planar format. (c) Temperature sensor made of a thin Au metal wire with a thickness of 100 nm and a width of 4 µm, configured as a resistance element. (d) Histogram and Gaussian lineshape fitting of the temperature coefficient of resistance (TCR) values for the temperature sensors. (e) Resistance measurements from the sixty-four temperature sensors at temperatures ranging from 30 to 80 °C. (f) Comparison of results from the infrared camera and the stretchable temperature sensor array, with the circuit properly grounded to eliminate crosstalk. (g) Fractional change of resistance of a temperature sensor under cyclic 20% uniaxial stretching (orange points) and different biaxial strains (blue points). (h) Spatiotemporal temperature mapping measured by the temperature sensor array during bipolar RFA on a rabbit heart. Reproduced with permission from Ref. [30]. Copyright (2020) Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

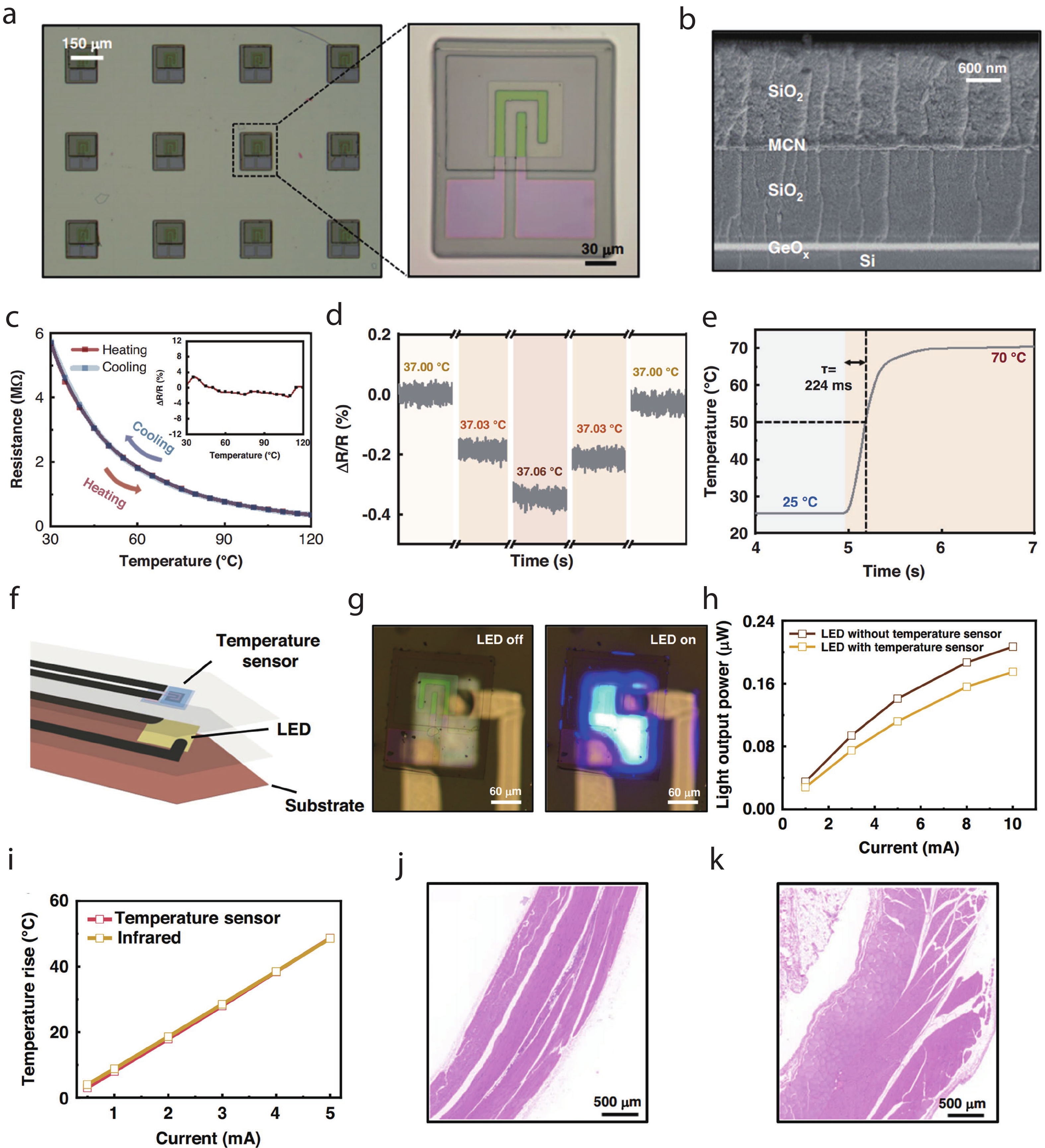

Fig. 3.  (Color online) Implantable, biocompatible, transparent temperature sensor based on a Mn–Co–Ni–O nanofilm. (a) Optical image of the Mn–Co–Ni–O nanofilm temperature sensors on a Si substrate. (b) Scanning electron microscopy (SEM) image of a sandwich-structured thin-film temperature sensor on a Si substrate with a total thickness of approximately 4.1 µm. (c) Resistance variation with temperature for the Mn–Co–Ni–O (MCN) transparent temperature sensor. (d) Resolution test for the freestanding MCN transparent temperature sensor, demonstrating the ability to detect a small temperature change of 0.03 °C. (e) Response time of the MCN transparent temperature sensor is 224 ms when transitioning from 25 to 70 °C. (f) Schematic illustrations of the microscale LED probe integrated with the MCN transparent temperature sensor. (g) Optical image of the microscale LED probe integrated with the MCN transparent temperature sensor, showing blue light from the LED penetrating through the sensor. (h) Luminous power of LEDs with and without integrated temperature sensors as a function of input current. (i) Measurement of the increase in temperature of the LED surface under different injection currents by the MCN transparent temperature sensor and an infrared camera. (j) Hematoxylin and eosin (H&E)-stained histological section image of the control group, showing the back region of a rat without implantation. (k) Histological section image of the tissue surrounding the sensor after 21 days of implantation in the back region of a rat. Reproduced with permission from Ref. [38]. Copyright (2024) Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

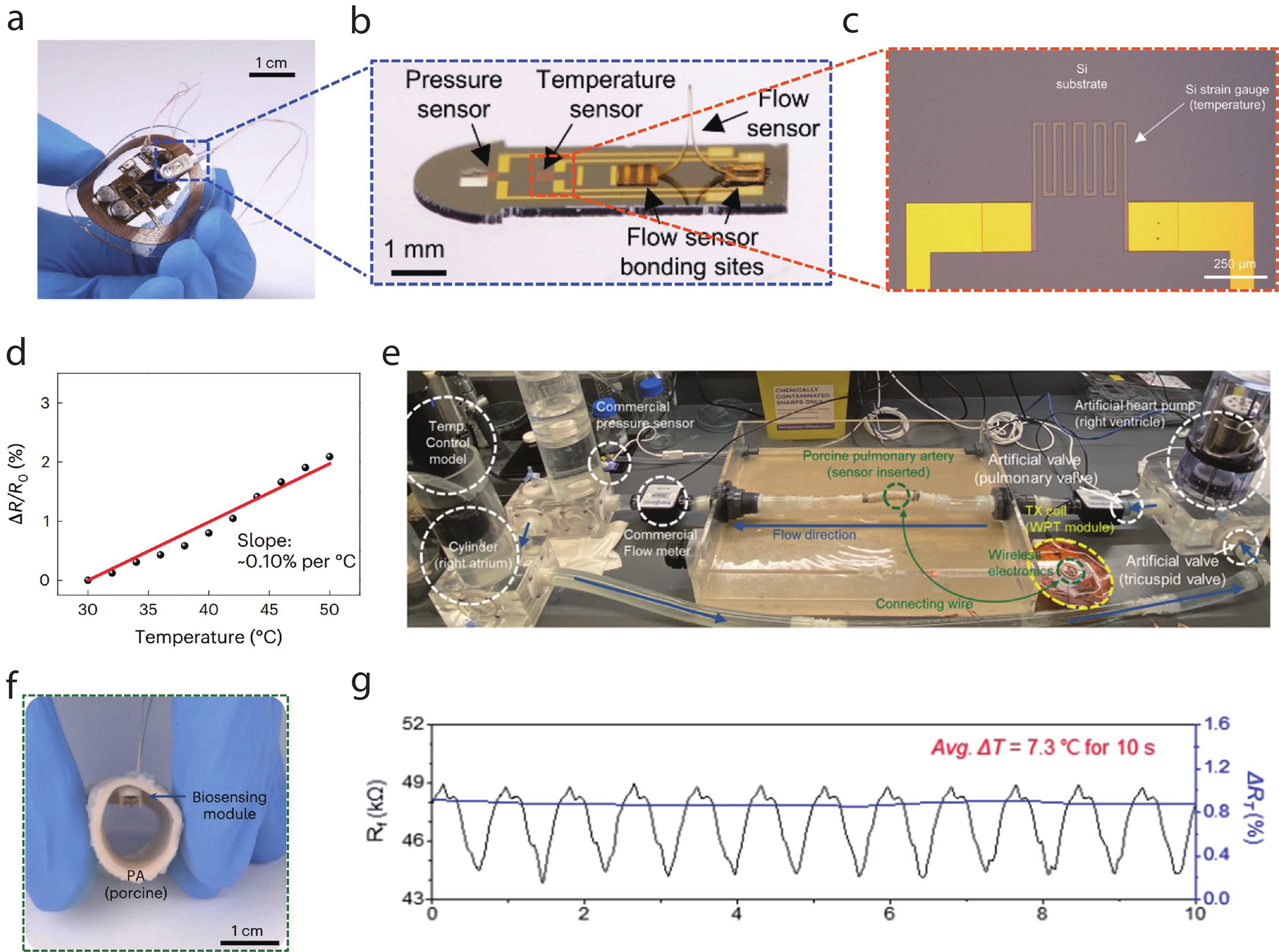

Fig. 4.  (Color online) Biocompatible, battery-less wireless implantable temperature sensor based on silicon nanomembrane (Si-NM). (a) Optical image of the soft, flexible wireless electronics module interconnected with the biosensing module via insulated, flexible fine wires (blue dotted box). (b) Optical images of biosensing modules with pressure, temperature, and flow sensors. (c) Silicon serpentine strain gauges on a flat substrate for temperature monitoring. (d) Measured resistance change (∆R/R0) response of approximately 0.10% °C–1 in the temperature sensor when exposed to temperature changes from 30 to 50 °C. (e) Optical image of the artificial heart system, including two cylinders with mechanical pumps simulating the right ventricle (RV) and right atrium (RA), two prosthetic heart valves mimicking the pulmonary valve (PV) and tricuspid valve (TV), a temperature control module, and commercial sensors. (f) Optical image of the sensing module inserted into the pulmonary arteries (PA) extracted from a pig. (g) Simultaneous measurements of flow sensor resistance (Rf, black) and normalized resistance change of the temperature sensor (ΔRT, blue) using the artificial heart system. Reproduced with permission from Ref. [41]. Copyright (2023) Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

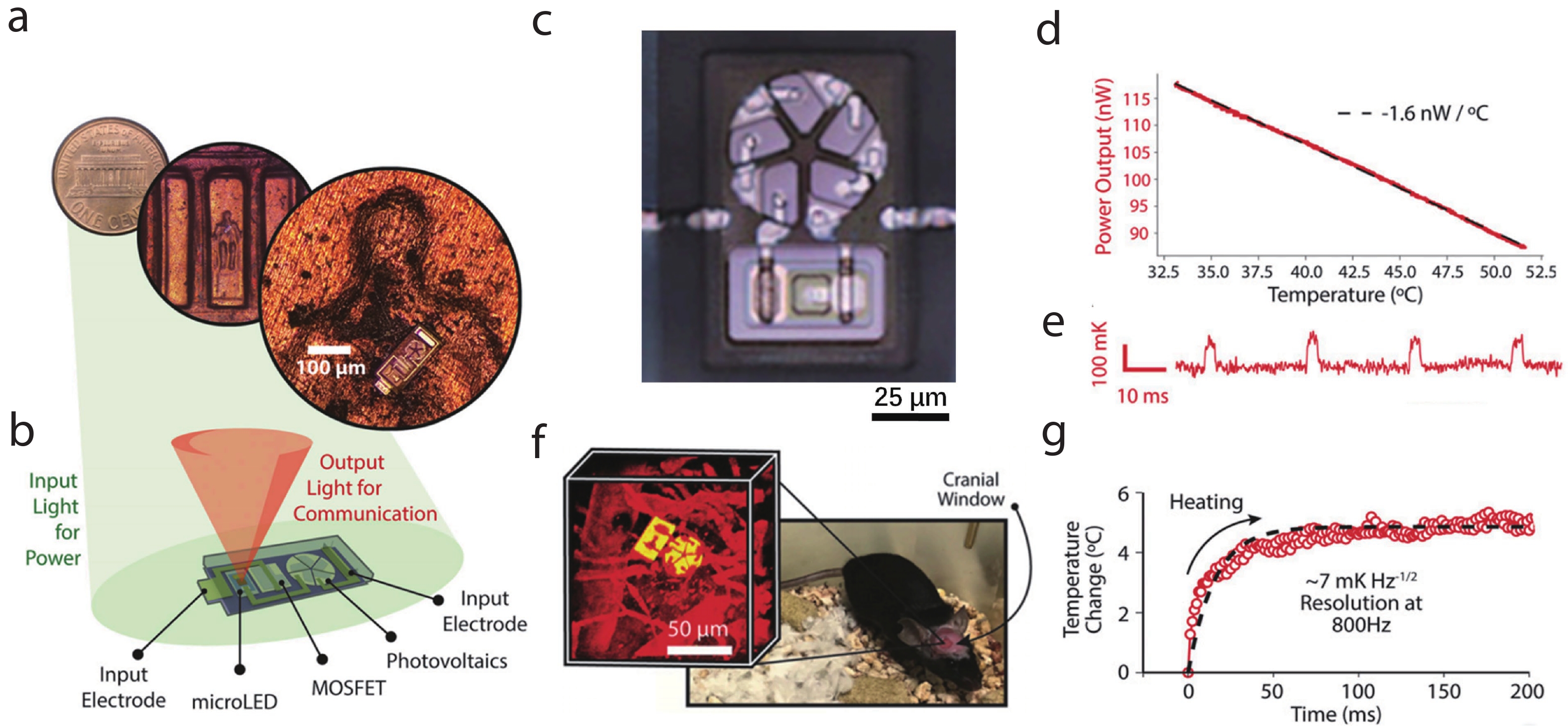

Fig. 5.  (Color online) Implantable optical wireless integrated circuit temperature sensor based on silicon and Ⅲ−Ⅴ semiconductors. (a) Optical micrograph of a voltage-sensing optical wireless integrated circuit (OWIC) on the back of a penny. (b) Schematic of the OWIC in operation, illustrating the integration of optical communication, power, and electronics into a fully integrated microscopic sensor package. (c) Optical image of the setup used for temperature measurement of the OWIC sensor. (d) Graph depicting the characteristics of optical power output as a function of temperature. (e) Measurement of small, rapid temperature changes induced by a resistive element adjacent to the OWIC temperature sensor. (f) 3D reconstruction of the implanted OWIC and vasculature in a mouse brain, with blood vessels labeled using fluorescein and imaged via three-photon microscopy (1320 nm excitation, red), while the implanted OWIC is visualized through label-free third harmonic generation (yellow). (g) In vivo optical recording of temperature from the OWIC sensor, as input power heats the device and surrounding tissue. Reproduced with permission from Ref. [46]. Copyright (2020) National Academy of Sciences.

DownLoad: Full-Size Img PowerPoint

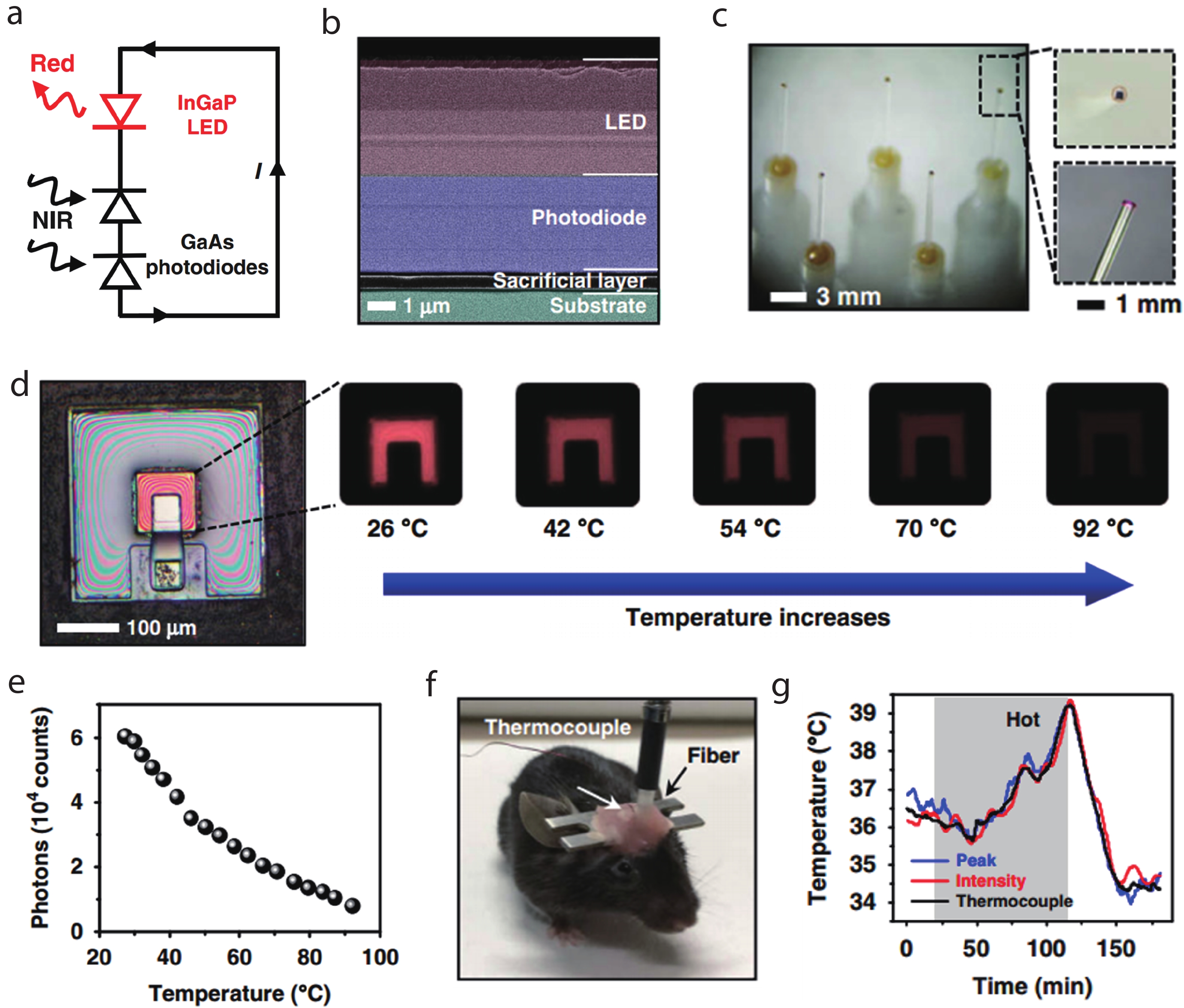

Fig. 6.  (Color online) Implantable optoelectronic upconversion temperature sensor based on Ⅲ−Ⅴ semiconductors. (a) Circuit schematic diagram of the optoelectronic temperature sensor, featuring an InGaP red LED and a GaAs double junction photodiode connected in series. (b) Scanning electron microscopy (SEM) image detailing the design of the optoelectronic upconversion device. (c) Optical image of upconversion devices transferred onto the tips of fibers (diameter approximately 600 µm), with insets providing a zoomed-in view of the fiber tips with a red-emitting device excited by coupled near-infrared light. (d) Microscopic top view of an upconversion device for temperature sensing under infrared excitation, along with the photoluminescence (PL) emissions of the device as temperature varies from 26 to 92 °C. (e) Relationship between PL intensity and temperature, measured by counting the average number of captured photons with an imaging sensor. (f) Optical image of a mouse with an implanted fiber sensor and thermocouple in the brain for temperature sensing. (g) Dynamic temperature signals obtained in the mouse brain compared to results recorded simultaneously with thermocouples, with the shaded gray region indicating when the mouse was placed in a hot environment (~40 °C). Reproduced with permission from [51]. Copyright (2022) Nature Publishing Group.

DownLoad: Full-Size Img PowerPoint

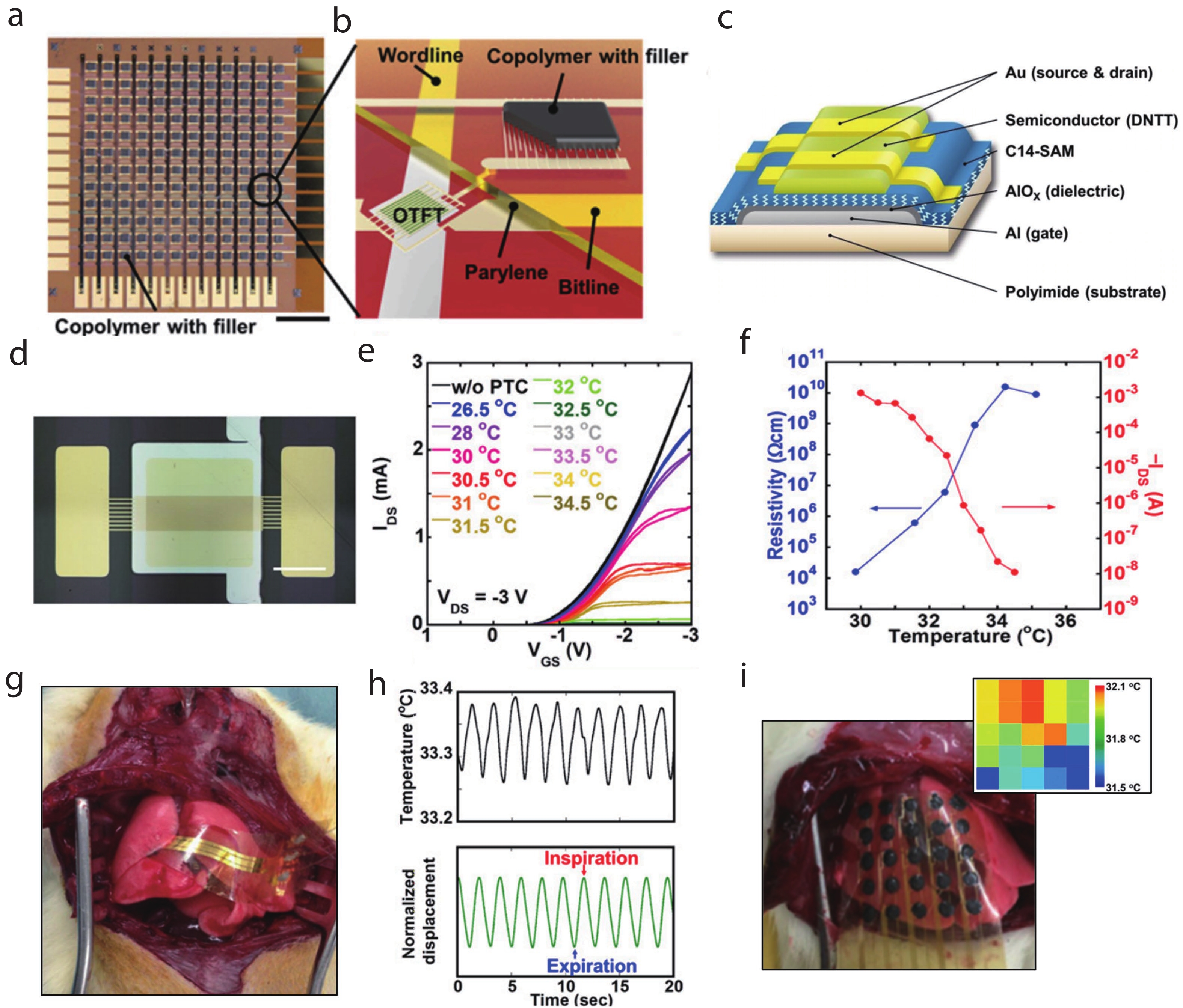

Fig. 7.  (Color online) Implantable physiological temperature sensor for organic semiconductor-based materials. (a) Image of a flexible 12 × 12 temperature sensor sheet (scale bar: 1 cm). (b) Cross-sectional illustration of a flexible large-area active-matrix sensor array with 12 × 12 temperature pixels. (c) Structure of the organic transistor, featuring a gate dielectric made of an anodized aluminum oxide layer and a phosphonic acid self-assembled monolayer (SAM); a 30 nm thick layer of dinaphtho[2, 3-b:2'9, 3'-f]thieno[3, 2-b]thiophene (DNTT) serves as the air-stable organic semiconductor forming the channel layer. (d) Optical image of the organic transistor. (e) Temperature dependence of the electrical characteristics after integrating the temperature sensor with the organic transistor. (f) Temperature dependence of the resistivity of the temperature sensor and the on-current of the organic transistor with the integrated temperature sensor. (g) Temperature measurement of respiratory lung tissue, illustrating heat exchange between the lung tissue and air. (h) Time course of the living lung's temperature (black: temperature output from the sensor, green: displacement of the lung surface). (i) Temperature mapping measurement of a rat lung using a 5 × 5 array of temperature sensors. Reproduced with permission from Ref. [55]. Copyright (2015) National Academy of Sciences.

DownLoad: Full-Size Img PowerPoint

Table 1.   Comparison of parameters for representative of temperature sensors.

Materials Size (μm) TCR/Sensitivity (°C−1) Time response (ms) Temperature range (°C) Manufacturing difficulty Cost Yield Ref
Au ~150 × 150 0.32% 1300 18−41 Easy Medium Low [25]
Au ~ 800 × 800
(one pixel)		 0.17% ~25 30−80 Complex Medium Low [30]
Mn–Co–Ni–O 210 × 180 × 4.1 4% 224 25−100 Medium Low Medium [38]
Si-nm ~375 × 315 0.1% − 30−50 Complex Medium Low [41]
Si and Ⅲ−Ⅴ semiconductors 380 × 300 × 0.2 2% 10 20−40 Complex High High [46]
Ⅲ−Ⅴ semiconductors 300 × 300 1.5% ~0.02 25−90 Medium High High [51]
Dinaphtho[2,3-b:29,39-f]
thieno[3,2-b]thiophene (DNTT)		 38.5 (thick) Resistance changes by 6 orders of magnitude within
5 °C		 <100 25−50 (require tune) Easy Low Medium [55]
DownLoad: CSV
