Fig. 1.
(a) Section plane of the dipole. (b) Plan form of the dipole.
DownLoad:
| Citation: |
Jun Luo, Yan Wang, Ruifeng Yue. 60-GHz array antenna with standard CMOS technology on Schott Borofloat[J]. Journal of Semiconductors, 2013, 34(11): 115006. doi: 10.1088/1674-4926/34/11/115006
****
J Luo, Y Wang, R F Yue. 60-GHz array antenna with standard CMOS technology on Schott Borofloat[J]. J. Semicond., 2013, 34(11): 115006. doi: 10.1088/1674-4926/34/11/115006.
|
60-GHz array antenna with standard CMOS technology on Schott Borofloat
DOI: 10.1088/1674-4926/34/11/115006
More Information
-
Abstract

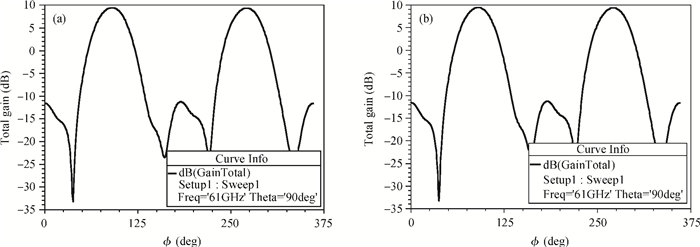

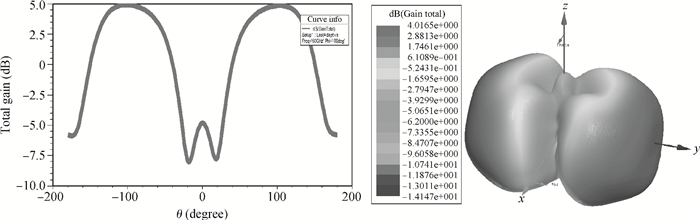

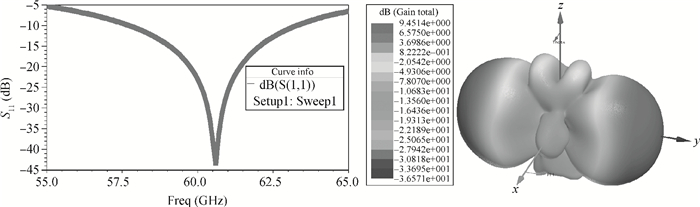

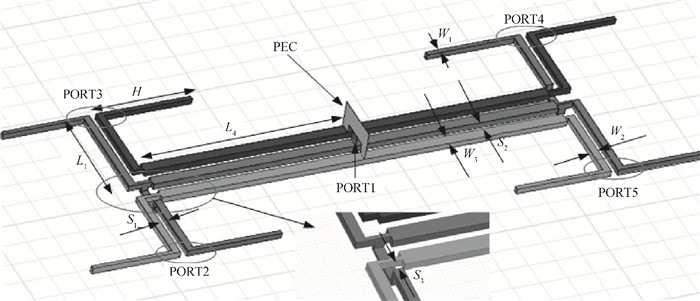

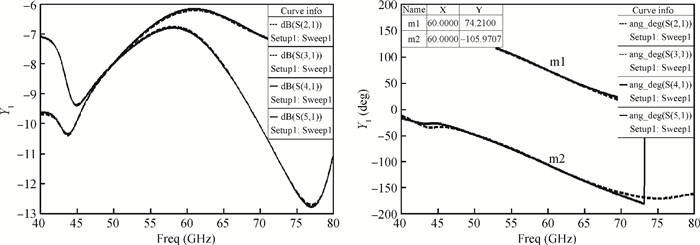

This design is presented of a 2X2 planar array, with a half-wave dipole antenna to be its element, on a new substrate material, Schott Borofloat, with CMOS technology in the 60 GHz band. In the proposed structure, all the designs are based on the CMOS technology and similar performance could be achieved with the same size in contrast to the design on low-temperature co-fired ceramic (LTCC). This could lead to the improving of the compatibility with the CMOS IC process, the design cost and the design precision which is restricted in the LTCC process. The simulated -10 dB bandwidth of the array is from 58 to 64 GHz. A peak gain of 9.4 dBi is achieved. Good agreement on return loss is achieved between simulations and measurements.-
Keywords:
- Schott Borofloat,
- array,
- half-wave dipole,
- 60 GHz,
- CMOS technology
-
References
[1] Zhang Y P, Liu D X. Antenna-on-chip and antenna-in-package solutions to highly integrated millimeter-wave devices for wireless communications. IEEE Trans Antennas Propagation, 2009, 57(10):2830 doi: 10.1109/TAP.2009.2029295[2] Mendes P M, Sinaga S, Polyakov A, et al. Wafer-level integration of on-chip antennas and RF passives using high-resistivity polysilicon substrate technology. Proc Electronic Components Technology Conf, 2004 http://ieeexplore.ieee.org/document/1320376/authors[3] Kim J G, Lee H S, Lee H S, et al. 60-GHz CPW-fed post-supported patch antenna using micromachining technology. IEEE Microw Wireless Compon Lett, 2005, 15(10):635 doi: 10.1109/LMWC.2005.856690[4] Lamminen A E I, Saily J, Vimpari A R. 60-GHz patch antennas and arrays on LTCC with embedded-cavity substrates. IEEE Trans Antennas Propagation, 2008, 56(9):2865 doi: 10.1109/TAP.2008.927560[5] Zhang Y P, Sun M, Chua K M, et al. Integration of slot antenna in LTCC package for 60 GHz radios. Electron Lett, 2008, 44(5):330 doi: 10.1049/el:20083352[6] Sun M, Guo Y X, Karim M F, et al. Integrated 60-GHz LTCC circularly polarized antenna array. IEEE International Symposium on Radio-Frequency Integration Technology, 2009 http://ieeexplore.ieee.org/document/5383656/keywords[7] Chen X P, Wu K, Han L, et al. Low-cost high gain planar antenna array for 60-GHz band applications. IEEE Trans Antennas Propagation, 2010, 58(6):2126 doi: 10.1109/TAP.2010.2046861[8] Sun M, Zhang Y P, Chua K M, et al. Integration of Yagi antenna in LTCC package for differential 60-GHz radio. IEEE Trans Antennas Propagation, 2008, 56(8):2780 doi: 10.1109/TAP.2008.927577 -
