C-band 6-bit phase shifter for a phase array antenna

Xiaofeng Yang and Jiangyi Shi

+ Author Affiliations

 Corresponding author: Yang Xiaofeng, Email:xfyang@mail.xidian.edu.cn

DOI: 10.1088/1674-4926/34/4/045009

PDF

Abstract: A C-band 6-bit digital phase shifter is presented. The phase shifter is based on the synthetic design of a high-pass/low-pass network and the all-pass network. The series scatter restrain method is also discussed. The phase shifter is fabricated in 0.25 μm GaAs PHEMT technology and developed for C-band phased arrays, and the relative phase shift varies from 0 to 360 in step of 5.625°. The phase shifter, with a chip size of 4×1.95 mm2, has achieved an insertion loss better than 6.4 dB, RMS phase error of less than 1.73°, and an input and output VSWR less than 1.6 at all conditions.

Key words: MMIC, high-pass/low-pass network, all-pass network, series scatter restrain



[1]
Campbell C F, Brown S A. A compact 5-bit phase-shifter MMIC for K-band satellite communication systems. IEEE Trans Microw Theory Tech, 2000, 48(12):2652 doi: 10.1109/22.899026
[2]
Yang J G, Yang K. Ka-band 5-bit MMIC phase shifter using InGaAs PIN switching diodes. IEEE Microw Wireless Compon Lett, 2011, 21(3):151 doi: 10.1109/LMWC.2010.2104314
[3]
Biglarbegian B, Nezhad-Ahmadi M R, Fakharzadeh M, et al. Millimeter-wave reflective-type phase shifter in CMOS technology. IEEE Microw Wireless Compon Lett, 2009, 19(9):560 doi: 10.1109/LMWC.2009.2027065
[4]
Adler D, Popovich R. Broadband switched-bit phase shifter using all-pass networks. IEEE MTT-S Int Microw Symp Dig, 1991:265 http://ieeexplore.ieee.org/document/146979/keywords
[5]
Wang L, Sun P, You Y, et al. Highly linear Ku-band SiGe PIN diode phase shifter in standard SiGe BiCMOS process. IEEE Microw Wireless Compon Lett, 2010, 20(1):37 doi: 10.1109/LMWC.2009.2035962
[6]
Morton M A, Comeau J P, Cressler J D, et al. 5 bit, silicon-based, X-band phase shifter using a hybrid pi/t high-pass/low-pass topology. IET Microw Antennas Propag, 2008, 2(1):19 doi: 10.1049/iet-map:20070077
[7]
Bahl I J, Conway D. L-and S-band compact octave bandwidth 4-bit MMIC phase shifters. IEEE Trans Microw Theory Tech, 2008, 56(2):293 doi: 10.1109/TMTT.2007.914636
[8]
Bahl I, Bhartia P. Microwave solid state circuit design. 2nd ed. Wiley Interscience, 2003:668 http://www.wiley.com/WileyCDA/WileyTitle/productCd-0471207551.html
[9]
Hangai M, Hieda M. S-and C-band ultra-compact phase shifters based on all-pass networks. IEEE Trans Microw Theory Tech, 2010, 58(1):41 doi: 10.1109/TMTT.2009.2036322
[10]
Xiao Q. A compact L-band broadband 6-bit MMIC phase shifter with low phase error. Proceedings of the 6th European Microwave Integrated Circuits Conference, 2011:410 http://ieeexplore.ieee.org/document/6102765/

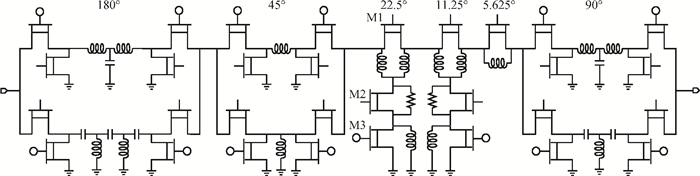

Fig. 1.  Schematic of the 6-bit phase shifter.

DownLoad: Full-Size Img PowerPoint

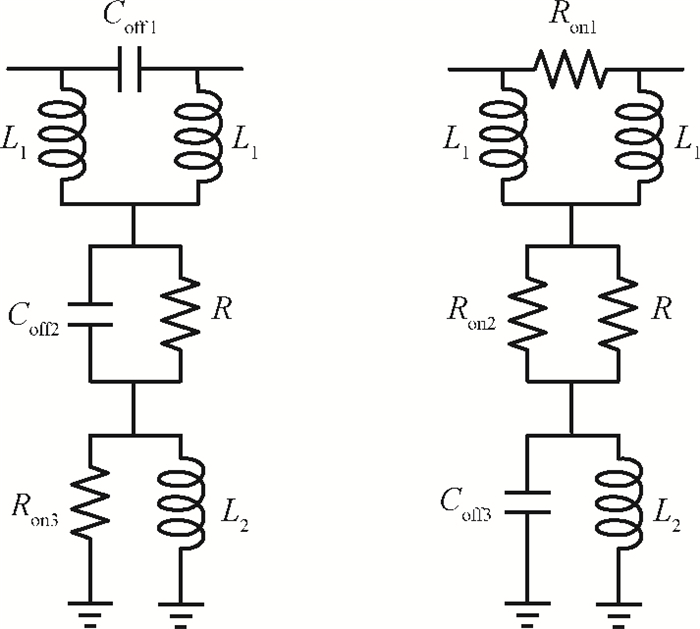

Fig. 2.  Equivalent circuits of the all-pass phase-shifting circuit. (a) Reference state. (b) Phase-shift state.

DownLoad: Full-Size Img PowerPoint

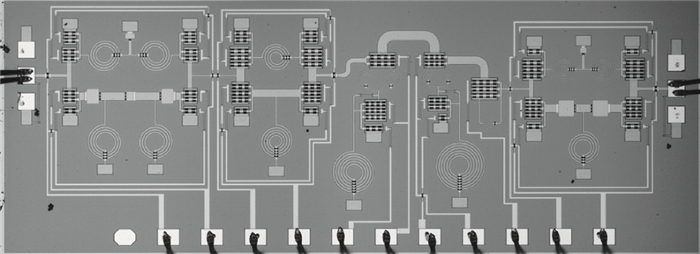

Fig. 3.  Die chip photograph of 6-bits phase shifter.

DownLoad: Full-Size Img PowerPoint

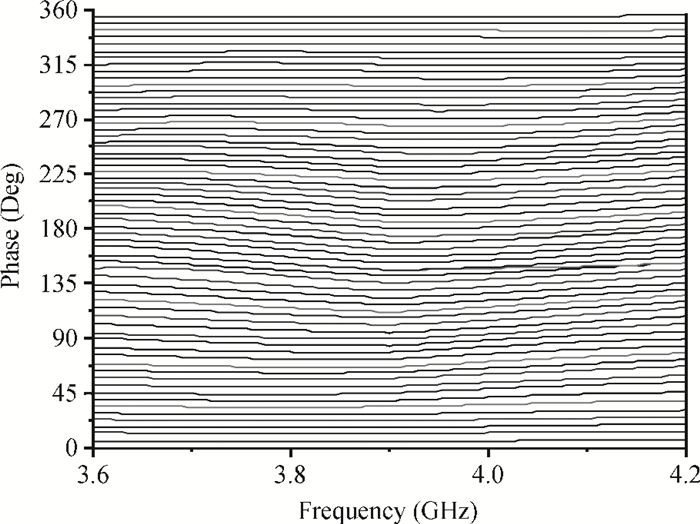

Fig. 4.  Measured phase shifter in all 64 phase states.

DownLoad: Full-Size Img PowerPoint

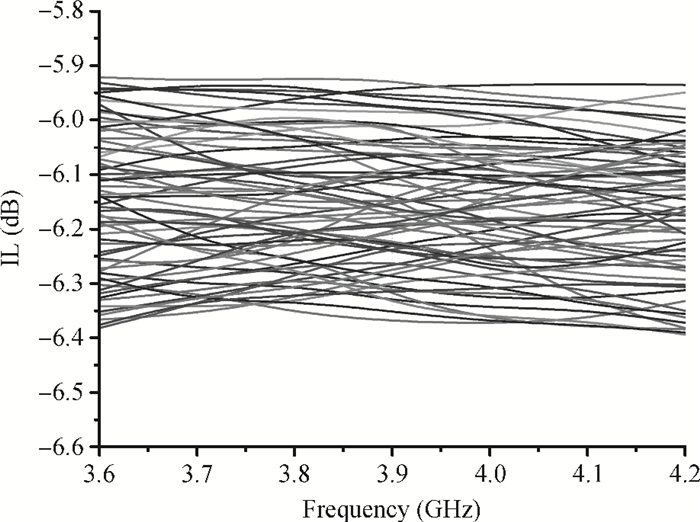

Fig. 5.  Measured insertion loss of all states.

DownLoad: Full-Size Img PowerPoint

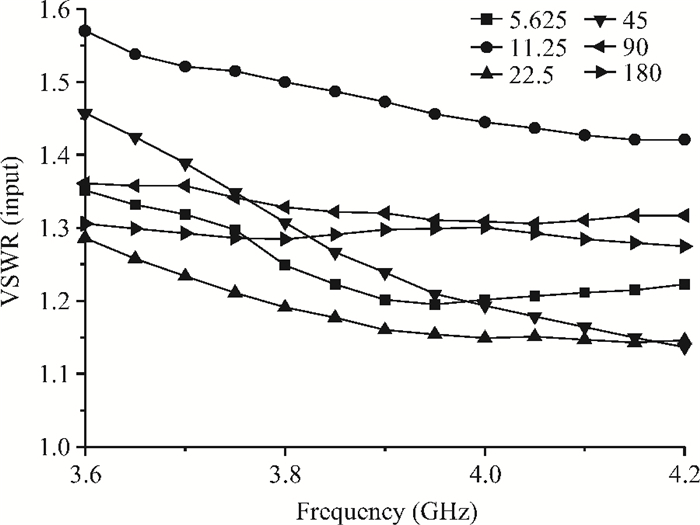

Fig. 6.  Measured input VSWR.

DownLoad: Full-Size Img PowerPoint

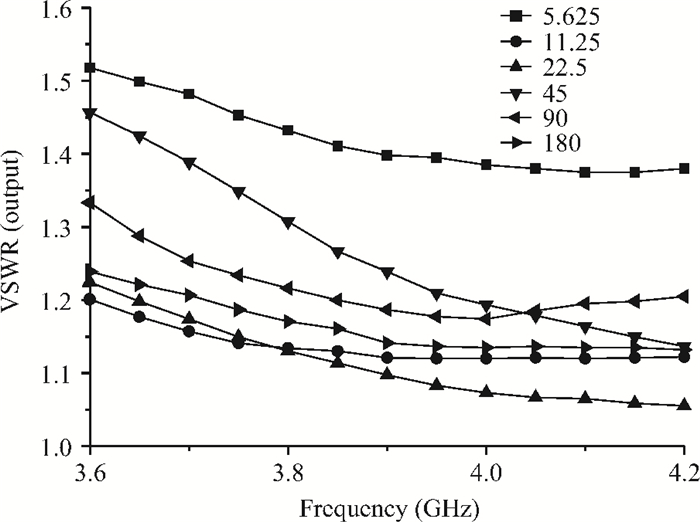

Fig. 7.  Measured output VSWR.

DownLoad: Full-Size Img PowerPoint

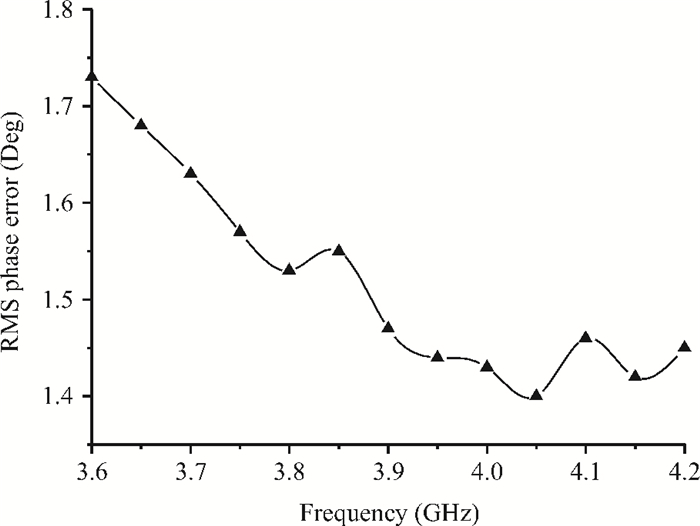

Fig. 8.  Measured RMS phase error.
