An implantable neurostimulator with an integrated high-voltage inductive power-recovery frontend

Yuan Wang, Xu Zhang, Ming Liu, Peng Li and Hongda Chen

+ Author Affiliations

 Corresponding author: Zhang Xu, Email:zhangxu@semi.ac.cn

DOI: 10.1088/1674-4926/35/10/105012

PDF

Abstract: This paper present a highly-integrated neurostimulator with an on-chip inductive power-recovery frontend and high-voltage stimulus generator. In particular, the power-recovery frontend includes a high-voltage full-wave rectifier (up to 100 V AC input), high-voltage series regulators (24/5 V outputs) and a linear regulator (1.8/3.3 V output) with bandgap voltage reference. With the high voltage output of the series regulator, the proposed neurostimulator could deliver a considerably large current in high electrode-tissue contact impedance. This neurostimulator has been fabricated in a CSMC 1 μm 5/40/700 V BCD process and the total silicon area including pads is 5.8 mm2. Preliminary tests are successful as the neurostimulator shows good stability under a 13.56 MHz AC supply. Compared to previously reported works, our design has advantages of a wide induced voltage range (26-100 V), high output voltage (up to 24 V) and high-level integration, which are suitable for implantable neurostimulators.

Key words: high-voltage techniques, implantable biomedical devices, inductive power transmission, linear regulator, neurostimulation



[1]
Ghovanloo M, Najafi K. A compact large voltage-compliance high output-impedance programmable current source for implantable microstimulators. IEEE Trans Biomedical Eng, 2005, 52(1):97 doi: 10.1109/TBME.2004.839797
[2]
Zhang Xu, Pei Weihua, Huang Beiju, et al. Low power CMOS preamplifier for neural recording applications. Journal of Semiconductors, 2010, 31(4):045002 doi: 10.1088/1674-4926/31/4/045002
[3]
Gui Yun, Zhang Xu, Wang Yuan, et al. A multi-channel fully differential programmable integrated circuit for neural recording application. Journal of Semiconductors, 2013, 34(10):105009 doi: 10.1088/1674-4926/34/10/105009
[4]
Thil M A, Gerard B, Jarvis J C, et al. Tissue-electrode interface changes in the first week after spiral cuff implantation: preliminary results. 9th Annual Conference of the International FES Society, Bournemouth, UK, 2004
[5]
Mounai F, Sawan M. New neurostimulation strategy and corresponding implantable device to enhance bladder functions. Biomed Eng, Trends Electron, Commun Softw, InTech, 2011
[6]
Sit J, Sarpeshkar R. A low-power blocking-capacitor-free charge-balanced electrode-stimulator chip with less than 6 nA DC error for 1-mA full-scale stimulation. IEEE Trans Biomedical Circuits and Systems, 2007, 1(3):172 doi: 10.1109/TBCAS.2007.911631
[7]
Constandinou T G, Georgiou J, Toumazou C. A partial-current-steering biphasic stimulation driver for vestibular prostheses. IEEE Trans Biomedical Circuits Syst, 2008, 2(2):106 doi: 10.1109/TBCAS.2008.927238
[8]
Mounaim F, Sawan M. Toward a fully integrated neurostimulator with inductive power recovery front-end. IEEE Trans Biomedical Circuits and Systems, 2012, 6(4):309 doi: 10.1109/TBCAS.2012.2185796
[9]
Williams I, Constandinou T G. An energy-efficient, dynamic voltage scaling neural stimulator for a proprioceptive prosthesis. IEEE Trans Biomedical Circuits and Systems, 2013, 7(2):129 doi: 10.1109/TBCAS.2013.2256906
[10]
Mounaim F, Sawan M. Integrated high-voltage inductive power and data-recovery front end dedicated to implantable devices. IEEE Trans Biomedical Circuits and Systems, 2011, 5(3):283 doi: 10.1109/TBCAS.2010.2103558
[11]
Huang Y C, Ker M D, Lin C Y. Design of negative high voltage generator for biphasic stimulator with soc integration consideration. IEEE Biomedical Circuits and Systems Conference, Hsinchu, 2012
[12]
Ma Q, Haider M R, Islam S K. A high efficiency inductive power link and backward telemetry for biomedical applications. IEEE Sensors, Kona, HI, 2010
[13]
Wang Yi, He Lenian, Yan Xiaolang. A 30 nA temperature-independent CMOS current reference and its application in an LDO. Chinese Journal of Semiconductors, 2006, 27(9):1657 http://www.jos.ac.cn/bdtxben/ch/reader/view_abstract.aspx?file_no=06021403&flag=1
[14]
Lau S K, Leung K N, Mok P K. Analysis of low-dropout regulator topologies for low-voltage regulation. IEEE Conference on Electron Devices and Solid-State Circuits, 2003:379
[15]
Mounaim F, Sawan M, El-Gamal M. Fully-integrated inductive power recovery front-end dedicated to implantable devices. IEEE Biomedical Circuits and Systems Conference, Baltimore, MD, 2008

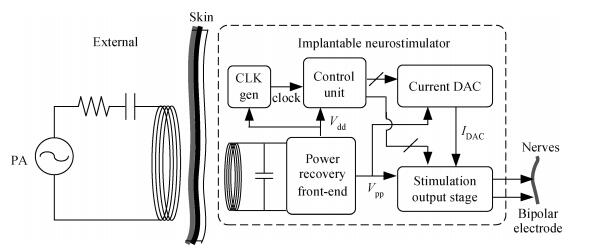

Fig. 1.  Architecture of a conventional inductive-powered neurostimulator

DownLoad: Full-Size Img PowerPoint
Fig. 2.  Dual power supply approach. (a) Step-up. (b) Step-down

DownLoad: Full-Size Img PowerPoint

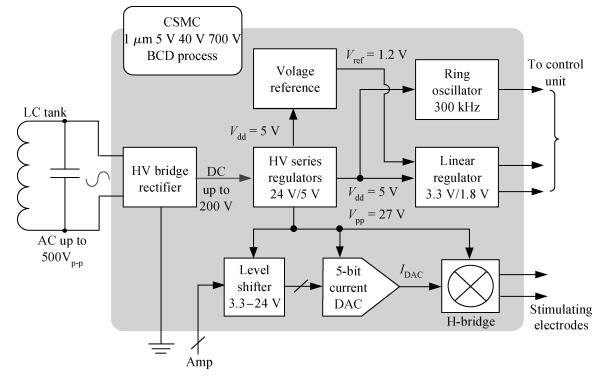

Fig. 3.  Structure of the proposed neurostimulator

DownLoad: Full-Size Img PowerPoint

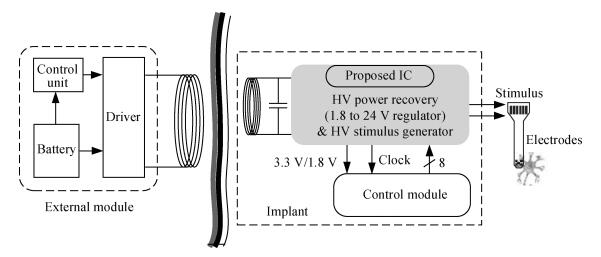

Fig. 4.  Typical application of the proposed chip

DownLoad: Full-Size Img PowerPoint

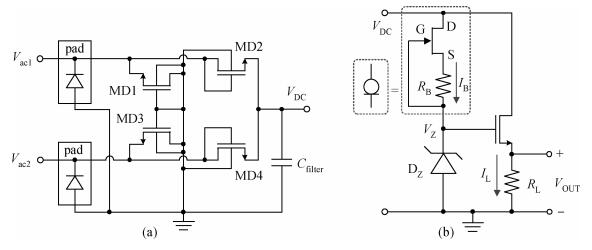

Fig. 5.  Schematic of the (a) HV rectifier and (b) HV series regulator

DownLoad: Full-Size Img PowerPoint

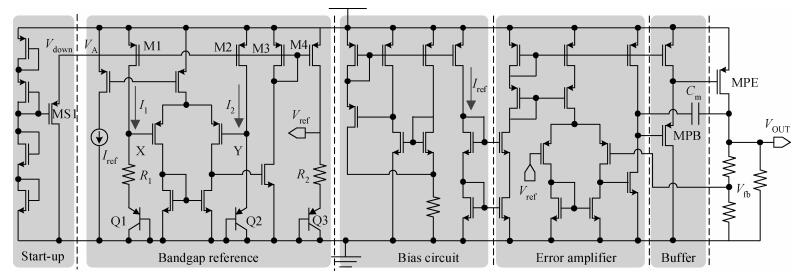

Fig. 6.  Detailed schematic of the proposed linear regulator

DownLoad: Full-Size Img PowerPoint

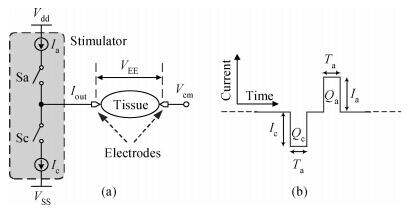

Fig. 7.  (a) Structure of a conventional monopolar current stimulator, and (b) current waveform of biphasic stimulus pulses

DownLoad: Full-Size Img PowerPoint

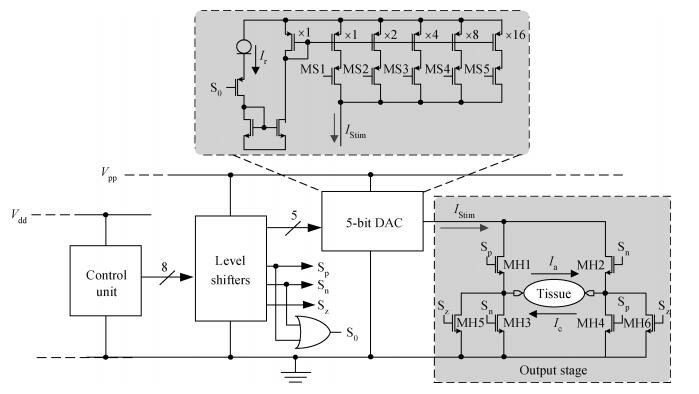

Fig. 8.  Structure of the proposed HV stimulator

DownLoad: Full-Size Img PowerPoint

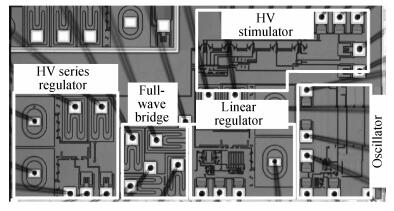

Fig. 9.  Micrograph of the proposed chip

DownLoad: Full-Size Img PowerPoint

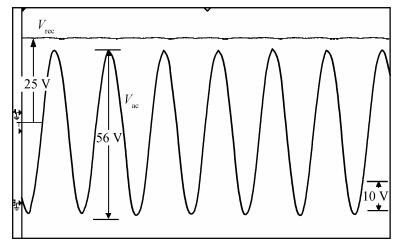

Fig. 10.  The measured waveforms of the rectifier

DownLoad: Full-Size Img PowerPoint

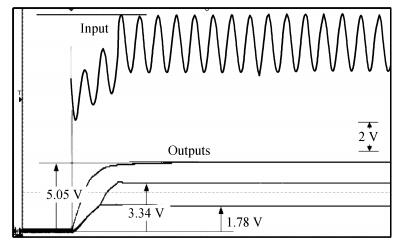

Fig. 11.  The oscilloscope capture of the regulator startup and large input variations

DownLoad: Full-Size Img PowerPoint
Fig. 12.  The linearity of DAC: load current versus digital code

DownLoad: Full-Size Img PowerPoint
Fig. 13.  Measured INL and DNL of the proposed DAC

DownLoad: Full-Size Img PowerPoint

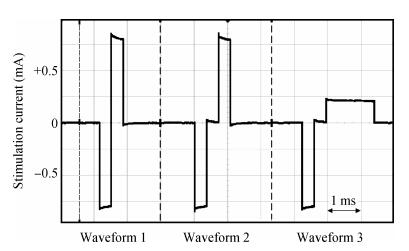

Fig. 14.  Output waveforms of the stimulator
