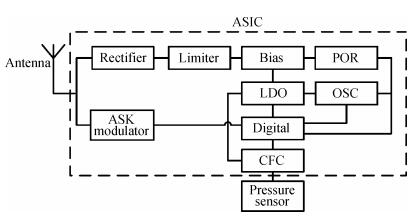

Fig. 1.
System design
DownLoad:
| Citation: |
Demeng Liu, Niansong Mei, Zhaofeng Zhang. An ultralow power wireless intraocular pressure monitoring system[J]. Journal of Semiconductors, 2014, 35(10): 105014. doi: 10.1088/1674-4926/35/10/105014
****
D M Liu, N S Mei, Z F Zhang. An ultralow power wireless intraocular pressure monitoring system[J]. J. Semicond., 2014, 35(10): 105014. doi: 10.1088/1674-4926/35/10/105014.
|
An ultralow power wireless intraocular pressure monitoring system
DOI: 10.1088/1674-4926/35/10/105014
More Information
-
Abstract

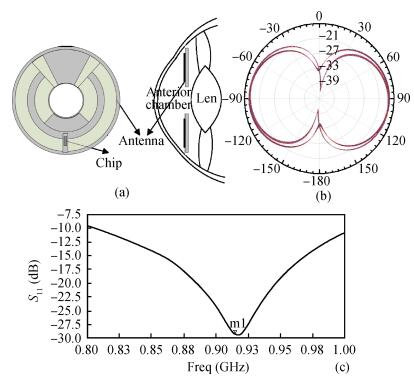

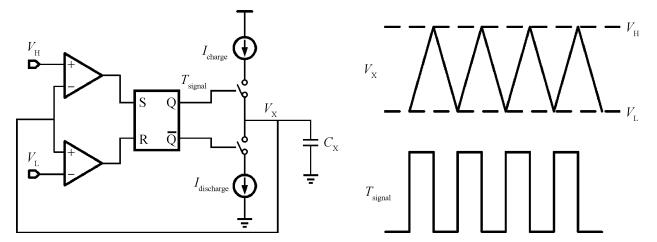

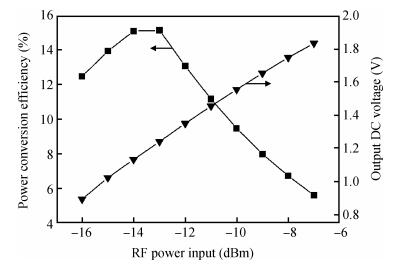

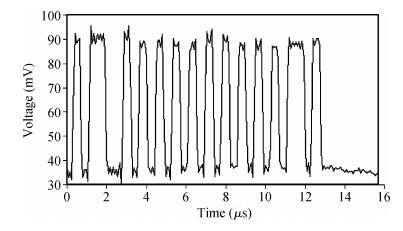

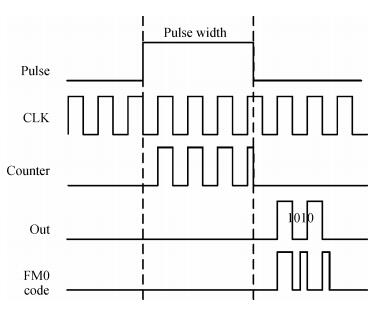

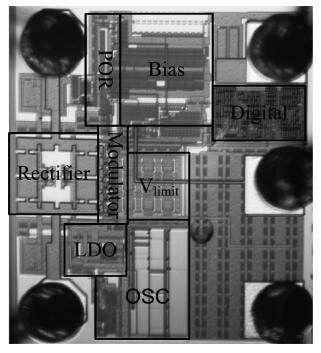

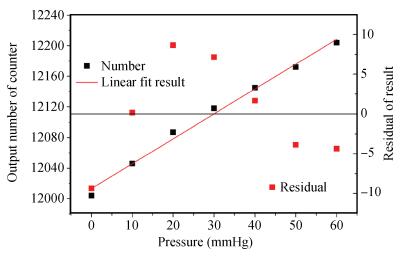

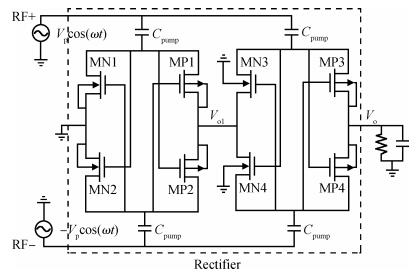

This paper describes an ultralow power wireless intraocular pressure (IOP) monitoring system that is dedicated to sensing and transferring intraocular pressure of glaucoma patients. Our system is comprised of a capacitive pressure sensor, an application-specific integrated circuit, which is designed on the SMIC 180 nm process, and a dipole antenna. The system is wirelessly powered and demonstrates a power consumption of 7.56 μW at 1.24 V during continuous monitoring, a significant reduction in active power dissipation compared to existing work. The input RF sensitivity is -13 dBm. A significant reduction in input RF sensitivity results from the reduction of mismatch time of the ASK modulation caused by FM0 encoding. The system exhibits an average error of ±1.5 mmHg in measured pressure. Finally, a complete IOP system is demonstrated in the real biological environment, showing a successful reading of the pressure of an eye.-
Keywords:
- IOP,
- implanted medical,
- pressure measurement,
- RF powering,
- ultralow power ASIC
-
References
[1] Quigley H, Broman A. The number of people with glaucoma worldwide in 2010 and 2020. British Journal of Ophthalmology, 2006, 90(3):262 doi: 10.1136/bjo.2005.081224[2] Katuri K C, Asrani S, Ramasubramanian M K. Intraocular pressure monitoring sensors. IEEE Sensors Journal, 2008, 8(1):12[3] Shih Y C, Shen T, Otis B. A 2.3μW wireless intraocular pressure/temperature monitor. IEEE J Solid-State Circuits, 2011, 46(11):1 doi: 10.1109/JSSC.2011.2172727[4] Chen G, Ghaed H, Haque R, et al. A cubic-millimeter energy-autonomous wireless intraocular pressure monitor. IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), San Francisco, USA, 2011:310[5] Chow E Y, Chlebowski A L, Irazoqui P P. A miniature-implantable RF-wireless active glaucoma intraocular pressure monitor. IEEE Trans Biomedical Circuits Syst, 2010, 4(6):340 doi: 10.1109/TBCAS.2010.2081364[6] Chen P J, Saati S, Varma R, et al. Wireless intraocular pressure sensing using microfabricated minimally invasive flexible-coiled LC sensor implant. J Microelectromechan Syst, 2010, 19(4):721 doi: 10.1109/JMEMS.2010.2049825[7] Leonardi M, Pitchon E M, Bertsch A, et al. Wireless contact lens sensor for intraocular pressure monitoring:assessment on enucleated pig eyes. Acta Ophthalmologica, 2009, 87(4):433 doi: 10.1111/aos.2009.87.issue-4[8] Liu Demeng, Wu Miao, Mei Niansong, et al. Development and outlook of wireless implantable continuously intraocular pressure detection microsystem. Micronanoelectron Technol, 2013, 50(1):57[9] Capacitive Pressure Sensor E1. 3N, M. Bremen, Editor 2008: Bremen[10] Kim S, Scholz O. Implantable active telemetry system using microcoils. Conf Proc IEEE Eng Med Biol Soc, 2005, 7:7147[11] Stangel K, Kolnsberg S, Hammerschmidt D, et al. A programmable intraocular CMOS pressure sensor system implant. IEEE J Solid-State Circuits, 2001, 36(7):1094 doi: 10.1109/4.933466[12] Gemio J, Parron J, Soler J. Human body effects on implantable antennas for ISM bands applications:models comparison and propagation losses study. Progress in Electromagnetics Research, 2010, 110:437 doi: 10.2528/PIER10102604[13] Poon A S Y, O'Driscoll S, Meng T H. Optimal operating frequency in wireless power transmission for implantable devices. 29th Annual International Conference of the IEEE Engineering in Medicine and Biology Society, 2007:5673 -
