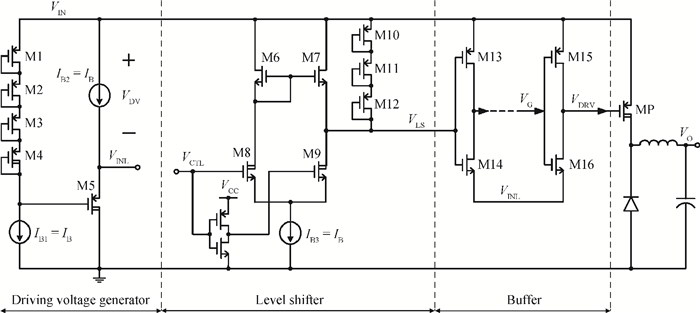

Fig. 1.
Schematic of the conventional PLDMOS driving circuit
DownLoad:
| Citation: |
Yajun Li, Xinquan Lai, Qiang Ye, Bing Yuan. Driving circuit with high accuracy and large driving capability for high voltage buck regulators[J]. Journal of Semiconductors, 2014, 35(12): 125009. doi: 10.1088/1674-4926/35/12/125009
****
Y J Li, X Q Lai, Q Ye, B Yuan. Driving circuit with high accuracy and large driving capability for high voltage buck regulators[J]. J. Semicond., 2014, 35(12): 125009. doi: 10.1088/1674-4926/35/12/125009.
|
Driving circuit with high accuracy and large driving capability for high voltage buck regulators
DOI: 10.1088/1674-4926/35/12/125009
More Information
-
Abstract

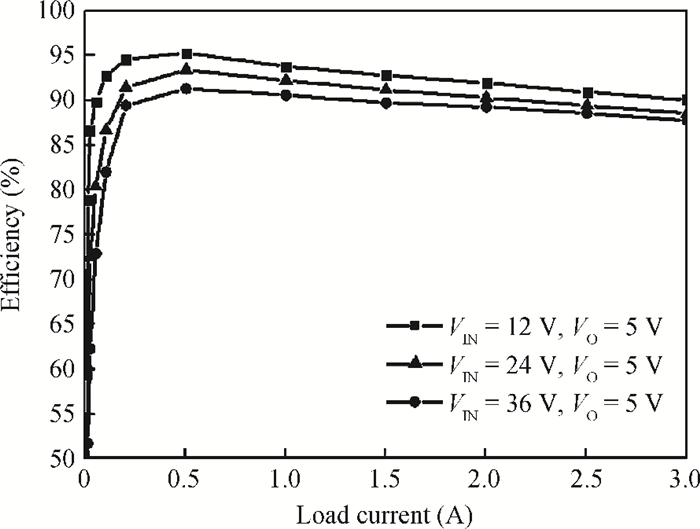

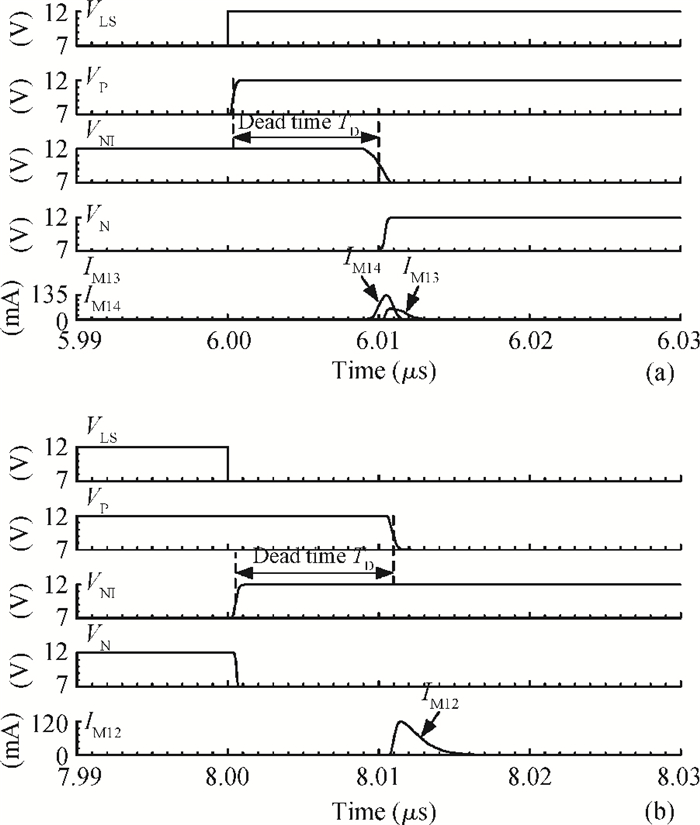

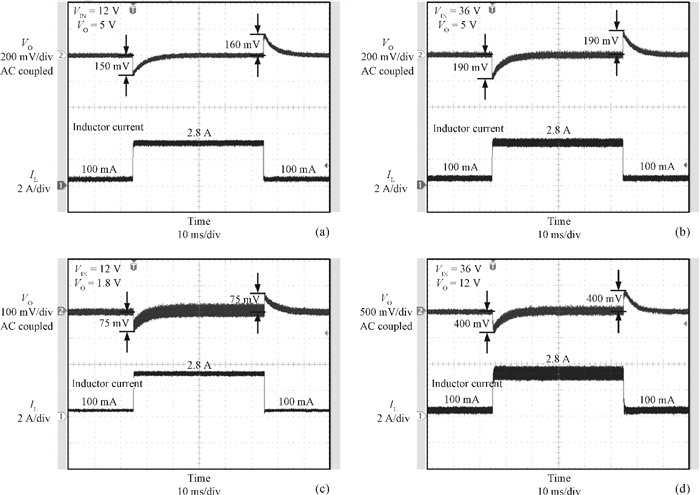

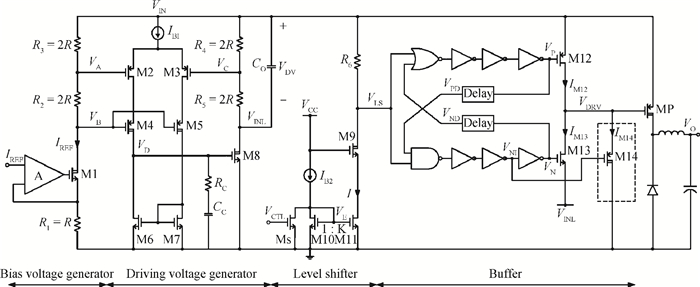

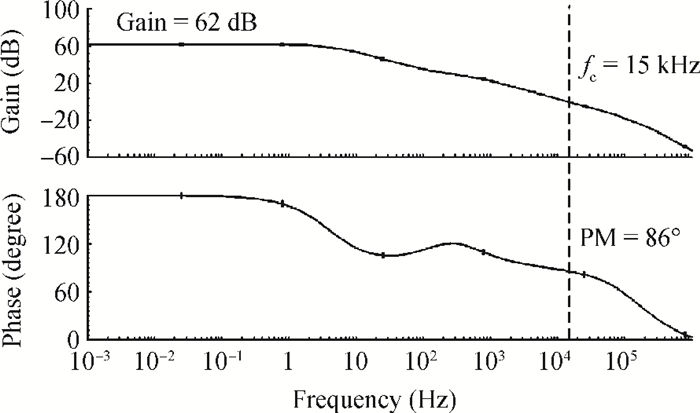

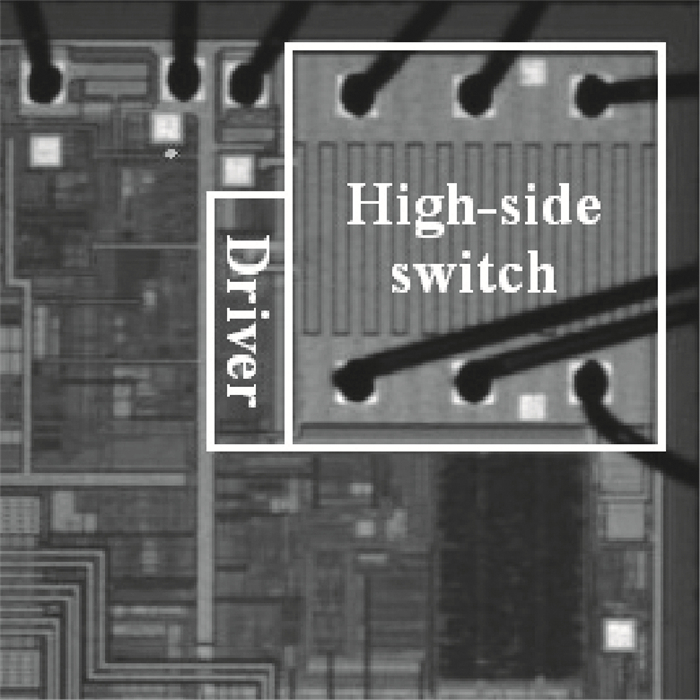

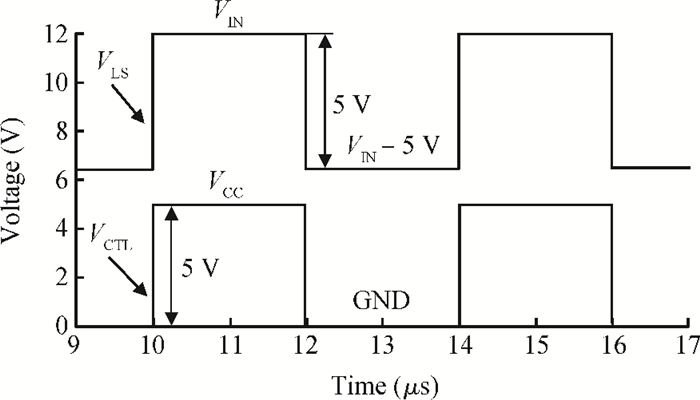

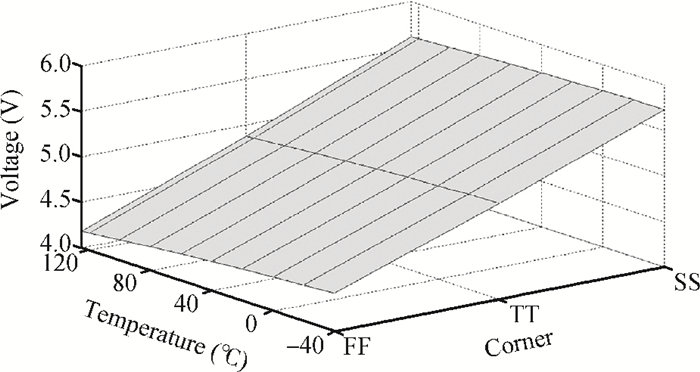

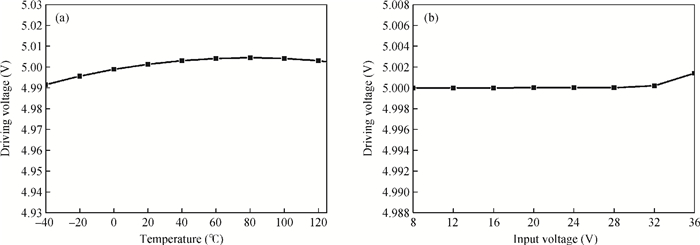

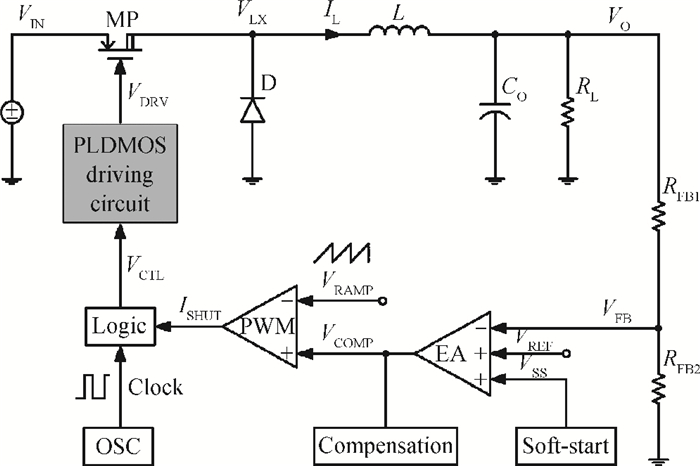

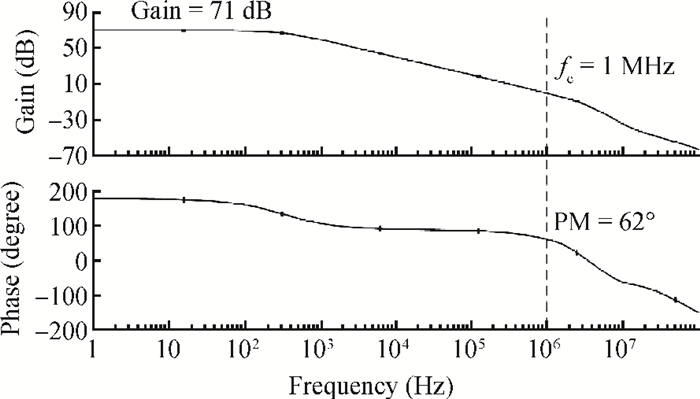

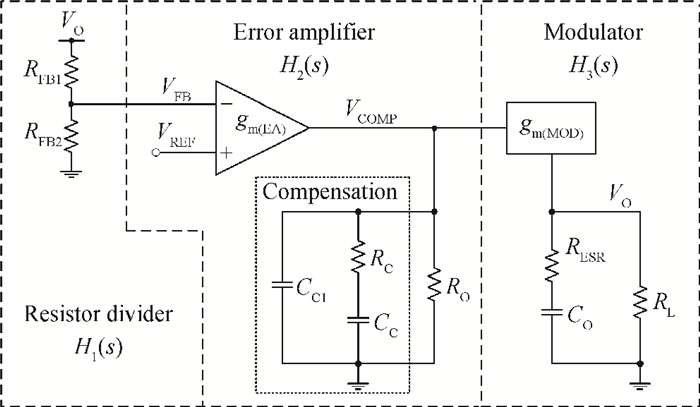

This paper presents a novel driving circuit for the high-side switch of high voltage buck regulators. A 40 V P-channel lateral double-diffused metal-oxide-semiconductor device whose drain-source and drain-gate can resist high voltage, but whose source-gate must be less than 5 V, is used as the high-side switch. The proposed driving circuit provides a stable and accurate 5 V driving voltage for protecting the high-side switch from breakdown and achieving low on-resistance and simple loop stability design. Furthermore, the driving circuit with excellent driving capability decreases the switching loss and dead time is also developed to reduce the shoot-through current loss. Therefore, power efficiency is greatly improved. An asynchronous buck regulator with the proposed technique has been successfully fabricated by a 0.35 μm CDMOS technology. From the results, compared with the accuracy of 16.38% of the driving voltage in conventional design, a high accuracy of 1.38% is achieved in this work. Moreover, power efficiency is up to 95% at 12 V input and 5 V output.-
Keywords:
- high voltage,
- buck regulator,
- PLDMOS,
- driving circuit,
- dead time
-
References
[1] Li Y, Lai X, Ye Q, et al. Novel short-circuit protection technique for DC-DC buck converters. IET Circuits, Devices & Systems, 2014, 8(2):90 http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6766062[2] Lai Xinquan, Zeng Huali, Ye Qiang, et al. Design of high efficiency dual-mode buck DC-DC converter. Journal of Semiconductors, 2010, 31(11):115005 doi: 10.1088/1674-4926/31/11/115005[3] Yuan B, Lai X, Wang H, et al. High-efficient hybrid buck converter with switch-on-demand modulation and switch size control for wide-load low-ripple applications. IEEE Trans Microw Theory Tech, 2013, 61(9):3329 doi: 10.1109/TMTT.2013.2271757[4] Lai Xinquan, Li Zuhe, Yuan Bing, et al. Control of chaos in double-loop current-mode DC/DC based on adaptive slope compensation. Acta Physica Sinica, 2010, 59(4):2256 http://www.oalib.com/paper/1541344[5] Zhang Chunhong, Yang Haigang, Shi Richard. A wide load range, multi-mode synchronous buck DC-DC converter with a dynamic mode controller and adaptive slope compensation. Journal of Semiconductors, 2013, 34(6):065003 doi: 10.1088/1674-4926/34/6/065003[6] Wu Xiaobo, Liu Qing, Zhao Menglian, et al. Monolithic quasi-sliding-mode controller for SIDO buck converter with a self-adaptive free-wheeling current level. Journal of Semiconductors, 2013, 34(1):015007 doi: 10.1088/1674-4926/34/1/015007[7] Wang H, Hu X, Liu Q, et al. An on-chip high-speed current sensor applied in the current-mode DC-DC converter. IEEE Trans Power Electron, 2014, 29(9):4479 doi: 10.1109/TPEL.2014.2302318[8] Wang H, Ma Y, Cheng J. Soft-start method with small capacitor charged by pulse current and gain-degeneration error amplifier for on-chip DC-DC power converters. IEEE Trans VLSI Syst, 2013, 21(8):1447 doi: 10.1109/TVLSI.2012.2211388[9] Li Yanming, Lai Xinquan, Ye Qiang, et al. A current-mode buck DC-DC controller with adaptive on-time control. Journal of Semiconductors, 2009, 30(2):025007 doi: 10.1088/1674-4926/30/2/025007[10] Li Y, Mao X, Wang H, et al. An improved hiccup mode short-circuit protection technique with effective overshoot suppression for DC-DC converters. IEEE Trans Power Electron, 2013, 28(2):877 doi: 10.1109/TPEL.2012.2203611[11] Zhang Shifeng, Ding Koubao, Han Yan, et al. Off-state avalanche breakdown induced degradation in 20 V NLDMOS devices. Journal of Semiconductors, 2010, 31(9):094006 doi: 10.1088/1674-4926/31/9/094006[12] Han Yan, Zhang Bin, Ding Koubao, et al. Hot-carrier-induced on-resistance degradation of step gate oxide NLDMOS. Journal of Semiconductors, 2010, 31(12):124006 doi: 10.1088/1674-4926/31/12/124006[13] Zhang S, Han Y, Ding K, et al. Off-state avalanche-breakdown-induced on-resistance degradation in SGO-NLDMOS. Solid-State Electron, 2013, 81:27 doi: 10.1016/j.sse.2012.12.012[14] Lai Xinquan, Ye Qiang, Li Yajun, et al. Anti-ringing circuit applied to high-voltage boosting type DC-DC converter. Chinese Patent, No. ZL201110442833. X, 2011[15] Lai Xinquan, Tang Qiyuan, Li Yanming, et al. Driving circuit for charge management chip with external high-voltage N-channel metal oxide semiconductor (NMOS) transistor. Chinese Patent, No. ZL201310277673. 7, 2013[16] Li Yajun, Lai Xinquan, Ye Qiang, et al. High efficiency and low electromagnetic interference boost DC-DC converter. Journal of Semiconductors, 2014, 35(4):045002 doi: 10.1088/1674-4926/35/4/045002[17] Ye Qiang, Liu Jie, Yuan Bing, et al. On-chip frequency compensation with a dual signal path operational transconductance amplifier for a voltage mode control DC/DC converter. Journal of Semiconductors, 2012, 33(4):045006 doi: 10.1088/1674-4926/33/4/045006[18] Lai Xinquan, Li Xinlin, Ye Qiang, et al. A constant-gm and high-slew-rate operational amplifier for an LCD driver. Journal of Semiconductors, 2009, 30(12):125002 doi: 10.1088/1674-4926/30/12/125002[19] Yuan B, Lai X, Ye Q, et al. A novel compact soft-start circuit with internal circuitry for DC-DC converters. International Conference on ASIC, 2007:450 http://yadda.icm.edu.pl/yadda/element/bwmeta1.element.ieee-000004415664[20] Yuan B, Lai X, Ye Q, et al. Ramp-based soft-start circuit with soft-recovery for DC-DC buck converters. IEEE International Conference of Electron Devices and Solid-State Circuits, 2013:1 http://ieeexplore.ieee.org/document/6628196/[21] Li Y, Wen C, Yuan B, et al. A high speed and power-efficient level shifter for high voltage buck converter drivers. IEEE International Conference on Solid-State and Integrated Circuit Technology, 2010:309 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=5667742[22] Eutech Microelectronics. CC/CV Mode Step-Down Converter. [Online] Available: http://www.eutechmicro.com/d.php?cn=products&d=upload/2014/07/20140709180320.pdf -
