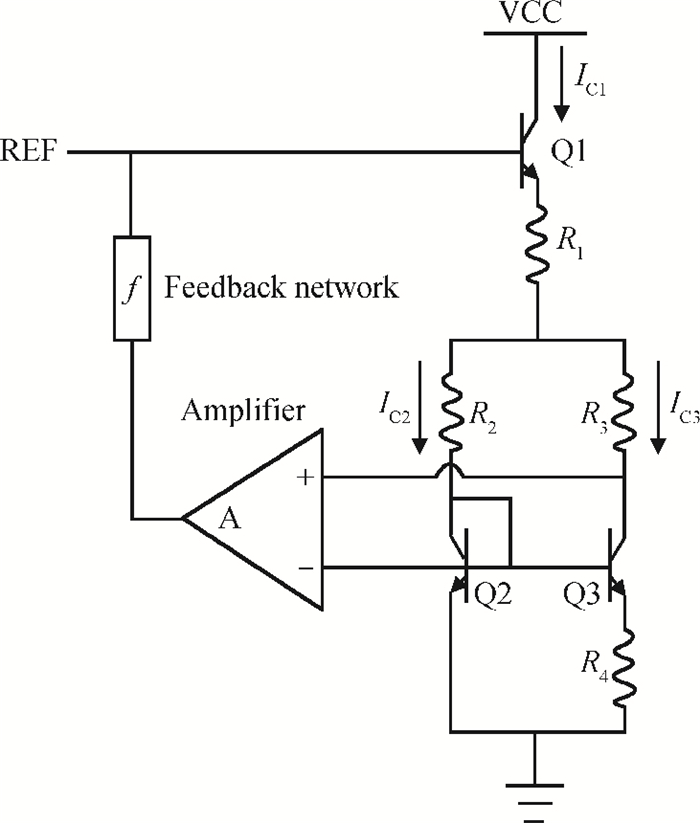

Fig. 1.
Bandgap reference circuit.
DownLoad:
| Citation: |
Guodong Ren, Shifang Zhao, Zhongshen Pu, Zhiqiang Wei. Compact trimming design of a high-precision reference[J]. Journal of Semiconductors, 2014, 35(4): 045008. doi: 10.1088/1674-4926/35/4/045008
****
G D Ren, S F Zhao, Z S Pu, Z Q Wei. Compact trimming design of a high-precision reference[J]. J. Semicond., 2014, 35(4): 045008. doi: 10.1088/1674-4926/35/4/045008.
|
Compact trimming design of a high-precision reference
DOI: 10.1088/1674-4926/35/4/045008
More Information
-
Abstract

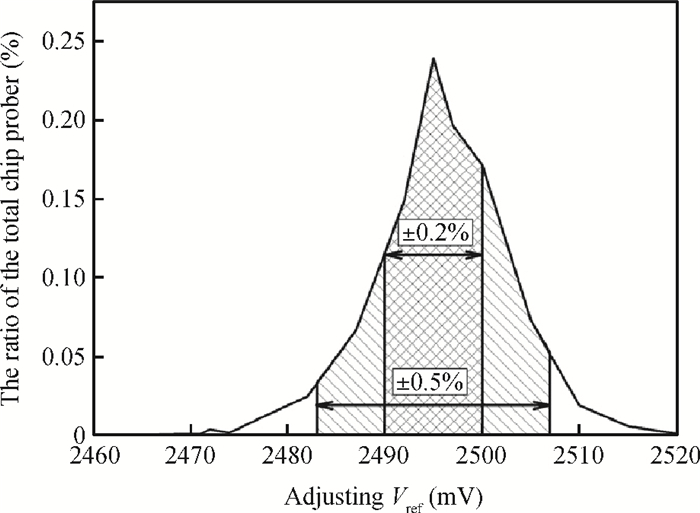

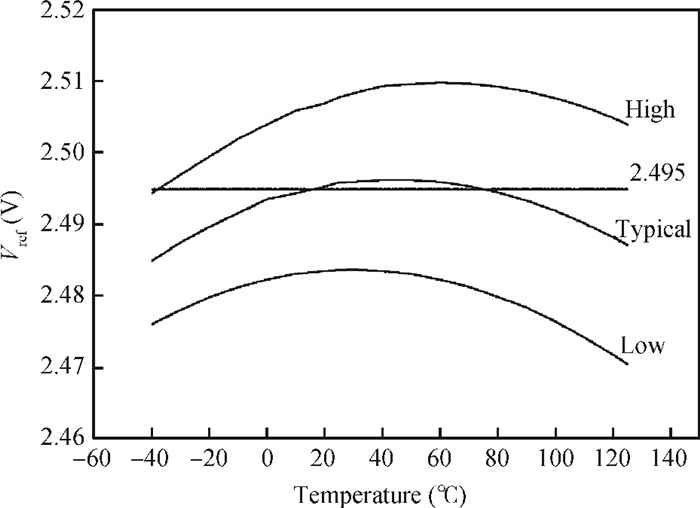

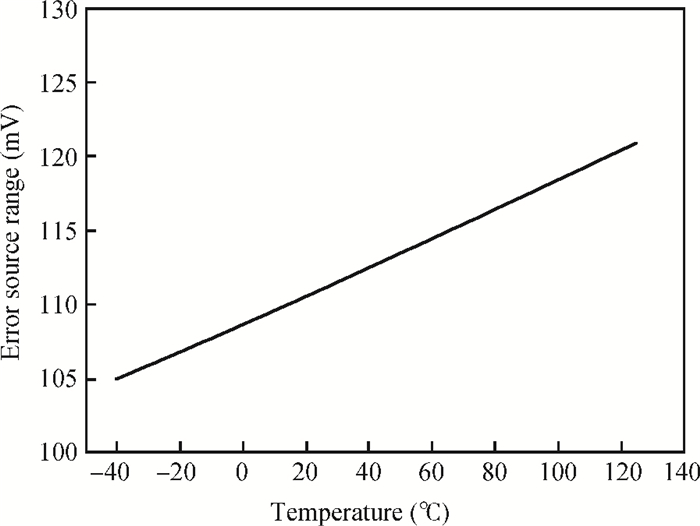

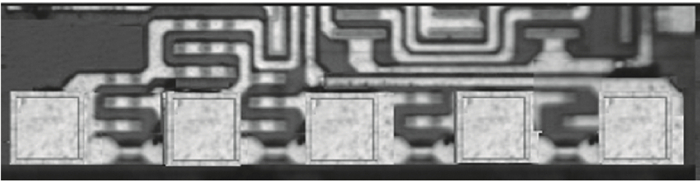

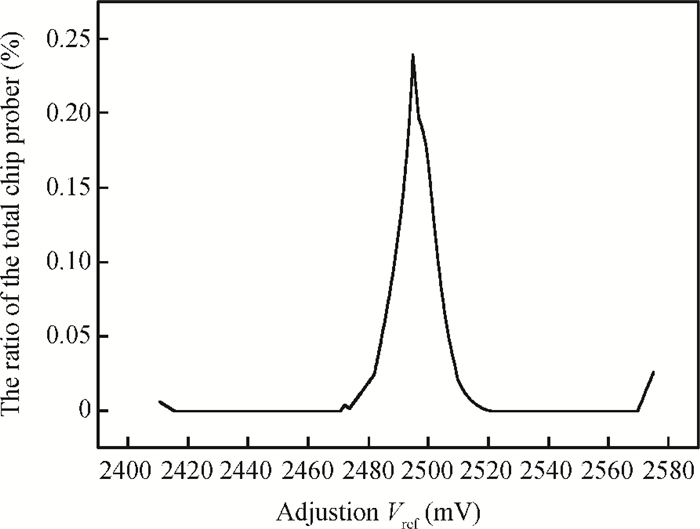

To design a high-precision reference, the various error sources have been analyzed and compensated with a compact 111 mV resistor-trim scheme and the upper and lower extremes of the reference precision are also temperature-compensated. At room temperature, the yield of ±0.5% precision is 96% and ±0.2% is 78%.-
Keywords:
- high-precision,
- error sources,
- trim,
- temperature-compensated
-
